Communication - Mobile Broadband

Intellian Enterprise Land Mobile Outdoor Antenna Unit [MS-OW11FFG]

Ships Direct From Manufacturer

Enterprise Land Mobile Outdoor Antenna Unit

The OW11FV is the ideal Flat Panel user terminal for Government and Transportation markets, delivering low-latency, high-speed connectivity and reliability for critical communications, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FV delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of land mobile customers.
• Seamless Connectivity - The OW11FV features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11FV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FV enable easy installation by a single person. Paired with Intellian’s Mobile mount adapter kit, the UT is easily installed on vehicles of any size. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the outdoor and CNX unit. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Brochure (pdf)

Intellian v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight [VE-60-E1YN]

Ships Direct From Manufacturer

v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight

Reliable & Powerful 65cm Maritime System - Light. Affordable. Powerful.

Advanced Performance and Design

Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 65 cm class systems. The v60E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.

Controlled Costs with Light and Compact Form-factor

With its light and compact form-factor, the cost of installation and logistics is reduced. The weight of the antenna system is only 42kg, allowing installation without a crane and this saves the total cost of installation.

Simplified installation & enhanced AptusNX

Combining Tx, Rx and DC power into one coaxial cable solution with an external dome-on connection enables faster and reduced costs of installation for the v60E. It also eliminates the need to remove the radome during installation. Users can commission the system using AptusNX by simply plugging a laptop into the ACU, without any need to download extra software. The AptusNX uses an installation wizard with a step-by-step commissioning guide to easily complete setup, and with enhanced diagnostic capabilities, the AptusNX can send an alert to the network operator when preventative maintenance is required.

Features:

• Single coaxial cable
• Gyro-free Operation
• Pain-free Installation
• Global Satellite Library
• AptusNX
• Auto Beam Switching (ABS)
• Simplified 6W Single BUC
• Open Platform compatibility

Brochure (pdf)

KVH TracPhone V7-HTS Ku-Band 24" mini-VSAT [01-0408-15]

Ships Direct From Manufacturer

TracPhone V7-HTS 24" Rack Mounted

TracPhone V7HTS includes KVH's exclusive dual channel configuration with innovative hybrid airtime plans that deliver a free unlimited use data channel running at the same time as your ultra-fast channel.

Enterprise-Grade Ku-Band VSAT Antenna

The TracPhone V7-HTS is a quantum leap in maritime satellite communications, offering high-throughput global connectivity via next-generation satellites as an overlay on the industry-leading mini-VSAT Broadband Network. Developed by KVH specifically for the mini-VSAT Broadband Network, TracPhone V7-HTS uses a 60 cm-diameter antenna dish, in a 66 cm-diameter antenna unit. The 3-axis gyro-stabilized maritime VSAT antenna with a 4th axis of automatic skew adjustment boasts an extended elevation range of -24° to 119° ensuring that the antenna tracks satellites directly above the vessel to low on the horizon.

The Most Advanced Maritime Network Available

TracPhone V7HTS delivers global connections and unmatched speed using new, advanced Intelsat and SKY Perfect JSAT Ku-band satellites that add HTS capabilities to the mini-VSAT Broadband network. KVH's high-speed worldwide HTS network offers critical advantages over other maritime networks for your personal, operational, and crew connections including:

• 25 million square miles added to KVH’s already industry-leading Ku-band coverage, delivering unprecedented coverage for 10/3 Mbps (download/upload)* connectivity
• greater resilience to weather and rain fade than Ka-band networks
• no fall back onto antiquated L-band satellites due to rain fade or network beam availability issues
• integrated cybersecurity using advanced network-level firewall and automated threat management
• automatic, fast switching among high-speed network beams, ensuring seamless communications wherever you cruise

Because Connections Matter...

Communications are critical for your yacht’s operations as well as ensuring that everyone on board enjoys the benefits of broadband connections to keep connected when at sea. That’s why TracPhone V7-HTS is designed specifically with the rigors of the marine environment in mind, and includes elements like:

• Innovative hybrid airtime plans that deliver a free unlimited use data channel running at the same time as your ultra-fast channel
• 2U high all-in-one Integrated CommBox Modem (ICM)
• Proactive monitoring to ensure maximum uptime and performance
• Secure myKVH Portal with mini-VSAT Manager for unmatched control and monitoring
• IP-MobileCast compatibility to keep everyone onboard happy with delivery of daily news and licensed entertainment, and your captain and crew up-to-date with delivery of operational information such as charts, weather, and training

The Integrated CommBox Modem (ICM)

The ICM is the streamlined all-in-one belowdecks unit that drives the TracPhone V7HTS. It features a browser-based user interface and a convenient iPhone® app for system status, updates, and support. Replacing a full rack of components required for competitors’ systems, the 2U-high ICM contains:

• IP-enabled antenna control unit
• CommBox™ Network Manager
• High-throughput modem Voice over IP (VoIP) adapter
• Built-in Wi-Fi and Ethernet switch
• Content storage and access for operations, entertainment and Videotel training content provided by IP-MobileCast™
• Support for over-the-air software updates for the ICM and antenna unit

IP-MobileCast Content Delivery Service

KVH’s IP-MobileCast service delivers large files, including electronic charts, weather forecasts, training videos, news, sports, TV shows and series, and premium movies. IP-MobileCast uses proprietary software that provides advanced error correction, compression, and validation of data integrity throughout the transmission from shore to ship for unparalleled reliability and efficiency. Shoreside servers encode files for transmission and queue them for multicast delivery “over the top” of the mini-VSAT Broadband network. The IP-MobileCast service’s patented Forward Error Correction (FEC) technology ensures that the CommBox servers on ships receive each file in perfect condition the first time it is transmitted. The unique FEC algorithms deliver the highest level of reliability by accommodating intermittent non-continuous transmission, which might happen when large transmissions are interrupted by prioritized network traffic or in very poor weather conditions.

Specifications:

• Speed - Max: 10/3 Mbps (down/up)
• Wireless: Yes
• Box Dimensions: 35"H x 41"W x 54"L WT: 150 lbs
• UPC: 028327013145

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

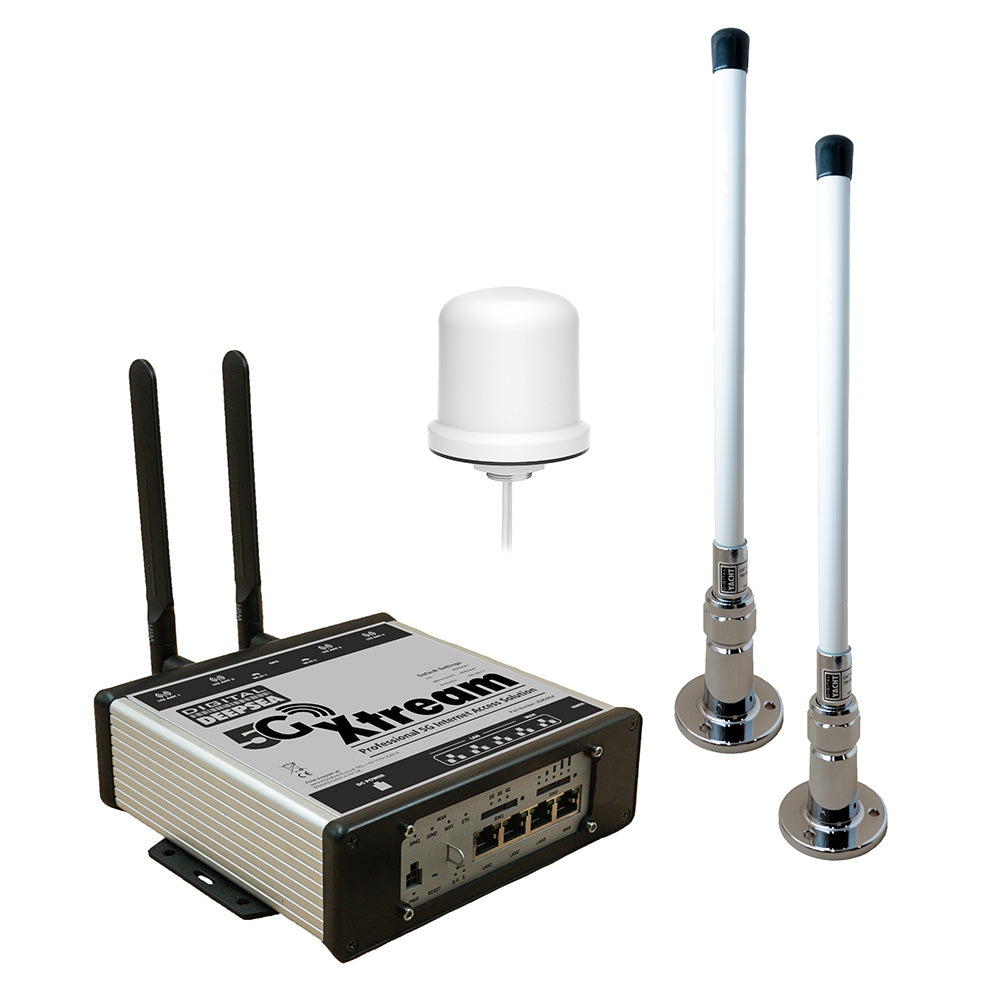

5G Xtream System with 3 Antennas & 7M Cable

For boat owners looking for ultra-fast internet on board, the new 5G Xtream from Digital Yacht offers 4G and 5G connectivity as well as integration with Starlink satellite systems for the best and most affordable blended internet afloat.

The 5G Xtream can support 5G (shoreside) connection speeds up to 3.1GB/s but also integrates a 4G Cat 20 modem, which offers connectivity up to about 25NM from shore at speeds of up to 2GB/s. The system uses three external antennas with dual high-gain vertical antennas and a separate compact dome for the higher 5G frequencies. This MIMO technology and, critically, separate antennas give optimum performance. There’s support for dual SIMs with auto (failover) or manual switching between operators.

The 5G Xtream features dual-band (2.4 and 5GHz) wireless connections, so users on board simply search for the secure wifi point and connect. There are also 4 LAN ports (10/100/1000 MB) for wired devices like smart TVs and a WAN port that is optimized for Starlink satellite connectivity, allowing the 5GX to act as a sophisticated and fast router for all on-board internet communications.

The Wi-Fi router can also be configured to access marina wifi hotspots as an additional method of internet access. This also supports the very latest 5GHz marina wifi services, and there's also a high-gain external wifi antenna available as an accessory.

For advanced users, the 5G Xtream allows for user management, VPNs, blacklists, and IOT applications. NMEA 0183/2000 data can also be connected using Digital Yacht’s LANLink devices. The integrated GPS allows for SMS reporting of boat position or even a geofence/drift setting when the boat is at anchor or in port.

The Digital Yacht 5G Xtream is supplied as a complete solution with antennas, mounts, and cabling – all that’s additionally required is a cellular SIM.

Configuration

Configuration is very simple. Just insert the SIM cards. The 5G Xtream has two standard SIM slots, and it is possible to fit two SIMs from two different network operators. By default, the 5G Xtream will query the SIM that is installed and automatically select the APN settings from its internal database.

However, it is very important that users “lockdown” their wireless network with their network name (SSID) and wireless password. This task only takes a couple of minutes and is done via the 5G Xtream web interface.

User Interface

Accessing 5G Xtream functionality is done via an easy web interface. Any locally connected device can simply enter the IP address into the password-protected interface to set up functions, view traffic and logs, and configure wifi.

Once set up, there should be no requirement to log in other than for diagnostics and configuration. Users simply access the internet through the wifi connection, just as they would in the home or office.

Features:

• Ultra-fast 5G internet afloat solution with speeds up to 3.1GBs plus also integrates the latest 4G Cat 20 LTE MIMO technology with a range up to 25NM offshore (network dependent) and 4G connection speeds up to 2GBs
• Dual SIM slots with auto-failover or manual selection
• Two external, high-gain, wide-bandwidth antennas plus a compact high-gain dome antenna for higher 5G frequencies
• Dual-band integrated wifi router (2.4 & 5 GHz)—independently configurable
• Built-in GPS with an external patch antenna for IOT and tracking/anchor alarm applications
• 4 x LAN ports
• 1 x WAN port for additional internet connectivity, optimized for Starlink satellite systems
• Digital input/output connectivity for IoT/control applications
• SMS capability
• 12/24v
• Weight: 3800 g

  Dimensions: 180 x 125 x 55 mm

• operation

Specifications:

• Operating Temperature: -40 to +75 degrees C
• Dimensions: 180 x 125 x 55mm (excluding antennas)
• Weight: 3,8 kg
• Protection: IPX4
• Technology: 5G Sub-6Ghz SA/NSA. Up to 2.1/3.3Gbps downlink (4×4 MIMO); 4G (LTE) CAT 20 up to 2GB/s
• 5G/LTE: 5G Sub-6Ghz SA/NSA. Up to 2.1/3.3Gbps downlink (4×4 MIMO); 4G (LTE) CAT 20 up to 2GB/s
• 3G/4G Fallback (Support bands): 5G (NSA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77; 5G (SA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41, B42, B43
• 4G & 5G Antennas: Dual Wi-Fi band independent 2.4 & 5 GHz (maximum 150 connections); dual 48cm external wideband high gain MIMO supplied with 7-meter cables and mounting bases. (10 & 20m options available) PLUS additional 100mm dome antenna for 4 x 4 MIMO operation and optimized for 5G (7m cable only)
• Interfaces: 4 x LAN 10/100 Ethernet Port; 1 x WAN 10/100 Ethernet Port ; WiFi; 802.11 b/g/n/ac

What’s in the Box?

• 1 x 5G Xtream Modem Unit
• 1 x DC Power/IO cable
• 2 x External antennas
• 2 x E179F antenna bases
• 2 x 7m LMR200 antenna cables (N male to N male)
• 1 x 5G dual element dome antenna with pole/1” adaptor mount and integrated 7m cables
• 2 x Internal wifi antennas
• 1 x Internal GPS antenna

Options (sold separately):

• 1” antenna adaptors and range of mounts
• 10 & 20m LMR400 antenna cable packs for 4G antennas
• AC 110/220v power adaptor
• 4GXWL hi power external wifi option
• LANLink NMEA 0183/2000 interface

Specifications:

• Speed - Max: 3.1GB/s
• Wireless: Yes
• Box Dimensions: 4"H x 10"W x 27"L WT: 10.15 lbs
• UPC: 703791696659

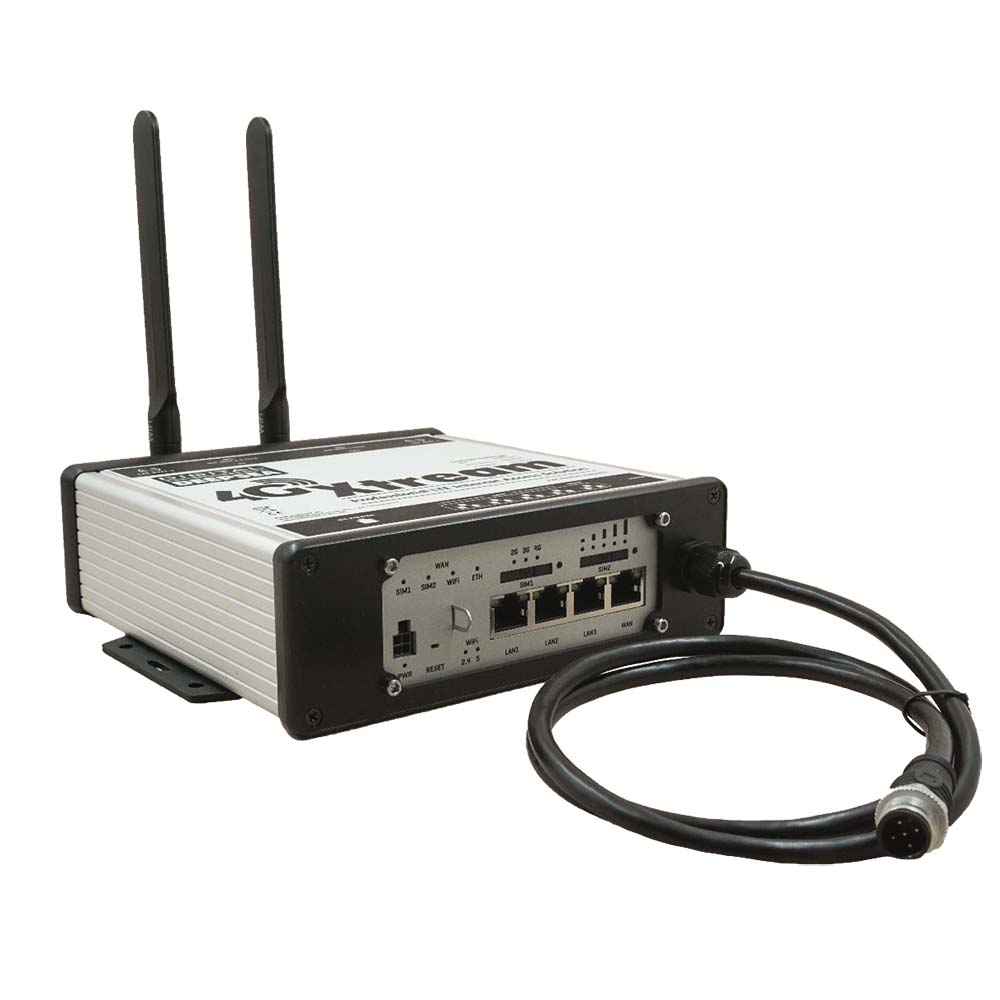

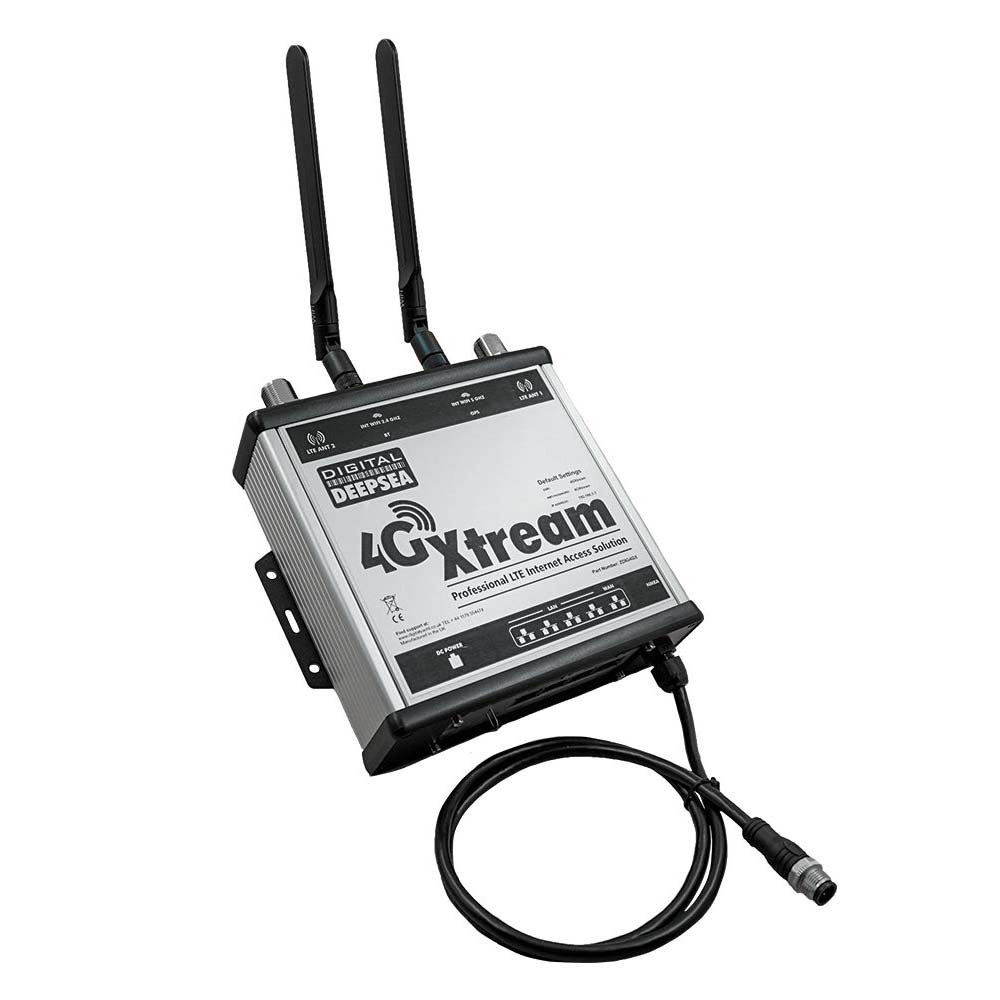

4G Xtream Internet & NMEA 2000 Solution

Digital Yacht's 4G Xtream is the latest, premium LTE (cellular) Internet access product. It ships as a complete package with dual external antennas, deck mounting hardware, and cabling. Alternative antenna mounts are available as options.

Using MIMO technology and two external wideband LTE antennas, it offers fast connectivity at up to 300 MBs (network dependent). It has a built-in dual-band wifi router supporting multiple connections, dual SIM slots (with auto-failover if required), built-in GPS (for IOT and tracking applications) as well as an NMEA 2000 interface for navigation and instrument data connectivity and wireless interfacing. There’s also a Bluetooth interface for future connectivity applications.

Features:

• Latest Cat 6 LTE MIMO technology with a range up to 25NM offshore (network dependent)
• Dual SIM slots with auto-failover or manual selection
• Two external, high gain, wide bandwidth antennas
• Dual-band integrated wifi router (2.4 & 5 GHz) –independently configurable
• Built-in NMEA 2000 interface to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• Built-in GPS with external patch antenna for IOT and tracking applications
• Built-in Bluetooth with antenna for future applications
• 3 x LAN ports
• 1 x WAN port for additional internet connectivity –eg: WL510 high power wifi system
• Digital input/output connectivity for IOT/control applications (Available Q4 2021)
• SMS addressable

TracPhone® V3HTS

World’s fastest, lightest ultra-compact marine VSAT.

The rugged 37 cm TracPhone V3 hts offers global connectivity and crystal-clear voice calls via advanced next-generation high-throughput satellites (HTS) from Intelsat and SKY Perfect JSAT on the mini-VSAT Broadband SM HTS network. The result is an ultra-compact SATCOM solution that outperforms the leading competing 60-85 cm Ku-band antennas.

Features:

• Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed ensures excellent Ku-band reception even in bad weather
• Advanced antenna controller for high-speed tracking
• Dynamic, gyro-stabilized system  seeks the optimum satellite within the mini-VSAT roadband HTS network and tracks it through the full dynamic motion experienced at sea
• The powerful ICM, with its high-throughput modem, Voice over IP (VoIP) adapter, versatile network  management software, and built-in Wi-Fi and Ethernet, is the streamlined all-in-one belowdecks unit that drives the TracPhone V3hts

Service:

• Network: mini-VAST Broadband HTS Network
• Antenna Type: Ku-band
• Service Coverage Area: Seamless Worldwide Regions

Specifications:

• Speed - Max: 6 Mbps/2 Mbps (down/up)
• Wireless: Yes
• Box Dimensions: 21"H x 24"W x 39"L WT: 74.3 lbs
• UPC: 028327013572

Aigean 7 Source Programmable Multi-WAN Router (Rackmountable) [MFR-7]

Multi-WAN 7 Source Gigabit Router (Rackmountable) GB Ethernet 110/220VAC Power

Aigean’s Multi-WAN routers enable networks to switch between multiple internet sources without adversely affecting the onboard local network. Coupled with advanced features such as failover and smart switching, a vessel’s connection to the internet is more robust, secure, and faster than with a single-source configuration.

Most modern vessels are equipped with multiple means of connecting to the internet, via ship-to-shore Wi-Fi, cellular, and satellite providers. Aigean’s Multi-WAN routers couple these sources together, creating a seamless experience, ensuring you are always connected.

Aigean’s MFR models are extremely easy to use and get started with. Forget tinkering with networking settings to get your system online, no networking knowledge is required.

Features:

• Program alerts and limits on incoming sources to prevent airtime overages
• Easily switch between mulitple internet sources
• Simple failover capability to ensure the nework is always online
• Full Gigabit transfer speeds on all ports
• Intel x86 hardware for maximum performance and longevity
• Desk or Rack Mount capable
• 1 year warranty from the date of purchase for parts and labor.



Specifications:

• Speed - Max: 2.9 GHz
• Wireless: Yes
• Box Dimensions: 6"H x 14"W x 21"L WT: 11 lbs

Quick Guide (pdf)
Brochure (pdf)

V3 Main PCB Kit Pack with Software (FRU)

V3 Main PCB Kit Pack with Software (FRU) for KVH V3 and V3IP.
