Communication

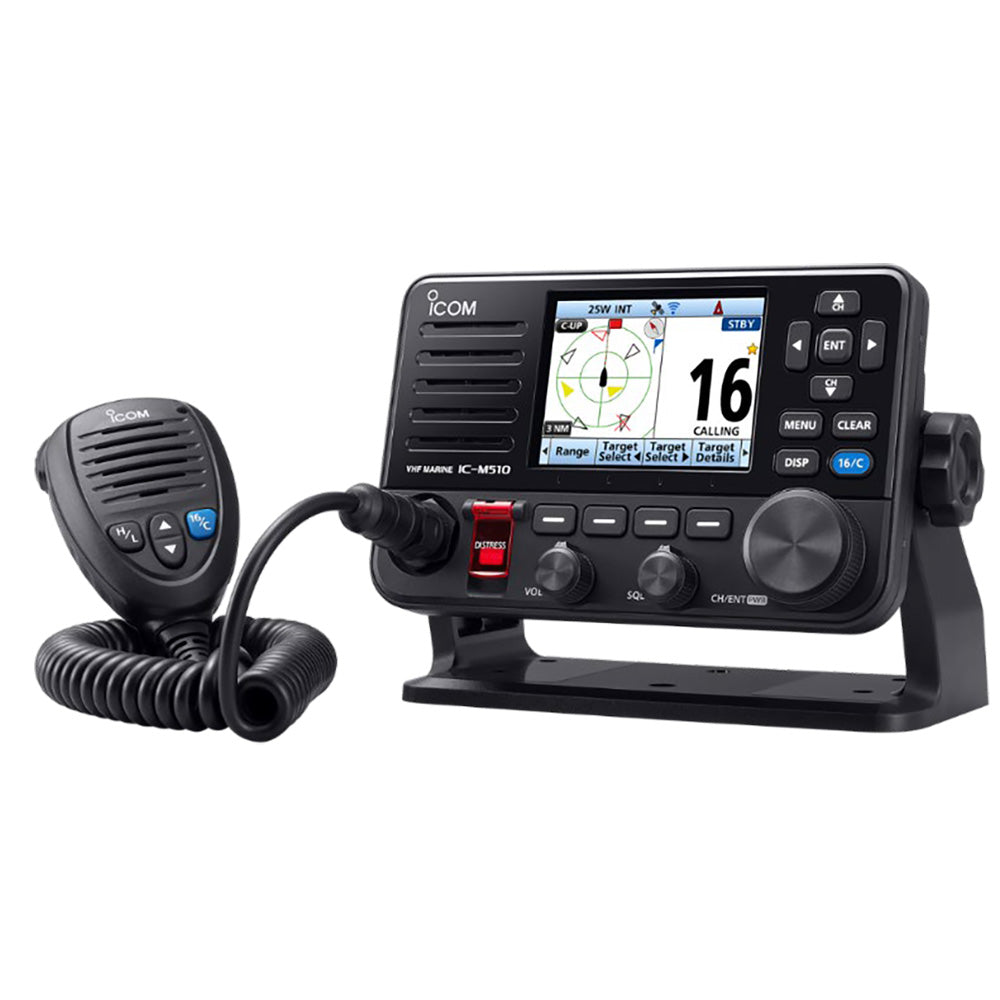

IC-M510 EVO VHF with NMEA 2000

The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances the experience at sea even more.

Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, and sailing, as well as in rescue and public safety.

*AIS receiver not included in the M510 EVO 41

NMEA 2000™ and Loud 25 W Two-Way Hailer/20 W RX Hailer Now Built-in

The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment, such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio channel data to other equipment.

When connected to the optional SP-37 speaker horn, users can talk with the crew on the deck or shore via the radio's microphone and hear any reply via the horn speaker. The RX hailer function lets users listen to the radio traffic on the deck or tower through the hailer speaker. Users can also sound foghorn patterns from the hailer speaker.

Radio Control & Intercom Through Smart Devices

Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s WLAN feature.  Users can use up to three smart devices as a wireless microphone, an intercom between a device and the M510, and a simple remote control for specific functions.

Award Winning Sleek Design - iF DESIGN AWARD 2022

The IC-M510 series (including the IC-M510 EVO) is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat's black glass cockpit dashboard.

Wide Viewing Angle Color TFT LCD

The color TFT LCD provides nearly a 180-degree viewing angle. The wide-viewing-angle display has high-resolution characters and function icons. Hold down the DISP key to switch to the night mode screen, ensuring good readability in low-light conditions.

Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation

With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

15 W Speaker Provides Clear and Loud Audio

The built-in waterproof speaker enhances the received audio and provides powerful, clear audio.

Simplified Navigation Function

The navigation function guides users to a specified waypoint or AIS target. Users can assign up to 100 destinations as waypoints, such as favorite fishing spots or starting positions for yacht races.

Combined with MA-510TR Supports Safer Navigation

When connected to the optional MA-510TR Class B AIS transponder, users can send and receive real-time information about vessels, including identity, position, speed, course, and other relevant data, displayed on the screen. Making a vessel's position known to others helps prevent collisions and accidents, especially at night, in rough weather, or on crowded shipping routes. The MA-510TR enhances safety during navigation at sea.

Active Noise Canceling Technology

The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

Other Features:

• Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1 m depth of water for 60 minutes)
• Voice Scrambler with optional UT-112A
• AquaQuake™ prevents audio degradation from a water-logged speaker
• The supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet the user's requirements
• External speaker connection
• Optional HM-195 CommandMic™ are available
• Supports 4-digit channels
• Supplied a waterproof flash mount gasket for panel mount

Specifications:

General Specifications:

• Frequency range: TX: 156.025 157.425 MHz; RX: 156.050 163.275 MHz; DSC: 156.525 MHz; AIS1, 2*1: 161.975, 162.025 MHz
• Usable Channels: USA, CAN, INT, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1
• Power Supply Requirement: 13.8 V DC (11.7 15.9 V DC)
• Current Drain (at 13.8 V DC): TX 25 W output: 5.0 A; RX Max. audio: 1.6 A, 2.0 A (with HM-195), 4.0 A (with extSP), 7.3 A (with ext SP, RX hailer, and HM-195)
• Operating Temperature Range: –20 degrees C +60 degrees C, –4 degrees F +140 degrees F
• Antenna Impedance: 50 Ω
• Dimensions (W x X x D): 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in
• Weight (approx.): 730 g, 1.6 lb (not including microphone)

Transmitter Specifications:

• Output Power (at 13.8 V DC): 25 W, 1W
• Max. Frequency Deviation: ±5 kHz
• Frequency Tolerance: ±0.5 kHz
• Spurious Emissions: Less than −70 dBc (at 25 W)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity (at 12 dB SINAD): –10 dBμ typical
• DSC (1% BER): –1 dBμ emf typical
• Adjacent Channel Selectivity: More than 75 dB
• DSC (1% BER): More than 73 dBμ emf
• Spurious Response: More than 75 dB
• DSC (1% BER): More than 73 dBμ emf
• Intermodulation: More than 75 dB
• DSC (1% BER): More than 68 dBμ emf
• Hum & Noise: More than 40 dB
• Audio Output Power: More than 15 W (external speaker)
• Audio Output Power (at 10% distortion with 4 Ω): 20 W typical (RX Hailer), 25 W typical (Hailer)

Wireless LAN Specifications:

• Wireless LAN standard: IEEE802.11 b/g/n
• Authentication and Encryption: WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
• Channels: 1 to 13 (2.4 GHz band)*2
• Output Power: Less than 10 mW/MHz

Supplied Accessories:

• Speaker microphone, HM-205RB
• Microphone hanger
• DC power cable
• Mounting bracket kit
• Flush mount gasket (Flush mount kit sold separately)

*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.

Specifications:

• AIS: No
• Built-In GPS: Yes
• Color: Black
• Intercom Capability: Yes
• NMEA 2000: Yes
• Box Dimensions: 7"H x 9"W x 10"L WT: 4.25 lbs
• UPC: 731797045423

IC-M510 EVO VHF with AIS & NMEA 2000

The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances the experience at sea even more.

Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, and sailing, as well as in rescue and public safety.

*AIS receiver is integrated in the M510 PLUS EVO 51

NMEA 2000™ and Loud 25 W Two-Way Hailer/20 W RX Hailer Now Built-in

The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment, such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio channel data to other equipment.

When connected to the optional SP-37 speaker horn, users can talk with the crew on the deck or shore via the radio's microphone and hear any reply via the horn speaker. The RX hailer function lets users listen to the radio traffic on the deck or tower through the hailer speaker. Users can also sound foghorn patterns from the hailer speaker.

Radio Control & Intercom Through Smart Devices

Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s WLAN feature.  Users can use up to three smart devices as a wireless microphone, an intercom between a device and the M510, and a simple remote control for specific functions.

Award Winning Sleek Design - iF DESIGN AWARD 2022

The IC-M510 series (including the IC-M510 EVO) is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat's black glass cockpit dashboard.

Wide Viewing Angle Color TFT LCD

The color TFT LCD provides nearly a 180-degree viewing angle. The wide-viewing-angle display has high-resolution characters and function icons. Hold down the DISP key to switch to the night mode screen, ensuring good readability in low-light conditions.

Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation

With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

15 W Speaker Provides Clear and Loud Audio

The built-in waterproof speaker enhances the received audio and provides powerful, clear audio.

Integrated AIS Receiver*

With its integrated AIS receiver*1 or external NMEA sentence*2, the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

*1 AIS receiver is not included, depending on the transceiver version. *2 Optional MA-510TR or third-party AIS receiver/transponder.

Simplified Navigation Function

The navigation function guides users to a specified waypoint or AIS target. Users can assign up to 100 destinations as waypoints, such as favorite fishing spots or starting positions for yacht races.

Combined with MA-510TR Supports Safer Navigation

When connected to the optional MA-510TR Class B AIS transponder, users can send and receive real-time information about vessels, including identity, position, speed, course, and other relevant data, displayed on the screen. Making a vessel's position known to others helps prevent collisions and accidents, especially at night, in rough weather, or on crowded shipping routes. The MA-510TR enhances safety during navigation at sea.

Active Noise Canceling Technology

The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

Other Features:

• Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1 m depth of water for 60 minutes)
• Voice Scrambler with optional UT-112A
• AquaQuake™ prevents audio degradation from a water-logged speaker
• The supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet the user's requirements
• External speaker connection
• Optional HM-195 CommandMic™ are available
• Supports 4-digit channels
• Supplied a waterproof flash mount gasket for panel mount

Specifications:

General Specifications:

• Frequency range: TX: 156.025 157.425 MHz; RX: 156.050 163.275 MHz; DSC: 156.525 MHz; AIS1, 2*1: 161.975, 162.025 MHz
• Usable Channels: USA, CAN, INT, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1
• Power Supply Requirement: 13.8 V DC (11.7 15.9 V DC)
• Current Drain (at 13.8 V DC): TX 25 W output: 5.0 A; RX Max. audio: 1.6 A, 2.0 A (with HM-195), 4.0 A (with extSP), 7.3 A (with ext SP, RX hailer, and HM-195)
• Operating Temperature Range: –20 degrees C +60 degrees C, –4 degrees F +140 degrees F
• Antenna Impedance: 50 Ω
• Dimensions (W x X x D): 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in
• Weight (approx.): 730 g, 1.6 lb (not including microphone)

Transmitter Specifications:

• Output Power (at 13.8 V DC): 25 W, 1W
• Max. Frequency Deviation: ±5 kHz
• Frequency Tolerance: ±0.5 kHz
• Spurious Emissions: Less than −70 dBc (at 25 W)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity (at 12 dB SINAD): –10 dBμ typical
• DSC (1% BER): –1 dBμ emf typical
• Adjacent Channel Selectivity: More than 75 dB
• DSC (1% BER): More than 73 dBμ emf
• Spurious Response: More than 75 dB
• DSC (1% BER): More than 73 dBμ emf
• Intermodulation: More than 75 dB
• DSC (1% BER): More than 68 dBμ emf
• Hum & Noise: More than 40 dB
• Audio Output Power: More than 15 W (external speaker)
• Audio Output Power (at 10% distortion with 4 Ω): 20 W typical (RX Hailer), 25 W typical (Hailer)

Wireless LAN Specifications:

• Wireless LAN standard: IEEE802.11 b/g/n
• Authentication and Encryption: WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
• Channels: 1 to 13 (2.4 GHz band)*2
• Output Power: Less than 10 mW/MHz

Supplied Accessories:

• Speaker microphone, HM-205RB
• Microphone hanger
• DC power cable
• Mounting bracket kit
• Flush mount gasket (Flush mount kit sold separately)

*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.

Specifications:

• AIS: Yes
• Built-In GPS: Yes
• Color: Black
• Intercom Capability: Yes
• NMEA 2000: Yes
• Box Dimensions: 7"H x 9"W x 10"L WT: 4.3 lbs
• UPC: 731797045416

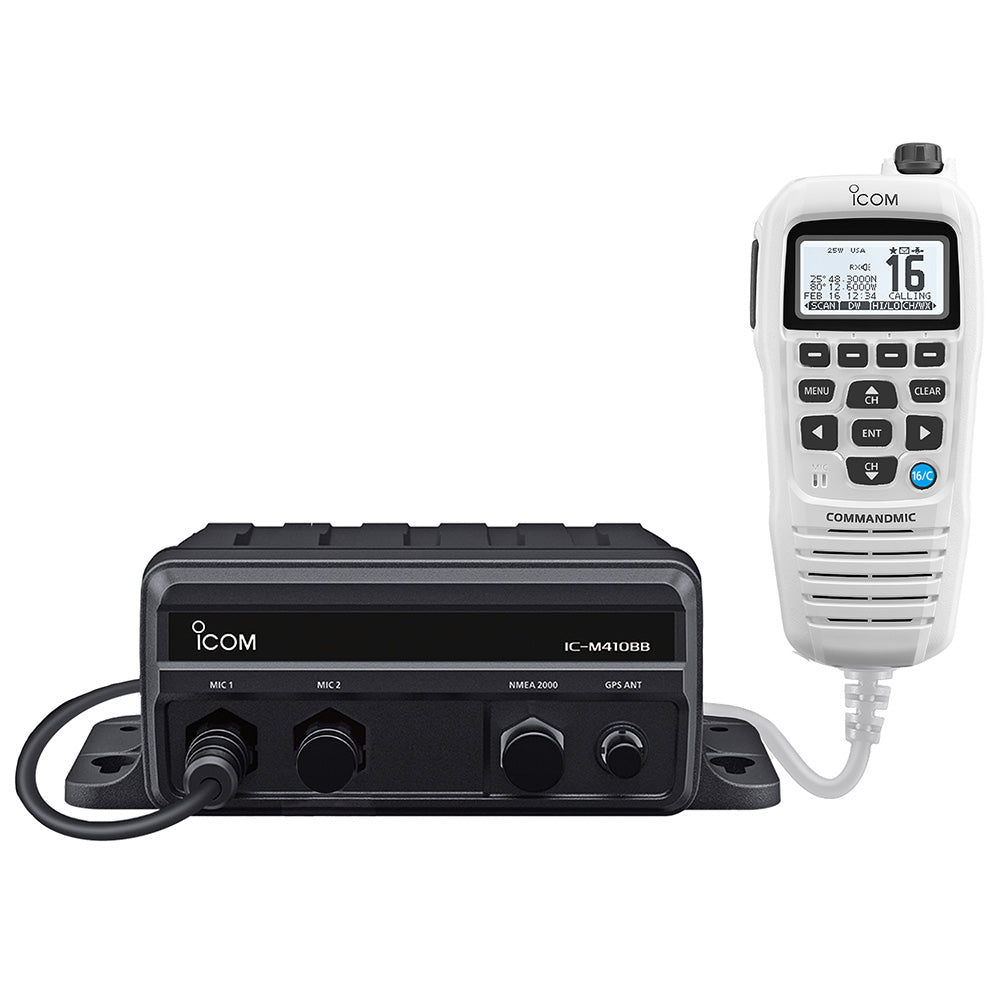

IC-M410BB GW 11 Black Box VHF with White Command Mic & 2 Command Mic Ports

Icom’s IC-M410BB is a flexible black box mounted on a fixed mount that provides VHF communications for vessels with limited helm space. The supplied white CommandMic™ controls the radio for essential communications on the water.

Clean Installation for Limited Helm Space

The IC-M410BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out-of-sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add CommandMic™ to extend communication points for boats requiring a second communications station. This is ideal for boats that need communication between the cockpit and other locations on the boat. Access the intercom functions for one-to-all or one-to-one communications on the boat.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the IC-M410BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker, allowing you to listen to it on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise Cancellation function digitally removes background noise from transmitted and received audio to provide clear communication in noisy maritime environments.

Features:

• AquaQuake™ function
• Anchor watch function

Specifications:

• Command Mic Color: White
• Remote Stations: Up to 2
• Output Power: 25W
• GPS: Internal GPS GNSS Receiver, with external GPS antenna connection
• NMEA: NMEA 2000®/ NMEA 0183® -HS
• Waterproof Rating: IPX7
• Frequency Range: Tx - 156.025 157.425 MHz / Rx - 156.050 163.275 MHz / DSC - 156.525 MHz
• Usable Channels: USA, INT, CAN, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
• Power Supply Requirement: 13.8 V DC nominal (11.7 15.9 V DC) (Negative ground)
• Current Drain (at 13.8 V DC): TX Max. power - 5.5 A Max. / RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
• Operating Temperature Range: –20°C-60°C /  –4°F-140°F
• Antenna Impedance: 50 Ω nominal
• Dimensions (W x H x D) (Projections Not Included): RF unit - 216 × 79 × 113 mm; 8.5 × 3.1 × 4.4 in. / CommandMic™ - 67.5 × 144.5 × 37 mm; 2.7 × 5.7 × 1.5 in.
• Approximate Weight: RF unit - 890 g; 2 lb. / CommandMic™ - 400 g; 14.1 oz

Transmitter Specifications:

• Output Power (at 13.8V DC):  25 W, 1 W (high, low)
• Max. Frequency Deviation: +/- 5 kHz
• Frequency Tolerance: +/- 0.5 kHz
• Spurious Emissions: Less than –70 dBc (high power), Less than –56 dBc (low power)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity: FM (at 12dB SINAD): 0.22 μV typical / DSC (at 1% BER): –7 dBμ emf typical
• Adjacent Channel Selectivity: FM - More than 70 dB / DSC (1% BER) - More than 73 dBµ emf
• Spurious Response: FM - More than 70 dB / DSC (1% BER) - More than 73 dBμ emf
• Intermodulation: FM - More than 75 dB / DSC (1% BER) - More than 68 dBµ emf
• Hum and Noise: More than 40 dB
• Audio Output Power: CommandMic™ - More than 2 W (4 Ω, 10% distortion) / Rx hailer - More than 15 W (4 Ω)

Specifications:

• Built-In GPS: Yes
• Color: White
• Hailer: Yes
• Intercom Capability: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 6"H x 9"W x 10"L WT: 5.1 lbs
• UPC: 4909723164463

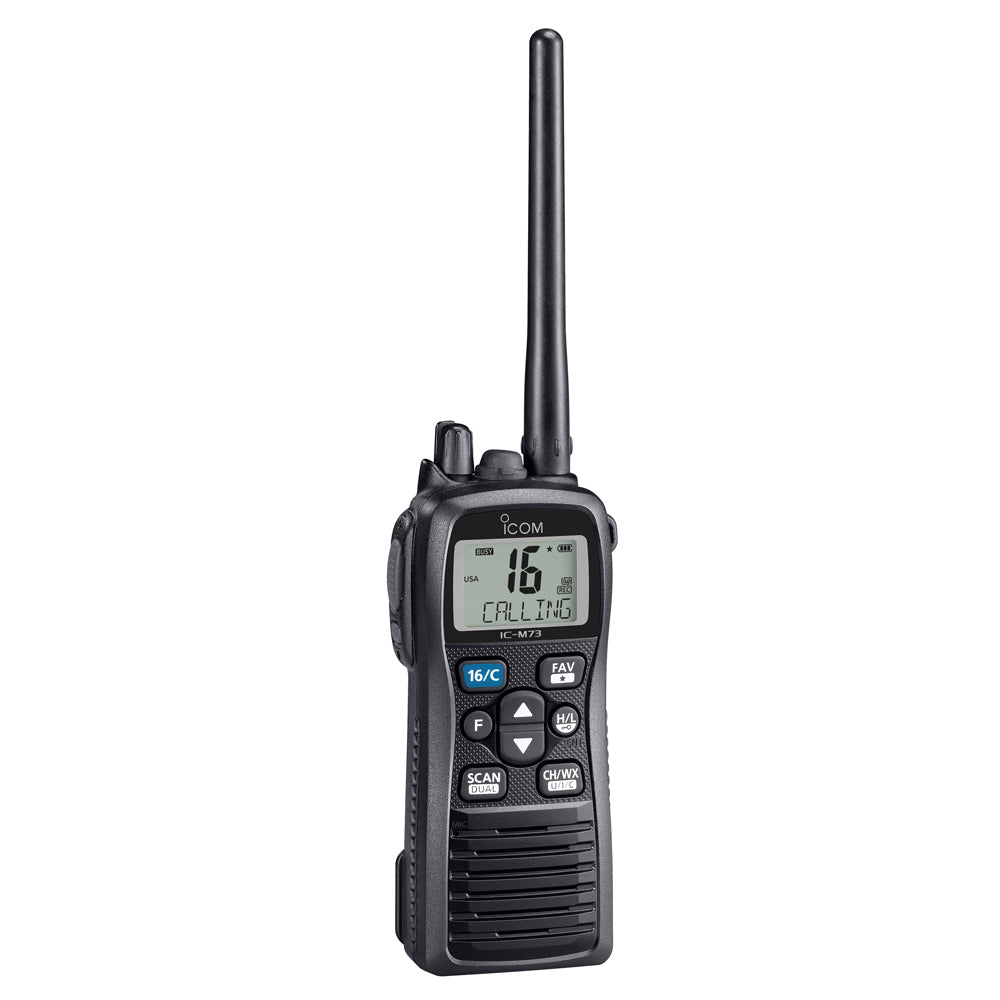

IC-M73 Submersible Handheld VHF Marine Radio- 6W

The IC-M73 is perfect for the commercial marine market and radio users familiar with Icom's celebrated M72 VHF handheld. The IC-M73 features 6 Watts of high transmit power and waterproof IPX8 Submersible construction. The IC-M73 also promotes the popular hourglass body shape and comfortable side grips for intuitive one-handed operation.

The IC-M73 also features loud 700mW audio output and approximately 18 hours of
operating time. Utilizing an interface design with large directional buttons, users gain fast access to menu items and radio functions. The compact radios are rigorously tested for durability and meet MIL-STD 810 specifications.

The IC-M73 offers reliable audio, rugged construction, and easy operation -- perfect for professional mariners and current M72 radio users. It is compatible with most M72 handheld accessories and will include other accessories as well.

Features:

• Slim, hourglass body, and wide viewing angle LCD
• IX8 Submersible PLUS™
• User interface design with larger buttons
• Louder 700mW audio output
• Built to Icom tough standards and meets MIL-STD 810 specifications
• Longer battery life allows approximately 18 hours of use
• Impressive 6 watts of high RF performance
• Compact, slim, and ergonomic design for easy one-handed operation
• IPX8 Submersible (submersion for 30 minutes in 1.5 meters of water)
• Optional Speaker Mic
• AquaQuake™ water draining function
• Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
• 4-level battery indicator
• Favorite channel and tag scan functions
• Auto power save function

Includes:

• Cigarette lighter cable (CP25H)
• AC adapter (BC123SA)
• Rapid charger (BC210)
• Battery pack (BP245N)
• Belt clip (MB103)
• Antenna (FAS64V)
• Hand strap
• Owner's manual
• Warranty: 3 years

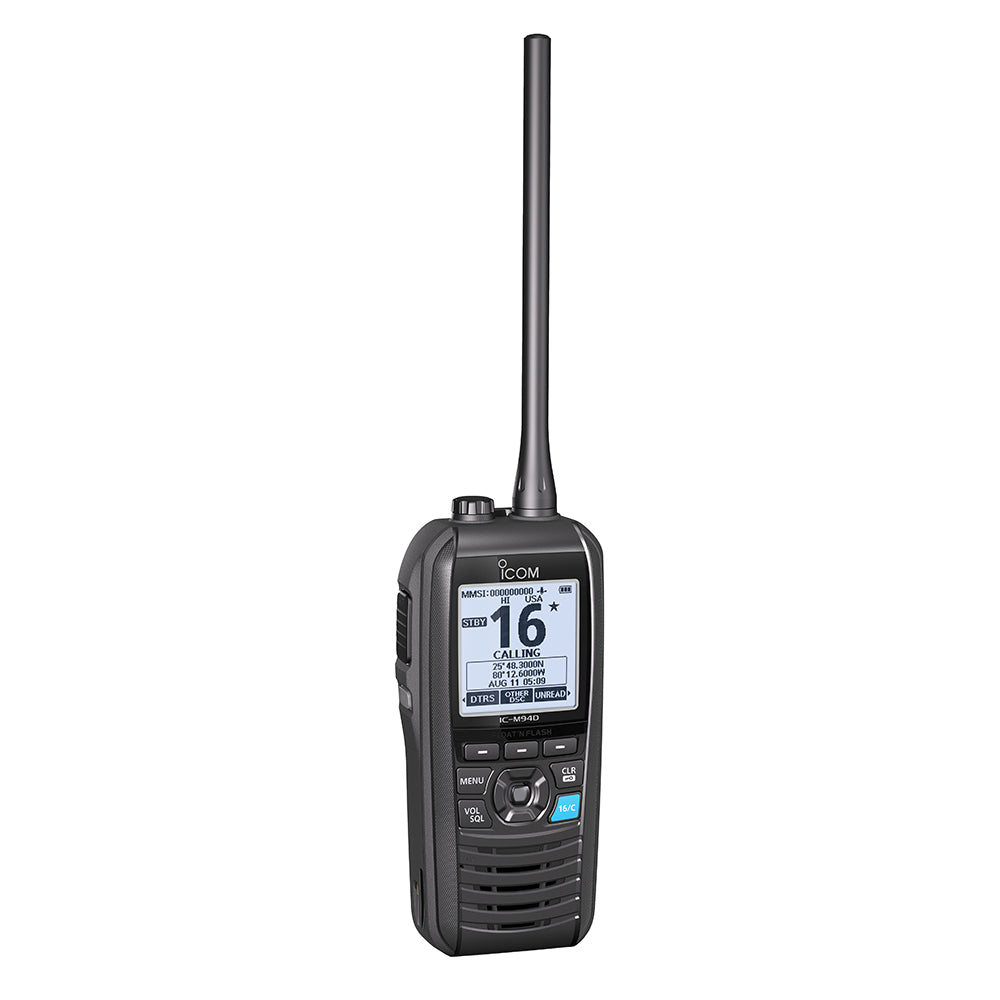

IC-M94D VHF Marine Radio with AIS & DSC

Simplified AIS and DSC in One Package

The simplified AIS and DSC functions add further assurance for safety at sea. With the integrated AIS receiver, real-time AIS vessel traffic information is shown on the display. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel button.

6W RF Output Power and 10 Hours of Operating Time

The IC-M94D’s 6 watts *1 of transmit power provides an extended communication range for the user. Supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions *2.

*1 5 W for AUS version/*2 Approximate, typical operation with 5:5:90 duty ratio.

Class-Leading 1500 mW Audio Output

Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.

Simplified Navigation Function

The Navigation function guides you to a specified waypoint. You can assign a maximum of 50 favorite fishing spots or destinations as waypoints.

Float’n Flash and MOB Auto Set Functions

The radio floats with a flashing LED light to help you retrieve it from the water. Pressing the distress button while Float’n Flash is working will transmit the MOB distress signal, rather than the plain undesignated one for better protection of sailors.

Features:

• Class-H DSC VHF marine handheld transceiver with simplified AIS
• Built-in AIS and DSC combination adds further assurance for safety at sea
• 6 W output power for reliable long-distance communication
• Significantly increased audio output power to 1500 mW (crystal clear communications even in any maritime environment)
• Icom common UI offers intuitive operation
• Simplified navigation function to a specified waypoint or MOB waypoint
• 11 hours (approx.) of long battery life with the supplied 2400 mAh (typ.) high capacity Li-ion battery pack
• Float’ n Flash: The radio floats with a flashing red LED light for easier retrieval from the water
• IPX7 waterproof construction
• Integrated GPS

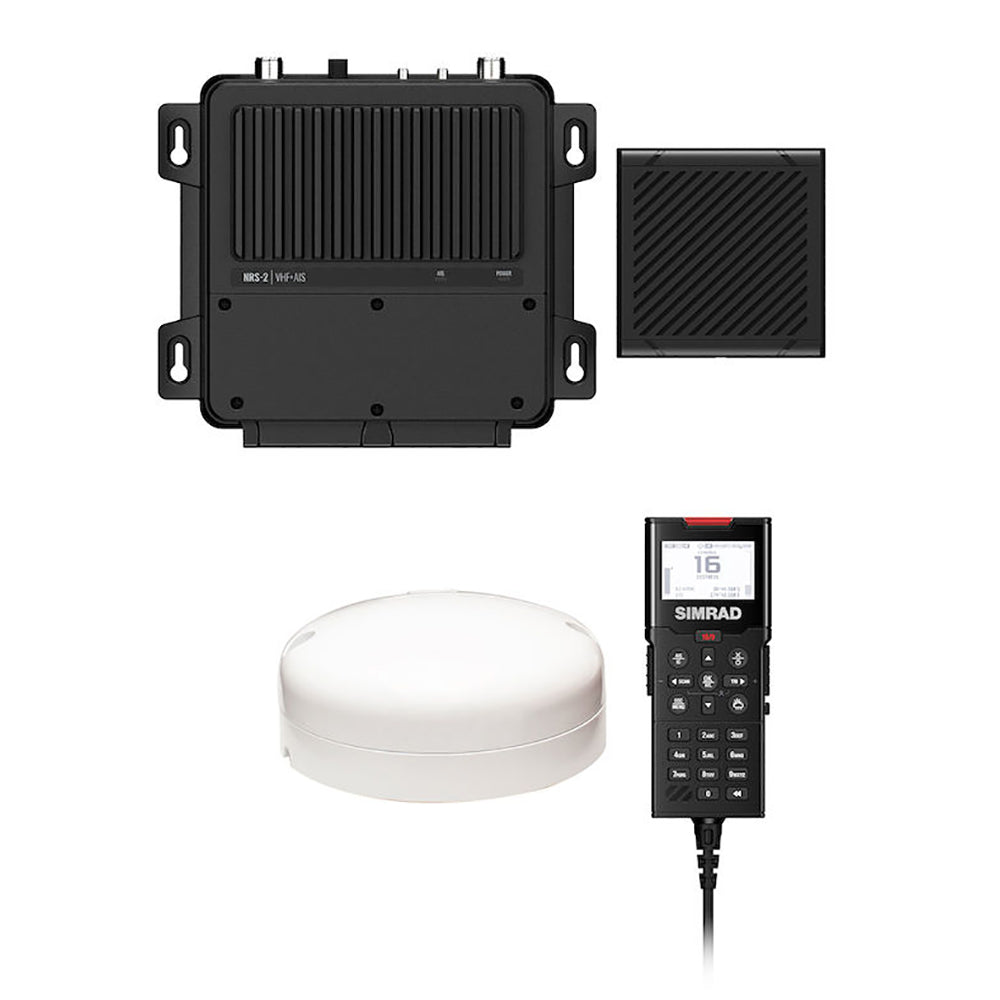

Simrad RS100-B Black Box VHF Radio w/Class B AIS  GPS Antenna [000-15792-001]

RS100-B Black Box VHF Radio with Class B AIS & GPS Antenna

Navigate safely with the Simrad RS100-B VHF marine radio - integrated with a Class-B AIS transceiver and GPS. Stay connected from anywhere on your vessel with up to eight handsets (four wired and four wireless) and four external speakers. An external GPS-500 delivers advanced AIS functionality.

Complete visibility with integrated AIS

The RS100-B system features a Class-B AIS receiver and transmitter, so not only is your boat's position identifiable to nearby AIS-enabled vessels but theirs are also visible to you. The integrated AIS receiver is a valuable aid to help avoid collisions in crowded harbours and waterways. It monitors the location of all nearby AIS-enabled vessels, providing real-time information in any weather condition, night and day. AIS information can be viewed directly on the radio's screen or via a compatible multifunction device, as an overlay on a chart or radar screen.

A modular system to fit any boat

The RS100-B is a modular VHF system that's expandable and customisable to suit any boat and any on-water communication needs. The standard package includes one wired handset and one external speaker. This setup is expandable up to eight handsets (four wired and four wireless) and four external speakers - ideal for use as an on-board intercom with Simrad HS40 wireless or HS100 wired handsets. The wireless handsets duplicate the radio display and controls on easy-to-read screens viewable under all lighting conditions, even bright sunlight.  All primary functions are accessible from the handset with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60-second audio rewind.

Features:

• Integrated Class-B AIS transmitter and receiver
• Bundled with dedicated GPS receiver, GPS-500 for AIS transmission
• Class D DSC approved VHF radio
• Connect up to four wireless and four wired handsets
• Add an optional loudhailer and up to four external speakers
• NMEA 0183® and NMEA 2000® connectivity
• 60-second audio rewind
• Configurable external speakers with volume offsetting
• Handset backlight settings can be grouped with NMEA 2000® backlight groups so MFD’s and VHF Radios can have backlight controlled together
• Track Buddy – track up to five “buddies” using their VHF MMSI

Specifications:

• Remote Mic Capable: Yes
• NMEA 2000: Yes
• Listen-Back: Yes
• Intercom Capability: Yes
• Hailer: Yes
• Built-In GPS: No
• AIS: Yes
• Box Dimensions: 10"H x 11"W x 15"L WT: 11.45 lbs
• UPC: 9420064118472

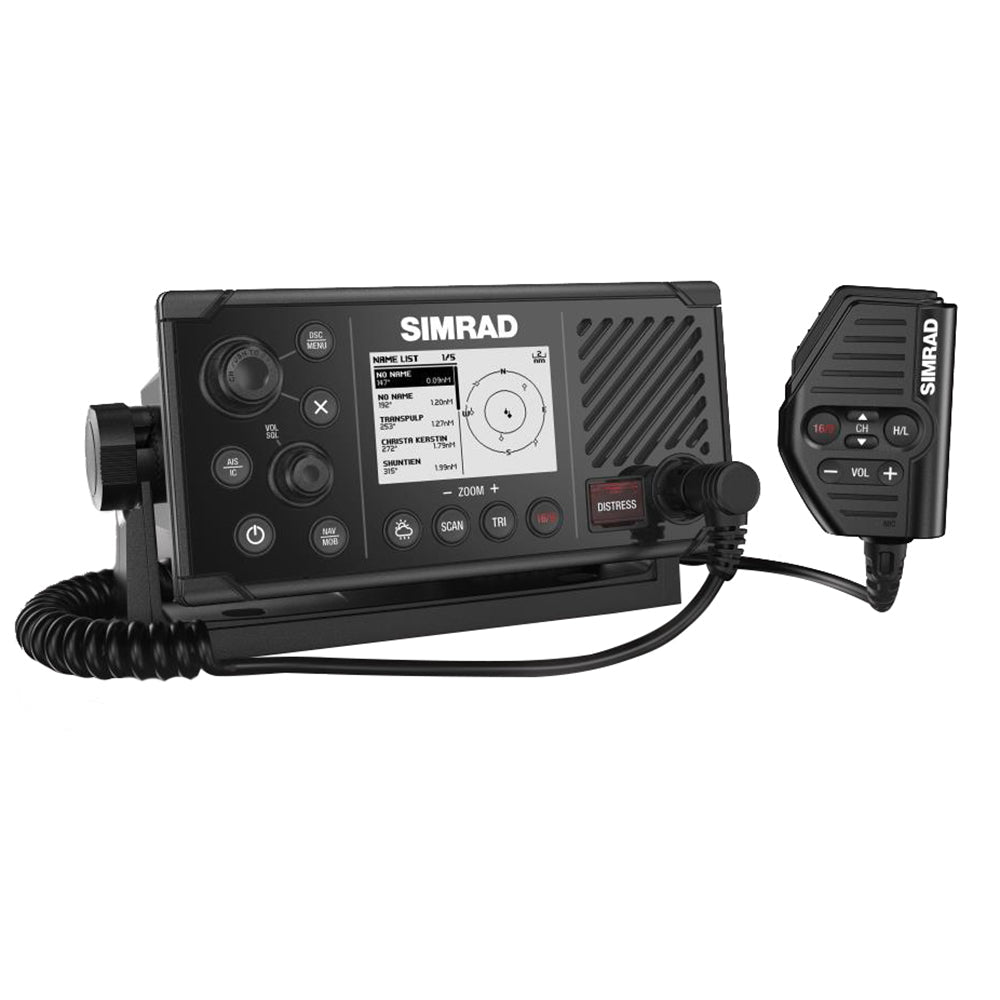

Simrad RS40-B VHF Radio w/Class B AIS Transceiver  Internal GPS [000-14473-001]

RS40-B VHF Radio with Class B AIS Transceiver & Internal GPS

See and Be Seen with Integrated AIS

The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.

Removable Fist Mic

The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Expandable with Wireless Handsets

Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.

Features:

• Integrated Class B AIS transceiver
• Class D DSC approved VHF radio
• Integrated GPS receiver
• Removable fist mic supports front or rear connection
• Connect up to two wireless handsets
• Add an optional loudhailer or external speaker
• NMEA 0183® and NMEA 2000® connectivity
• Unit Dimensions 7.92" wide x 3.85 High Flush mounted

In the Box:

• 000-14921-001 Fist Mic RS40
• 000-14917-001 Mounting Bracket with Knobs
• 000-14915-001 Flush Mounting Kit
• 000-14912-001 Suncover

Specifications:

• Built-In GPS: Yes
• AIS: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 7"H x 9"W x 10"L WT: 5.75 lbs
• UPC: 9420024172506

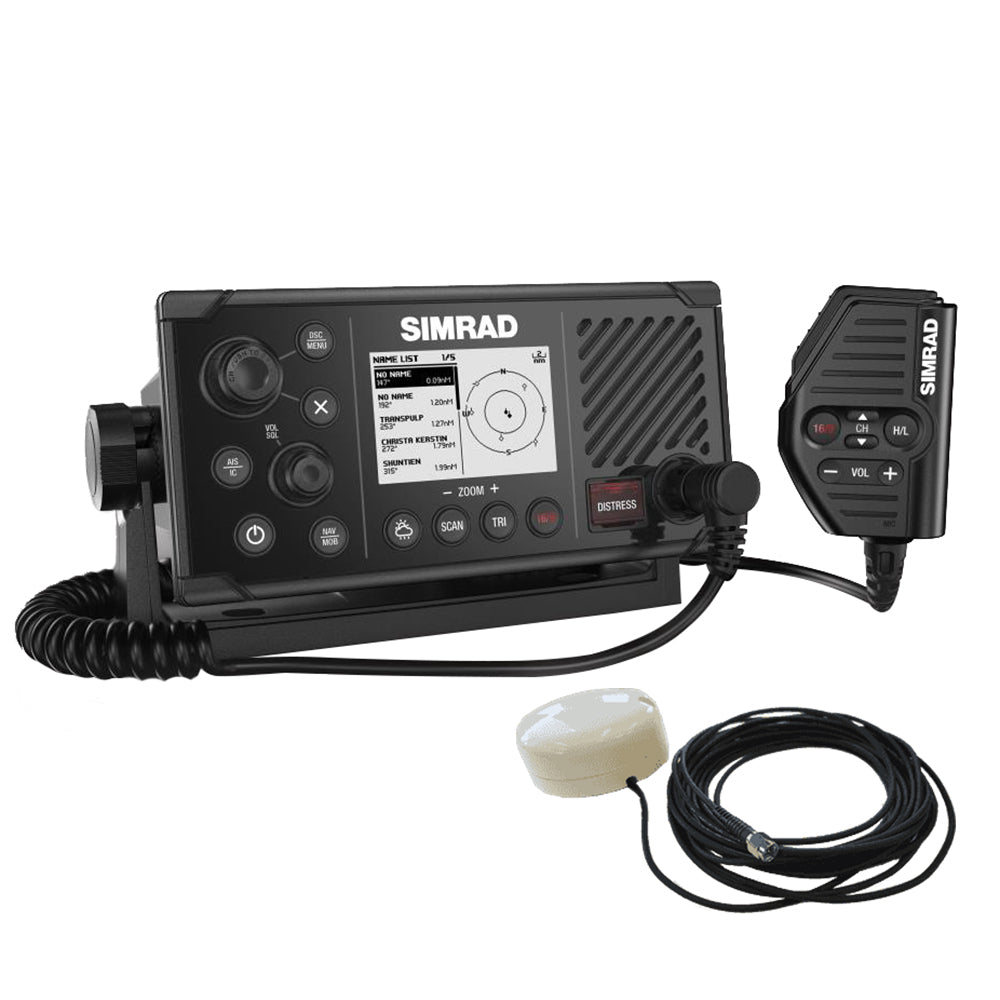

Simrad RS40-B VHF Radio w/Class B AIS Transceiver  GPS-500 Antenna [000-14818-001]

RS40-B VHF Radio with Class B AIS Receiver & GPS-500 GPS Antenna

See and Be Seen with Integrated AIS

The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.

Removable Fist Mic

The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Expandable with Wireless Handsets

Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.

Features:

• Integrated Class B AIS transceiver
• Class D DSC approved VHF radio
• Integrated GPS receiver
• Removable fist mic supports front or rear connection
• Connect up to two wireless handsets
• Add an optional loudhailer or external speaker
• NMEA 0183® and NMEA 2000® connectivity
• Includes GPS-500 for enhanced performance
• Unit Dimensions 7.92" wide x 3.85 High Flush mounted

In the Box:

• 000-13613-001 GPS-500  GPS Antenna
• 000-14921-001 Fist Mic RS40
• 000-14917-001 Mounting Bracket with Knobs
• 000-14915-001 Flush Mounting Kit
• 000-14912-001 Suncover

Specifications:

• AIS: Yes
• Built-In GPS: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 10"H x 11"W x 12"L WT: 7.45 lbs
• UPC: 9420024175910
