Boat Outfitting

Control Unit - 42017 F

Control Unit: user interface for the configuration, settings and diagnostic of all the modules in a system.

IP protection: IP65

Dim.: 215mm x 120mm (8.5" x 4.7")

Power A EE12 - Electronic Control Package

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

• 42009G - (2) PA2-B1 - Single Lever Control w/o Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface

• 42028L - (1) PA2-NT - Network Terminator

• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'

• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'

• 71021K - (2) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

• 42023A - (1) PA2-SU - Electronic Shift Unit

• 42060G - (2) M-S1 - Solenoid Shift Cable 3.3'

UFlex UP28FM Front Mount Helm Pump [UP28FM]

UP28F - Front Mount Helm Pump
Features:

• Compact design

• Ball bearing piston race

• Built-in lock valve for positive rudder lock

• Integral relief valve for over-pressure protection

• 3/4" tapered stainless steel shaft

• Easily accessible lock valve and shaft seal for replacement

• Cast iron rotor for greater durability and longer life

• 1/4" NPT fitting for 3/8" tube

• Complete with elbow fittings

• 5 pistons

Uflex HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF Cylinder [HYCO 1.1]

HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF Cylinder

Featuring the unique split tilt tube rod that allows for installation of the UC94 cylinder without removing the engine, the Hyco is an easy and affordable outboard hydraulic steering solution for boats with 150 horsepower and under. Coupled with the composite UP20 helm, the Hyco offers effortless steering with 5 turns lock to lock. And, it is applicable to almost all 2 and 4 stoke outboards engines.

Kit Contains:

• UP20 FM Helm
• UC95-OBF cylinder
• OIL 15 - 2 Quarts

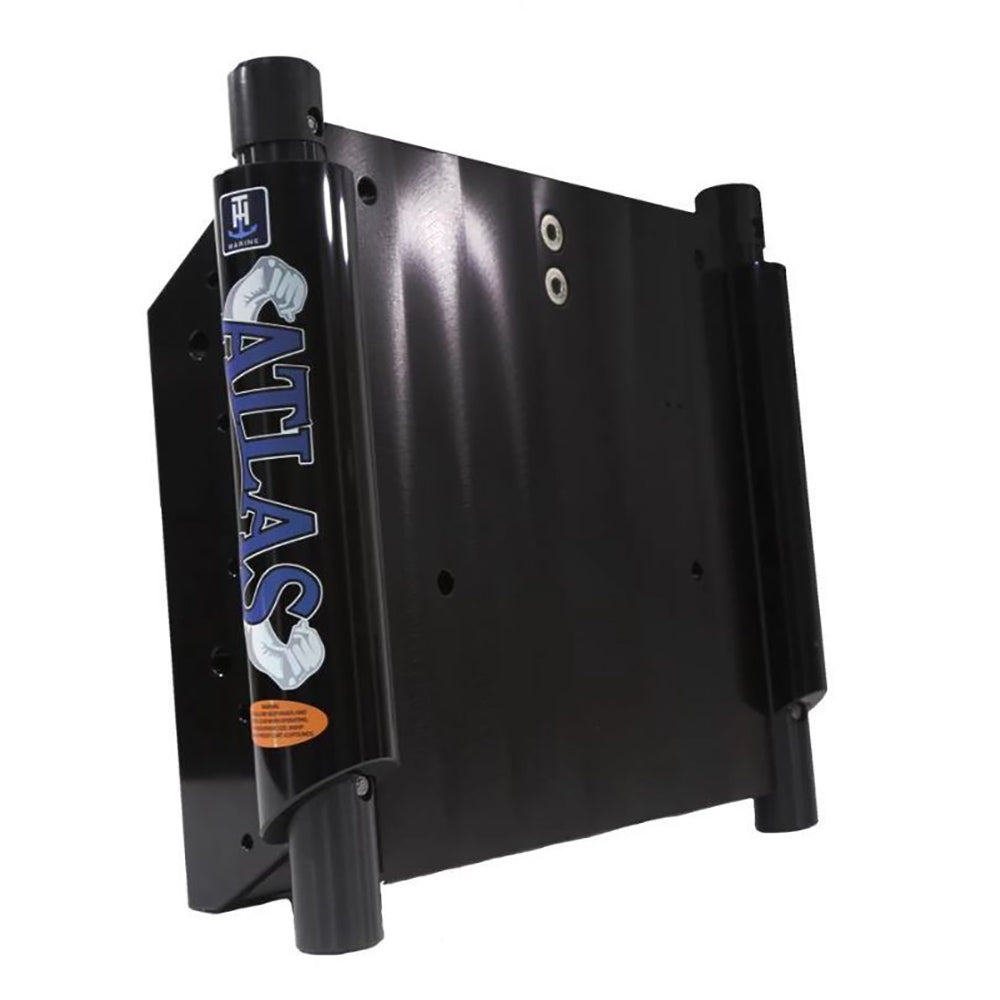

ATLAS™ 10" Hydraulic Jack Plate Standard - Black Anodized

The Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 HP or 625 pounds, on the market today.

All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too..lifting from bottom to top in 8 seconds!

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

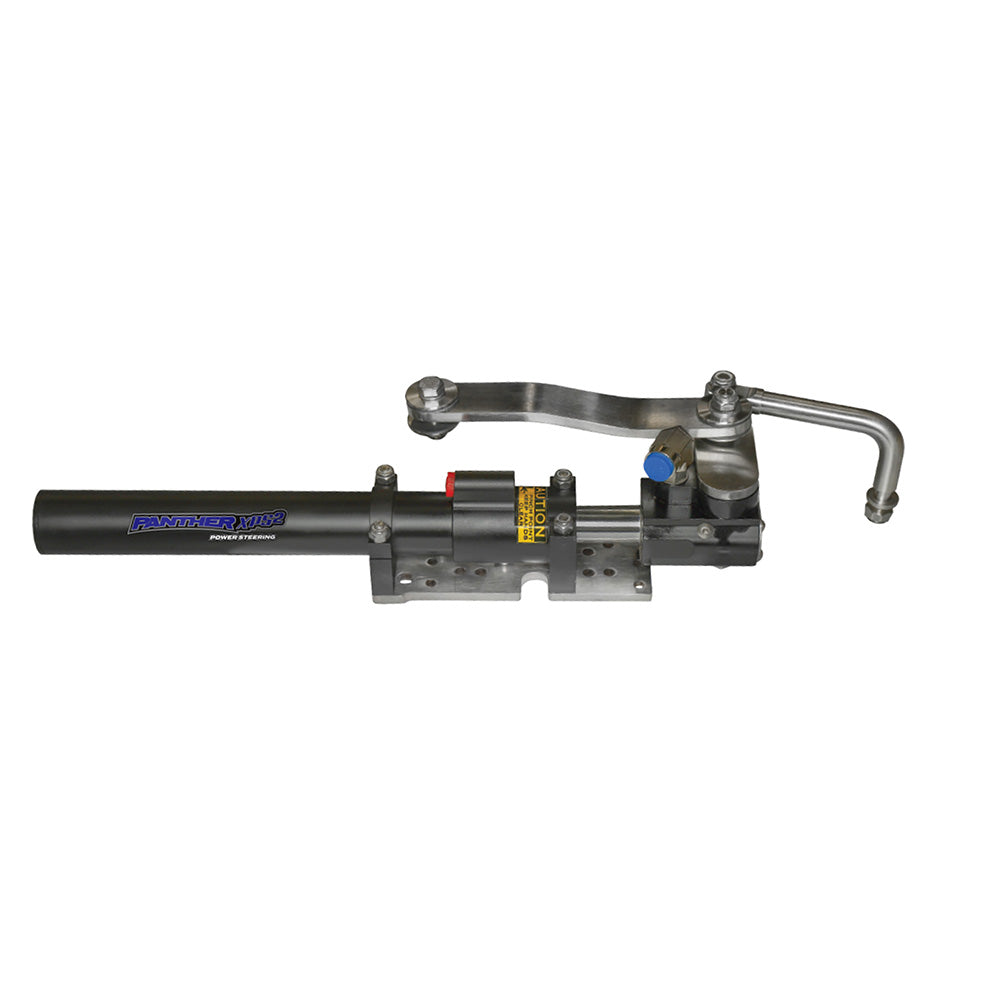

XPS G2 Hydraulic Power Steering System V2 without Hoses

Don’t get left behind…take advantage of the ease, control, and power of GEN 2, the most advanced XPS Power Steering yet!

The Panther XPS G2 Power Steering System is a hybrid system that combines the durability and dependability of cable steering with the ease of automobile-like power steering. The Panther XPS G2 gradually reverts to cable steering in case of hose failure, steering fluid leak, or power loss to the pump, so you’re NEVER without steering. Engineered to make steering your boat as effortless as the vehicle you drive. No matter the vessel you operate, XPS offers affordability, confidence, fit, and all-around ease of operation.

Panther backs up products with a warranty to give you confidence and peace of mind.

Veratron EngineBox - Double Engine [A2C1767000001]

EngineBox - Double Engine

The EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors.

The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.

The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box.

Features:

• Analog to NMEA 2000® gateway
• J1939 to NMEA 2000® gateway
• 2 Models for single engine and dual engine configurations
• Compact design
• Status LED
• Operating temperature range -40°C/+85°C

Technical Specifications:

• 1x J1939 (2x J1939 Dual Engine)
• 1x M12 5 pins NMEA 2000®
• 1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)
• 4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)
• 2x Inputs 4–20 mA
• 1x Input 0–5 V (2 inputs with Dual Engine Model)

In the Box:

• Engine Cable
• Cable Harness
• Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Gauge Size: N/A
• Box Set: No
• Voltage - Input Range (Volts): 8-16v
• Gauge Type: Multifunction
• Box Dimensions: 4"H x 6"W x 6"L WT: 1.45 lbs
• UPC: 7640178724433

Brochure (pdf)

T-H Marine Replacement Actuator f/ATLAS Jack Plates Post March 2014 [AHJACT-3-DP]

Replacement Actuator for ATLAS™ Jack Plates Post March 2014

Features:

• Allows customers to remove the motor from a faulty AHJACT-3-DP and replacement it with a new one
• More cost effective than replacing the entire actuator

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
