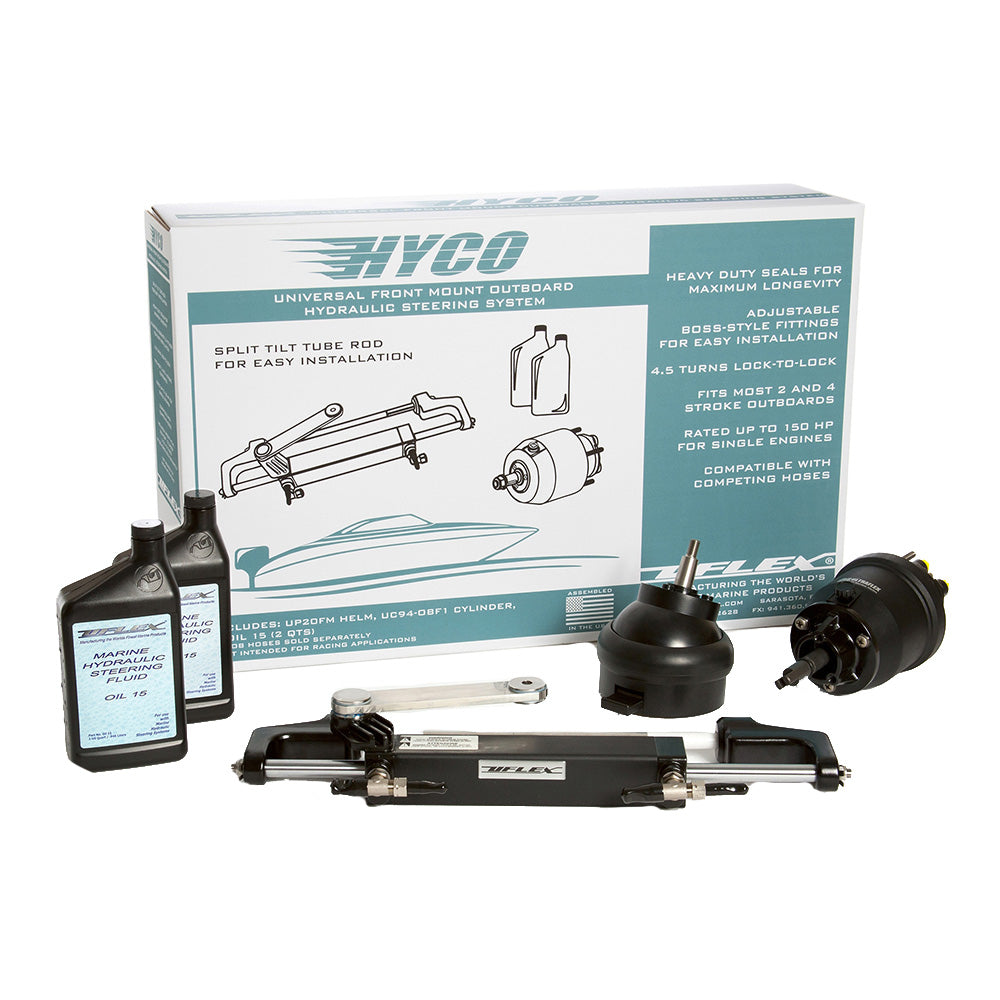

HYCO 1.1T Front Mount OB Tilt Steering up to 150HP

The Hyco 1.1T With Tilt Hydraulic Steering Kit is all you need for a complete steering system. This system is used on all engines up to 150HP or less. If engine H/P exceeds 150 then the Protech packaged system must be used.

Package Kit Includes:

• 1-UP20T Tilt Helm Pump
• UC95-OBF/1 Front mount Hydraulic Cylinder
• 2 quarts of Oil-15 Hydraulic Oil
• Installation and Instructions manual included

*Premade Hose Kit 2' to 30' ft. length is not included and steering wheel not included.

Please Note:

There are two Cylinders offered, the UC95-OBF/3 model is for Honda BF115 and BF130 engines and Mercury Optimax 75, 90, and 115 HP engines only, and the UC95-OBF/1 is used on all other O/B models.

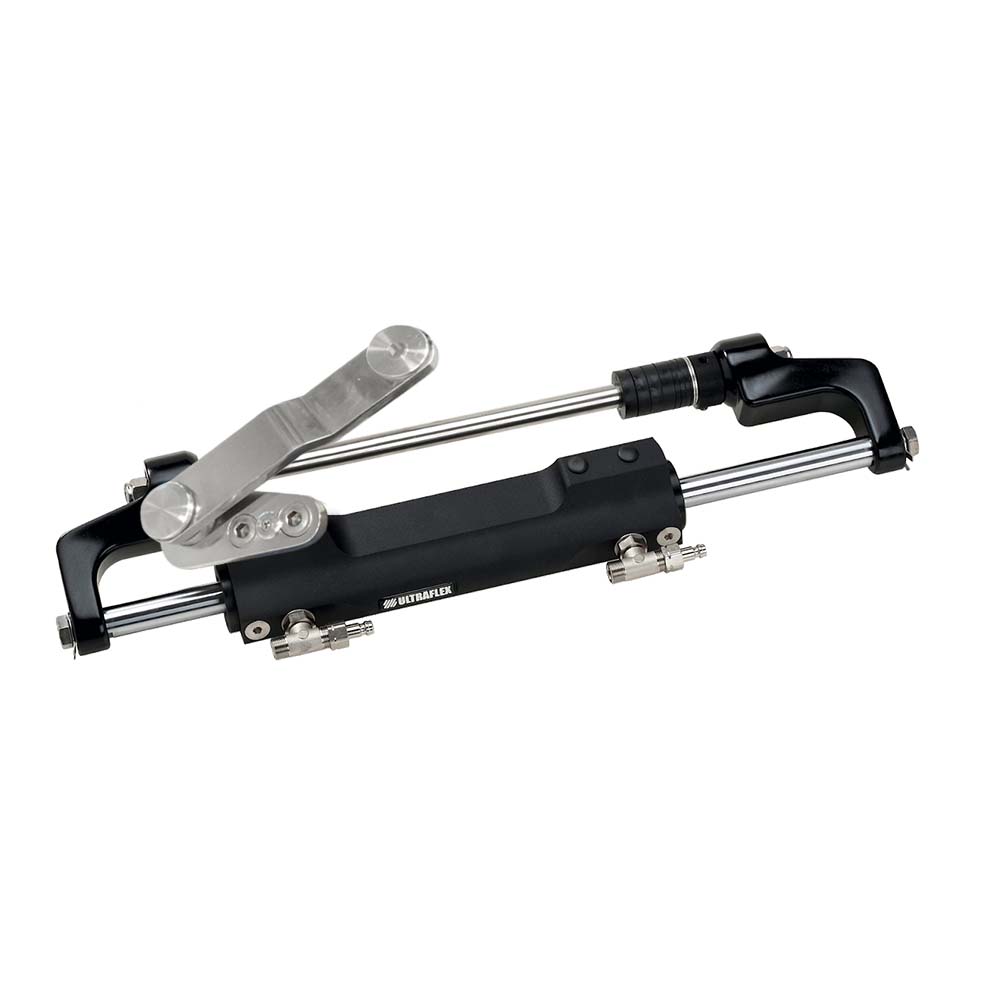

Uflex UC128TS Version 2 Hydraulic Cylinder 1.38" Bore 7.8" Stroke Front #2 Link Arm Front Mount [UC128TS-2]

UC128TS Version 2 Hydraulic Cylinder 1.38" Bore 7.8" Stroke Front #2 Link Arm Front Mount

Features:

• The replaceable triple-sealed 1 3/4" cylinder end cartridges offer industry-leading longevity and durability
• Designed for up to 600HP in certain applications
• 304 electropolished and passivated link assembly for peak corrosion resistance
• Carbon-steel piston allows less internal bypass and provides greater efficiency
• Ultrabolt high-strength stainless steel tiller bolt

Specifications:

• Application: Outboard
• Dimensions: 3"H x 6"D x 27"L
• Horsepower: Up to 300 Horsepower

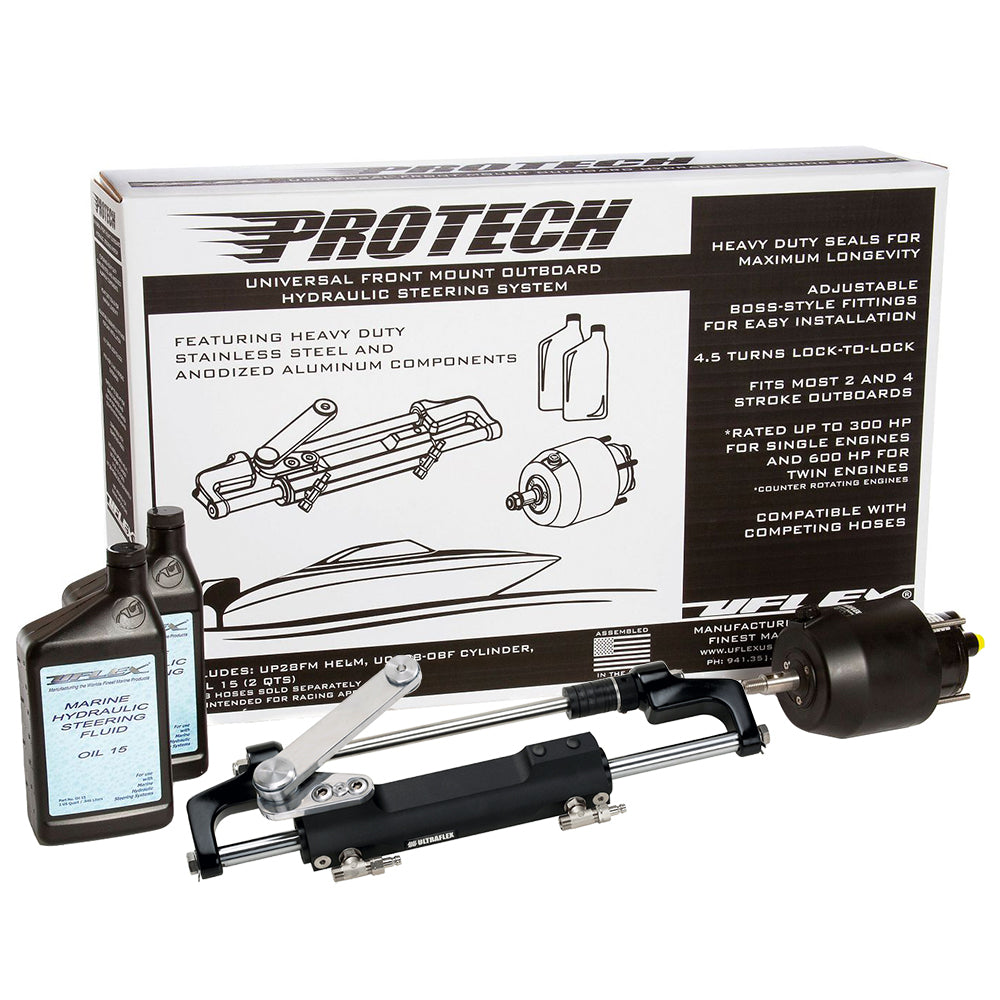

PROTECH 1.1 Front Mount OB Hydraulic System - Includes UP28 FM Helm, Oil & UC128-TS/1 Cylinder - No Hoses

Durability and performance define the Protech front mount outboard steering package. From the stainless steel helm shaft, heavy duty shaft seals, carbon steel piston and 304 electropolished and passivated stainless link assemblies, the Protech is built for maximum longevity and peak performance. Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

Kit Contains:

• UP28FM - Front mount helm pump
• UC128-TS/1 Cylinder
• OIL 15 - Hydraulic oil - 2 quarts
• Hoses & Wheel Not Included

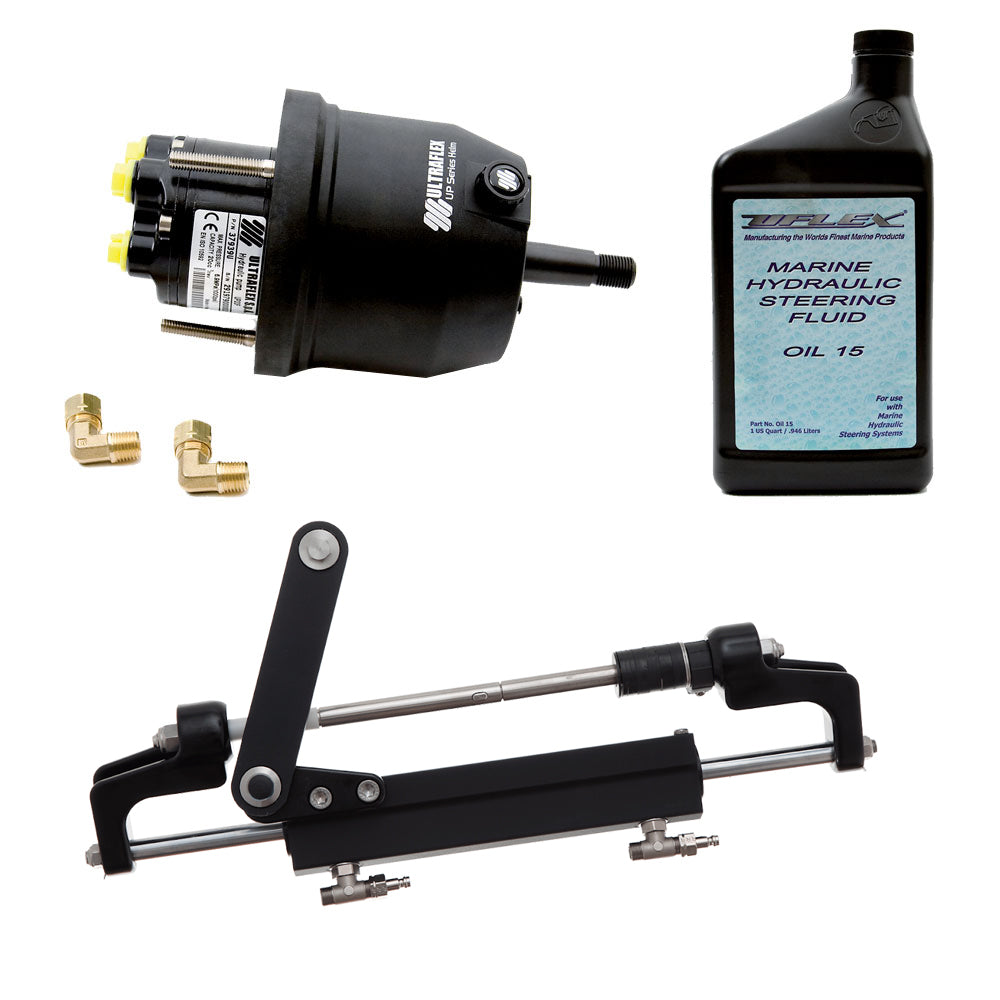

Uflex HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF Cylinder [HYCO 1.1]

HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF Cylinder

Featuring the unique split tilt tube rod that allows for installation of the UC94 cylinder without removing the engine, the Hyco is an easy and affordable outboard hydraulic steering solution for boats with 150 horsepower and under. Coupled with the composite UP20 helm, the Hyco offers effortless steering with 5 turns lock to lock. And, it is applicable to almost all 2 and 4 stoke outboards engines.

Kit Contains:

• UP20 FM Helm
• UC95-OBF cylinder
• OIL 15 - 2 Quarts

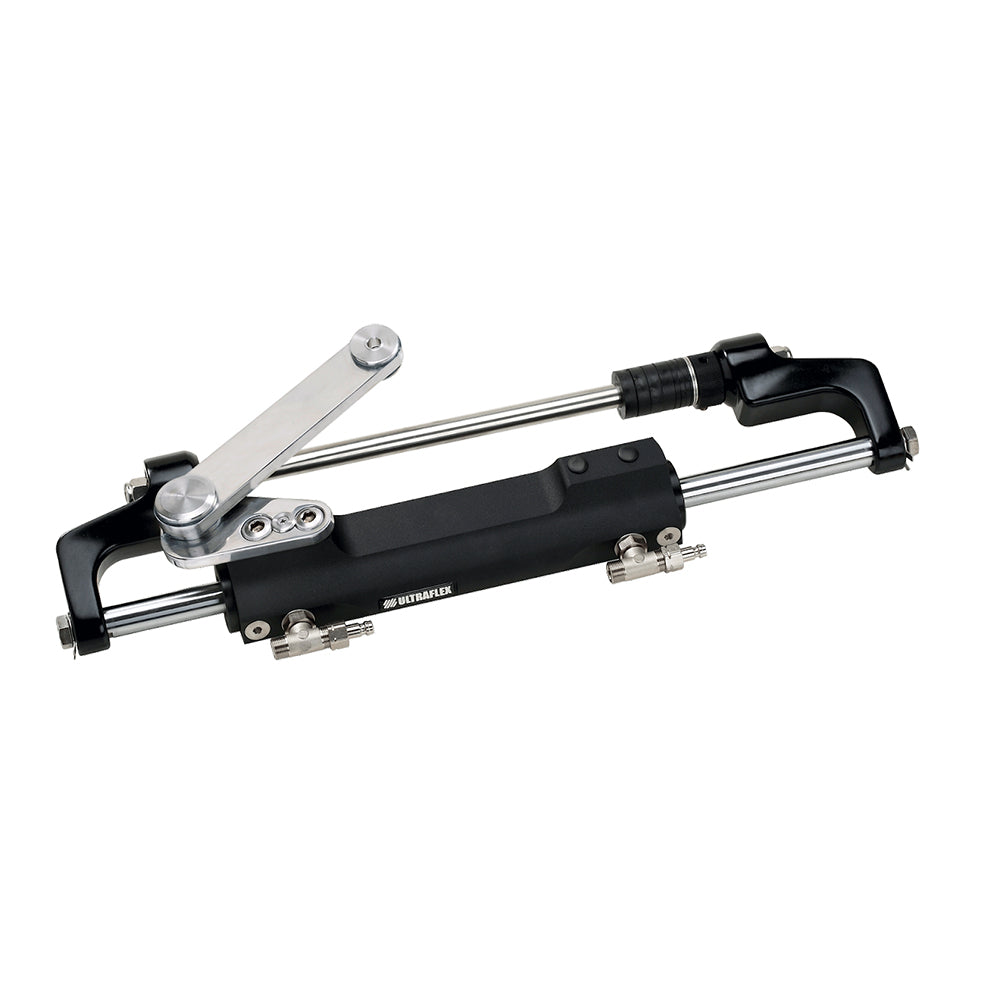

UC128 Version 1 Hydraulic Cylinder

Compatible with competing helms, hoses, and oil, the UC128 cylinder is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies. Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine in the market.

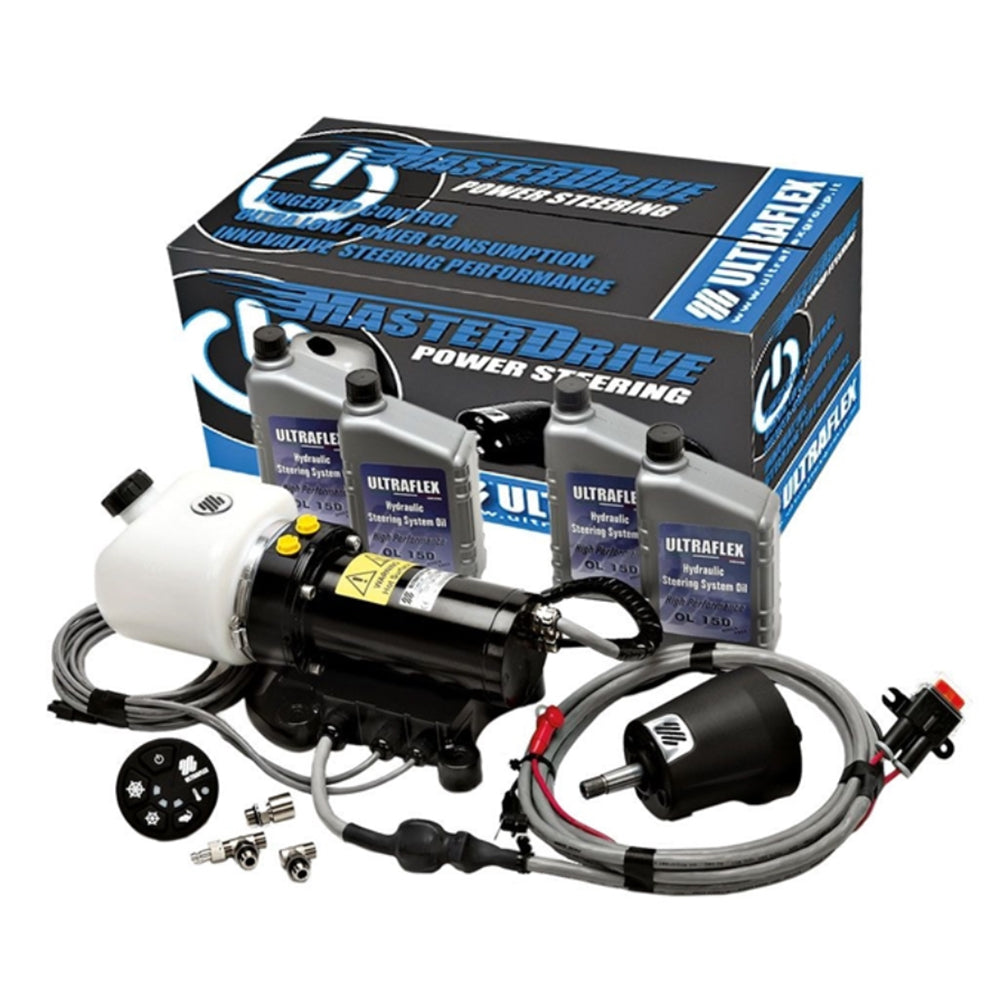

MD32T with Tilt MasterDrive Retrofit Kit Steering System

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel
• Automatically reverts to manual mode in case of power loss
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions Equipped with safety switch ON/OFF (SMART BUTTON)
• Can be used on dual station installations Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

Package Includes

 1 UH Master Helm Pump

 1 UPMD Power Unit (15’ wiring harness included)

 1 UCMD User Interface

 1 UH32-T-X66 MasterDrive 32cc tilt mount helm with tilt mechanism for power steering.

 4 quarts OIL 15 Hydraulic oil

 1 Installation manual and fittings

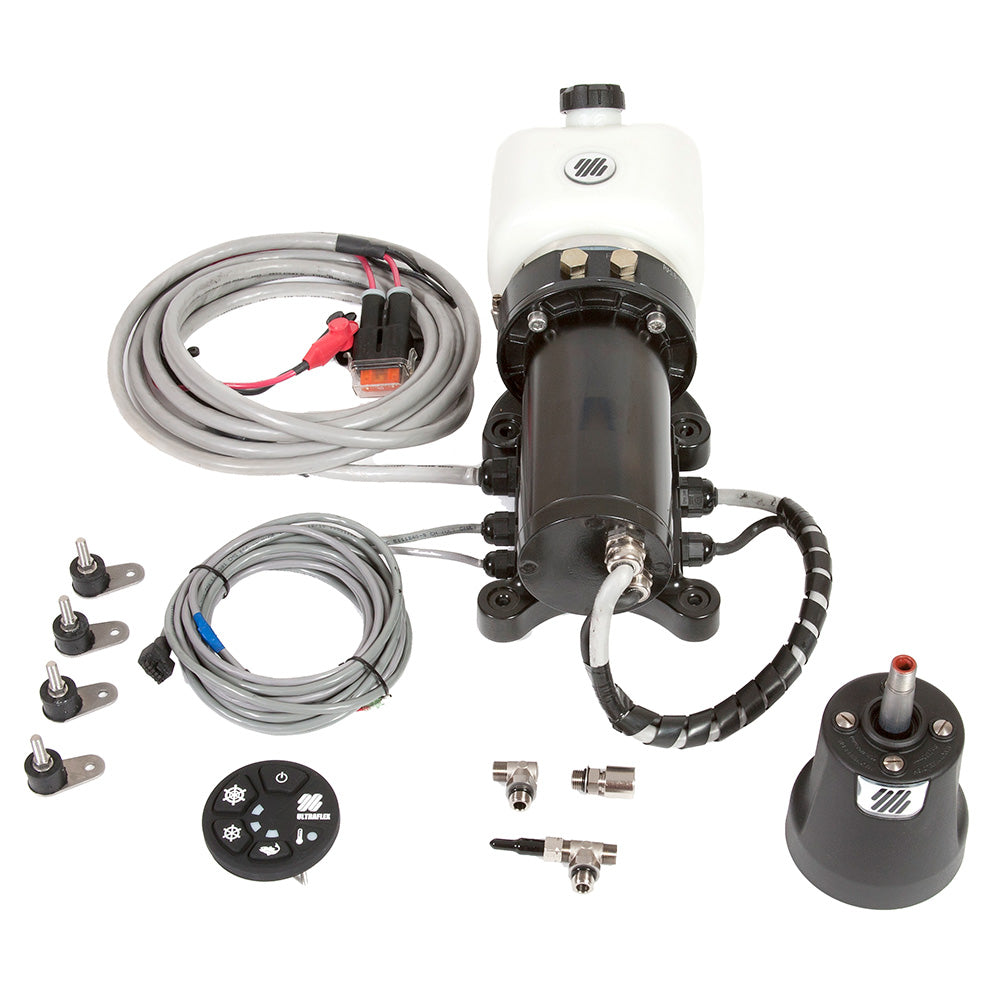

MasterDrive Single Station Retrofit Kit MD40-FM Includes Helm, Interface, MasterDrive, Power Unit

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED)
• Automatically reverts to manual mode in case of power loss
• High efficiency, low AMP draw
• The system is always running permits immediate control in any sea conditions
• Equipped with a safety switch ON/OFF (SMART BUTTON)
• Can be used on dual-station installations
• Suitable for use with an autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

What's In The Box? System Components 1 single packaged KIT MD40FM Dual Cylinder containing:

• 1 UH40-F Front Mount Master Helm
• 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
• 1 UCMD User Interface

This is a standard Inboard kit that does not include Cylinders, Hose Kits, or Steering wheels. Please indicate what Cylinder model is needed. You will also need to order Hose Kits (Not Included) and a Steering Wheel if required.

Optional Second Station Kit Not included with the above-listed MD Kit:

• 1 KIT MD2: for dual station
• Flexible hydraulic hoses
• 1 Tilt mechanism X66-40613 M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions.
• 1 Dual cylinder application Tie Bar: See Selection (Outboard Application Only)
• 1 Steering Wheel: See Selection
• 1 Instruction manual

Note: The MasterDrive™ helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive™ system.

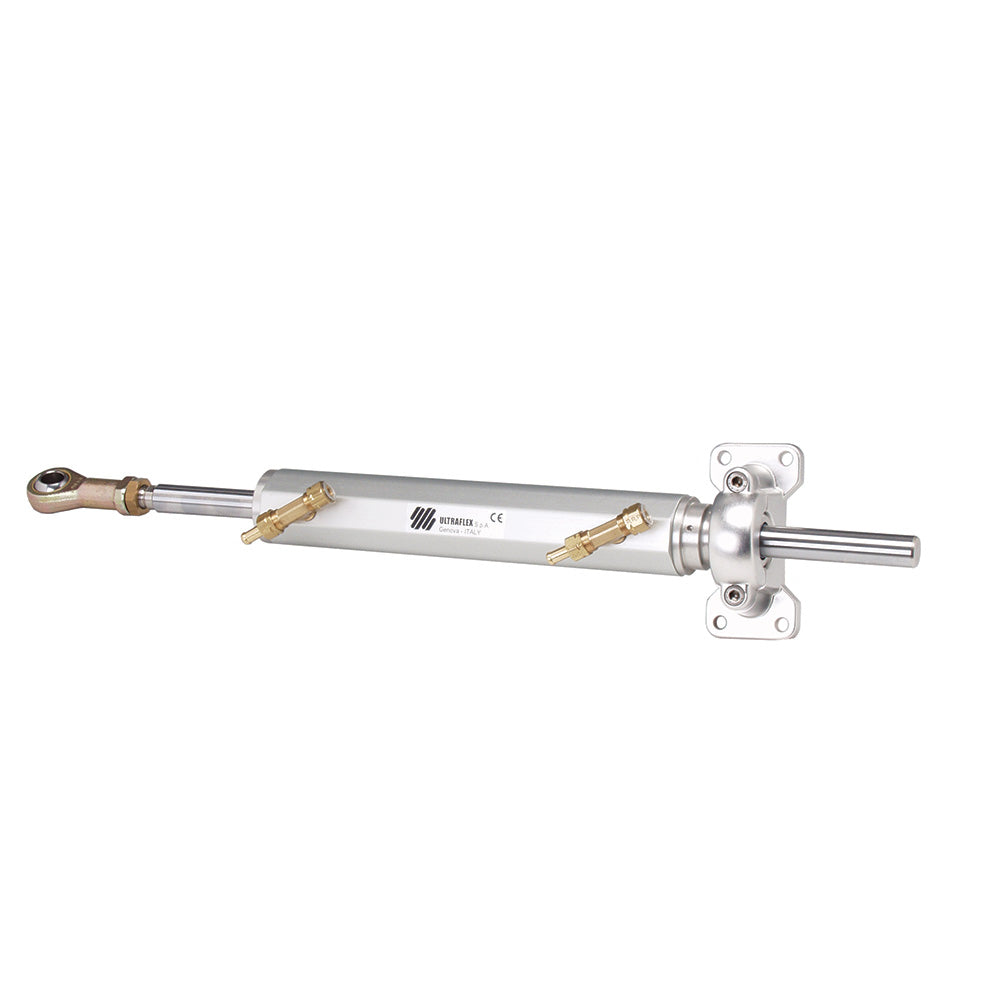

Uflex Aluminum Inboard Cylinder - 1.25" Bore  7" Stroke [UC116-I]

Aluminum Inboard Cylinder - 1.25" Bore & 7" Stroke

A hydraulic steering system consists of a steering pump, a cylinder tied to the rudder or the outboard or sterndrive engine, and the connecting hoses. Under normal operating conditions, a steering wheel turn will pump the oil, which flows in through the hoses to the cylinder, according to the turn direction.

With the consequent cylinder movement, the oil will flow to the pump through the hoses and, at the same time, move the engine or the helm, which are connected to the cylinder. The pumps, equipped with a valve that prevents outgoing fluid from returning along the same hose, allow the operation of the steering systems with two or more steering stations. The cylinders are double-acting and may be balanced or unbalanced. This particular cylinder is a balanced cylinder with the same number of steering wheel turns to move the helm from the center to the end stroke in two opposite directions. A well-balanced steering system needs the correct choice of pump for the cylinder.

This hydraulic cylinder for the inboard engine UC 116-I has been designed and manufactured to be used as a component in the hydraulic steering systems. The cylinder with a mobile rod is installed directly to the arm of the helm through the proper ball joint on the end part of the cylinder. On the opposite side, it is fixed directly to the boat through a support with the plate.

Features:

• Balanced (the number of turns lock-to-lock is equal to port to starboard or vice versa)

Specifications:

• Volume: 116 cc - 7 cu.in
• Torque: 58 kg (5043 lbs.)
• Output Force: 464 kg (1023 lbs)

Owner's Manual (pdf)
