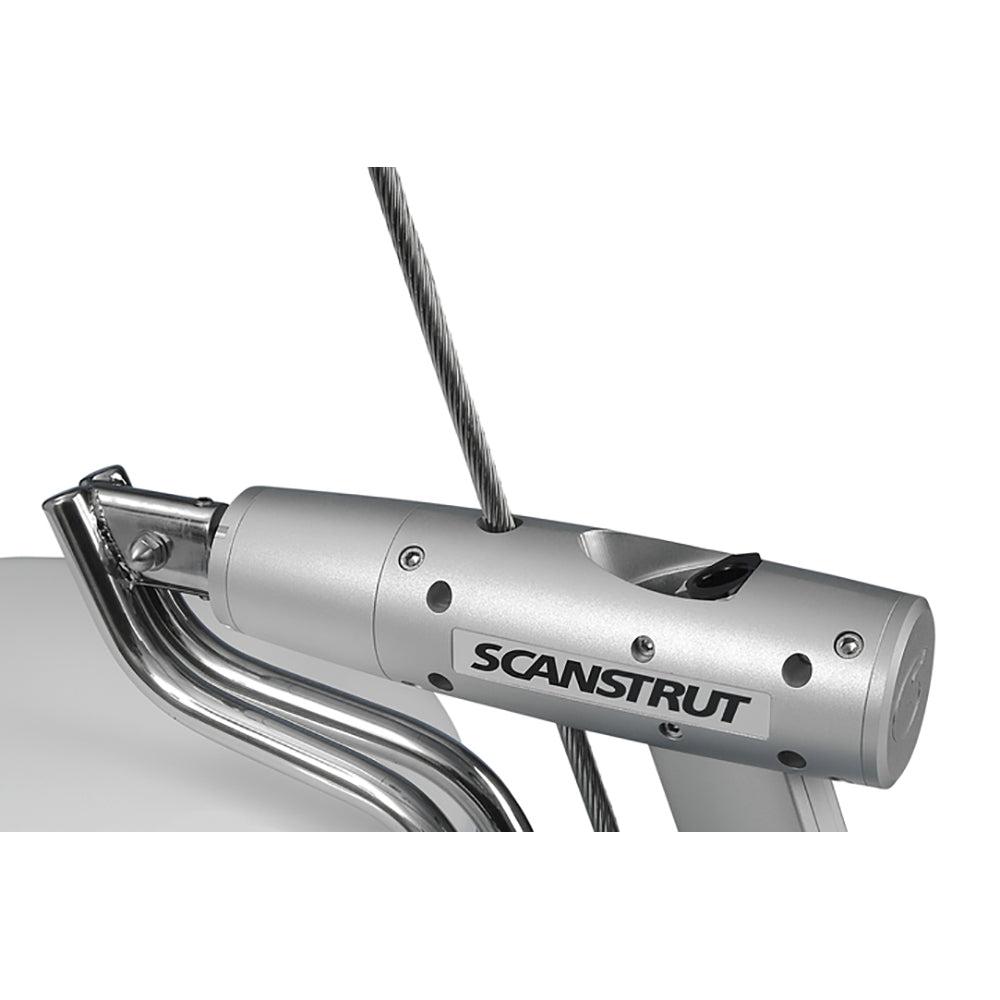

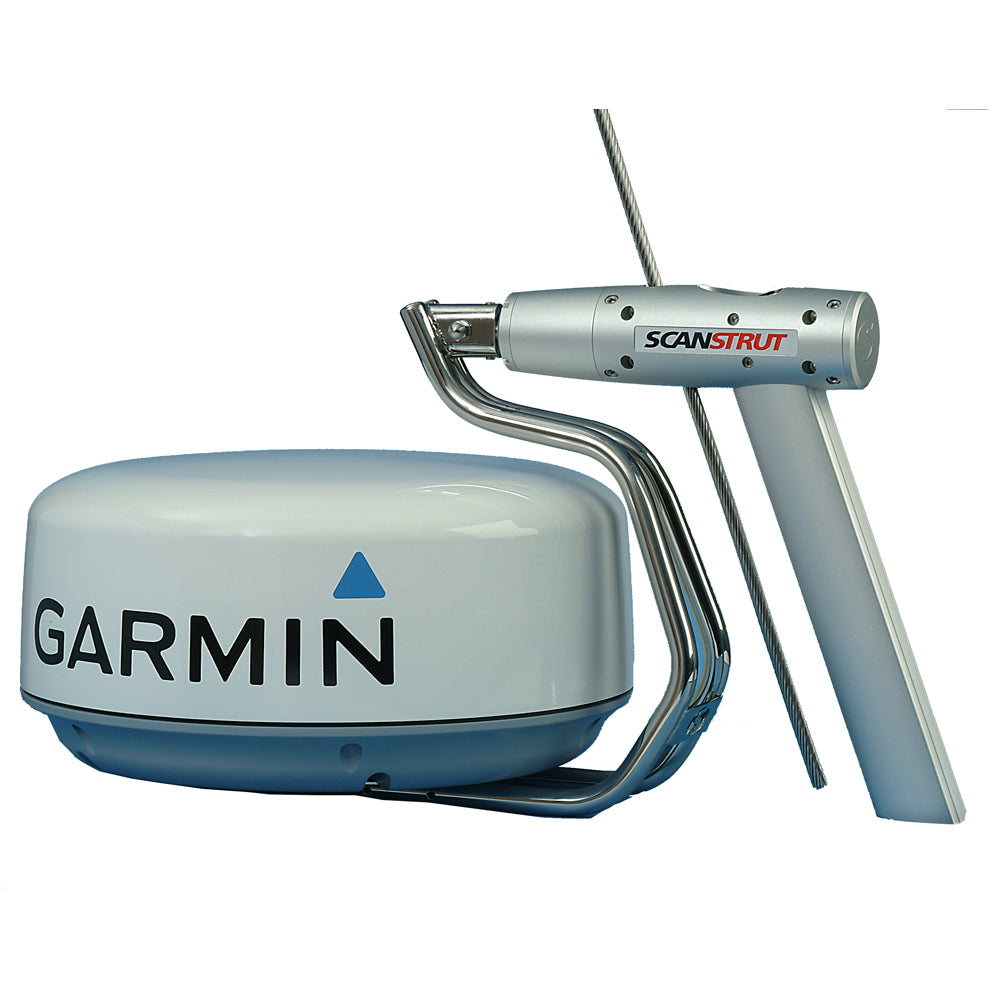

Scanstrut LMB-F1 Self Leveling Radar Mount - Backstay (F) - f/ 2kW 4kW Raymarine/Garmin Domes [LMB-F1]

Ships Direct From Manufacturer

Self-Levelling Radar Mount - Backstay - Fwd (F) - Made Specifically for Raymarine & Garmin Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined an anodised aluminum pole and head unit - lasts the lifetime of your yacht.

• Marine grade 316 stainless steel cradle and base plate


Kit includes:

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, and 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack

  Specifications:

  • Construction: Anodized Aluminum
  • Type: Self Leveling
  • Box Dimensions: 5"H x 15"W x 53"L WT: 28 lbs
  • UPC: 5060114790940

  Quick Guide (pdf)

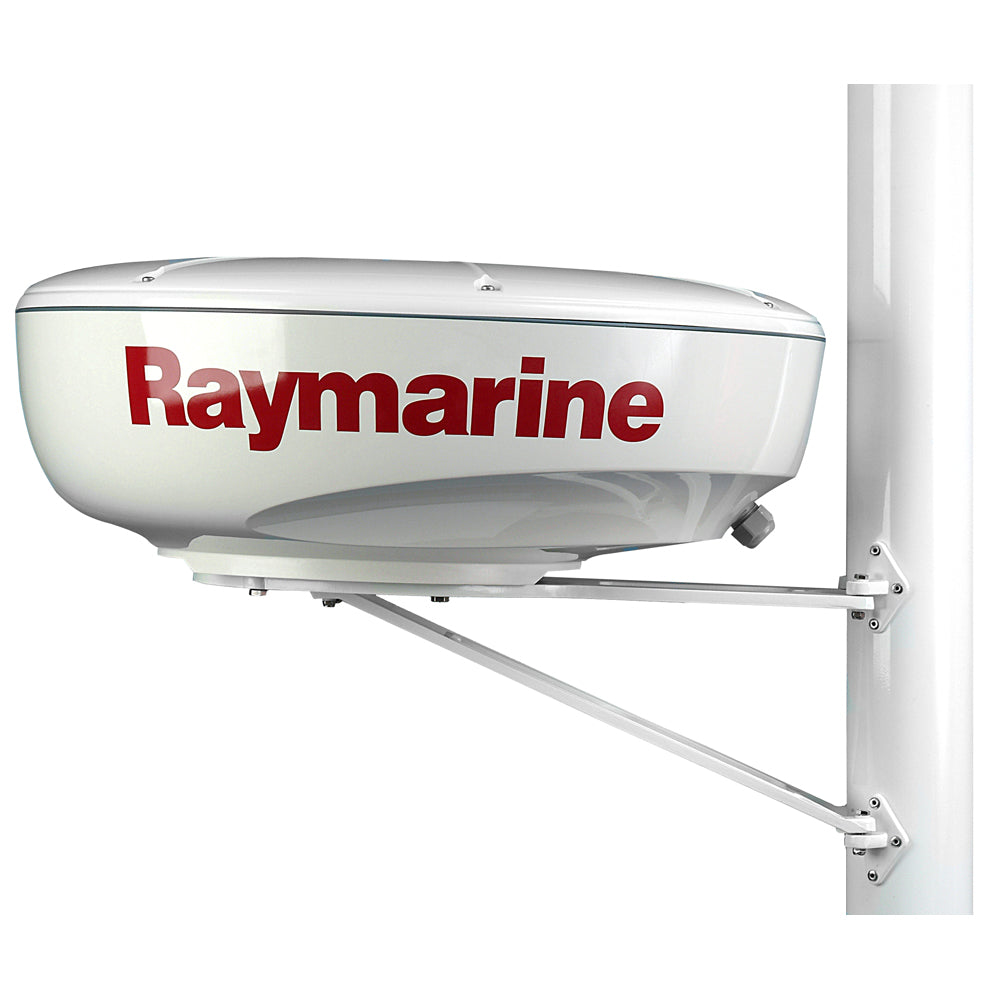

Scanstrut M92698 Mast Mount [M92698]

Mast Mounts

Compatible Units:

• Raymarine: 24" 4kW Radome

Still the first choice for boat owners the world over, Scanstrut Mast Mounts are the ultimate solution for mounting radars on yachts masts.

Raising the antenna clear of any obstructions or interference, the mast mount is a classic and reliable installation.

Features

• Easy and quick to install with all fastenings supplied

• Attached to mast by four swivel feet matching the profile of any mast

• 12 point fixing using highest quality Monel rivets for a secure installation

• Nylon washers for all fastenings to protect paint finish

• Waterproof cable grommet included to seal cable entry into mast

Materials

• Marine grade 6082 aluminium

• Polyester powder coated for a durable and gloss white finish

Kit includes

• 1 x Mast Mount

  Specifications:

  • Construction: Powder Coated Aluminum
  • Type: Mast Mount
  • Box Dimensions: 2"H x 13"W x 23"L WT: 6.1 lbs
  • UPC: 5060114790070

  Quick Guide (pdf)

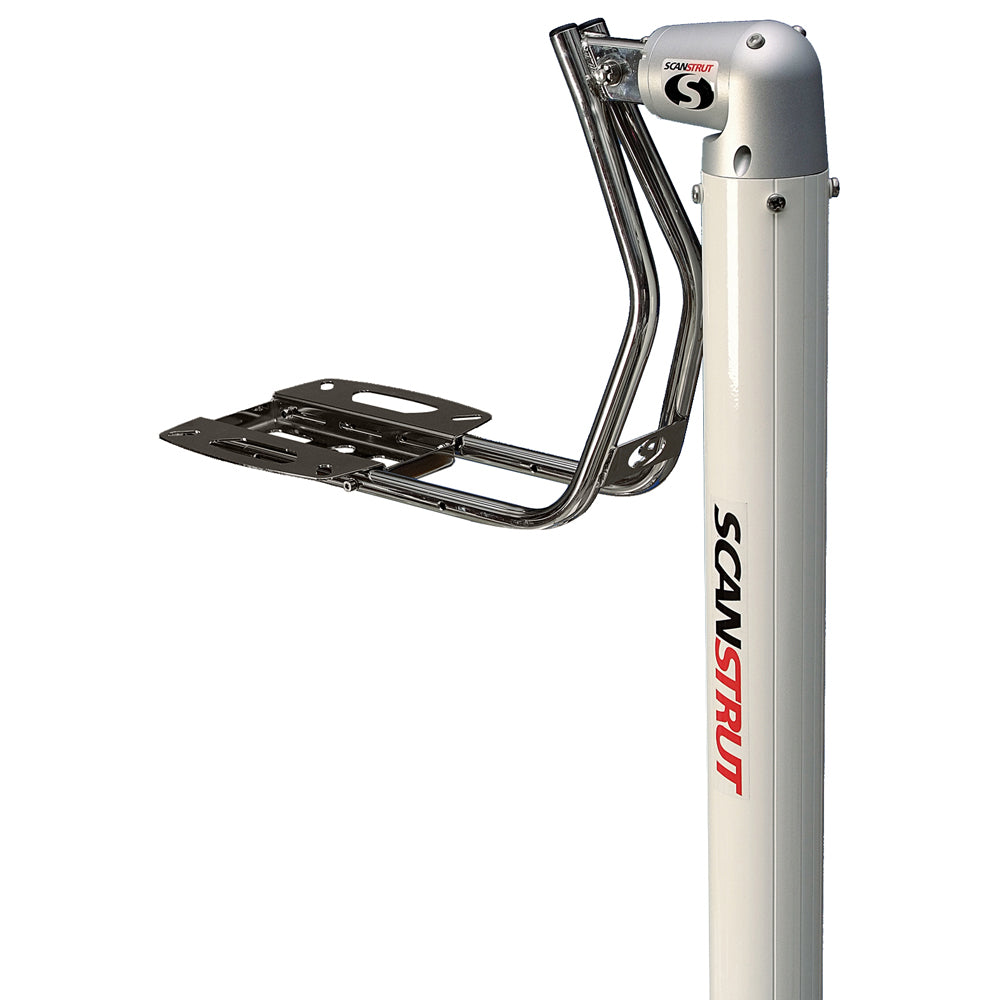

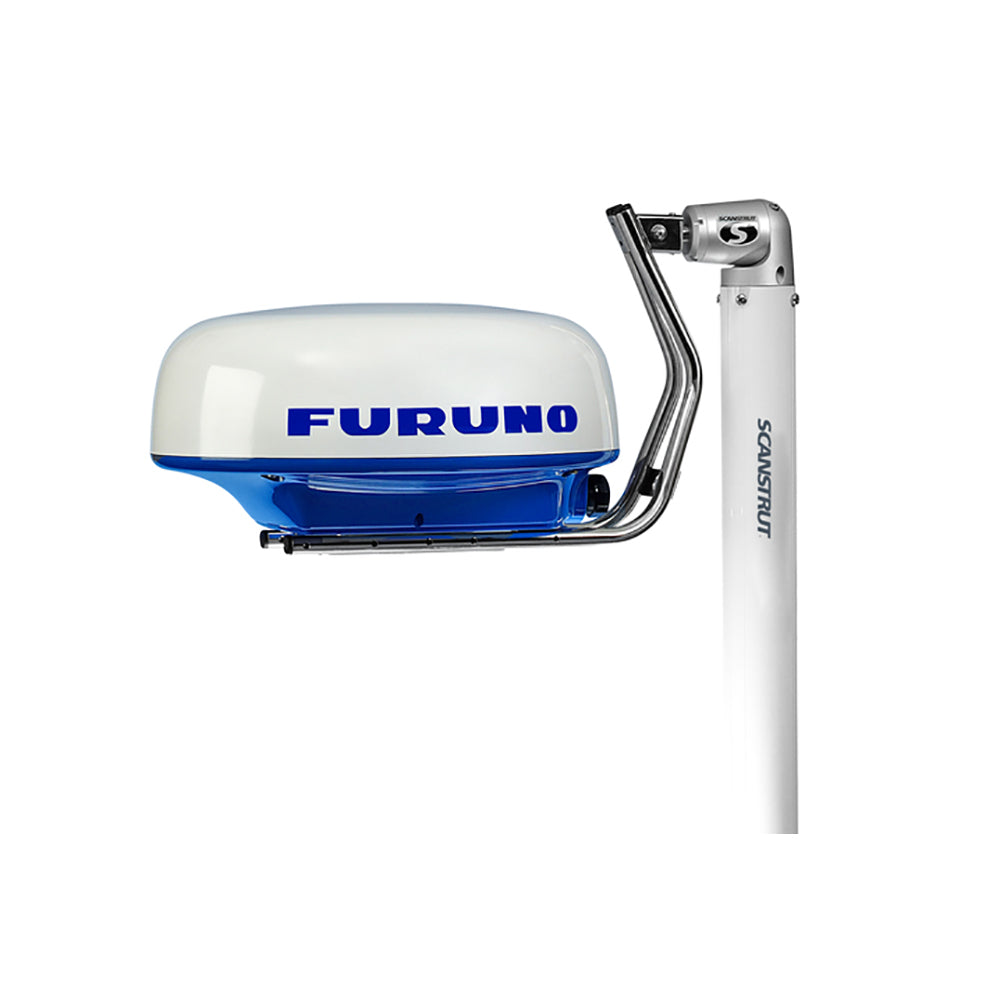

Scanstrut LMP-2 Self Leveling Pole Radar Mount - Furuno & Sitex 2kW & 4kW Domes [LMP-2]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Pole

Our Self-Levelling Pole Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

• Sealed system - entirely maintenance free

• Universal adjustable base able to rotate through 360° and angle from horizontal all the way to vertical

• Supplied with two support modules - a deck strut and rail stand off for maximum fore / aft and sideways support

• Fits to angled decks, narrow swimming steps and steeply sloping transoms

• Unique pole extrusion with two cable channels with cover strips to hold cables in place

• Easily removed for racing or winter storage, leaving just low profile deck on deck

• Existing SC100 Pole Mount installations can be upgraded to self levelling with our upgrade kit

Dimensions

• 2.5m / 8.3' pole

• 3" diameter pole

• Base diameter of just 80mm / 3.1"

Materials

• Finest quality machined and anodised aluminium head unit ? lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate

• Marine grade 6082 aluminium pole - polyester powder coated for a durable and gloss white finish

Kit includes

• 1 x Pole (complete with 2 x cable cover strips)

• 1 x Adjustable base

• 1 x Levelling head unit and cradle with plate

• 1 x 1200mm / 3.9' deck strut

• 1 x Rail stand off for 25mm / 1" rail

Specifications:

• Construction: Powder Coated Aluminum
• Type: Self Leveling

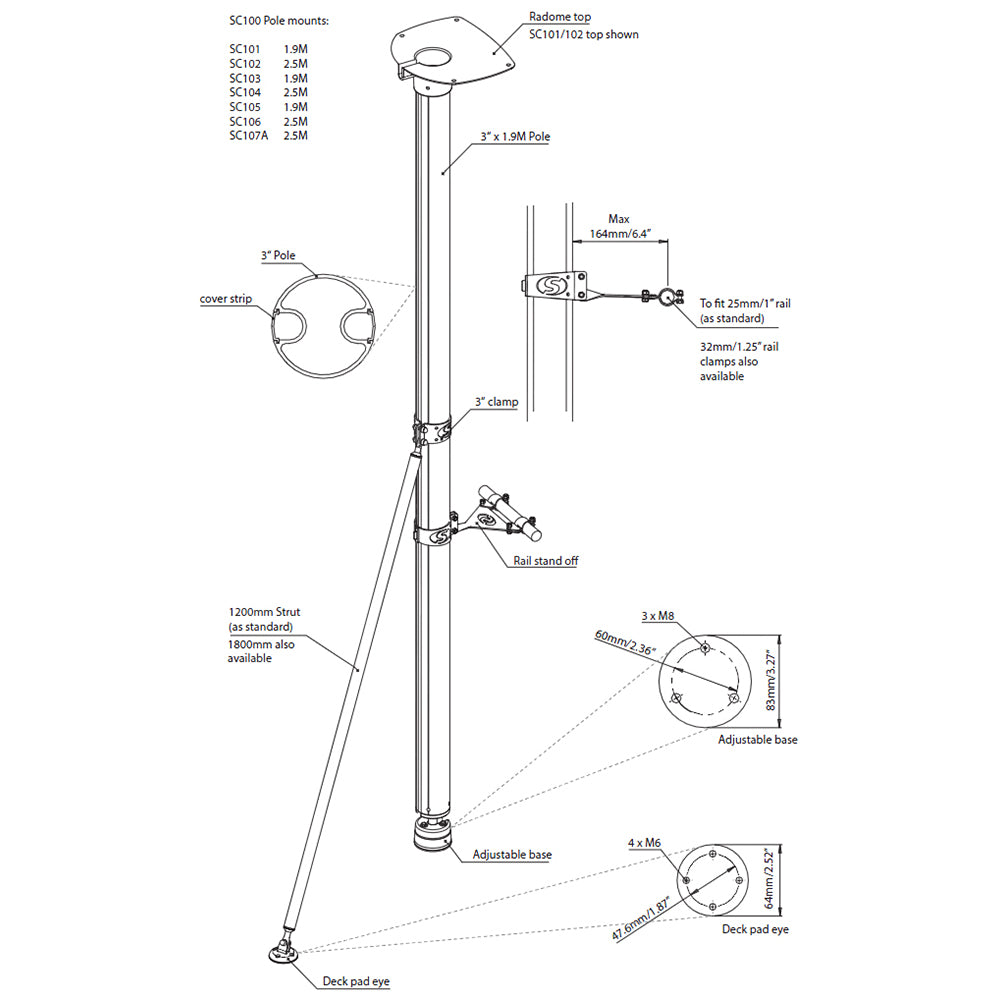

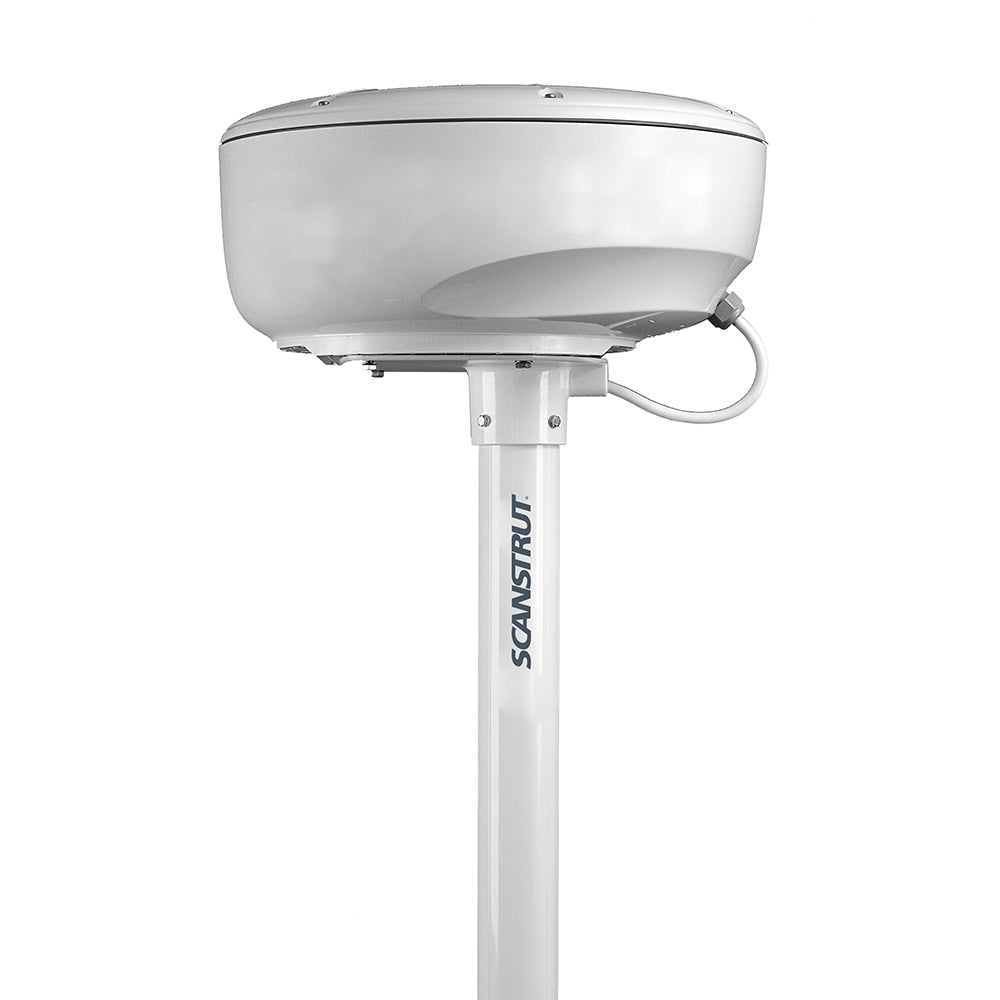

Scanstrut SC103 Radar Pole Mount - 6 [SC103]

Ships Direct From Manufacturer

SC103 Radar Pole Mount - 6'

Totally universal, the Scanstrut SC103 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18"), NavNet (24"), SC33 Sat Compass radars
• Glomex - Pandora v8001, RHEA V8100, Urania V9331, V9000 and V9001 series radars
• Humminbird - AS 21RD4KW radar
• Intellian - FB150 in i2, FB250 in i2, FB250R in i2, i1 radars
• Interphase - Mini RE-1, RE-8, RE-9 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000,  JMA 2343 / 5104 [Radome: NKE-2042] radars
• Koden - 2kW 12", 4kW [RB715A] radar
• KVH - TracVision M1, TracVision TV1 radar
• Lorenz - Lorenz 2kW
• Lowrance - LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Majestic - SATMAR32, SATMAR32D, SATMAR37D
• Navman - 8000 Series [8084/8120] 18", 8000 Series [8084/8120] 24" radars
• Nobeltec - 2kW (20"), 4kW [IR2-4D 25" 4Kw] radars
• Northstar - M series/8000i (18"), M series/8000i (24") radars
• Raymarine -  33STV radar
• Seiwa - SWR-1, SWR-8, SWR-9 radars
• Simrad - GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex - MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 radars
• Techmarine - T-72.01, T-72.02, T-72.04 radars

Features:

• Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
• Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 6.4" (1.9M)
• Mounting Type - Pole Mount

In the Box:

• Pole mount
• Top plate
• Deck strut
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Pole Mount
• Construction: Aluminum
• Height: 6

Quick Guide (pdf)
Brochure (pdf)

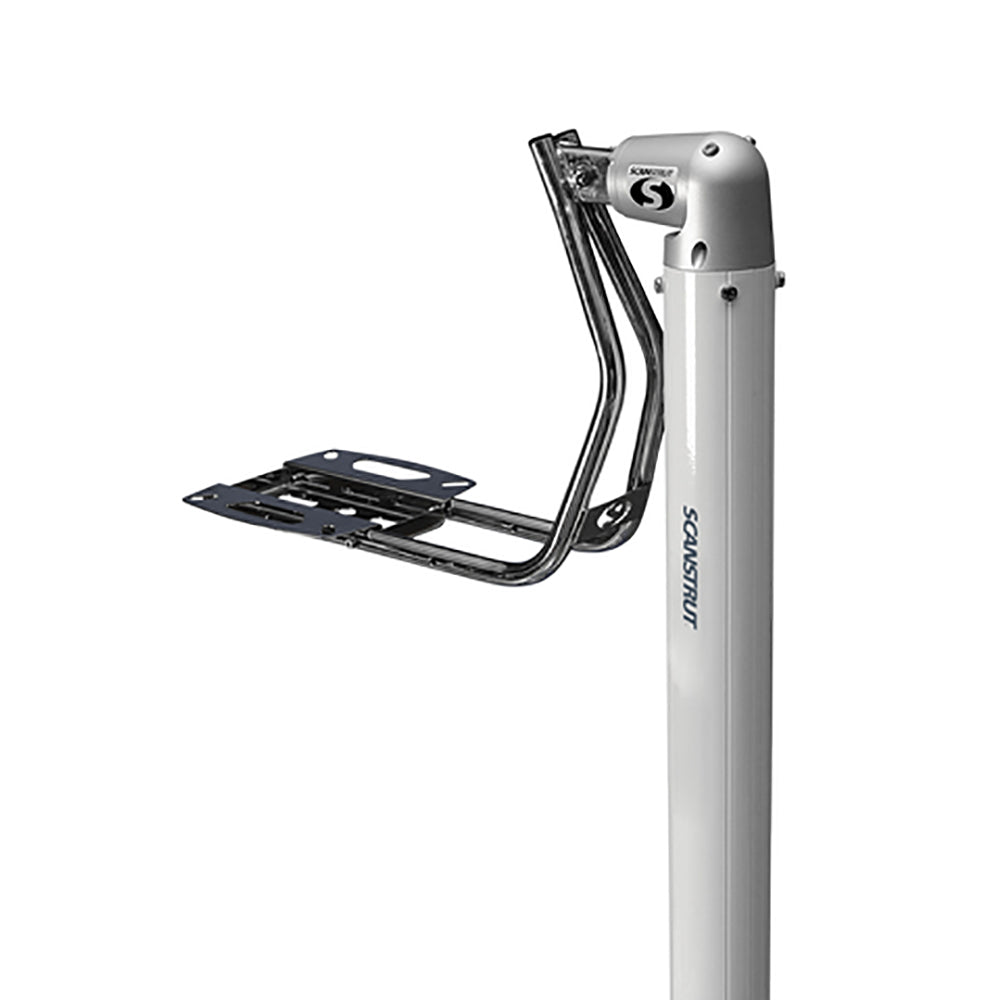

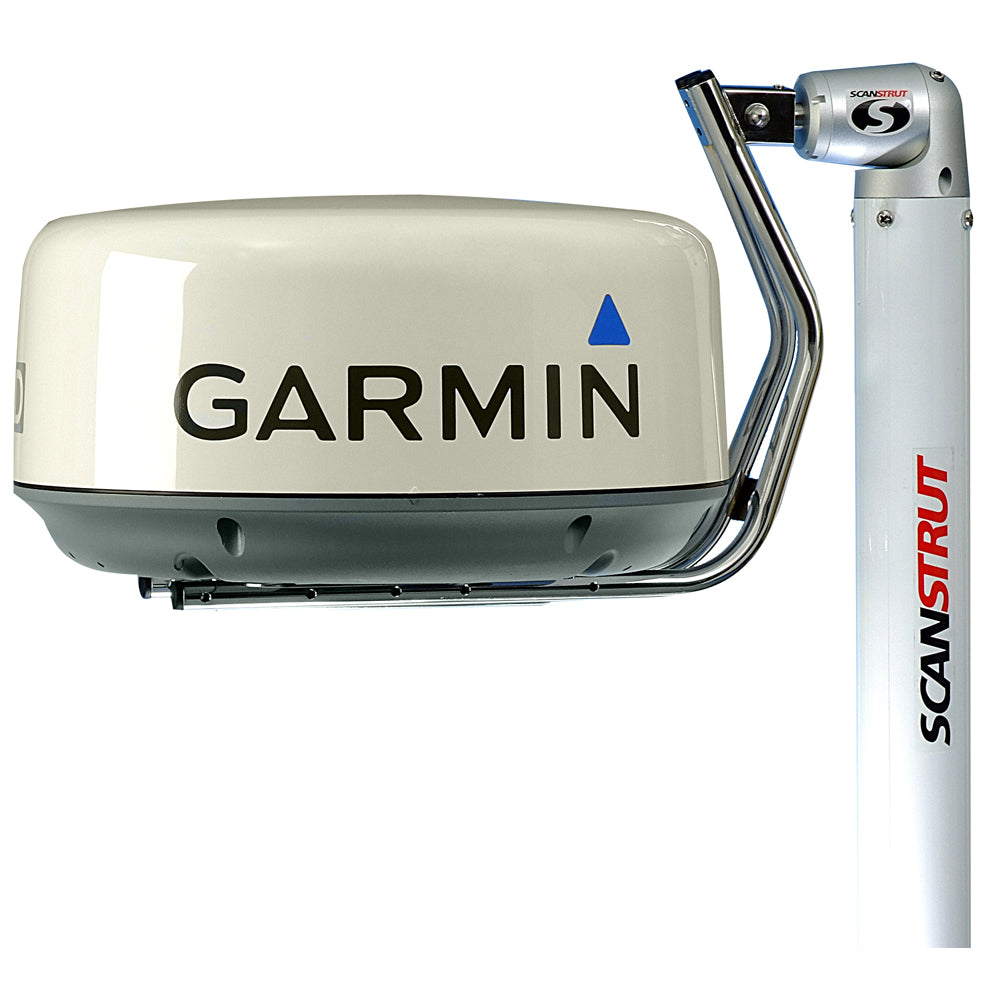

Scanstrut LMP-1 Self Leveling Pole Radar Mount - Raymarine Garmin Navico 2kW & 4kW Domes [LMP-1]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Pole

Our Self-Levelling Pole Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

• Sealed system - entirely maintenance free

• Universal adjustable base able to rotate through 360° and angle from horizontal all the way to vertical

• Supplied with two support modules - a deck strut and rail stand off for maximum fore / aft and sideways support

• Fits to angled decks, narrow swimming steps and steeply sloping transoms

• Unique pole extrusion with two cable channels with cover strips to hold cables in place

• Easily removed for racing or winter storage, leaving just low profile deck on deck

• Existing SC100 Pole Mount installations can be upgraded to self levelling with our upgrade kit

Dimensions

• 2.5m / 8.3' pole

• 3" diameter pole

• Base diameter of just 80mm / 3.1"

Materials

• Finest quality machined and anodised aluminium head unit ? lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate

• Marine grade 6082 aluminium pole - polyester powder coated for a durable and gloss white finish

Kit includes

• 1 x Pole (complete with 2 x cable cover strips)

• 1 x Adjustable base

• 1 x Levelling head unit and cradle with plate

• 1 x 1200mm / 3.9' deck strut

• 1 x Rail stand off for 25mm / 1" rail

Specifications:

• Construction: Powder Coated Aluminum
• Type: Self Leveling
• Box Dimensions: 8"H x 15"W x 96"L WT: 33 lbs
• UPC: 5060114791176

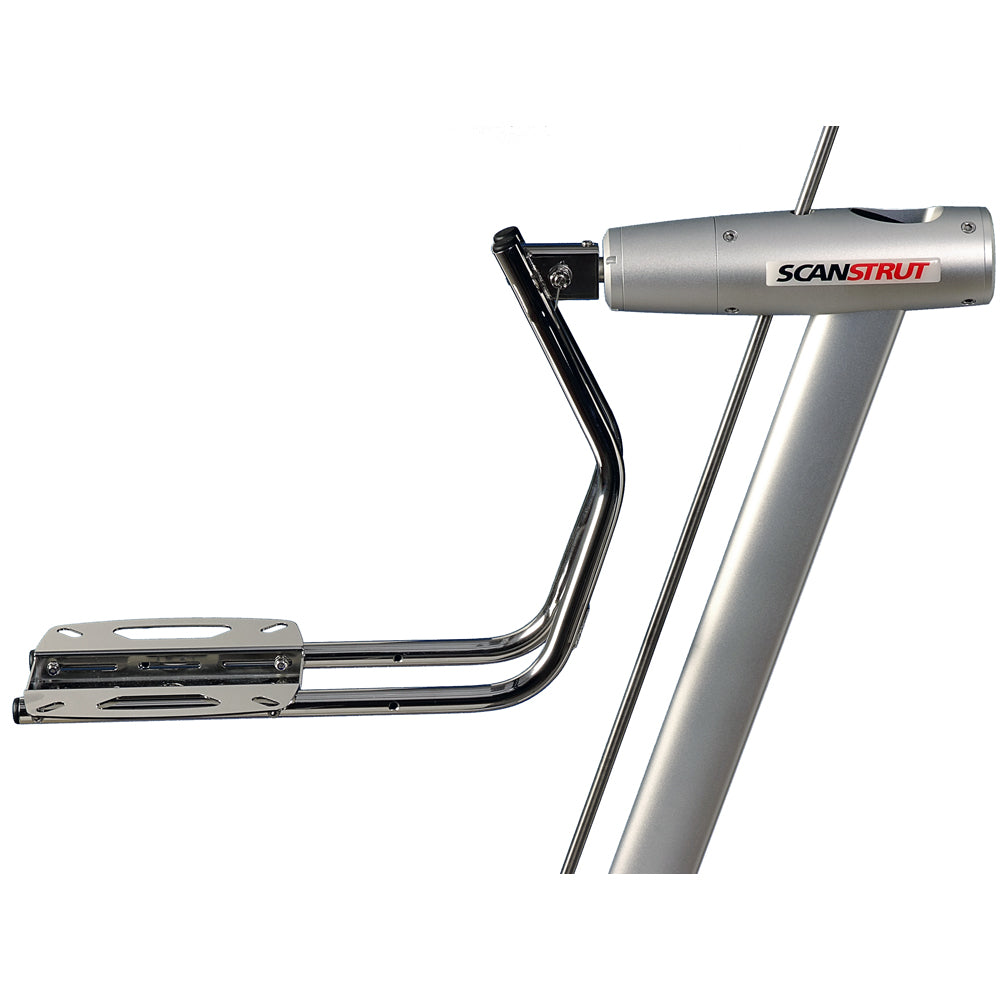

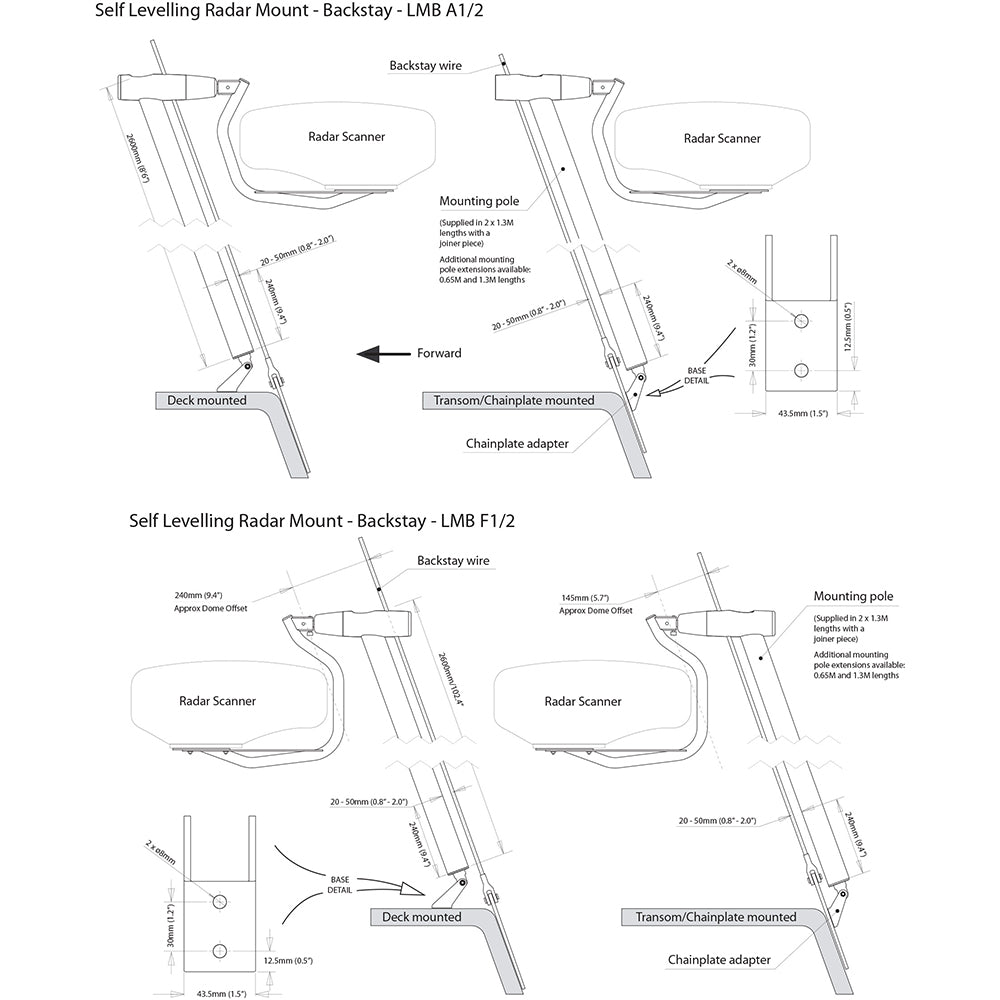

Scanstrut LMB-A2 Self Leveling Radar Mount - Backstay (A) - f/Sitex/Simrad Domes [LMB-A2]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Backstay - Aft (A) - Made specifically for Sitex/Simrad Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate


Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack


  Specifications:

  • Construction: Anodized Aluminum
  • Type: Self Leveling
  • Box Dimensions: 6"H x 17"W x 52"L WT: 25 lbs

  Quick Guide (pdf)

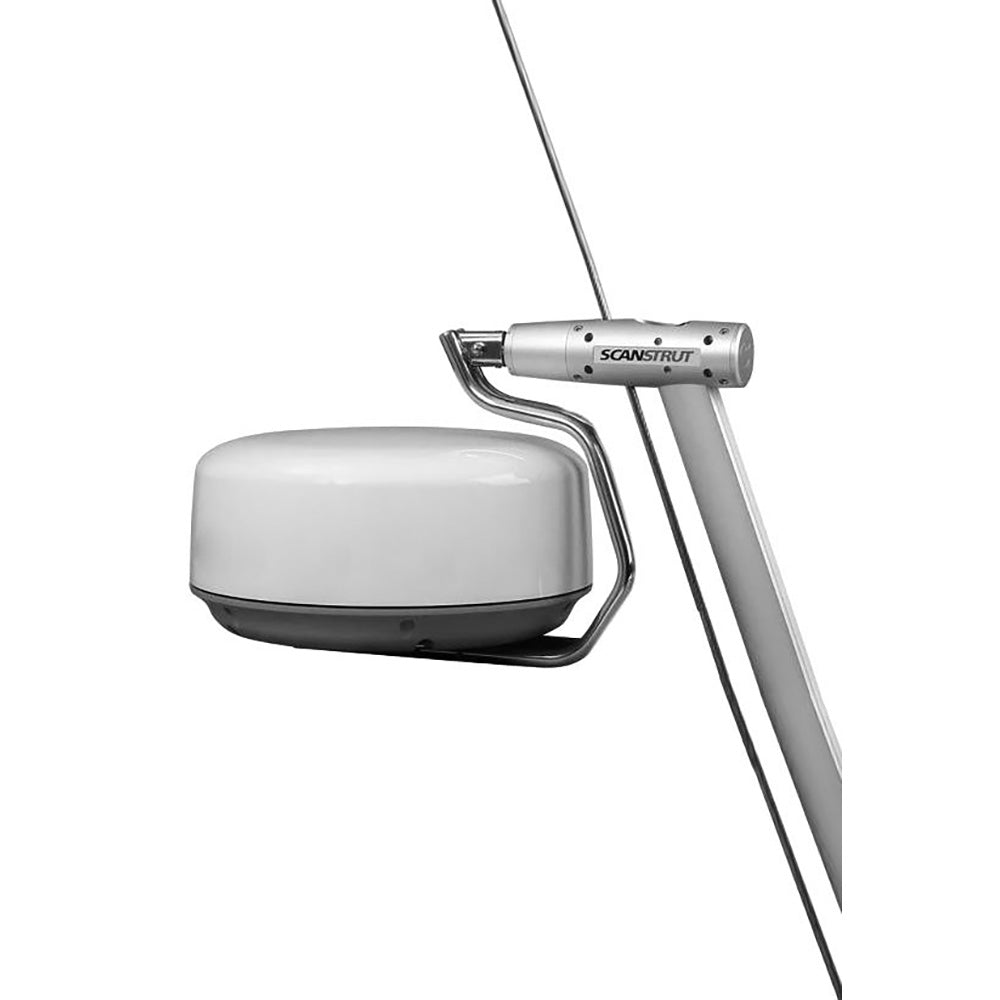

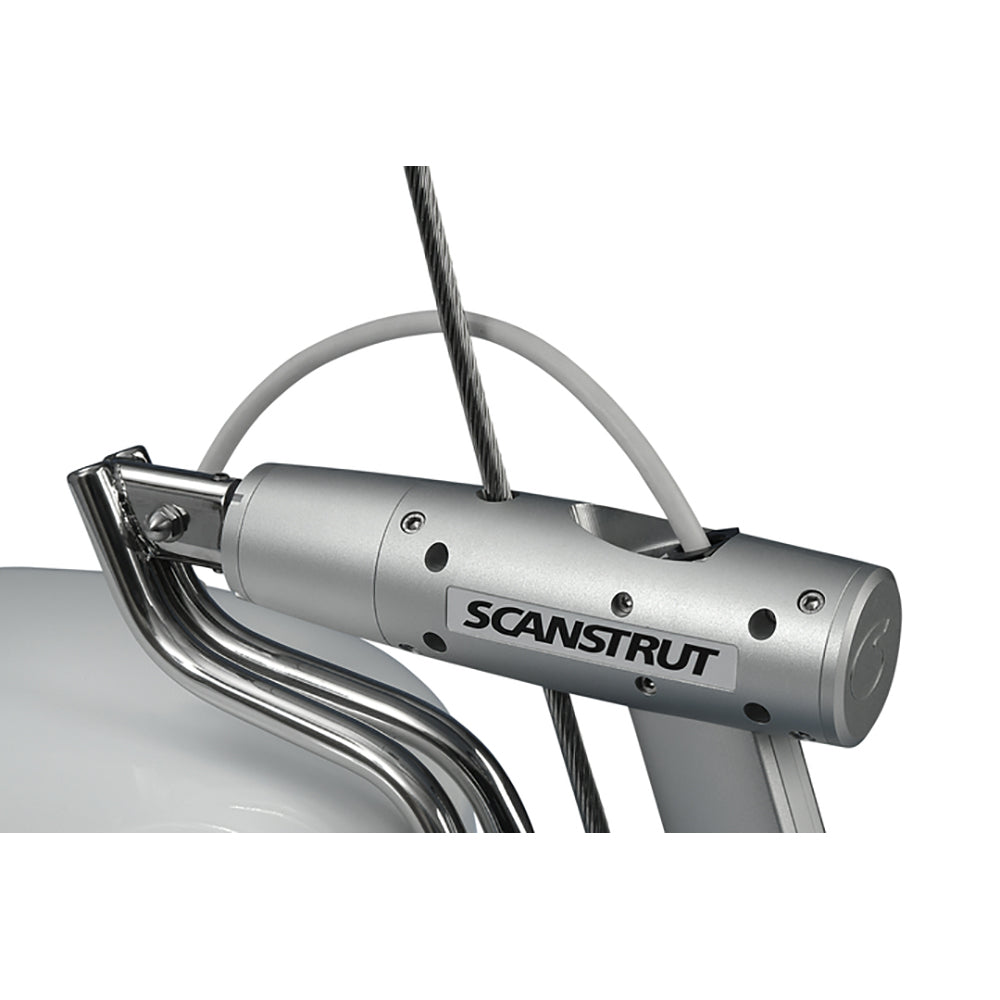

Scanstrut LMB-F2 Self Leveling Radar Mount - Backstay (F) f/Sitex/Simrad Domes [LMB-F2]

Ships Direct From Manufacturer

 LMB-F2 Self Leveling Radar Mount - Backstay (F) for Sitex/Simrad Domes

The Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Lightweight head unit - reduced weight aloft
• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions:

• 2.6m pole - supplied in lengths of 1.3m
• Additional 0.6m and 1.3m lengths are available

Materials:

• Finest quality machined and anodized aluminum pole and head unit - lasts the lifetime of your yacht
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10, and 12mm diameter backstay cables)
• 2 x 1.3m lengths of the mounting pole
• 1 x Joiner piece for the mounting pole
• 1 x Universal base for the mounting pole
• 1 x Complete fastening pack

Specifications:

• Construction: Anodized Aluminum
• Type: Self Leveling
• Box Dimensions: 5"H x 16"W x 52"L WT: 25.8 lbs
• UPC: 5060114790957

Quick Guide (pdf)

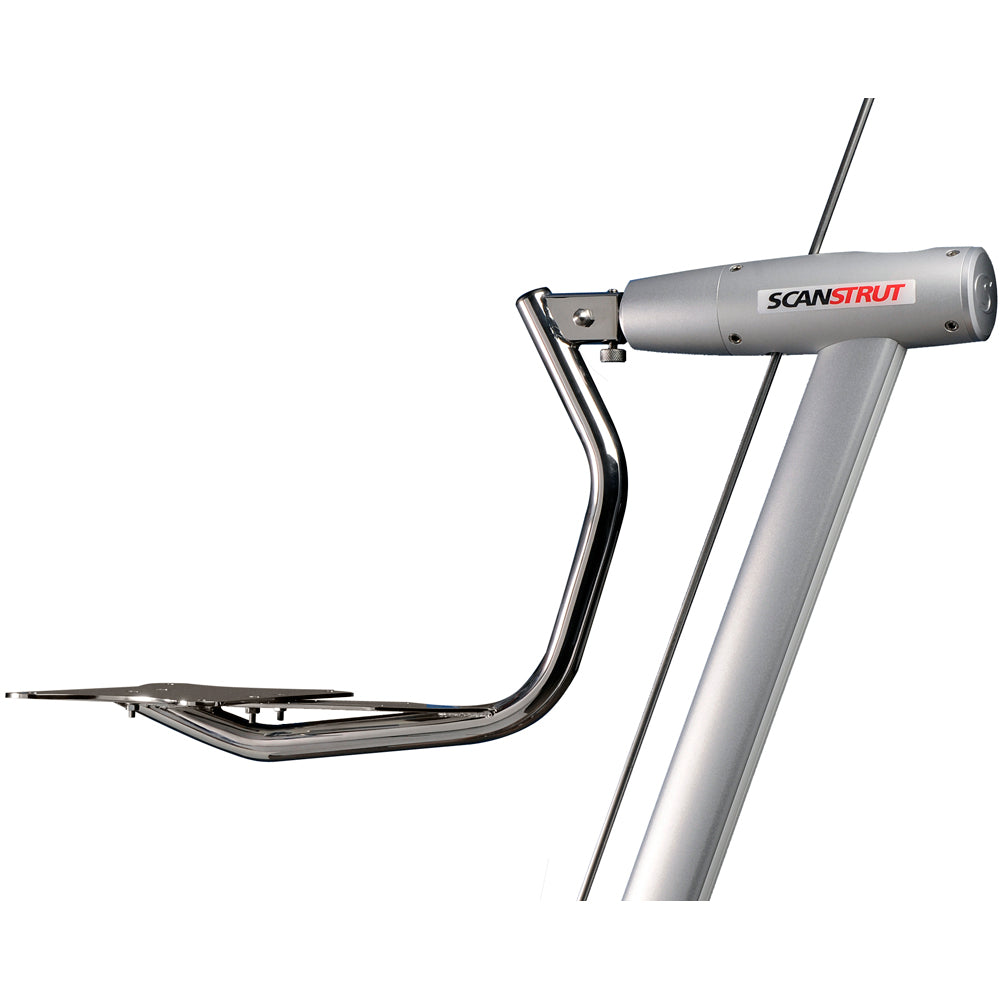

Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes [LMB-A1]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Backstay - Aft (A) Made specifically for Raymarine/Garmin Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate


Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack


  Specifications:

  • Type: Self Leveling
  • Construction: Anodized Aluminum
  • Box Dimensions: 5"H x 17"W x 52"L WT: 26 lbs
  • UPC: 5060114790933

  Quick Guide (pdf)
