Boat Outfitting - Radar/TV Mounts

Scanstrut LMB-A2 Self Leveling Radar Mount - Backstay (A) - f/Sitex/Simrad Domes [LMB-A2]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Backstay - Aft (A) - Made specifically for Sitex/Simrad Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate


Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack


  Specifications:

  • Construction: Anodized Aluminum
  • Type: Self Leveling
  • Box Dimensions: 6"H x 17"W x 52"L WT: 25 lbs

  Quick Guide (pdf)

Scanstrut LMB-F2 Self Leveling Radar Mount - Backstay (F) f/Sitex/Simrad Domes [LMB-F2]

Ships Direct From Manufacturer

 LMB-F2 Self Leveling Radar Mount - Backstay (F) for Sitex/Simrad Domes

The Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Lightweight head unit - reduced weight aloft
• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions:

• 2.6m pole - supplied in lengths of 1.3m
• Additional 0.6m and 1.3m lengths are available

Materials:

• Finest quality machined and anodized aluminum pole and head unit - lasts the lifetime of your yacht
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10, and 12mm diameter backstay cables)
• 2 x 1.3m lengths of the mounting pole
• 1 x Joiner piece for the mounting pole
• 1 x Universal base for the mounting pole
• 1 x Complete fastening pack

Specifications:

• Construction: Anodized Aluminum
• Type: Self Leveling
• Box Dimensions: 5"H x 16"W x 52"L WT: 25.8 lbs
• UPC: 5060114790957

Quick Guide (pdf)

Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes [LMB-A1]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Backstay - Aft (A) Made specifically for Raymarine/Garmin Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate


Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack


  Specifications:

  • Type: Self Leveling
  • Construction: Anodized Aluminum
  • Box Dimensions: 5"H x 17"W x 52"L WT: 26 lbs
  • UPC: 5060114790933

  Quick Guide (pdf)

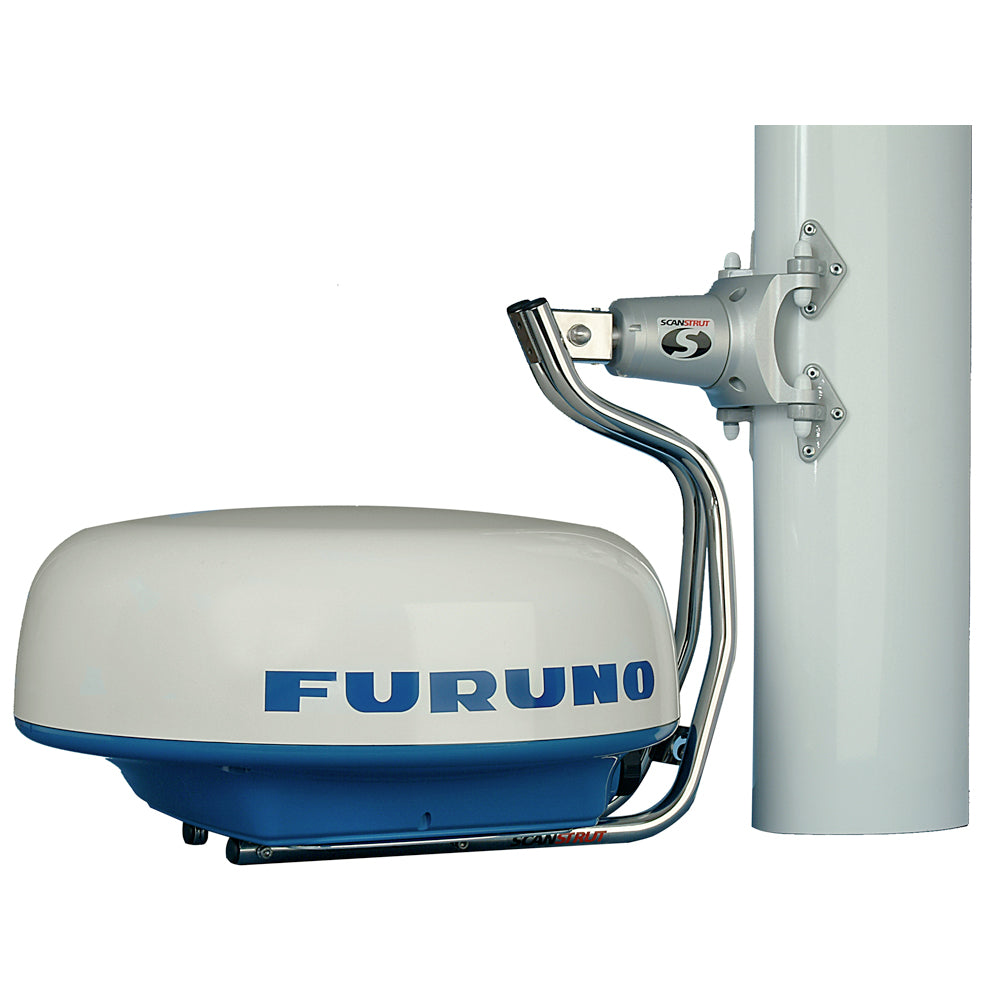

Scanstrut LMM-2 Self Leveling Radar Mount [LMM-2]

Ships Direct From Manufacturer

Self Levelling Radar Mount - Mast

Devices Compatible with LMM-2 Self Levelling Radar Mount

Furuno - 1621, 1622, 1623, 1715,  1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18"), NavNet (24")

Humminbird - AS 21RD4KW

Interphase - Mini RE-1, RE-8, RE-9

JRC- 1000, 1000mk2, 1066, 1500, 1500mk2

Koden - 2kW 12", 4kW [RB715A]

Lorenz - 2kW

Lowrance - LRA-1800 / RB714A / DX42

Navman - 8000 Series [8084/8120] 18"

Nobeltec - 2kW (20")

Northstar - M series/8000i (18")

Seiwa - SWR-1, SWR-8,SWR-9

Simrad - GB40 / NX40/45 / NSE8/12 / RB712A / DX42S

Sitex - MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066

Techmarine - T-72.01, T-72.02,  T-72.04

Our Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Reduced weight aloft - complete system weighs only 3.4 kg
• Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722
• Attached to mast by four swivel ffet - matches the profile of any mast
• 12 point fixing - highest quality monel rivets
• Compact mount - radar extends only minimum distance from front of mast

Materials

• Finest quality machined and anodised aluminium mast adapter
• Marine grade 316 stainless steel cradle and base plate

Kit includes

• 1 x Levelling mount
• 1 x Mast Adapter
• 1 x Complete fastening pack

Specifications:

• Construction: Stainless Steel
• Type: Self Leveling
• Box Dimensions: 6"H x 16"W x 16"L WT: 9.3 lbs
• UPC: 5060114791169

Scanstrut SC102 Radar Pole Mount - 8  [SC102]

Ships Direct From Manufacturer

SC102 Radar Pole Mount - 8'

Totally universal, the Scanstrut SC102 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

• B & G - 3G/4G, HALO20, HALO20+, HALO24 radars
• Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• Lowrance - 3G/4G radars
• Raymarine - QUANTUM, QUANTUM 2, RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars
• Sitex - RADARpc - 4D radar

Features:

• Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
• Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 8.3" (2.5M)
• Mounting Type - Pole Mount

In the Box:

• Pole mount
• Top plate
• Deck strut
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Pole Mount
• Height: 8
• Box Dimensions: 5"H x 15"W x 96"L WT: 28 lbs
• UPC: 5060114790599

Quick Guide (pdf)
Brochure (pdf)

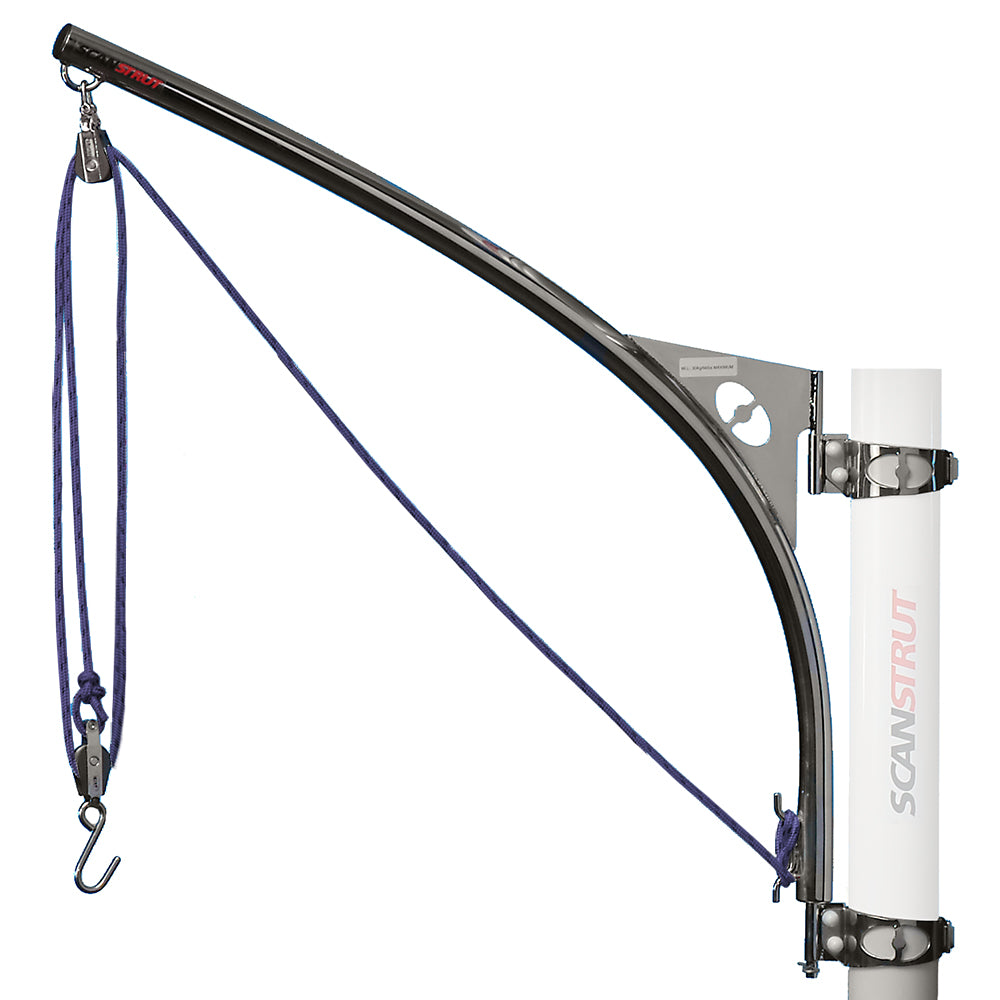

Scanstrut SC120 Lifting Crane [SC120]

SC120 Lifting Crane

This innovative lifting crane allows easy lifting and lowering of luggage, outboards etc and swings through 270°.

Compatible with:

• Scanstrut SC Pole Mounts

Features:

• Crane swings 270°
• Quick-release pins allow easy removal for storage
• Takes up minimal locker space when not in use

Technical Specifications:

• Max lifting weight capacity -  66lbs (30kg)
• Material -  Stainless Steel

In the Box:

• Crane
• Mounting hardware
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Stainless Steel
• Type: Parts
• Height: 31
• Box Dimensions: 4"H x 16"W x 41"L WT: 9.6 lbs
• UPC: 5060114790681

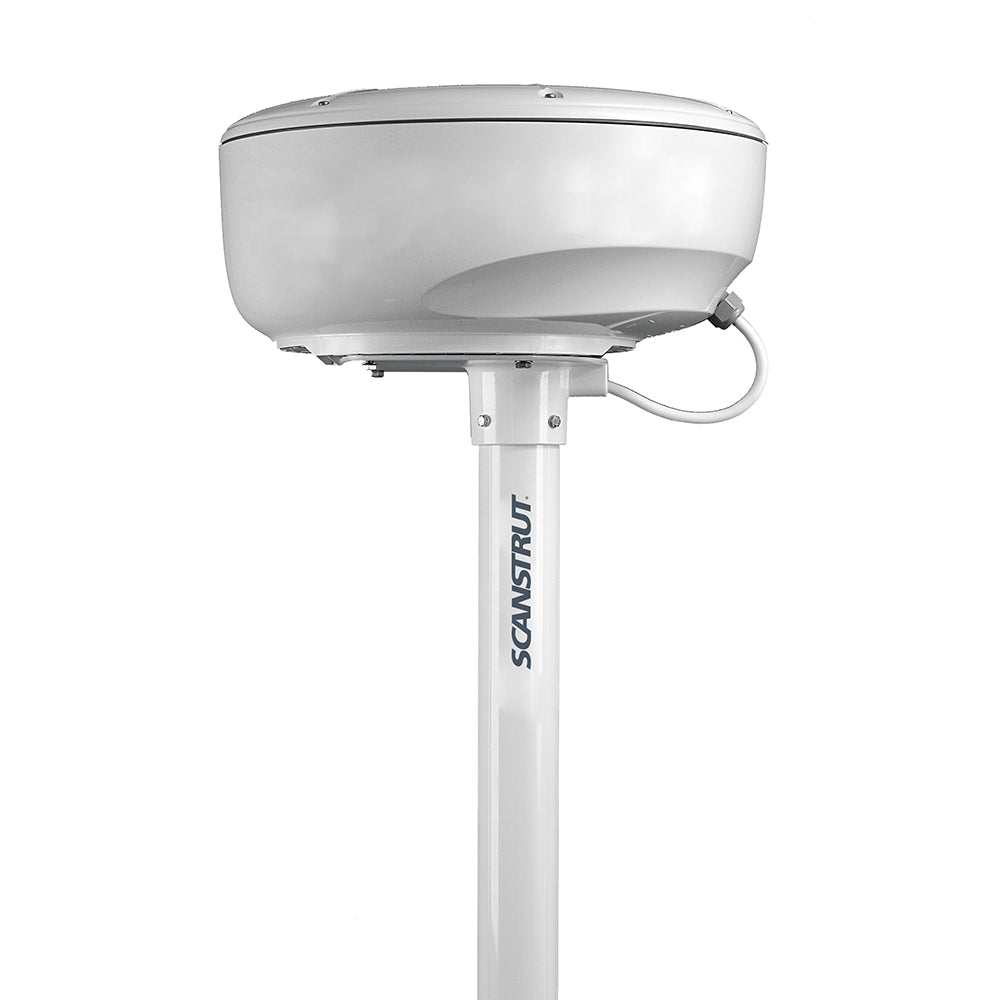

Scanstrut SC104 Radar Pole Mount - 8  [SC104]

Ships Direct From Manufacturer

SC104 Radar Pole Mount - 8'

Totally universal, the Scanstrut SC104 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18"), NavNet (24"), SC33 Sat Compass radars
• Glomex - Pandora v8001, RHEA V8100, Urania V9331, V9000 and V9001 series radars
• Humminbird - AS 21RD4KW radar
• Intellian - FB150 in i2, FB250 in i2, FB250R in i2, i1 radars
• Interphase - Mini RE-1, RE-8, RE-9 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000,  JMA 2343 / 5104 [Radome: NKE-2042] radars
• Koden - 2kW 12", 4kW [RB715A] radar
• KVH - TracVision M1, TracVision TV1 radar
• Lorenz - Lorenz 2kW
• Lowrance - LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Majestic - SATMAR32, SATMAR32D, SATMAR37D
• Navman - 8000 Series [8084/8120] 18", 8000 Series [8084/8120] 24" radars
• Nobeltec - 2kW (20"), 4kW [IR2-4D 25" 4Kw] radars
• Northstar - M series/8000i (18"), M series/8000i (24") radars
• Raymarine -  33STV radar
• Seiwa - SWR-1, SWR-8, SWR-9 radars
• Simrad - GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex - MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 radars
• Techmarine - T-72.01, T-72.02, T-72.04 radars

Features:

• Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
• Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 8.3" (2.5M)
• Mounting Type - Pole Mount

In the Box:

• Pole mount
• Top plate
• Deck strut
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Pole Mount
• Height: 8
• Box Dimensions: 5"H x 14"W x 96"L WT: 28 lbs
• UPC: 5060114790612

Quick Guide (pdf)
Brochure (pdf)

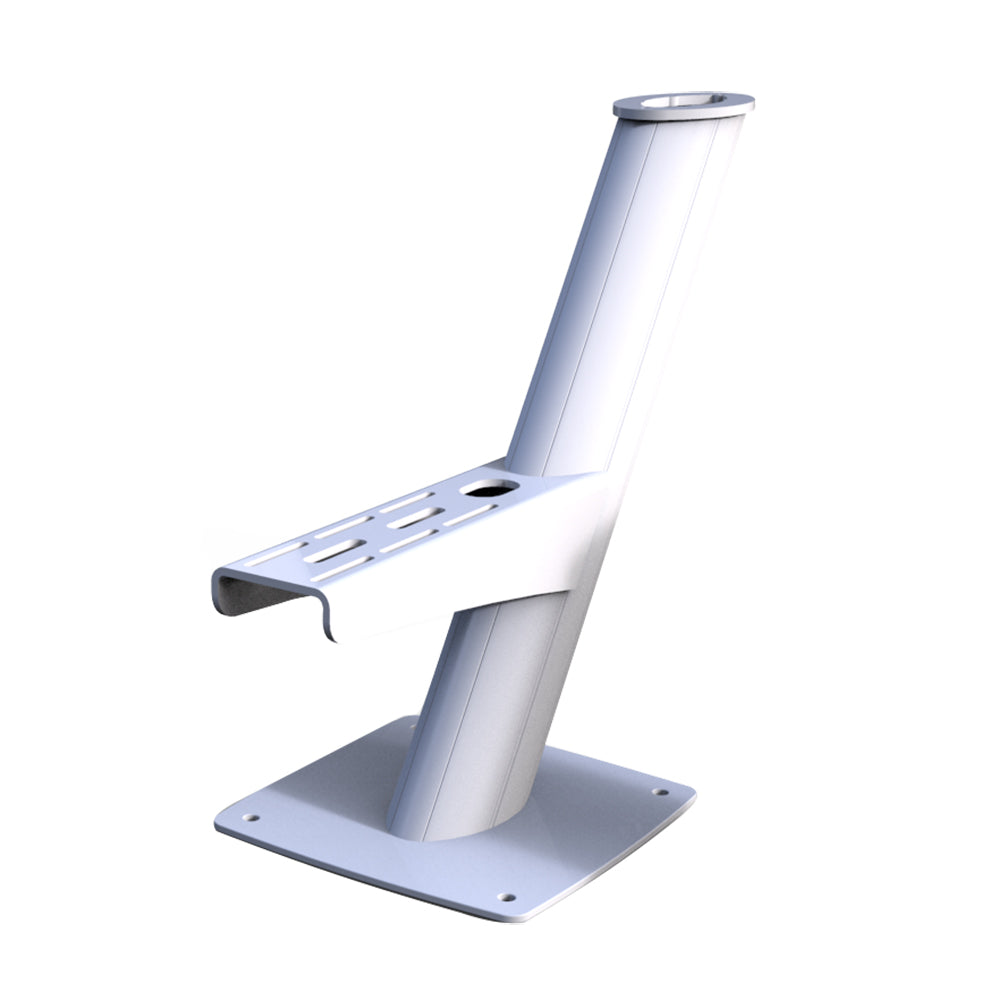

Scanstrut Dual PowerTower Strut - Radome [DPT-R]

Dual PowerTower® Strut - Radome

The Modular Dual PowerTower® has been designed to allow your radome radar, Satcom and camera to be mounted together in one single space-saving modular installation.

Specifications:

• Material: 6082 Aluminum extrusion
• Coating: Polyester powder
• Finish: Gloss white

Specifications:

• Construction: Aluminum
• Type: Dual Mount
• Box Dimensions: 12"H x 22"W x 28"L WT: 15.2 lbs
• UPC: 5060114796317
