Automotive/RV - Charger/Inverter Combos

Xantrex Freedon SW2012 Inverter/Charger
815-2012

12V, 2000W - 120 Vac / 60 Hz

Powerful. Configurable. Versatile...

The Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

Product Description
The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output<sup>2

2</sup> AC source must be split phase, requires Stacking Cable (part# 808-9005)

Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

Product Features

• Pure sine wave output to operate sensitive electronics

• Advanced configuration options for customized applications

• Parallel and series stacking capability

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power factor corrected, multi-stage charger for fast, efficient charging

• Temperature compensated charging for a vareity of climate conditions

• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power³

• Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)

• Conformal coated circuit boards for humid environments

• Dual input / Dual output AC interface for 3000 W model

• Ability to charge batteries drained to extremely low voltage

• Compatible with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Integrated, resettable AC breakers

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 75a
• Charger Output Voltage: 12v
• Charging Banks: 1
• Outlet Qty: Optional
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Inverter Cont. Output Wattage: 2000w
• Box Dimensions: 13"H x 18"W x 21"L WT: 61.7 lbs
• UPC: 715535917036

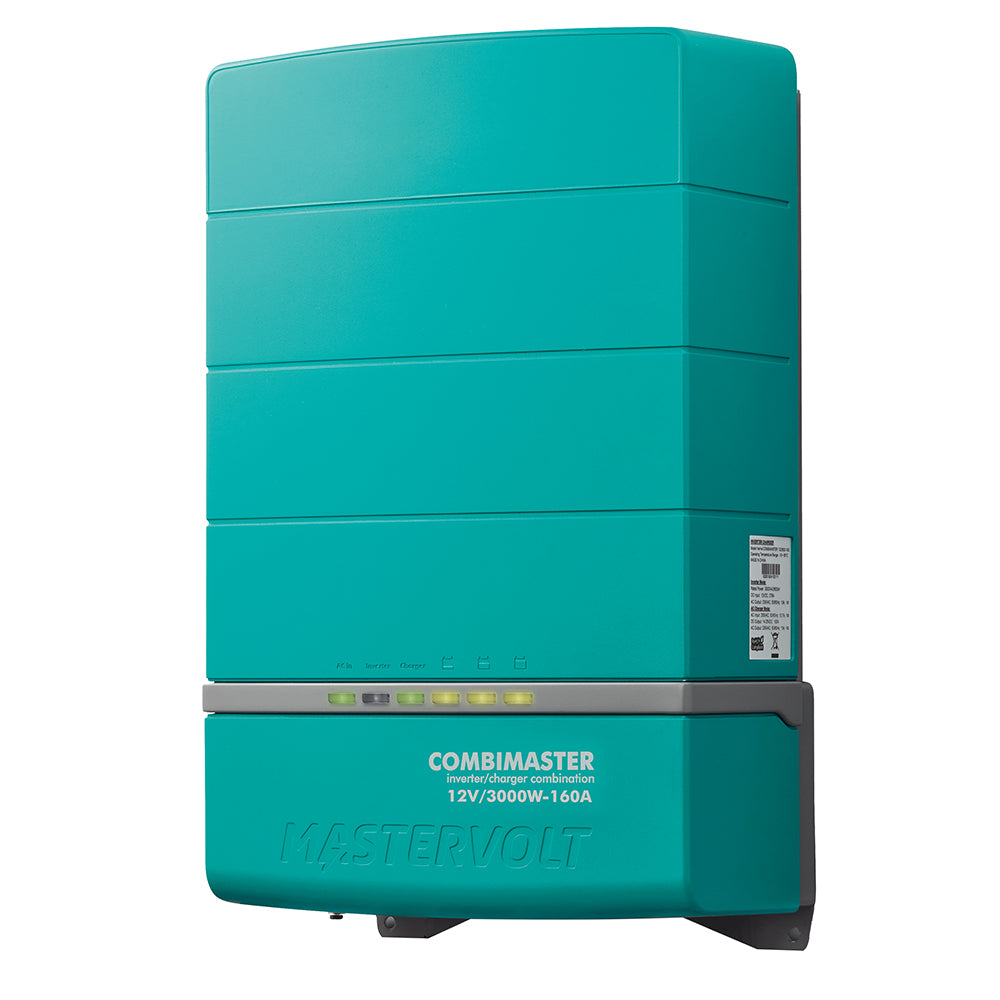

CombiMaster 12V - 3000W - 160 Amp (120V)

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features:

• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control & Monitoring Options:

• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: Hardwire
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Inverter Cont. Output Wattage: 3000w
• Charger Output Voltage: 12v
• Charger Output - Amps: 160a
• Charger Input - Voltage: 120v
• Box Dimensions: 10"H x 16"W x 24"L WT: 27.1 lbs
• UPC: 816882022319

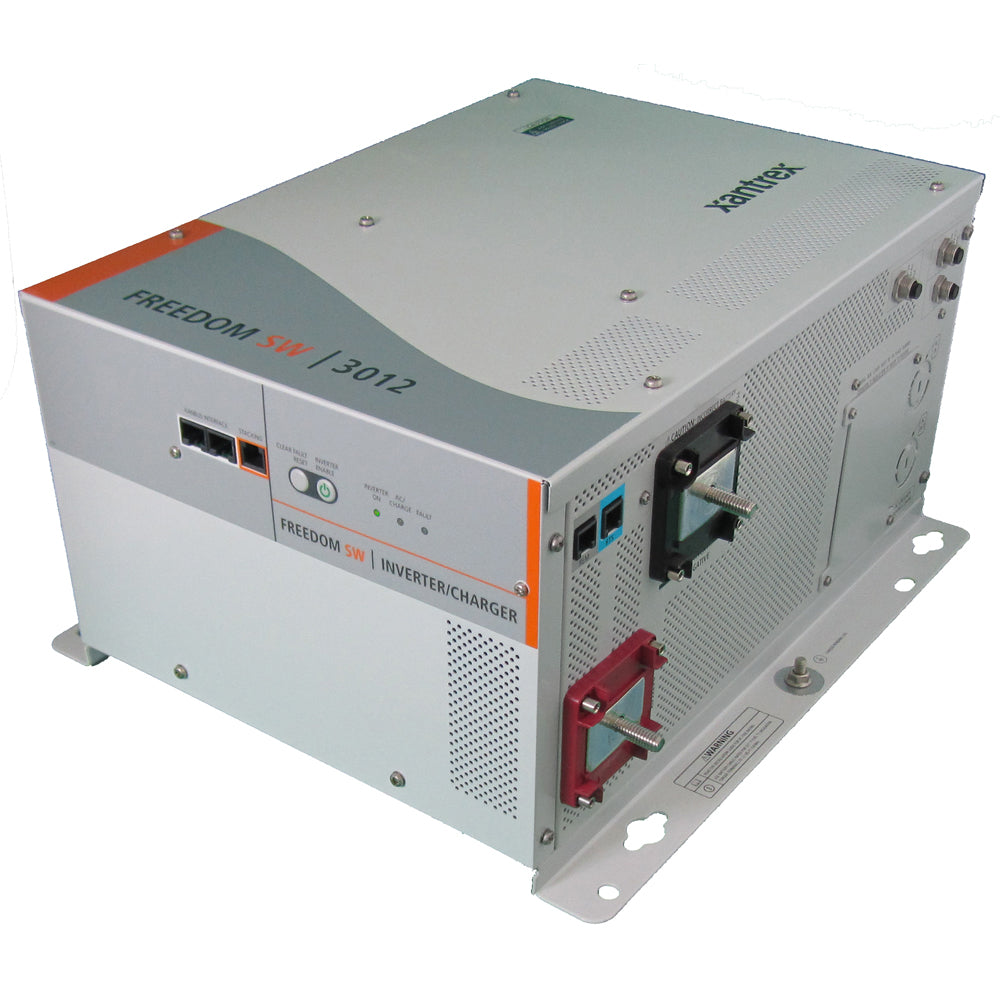

Xantrex Freedom SW3012 Inverter/Charger
815-3012

12V, 3000W - 120 Vac / 60 Hz

Powerful. Configurable. Versatile...

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

Product Description
The second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW - PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output<sup>2

2</sup> AC source must be split phase, requires Stacking Cable (part# 808-9005)

Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

Product Features

• Pure sine wave output to operate sensitive electronics

• Advanced configuration options for customized applications

• Parallel and series stacking capability

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power factor corrected, multi-stage charger for fast, efficient charging

• Temperature compensated charging for a vareity of climate conditions

• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power³

• Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)

• Conformal coated circuit boards for humid environments

• Dual input / Dual output AC interface for 3000 W model

• Ability to charge batteries drained to extremely low voltage

• Compatible with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Integrated, resettable AC breakers

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: Optional
• Charging Banks: 1
• Inverter Cont. Output Wattage: 3000w
• Charger Output - Amps: 150a
• Box Dimensions: 12"H x 18"W x 21"L WT: 69.4 lbs
• UPC: 008153012413

Xantrex Freedom HF 1800 Inverter/Charger [806-1840]

Freedom HF 1800

Compact inverter/charger to power the comforts of home on your boat, RV, or truck

With modified sine wave output, Freedom HF 1800 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom HF inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.

Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.

Product Features:

• Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment

• Removable digital display to provide system status

• Automatic three-stage battery charger

• Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)

• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground-fault protection

• ETL listed for use in mobile RV and marine applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: 1 Duplex GFCI
• Charging Banks: 1
• Inverter Cont. Output Wattage: 1800w
• Charger Output Voltage: 12v
• Charger Output - Amps: 40a
• Box Dimensions: 6"H x 11"W x 20"L WT: 15.4 lbs
• UPC: 715535890421

Quick Guide (pdf)
Owner's Manual (pdf)

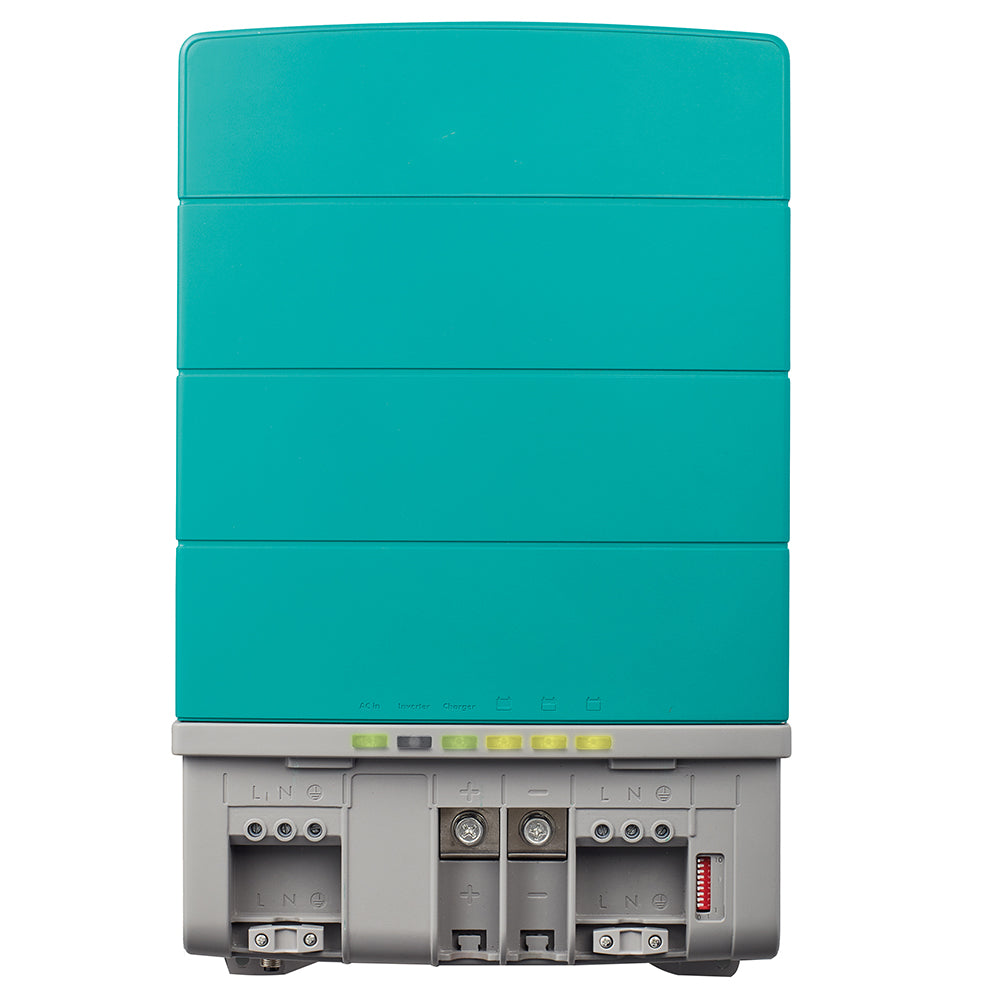

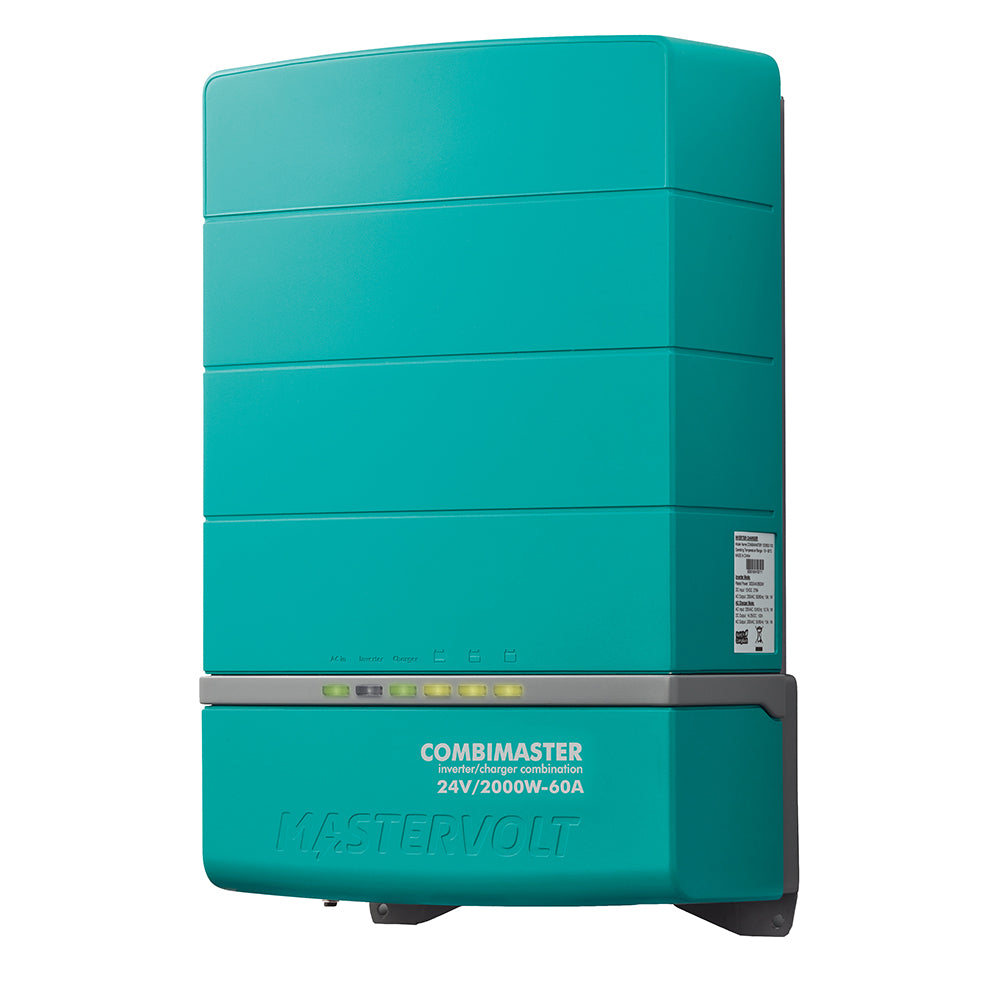

CombiMaster 24V - 2000W - 60 Amp (120V)

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features:

• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control & Monitoring Options:

• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display

Specifications:

• Inverter Cont. Output Wattage: 2000w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 120v
• Charger Output - Amps: 60a
• Charger Output Voltage: 24v
• Charger Input - Voltage: 120v
• Outlet Qty: Hardwire

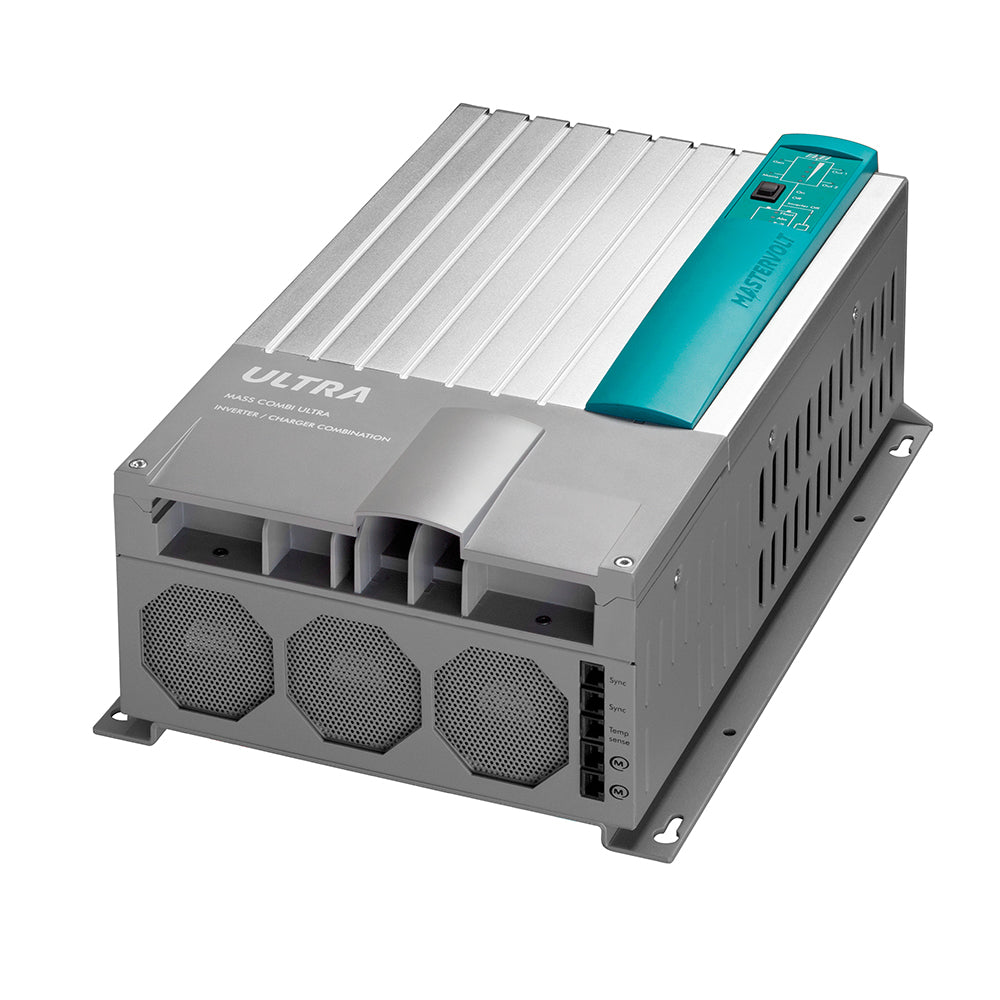

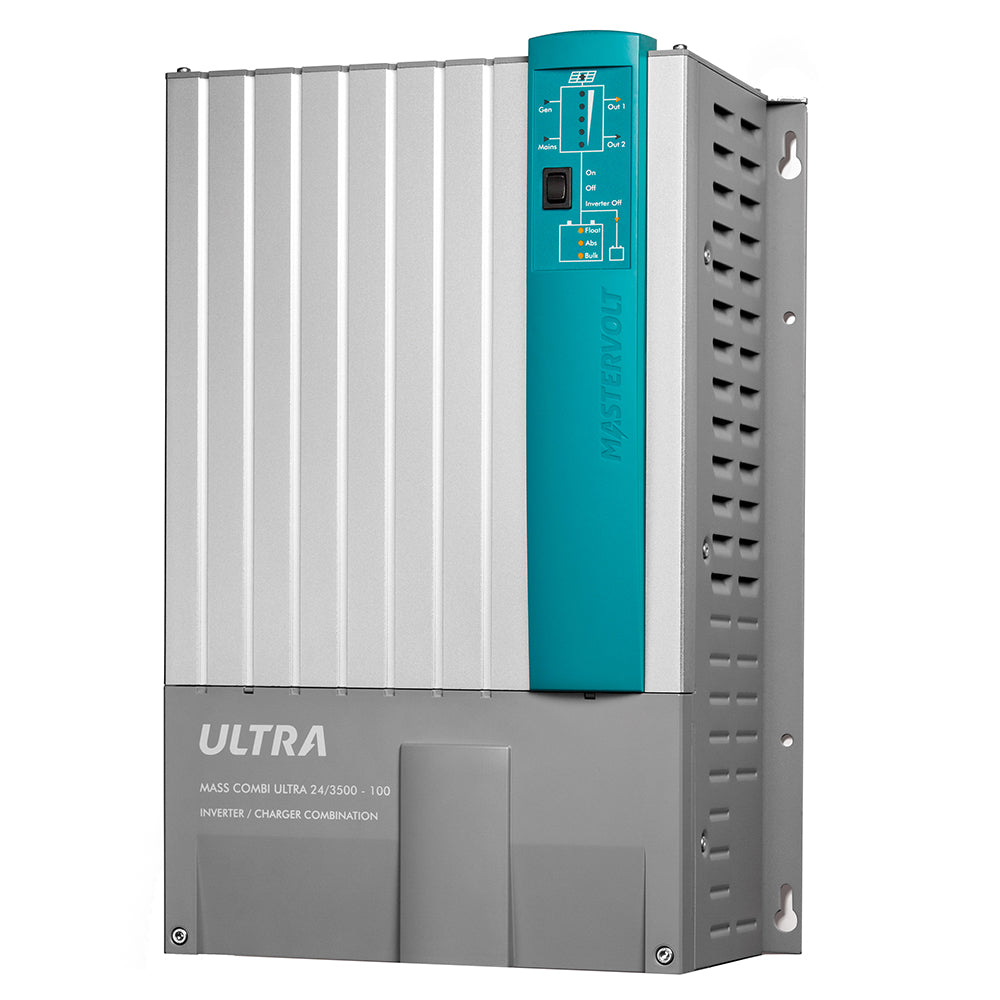

Mass Combi Ultra 24V/3500W - 100A - 230V

The Mass Combi Ultra series comprises several models, varying from 3000 W to 3500 W. For higher capacities up to 35 kW the Combi Ultra can be used in parallel or 3-phase configurations. An efficient and integrated solar charge regulator helps make the most of your solar panels.

The Mass Combi Ultra is equipped with the latest technologies. The new inverter technology ensures a uniquely low stand-by use, while an ultra-fast Digital Signal Processor guarantees seamless switching between all available energy sources. Power Assist prevents power dips and failures, even with a weak electricity connection or small generator. Moreover, all Mass Combi Ultra models are equipped with MasterBus.

Higher yield from solar energy

At Mastervolt we used our knowledge gained in the grid connected solar sector to make a super-efficient built-in MPPT solar charge regulator. Compared to most solar charge regulators on the market, the MPPT offers up to 30 % more yield from solar panels. The solar panels power ‘hidden’ consumers and keep your batteries in optimal condition.

‘Pro’ Models

For professional applications. Mastervolt offers a ‘Pro’ model, featuring all Ultra functions, but without the solar input and secondary battery charger.

Quiet operation

The Mass Combi Ultra and Mass Combi Pro can provide up to 50 % of the charging current or inverter capacity without fan cooling. This is perfect for night-time operation; if little power is consumed, the fan stops turning and goes silent. When maximum capacity is required, or the ambient temperature is very high, the Active Optima Cooling concept regulates the fan speed in a linear way, ensuring that it never spins too fast or makes any unnecessary ticking noises.

Parallel and 3-phase operation

The Mass Combi Ultra functionality goes beyond stand-alone operation, the design also allows parallel and 3-phase configurations for larger applications up to 35 kW. For larger systems, an external transfer system is required.

Dual AC inputs and outputs

The Mass Combi Ultra and Mass Combi Pro have inputs for generator or mains supply, each optimized for the power source. A robust intelligent transfer system switches seamlessly between AC power, generator and inverter, and ensures a constant power supply. Flickering lights or failure of electronic equipment belong to the past. Separate AC outputs provide the ability to power heavy users via mains and/or generator.

Features

• For professional and semi-professional use
• Quiet, powerful inverter with 200 % peak power
• Compact, lightweight and hum-free thanks to HF technology
• Pure sine wave voltage prevents malfunctions and damage to sensitive equipment such as adapters
• High yield and more power from your batteries
• Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life
• Power Assist: prevents blown fuses
• A dynamic battery voltage window allows you to enjoy AC power for longer without damaging your batteries
• Active Optima Cooling concept prevents unnecessary fan noise
• Charges two individual battery banks simultaneously
• An integrated MPPT solar charge controller allows for 30 % more yield from solar power for charging the batteries
• Quick installation and reliable professional connections
• CE, ABYC and RMRS certified

Specifications:

Sine Wave Inverter

• Nominal DC voltage:24 V (19-32 V)
• Output voltage: 180-260 V, adjustable
• Output frequency: 50/60 Hz (± 0.005 %), configurable
• Output waveform: true sine
• Continuous power at 40 °C / 104 °F, cos phi 1: 3500 W
• Max. peak load: 7000W
• Max. efficiency: ≥ 92 %
• Max. ripple on DC (battery at full load): < 5 %
• No-load power consumption on DC (ON/inverter OFF/OFF): 16 W / 4 W / 0 W
• Energy saving mode consumption: 7 W
• Parallel configuration: yes, up to 10 units (for larger systems, an external transfer system is required)
• 3-Phase configuration: yes, up to 3x3
• Synchronize with mains/generator: yes

Battery Charger

• Input voltage range: 184–275 V
• Max. input current: 16 A
• Max. charge current at 40 °C / 104 °F: 100 A at 28.5 V, adjustable
• Secondary charger output voltage: 12/24 V selectable
• Secondary charger output current: 10 A
• Battery temperature sensor: yes, included
• Battery voltage sense: through MasterShunt, otherwise automatic compensation

Transfer System

• AC input (generator): 50 A (switched)
• AC input (mains): 30 A (switched)
• AC output 1: 67 A
• AC output 2: 50 A (switched)
• AC input fuse: no
• Transfer speed: seamless (< 1 ms)
• Transfer voltage range: 184-275 V, adjustable
• Transfer frequency range: 35-68 Hz, adjustable
• Solar Input (DC)
• Input voltage range: 25-100 V
• Max. PV peak power: 500 Wp
• Max. input current: 19 A
• Max. charge current: 15 A at 28.5 V
• MPP Tracker: full power at 35-80 V

General

• Display/read-out: LED display
• Dimensions, hxwxd: 472 x 318 x 178 mm / 18.6 x 12.5 x 7.0 inch
• Weight: 15.3 kg / 33.7 lb
• Approvals: CE, ABYC, RMRS

Technical specifications

• Charge characteristic: IUoUo, automatic 3-traps+ voor AGM/Gel/MLI/nat/tractie/spiraal
• Recommended battery capacity: 200-600 Ah (based on gel batteries, may differ for other types)
• Ground relay: yes, configurable
• Temperature range (ambient temp.): -25 °C to 60 °C, derating > 40 °C / -13 °F to 140 °F
• Cooling: vario fan
• Protection degree: IP23 (vertical mounting)
• Safety class: IEC protection class I
• Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
• Protections: over temperature, overload, short circuit, high/low battery voltage
• Power Assist: yes
• MasterBus compatible: yes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 100a
• Charger Output Voltage: 12/24v
• Inverter Cont. Output Wattage: 3500w
• Inverter Output Voltage: 230v
• Inverter Input Voltage: 24v
• Charger Input - Voltage: 230v
• Outlet Qty: Hardwire
• Charging Banks: 2
• Box Dimensions: 9"H x 16"W x 23"L WT: 40.4 lbs
• UPC: 816882020421

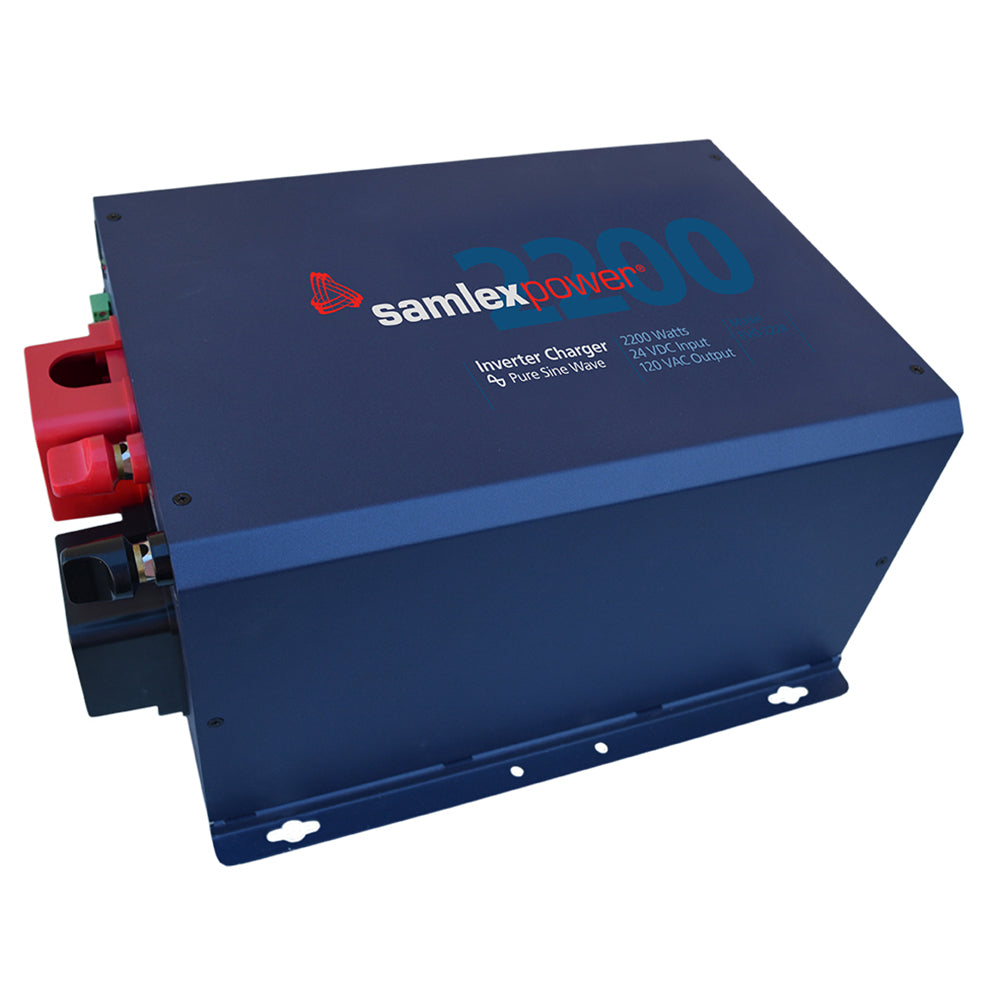

Samlex 2200W Pure Sine Inverter/Charger - 24V [EVO-2224]

Ships Direct From Manufacturer

2200W Pure Sine Inverter/Charger - 24V

EVOLUTION™ Series Inverter/Charger

Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications

Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightening fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments

The EVO-2224 is a 2200 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 70 Amp 4 stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution

AC Inputs

• Two separate AC inputs – one for grid (priority #1), one for generator (priority #2), connect simultaneously, no need to reconfigure when different power sources are available
• Generator Input is specifically designed to have more tolerance for wave form distortion, prevents unnecessary “rejection of AC input and switch to inverter” by tolerating distorted wave forms that can be produced by gritty generators
• Each AC input is programmable for voltage and frequency. User determines what the min and max thresholds are to switch from Grid or Generator to Inverter
• Generator start can be initiated by “Status Relay” contact, can be programmed to activate when grid is lost

Solar Input

• Connect a solar charge controller directly to the EVO™ though the Battery Charger external DC Input, seamlessly integrates solar charging into the EVO’s power system
• ONLINE Mode can be used to prioritize Batteries/Inverter over the grid, ideal for those wishing to operate primarily on solar power (when the grid is available, but might be costly)

Battery Charger

• 3 or 4 stage charging with Equalization (must be manually initiated)
• Adaptive algorithm is used during Bulk to assess the condition of the battery. Subsequent stages are then based on the condition of the battery rather than pre-set time periods for Absorption and Float. Prevents unnecessary charging, extends the life of batteries
• Programmable – set battery voltage thresholds to initiate charging

Transfer Switch

• Zero transfer time when switching from Inverter to Grid. When grid comes on, the inverter synchronizes with the wave form and then transfers instantly at zero crossing
• ‹16ms transfer when going from Grid to Inverter. When grid is lost, the transfer relay switches to inverter at the correct place in the wave form, the transfer takes less than 16ms

Surge Capacity (Power Boost)

• The EVO™ has 3X surge power
• Additionally, the EVO™ has large power overload allowances available for long periods of time. Increased inverter capacity means you can size your inverter smaller to handle heavy surge loads, reducing costs

State-of-the-Art Technology

• The EVO™ operates at 165 million instructions per second producing lightning fast load and response times
• The EVO™ is practically indestructible. It has “Bullet-Proof Intelligence” in the form of 9 physical points of protection monitoring being scanned up to 10,000 times per second for adverse conditions. The EVO™ will detect fault conditions and initiate a healthy shutdown before any product damage can be done.
• The EVO-RC remote control (sold separately) can be used to capture detailed EVO™ performance data. Records all detected faults and the conditions leading up to them. Data is stored on a removable 16GB SD Card (in the remote). Use data to analyze trends for more efficient use of system resources
• The EVO™ uses five temperature sensors placed throughout the unit to determine operation of 2 speed controlled cooling fans. Reduces unnecessary fan noise and energy consumption by only running when and where the fans are needed

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2200W
• Surge: 6600W
• Outlets: Hard Wired
• Fuse: External
• Remote Control: EVO-RC (Optional Remote Control)
• Weight: 57lbs
• Weight: 26kg
• Dimensions: 12.79" x 16.77" x 8.15"
• Dimensions: 325 x 426 x 207 mm
• Safety: ETL safety listed to stringent UL standards: 1741, 458, and to CSA C22.2 No. 107.1-01. EMI/EMC compliant with FCC Part 15(B), Class B and RoHS Compliant.
• Warranty: 2 Year Limited
• ABYC Compliant

Applications:

• Boats, RVs, trucks, specialty vehicles
• Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
• Back-up and emergency power applications

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 24v
• Charger Input - Voltage: 120v
• Outlet Qty: None
• Charging Banks: 1
• Inverter Cont. Output Wattage: 2200w
• Charger Output Voltage: 24v
• Charger Output - Amps: 70a
• Box Dimensions: 14"H x 16"W x 21"L WT: 65.2 lbs
• UPC: 622988079443

Owner's Manual (pdf)
Brochure (pdf)

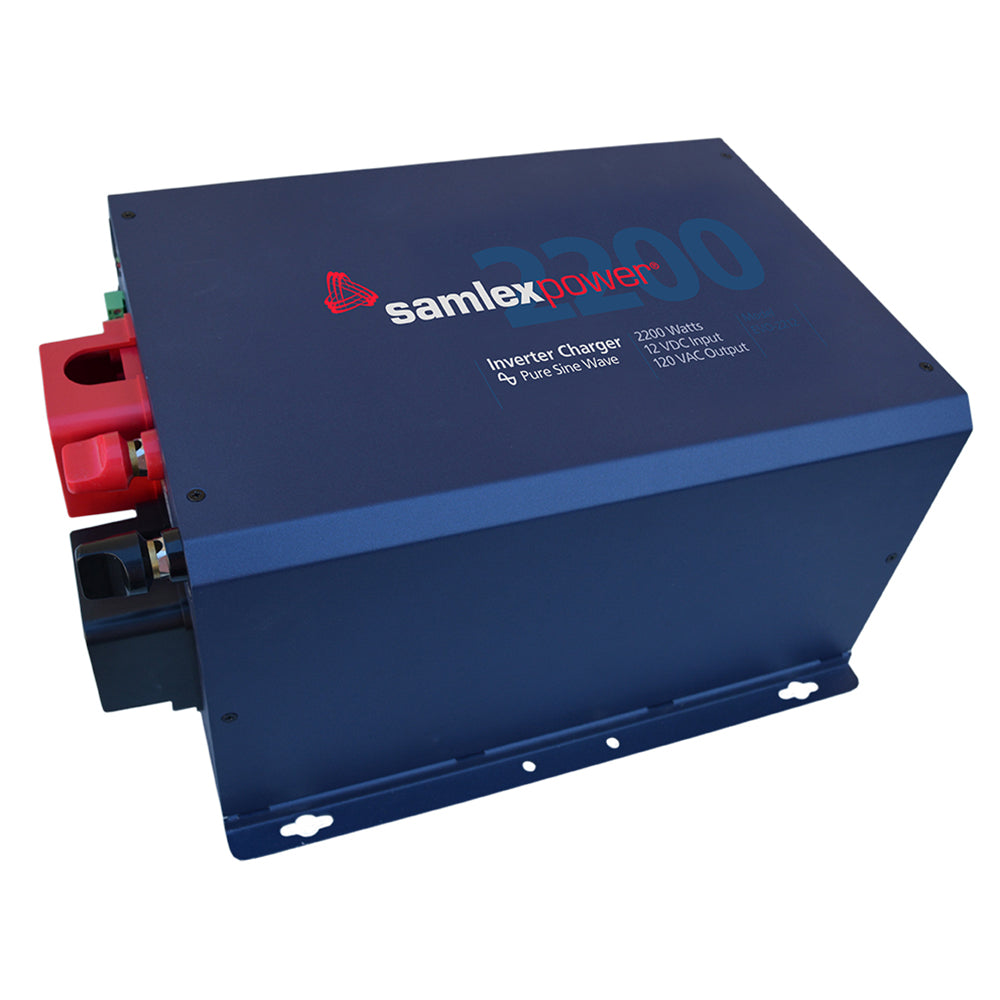

Samlex 2200W Pure Sine Inverter/Charger - 12V [EVO-2212]

Ships Direct From Manufacturer

2200W Pure Sine Inverter/Charger - 12V

EVOLUTION™ Series Inverter/Charger

Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications

Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightening fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments

The EVO-2212 is a 2200 Watt Pure Sine inverter, 12 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 100 Amp 4 stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution

AC Inputs

• Two separate AC inputs – one for grid (priority #1), one for generator (priority #2), connect simultaneously, no need to reconfigure when different power sources are available
• Generator Input is specifically designed to have more tolerance for wave form distortion, prevents unnecessary “rejection of AC input and switch to inverter” by tolerating distorted wave forms that can be produced by gritty generators
• Each AC input is programmable for voltage and frequency. User determines what the min and max thresholds are to switch from Grid or Generator to Inverter
• Generator start can be initiated by “Status Relay” contact, can be programmed to activate when grid is lost

Solar Input

• Connect a solar charge controller directly to the EVO™ though the Battery Charger external DC Input, seamlessly integrates solar charging into the EVO’s power system
• ONLINE Mode can be used to prioritize Batteries/Inverter over the grid, ideal for those wishing to operate primarily on solar power (when the grid is available, but might be costly)

Battery Charger

• 3 or 4 stage charging with Equalization (must be manually initiated)
• Adaptive algorithm is used during Bulk to assess the condition of the battery. Subsequent stages are then based on the condition of the battery rather than pre-set time periods for Absorption and Float. Prevents unnecessary charging, extends the life of batteries
• Programmable – set battery voltage thresholds to initiate charging

Transfer Switch

• Zero transfer time when switching from Inverter to Grid. When grid comes on, the inverter synchronizes with the wave form and then transfers instantly at zero crossing
• ‹16ms transfer when going from Grid to Inverter. When grid is lost, the transfer relay switches to inverter at the correct place in the wave form, the transfer takes less than 16ms

Surge Capacity (Power Boost)

• The EVO™ has 3X surge power
• Additionally, the EVO™ has large power overload allowances available for long periods of time. Increased inverter capacity means you can size your inverter smaller to handle heavy surge loads, reducing costs

State-of-the-Art Technology

• The EVO™ operates at 165 million instructions per second producing lightning fast load and response times
• The EVO™ is practically indestructible. It has “Bullet-Proof Intelligence” in the form of 9 physical points of protection monitoring being scanned up to 10,000 times per second for adverse conditions. The EVO™ will detect fault conditions and initiate a healthy shutdown before any product damage can be done.
• The EVO-RC remote control (sold separately) can be used to capture detailed EVO™ performance data. Records all detected faults and the conditions leading up to them. Data is stored on a removable 16GB SD Card (in the remote). Use data to analyze trends for more efficient use of system resources
• The EVO™ uses five temperature sensors placed throughout the unit to determine operation of 2 speed controlled cooling fans. Reduces unnecessary fan noise and energy consumption by only running when and where the fans are needed

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 2200W
• Surge: 6600W
• Outlets: Hard Wired
• Fuse: External
• Remote Control: EVO-RC (Optional Remote Control)
• Weight: 59lbs
• Weight: 27kg
• Dimensions: 12.79" x 16.77" x 8.15"
• Dimensions: 325 x 426 x 207 mm
• Safety: ETL safety listed to stringent UL standards: 1741, 458, and to CSA C22.2 No. 107.1-01. EMI/EMC compliant with FCC Part 15(B), Class B and RoHS Compliant.
• Warranty: 2 Year Limited
• ABYC Compliant

Applications:

• Boats, RVs, trucks, specialty vehicles
• Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
• Back-up and emergency power applications

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: None
• Charging Banks: 1
• Inverter Cont. Output Wattage: 2200w
• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Box Dimensions: 14"H x 17"W x 22"L WT: 69 lbs
• UPC: 622988079429

Owner's Manual (pdf)
Brochure (pdf)
