Automotive/RV - Charger/Inverter Combos

Xantrex Freedom SW3524 230V Sine Wave Inverter/Charger - 3400W [815-3524-02]

Ships Direct From Manufacturer

Freedom SW3524 230V Sine Wave Inverter/Charger - 3400W

The Freedom SW 230V Inverter/Charger is a true sine wave inverter/charger that can be used for mobile, marine and commercial applications. The Freedom SW 230V Inverter/Chargers are designed to operate with a wide variety of generators and are capable of operating in parallel with a generator for short durations to assist with starting large loads. The Freedom SW 230V is a charger, and transfer switch in one electronic device.

Features:

• As an inverter, the Freedom SW 230V provides true sine wave power for your microwave, entertainment system, computer, and other loads. This power is identical to the AC source provided from the utility grid (power company)

• Some of the benefits of true sine wave power include consistent cooking in your microwave, handling of sensitive loads such as your TV set, dimmer switches, and appliances with speed controls

• Highly versatile platform capable parallel stacking to increase power levels

• High efficiency true sine wave output to power sensitive electrical and electronic equipment

• Surge capacity to start difficult loads like well pumps, refrigerators, or A/C compressors

• Power factor-corrected (PFC) input minimizes AC input current required for charging, increasing AC pass-through capacity

• As a 24-volt charger, it has high output, multi-stage charging capability minimizing charging time

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 230v
• Inverter Input Voltage: 24v
• Charger Input - Voltage: 230v
• Charging Banks: 1
• Outlet Qty: Optional
• Inverter Cont. Output Wattage: 3400w
• Charger Output Voltage: 24v
• Charger Output - Amps: 90a
• Box Dimensions: 13"H x 18"W x 21"L WT: 67 lbs
• UPC: 715535899042

Owner's Manual (pdf)
Brochure (pdf)

PowerCombi 12V - 1200W - 50 Amp (120V)

Simple. Independent. Flexible.

The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).

With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

Specifications:

• Outlet Qty: Hardwire
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Inverter Cont. Output Wattage: 1200w
• Charger Output Voltage: 12v
• Charger Output - Amps: 50a
• Charger Input - Voltage: 120v
• Box Dimensions: 7"H x 12"W x 19"L WT: 7.45 lbs
• UPC: 816882022579

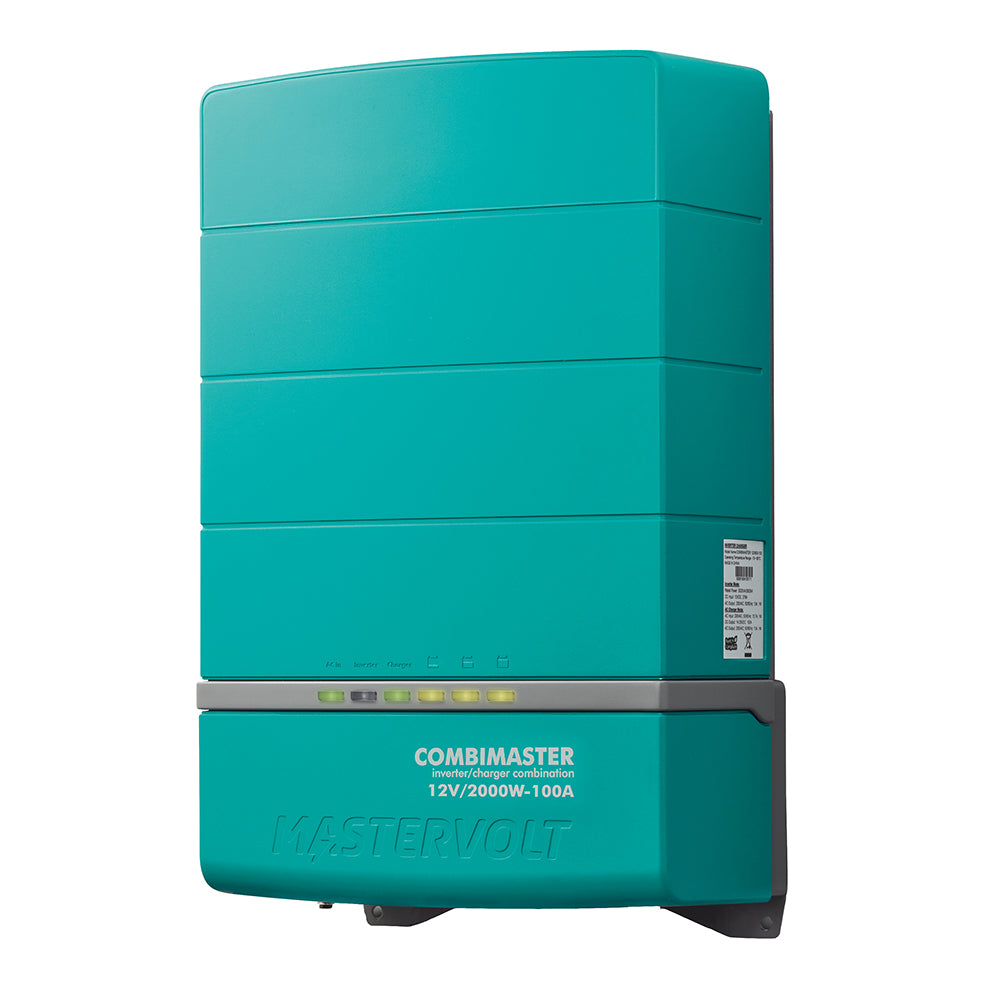

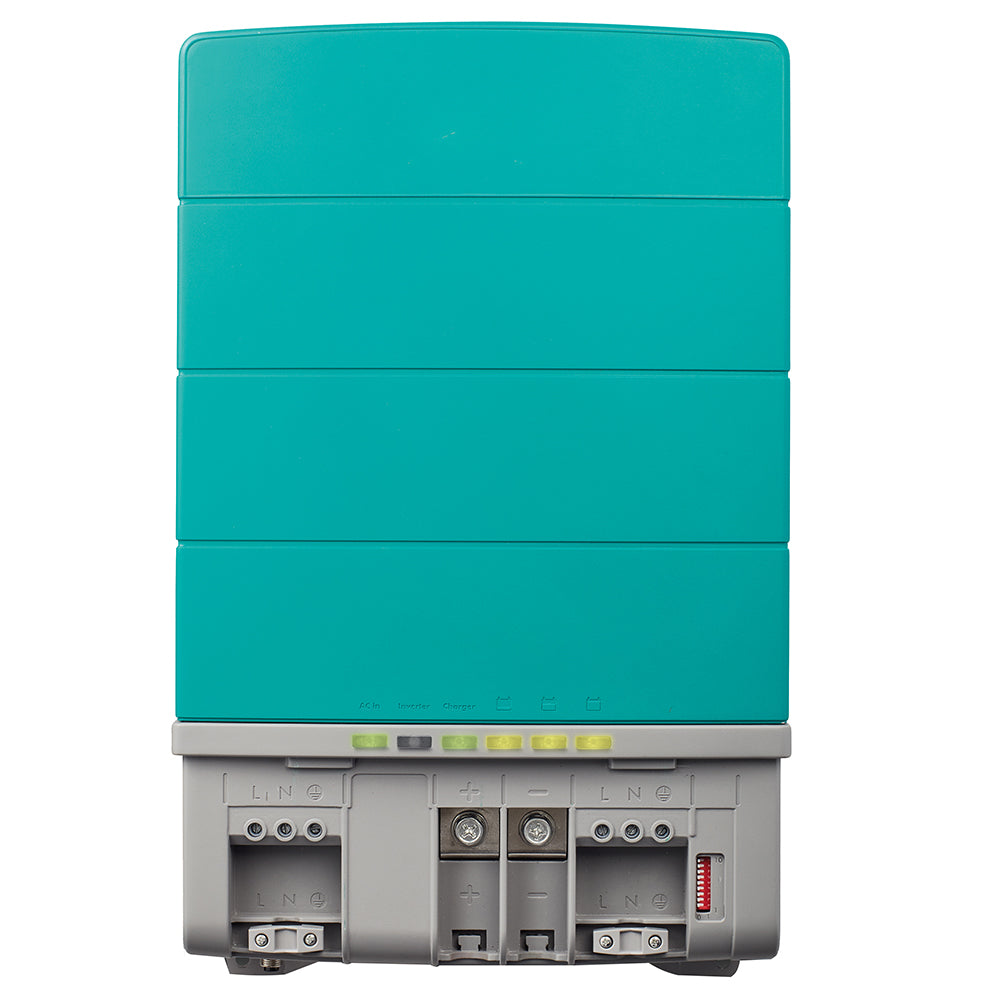

CombiMaster 12V - 2000W - 100 Amp (120V)

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features:

• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control & Monitoring Options:

• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Outlet Qty: Hardwire
• Inverter Cont. Output Wattage: 2000w
• Charger Output - Amps: 100a
• Charger Input - Voltage: 120v
• Box Dimensions: 10"H x 16"W x 24"L WT: 27.1 lbs
• UPC: 816882022302

PowerCombi 12V - 2000W - 100 Amp (120V)

Simple. Independent. Flexible.

The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).

With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Outlet Qty: Hardwire
• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Charger Input - Voltage: 120v
• Box Dimensions: 7"H x 12"W x 21"L WT: 15.25 lbs
• UPC: 816882022586

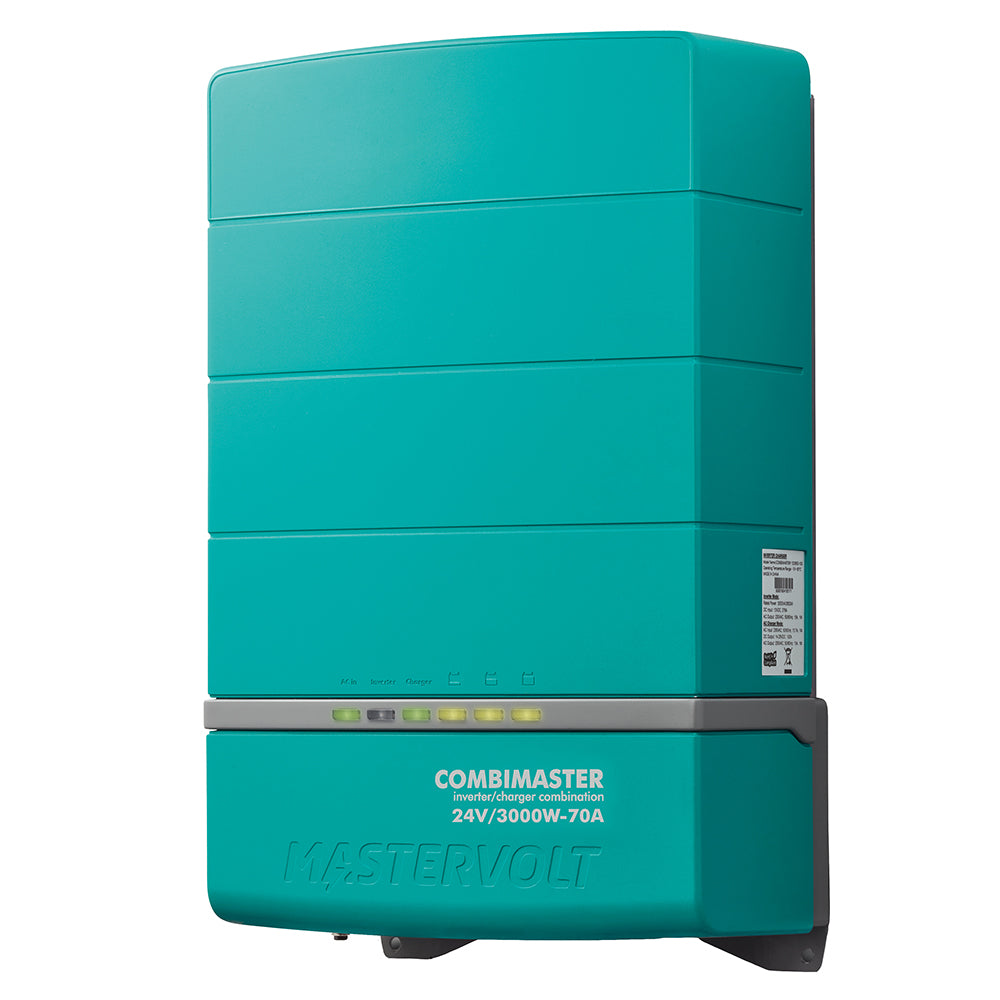

CombiMaster 24V - 3000W - 70 Amp (120V)

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features:

• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control & Monitoring Options:

• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: Hardwire
• Inverter Output Voltage: 120v
• Charger Output - Amps: 70a
• Charger Input - Voltage: 120v
• Inverter Input Voltage: 24v
• Inverter Cont. Output Wattage: 3000w
• Charger Output Voltage: 24v
• Box Dimensions: 10"H x 16"W x 23"L WT: 26.15 lbs
• UPC: 816882022333

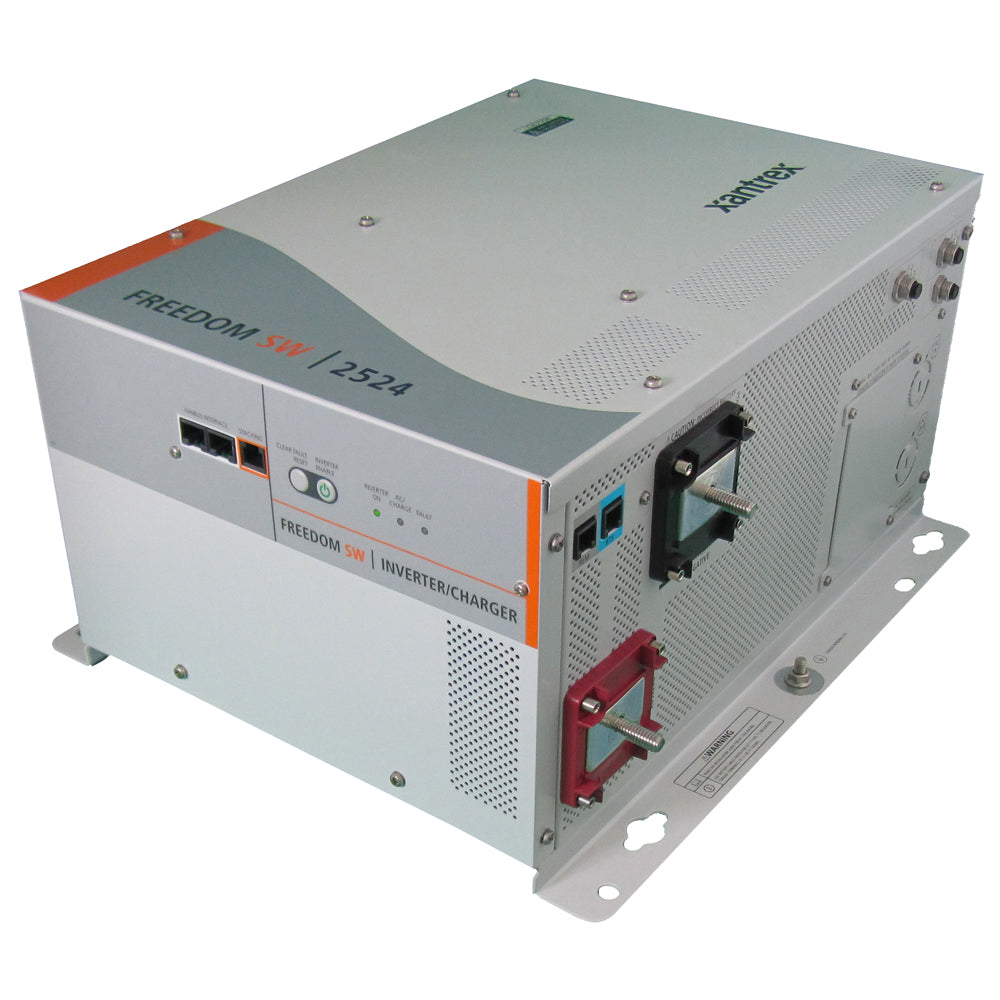

Freedom SW2524 230V Sine Wave Inverter/Charger - 2500W

The Freedom SW 230V Inverter/Charger is a true sine wave inverter/charger that can be used for mobile, marine and commercial applications. The Freedom SW 230V Inverter/Chargers are designed to operate with a wide variety of generators and are capable of operating in parallel with a generator for short durations to assist with starting large loads. The Freedom SW 230V is a charger, and transfer switch in one electronic device.

Features:

• As an inverter, the Freedom SW 230V provides true sine wave power for your microwave, entertainment system, computer, and other loads. This power is identical to the AC source provided from the utility grid (power company)

• Some of the benefits of true sine wave power include consistent cooking in your microwave, handling of sensitive loads such as your TV set, dimmer switches, and appliances with speed controls

• Highly versatile platform capable parallel stacking to increase power levels

• High efficiency true sine wave output to power sensitive electrical and electronic equipment

• Surge capacity to start difficult loads like well pumps, refrigerators, or A/C compressors

• Power factor-corrected (PFC) input minimizes AC input current required for charging, increasing AC pass-through capacity

• As a 24-volt charger, it has high output, multi-stage charging capability minimizing charging time

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Input - Voltage: 230v
• Outlet Qty: Optional
• Charging Banks: 1
• Inverter Output Voltage: 230v
• Inverter Input Voltage: 24v
• Inverter Cont. Output Wattage: 2500w
• Charger Output Voltage: 24v
• Charger Output - Amps: 65a
• Box Dimensions: 13"H x 18"W x 21"L WT: 54 lbs
• UPC: 715535899004

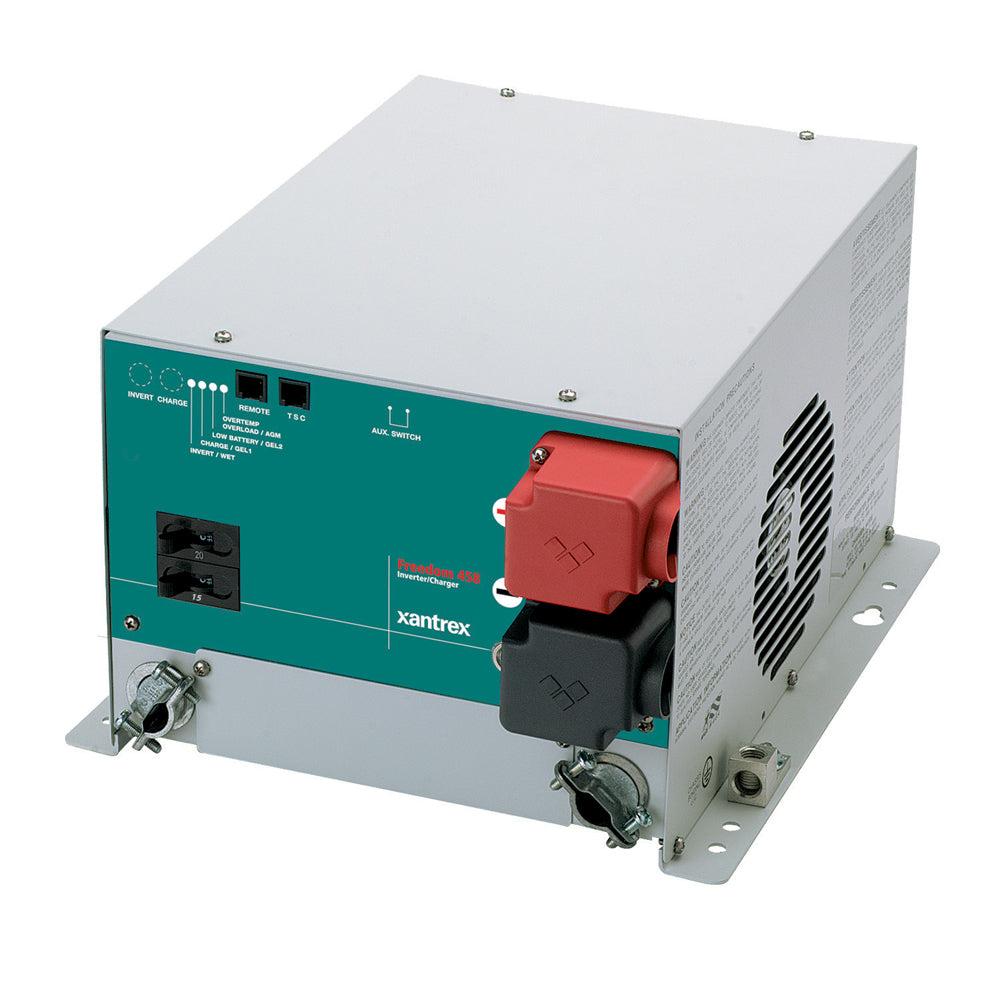

Freedom 458 Inverter/Charger

AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.

For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.

Product Features

• MSW AC power inverter with high surge capability

• Automatic 3-stage battery charger

• Temperature compensation with equalization stage provides optimal charging of deep cycle batteries

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power sharing prevents source AC input circuit breaker from tripping

• Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels

• Includes battery temperature sensor

• 30 month warranty

• Over voltage and under voltage protection

• Over-temperature protection

• Overload protection

• Short circuit protection

• Output power (continuous): 2000W

• Surge power (AC amps): 50A

• Output frequency regulation: 60Hz

• Inverter voltage regulation: 120V +/-5% true RMS

• Output wave form: Modified sine wave

• Efficiency (full load): 85%

• Peak efficiency: 92%

• No load current draw (idle mode): 0.12A

• AC output connections: Dual - 20/15 Circuit Breakers

• AC input connections: Single

• AC transfer switch: 30A

• Charge rate: 100A DC

• AC input voltage range: 90 130 VAC

• Battery voltage (nominal): 12 VDC

• Battery voltage range: 10.0 15.5 VDC

• Low battery cut-out: 10.0 VDC

• AC input (max. charge mode): 21A AC

• Bulk charge voltage: 14.3 VDC***

• Float charge voltage: 13.4 VDC***

• Equalize charge voltage: 16.3 VDC

• Charge control: 3-stage

• Battery type settings: Wet / Gel 1 / Gel 2 / AGM

• Equalization: Yes

• Temperature sensitive charging: Yes

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: None
• Charging Banks: 1
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Inverter Cont. Output Wattage: 2000w
• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Box Dimensions: 13"H x 15"W x 19"L WT: 55.7 lbs
• UPC: 647912106149

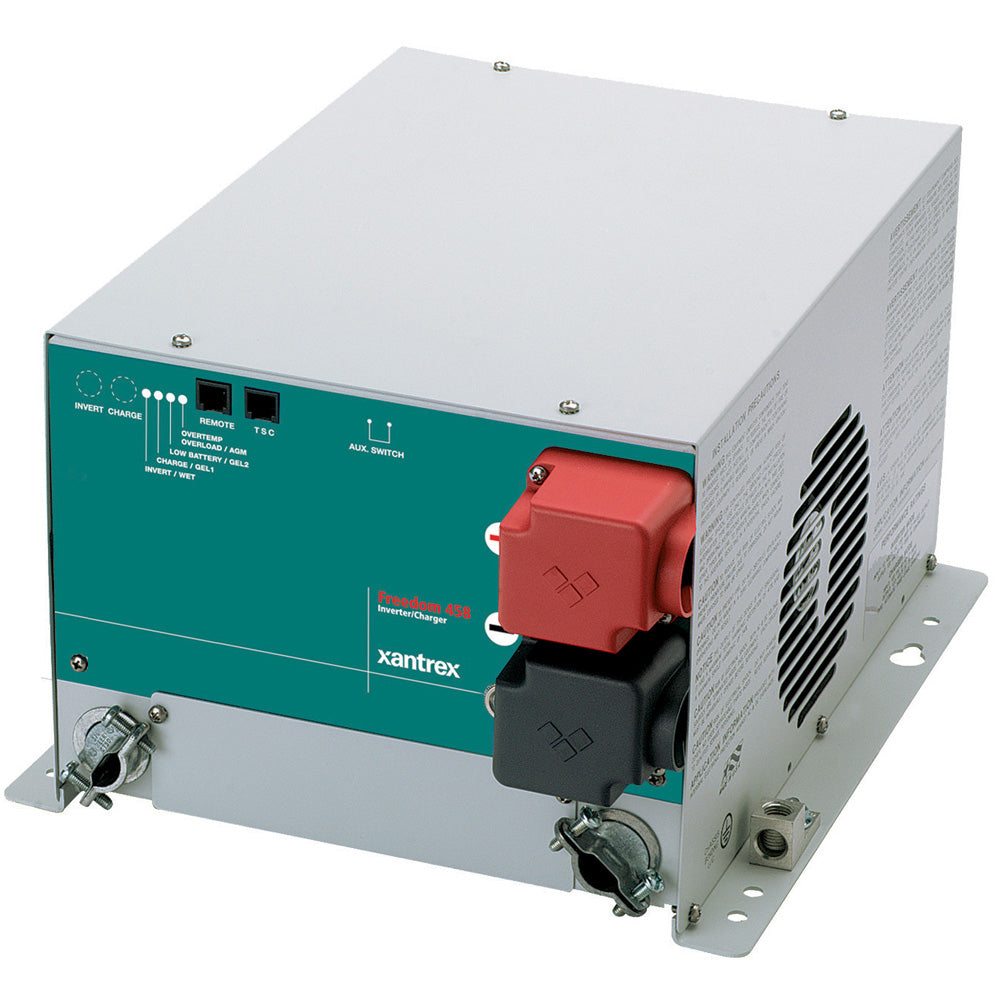

Freedom 458 Inverter/Charger - 2000W

120 Vac / 60 Hz

With filtered modified sine wave output, the Freedom 458 inverter/charger has the ability to run electrical equipment, appliances and even sensitive electronics. Perfect for any RV, the temperature controlled multistage charging ensures that your batteries are recharged quickly, and safety features such as automatic shut down protects your expensive deep-cycle batteries from excessive depletion.

AC Power Inverter with High Surge Capability, 3-Stage Charger

With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.

For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.

Product Features:

• MSW AC power inverter with high surge capability
• Automatic 3-stage battery charger
• Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
• Built-in transfer switch automatically transfers between inverter power and incoming AC power
• Power sharing prevents source AC input circuit breaker from tripping
• Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels
• Includes battery temperature sensor
• 30 month warranty
• Hardwired AC Output (Single In/Single Out)

Protection Features:

• Over voltage and under voltage protection
• Over-temperature protection
• Overload protection
• Short circuit protection

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Inverter Cont. Output Wattage: 2000w
• Outlet Qty: None
• Charging Banks: 1
• Box Dimensions: 12"H x 15"W x 19"L WT: 55 lbs
• UPC: 647912105630
