Anchoring & Docking

Pro-Series Horizontal 700 Windlass Kit - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

Anchoring has never been easier.

Features:

• Powerful motor providing fast line speed
• Manual emergency recovery equipped
• Convenient above-deck installation

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 32'
• Mounting Position - Horizontal

In the Box:

• Windlass
• Switch
• Circuit breaker
• Dual direction contactor/solenoid
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .5
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 12"L WT: 30 lbs
• UPC: 743683306488

Pro-Series Horizontal 1000H Windlass Kit - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats.  It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

 Anchoring has never been easier.

Features:

• Powerful motor providing fast line speed
• Manual emergency recovery equipped
• Convenient above-deck installation

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 1,000lbs
• Maximum Line Speed - 88'/min
• Maximum Chain Size - 5/16"
• Maximum Rope Size - 5/8"
• Power - 12 V
• Maximum Boat Length - 38'
• Mounting Position - Horizontal

In the Box:

• Windlass
• Switch
• Circuit breaker
• Dual direction contactor/solenoid
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .45
• Freefall: Yes
• Rope Diameter (Inches): .65
• Vertical/Horizontal: Horizontal
• Box Dimensions: 10"H x 10"W x 18"L WT: 30 lbs
• UPC: 743683319891

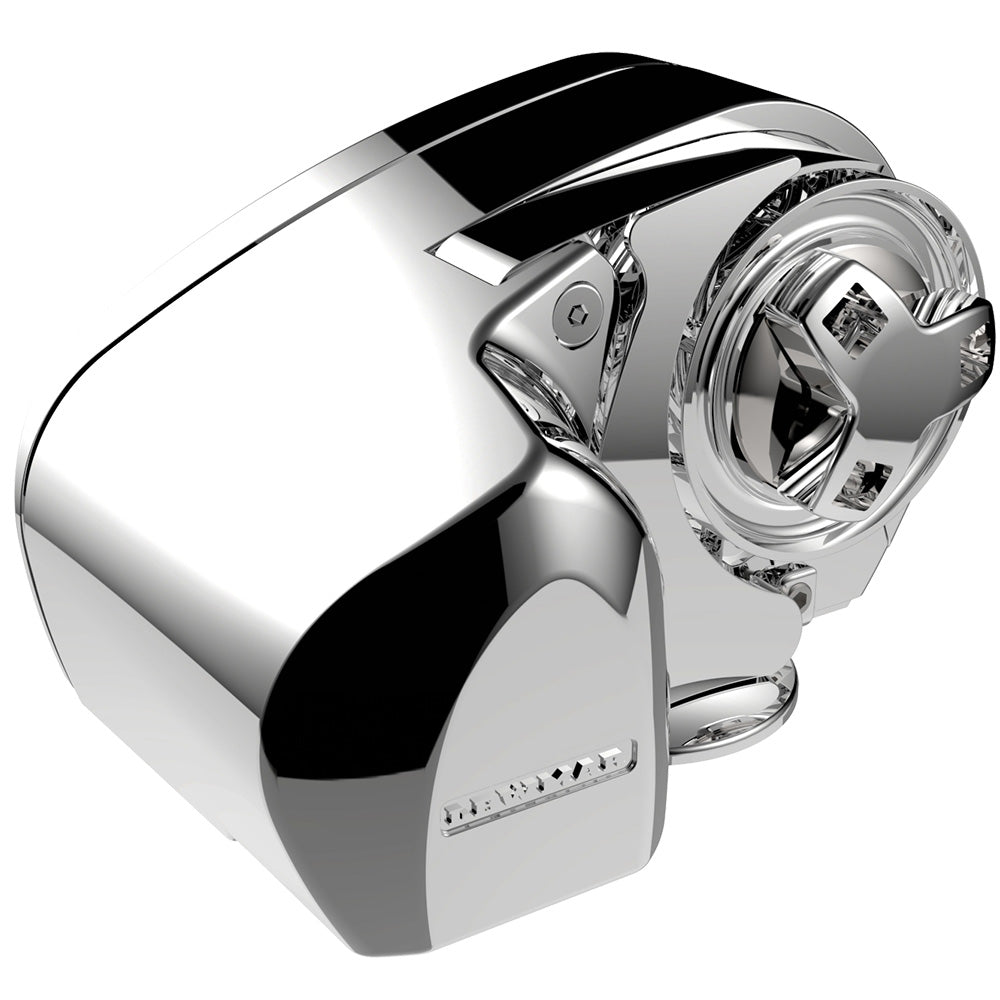

Pro-Series Horizontal 700 Windlass - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats.  It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

 Anchoring has never been easier.

Features:

• Powerful motor providing fast line speed
• Manual emergency recovery equipped
• Convenient above-deck installation

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 32'
• Mounting Position - Horizontal

In the Box:

• Windlass
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .50
• Vertical/Horizontal: Horizontal
• Box Dimensions: 4"H x 4"W x 18"L WT: 20 lbs
• UPC: 743683306495

Pro-Fish 700 Windlass - 12V

The Lewmar Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button.  Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.

This windlass has been specially designed to suit leaded lines up to 7mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong  316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)

Technical Specifications:

• Chain Size - 1/4" G4 or BBB
• Rope Size - 1/2" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 500 Watt
• Maximum Pulling Power - 700lb (318kg)
• Maximum Working Load - 175lb  (79.38)
• For boats up to 32' (9.75M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Dual-direction solenoid
• Rocker switch
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .50
• Vertical/Horizontal: Horizontal
• Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs
• UPC: 743683306860

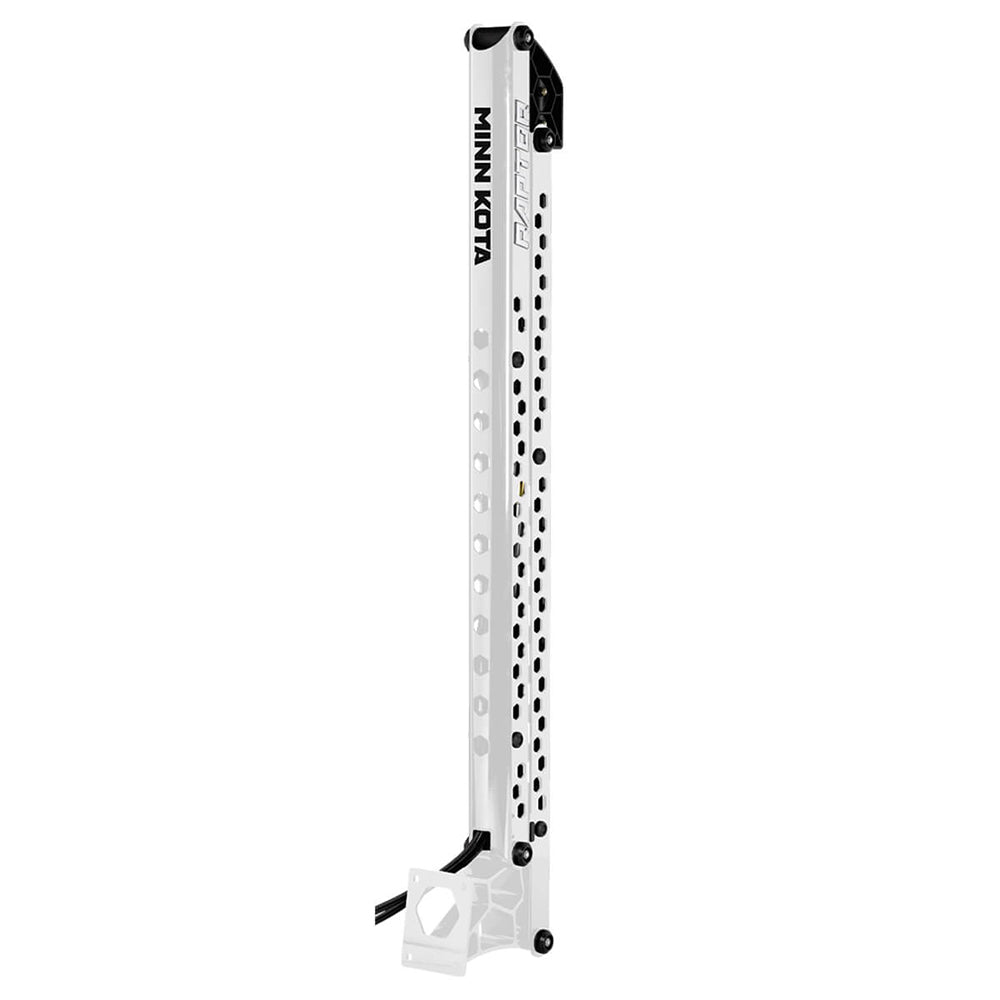

Raptor 10' Shallow Water Anchor with Active Anchoring - White

Raptor keeps working to hold you more reliably than any other anchor, especially in rough conditions. It knows where you’re anchoring, what’s happening to your boat, and what to do next. It reads the bottom, senses the anchoring force and reacts automatically to keep you locked down until the moment you’re ready to change spots. Legendary Minn Kota durability and innovative anchoring technology make Raptor the only hydraulic anchor that can call itself relentless.

Features:

• Active Anchoring: This revolutionary anchoring technology continuously monitors anchoring force and adjusts to keep you pinned to the bottom
• Auto Bottom Mode: On Active Anchoring enabled models, this anchoring mode automatically senses bottom composition and hardness to deliver the right amount of anchoring force every time
• Durable Design: A wider profile, heavy duty reinforced pivot points and extruded aluminum design will keep Raptor on the water in the harshest conditions
• Retraction Force: We designed Raptor with increased retraction force to ensure spike removal in all bottom types.
• Multiple Control Options: Control Raptor from anywhere on the boat using your choice of options: Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder.
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), standard (normal anchoring), and Auto-Bottom Mode on Active Anchoring equipped models which automatically delivers the ideal anchoring force by sensing bottom hardness
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Auto Up/Down: Automatically deploy or retract your Raptor with the push of a button; no need to hold the button down
• Saltwater-Tough Engineering: Keeps Raptor safe from the corrosive effects of saltwater

Specifications:

• Product Weight 44 lb
• Anchoring Depth 10 ft
• Product Dimensions 15.5 in x 4.75 in x 70 in
• Operation Hydraulic
• Active Anchoring
• Deployment Four-Bar Articulating Arm
• Auto Up/Down
• Wireless Remote
• 15' Hydraulic hoses

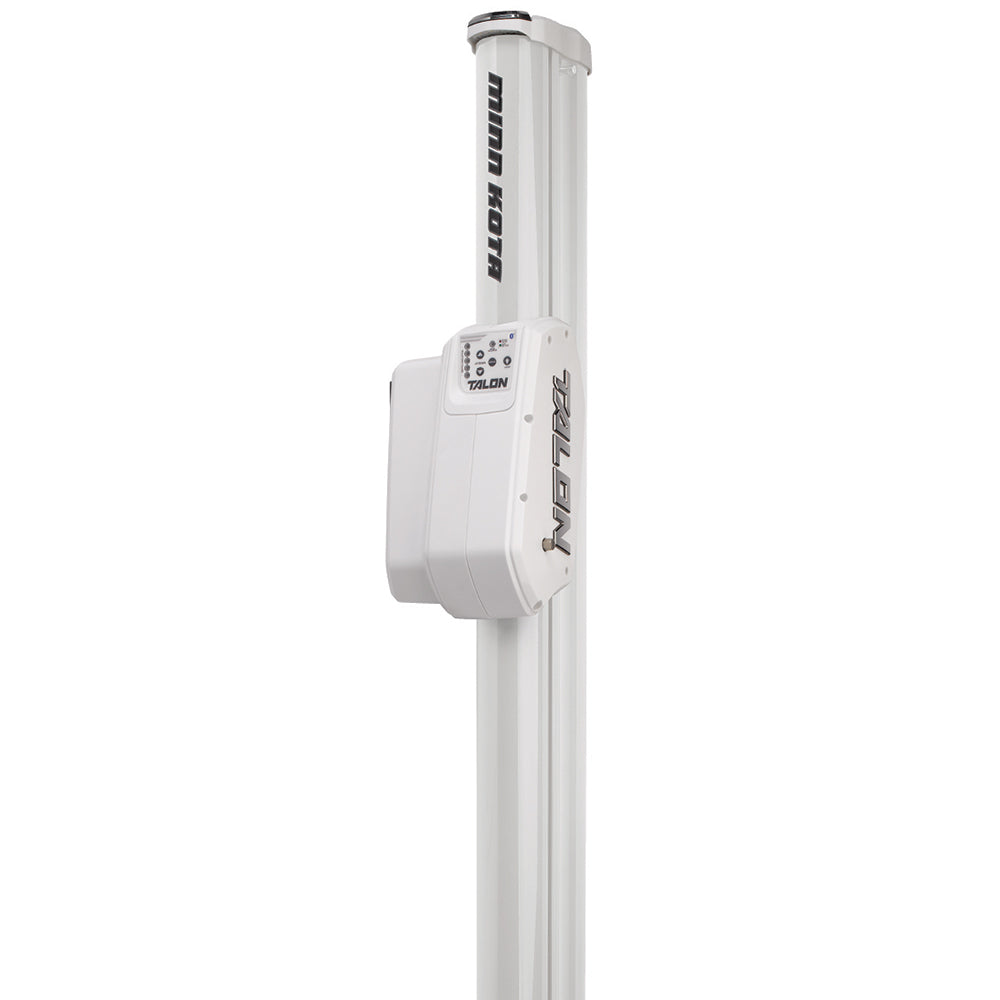

Talon BT 10' Shallow Water Anchor - White

When you find the right fishing spot time is critical. You can’t wait to anchor, can’t wait to cast, and can’t be bothered to move until you get what you came for. That’s why we designed every inch of Talon to hold you in place effortlessly and relentlessly – every time out.

• Multiple Control Options: Control Talon from anywhere on the boat using your choice of options: Control Panel, Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), and standard (normal anchoring)
• Built-in Work Light: Illuminate the boat transom any time of day — or night. Includes two colors (white and blue) and each has three brightness intensity settings
• Talon Remote: Lets you control stow, deploy, anchoring modes, multiple Talon selection and work light; comes standard with one wireless remote
• Bluetooth Connectivity: Control Talon from your mobile device (iOS or Android) and easily update software
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Vertical Deployment: Keeps Talon out of the way of your fishing lines
• Wave Absorption: Built-in floating suspension keeps your boat anchored down even in rough water, enabling your boat to move up or down without affecting the anchor
• Auto Up/Down: Automatically deploy or retract your Talon with the push of a button; no need to hold the button down
• Pivoting Design: Talon includes a mounting bracket that allows for up and down adjustments to fit any transom, 30 degrees of pivoting and easy removal
• Deployment Notification Alarm: Alerts you when trying to take off while Talon is deployed
• Saltwater-Tough Engineering: Keeps Talon safe from the corrosive effects of saltwater

Specifications:

• Color: White
• Box Dimensions: 11"H x 16"W x 56"L WT: 56.2 lbs
• UPC: 029402046133

Talon BT 12' Shallow Water Anchor - White

When you find the right fishing spot time is critical. You can’t wait to anchor, can’t wait to cast, and can’t be bothered to move until you get what you came for. That’s why we designed every inch of Talon to hold you in place effortlessly and relentlessly – every time out.

• Multiple Control Options: Control Talon from anywhere on the boat using your choice of options: Control Panel, Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), and standard (normal anchoring)
• Built-in Work Light: Illuminate the boat transom any time of day — or night. Includes two colors (white and blue) and each has three brightness intensity settings
• Talon Remote: Lets you control stow, deploy, anchoring modes, multiple Talon selection and work light; comes standard with one wireless remote
• Bluetooth Connectivity: Control Talon from your mobile device (iOS or Android) and easily update software
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Vertical Deployment: Keeps Talon out of the way of your fishing lines
• Wave Absorption: Built-in floating suspension keeps your boat anchored down even in rough water, enabling your boat to move up or down without affecting the anchor
• Auto Up/Down: Automatically deploy or retract your Talon with the push of a button; no need to hold the button down
• Pivoting Design: Talon includes a mounting bracket that allows for up and down adjustments to fit any transom, 30 degrees of pivoting and easy removal
• Deployment Notification Alarm: Alerts you when trying to take off while Talon is deployed
• Saltwater-Tough Engineering: Keeps Talon safe from the corrosive effects of saltwater

Specifications:

• Color: White
• Box Dimensions: 11"H x 15"W x 75"L WT: 63 lbs
• UPC: 029402046195

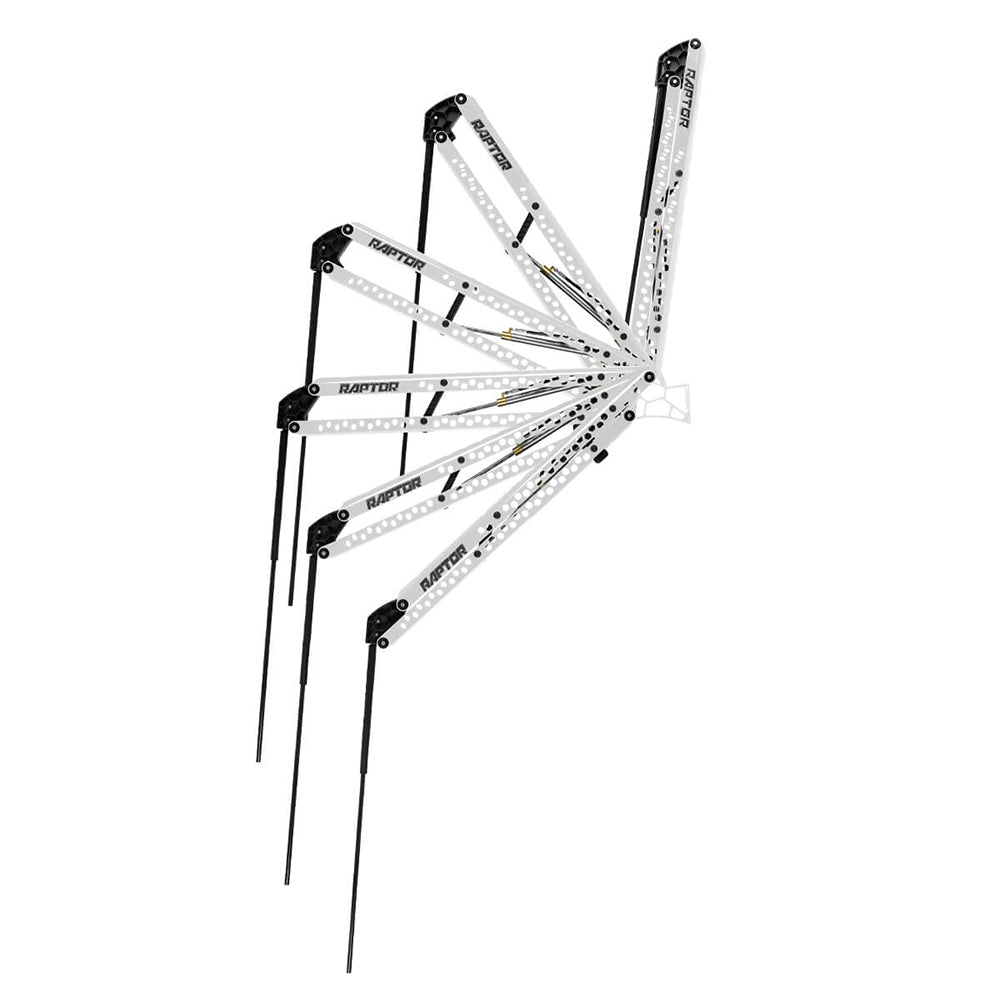

Raptor 8' Shallow Water Anchor with Active Anchoring - White

Raptor keeps working to hold you more reliably than any other anchor, especially in rough conditions. It knows where you’re anchoring, what’s happening to your boat, and what to do next. It reads the bottom, senses the anchoring force and reacts automatically to keep you locked down until the moment you’re ready to change spots. Legendary Minn Kota durability and innovative anchoring technology make Raptor the only hydraulic anchor that can call itself relentless.

Features:

• Active Anchoring: This revolutionary anchoring technology continuously monitors anchoring force and adjusts to keep you pinned to the bottom
• Auto Bottom Mode: On Active Anchoring enabled models, this anchoring mode automatically senses bottom composition and hardness to deliver the right amount of anchoring force every time
• Durable Design: A wider profile, heavy duty reinforced pivot points and extruded aluminum design will keep Raptor on the water in the harshest conditions
• Retraction Force: We designed Raptor with increased retraction force to ensure spike removal in all bottom types.
• Multiple Control Options: Control Raptor from anywhere on the boat using your choice of options: Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder.
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), standard (normal anchoring), and Auto-Bottom Mode on Active Anchoring equipped models which automatically delivers the ideal anchoring force by sensing bottom hardness
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Auto Up/Down: Automatically deploy or retract your Raptor with the push of a button; no need to hold the button down
• Saltwater-Tough Engineering: Keeps Raptor safe from the corrosive effects of saltwater

Specifications:

• Product Weight 38 lb
• Anchoring Depth 8 ft
• Product Dimensions 15.5 in x 4.75 in x 58 in
• Operation Hydraulic
• Active Anchoring
• Deployment Four-Bar Articulating Arm
• Auto Up/Down
• Wireless Remote
• 15' Hydraulic hoses
