Powerwinch Capstan 1000 Winch [P77099]

Capstans

Why Capstans?
Rather than using the hand-over-hand method of retrieving lines, the capstan offers a mechanical advantage that is both faster and safer. The capstan does the heavy lifting with only a small amount of effort. The maximum speed of the line retrieval depends on the rotational speed of the drum. The benefit is that the retrieval speed can be adjusted by decreasing the tension on the retrieved line, maintaining control over a very heavy load with little effort.
This useful device, which has been around since the early days of sailing, is still used today. Recreational fishermen, like commercial fishermen, use these for hauling crab and lobster pots and there are many other uses aboard boats. The few mechanical parts and ease of use have made this a favorite of fisherman worldwide. While chains should NEVER be wrapped around a drum, the majority of lines can be handled on a capstan.

A capstan, typically operated by an easy to use footswitch (R001459), allows the boater to control lines with ease without having additional crew members. Powerwinch has a model to fit your needs. All Powerwinch capstans come with a foot control switch that allows for hands-free operation.

Capstan 1000
Multi-purpose rope winch for anchoring, sailing & Fishing
1000 pounds of pulling power!
Our largest capstan, the Capstan 1000, is a power assisted rope capstan for larger applications with 1000 pound pull power and 40 ft/minute retrieval speed. A great tool for quick retrieval lobster, prawn and crab pots. The Capstan 100 also provides power assist for limited crew sailboats and power assisted anchor retrieval. Uses up to 3/4" diameter rope.

• Fast 40'/min retrieval speed

• 1000 lb max pulling power

• Handles unlimited rope lengths

• Easy to operate footswitch (included)

• All aluminum housing with a durable polyester finish

• Thermal automatic resetting circuit breaker

• One piece, heat-treated and oil-impregnated gears

• Stainless steel internal shafts, fasteners, and hardware

• Two year limited warranty

Specifications:

• Rope Diameter (Inches): 3/4"
• Vertical/Horizontal: Horizontal
• Freefall: No
• Box Dimensions: 9"H x 11"W x 15"L WT: 20.9 lbs
• UPC: 033936770990

Owner's Manual (pdf)

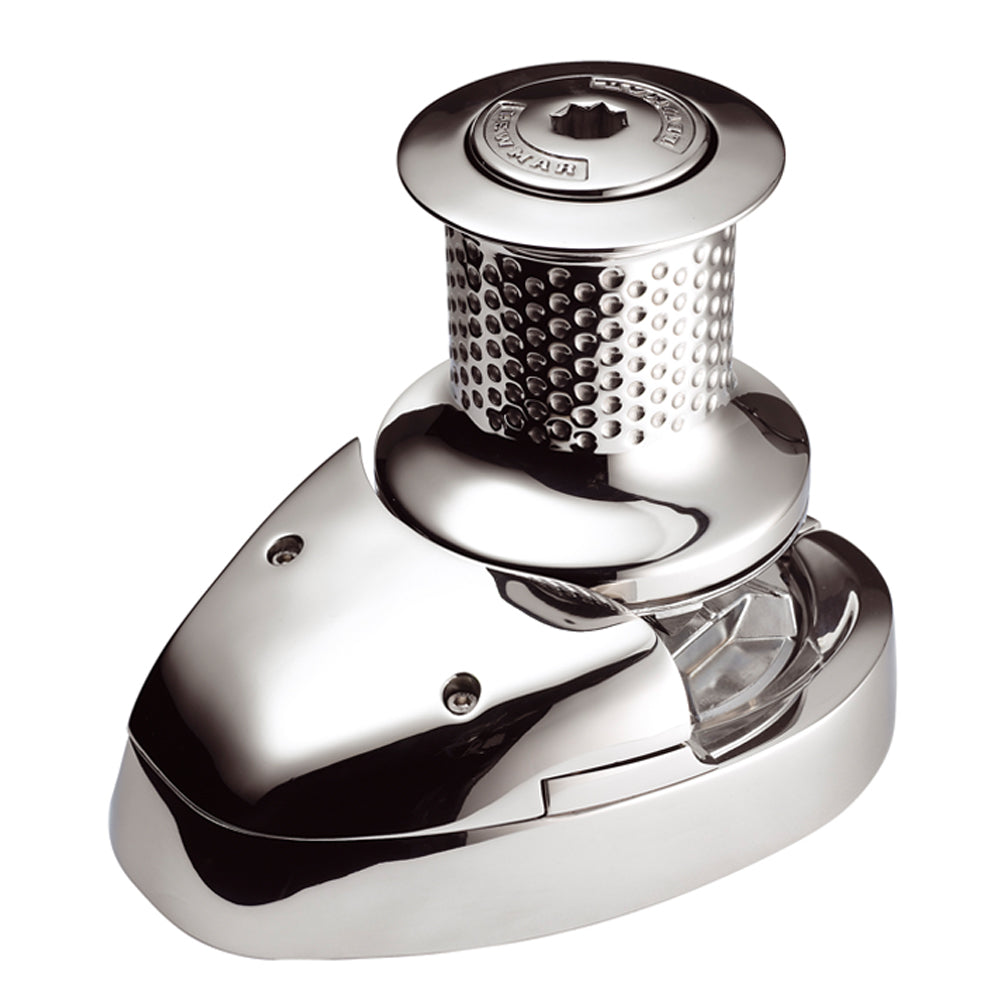

Gypsy Drum Deck Unit - V4/V5

Lewmar introduces the world's first compact stainless steel windlass for power and sailboats. The beautifully styled deck unit conceals a robust, reliable drivetrain, worm gearbox, and splined shaft for maximum strength and control.

Features:

• Rope-chain gypsy
• Cone clutch for smooth, effortless control
• Manual Free-Fall
• W.A.R.P Drum (Drum version only)
• Robust and reliable drive train
• Manual override (optional)
• The most oversized rope chain windlass in the range

*You will also require a gypsy, motor gearbox, circuit breaker, contactor, and switches.

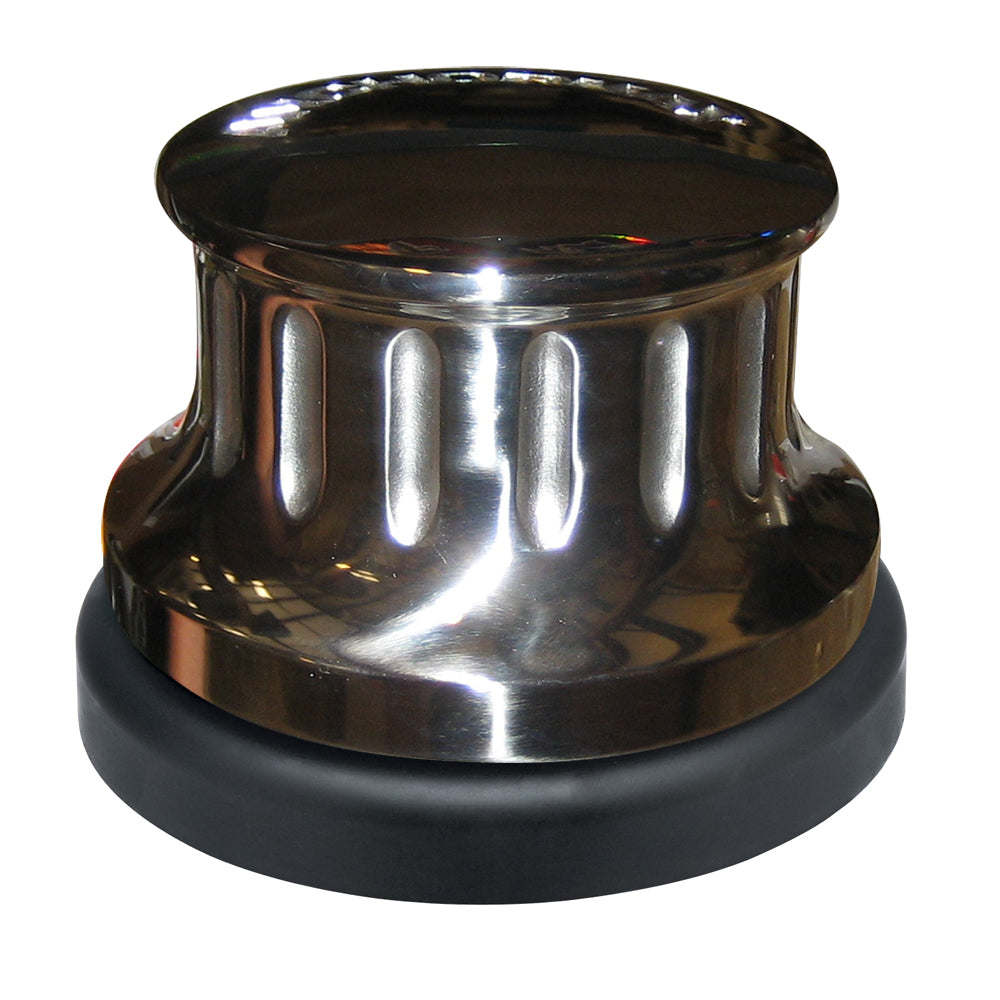

ANCHORMAX™ Windlass

Features:

• Has an extremely high power to weight ratio

• ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor

• Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)

• Fitting to the boat is simplicity itself as no dismantling of the winch is required

• Gear housings are marine-grade alloy and the drum is stainless steel

• Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions

• Not recommended for use to haul halyards

• Not recommended for use to haul chain

• Footswitch

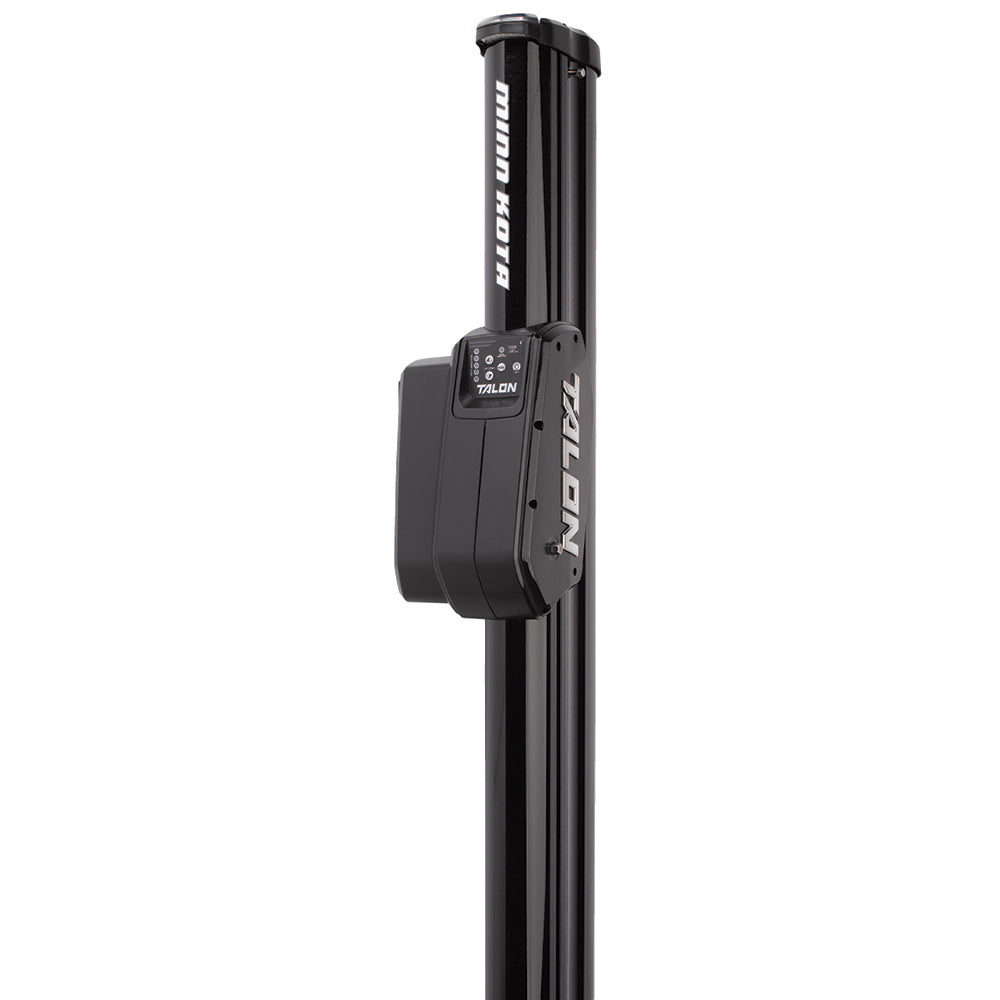

Talon BT 10' Shallow Water Anchor - Black

When you find the right fishing spot time is critical. You can’t wait to anchor, can’t wait to cast, and can’t be bothered to move until you get what you came for. That’s why we designed every inch of Talon to hold you in place effortlessly and relentlessly – every time out.

• Multiple Control Options: Control Talon from anywhere on the boat using your choice of options: Control Panel, Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), and standard (normal anchoring)
• Built-in Work Light: Illuminate the boat transom any time of day — or night. Includes two colors (white and blue) and each has three brightness intensity settings
• Talon Remote: Lets you control stow, deploy, anchoring modes, multiple Talon selection and work light; comes standard with one wireless remote
• Bluetooth Connectivity: Control Talon from your mobile device (iOS or Android) and easily update software
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Vertical Deployment: Keeps Talon out of the way of your fishing lines
• Wave Absorption: Built-in floating suspension keeps your boat anchored down even in rough water, enabling your boat to move up or down without affecting the anchor
• Auto Up/Down: Automatically deploy or retract your Talon with the push of a button; no need to hold the button down
• Pivoting Design: Talon includes a mounting bracket that allows for up and down adjustments to fit any transom, 30 degrees of pivoting and easy removal
• Deployment Notification Alarm: Alerts you when trying to take off while Talon is deployed
• Saltwater-Tough Engineering: Keeps Talon safe from the corrosive effects of saltwater

Specifications:

• Color: Black
• Box Dimensions: 11"H x 15"W x 56"L WT: 55.7 lbs
• UPC: 029402046102

Talon BT 15' Shallow Water Anchor - Black

When you find the right fishing spot time is critical. You can’t wait to anchor, can’t wait to cast, and can’t be bothered to move until you get what you came for. That’s why we designed every inch of Talon to hold you in place effortlessly and relentlessly – every time out.

• Multiple Control Options: Control Talon from anywhere on the boat using your choice of options: Control Panel, Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder
• User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), and standard (normal anchoring)
• Built-in Work Light: Illuminate the boat transom any time of day — or night. Includes two colors (white and blue) and each has three brightness intensity settings
• Talon Remote: Lets you control stow, deploy, anchoring modes, multiple Talon selection and work light; comes standard with one wireless remote
• Bluetooth Connectivity: Control Talon from your mobile device (iOS or Android) and easily update software
• Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
• Vertical Deployment: Keeps Talon out of the way of your fishing lines
• Wave Absorption: Built-in floating suspension keeps your boat anchored down even in rough water, enabling your boat to move up or down without affecting the anchor
• Auto Up/Down: Automatically deploy or retract your Talon with the push of a button; no need to hold the button down
• Pivoting Design: Talon includes a mounting bracket that allows for up and down adjustments to fit any transom, 30 degrees of pivoting and easy removal
• Deployment Notification Alarm: Alerts you when trying to take off while Talon is deployed
• Saltwater-Tough Engineering: Keeps Talon safe from the corrosive effects of saltwater

Specifications:

• Color: Black
• Box Dimensions: 11"H x 15"W x 75"L WT: 72.8 lbs
• UPC: 029402046201

RC10-10 Capstan Windlass 12V - 3/8" Chain & 5/8" Rope

The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16") and 10mm (3/8") short link chain and 14mm and 16mm (5/8") three strand or 8-brait (plait) rope.

A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

Full disassembly capability of the topworks utilising only the handle provided and an Allen key.
The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability. The heavy duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance.

In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice.

The RC10 works just as effectively with all chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck. Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Cone type clutch/brake mechanism permits manual, Free Fall anchoring. Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel.

Features:

• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Cone type clutch/brake mechanism permits manual, Free Fall anchoring.
• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.
• Includes - windlass , an on/off breaker panel, a reversing solenoid, an up/down panel switch and a handle

Specifications:

• Chain - Diameter (Inches): 3/8"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Vertical
• Box Dimensions: 12"H x 17"W x 20"L WT: 50.3 lbs
• UPC: 1000000004199

Mantis Underwater Dock Lighting System - RGBW Full-Color

The technology, reliability, value, and performance of the world’s best selling underwater light in an easy-to-install all-inclusive dock lighting package. The Mantis dock lighting system includes everything needed to transform your dock or seawall into a dazzling nighttime seascape. And with Mantis’ innovative Zip-Mount™ universal mounting system, underwater installation is a snap – even on barnacle-encrusted pilings!

Mantis Dock Lights are constructed with marine grade bronze housings and heat tempered glass to withstand the hashes of coastal environments. Each light is equipped with 25' of submersible heavy duty cable and therefore requires no complex conduit installation.

The Manits Dock Lighting System incorporates an innovative Zip-Mount™ universal mounting system which allows for the lights to be installed in a snap, even on barnacle-encrusted pilings. No specialized tools or certification is required to install the Mantis Dock Lighting System.

Features:

• Complete kit includes everything needed for easy installation on most pilings or seawalls
• Leverages the technology and experience of the world’s best-selling underwater lights
• Plugs into any standard switched outlet
• Mount 6 inches below typical low tide mark  (can operate above water without damage)
• Innovative Zip Mount™ universal mounting system
• Add-on light option available (4 lights per power converter)
• 2000 lumens output per light, 6000 lumens output per kit
• Mantis Dock Lighting System is currently only available in Full-Color RGBW Spectrum output

Everything you need to install Mantis is included within the kit for simple plug and play installation. A basic 3 light kit can be installed straight from the box in as little as 90 minutes. And if that is not easy enough, Mantis will plug in to any standard switched outlet.

What is included in the kit?

• 3 Full-Color RGBW Dock Lights with integrated 25’ cable
• Innovative Zip-Mount™ universal light mounting system
• AC to DC Power Converter in weatherproof enclosure
• All Required Mounting Hardware
• UL Listed* – 3 year warranty

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Full Color RGBW
• Material: Bronze
• Watts: 25W
• Voltage - Input Range (Volts): 10-30V
• Box Dimensions: 12"H x 12"W x 12"L WT: 18 lbs
• UPC: 089300015259

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
• Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
• High efficiency spur gearbox incorporating a robust non-backwind mechanism
• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
• Emergency "free fall" function in the event of onboard power failure
• Revolutionary new chainwheel - see over
• Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
• Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
• Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection

Specifications:

• Model: HRC6
• Maximum Pull: 900lbs
• Chain Short Link: 1/4"
• Rope Size (Nylon): 1/2"
• Line Speed(Anchor Retrieval): 108'/min
• Power Supply(DC): 12V or 24V
• Motor Power: 600W
• Net Weight: 25lbs

Specifications:

• Chain - Diameter (Inches): 1/4"
• Freefall: Yes
• Rope Diameter (Inches): 1/2"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs
• UPC: 1000000002744
