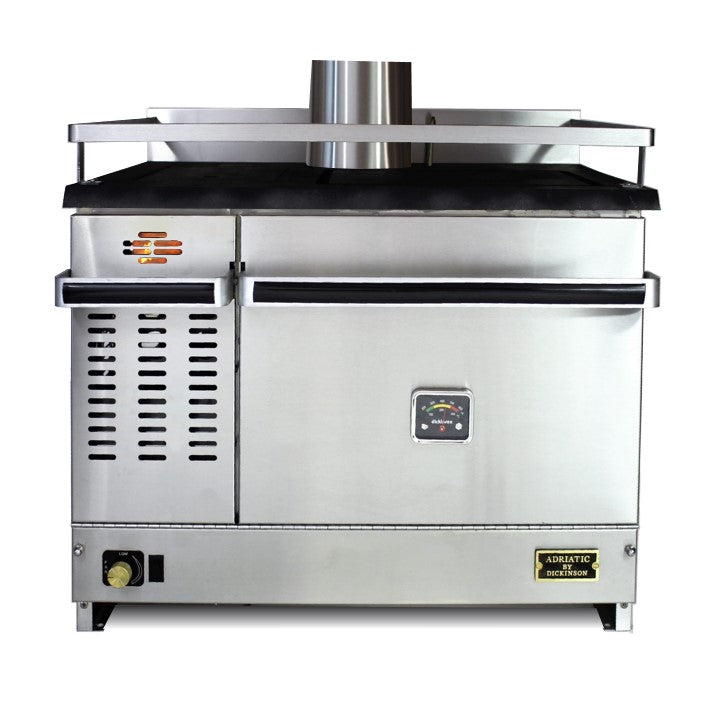

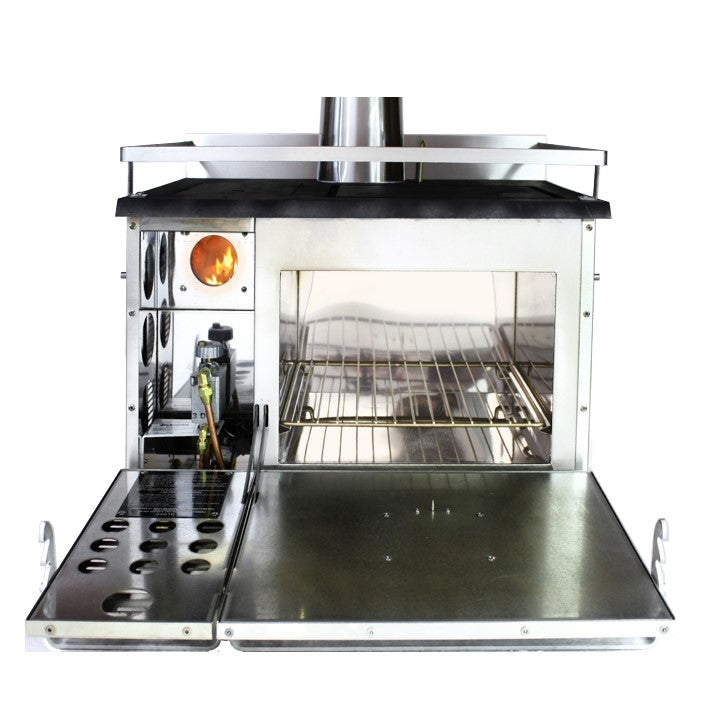

Dickinson Marine Adriatic Diesel Stove
The Adriatic Cookstove is our second largest stove. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.
- Efficient and Spacious: The Adriatic Cookstove is a sizable, cost-effective diesel-burning stove that provides comfortable, dry heat. It comes equipped with a cast iron cooktop for versatile cooking options.
- Easy Installation:
- Requires 5” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Needs a permanent fresh air vent in the unit's area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Sailboat Installation:
- Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
- Draft Assist Fan:
-
Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Options:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
- Specifications:
- Width: 26.25″
- Height: 23.50″
- Depth: 21.50″
- Weight: 135 lbs.
- >>>>>>>>>Dimensional Diagram click here
- Oven Size:
- Width: 15”
- Depth: 13”
- Height: 10.5”
- Fuel Consumption (24hr):
- Low: 1.30 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Note: This stove must be shipped on a pallet.
Follow the installation guidelines for optimal performance.
Diesel Cookstove Installation & Operating Manual

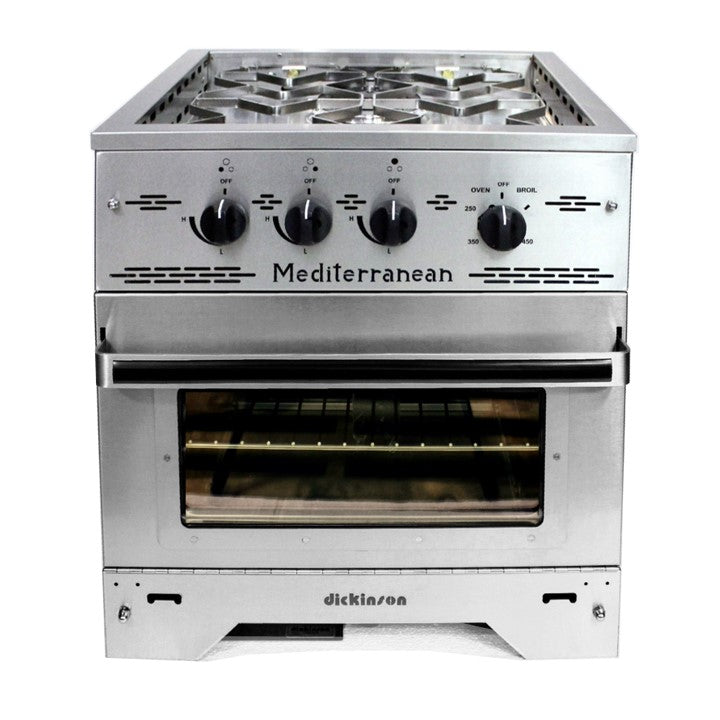

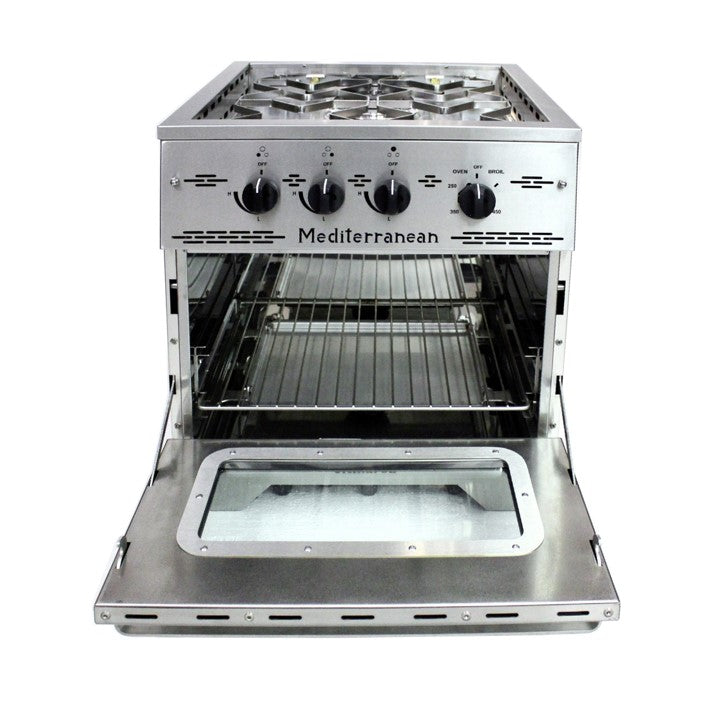

Dickinson Marine Mediterranean Three Burner Propane Stove
- Sturdy and Efficient: This stove is made of heavy-duty stainless steel and features three powerful burners - one at 11,000 BTU and two at 7,000 BTU each. All burners are equipped with safety 'flame-out' protection. It also comes with a reliable push and turn electronic ignition.
- Notable Features:
- Stainless Steel Construction
- Laser Cut Precision & Attractive Design
- Thermostatically Controlled Oven with Broiler
- Includes 1 set of Pot Holders & 1 Sea Rail
- Features a Removable Wooden Cutting Board
- Offers Gimballed or Build-In Installation Options (Sold Separately)
- Installation Information:
- Specific installation dimensions provided for Mediterranean & Caribbean settings.
- Specifications:
- Width: 20.375″
- Height: 21.750″
- Depth: 20.250″
- Weight: 80 lbs
- Oven Space:
- Usable space: 17” W x 12.5” D x 8” from the bottom rack and 5” from the top rack. (Includes one rack)
- Heat Output:
- Back Burner: 11,000 BTU
- Right/Left Burners: 7,000 BTU each
- Oven Burner: 7,000 BTU
- Broiler Burner: 4,500 BTU
- Shipping Note: This stove must be shipped on a pallet.

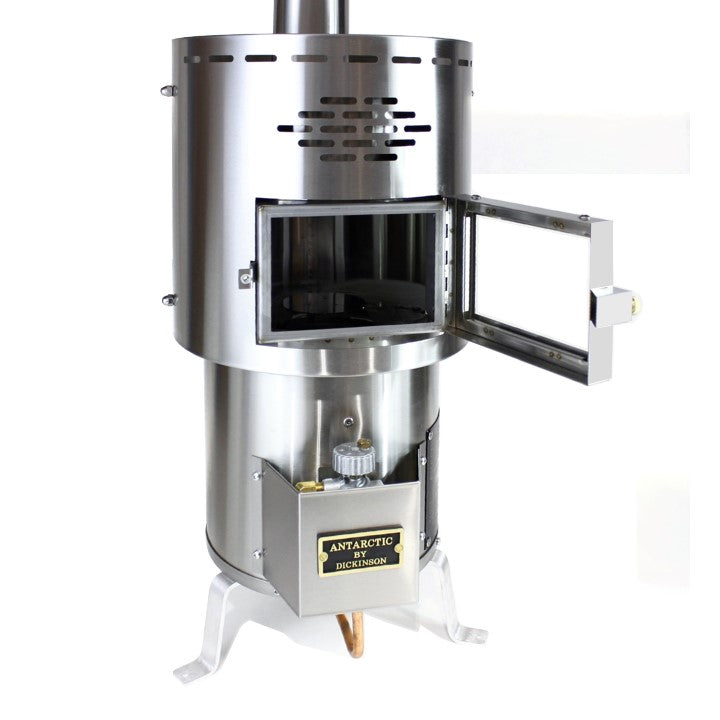

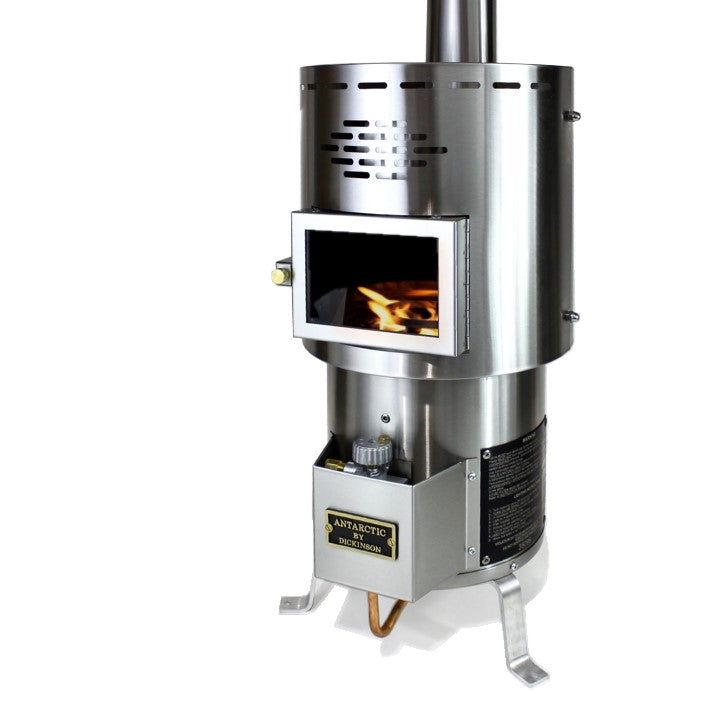

Dickinson Marine Antarctic Diesel Floormount Heater
The Antarctic Floor Mounted Heater is a compact bulkhead mounted heater. An attractive, economical diesel burning heater, providing comfortable, dry heat.
- Efficient and Compact: The Antarctic Heater is a small, budget-friendly diesel heater designed for floor mounting. It provides comfortable, dry heat.
- Easy Installation:
- Requires 3” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Needs a permanent fresh air vent in the unit's area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Sailboat Installation:
- Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
- Draft Assist Fan:
-
Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Options:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
- Specifications:
- Width: 13″
- Height: 25″
- Depth: 14″
- Weight: 27 lbs.
- Fuel Consumption (24hr):
- Low: 1.29 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Follow the installation guidelines for optimal performance.
Diesel Heater Installation & Operating Manual

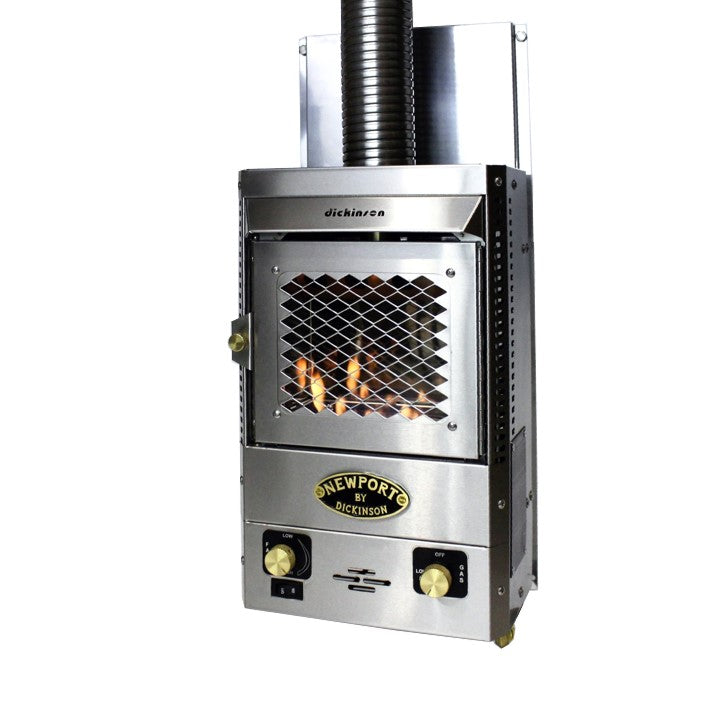

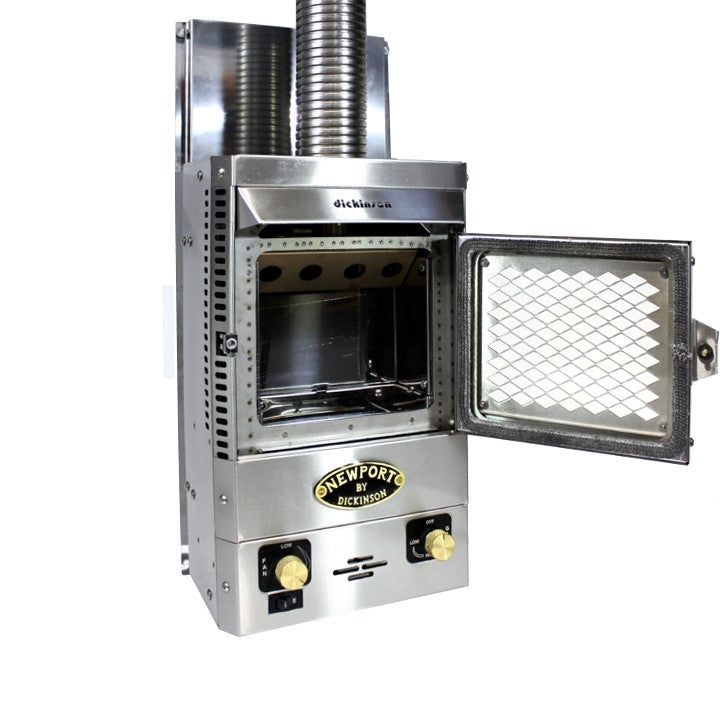

Dickinson Marine Newport P12000 Propane Fireplace - Marine Only
PART# 00-NEW-P12000
The Newport P12000 Propane Fireplace Heater offers reliable and safe heating with easy installation and operation. Ensure you have the necessary propane hose, regulator, and fittings for use. ABYC approved for marine installations.
- Efficient and Safe: This propane heater is specially designed with a direct vent system that keeps the combustion process completely separate from the interior of the boat. It includes a built-in blower for even heat distribution.
- Complete Package: The heater comes with all necessary accessories, including a stainless steel backing plate, 28 inches of flexible double stainless chimney, and a deck fitting cap. Please note that a propane hose, 11” WC regulator, and fittings are required and sold separately. Everything you need for installation is included!
- User-Friendly:
- Easy to install and easy to use.
- Features a stainless steel burner and a large ceramic glass viewing window with a safety screen.
- Safety and Efficiency:
- Operates via safe, direct-vent operation.
- Remains unaffected by boat motion or wind conditions.
- Offers variable heat output and excellent thermal efficiency.
- Demonstrates low fuel consumption.
- Durable and Marine-Approved:
- Constructed with high-quality 304 stainless steel.
- No risk of interior oxygen depletion.
- ABYC approved for MARINE use only.
- Specifications:
- Width: 10″
- Height: 16″
- Depth: 7.25″
- Weight: 25 lbs
- Mounting Backplate:
- Width: 9.875″
- Depth: 0.650″
- Height: 23″
- Fuel Consumption (per hour):
- 1 lb tank: 5.5 hrs on LOW, 3.9 hrs on HIGH
- 20 lb tank: 110 hrs on LOW, 78 hrs on HIGH
- Heat Output:
- Low: 4,000 BTU
- High: 5,500 BTU
Newport P12000 Installation & Operating Manual
Newport P12000 Information Sheet

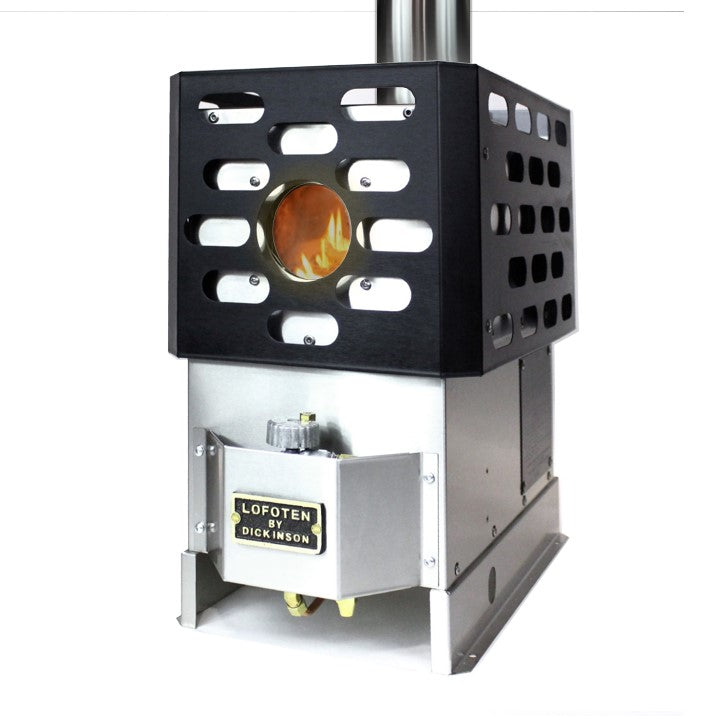

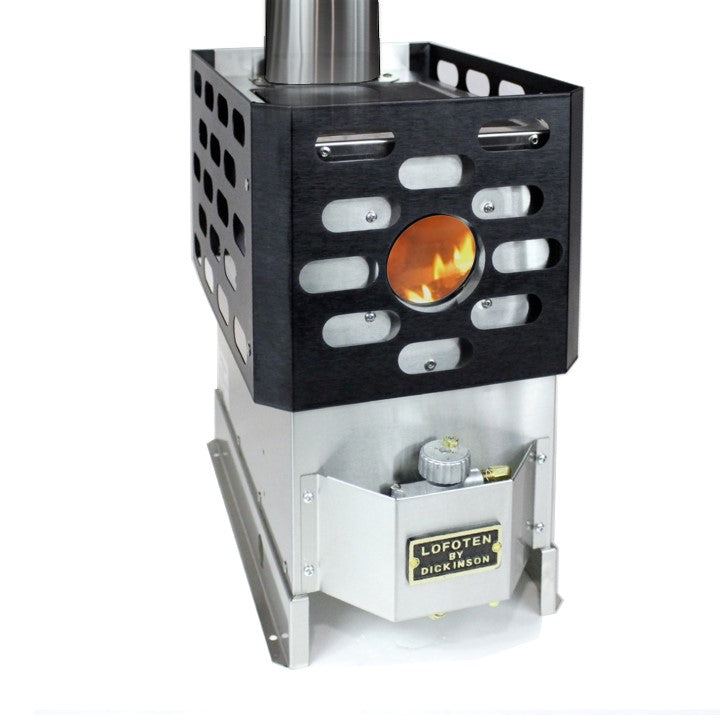

Dickinson Marine Lofoten Diesel Floormount Heater
The Lofoten Floor Mounted Heater is a compact floor mounted heater. An attractive, economical diesel burning heater, providing comfortable, dry heat with a small cast iron cooktop for cooking.
- Efficient and Compact: The Lofoten Heater is a small, budget-friendly diesel heater designed for floor mounting. It provides comfortable, dry heat and features a small cast iron cooktop for cooking.
- Easy Installation:
- Requires 4” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Requires a permanent fresh air vent in the unit's area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Sailboat Installation:
- Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
- Draft Assist Fan:
- Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Options:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
- Specifications:
- Width: 10.75″
- Height: 18″
- Depth: 17″
- Weight: 31 lbs.
- Fuel Consumption (24hr):
- Low: 1.29 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Follow the installation guidelines for optimal performance.
Diesel Heater Installation & Operating Manual

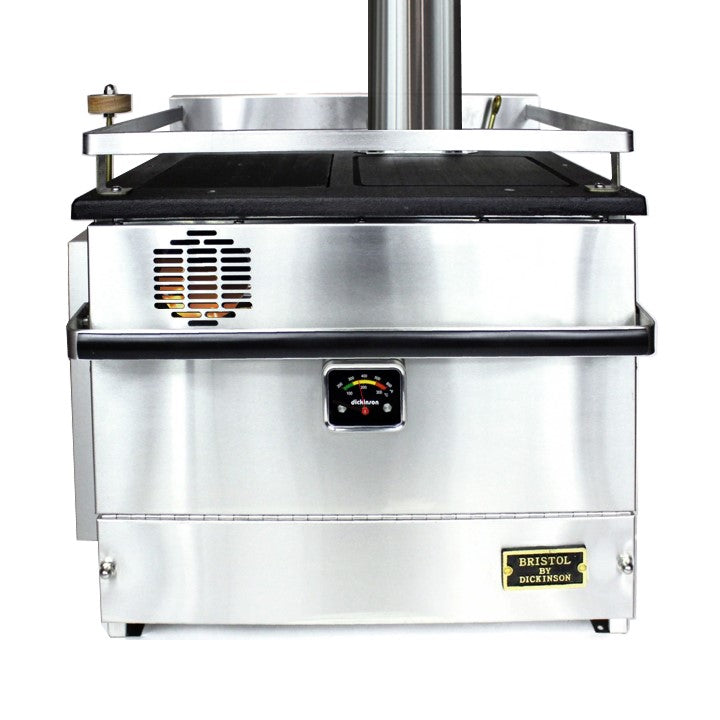

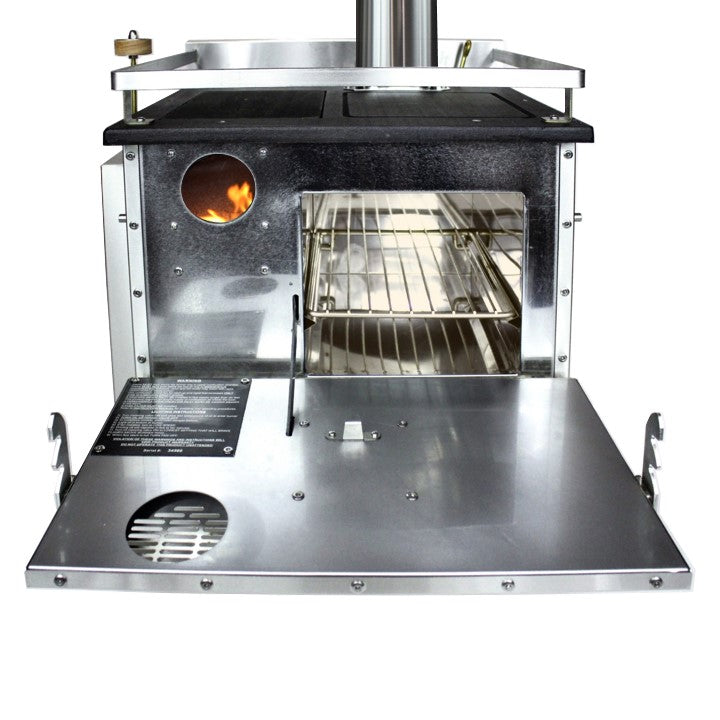

Dickinson Marine Bristol Diesel Cookstove
The Bristol Cookstove is our smallest cookstove. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.
Efficient and Compact: The Bristol Cookstove is a small, cost-effective diesel-burning stove that provides comfortable, dry heat. It also features a cast iron cooktop for cooking.
- Sailboat Installation: Designed for port or starboard-facing installation on sailboats.
- Easy Installation:
- Requires 4” diameter chimney parts.
- Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
- For chimneys 6ft or longer, a barometric damper is highly recommended.
- Needs a permanent fresh air vent in the unit's area.
- Design Features:
- Stylish laser-cut design in 304 stainless steel.
- Produces dry heat to eliminate moisture inside the vessel.
- Draft Assist Fan:
-
Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
- Fuel Options:
- Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
- Hot Water Option:
- Can add a 1-turn hot water coil to heat 5-10 gallons of water.
- Specifications:
- Width: 21″
- Height: 19.25″
- Depth: 18.25″
- Weight: 85 lbs.
- >>>>>>>>>Dimensional Diagram click here
- Oven Size:
- Width: 9”
- Depth: 11.25”
- Height: 8”
- Fuel Consumption (24hr):
- Low: 1.30 gal
- High: 3.20 gal
- Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Note: This stove must be shipped on a pallet.
Follow the installation guidelines for optimal performance.
Diesel Stove Installation and Operating Manual

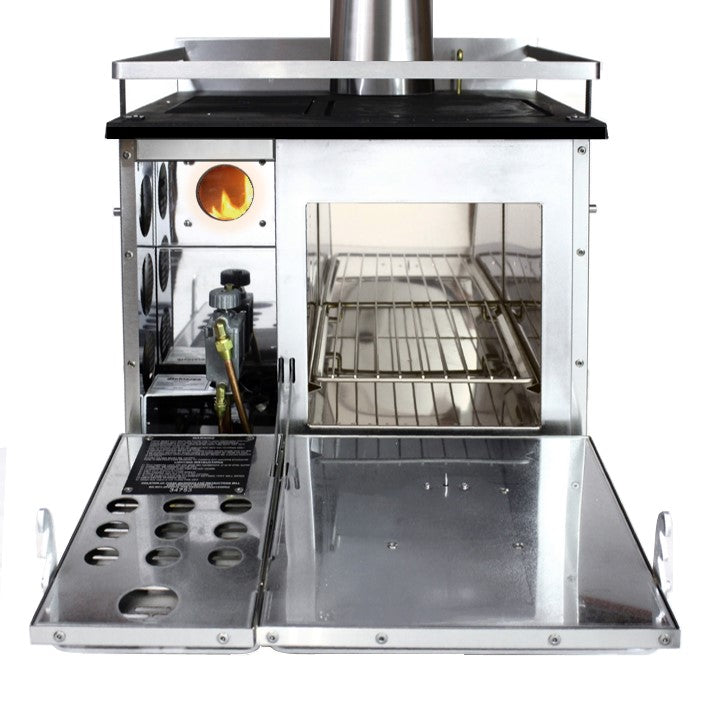

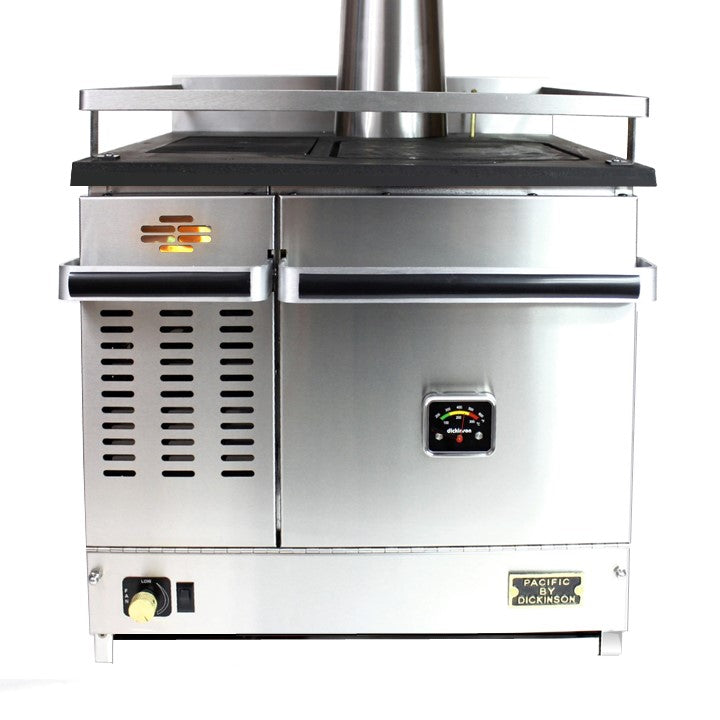

Dickinson Marine Pacific Diesel Stove
The Pacific Cookstove is our most popular model with a standard size to fit most stove cut outs. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.
- Popular Size: Fits most standard stove cutouts.
- Efficient Heating: Burns diesel economically, providing cozy, dry heat. Also features a cast iron cooktop for cooking.
-
Installation Requirements:
- Requires 5” diameter chimney parts.
- Needs a minimum 4ft, maximum 8ft of chimney (straight run with no elbows is best).
- For chimneys 6ft or longer, we highly recommend a barometric damper.
- Requires a permanent fresh air vent in the unit's area.
-
Design Features:
- Attractive laser-cut design in 304 stainless steel.
- Produces dry heat to remove moisture from the vessel.
-
Sailboat Installation:
- Must face fore or aft. If port or starboard facing is desired, valve adjustment may be needed.
-
Draft Assist Fan:
-
- Includes a 12v fan for start-up and draft assistance (can be converted to 24v- email us once placing an order if you want with a fan 24v).
-
Fuel Options:
- Factory set for #2 diesel, but valves for kerosene & #1 diesel are available.
-
Hot Water Coil Option:
- Can add a 1-turn coil to heat 5-10 gallons of water or a 2-turn coil for 15-20 gallons.
-
Specifications:
- Width: 21.75”
- Height: 23.50”
- Depth: 21.50”
- Weight: 126 lbs.
- >>>>>>>>>Dimensional Diagram click here
-
Oven Size
- Width: 10.25”
- Depth: 13”
- Height: 10.5”
-
Fuel Consumption (24hr):
- Low: 1.30 gal
- High: 3.20 gal
-
Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Note: This stove must be shipped on a pallet.
Follow the installation guidelines for optimal performance.
Diesel Stove Installation & Operating Manual
Pacific Diesel Information Sheet

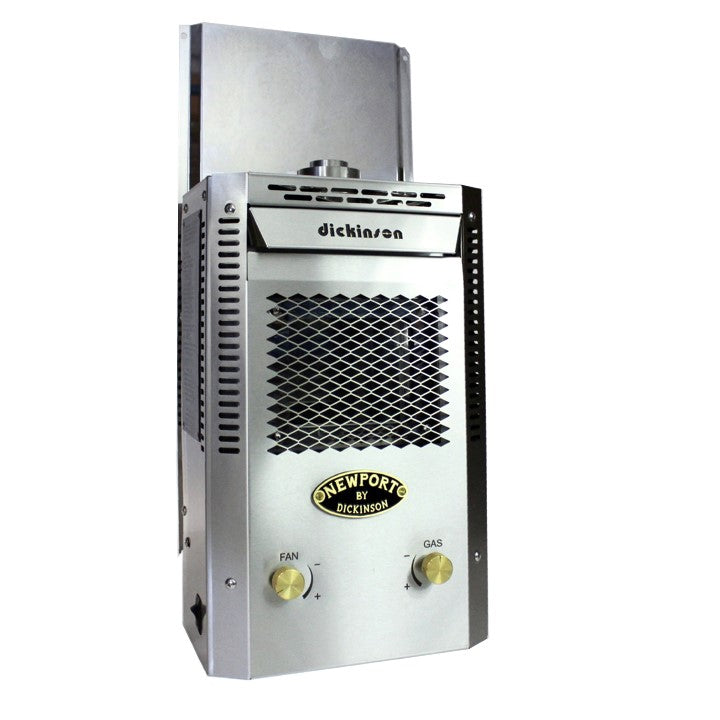

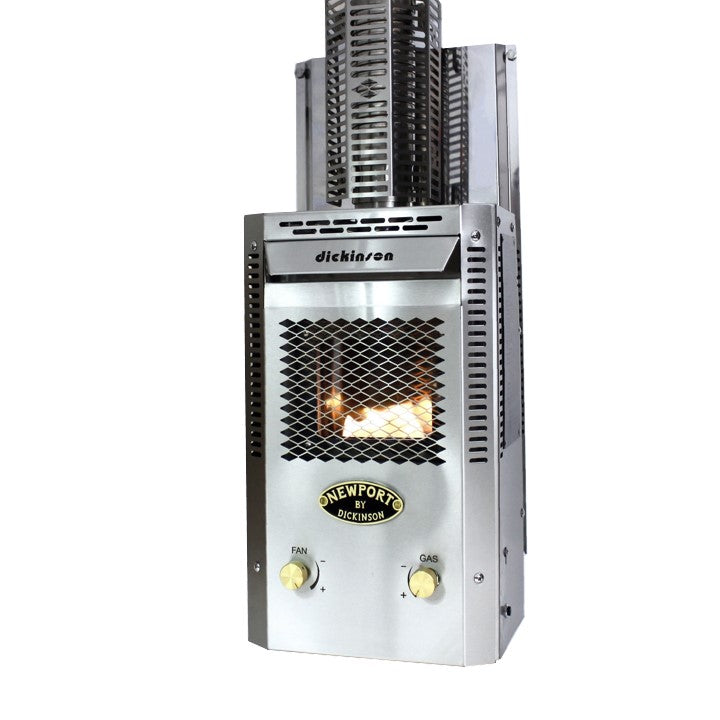

Dickinson Marine Newport Explorer Propane Fireplace - for Boats, RVs & Cabins
$1,125.30
Dickinson Marine Newport Explorer Propane Fireplace - for Boats, RVs & Cabins
PART# 00-NEW-EXPLORER
Introducing the Newport Explorer Propane Fireplace:
- Efficient and Safe: This propane fireplace is designed with an air-tight, direct vent system that ensures the combustion process is isolated from the living space. It includes a built-in blower for more rapid heat distribution.
- Complete Package: The fireplace comes with all necessary accessories, including a stainless steel backing plate, 28 inches of flexible double stainless chimney, and a wind resistant deck fitting cap. Please note that a propane hose, 11” WC regulator, and fittings are required and sold separately. Everything you need for installation is included!
-
User-Friendly:
- Easy to install and easy to operate.
- Features a stainless steel burner and a large ceramic glass viewing window with a safety screen.
-
Safety and Efficiency:
- Operates via safe, direct-vent operation.
- Thermally isolated construction prevents contact burns.
- Push button ignition.
- Works reliably regardless of boat motion or wind conditions.
- Rated for up to 5000 feet of elevation.
- Offers variable heat output and excellent thermal efficiency.
- Demonstrates low fuel consumption.
-
Durable and Marine-Approved:
- Constructed with high-quality 304 stainless steel.
- No risk of interior oxygen depletion.
- CSA/AISI approved for home and recreational vehicle use
- ABYC approved for MARINE use
-
Specifications:
- Width: 10.75″
- Height: 17″
- Depth: 8.25″
- Weight: 22 lbs
-
Mounting Backplate:
- Width: 10.25″
- Depth: 0.500″
- Height: 24.75″
-
Fuel Consumption (per hour):
- 1 lb tank: 7 hrs on LOW, 5 hrs on HIGH
- 20 lb tank: 140 hrs on LOW, 100 hrs on HIGH
-
Heat Output:
- Low: 3,200 BTU
- High: 4,700 BTU
The Newport Explorer Propane Fireplace offers reliable and safe heating with easy installation and operation. Please ensure you have the necessary propane hose, regulator, and fittings for use.
Newport Explorer Installation & Operating Manual
Newport Explorer Information Sheet
THE CHIMNEY GUARD IS REQUIRED FOR INSTALLATION & SOLD SEPARATELY
