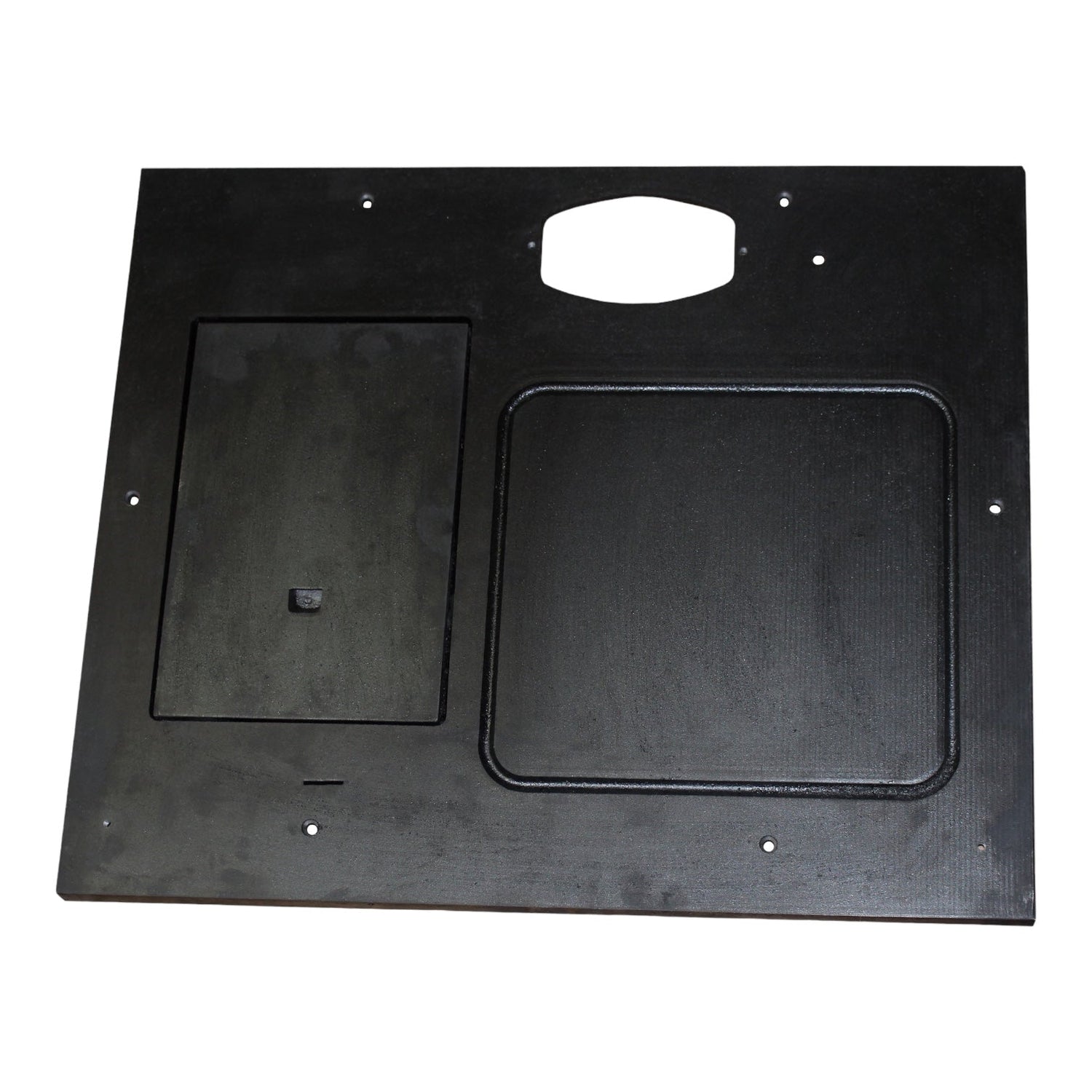

Dickinson Marine Cast Iron Top with Lid
Replacement cast iron cooktop with lid for your diesel stove (flue collar not included).

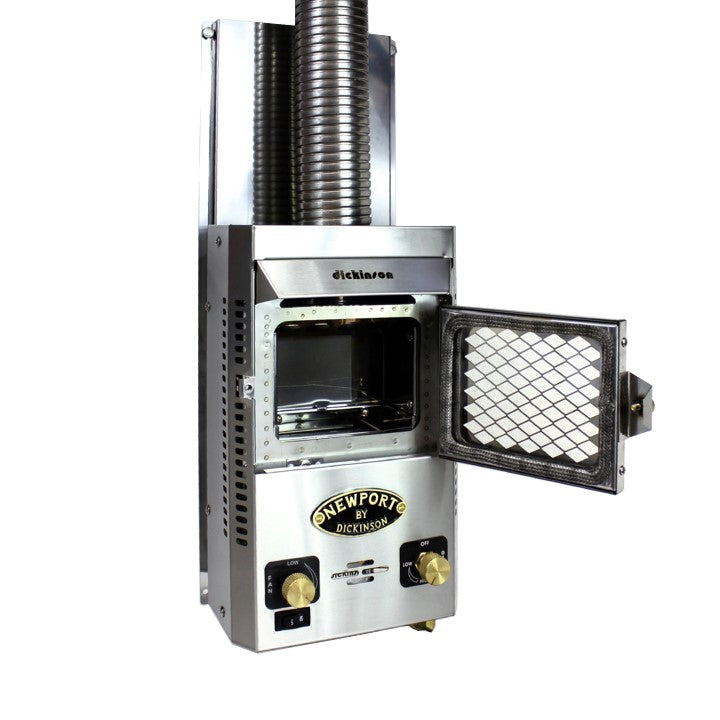

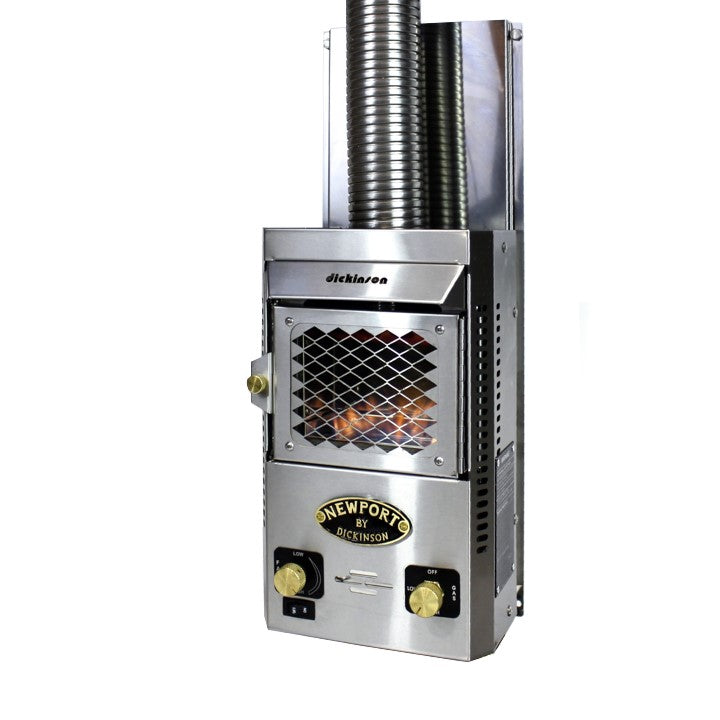

Dickinson Marine Newport P9000 Propane Fireplace - Marine Only
The combustion process is completely isolated from the inside of the boat by the unique, direct vent design. A built-in blower provides good heat circulation.
- Efficient and Safe: This propane heater is designed with a unique, direct vent system that ensures the combustion process is isolated from the boat's interior. It includes a built-in blower for even heat distribution.
- Complete Package: The heater comes with all necessary accessories, including a stainless steel backing plate, 28 inches of flexible double stainless chimney, and a deck fitting cap. Please note that a propane hose, 11” WC regulator, and fittings are required and sold separately. Everything you need for installation is included!
- User-Friendly:
- Easy to install and easy to operate.
- Features a stainless steel burner and a large ceramic glass viewing window with a safety screen.
- Safety and Efficiency:
- Operates via safe, direct-vent operation.
- Works reliably regardless of boat motion or wind conditions.
- Offers variable heat output and excellent thermal efficiency.
- Demonstrates low fuel consumption.
- Durable and Marine-Approved:
- Constructed with high-quality 304 stainless steel.
- No risk of interior oxygen depletion.
- ABYC approved for MARINE use only.
- Specifications:
- Width: 8.5″
- Height: 14″
- Depth: 5.5″
- Weight: 22 lbs
- Mounting Backplate:
- Width: 8.375″
- Depth: 0.650″
- Height: 23″
- Fuel Consumption (per hour):
- 1 lb tank: 7 hrs on LOW, 5 hrs on HIGH
- 20 lb tank: 140 hrs on LOW, 100 hrs on HIGH
- Heat Output:
- Low: 3,200 BTU
- High: 4,500 BTU
The Newport P9000 Propane Fireplace Heater offers reliable and safe heating with easy installation and operation. Please ensure you have the necessary propane hose, regulator, and fittings for use.
Newport P9000 Installation & Operating Manual
Newport P9000 Information Sheet

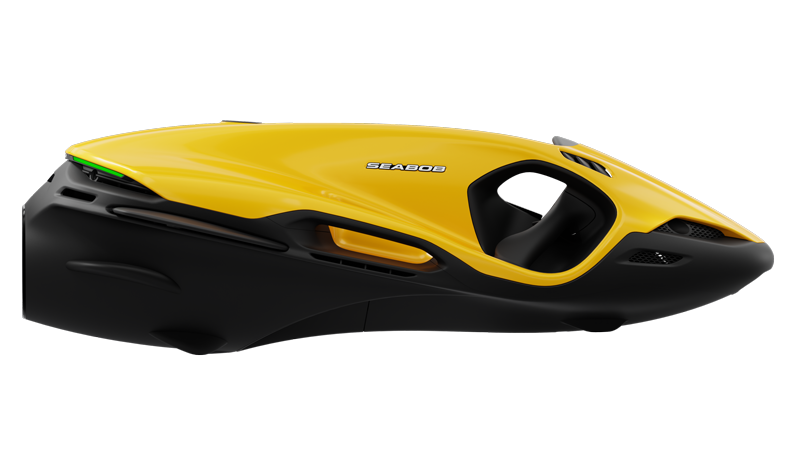

Seabob F9S 3.6kW Electric Water Scooter | 84TP | Design by Porsche
The Seabob F9S is the high-performance model in the third-generation F9 series, engineered by CAYAGO AG and designed by Studio F.A. Porsche. With 84TP of thrust, the Driving Stability System as standard, and a 3.6kW motor, the F9S is built for riders who want the full capability of the platform without compromise.
Design by
Studio F.A. Porsche
For the designers at Studio F.A. Porsche, design is a symbiosis of form and function. Every surface angle on the F9S hull influences water behaviour at speed, resulting in a watercraft that earns its shape, not just wears it. Developed in direct collaboration between CAYAGO engineers and the Porsche design studio, the F9S takes the same hydrodynamic foundation as the F9 and dials up the performance and specification throughout.
Sport Mode
84TP. Pure Sportiness.
The F9S runs a 3.6kW motor producing 84TP of thrust, 40% more than the base F9. Activate Sport mode with a single sensor switch and you have maximum motor output on demand. The digital thumb throttle gives infinitely variable speed control with no step changes or lag, just immediate, predictable response across the full power band. The E-Jet propulsion system generates maximum thrust with minimal energy draw, zero emissions, and low operating costs.
Dive Mode
Below the Surface.
Switch to Dive mode and throttle sensitivity increases for precise, comfortable underwater navigation, giving finer control at depth without sudden power surges. A built-in depth sensor triggers automatic cut-off at 3.0m (10ft), and the electronic control system can be pre-set to a maximum diving depth of 25m (82ft). Steering is handled by shifting body weight, keeping both hands on the grips and both eyes on what's below.
Standard on F9S
Driving Stability System
The F9S includes the Driving Stability System as standard. The entire wing system mounted at the jet nozzle, combined with extractable rear-side wings and two foils on the underbody, work together to create highly stabilising buoyancy forces across all riding modes.
The result is a noticeably more planted, confident ride at speed and in turns, particularly in choppier water where the base F9 requires more active rider input to maintain stability.
Patented Technology
E-Jet Power System
The worldwide patented E-Jet Power System works on the principle of water displacement. Water is drawn in by a high-speed impeller and forced out through the jet channel under pressure, generating maximum thrust with minimal energy draw.
High-grade titanium, magnesium, and ceramic-coated components keep weight tight at 25.9kg while maintaining the durability needed for saltwater environments. The drivetrain is emission-free with extremely low operating costs compared to combustion alternatives.
Three Riding Modes
Normal
Balanced power delivery for surface cruising and casual water exploration. Ideal for relaxed sessions and sharing with guests.
Dive
Throttle sensitivity increases for precise underwater navigation. Finer control at depth without sudden power surges.
Sport
Maximum 84TP output at the touch of a sensor switch. Full thrust for high-speed surface runs where the F9S really separates itself.
See It In Action
Compare Models
See how the F9S stacks up against the base F9.
Choose Your Colour
Six high-gloss finishes. All standard on the F9S.
Lio Orange
Signum Red
Meteo Silver
Carex Yellow
Star White
Titanium
Finish Packages
Chrome Package included as standard on the F9S. Black Package available as an alternative.
Chrome Package (Standard)
Stern ring and centre console in chrome design.
Black Package (Optional)
Stern ring and centre console in sportive black matt design.
Technical Specifications
| Motor Power | 3.6 kW |
| Thrust Performance | 84 TP |
| Battery | 48V 27Ah (1.2 kWh) — Battery Capacity Plus standard |
| Operating Time | Approx. 50 min |
| Standard Charge Time | Approx. 6h |
| Quick Charge Time | Approx. 1.5h (requires Quick Charger accessory) |
| Weight | 25.9 kg |
| Buoyancy in Water | Approx. 8 kg |
| Dimensions (L x W x H) | 1,023mm x 526mm x 343mm |
| Driving Stability System | Standard — extractable stern stabilizers and underbody foils |
| Chrome Package | Standard |
| Safety Cut-Off Depth | 3.0m (10ft) automatic / 25m (82ft) programmable max |
| Speed Control | Electronic stepless |
| Steering | Body weight shifting |
| Manufactured | Germany |
Optional Upgrades
Quick Charger
Cuts charge time to 1.5 hours
Transport Bag
Heavy-duty travel and storage bag
Cover
UV and dust protection
Pilot Belt System
Reduces arm fatigue at high thrust
Lifting Dock
Inflatable dock for yacht deployment
Diving Weights
For extended underwater sessions
What's Included
- Seabob F9S watercraft
- Battery Capacity Plus (48V 27Ah — standard on F9S)
- Chrome Package (standard on F9S)
- Driving Stability System (standard on F9S)
- Standard charger (approx. 6h charge time)
- Documentation and setup guide
Engineered and manufactured in Germany by CAYAGO AG. Contact us for shipping timelines and dealer support.
Seabob Stainless Steel Rack | Yacht Wall & Floor Mount | All Models

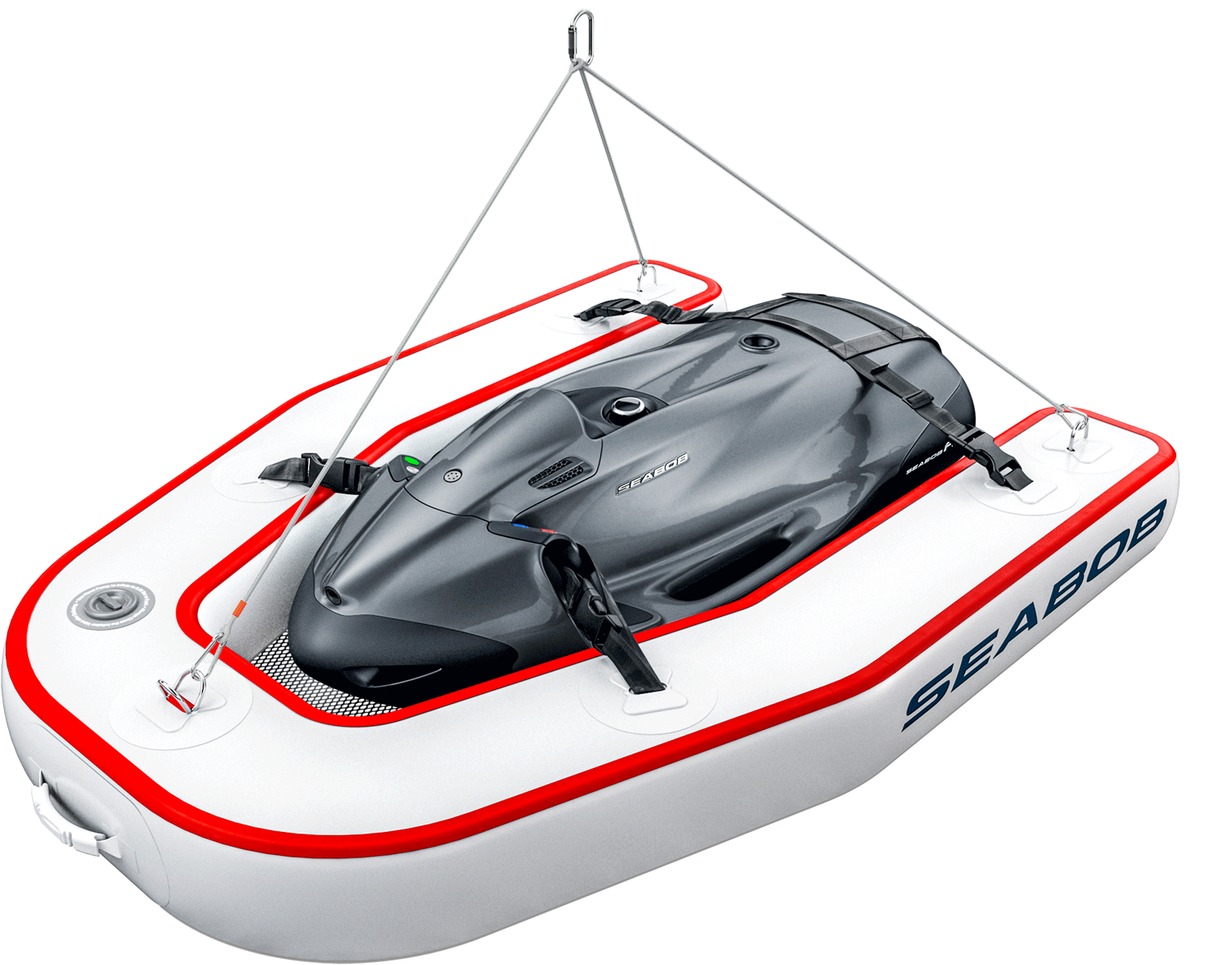

The Seabob Lifting Dock is an inflatable docking solution designed to lower and lift your Seabob into and out of the water from a yacht or boat using a davit, keeping the watercraft secure and the deck protected during the process.
Getting a Seabob in and out of the water without a dedicated system risks scratching the hull, straining the crew, and damaging the yacht's transom. The Lifting Dock removes that friction — inflate it, deploy via davit, and the Seabob sits securely in the dock rather than being manhandled over the side.
Key Features
- Davit-compatible inflatable dock: Designed to be lowered and raised via a yacht davit system, keeping the Seabob controlled during water entry and exit without manual lifting over the transom.
- Hull protection: The inflatable dock cushions the Seabob during lifting and lowering, protecting both the watercraft and the yacht's deck and hull from contact damage.
- Inflatable design: Compact to store when deflated, practical to deploy when needed.
Compatibility
- All Seabob F5 Series models
![Raritan Icerette Automatic Ice Cube Maker - Stainless Steel - 115V [88B515-1]](http://marinexgear.com/cdn/shop/files/99992XL.jpg?v=1776314128&width=1500)
Raritan Icerette Automatic Ice Cube Maker - Stainless Steel - 115V [88B515-1]
Icerette Automatic Ice Cube Maker - Stainless Steel - 115V
The marine environment is harsh for household-type appliances. Keeping that harshness in mind, Raritan developed and designed our Ice-maker so that it would withstand the vigor of any marine environment. Fully Automatic Ice Making Machine Specifically Designed and Built for the Marine Applications.
Features:
- Heavy duty Solid Stainless Steel cabinet and door built to last in harsh marine environments
- Improved controls for more efficient operation
- Corrosion resistant marine-grade hardware, hinges, fittings, and fasteners
- A positive catch door latch keeps the door closed and allows maximum ice production while keeping harmful bacteria and molds out
- Built-in door prop lets you manually defrost or air dry your unit when power is off
- Produces up to 21 lbs of ice every day using only 2-3/4 gallons of water
- Stores of up to 11 lbs of crescent ice (1/2" W x 3/4" H x 2-1/2" L)
- Each unit is assembled by hand and individually tested
- Back by Raritan's 1-Year Limited Warranty and legendary technical support team
Easy Installation:
- No drain is required makes it easy and inexpensive to install
- Only requires a 1/4" outside diameter water line
- Does not require additional hinge clearance for the door swing
- Includes flange
- No additional side space is required for ventilation
Technical Specifications:
- Voltage Range - 104V - 127V
- Water Pressure Operating Range (PSI) - 20 - 120
- Cutout Dimensions - 14 3/8” W x 24 5/8” H x 15 1/4” D
- Ice Production Capacity - 21lbs/24 hrs
- Ice Storage Capacity - 11lbs removable ice bucket
Quick Guide (pdf)
![Humminbird XPLORE 10 Control Head Only Mega Live 2 Bundle [412010-1CHO/ML2]](http://marinexgear.com/cdn/shop/files/112655XL.jpg?v=1775891053&width=1500)
XPLORE 10 Control Head Only Mega Live 2 Bundle
THE XPLORE 10 CHO features a 10” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This model includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products. This CHO (Control Head Only) model is a great option for anglers looking to select their transducer with MEGA Live Imaging or Built-in MEGA Imaging trolling motor from Minn Kota®.
Features:
Control Head Only Model:
- This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network control. Easily access the preloaded views from the user-friendly menu system, operated by a touch screen or directional keypad, to operate your fish finder in any conditions reliably.
Mega Live 2
- MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.
Full-HD Display with Cross Touch® interface:
- XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
Dual Spectrum CHIRP Sonar: (with optional transducer)
- Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
MEGA Side Imaging+: (with optional transducer)
- See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
MEGA Down Imaging+: (with optional transducer)
- Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
Industry-leading Humminbird Sonar:
- Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
Internal GPS and Humminbird Basemap:
- Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible:
- Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.
AutoChart Live:
- Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
One-Boat Network Compatible:
- Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking:
- High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth:
- Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.
NMEA 2000 Networking Built-in:
- Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Warranty:
- 2-Year Limited Warranty
Includes:
- Control head
- Power adapter
- Unit cover
- Mounting bracket
Compatible With
Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network
Specifications:
- Memory Card Slot: Dual Micro SD
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
- Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
- CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
- Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
- CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
- Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
- Interface: Touch Screen, Keypad Control
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Screen Snapshot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 12.098 in W x 7.702 in H x 3.891 in D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 12.098 in W x 7.702 in H x 3.891 in D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Not Supported
- Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
- 360 Imaging Compatibility: Yes
- MEGA Live Compatibility: Yes
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- CoastMaster Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum+ Compatibility: Yes
- Platinum Compatibility: Yes
- Minn Kota Advanced GPS Navigation Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: Yes
- Minn Kota Talon Shallow Water Anchor Compatibility: Yes
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Not Supported
- Autopilot Compatibility: No
- Heading Sensor GPS Compatibility: No
- Heading Sensor GPS (NMEA 2000) Compatibility: Yes
- NMEA2000: Included
- Target Separation: 2.5 in
- Upgradable Software: Yes
- View Preset Keys: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 24-Bit
- Display Type: Color TFT
- Speed: Included
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
- HDMI Compatible: No
- Warranty: Two-Year Warranty
Specifications:
- Cartography Brand: Humminbird/Navionics
- Screen Size: 10"
- Touchscreen: Yes
- Transducer Included: No
- Box Dimensions: 4"H x 12"W x 20"L WT: 18.25 lbs
![Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle w/.Transom Mount Transducer [412020-1/ML2]](http://marinexgear.com/cdn/shop/files/112656XL.jpg?v=1775891053&width=1500)
XPLORE 12 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer
THE XPLORE 12 CMSI+ features a 12” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products.
Features:
Full-HD Display with Cross Touch® interface:
- XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
Mega Live 2
- MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.
Dual Spectrum CHIRP Sonar:
- Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
MEGA Side Imaging+:
- See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
MEGA Down Imaging+:
- Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
Industry-leading Humminbird Sonar:
- Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
Internal GPS and Humminbird Basemap:
- Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible:
- Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.
AutoChart Live:
- Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
One-Boat Network Compatible:
- Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking:
- High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth:
- Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.
NMEA 2000 Networking Built-in:
- Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Warranty:
- 2-Year Limited Warranty
Includes:
- Control head
- Power adapter
- Unit cover
- Mounting bracket
- Transducer
Compatible With
Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network
Specifications:
- Memory Card Slot: Dual Micro SD
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
- Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
- CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
- Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
- CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
- Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
- Interface: Touch Screen, Keypad Control
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Screen Snapshot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Not Supported
- Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
- 360 Imaging Compatibility: Yes
- MEGA Live Compatibility: Yes
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- CoastMaster Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum+ Compatibility: Yes
- Platinum Compatibility: Yes
- Minn Kota Advanced GPS Navigation Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: Yes
- Minn Kota Talon Shallow Water Anchor Compatibility: Yes
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Not Supported
- Autopilot Compatibility: No
- Heading Sensor GPS Compatibility: No
- Heading Sensor GPS (NMEA 2000) Compatibility: Yes
- NMEA2000: Included
- Target Separation: 2.5 in
- Upgradable Software: Yes
- View Preset Keys: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 24-Bit
- Display Type: Color TFT
- Speed: Included
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
- HDMI Compatible: No
- Warranty: Two-Year Warranty
Specifications:
- Cartography Brand: Humminbird/Navionics
- Included Transducer: XM-14-HW-CMSI-T
- Screen Size: 12"
- Touchscreen: Yes
- Transducer Included: Yes
- Box Dimensions: 4"H x 12"W x 20"L WT: 23.4 lbs
![Humminbird XPLORE 9 Control Head Only Mega Live 2 Bundle [412000-1CHO/ML2]](http://marinexgear.com/cdn/shop/files/112652XL.jpg?v=1775891053&width=1500)
XPLORE 9 Control Head Only Mega Live 2 Bundle
THE XPLORE 9 CHO features a 9” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This model includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products. This CHO (Control Head Only) model is a great option for anglers looking to select their transducer with MEGA Live Imaging or Built-in MEGA Imaging trolling motor from Minn Kota®.
Features:
Control Head Only Model:
- This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network control. Easily access the preloaded views from the user-friendly menu system, operated by a touch screen or directional keypad, to operate your fish finder in any conditions reliably.
Mega Live 2
- MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.
Full-HD Display with Cross Touch® interface:
- XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
Dual Spectrum CHIRP Sonar: (with optional transducer)
- Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
MEGA Side Imaging+: (with optional transducer)
- See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
MEGA Down Imaging+: (with optional transducer)
- Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
Industry-leading Humminbird Sonar:
- Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
Internal GPS and Humminbird Basemap:
- Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible:
- Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.
AutoChart Live:
- Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
One-Boat Network Compatible:
- Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking:
- High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth:
- Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.
NMEA 2000 Networking Built-in:
- Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Warranty:
- 2-Year Limited Warranty
Includes:
- Control head
- Power adapter
- Unit cover
- Mounting bracket
Specifications:
- Cartography Brand: Humminbird/Navionics
- Screen Size: 9"
- Touchscreen: Yes
- Transducer Included: No
- Box Dimensions: 4"H x 12"W x 20"L WT: 17.7 lbs
Showing 600/2011
Next
