Trailering

Stainless Steel Brake Line Kit for Tandem Trailer

Stainless Steel Brake-Line Kit Complete with 14″ Flex Hose(s)

Kit Includes:

• Quantity (2) Brake Line Assembly – 18″ – SS *(NOT Sold Separately, Online)*
• Quantity (1) Brake Line Assembly – 57″ – SS *(NOT Sold Separately, Online)*
• Quantity (4) Brake Line Clip – Plated *(NOT Sold Separately, Online)*
• Quantity (1) Brake Line Union Tee – Brass (SKU #1021.13)
• Quantity (1) Brake Line Cross Union – Brass
• Quantity (2) Brake Line Assembly – 77″ – SS *(NOT Sold Separately, Online)*
• Quantity (4) Brake Line – 14″ – Flex Hose (SKU #1021.26)
• Quantity (1) Brake Line – 240″ – Hardline – SS *(NOT Sold Separately, Online)*

*(For Use with Load Rite Tandem Axle Model Trailers)*

**Please note-picture is for reference only. Due to vendor changes flex hoses may have different metal fittings.

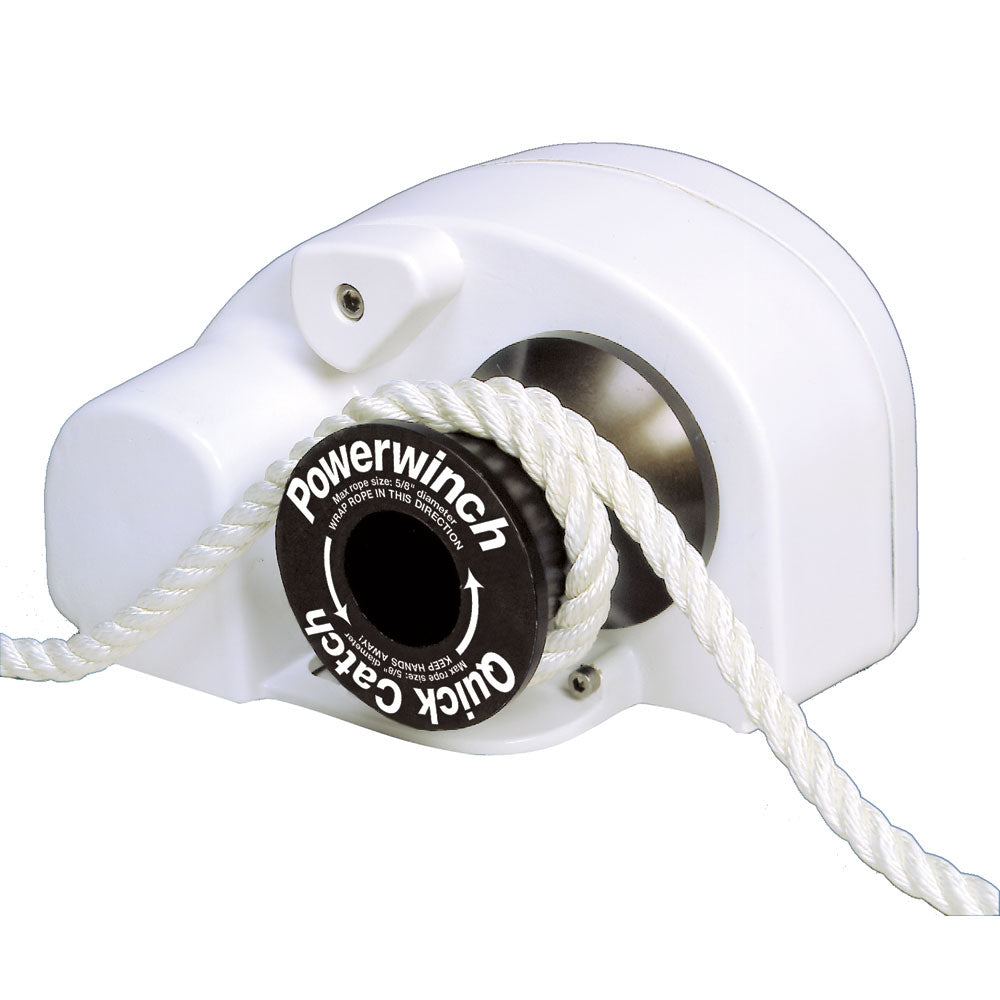

Powerwinch Quick Catch Pot Puller [P77769]

Capstans

Why Capstans?
Rather than using the hand-over-hand method of retrieving lines, the capstan offers a mechanical advantage that is both faster and safer. The capstan does the heavy lifting with only a small amount of effort. The maximum speed of the line retrieval depends on the rotational speed of the drum. The benefit is that the retrieval speed can be adjusted by decreasing the tension on the retrieved line, maintaining control over a very heavy load with little effort.
This useful device, which has been around since the early days of sailing, is still used today. Recreational fishermen, like commercial fishermen, use these for hauling crab and lobster pots and there are many other uses aboard boats. The few mechanical parts and ease of use have made this a favorite of fisherman worldwide. While chains should NEVER be wrapped around a drum, the majority of lines can be handled on a capstan.

A capstan, typically operated by an easy to use footswitch (P7817600AJ), allows the boater to control lines with ease without having additional crew members. Powerwinch has a model to fit your needs. All Powerwinch capstans come with a foot control switch that allows for hands-free operation.

Quick Catch Pot Puller
Spend more time fishing, less time pulling pots
Up to 200 pounds of pulling power!
Our Quick Catch Pot Puller is perfect for fast, safe and easy retrieval of lobster or crab pots with a fast retrieval speed of 150' ft/minute. Electrical power assist retrieves pots in less than two minutes!

• Fast 150'/min retrieval with 100 lb load

• 200 lb max pull rating

• Twice as fast as the 300

• Low current motor draw

• Easy to operate foot control

• Handles unlimited rope lengths

• Stainless steel internal shafts, fasteners and hardware

• All aluminum housing, e-coat primer with a powder topcoat

• Two year limited bow to stern warranty

Ratings
175 (ft/min) @ 50lbs
150 (ft/min) @ 100lbs
120 (ft/min) @ 150lbs

Average 12v current draw @ 100 lbs = 43 amps

Specifications:

• Pull Strength (lbs): 200 lbs
• Manual/Electric: Electric
• Box Dimensions: 9"H x 11"W x 15"L WT: 20.8 lbs
• UPC: 033936777692

Owner's Manual (pdf)

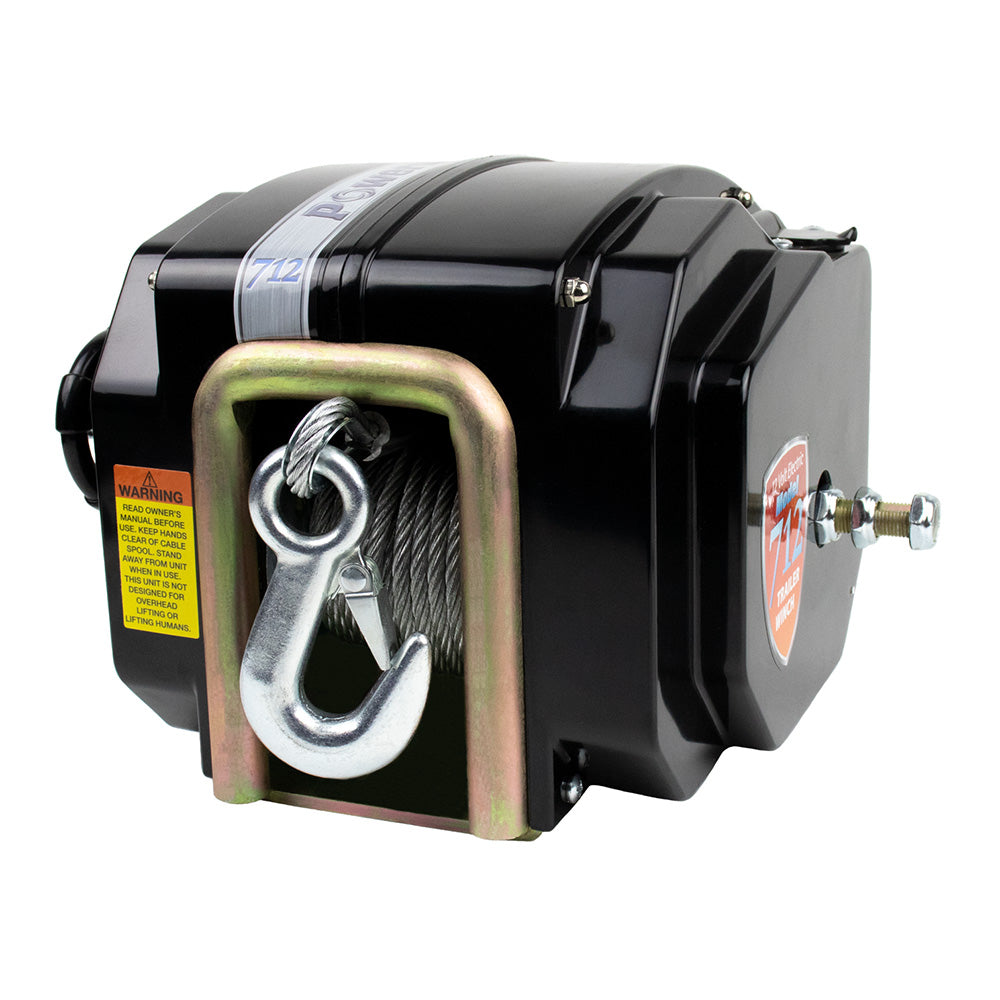

Powerwinch 712A Trailer Winch w/20 Strap [P77712-S]

712A Trailer Winch with 20' Strap

The Trailer Winch Series allows for ease and security of loading your boat onto the trailer or releasing it into the water. With quality motors and heat-treated gear mechanisms, the Trailer Winch Series guarantees power and strength.

Features:

• 20ft strap included
• Comes with 60 amp wiring harness
• UV-resistant ABS plastic housing & corrosion-resistant winch
• Power-in / Freewheel-out
• Smooth running and heat-treated gear system
• Level wind system, which prevents cable snarls
• Hand crank for emergencies
• The strap is made of 4-panel polyester webbing with a sewn forged snap hook

Specifications:

• Suggested boat length: (feet) 17'-23'
• Maximum boat weight: (lbs) 7,500
• Line speed: 14 FPM (Feet Per Minute)
• Vertical lift capacity: (lbs) 2,400
• Double line capacity: (lbs) 4,300
• Unit weight: (lbs) 33
• Dimensions: (inch) 10" x 10" x 8"
• Gear ratio: 225:1

*No remote control included

Specifications:

• Gear Ratio: 225:1
• Manual/Electric: Electric
• Box Dimensions: 10"H x 13"W x 16"L WT: 27.7 lbs
• UPC: 810123840083

Quick Guide (pdf)
Owner's Manual (pdf)

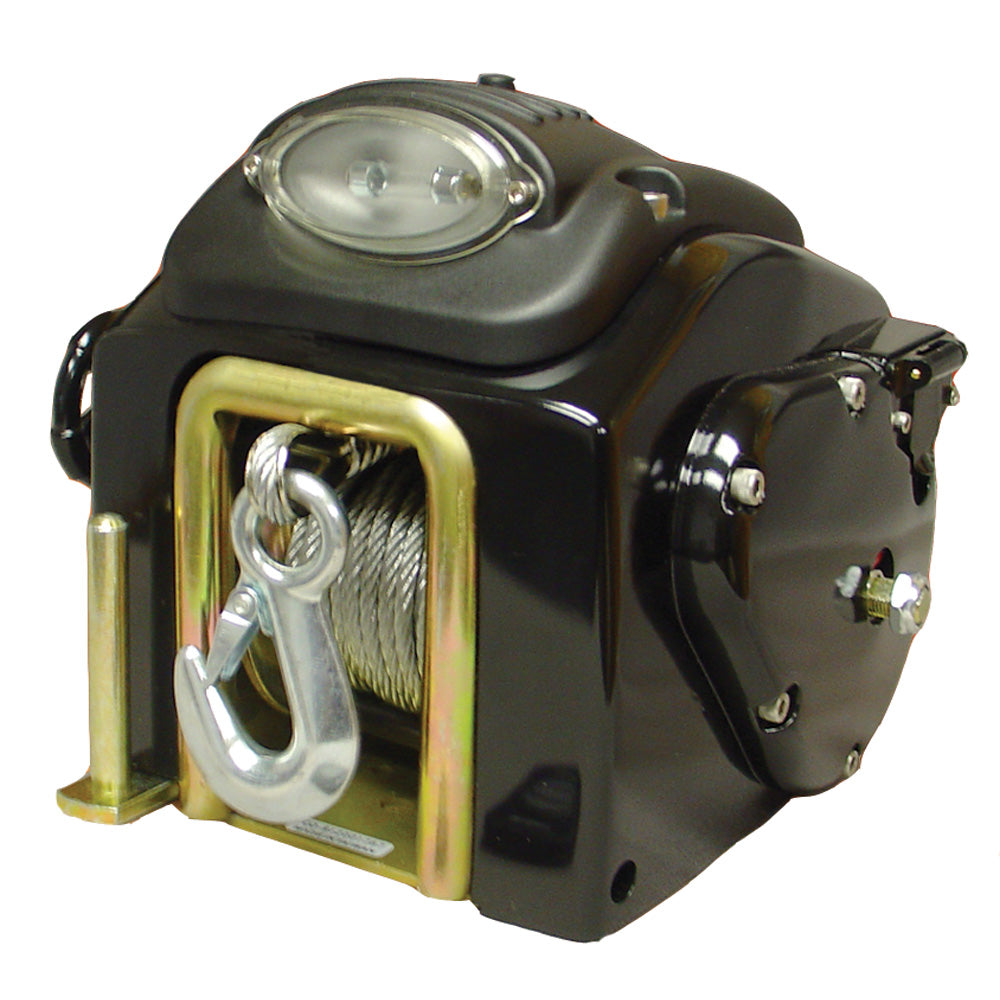

Powerwinch RC23 Trailer Winch [P55750]

Wireless Remote Control Winches

Enjoy the luxury of effortless trailer loading with our new RC 30 and RC 23 wireless remote control trailer winches!

We've made loading your boat onto the trailer easier than ever! The RC 30 and RC 23 are remote operated. Say goodbye to sore muscles from cranking and pulling your boat onto the trailer. With Powerwinchs new RC 30 and RC 23, stand back and simply push the wireless REMOTE and watch the boat glide on to the trailer! Yes! Get the latest in technology and strength with the Powerwinch RC 30 and RC 23 state-of-the-art trailer winches.

All Powerwinch 12V trailer winches have smooth-running, heat-treated gear systems for long-life wear and tear. They feature a corrosion-resistant zinc-plated frame, an aircraft quality cable, a level wind system to prevent cable snarls, and UV resistant ABS plastic housing.

The RC 30 & RC 23 feature a built-in light enclosed in the trailer winch casing so you can use your boat at night!
Both the RC 30 and RC 23 feature an emergency crank that stores conveniently in cover
Both the RC 30 and RC 23 includes wiring harnesses necessary for installation

Powerwinch is the most recognized name in Electric Trailer Winches! Renowned for long-term reliability, testing and the highest quality standards for excellence.

RC 23 Features:

• Max. boat length: 23'

• Max. boat weight: 7500 lbs

• Wireless remote operated

• Added convenience of a light enclosed in the trailer winch casing to assist you

• Vertical lift capacity (single line) 2400 lbs, or double pull/line capacity 4300 lbs (Not to be considered or used as a hoist)

• Emergency crank conveniently stored in winch cover

• Features remote power-in/freewheel-out operation.

• Redesigned, stronger housing

• Pulley block for double line applications

• 60 amp standard wiring harness

• One year limited warranty

Specifications:

• Pull Strength (lbs): 2300 lbs
• Gear Ratio: 225:1
• Manual/Electric: Electric
• Box Dimensions: 11"H x 13"W x 16"L WT: 35 lbs
• UPC: 810123840038

Quick Guide (pdf)
Owner's Manual (pdf)

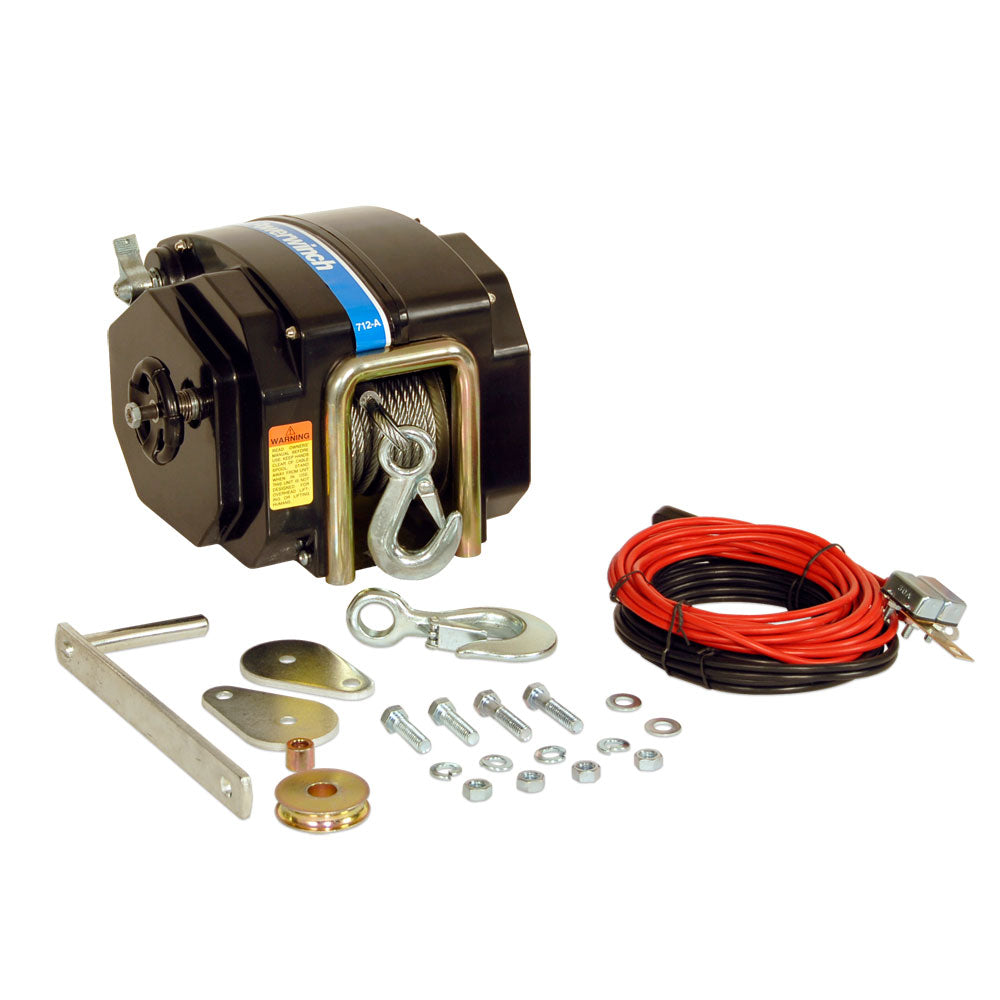

Powerwinch 712A Trailer Winch [P77712]

12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

• Remote power-in/freewheel-out operation

• 60 amp standard wiring harness

• Pulley block for double line applications

• Two year limited warranty

Model 712

• 23' suggested max boat length

• Max. boat weight of 7,500 lbs

• 2400 lb vertical lift capacity (single line) or double pull/line capacity 4300 lbs. (Not to be considered or used as a hoist)

Specifications:

• Pull Strength (lbs): 2400 lbs
• Manual/Electric: Electric
• Gear Ratio: 225:1
• Box Dimensions: 9"H x 11"W x 15"L WT: 32.7 lbs
• UPC: 810123840069

Quick Guide (pdf)
Owner's Manual (pdf)

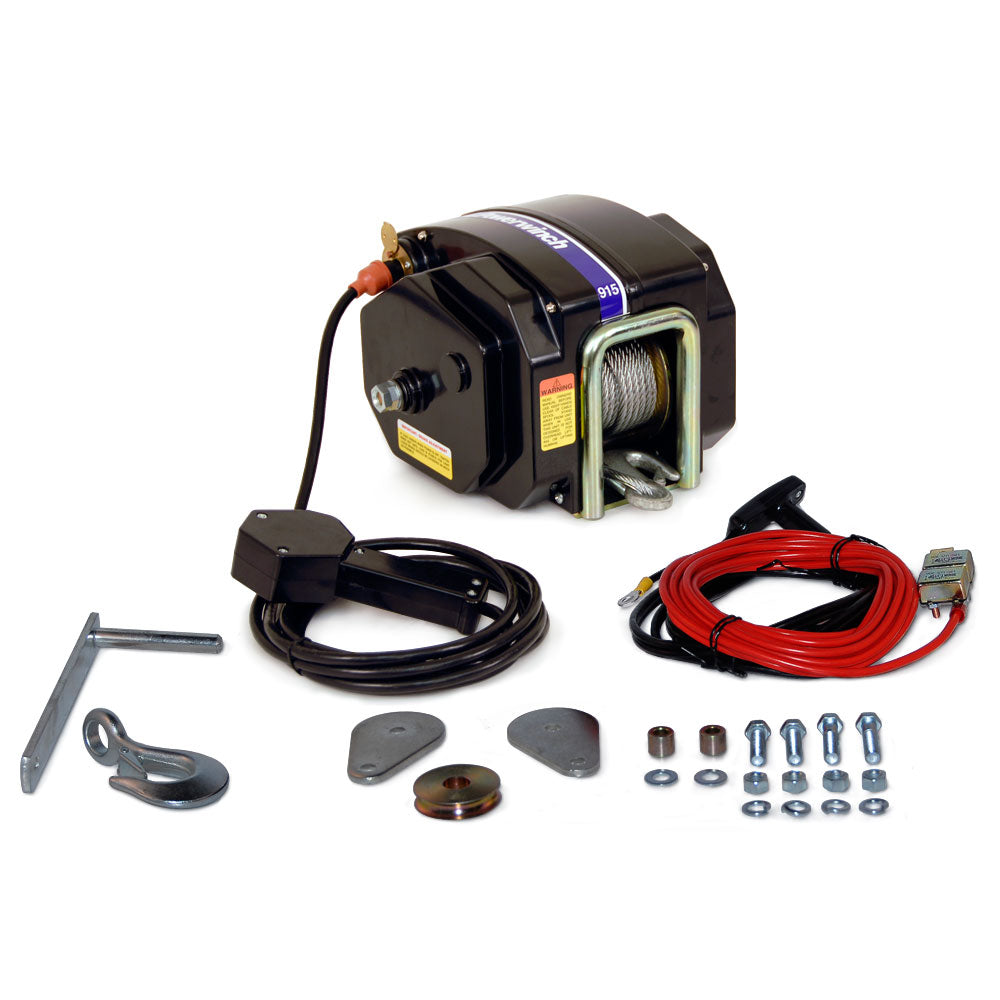

12v Electric Trailer Winch

Model 915 12V power-in/power-out allows you to control your boat as it is lowered into the water. The 915 comes complete with a 10' remote control cord and switch. It also features a pulley block for double-line applications, emergency hand crank and a 60 amp standard wiring harness.

• Max. boat length: 29'

• Max. boat weight: 9500 lbs

• Vertical lift capacity of 3200 lbs, double line capacity of 7500 lbs. (not to be used as a hoist)

• Power-in/power-out control

• Line speed 10 FPM

• 12 volt operating power

• 10' remote control cord and switch

• 40' x 7/32" cable

• Manual hand crank

• Pulley block for double-line applications

• 60 amp standard wiring harness

Specifications:

• Pull Strength (lbs): 3200 lbs
• Manual/Electric: Electric
• Gear Ratio: 450:1
• Box Dimensions: 9"H x 11"W x 15"L WT: 38.9 lbs
• UPC: 810123840120
