Ronstan Series 40 Orbit RT Block w/Quin, Becket, Cleat  Swivel [RF46530]

Series 40 Orbit RT Block with Quin, Becket, Cleat & Swivel

The Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.

As well as traditional single swivel blocks, the range also includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is extremely versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.

Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.

Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.

High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.

Features:

• Class-leading dynamic and static load ratings
• Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks
• Low friction 2-stage ball bearing system for efficient and effortless trimming
• Soft attachment, lashing and traditional swivel shackle head options
• Low profile and compact
• High performance cleating

Applications:

• Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft)
• Halyard, vang and backstay applications on boats to 9m (30ft)
• Control line applications on larger yachts

Specifications:

• Sheave Ø: 1-9/16 in.
• Max. Rope Ø: 5/16 in.
• Pin Ø: 5/32"
• M.W.L.: 1320 lb.
• B. L.: 2650 lb.
• Weight: 13.0 oz.

Wichard Soft Snatch Block - 12mm Rope Size [36020W]

Soft Snatch Block - 12mm Rope Size

Available in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.
Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.

Applications:

• Terminals for flying sail furlers
• 2/1 mainsail halyard
• Rigging deviation
• Barber-hauler

Specifications:

• Materials -Anodized aluminum - Dyneema loop
• Rope size -12mm
• Loop diameter - 6mm
• Working load (lb) 6610
• Breaking load (lb) 13220
• Weight (lb) 0.311

Dimensions:

• A (inch) 15/32"
• B (inch) 2 33/64"
• C (inch) 1 13/16"
• D diameter (inch) 15/64"

45ST EVO® Self Tailing Winch Alloy - Grey

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows
• Convertible to electric

Technical Specifications:

• Drum Diameter - 3.42"
• Base Diameter -  6.61"
• Height - 6.99"
• Line entry - 3.31"
• Line size: - .32" - .55"
• Gear Ratio 1st Gear - 2.4:1
• Gear Ratio 2nd Gear - 7.6:1
• Power Ratio 1st Gear  - 13.9:1
• Power Ratio 2nd Gear - 44.8:1
• SWL - 2646lbs
• Weight - 15.8lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Wichard Soft Snatch Block - 16mm Rope Size [36030W]

Soft Snatch Block - 16mm Rope Size

Available in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.
Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.

Applications:

• Terminals for flying sail furlers
• 2/1 mainsail halyard
• Rigging deviation
• Barber-hauler

Specifications:

• Materials -Anodized aluminum - Dyneema loop
• Rope size -16mm
• Loop diameter - 8mm
• Working load (lb) 9920
• Breaking load (lb) 19840
• Weight (lb) 0.549

Dimensions:

• A (inch) 5/8"
• B (inch) 3 7/64"
• C (inch) 2 11/64"
• D diameter (inch) 5/16"

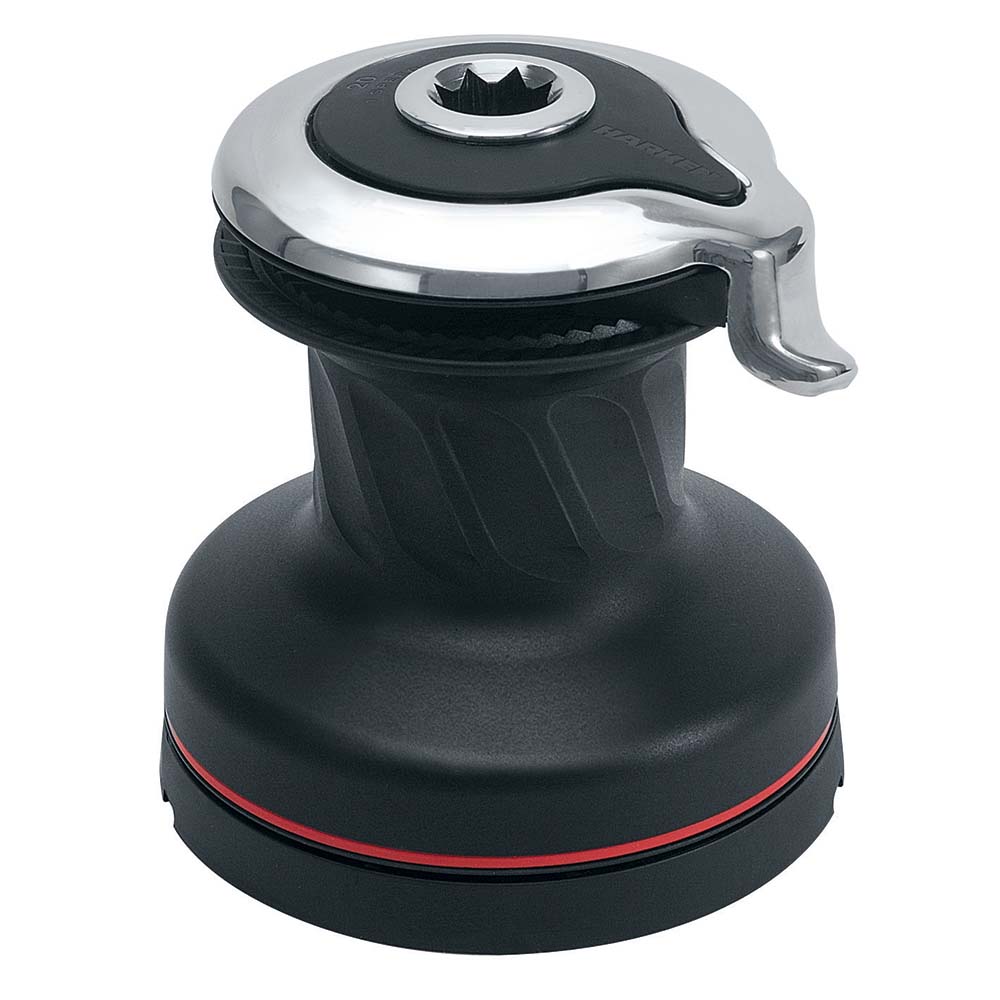

Harken 20 Self-Tailing Radial Aluminum Winch [20STA]

20 Self-Tailing Radial Aluminum Winch

The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: Aluminum
• Configuration: Self-tailing
• Speed: 1
• Drum: 2-7/8 in
• Base: 5-3/8 in
• Height: 5-13/16 in
• Weight: 5.3 lbs
• Line entry height: 2-3/8 in
• Minimum line: 1/4 in
• Maximum line: 1/2 in
• Fastener circle: 4-3/8 in
• Fasteners: 1/4 SH in
• Number of fasteners: 5
• Gear ratio -1: 2.76
• Power ratio - 1: 19.20
• Available power: Manual

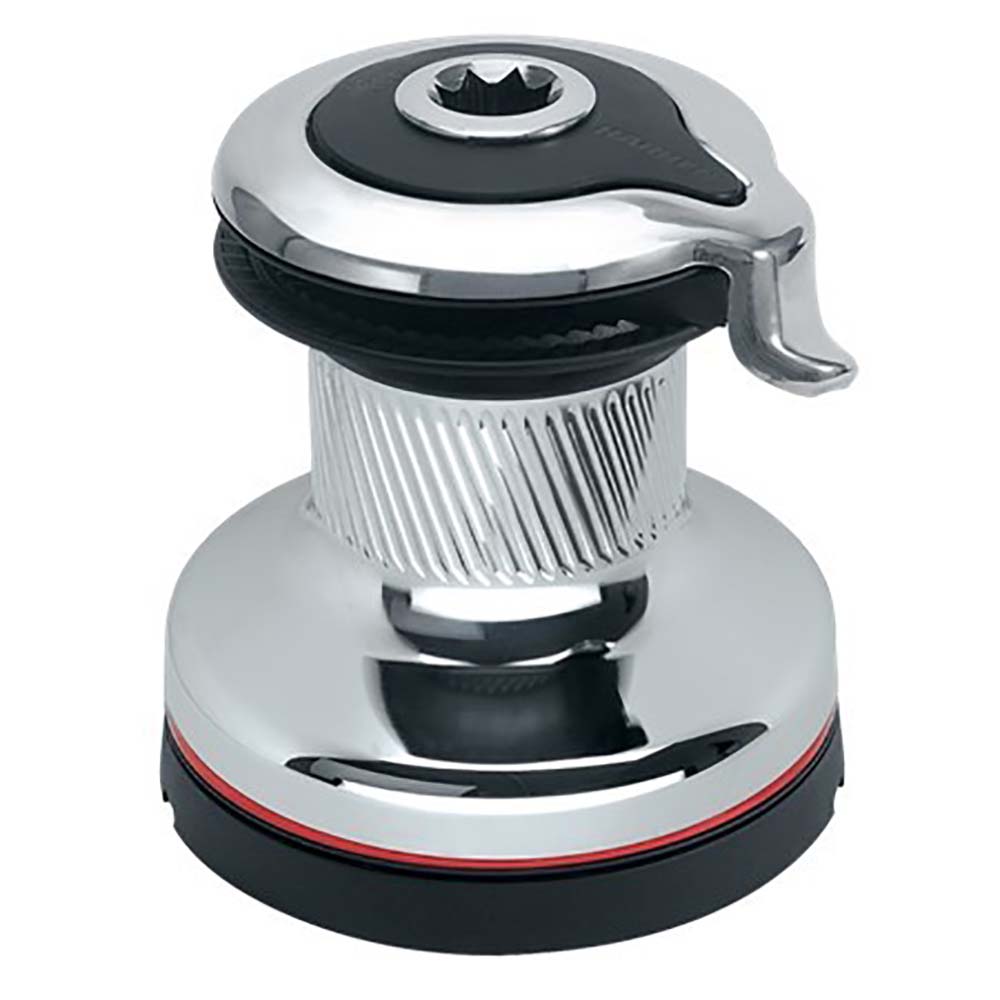

Harken 20 Self-Tailing Radial Chrome Winch [20STC]

20 Self-Tailing Radial Chrome Winch

The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: Chrome
• Configuration: Self-tailing
• Speed: 1
• Drum: 2-7/8 in
• Base: 5-3/8 in
• Height: 5-13/16 in
• Weight: 7.5 lbs
• Line entry height: 2-3/8 in
• Minimum line: 1/4 in
• Maximum line: 1/2 in
• Fastener circle: 4-3/8 in
• Fasteners: 1/4 SH in
• Number of fasteners: 5
• Gear ratio-1: 2.76
• Power ratio-1: 19.20
• Available power: Manual

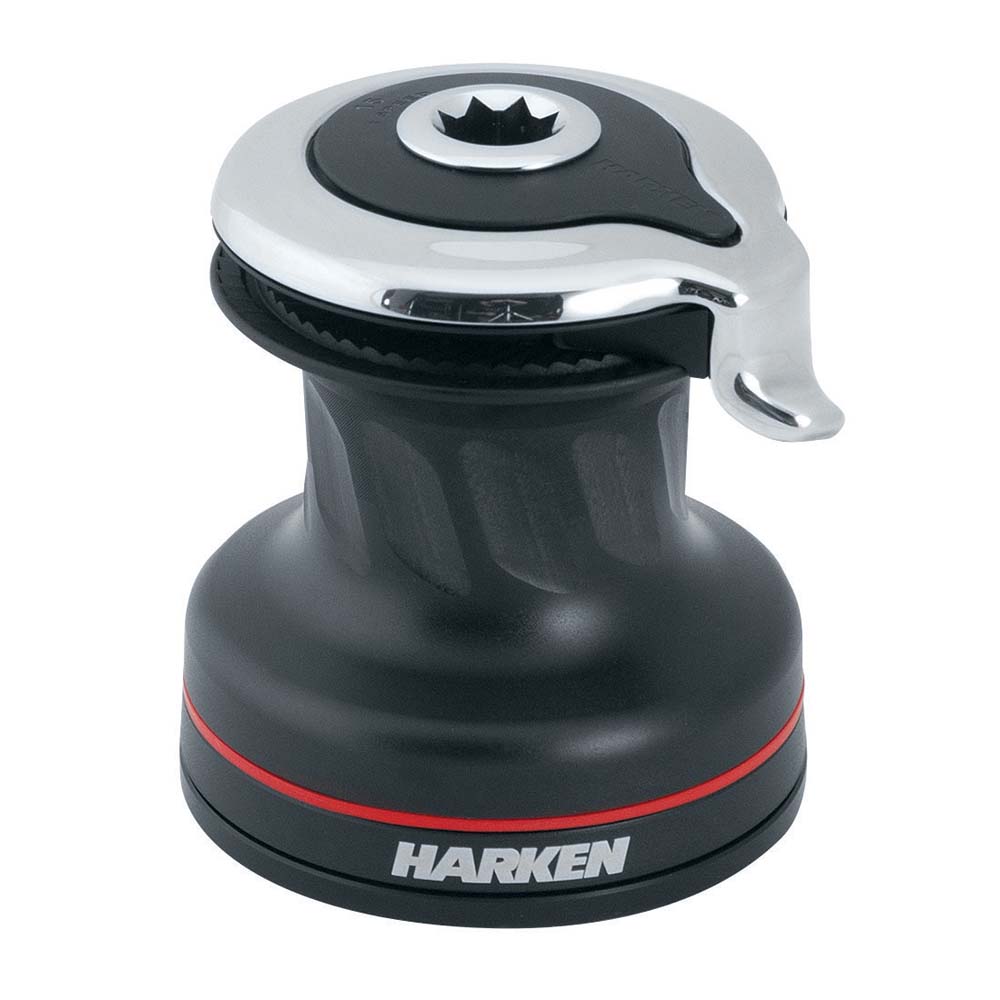

Harken 15 Self-Tailing Radial Aluminum Winch [15STA]

15 Self-Tailing Radial Aluminum Winch

The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: Aluminum
• Configuration: Self-tailing
• Speed: 1
• Drum: 2-7/8 in
• Base: 4-3/4 in
• Height: 5-1/2 in
• Weight: 4.6 lbs
• Line entry height: 2-1/4 in
• Minimum line: 1/4 in
• Maximum line: 3/8 in
• Fastener circle: 3-15/16 in
• Fasteners: 1/4 SH in
• Number of fasteners: 5
• Gear ratio-1: 2.43
• Power ratio-1: 16.90

Robline Dinghy Control Line - 6mm (15/64") - Yellow - 328 Spool - DC-6Y [DC-6Y]

Dinghy Control Line - 6mm (15/64") - Yellow - 328' Spool - DC-6Y

Dinghy Control is an all-around high-tech control line that comes in various colors and diameters. This line excels due to the colored Dyneema® SK78 core which allows you to stay on top of things even in case of complex handling systems.

Specifications:

• Core: Dyneema® SK78
• Cover: Polyester 16
• Field of use: Crossover
• Dyneema® Control Line
