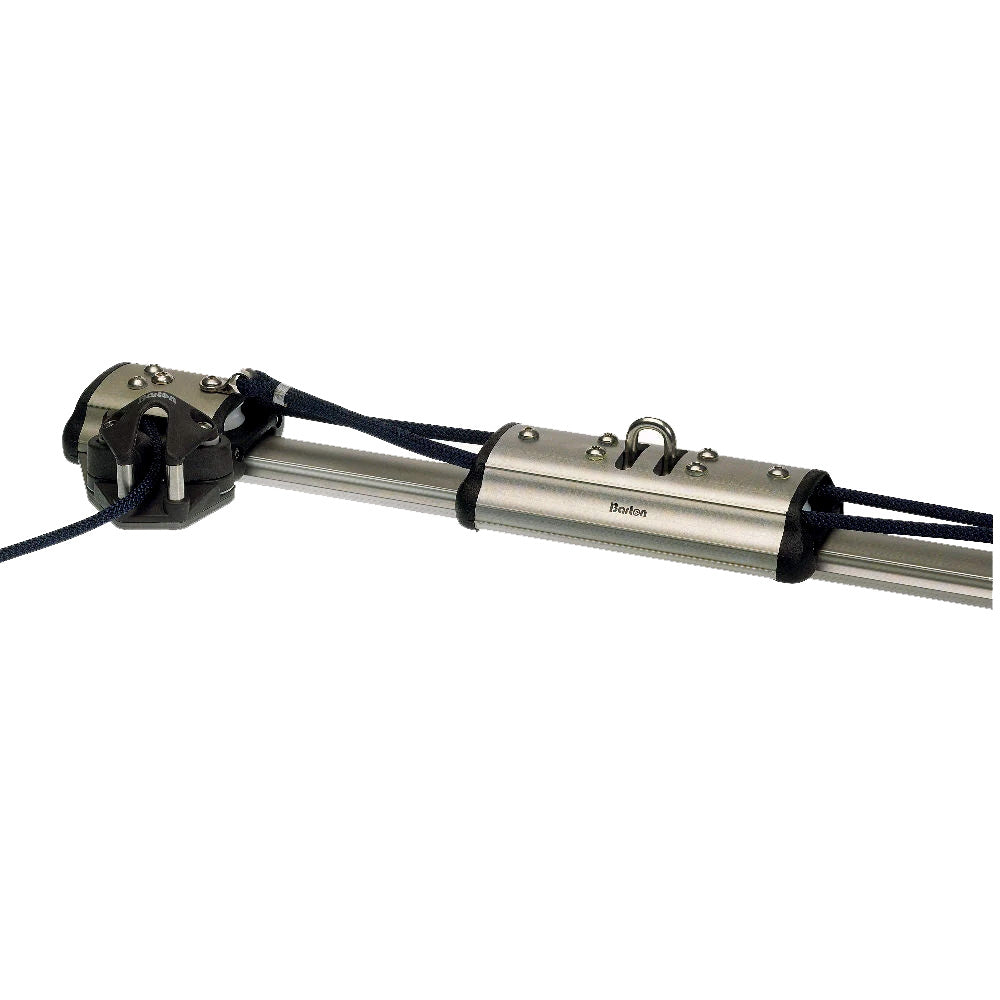

Barton Traveller System - Size 1 [20900]

Traveller System - Size 1

Pre-packaged mainsheet systems with all components required in one complete kit - sliding bolt track, traveller, end fittings, plastic end caps, pilot track, and full fitting instructions.

Travellers, end fittings, and track are manufactured from high-quality marine-grade aluminium with our unique grey anodised finish for added protection.

Sliding bolt track allows for a smooth, clean profile and also makes retro-fitting easier as bolts can slide along the extrusion to match existing fastening holes.

Features:

• Three sizes - for yachts up to 14m LOA (36ft)
• 2:1 purchase system
• Recirculating precision-ground Delrin ball system

Guide to the choice of size:

• Size 1 for yachts up to 8.5m (28.5ft)
• Size 2 for yachts up to 11.0m (36ft)
• Size 3 for yachts up to 14.0m (45ft)

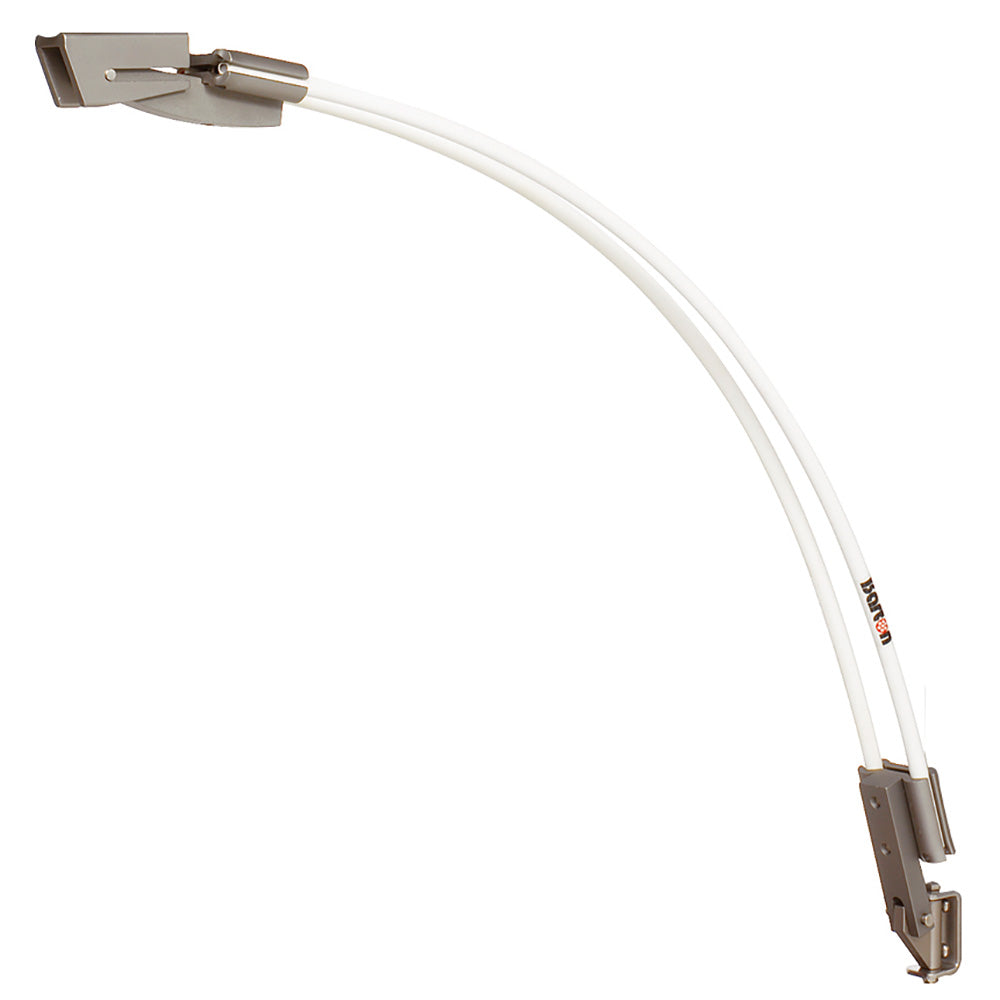

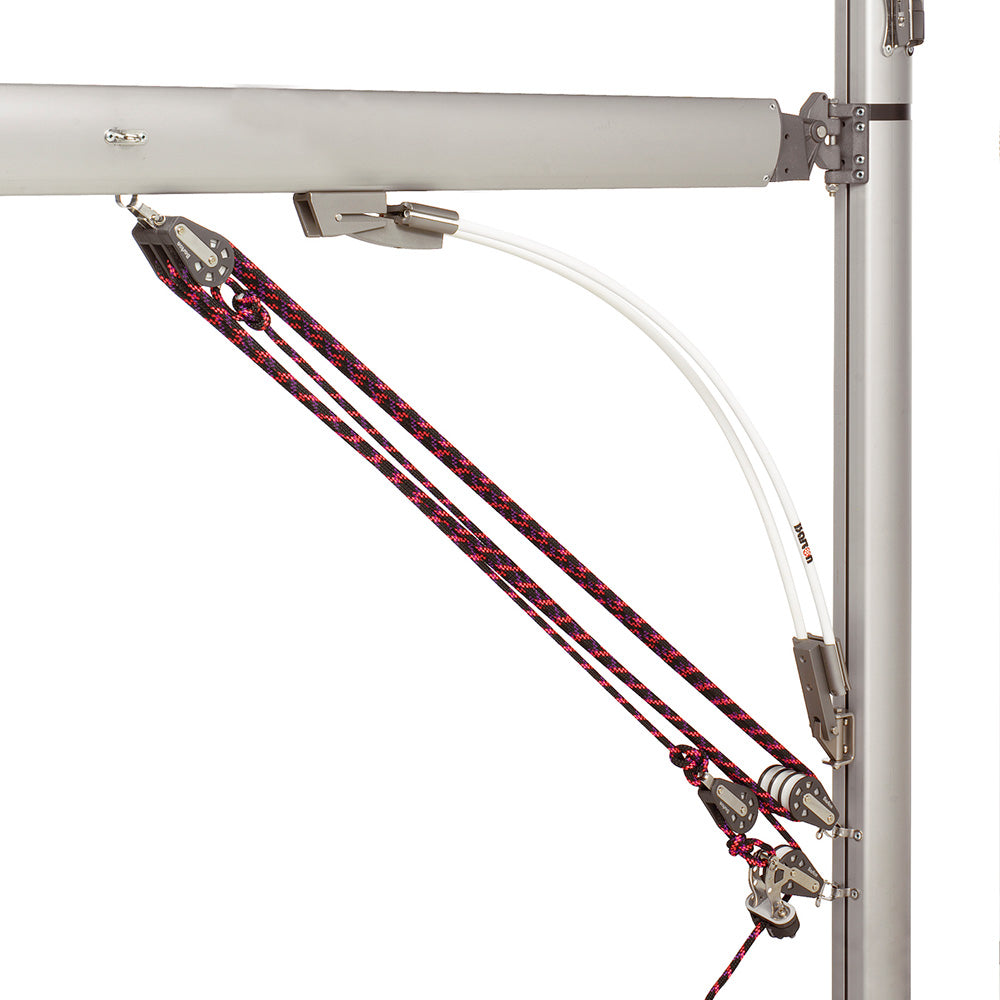

Barton Boomstrut - Silver/White f/Boats 30-40' [44040]

Boomstrut 44040 is designed for boats 10.5m – 12m (30ft – 40ft) in length with a maximum boom tip weight of 23kg (51 lbs). Working alongside the existing kicker or rope vang it creates upward lift on the boom to keep the desired sail shape even in light winds. Manufactured with white rods and Spectro Anodised boom and mast fittings. The uplift created means that the boom will not fall onto the boat when either the sail is lowered, or the topping lift is released or removed. Suitable to be used with wooden, carbon fibre or aluminium spars.

Six sizes to suit yachts up to 12m/40ft LOA

Patented flexing spring provides fast response and a constant force for vang efficiency

The boomstrut’s lightweight, low-profile design features two flexible coated fibreglass rods which provide the force to support the boom. Pulling the boom down with a conventional kicker causes the Boomstrut to flex; releasing straightens the rods, thereby lifting and supporting the boom.

Maintenance-free, durable design

Eliminates friction and sliding parts.

Improved performance

Less weight and windage.

Easy installation

There’s no need to replace your existing hardware – the Boomstrut mounts independently inside the existing kicking strap tackle.

Simple to follow instructions

The Boomstrut is supplied with complete fitting instructions and more comprehensive details are available here on our website.

Mast fitting can use existing luff groove

To eliminate drilling, the Boomstrut’s mast bracket can be slotted into your mast’s luff groove.

Contoured boom fitting

The Boomstrut’s boom bracket is contoured to fit both round and flat boom profiles.

Carefully designed & constructed

The Barton Boomstrut has been carefully designed and constructed to eliminate sharp edges, minimise parts and provide trouble-free installation and use.

All parts are from high grade stainless steel and black or grey anodised aluminium for good looks and durability. Spare parts available.

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

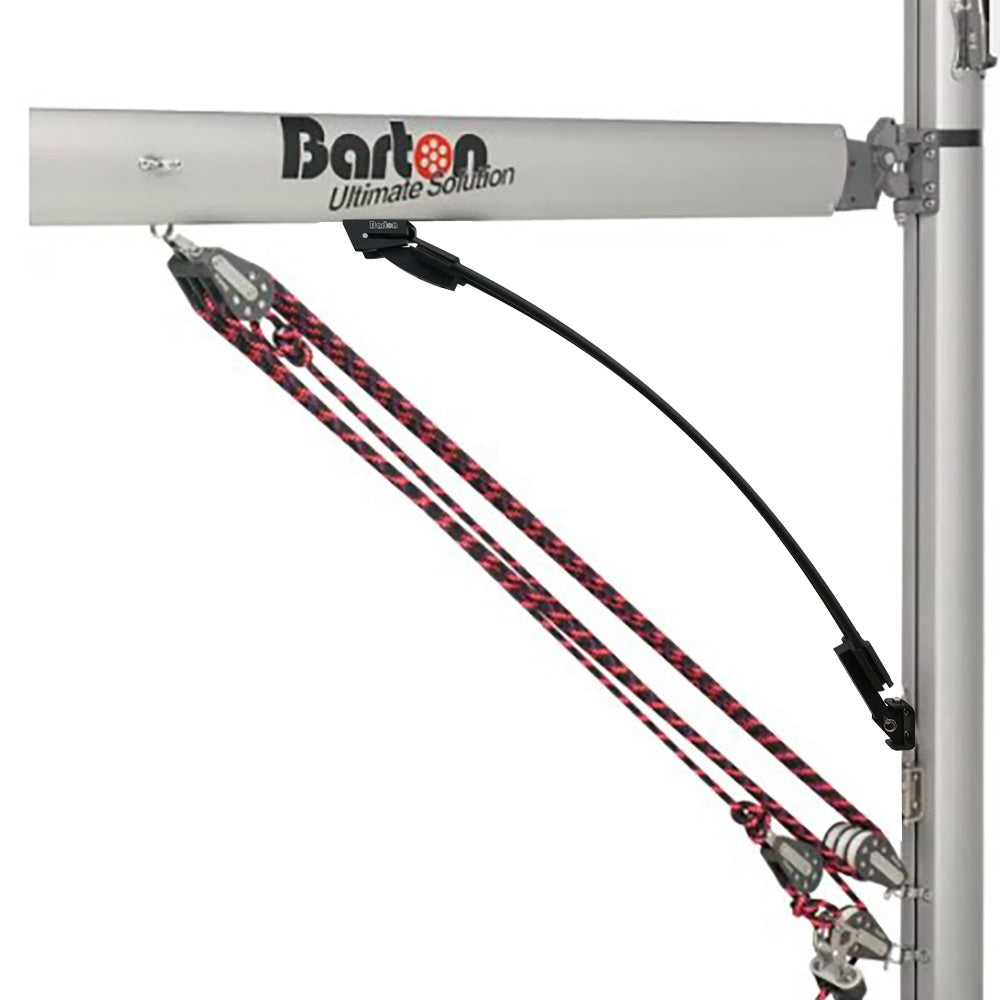

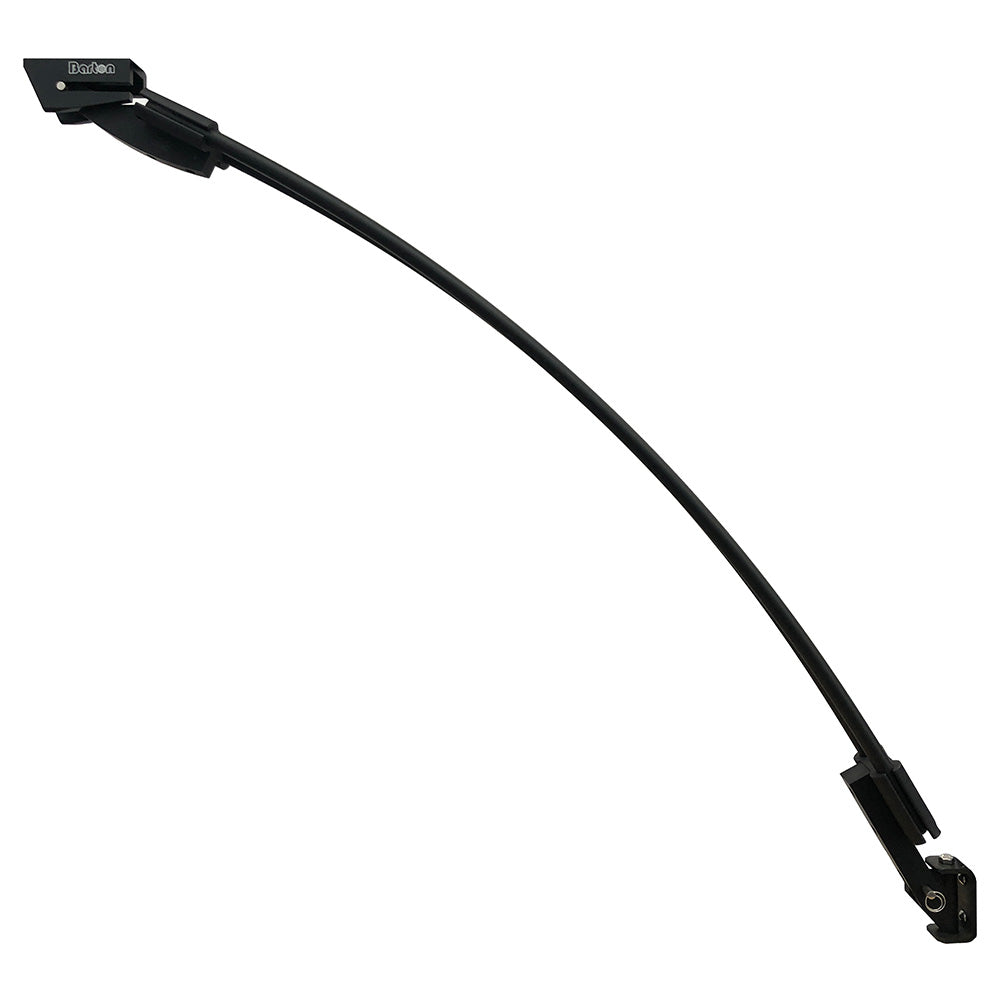

Barton Boomstrut - Black f/Boats 30-40' [44041]

Boomstrut - Black for Boats 30-40'

Boomstrut 44041 is designed for boats 10.5m – 12m (30ft – 40ft) in length with a maximum boom tip weight of 23kg (51 lbs). Working alongside the existing kicker or rope vang it creates upward lift on the boom to keep the desired sail shape even in light winds. Manufactured with white rods and Spectro Anodised boom and mast fittings. The uplift created means that the boom will not fall onto the boat when either the sail is lowered, or the topping lift is released or removed. Suitable to be used with wooden, carbon fibre or aluminium spars..

Six sizes to suit yachts up to 12m/40ft LOA

Patented flexing spring provides fast response and a constant force for vang efficiency

The boomstrut’s lightweight, low-profile design features two flexible coated fibreglass rods which provide the force to support the boom. Pulling the boom down with a conventional kicker causes the Boomstrut to flex; releasing straightens the rods, thereby lifting and supporting the boom.

Maintenance-free, durable design

Eliminates friction and sliding parts.

Improved performance

Less weight and windage.

Easy installation

There’s no need to replace your existing hardware – the Boomstrut mounts independently inside the existing kicking strap tackle.

Simple to follow instructions

The Boomstrut is supplied with complete fitting instructions and more comprehensive details are available here on our website.

Mast fitting can use existing luff groove

To eliminate drilling, the Boomstrut’s mast bracket can be slotted into your mast’s luff groove.

Contoured boom fitting

The Boomstrut’s boom bracket is contoured to fit both round and flat boom profiles.

Carefully designed & constructed

The Barton Boomstrut has been carefully designed and constructed to eliminate sharp edges, minimise parts and provide trouble-free installation and use.

All parts are from high grade stainless steel and black or grey anodised aluminium for good looks and durability. Spare parts available.

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

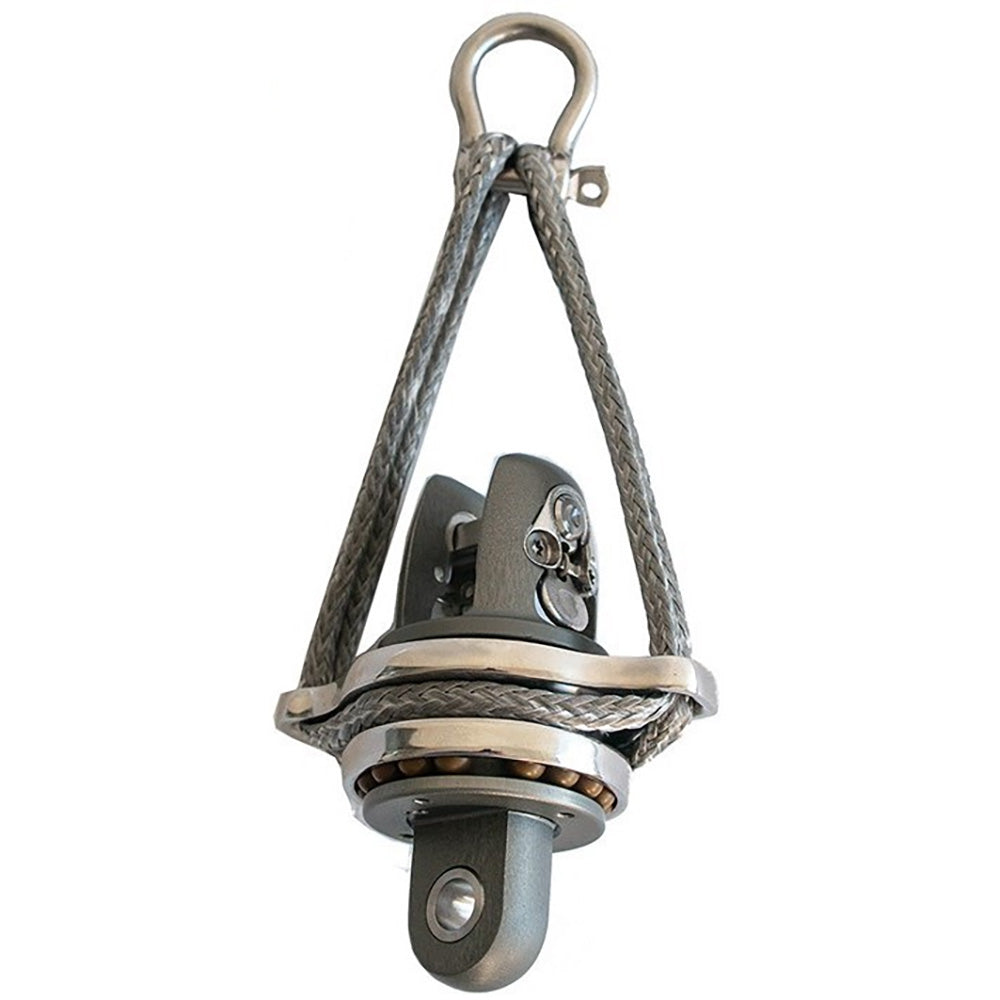

Facnor FAST 4500 Top-Down Swivel [43230004540]

FAST 4500 Top-Down Swivel

The Fast 4500 top-down swivel makes an easy furling solution for your asymmetric Spinnaker. Adapt the FX+ 4500 (19mm inner jaw width) Gennaker/Code sail furler with the Fast 4500 top-down swivel so an asymmetric spinnaker can be used.

Features:

• Provides easy furling
• Top-down furling, i.e. from top to bottom (free luff)
• Free rotating tack fitting
• No maintenance (the mechanism is highly protected)
• Same features as FX+ mechanisms (tested, strong, and quick-release attachments)

Specifications:

• Weight: 0.66 kg

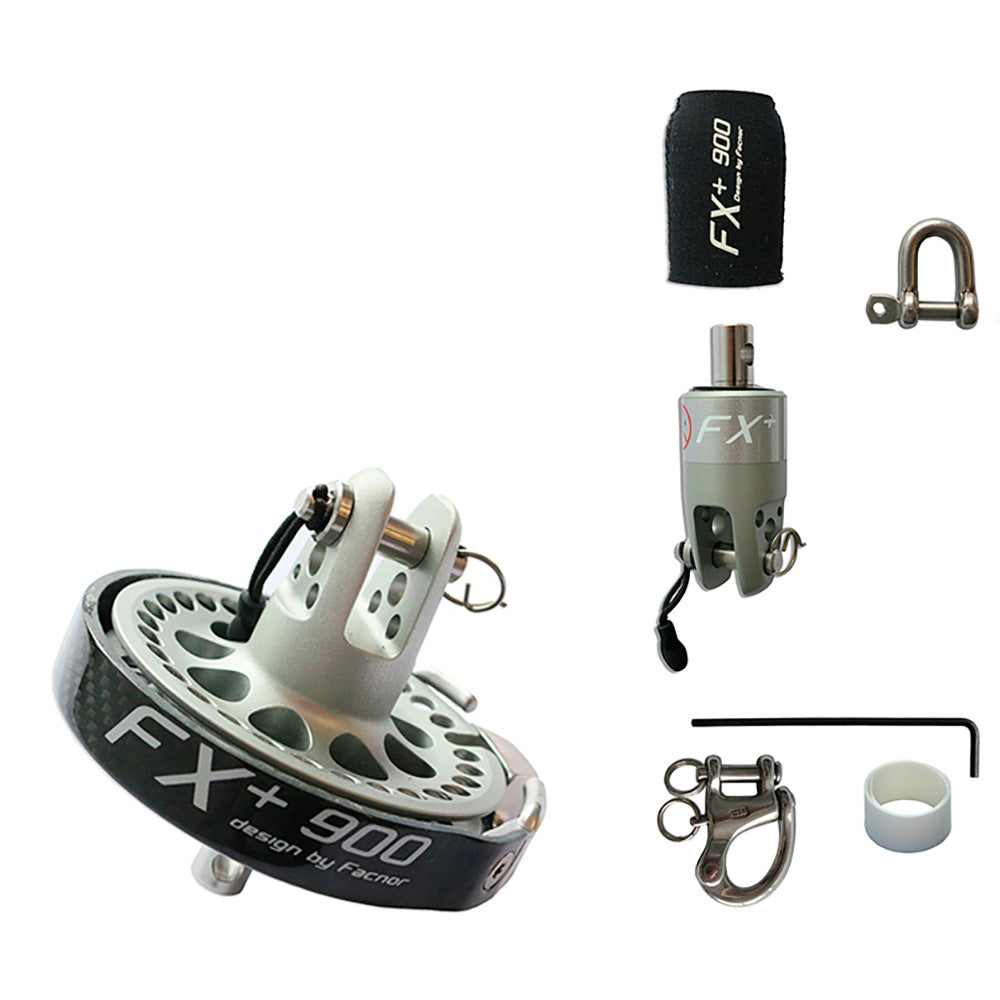

Facnor FX+0900 Flying Sail Furler [43410700945]

Ships Direct From Manufacturer

FX+0900 Flying Sail Furler

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

• Adapted to sailboat from 6 to 10.5m (20 to 30 ft.)
• Code sail surface of 30m²/ 322ft² maximum
• Captive quick-release pin
• Possible conversion for asymmetric Spinnaker
• Composite/carbon housing
• Maintenance-free units (sealed bearings)

The Standard Kit of the FX+900 Furler Includes:

• One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
• One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
• One snap shackle as the bottom drum attachment (Optional SSH+900/1500 solid sheave as an alternative)
• One shackle as the top swivel attachment (optional FRX900/1500 2-to-1 friction ring as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

• Monoblock's conception of the mechanisms for more sturdiness and long-lasting
• Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
• Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
• Is rotation transmitted through an anti-torsion luff rope? Optional—sliding inside the luff tape and fitted with a thimble on each end
• Optimize the investment by converting the furlers for use with the asymmetric spinnaker; just add a FAST top-down thimble

Specifications:

• Weight: 0.57 kg
• Sailboat Length (feet): 20'-30'
• Code Sail Area (m²): 30,00
• Code Sail Area (ft²): 322,00
• Staysail Area (m²): Not adapted to furl a staysail
• Staysail Area (ft²): Not adapted to furl a staysail
• Safe Working Load (tons): 0,90
• Standard Top Swivel Attachment: Shackle
• Standard Bottom Drum Attachment: Snapshackle
• Ratchet Option: NOT available
• Continuous Line Drum Ø: 85,00mm
• Spliced Furling Line Ø: 6,00mm
• Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 900 top-down thimble.

Facnor FAST 1500 Top-Down Swivel [43230001540]

FAST 1500 Top-Down Swivel

The Fast 1500 top-down swivel makes an easy furling solution for your asymmetric Spinnaker. Adapt the FX+ 900/1500 (15mm inner jaw width) Gennaker/Code sail furler with the Fast 1500 top-down swivel so an asymmetric spinnaker can be used.

Features:

• Provides easy furling
• Top-down furling, i.e. from top to bottom (free luff)
• Free rotating tack fitting
• No maintenance (the mechanism is highly protected)
• Same features as FX+ mechanisms (tested, strong, and quick-release attachments)

Specifications:

• Weight: 0.24 kg

Facnor FAST 2500 Top-Down Swivel [43230002540]

FAST 2500 Top-Down Swivel

The Fast 2500 top-down swivel makes an easy furling solution for your asymmetric Spinnaker. Adapt the FX+ 2500 (17.5mm inner jaw width) Gennaker/Code sail furler with the Fast 2500 top-down swivel so an asymmetric spinnaker can be used.

Features:

• Provides easy furling
• Top-down furling, i.e. from top to bottom (free luff)
• Free rotating tack fitting
• No maintenance (the mechanism is highly protected)
• Same features as FX+ mechanisms (tested, strong, and quick-release attachments)

Specifications:

• Weight: 0.46 kg

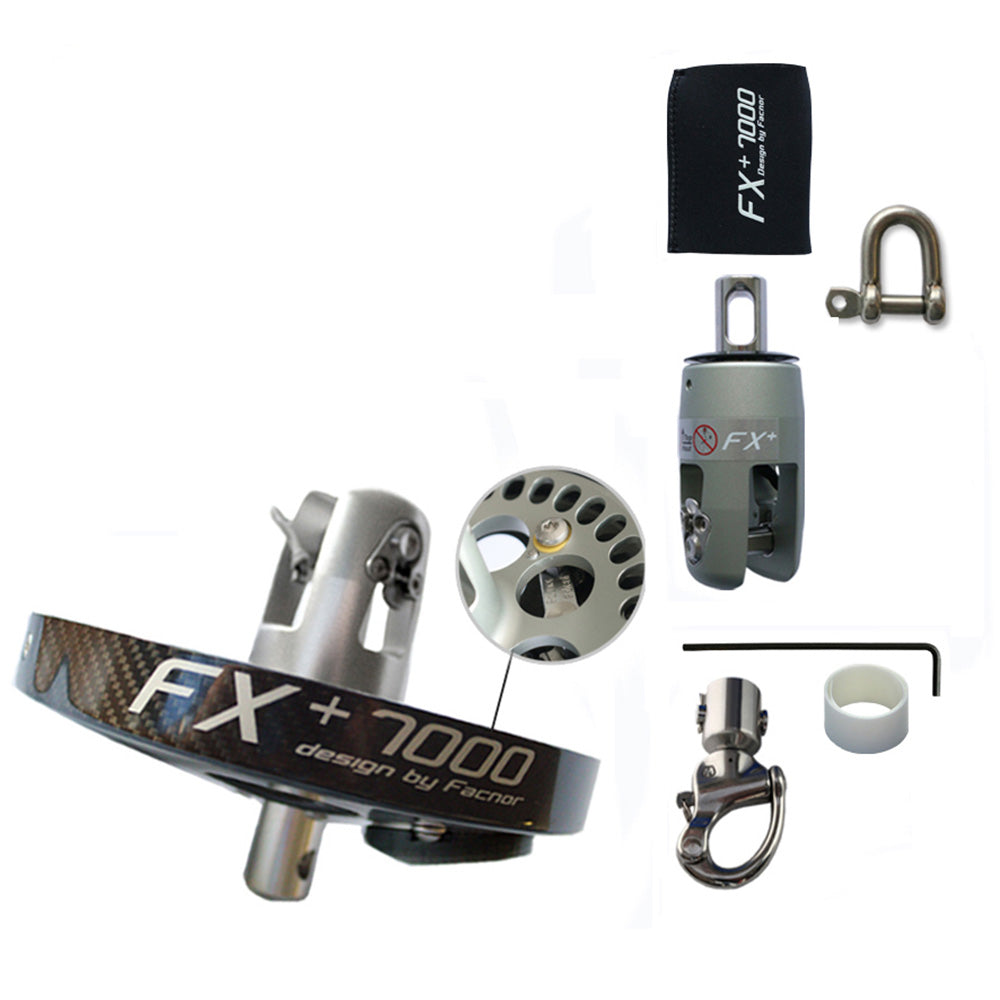

Facnor FX+7000 Flying Sail Furler w/Ratchet [43410707045]

Ships Direct From Manufacturer

FX+7000 Flying Sail Furler with Ratchet

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

• Adapted to sailboat from 16 to 20m (55 to 70 ft.)
• Code sail surface of 250m² maximum (2690ft²) (max 70m² / 753ft² staysail)
• Ratchet option Start & Go included (working both clock or anti-clockwise)
• Unique captive quick-release pin
• Possible conversion for asymmetric Spinnaker
• Composite/carbon housing
• Maintenance-free units (sealed bearings)

The Standard Kit of the FX+7000 Furler Includes:

• A ratchet in s/s duplex enabling a temporary stop when furling in and a self-locking both clockwise and anti-clockwise (Facnor patent)
• One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
• One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
• One snap shackle as the bottom drum attachment (Optional SSH+7000 solid sheave as an alternative)
• One shackle as the top swivel attachment (optional SB7000 2-to-1 block as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

• Monoblock's conception of the mechanisms for more sturdiness and long-lasting
• Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
• Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
• Is rotation transmitted through an anti-torsion luff rope? optional—sliding inside the luff tape and fitted with a thimble on each end (FCI7000 s-s thimbles and FRC s-s clamps are also available)
• Easy installation of the furling loop (s-s guide + drum notch), discover Facnor Special GRIP loops for an efficient rotation of the drum, and the removable fairleads TSL25/28

Specifications:

• Weight: 23.44 kg
• Sailboat Length (feet): 55'-70'
• Code Sail Area (m²): 250,00
• Code Sail Area (ft²): 2690,00
• Staysail Area (m²): 70,00
• Staysail Area (ft²): 753,00
• Safe Working Load (tons): 7,00
• Standard Top Swivel Attachment: Shackle
• Standard Bottom Drum Attachment: Snapshackle
• Ratchet Option: Included
• Continuous Line Drum Ø: 199,00mm
• Spliced Furling Line Ø: 10,00mm
• Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 7000 top-down thimble.
