Outdoor - Weather Instruments

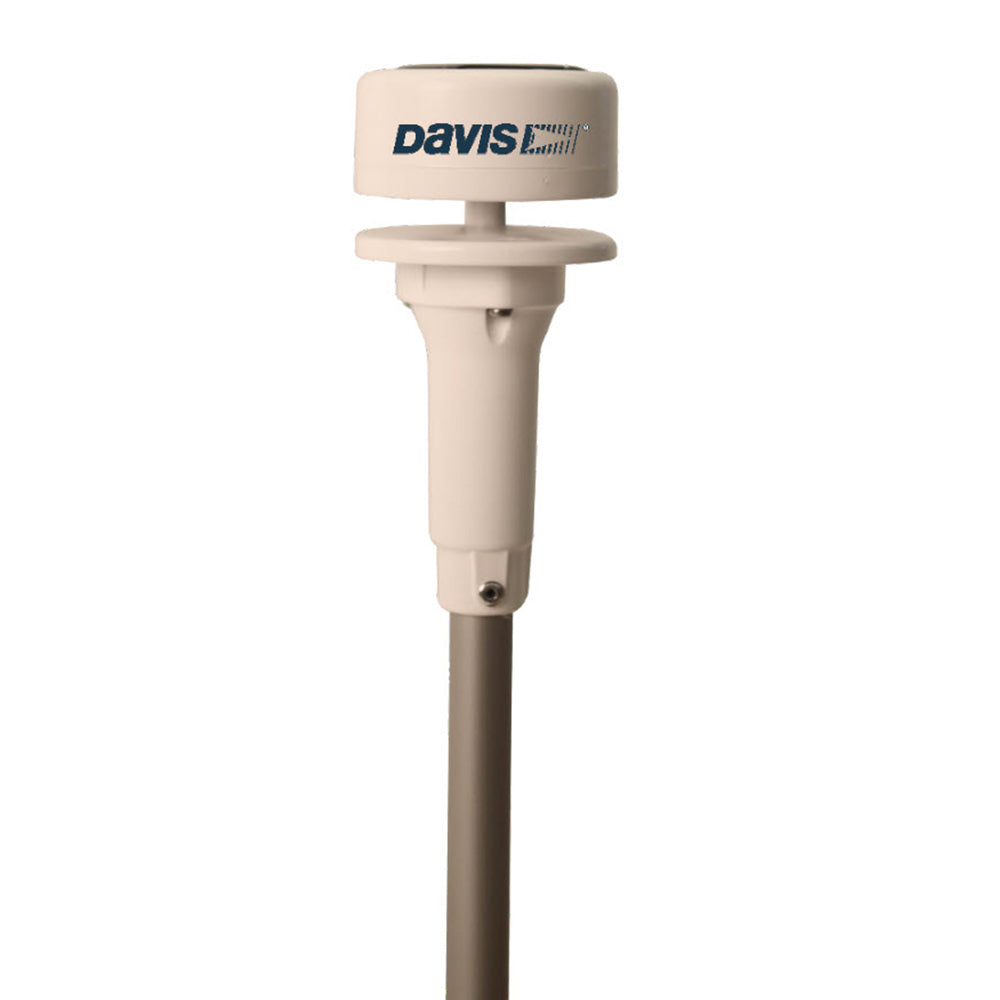

Davis Sonic Anemometer [6415]

Sonic Anemometer

Measure wind with no moving parts. Use with a Sensor Transmitter or an EnviroMonitor Node, or as a replacement anemometer for wireless and cabled Vantage Pro2.

The Davis Sonic Anemometer has no moving parts – it measures wind speed and direction with electro-acoustic transducers that send sonic pulses back and forth. The time it takes for the pulses to travel from one transducer to the other is affected by the movement of air. Speed and direction can then be calculated, with calibration for air temperature. The Sonic Anemometer has its own solar panel that charges an internal battery. It can be used with an EnviroMonitor Node, or as a replacement anemometer for your Davis weather station. It can also be installed in a Sensor Transmitter to create additional wind stations when reporting to WeatherLink Live.

Solar-powered with battery backup. Includes mounting hardware, battery, aligning tool, and 40 ft (12 m) cable.

Works with Sensor Transmitter (#6332 or 6331) or EnviroMonitor Node (#6810). (When using with an EnviroMonitor Node, use an RJ Connector Node Adapter.)

Quick Guide (pdf)
Owner's Manual (pdf)

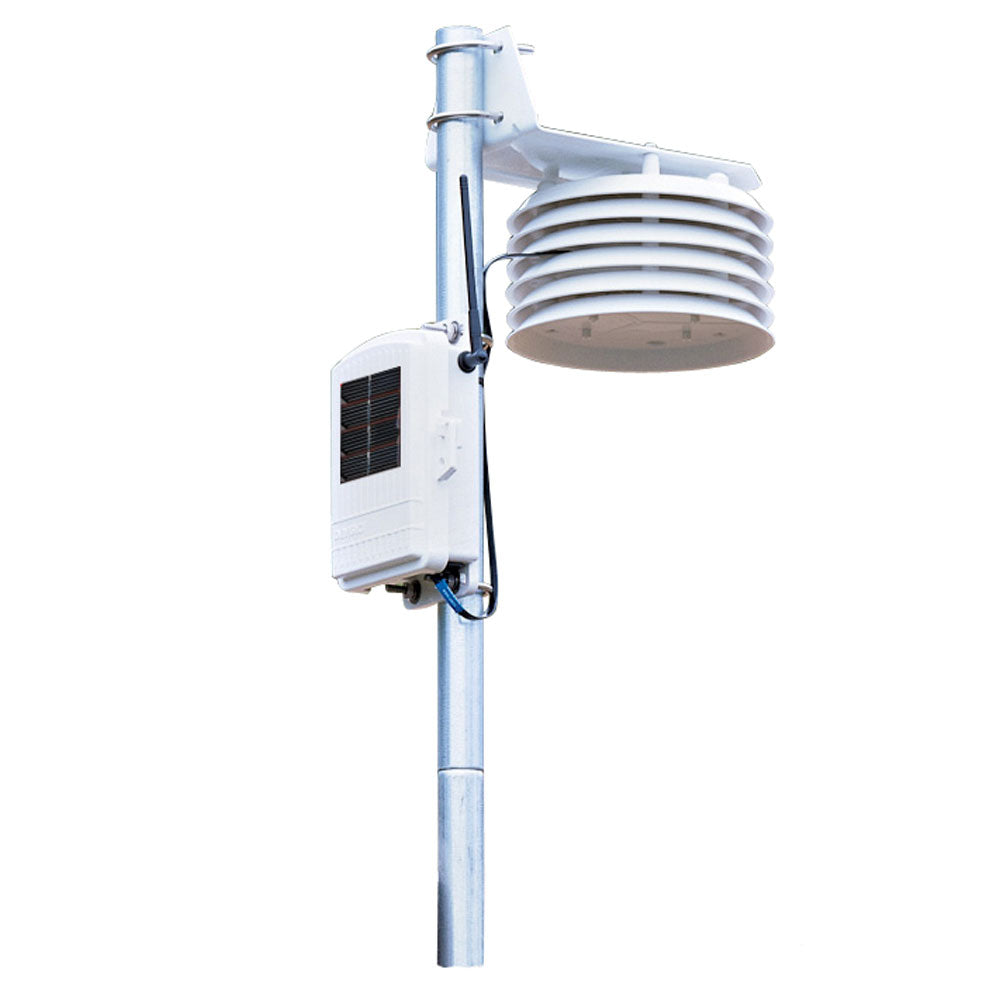

Davis Temperature/Humidity Sensor w/24-Hour Fan Aspirated Radiation Shield [6832]

Temperature/Humidity Sensor with 24-Hour Fan Aspirated Radiation Shield

Features both temperature and humidity sensors inside the 24-hour fan-aspirated radiation shield, which protects the sensors from solar radiation and other sources of radiated and reflected heat.
This model includes a solar panel to power the motor-driven fan. Includes hardware for mounting on a fence post or pole and 25' (7,6M) cable.

Features:

• Temperature and humidity sensors are inside a protective radiation shield that protects against solar radiation and other sources of radiated and reflected heat

• Wireless transmitter and battery are inside a weather-resistant shelter

• Updates every 2.5 seconds

• Frequency-hopping spread spectrum radio for continuous data transmission

Quick Guide (pdf)
Owner's Manual (pdf)

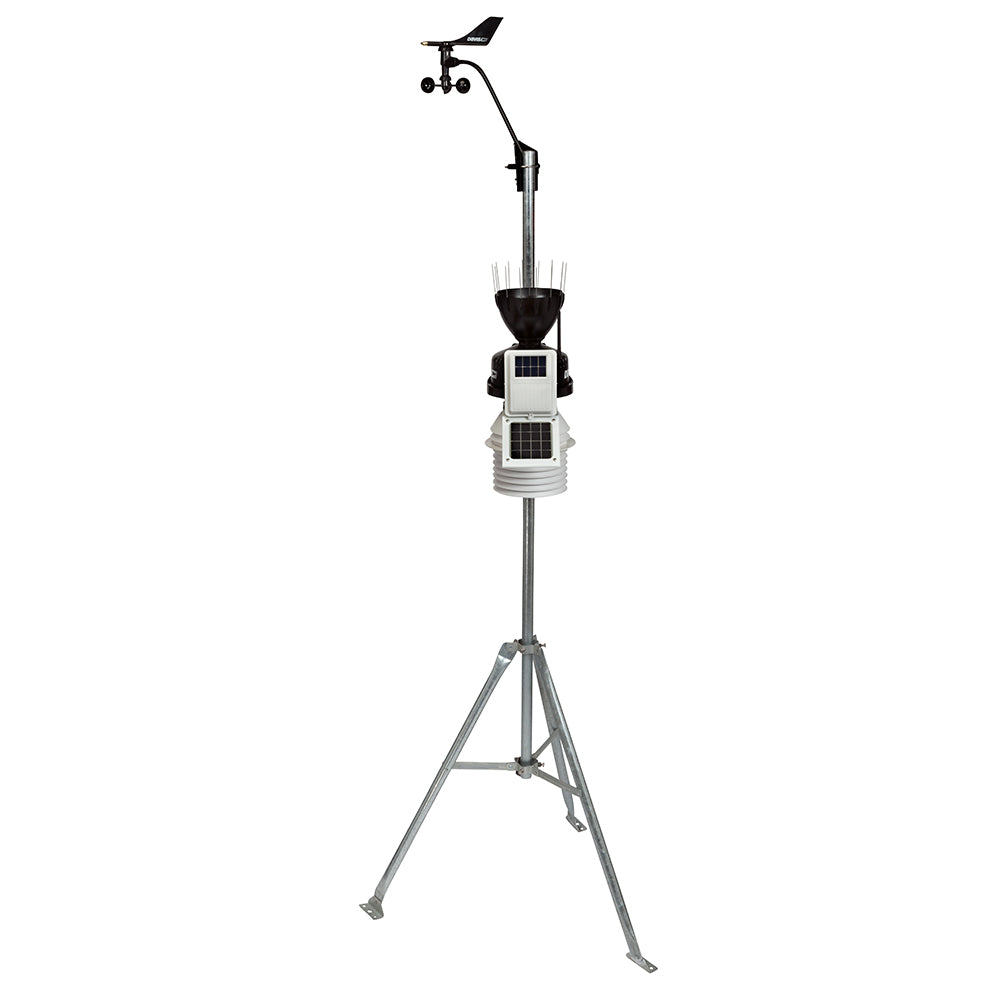

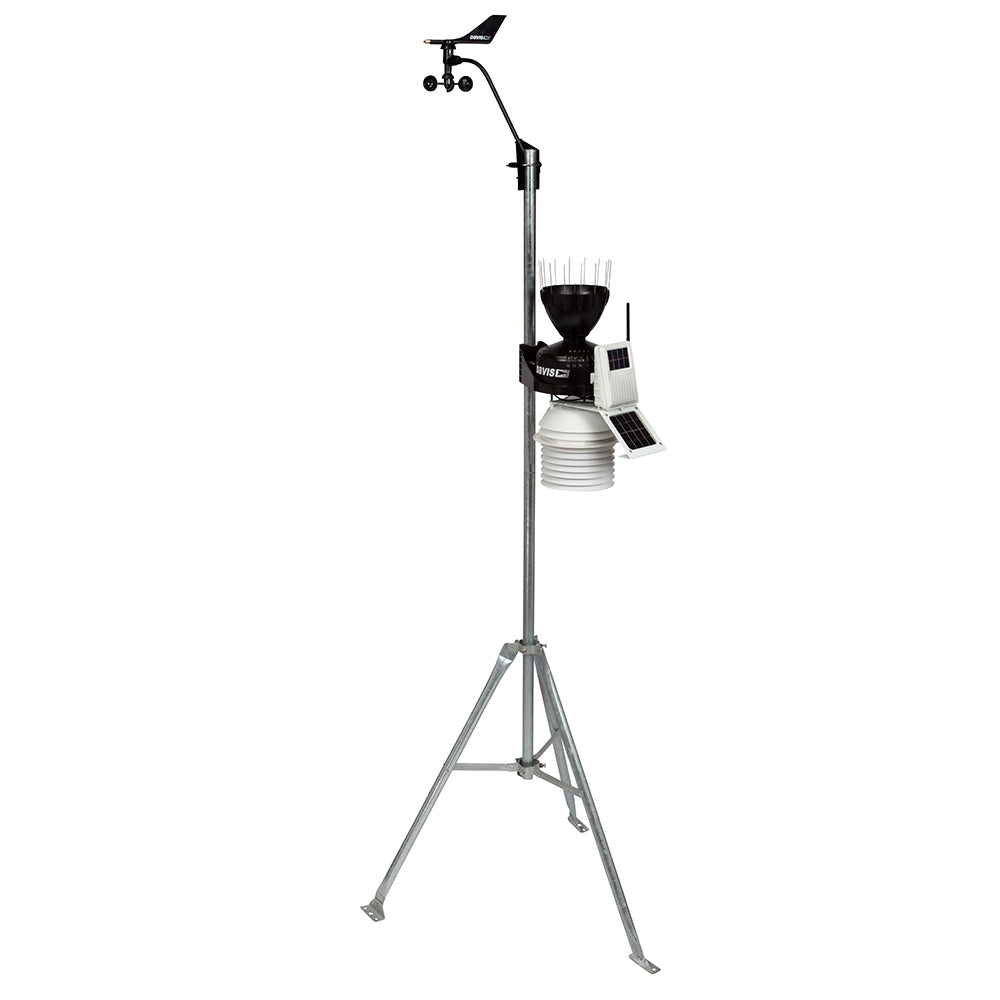

Davis 6323 Wireless Integrated Sensor Suite w/24hr Fan Aspirated Radiation Shield [6323]

Ships Direct From Manufacturer

Wireless Vantage Pro2™ ISS with 24-Hr Fan Aspirated Radiation Shield

Wireless Integrated Sensor Suite (ISS) for use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles, Weather Envoy and WeatherLink. Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, and anemometer into one package - making setup easier than ever and improving performance and reliability.

For improved accuracy, temperature and humidty sensors are housed inside our solar-powered, 24-hour fan-aspirated radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.

Compatible with Vantage Pro2, Vantage Vue and Vantage Connect.

Owner's Manual (pdf)

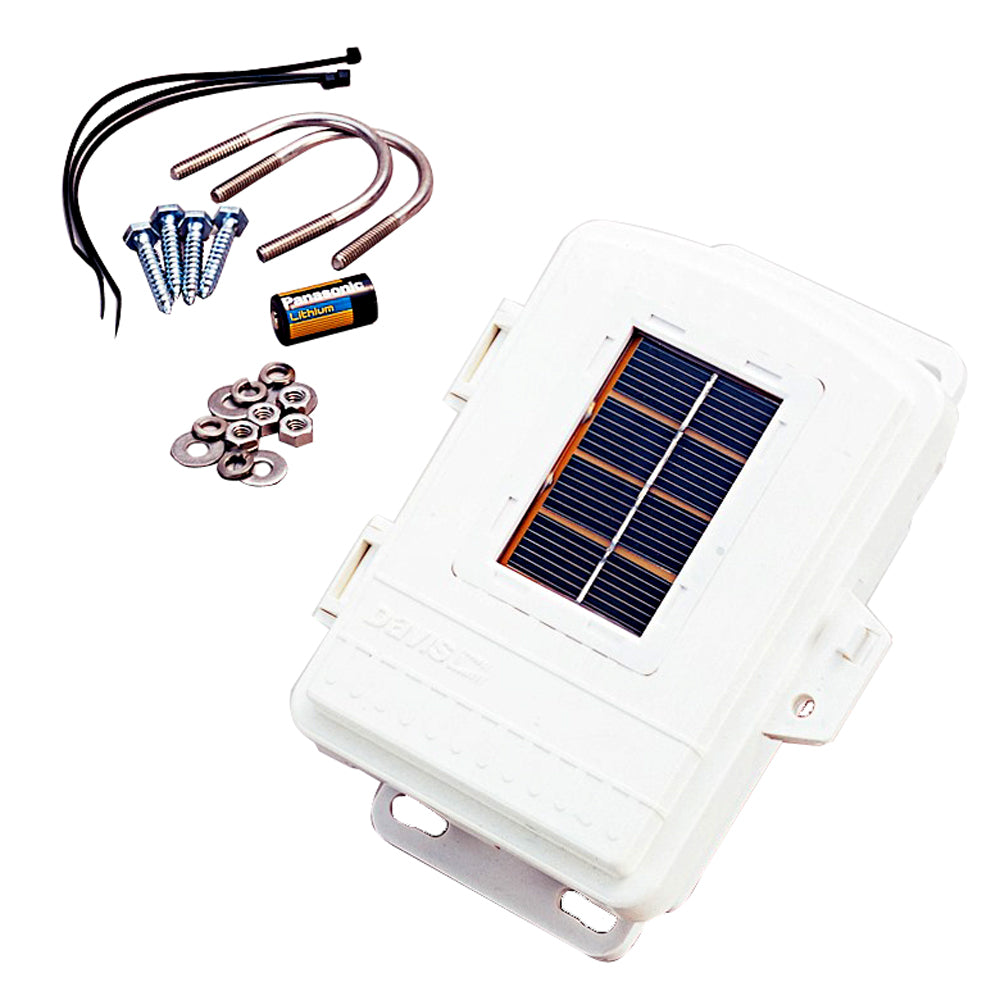

Davis Long Range Repeater w/Solar Power [7654]

Wireless Long-Range Repeater with Solar Power

For those who wish to send weather data much farther than 1,000' (300M), the Wireless Long-Range Repeater can extend the range up to two miles (3.2 km).

Please note: Use of this product requires a pair of external antennas, sold separately.The Long-Range Repeater has a transmitting and a receiving cable, each with an end which will connect to an external antenna. Choose either our large omni directional antenna (#7656), range 1,560' (476 m) in all directions, or our Yagi directional antenna (#7660), range 5,000' (1.5 km) in one direction. You'll need two antennas for each Long-Range Repeater.

The charging system is capable of performing continuously even under low light conditions. Includes solar panel, regulator circuit, and rechargeable battery.

Compatible with Vantage Pro2 and Vantage Vue only. Not compatible with original Vantage Pro.

Quick Guide (pdf)
Owner's Manual (pdf)

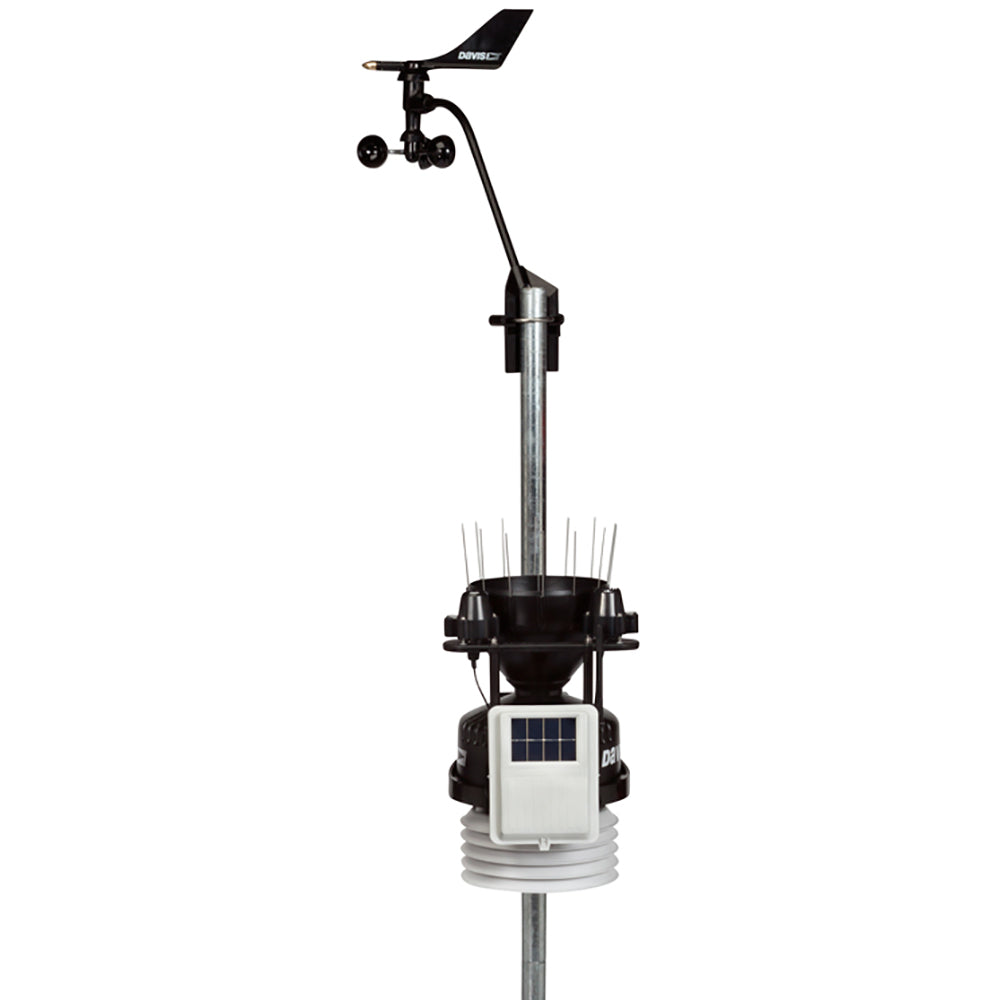

Davis 6327 Wireless Integrated Sensor Suite Plus w/Standard Radiation Shield [6327]

Ships Direct From Manufacturer

Wireless Vantage Pro2™ Plus ISS

For use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles, Weather Envoy and WeatherLink. Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, anemometer, solar radiation sensor, UV sensor, sensor mounting shelf, and solar panel into one package - making setup easier than ever and improving performance and reliability.

For improved accuracy, temperature and humidity sensors are housed inside a radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.

Compatible with Vantage Pro2, Vantage Vue and Vantage Connect.

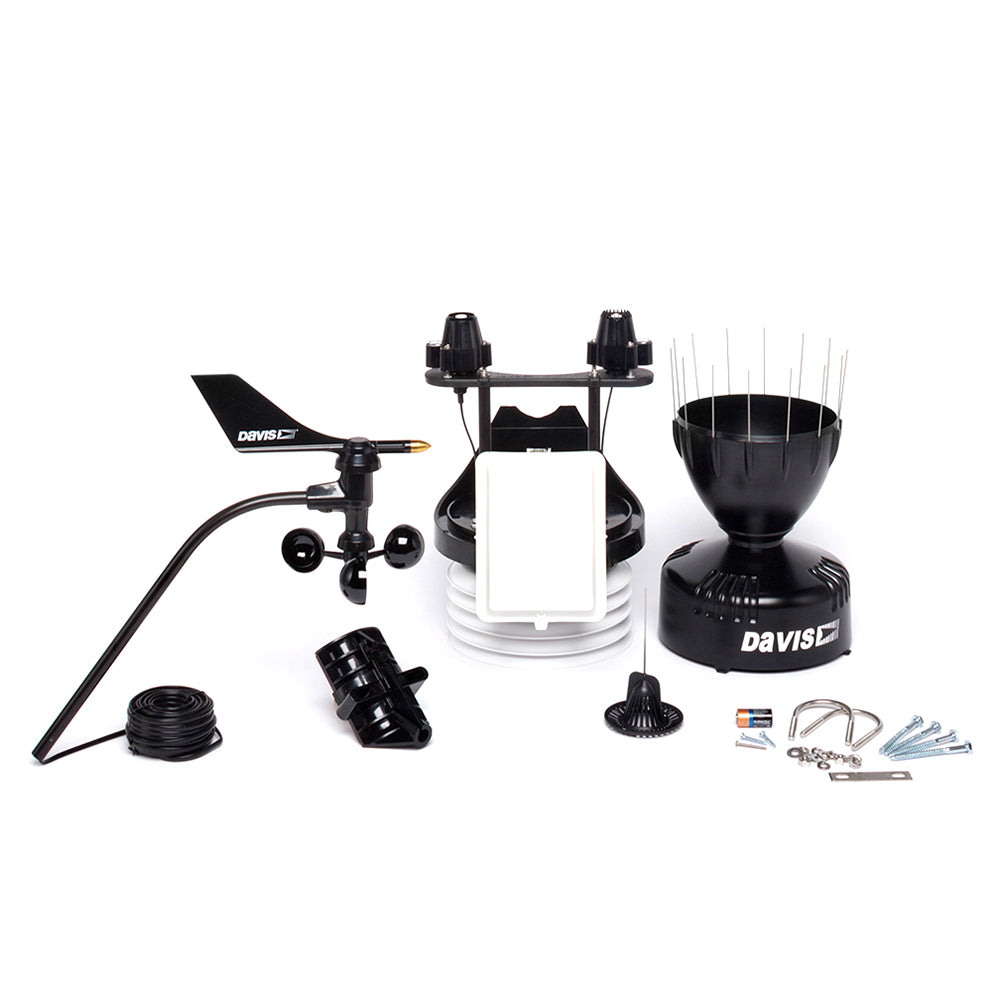

Davis 6327C Wired Integrated Sensor Suite Plus w/Standard Radiation Shield [6327C]

Ships Direct From Manufacturer

Cabled Vantage Pro2™ Plus ISS

For use with Vantage Connect for Cabled Systems, Vantage Pro2 cabled consoles, cabled Weather Envoy and WeatherLink.

Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, and anemometer into one package - making setup easier than ever and improving performance and reliability.

For improved accuracy, temperature and humidty sensors are housed inside a radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.

Compatible with cabled Vantage Pro2 and Vantage Connect for Cabled Systems.

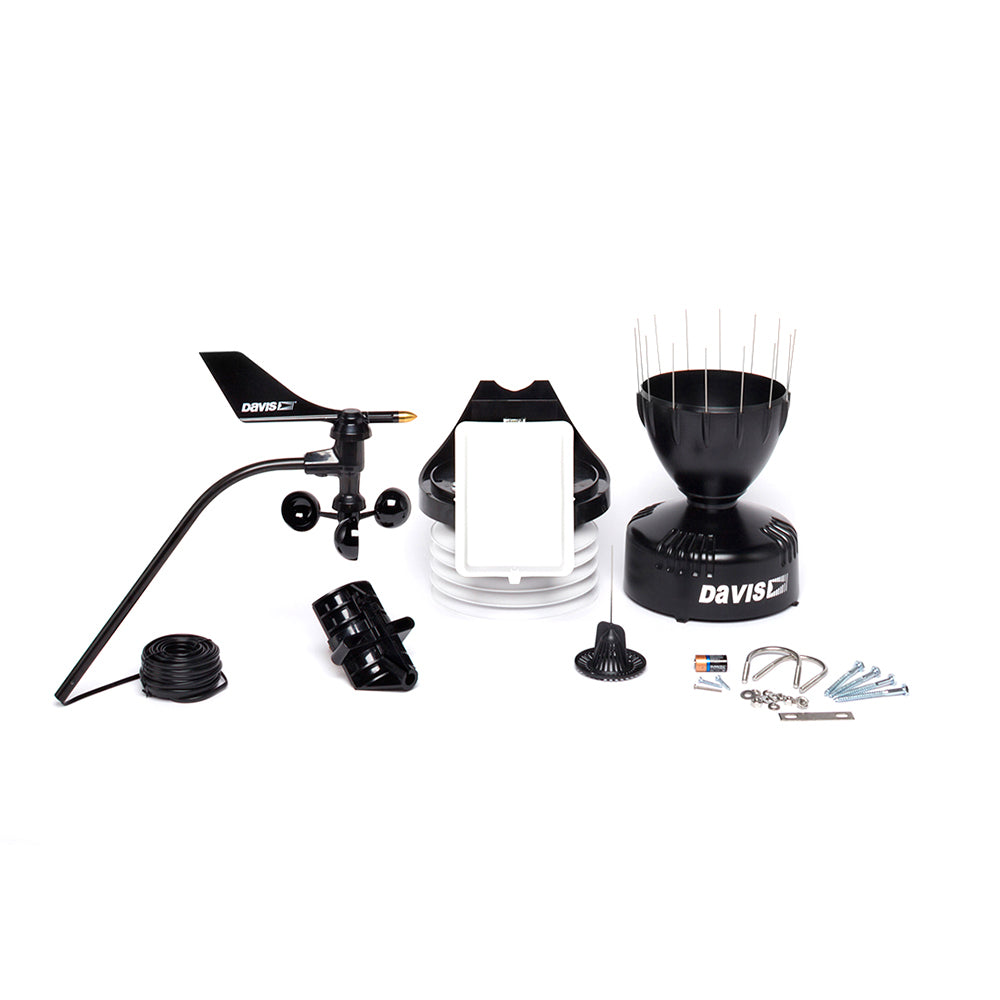

Davis 6322C Wired Integrated Sensor Suite w/Standard Radiation Shield [6322C]

Cabled Vantage Pro2™ ISS

For use with Vantage Connect for Cabled Systems, Vantage Pro2 cabled consoles, cabled Weather Envoy and WeatherLink.
Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, and anemometer into one package - making setup easier than ever and improving performance and reliability.

For improved accuracy, temperature and humidity sensors are housed inside a radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.

Compatible with cabled Vantage Pro2 and Vantage Connect for Cabled Systems.

Quick Guide (pdf)
Owner's Manual (pdf)

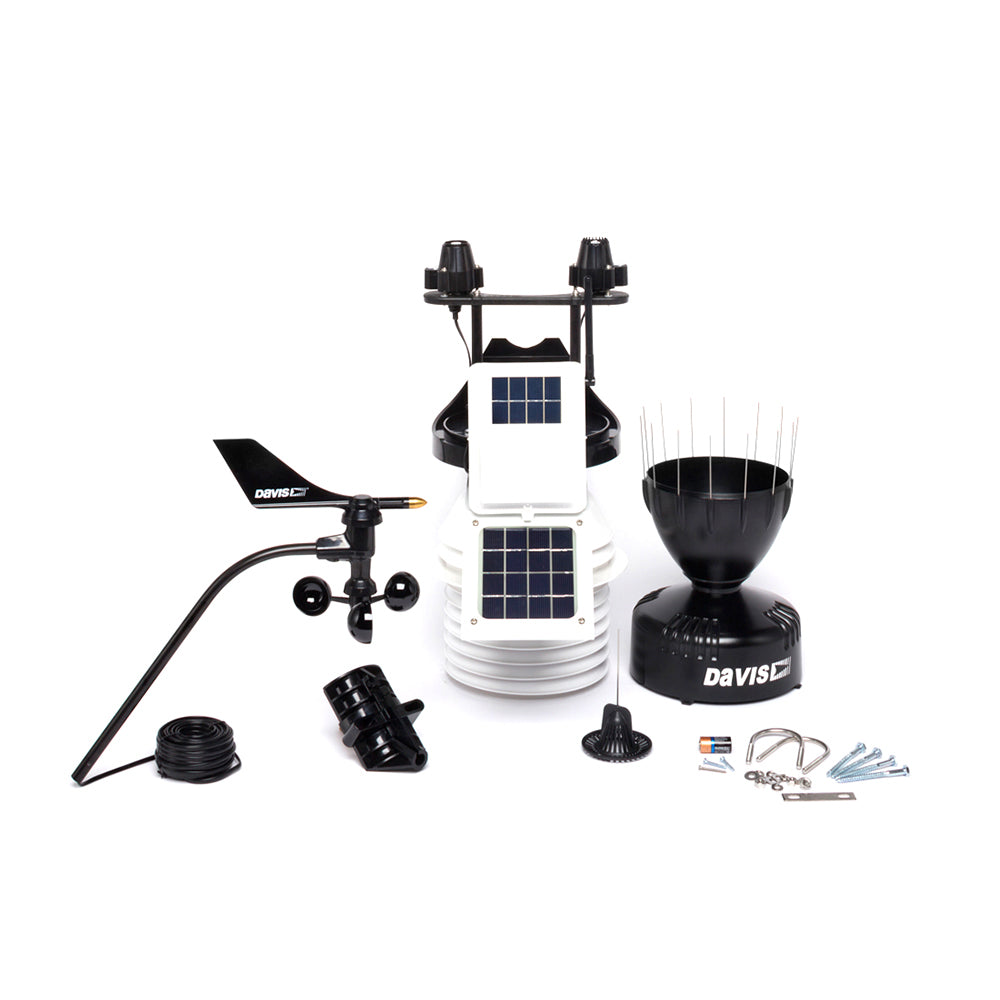

Davis 6328 Wireless Integrated Sensor Suite Plus w/Fan Aspirated Radiation Shield [6328]

Ships Direct From Manufacturer

Wireless Vantage Pro2™ Plus ISS with 24-Hr Fan-Aspirated Radiation Shield

Wireless Integrated Sensor Suite (ISS) is for use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles, Weather Envoy and WeatherLink. Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, anemometer, solar radiation sensor, UV sensor, sensor mounting shelf, and solar panel into one package - making setup easier than ever and improving performance and reliability.

For improved accuracy, temperature and humidty sensors are housed inside our solar-powered, 24-hour fan-aspirated radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.

Compatible with Vantage Pro2, Vantage Vue and Vantage Connect
