Marine Safety - Personal Locator Beacons

PLOMO-500 AIS Sart (Search & Rescue Transponder)

The Latest SART Technology

AMEC AIS SART (Search And Rescue Transmitter) PLOMO-500 complies with IEC 61097-14 specification. It is designed to be an alternative to Radar SART. PLOMO-500 can transmit GPS positions, Unique ID, COG, and SOG every minute once activated. It allows the rescue team to locate the survivors rapidly through the broadcasted AIS information and, ultimately, gives the survivors a better chance to survive.

User-Friendly Operation

AMEC PLOMO-500 is not only the AIS SART itself but also a complete survival/distress solution of all other essential accessories of AIS SART. The solution comes in a survival bag, and during emergency times, it is all what user needs to carry on his/her back. The setting operation is easy; it only requires 4 simple steps.

Backlit Panel and LED Indicator Integration

AMEC PLOMO-500 has a backlit operational panel, which allows users to see the buttons in a dusky environment. Moreover, the main unit has an overusage design to indicate if the battery life has been compromised due to excessive testing or it had been activated previously. Also, to increase the chance of survival, the unit’s LED indicator signals an “SOS” distress message during activation for the survivors to be easily spotted by the rescue team.

Features:

• Innovative AIS Technology
• Rugged and compact design
• Buoyant/floatable and waterproof to 10m
• Fluorescent backlight panel
• SOS LED light
• Easy to assemble and carry
• Minimum operating life - 96 hours

Specifications:

• Battery Replacement (Years): 6
• Floats: Yes
• Operational Life (Hours): 96
• Box Dimensions: 4"H x 7"W x 16"L WT: 2.6 lbs

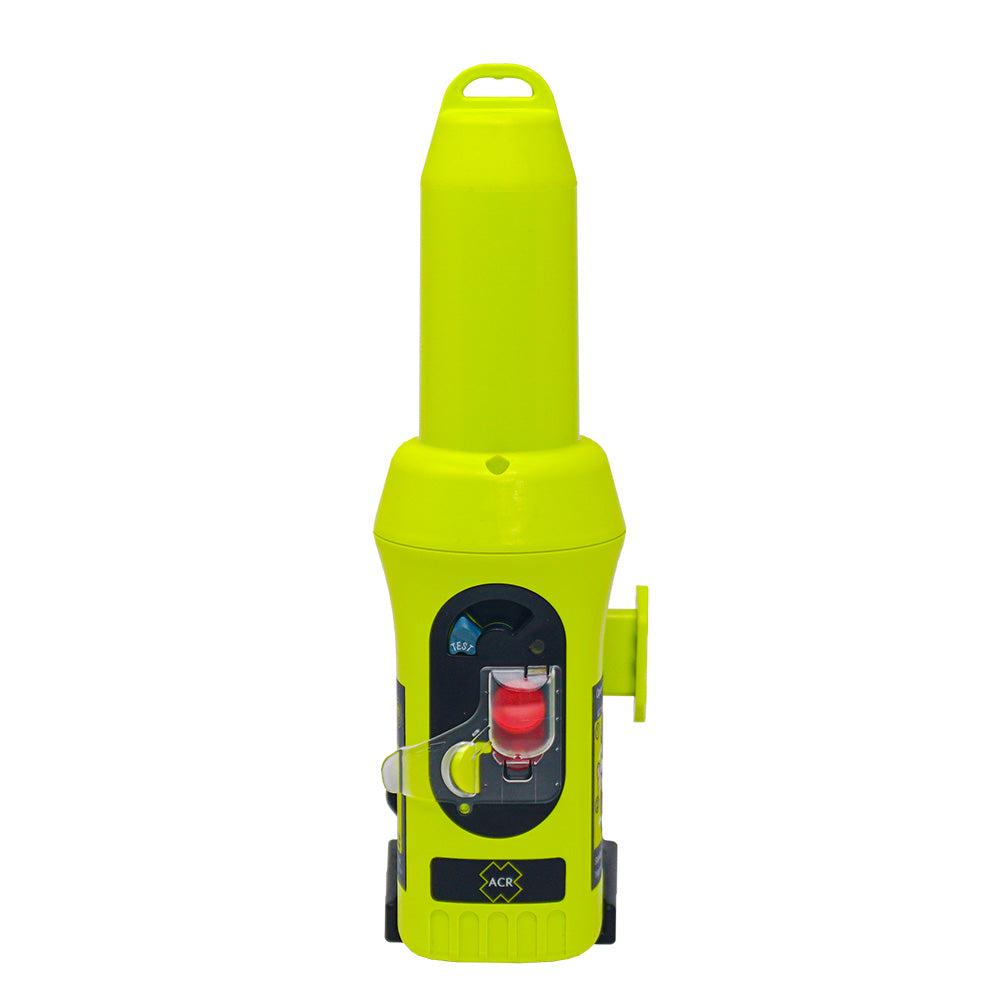

ACR Pathfinder PRO SART [2914]

Pathfinder PRO SART

*Extension pole sold separately (ACR Part #2918)

Stay safe at sea with the Pathfinder™ PRO Search and Rescue Transponder (SART).)

The Pathfinder Pro is a fully approved Search and Rescue Transponder (SART) compliant with IMO SOLAS regulations.  When interrogated by radar, the Pathfinder Pro returns 12 intense blips to the vessel's radar screen, greatly enhancing search and rescue efforts.

The superior lithium battery provides over 96 hours of operating life in standby mode, waiting to be interrogated by radar, and 12 hours of active operating life while interrogated by radar.

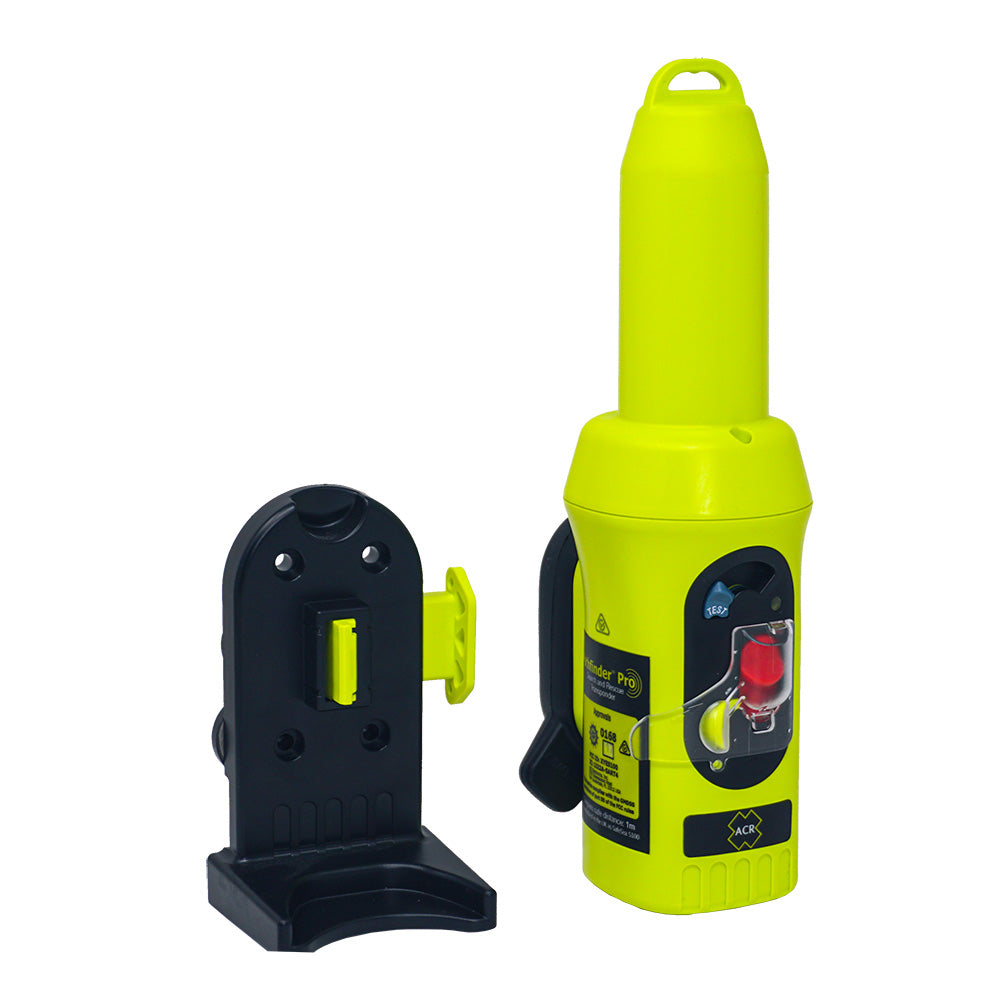

The Pathfinder Pro comes with a sleek wall mount to keep this compact SART out of the way, yet readily accessible in an emergency.  The attached telescopic pole conveniently connects to the bottom of the SART and provides maximum height and visibility out of a life craft. The SART can also be suspended inside the craft for hands-free usage.

Search and Rescue Transponder (SART) are mandatory for all commercial vessels that must conform to GMDSS, and any vessel carrying more than one life raft.

Certifications:

•  IMO
• MED
• FCC
• IEC standards

Features

• Enhances radar returns with 12 intense blips, whereby the first blip represents the SART location
• The unit transmits through the 9.2-9.5 GHz band marine radar when interrogated by radar
• Non-Hazmat Lithium battery (5-year replacement life) - end-user replaceable

Technical Specifications:

• Dimensions (H x W x D) - 8.94" x 2.56" x 2.36" (22.7 x 6.5 x6 cm)
• Weight - 15.5 oz (440 g)
• Battery - Lithium/Iron Disulfide (Li/FeS2) (Non Hazardous)
• Activation - Manual
• Frequency - 9.2 - 9.5 GHz
• Waterproof - IP67
• Temperature Range (Operating)  -20°C to +55°C
• Temperature Range (Storage) - -30°C to +70°C
• Operating Life Standby ≥ 96 Hours
• Operating Life Active ≥ 12 Hours

In the Box:

• Pathfinder PRO SART
• Mounting bracket
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Activation Method: Manual
• Battery Replacement (Years): 5 Years
• Built-In Strobe: No
• Floats: Yes
• Frequency: 9.2-9.5 GHz
• Operational Life (Hours): 12 Hours
• Box Dimensions: 5"H x 5"W x 12"L WT: 1.7 lbs
• UPC: 791659029145

Owner's Manual (pdf)
Brochure (pdf)
