Marine Safety - Fire Suppression

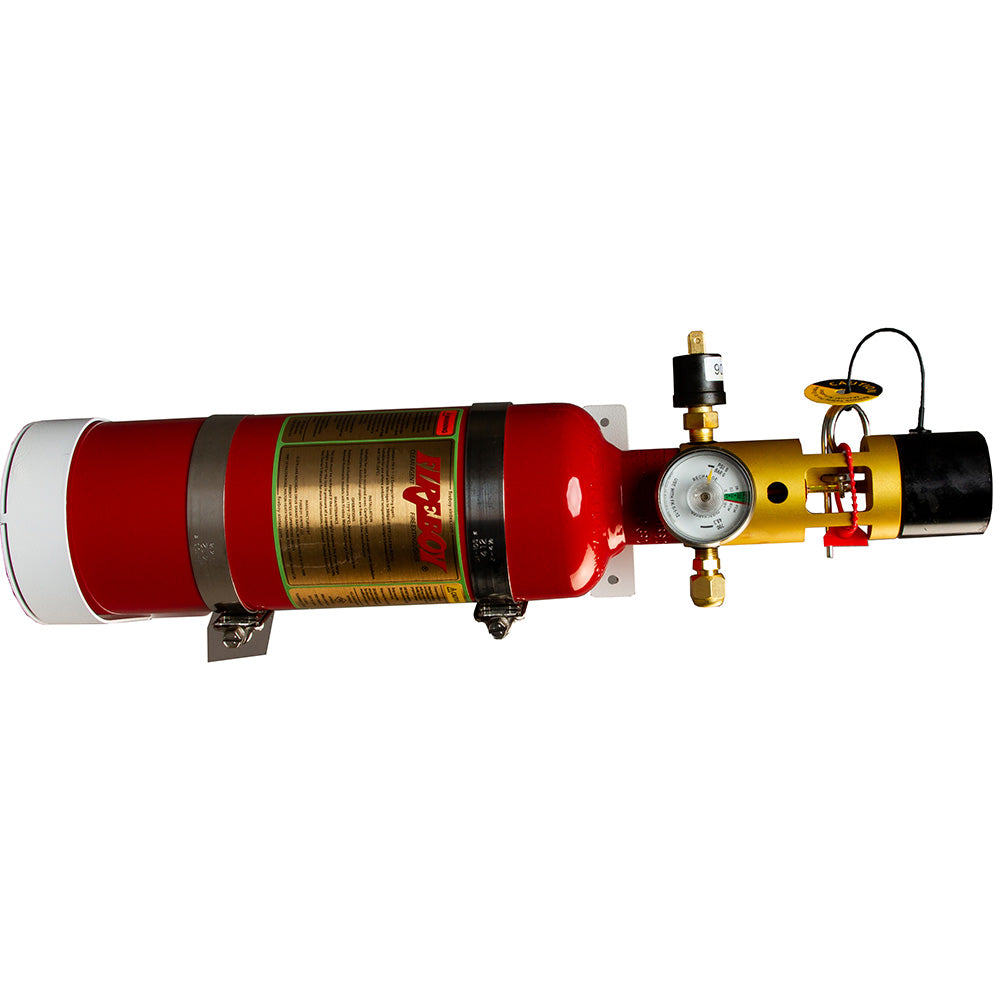

Fireboy-Xintex MU Series Horizontal Clean Agent Fire Extinguisher - 225 Cubic Feet [MU0225NVC-F]

Ships Direct From Manufacturer

MU Series Horizontal Clean Agent Fire Extinguisher - 225 Cubic Feet

As an enhancement to Fireboy's product line, the company has added this manual/automatic extinguisher designed specifically for horizontal mounting.

This unit uses the FK-5-1-12 clean extinguishing agent and is designed for maximum firefighting efficiency when mounted in the horizontal position.

Why Fireboy-Xintex is Needed:

• Continuous protection
• Automatic operation
• Manual operation with pull cable
• Peace of mind
• Often detects and suppresses a fire before it is known
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 Clean Extinguishing Agent approved for marine use worldwide (EPA SNAP and European)
• Approved for Class B fires in engine rooms, machinery spaces, and similar industrial applications

Applications:

• Fire protection fluid with very low global warming potential (GWP <1)
• Low toxicity in a properly designed system (no harm to personnel)
• No damage to sensitive equipment
• Not targeted for emission reduction or phase-out
• Coverage from 25-485 ft3 (0.7-13.7 m3) for engine rooms, machinery spaces, and other enclosed spaces for Class B fires
• Factory Mutual and USCG Approved

Don't Just Manage a Fire. Extinguish it.

FK-5-1-12 clean extinguishing agent is a highly effective clean fire suppressant designed to extinguish a fire in its incipient stage before it has a chance to spread.

The FK-5-1-12 clean extinguishing agent evaporates more than 50 times faster than water. Transitions from a liquid to a gaseous state very rapidly when discharged through a nozzle and readily achieves vapor-extinguishing concentrations in the air.

• Low toxicity (no harm to personnel)
• Extinguishes fires in less than half the time of CO2 and other inert gases
• No damage to sensitive equipment
• Not targeted for emission reduction or phase-out

Ready to Install

Each Fireboy system includes a heavy-duty powder-coated steel shelf bracket system, helm display, and owner’s manual.

Specifications:

• Volume Protected: 225 ft.^3 (6.4 m^3)
• Diameter: 6.3 in. (160 mm)
• Agent Weight: 12.7 lbs. (5.8 kgs)
• Shipping Weight: 17.2 lbs. (8 kgs)
• System Pressure: 360 psi @70 degrees F

Quick Guide (pdf)

Fireboy-Xintex Automatic Vertical Fire Extinguisher w/Heavy Duty Bracket - 175 Cubic Feet Volume Protected [CG0175NVC-F]

Automatic Vertical Fire Extinguisher with Heavy Duty Bracket - 175 Cubic Feet Volume Protected

This fire extinguisher provides clean agent fire suppression and is meant to be mounted vertically with the heavy-duty bracket.

Features:

• Discharge is automatic at 175 degrees F (79 degrees C) for round-the-clock engine compartment fire protection
• Total flooding of the engine compartment in less than 10 seconds for fast smothering of the fire
• FK-5-1-12 clean extinguishing agent leaves no harmful residue to clean up
• Easy to read color coded pressure gauge on the cylinder also identifies the “charged/discharged” status
• Coverage from 25 ft³ to 1,800 ft³ in a broad array of increments provides maximum coverage at the lowest cost
• Integrated shelf bracket mounting system
• Up to 4,000 ft³ available with GA FK-5-1-12 Systems
• Rugged industrial-designed pressure gauge ensures trouble-free performance
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 clean extinguishing agent is approved for marine use worldwide (EPA SNAP, European)
• Approved for Class B fires in engine compartments, machinery spaces, and similar industrial applications
• Many marine insurance providers offer a discount to boaters who install a fixed fire extinguisher system (contact your insurer for details)

CG Series:

• Automatic discharge only (@ 175 degrees F / 79 degrees C)
• Engine compartments up to 1,000 ft³ (28.3 m³)
• Heavy-duty mounting bracket
• Helm display

Specifications:

• Volume Protected: 175ft³ / 4.9 m³
• Diameter: 6.3 in. / 160mm
• Total Height: 18.7 in. / 476mm
• Agent Weight: 9.4 lbs. / 4.3 kgs
• Shipping Weight: 26 lbs. / 11.9 kgs
• System Pressure: 360 psi @70 degrees F

Quick Guide (pdf)

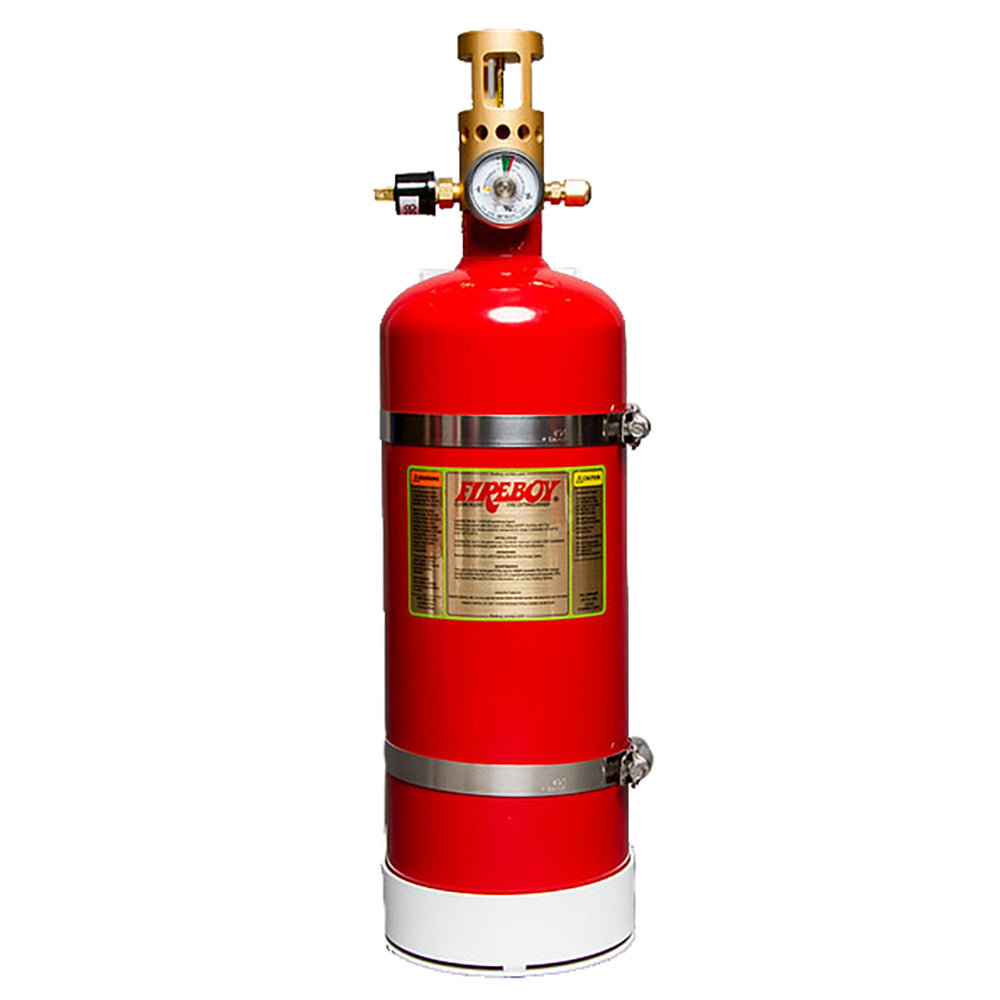

Fireboy-Xintex Automatic Vertical Fire Extinguisher w/Heavy Duty Bracket - 225 Cubic Feet Volume Protected [CG0225NVC-F]

Ships Direct From Manufacturer

Automatic Vertical Fire Extinguisher with Heavy Duty Bracket - 225 Cubic Feet Volume Protected

This fire extinguisher provides clean agent fire suppression and is meant to be mounted vertically with the heavy-duty bracket.

Features:

• Discharge is automatic at 175 degrees F (79 degrees C) for round-the-clock engine compartment fire protection
• Total flooding of the engine compartment in less than 10 seconds for fast smothering of the fire
• FK-5-1-12 clean extinguishing agent leaves no harmful residue to clean up
• Easy to read color coded pressure gauge on the cylinder also identifies the “charged/discharged” status
• Coverage from 25 ft³ to 1,800 ft³ in a broad array of increments provides maximum coverage at the lowest cost
• Integrated shelf bracket mounting system
• Up to 4,000 ft³ available with GA FK-5-1-12 Systems
• Rugged industrial-designed pressure gauge ensures trouble-free performance
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 clean extinguishing agent is approved for marine use worldwide (EPA SNAP, European)
• Approved for Class B fires in engine compartments, machinery spaces, and similar industrial applications
• Many marine insurance providers offer a discount to boaters who install a fixed fire extinguisher system (contact your insurer for details)

CG Series:

• Automatic discharge only (@ 175 degrees F / 79 degrees C)
• Engine compartments up to 1,000 ft³ (28.3 m³)
• Heavy-duty mounting bracket
• Helm display

Specifications:

• Volume Protected: 225ft³ / 6.4 m³
• Diameter: 6.3 in. / 160mm
• Total Height: 18.7 in. / 476mm
• Agent Weight: 12.1 lbs. / 5.5 kgs
• Shipping Weight: 32 lbs. / 14.3 kgs
• System Pressure: 360 psi @70 degrees F

Quick Guide (pdf)
