Marine Plumbing & Ventilation - Washdown / Pressure Pumps

Paragon Senior 12V Water Pressure System

Features:

• Made in the USA
• Max 11 GPM
• Operating pressure range 30-50 PSI
• For yachts over 50' in length
• Complies with NSF-61 low-lead standard
• Powerful 2-stage rotary pump
• DC and AC models are available
• Pressure gauge and inlet strainer included
• Patented NOFLOTM dry-run protection
• Use with PST-2, 3, 4, or 5 pressure storage tank (order separately)

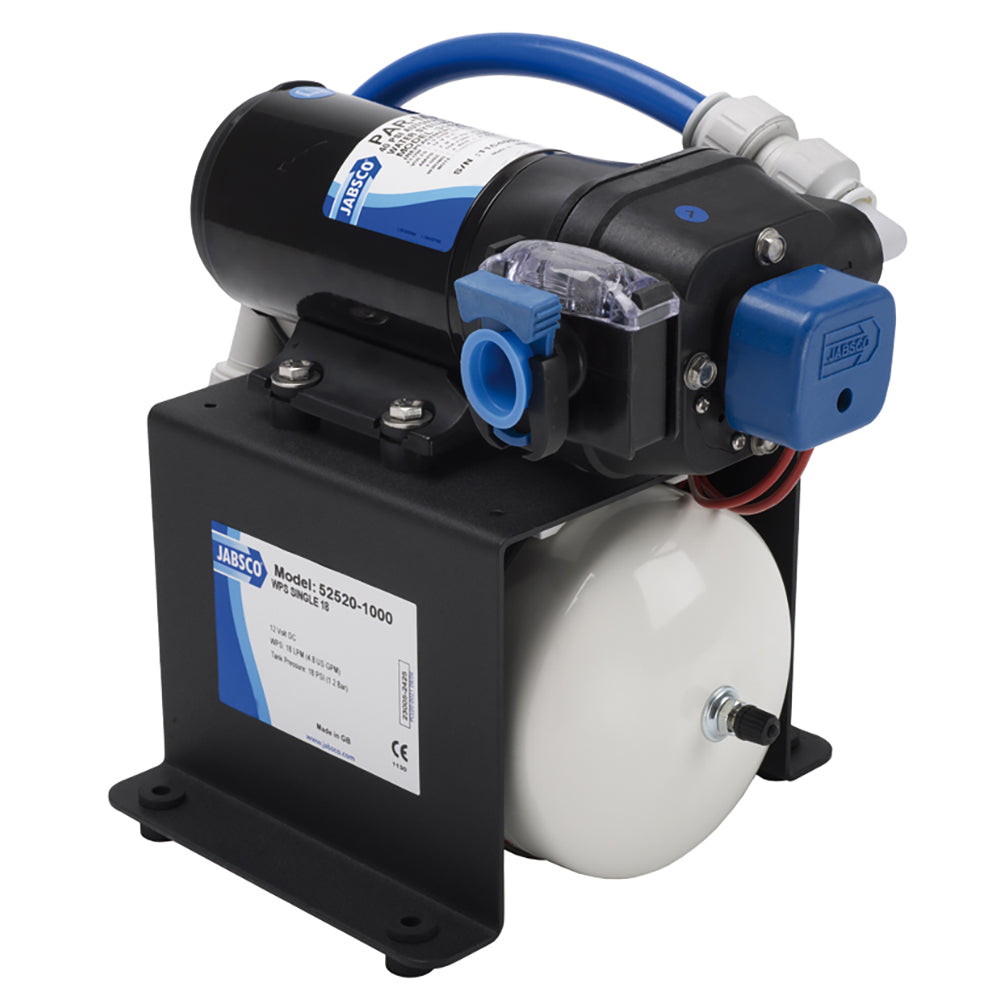

Jabsco Single Stack Water System - 4.8 GPM - 40PSI - 12V [52520-1000]

Single Stack Water System - 4.8 GPM - 40PSI - 12V

The Single Stack Water System is a fully assembled water pressure set which makes installation of water pressure systems simple. The system consists of a PAR-Max 4.0 Pump, strainer and pre-pressurized accumulator tank.

Serves four or more outlets.

Features:

• Self-priming up to 10' (3M)
• Run-dry ability
• Smooth, even flow
• Thermal overload protection
• Complies with ISO 8846 MARINE (Ignition Protection)
• Three-year warranty

Specifications:

• Flow: 4.8 GPM (18LPM)
• Shut-Off Pressure: 40PSI (2.8bar)
• Fitting: Connections for 3/4" (19mm) hose tail
• Size: 12.2" Long x 9.4" Wide x 9.8" High
• Weight: 12lbs (5.4kg)

Specifications:

• Gallons Per Minute: 4.8 GPM
• Max PSI: 40
• Volts: 12v
• Box Dimensions: 8"H x 10"W x 15"L WT: 12 lbs
• UPC: 671880615914

High Flow Dual Pump System - 24 VDC - 10.0 GPM

The most advanced system available. This fully-automatic, quiet unit delivers water smoothly and consistently.

Features:

• Replaces 5907

• System Delivers up to 10 GPM at Open Flow

• Includes the AQUA KING II Supreme 5.0 Pump and PRO BLASTER II Ultimate 5.0 Pump

• 24 VDC

• 55 PSI Shut-off Pressure

• Built to Withstand the Harsh Marine Environment with Electro-Coated Motor, O-ring Seals and Fully-Sealed Wire Entries

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Volts: 24v
• Max PSI: 55
• Gallons Per Minute: 10 GPM
• Box Dimensions: 7"H x 7"W x 24"L WT: 16.1 lbs

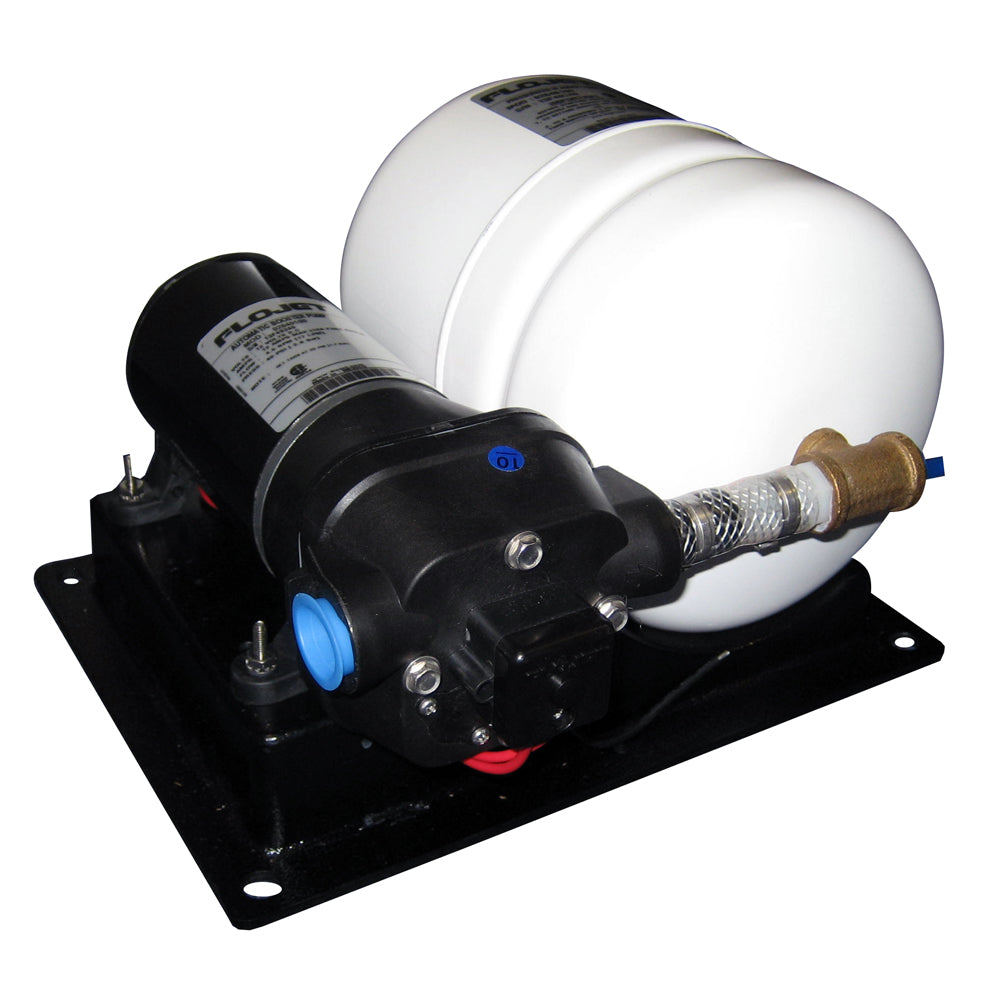

Flojet Water Booster System - 40PSI - 4.5GPM - 115V [02840000A]

Water Booster System - 40PSI - 4.5GPM - 115V

The Flojet 2840 Series Booster Systems are designed to provide constant water pressure of 0 to 40 psi (0.7 to 2.7 bar) and a maximum flow rate of 4.5 GPM at 10 psi (0.7 bar). The pump is fully automatic, with a built-in inlet strainer, pressure switch, and check valve, and supplies smooth flow from trickle to full flow. Typical uses include applications where available water pressure is very low and fluctuates widely. Easy installation requires only that the water lines be connected, and the power cord plugged in.

Features:

• Integrated pump and tank system
• It can be mounted vertically or horizontally
• Flow rates up to 4.5 US Gallons/min.

Kit Consists of:

115V Quad MPU, 4.5 GPM, SW 40, 0.77 gal capacity accumulator tank, plastic mounting board, and pump inlet strainer

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 4.5 GPM
• Max PSI: 40
• Volts: 115v
• Box Dimensions: 9"H x 13"W x 17"L WT: 12.3 lbs
• UPC: 705474280001

Owner's Manual (pdf)

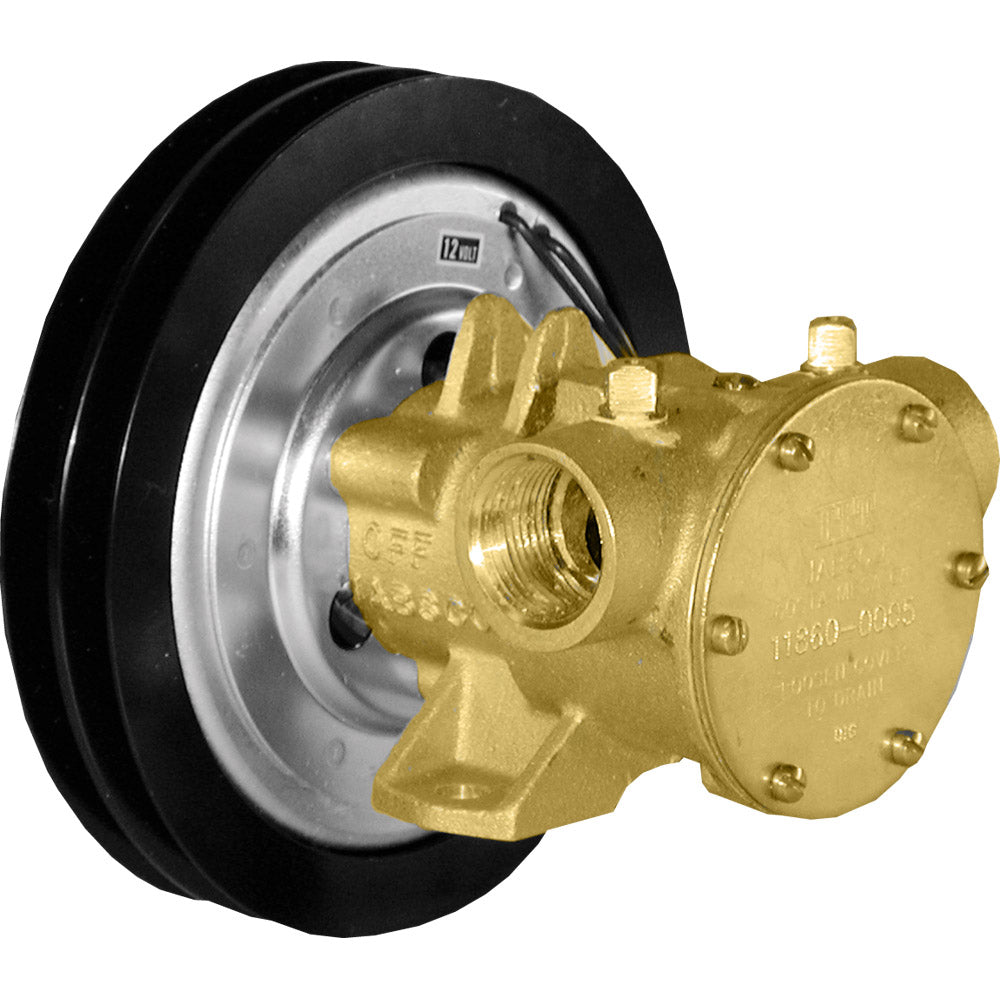

1" Electro-Magnetic Clutch Pump

Flow rate: Nominal 23 US Gallons/min at 1750 RPM
Self-priming from dry up to 7.8ft

Features:

• Constructed from marine quality bronze and stainless steel for ruggedness and reliability.

• Easy to service and maintain.

• Inexpensive to buy and operate.

• Will tolerate abrasive wear (this may affect performance - seek advice from your distributor).

• Handles hard and soft solids without clogging.

• Can pump in either direction.

• Will not airlock.

APPLICATIONS MARINE:
Engine cooling, Pumping bilges, Wash downs, Circulating water in bait tanks, Utility dockside pump.

INDUSTRIAL:
Circulating and transferring, Velocity mixing, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Tanning Liquors, Glycerin, Brine, etc.

FARMING:
Pumping water for stock, Pumping water from shallow wells and cisterns.

PUBLIC UTILITIES AND MUNICIPALITIES:
Under the hood mounting on service trucks for dewatering and draining meter boxes, manholes, excavations, and truck installation under hood for emergency pumping.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 23 GPM
• Volts: 12v
• Box Dimensions: 8"H x 9"W x 14"L WT: 16.15 lbs
• UPC: 671880007962

Owner's Manual (pdf)
