Marine Plumbing & Ventilation - Transfer Pumps

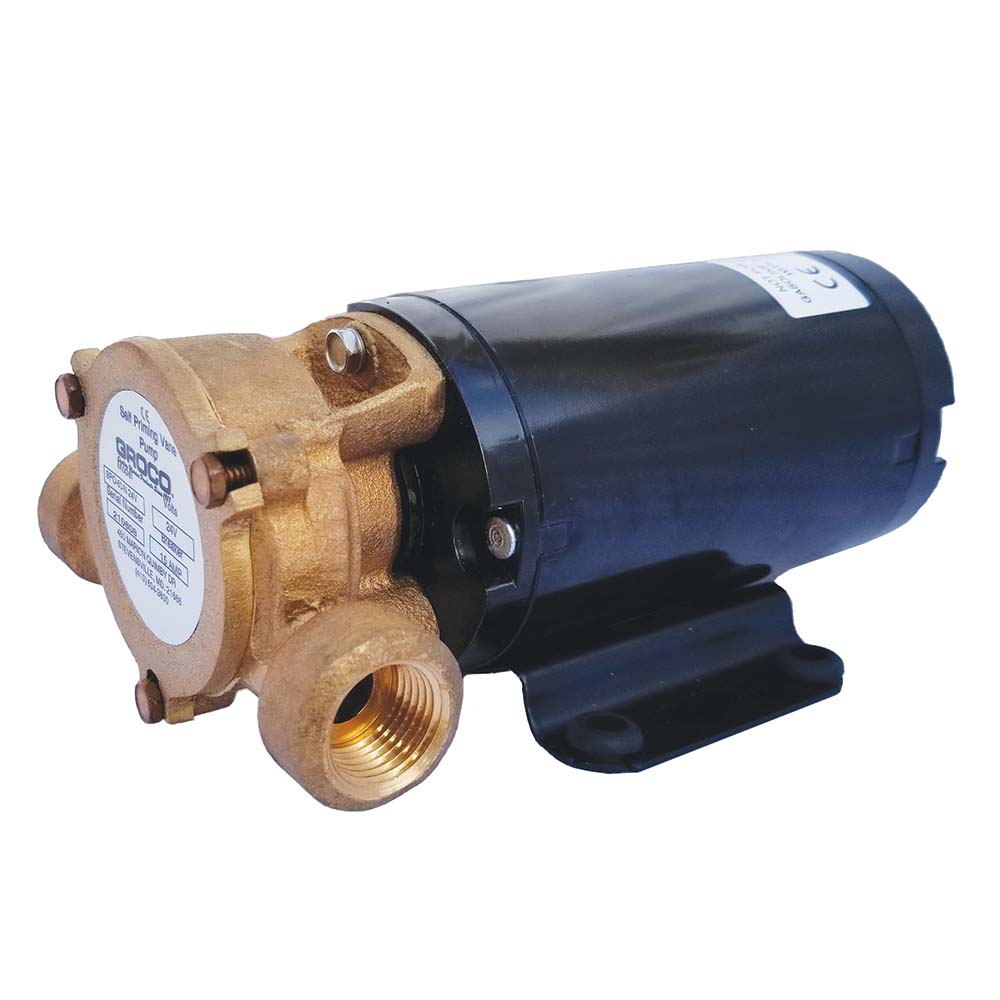

Commercial Duty Vane Pump - 12V

GROCO  Vane Pumps are self-priming. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  Ignition protected motor and #316 stainless steel shaft. SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Specifications:

• Self Priming: YES
• Thread NPT: 1/2" + Garden Hose Adaptor
• Control Type: None
• Max GPM: 7
• Breaker DC: 15 Amp

Commercial Duty Vane Pump - 12V

GROCO  Vane Pumps are self-priming. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  Ignition protected motor and #316 stainless steel shaft. SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Specifications:

• Self Priming: YES
• Thread NPT: 1/2" + Garden Hose Adaptor
• Control Type: None
• Max GPM: 7
• Breaker DC: 30 Amp

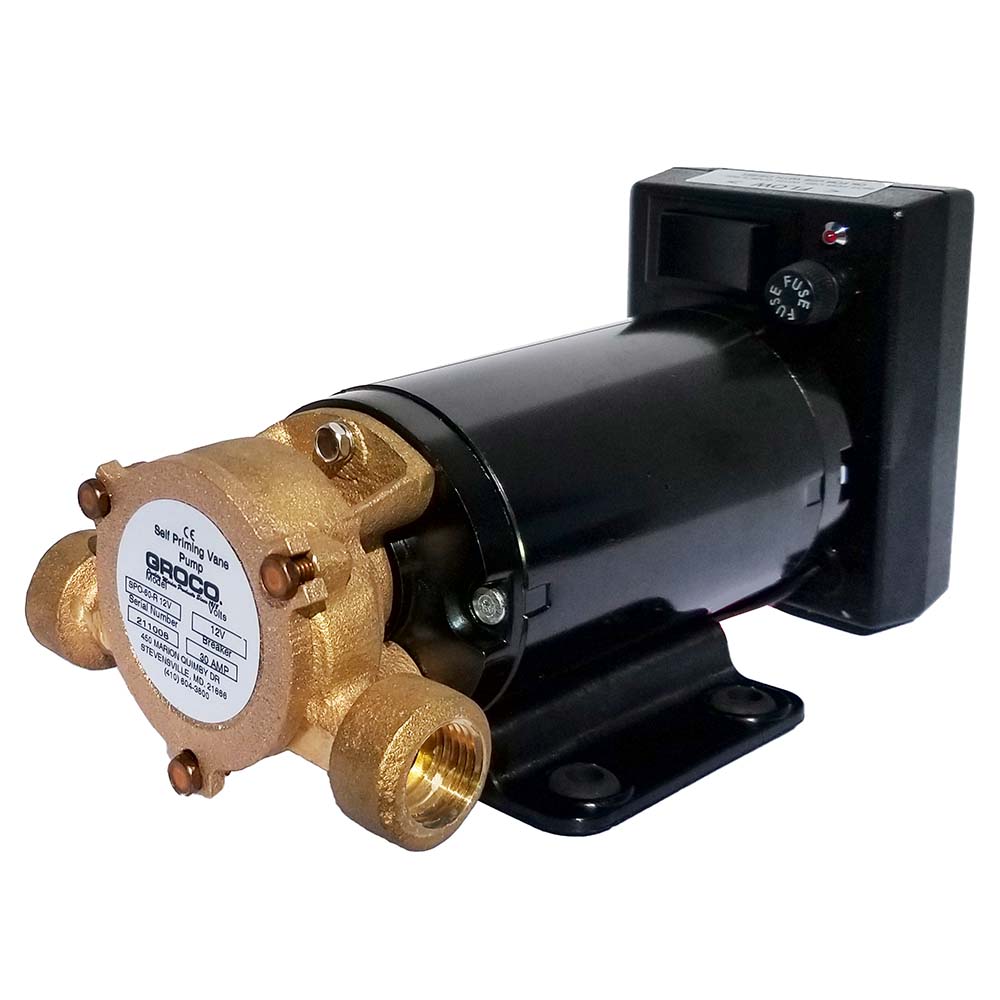

Heavy Duty Positive Displacement Reversing Vane Pump - 12V

GROCO Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  All models have an ignition protected motor and #316 stainless steel shaft.

Specifications:

• Self Priming: YES
• Thread NPT: 1/2" + Garden Hose Adaptor
• Control Type: Pump Mounted Reversing Switch
• Max GPM: 6.5
• Breaker DC: 30 Amp

Specifications:

• Volts: 12v
• Reversible: Yes
• Gallons Per Minute: 6.5 GPM
• Box Dimensions: 7"H x 7"W x 12"L WT: 7.15 lbs
• UPC: 742985014350

Heavy Duty Positive Displacement Reversing Vane Pump - 24V

GROCO Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  All models have an ignition protected motor and #316 stainless steel shaft.

Specifications:

• Self Priming: YES
• Thread NPT: 1/2" + Garden Hose Adaptor
• Control Type: Pump Mounted Reversing Switch
• Max GPM: 6.5
• Breaker DC: 15 Amp

Commercial Duty Reversing Vane Pump - 24V

GROCO  Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  Ignition protected motor, #316 stainless steel shaft, and reversing (R). SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Specifications:

• Self Priming: YES
• Thread NPT: 1/2" + Garden Hose Adaptor
• Control Type: Pump Mounted Reversing Switch
• Max GPM: 7
• Breaker DC: 15 Amp

17820 Oil Changer System


The Jabsco Oil Change System is designed to be installed in a vessel's engine room with its manifold and valves permanently plumbed to the vessel's engines' oil pans or transmissions' oil sumps. The manifold is factory fitted with three ball valves to serve three different oil reservoirs and may be fitted with two additional ball valves to drain up to five oil reservoirs. The system can be used to remove old oil from an engine or transmission then reversed, with the integral reversing switch, to pump a measured amount of new oil back into the engine or transmission. Each connection to an engine is controlled by a dedicated full flow ball valve. The system's cover provides an attractive appearance, fully shrouding the entire pump and manifold system. It also provides added protection against accidental draining of an engine's oil supply because the valve cover protects the factory supplied valves from being accidentally bumped open. Additionally, at the end of an oil change, the cover will not close unless the factory supplied valves are in the fully closed position.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Volts: 12v
• Box Dimensions: 8"H x 12"W x 12"L WT: 10.95 lbs
• UPC: 671880529624
