Marine Plumbing & Ventilation - Marine Sanitation

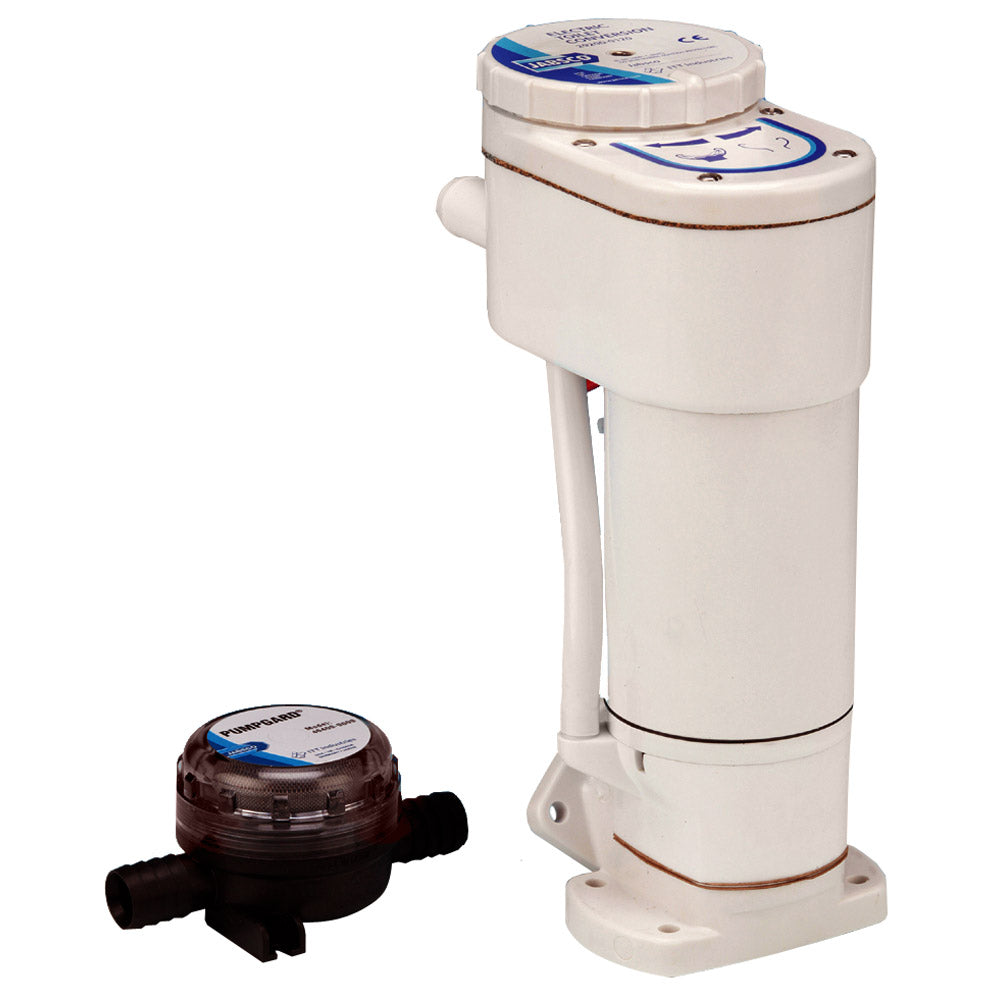

Electric Conversions

Features:

• Directly replaces manual pump assembly

• Easy to Install

• Simple to operate

• Dual action control allows water level to be varied

• Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes

• Suitable for use in above or below waterline installations

• Built in macerator

• Meets EN50081-2 for Electro Magnetic Compatibility (EMC)

• Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection

• Self priming up to 0.6m(2ft)

• Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface

• Typical power consumption is less than 1.0 amp hour(12 Volt)

Specifications:

• Type: Misc
• Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
• UPC: 671880520935

Thetford Nano Touch Compact Toilet Freshwater Kit - 12V [T-NAN012PW/TSFT/NA-FWKIT]

Nano Touch Compact Toilet Freshwater Kit - 12V

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

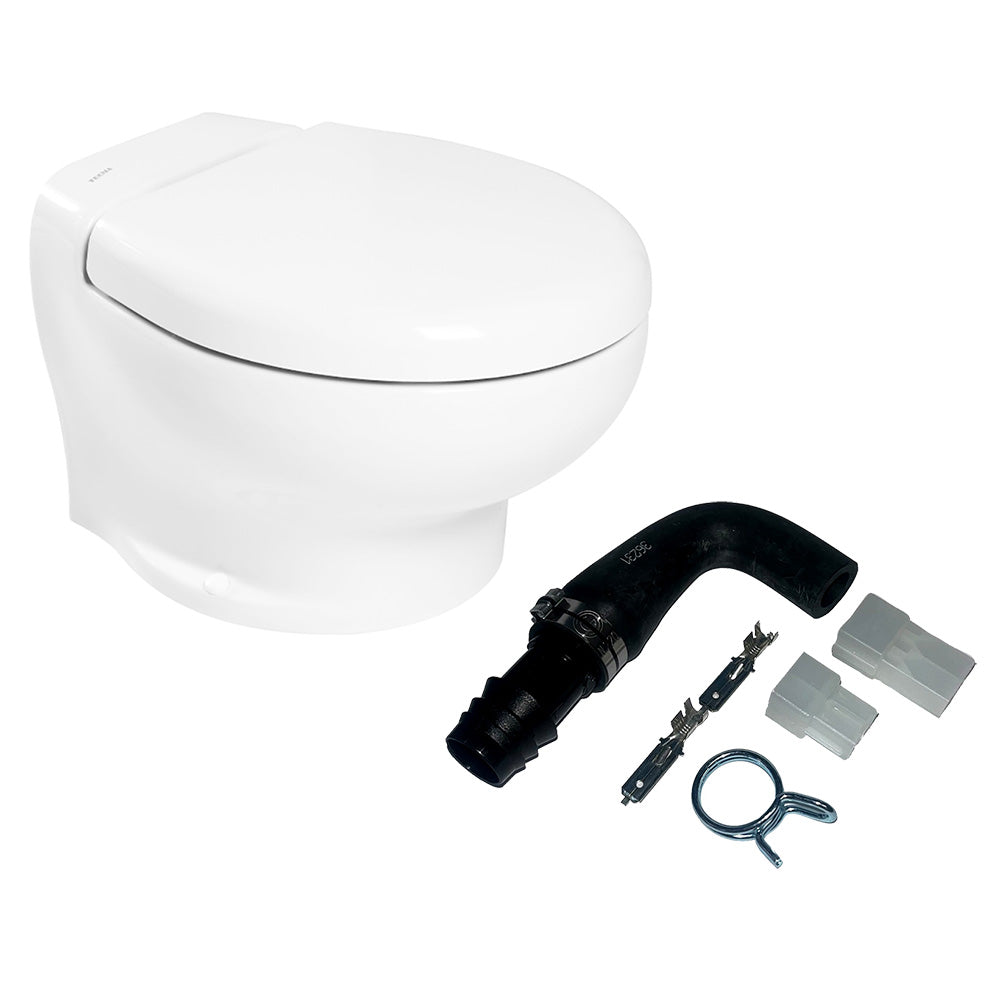

Thetford Nano Touch Compact Toilet Raw Water Kit (No Inlet Pump) - 12V [T-NAN012PW/TSFT/NA-RWKITNP]

Nano Touch Compact Toilet Raw Water Kit (No Inlet Pump) - 12V

The Tiny Turbo Toilet!

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance. The toilet can be operated in combination with two different control panels: the Eco rocker switch and the Premium Plus.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Nano Eco Compact Toilet Raw Water Kit with Inlet Pump - 12V

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

Compass Touch Toilet - High, White - 12V

The narrow footprint and smart back of the Compass toilet give maximum space and maximum flexibility wherever it is installed on board. It can go straight to a wall or even further towards the hull thanks to the cutaway. The Compass is not limited by a vertical back. This way, the visual installation remains perfect with whatever installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface-mounted in all directions. By having both a high and a short profile, the Compass range offers maximum flexibility on board.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Both the Compass High and Short versions are equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism, which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.

The soft-close damper mechanism is a design original to Tecma.

Features:

• Italian ceramic
• Wide range of control panels (Touch SFT panel included, others sold separately)
• Silent flush
• Low consumption

Technical Specifications:

• Weight - 47.4 lbs
• Water Usage - 0.5-2L/0.1-0.5 gal per flush
• Color - White
• Seat and Cover - Thermosetting with soft closing
• Outlet Pump - MAC 4 12/24V
• Inlet Device - Solenoid

Specifications:

• Color: White
• Inlet Size: 1/2"
• Operation Method: Electric
• Outlet Size: 1/4"
• Rinse Water: Fresh
• Size: Compact Size
• Suction Lift (ft.): 13'
• Type: Toilet
• Volts: 12v
• Box Dimensions: 19"H x 24"W x 25"L WT: 56.3 lbs
• UPC: 028985983064

Marine Elegance

The Marine Elegance is the ultimate in electric marine toilets. Offering the luxury of a full size seat in a one piece china bowl developed with a unique mounting system. It offers a super small footprint at just 8 ½” x 9 ¾”.  All toilets are now supplied with a slow close toilet seat that includes stops to help prevent the seat from shifting while in use during heavy seas. With the same Vortex-Vac technology also offered in the Atlantes Freedom, it creates a vacuum in the bowl, eliminating the need for extra vacuum generation equipment. Unlike typical vacuum toilet systems, a convenient, built-in shredder with stainless steel blades transforms waste into small particles to reduce clogs. The efficient action of the pump quickly and quietly pulls waste from the bowl with the ability to push the waste an amazing 10' vertically and 100' horizontally. Performing at a noise level less than 63 decibels it won’t alert everyone in the boat or on the dock that nature is calling.

Benefits:

• Low water usage
• Small footprint for compact installation
• One piece vitreous china bowl
• Straight back
• Quiet operation
• Unmatched rinsing capabilities
• Low water consumption
• Built in shredder reduces clogs
• Can pump 10ft vertically, or 100ft horizontally

The Raritan Programmable Smart Toilet Control:

The Raritan Smart Toilet Control is a fully programmable flush control. The control allows users to flush the toilet with no water, a small amount of water or a fully timed flush. the timed flush feature can be adjusted on the panel without having to remove any components.

• Normal Flush - starts a timed flush, walk away and the toilet will run through a sequence of intake and discharge modes ensuring maximum bowl rinse, bowl re-fills to leave water in the bow
• Water Saver - starts a timed flush using half of the water of a normal flush. Bowl refills to leave water in the bowl.
• Water Only - adds additional water to the bowl without discharging any of the contents of the bowl. Allows the user to wet the bowl prior to use or fill the bowl to a certain level to minimize water usage.
• Empty Only - allows the user to evacuate the bowl while using no water. While the button is pressed the discharge pump will run, when released the pump stops.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Size: Household Size
• Color: White
• Gallons Per Minute: 3 GPM
• Inlet Size: 1/2"
• Operation Method: Electric
• Outlet Size: 1"
• Rinse Water: Fresh
• Suction Lift (ft.): 4'
• Volts: 12v
• Type: Toilet
• Box Dimensions: 20"H x 21"W x 24"L WT: 55 lbs
• UPC: 085462025396

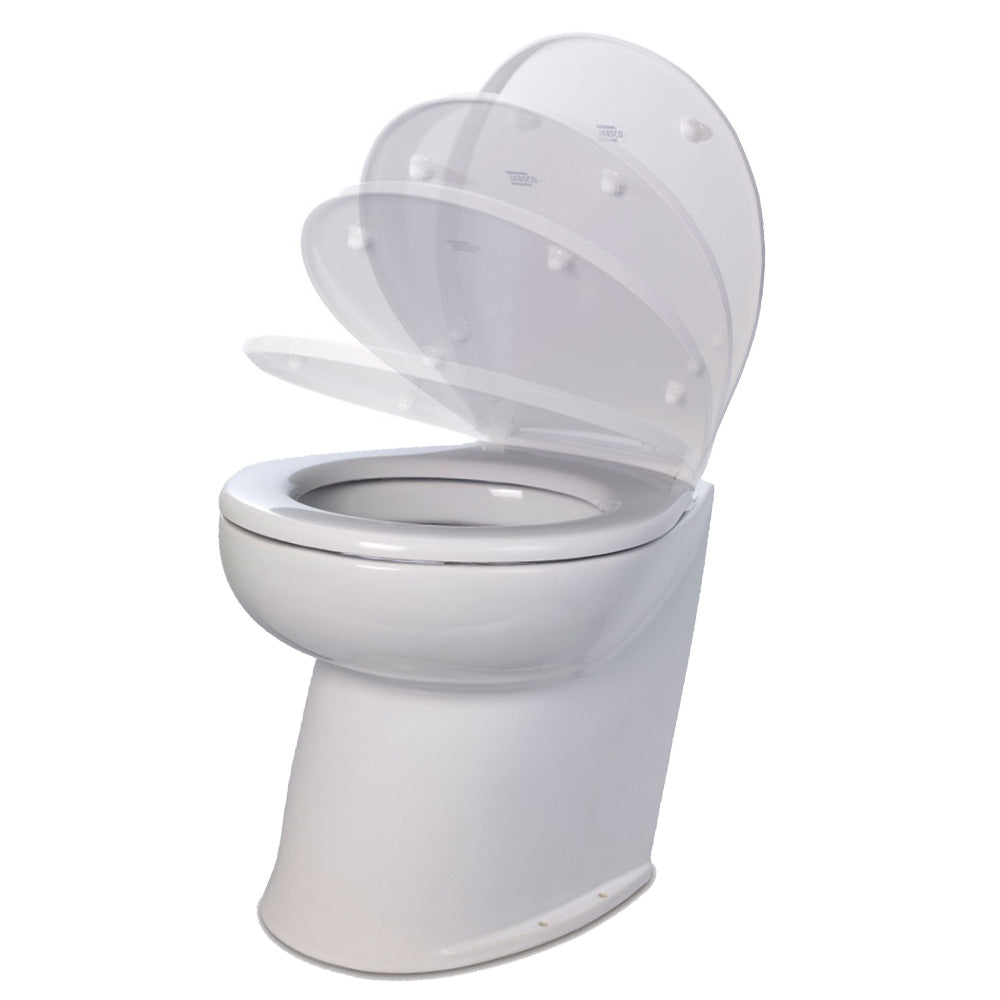

Deluxe Flush 17" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve & Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 17" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 17.5” / (mm) 445
• Width: (inch) 14.8” / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 61.7" / (kg) 28

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Specifications:

• Color: White
• Gallons Per Minute: 2.9
• Operation Method: Electric
• Rinse Water: Fresh
• Volts: 12
• Box Dimensions: 23"H x 23"W x 25"L WT: 62 lbs
• UPC: 671880639958

Jabsco Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet w/Remote Rinse Pump  Soft Close Lid [58260-3024]

Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet with Remote Rinse Pump & Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 24V DC
• Recommended fuse Size (AMP): 15
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4” / (mm) 366
• Width: (inch) 14.8” / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 57.3" / (kg) 26

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

Specifications:

• Color: White
• Operation Method: Electric
• Rinse Water: RAW
• Volts: 24

Owner's Manual (pdf)
