Marine Plumbing & Ventilation - Hose

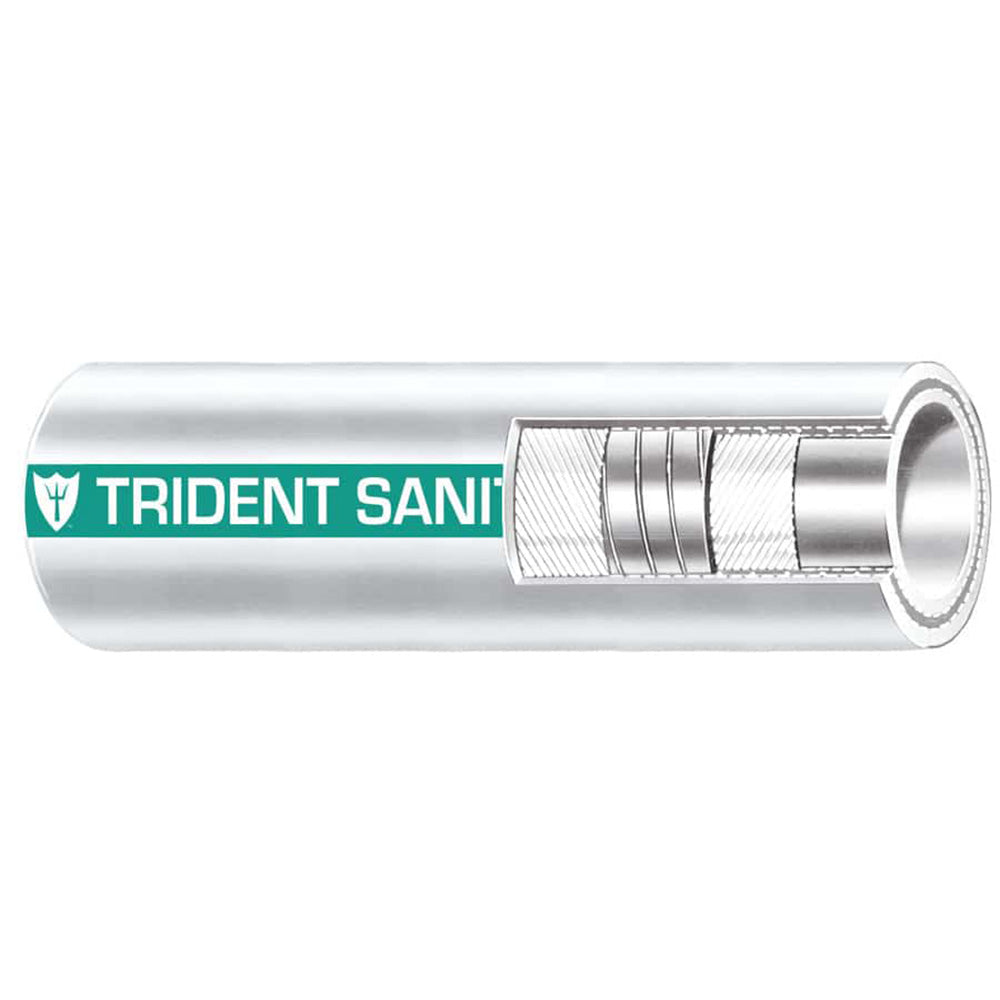

Trident Marine 1-1/2" x 50 Coil Premium Marine Sanitation Hose - White w/Green Stripe [102-1126]

1-1/2" x 50' Coil - Premium Marine Sanitation Hose - White with Green Stripe

Trident Premium Sanitation Hose resistant to odor permeation. Simply the BEST solution for marine environments, built with EPDM rubber to ensure the overall performance and resistance to odor permeation that you would expect in a sanitation hose.

Features:

• Resistance to Odor Permeation and winterizing with antifreeze
• With wire helix between 2 ply reinforcement this hose has excellent bend radius, flexibility, and fitting acceptance and retention
• This makes for easy installations with no heatgun or lubricant necessary
• 10 Year Warranty

Application:

• Premium Sanitation Hose for all head & holding tank connections
• NOT for potable water

Construction:

• Tube & Cover: EDPM/SBR Rubber
• Color: White with Green Stripe
• Reinforcement: Polyester reinforcement + spring steel wire helix
• Temperature Range: -20F-220°F (-29°C-104°C)
• Length: 50’ (15m)

Specifications:

• Inner Diameter: (inch) 1-1/2" / (mm) 38.1
• Outer Diameter: (inch) 2 / (mm) 50.8
• Working Pressure: (Psi) 60 / (bar) 4.1
• Weight: (Lb./50ft.) 44 / (Kg/m) 19.9
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

Specifications:

• Length (Feet): 50'
• ID Diameter (inches): 1-1/2"
• Box Dimensions: 5"H x 26"W x 26"L WT: 37.7 lbs
• UPC: 704917015514

Quick Guide (pdf)

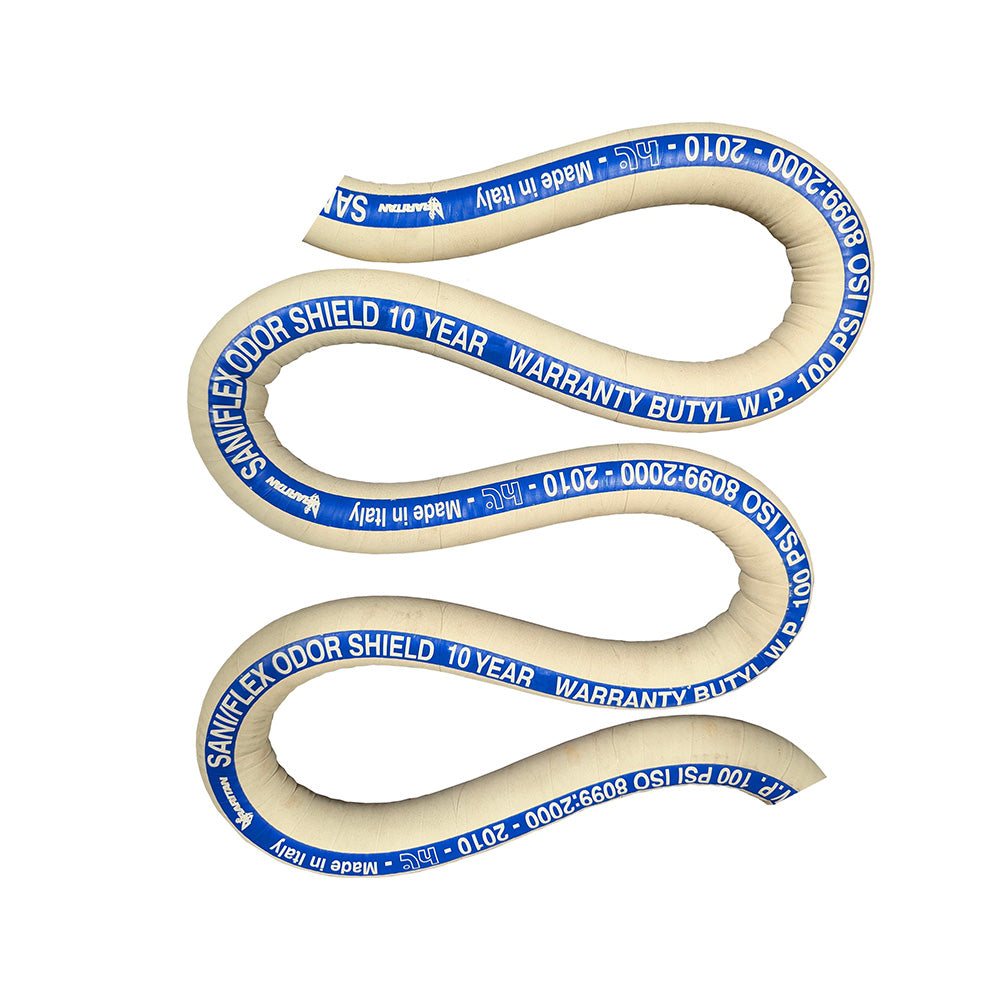

Raritan SANI/FLEX 1.5" Odor Shield Hose - 50' [SFH50]

SANI/FLEX 1.5" Odor Shield Hose - 50'

Highest quality marine sanitation hose. Butyl rubber construction has the lowest odor permeation level of any rubber or PVC material hoses. Extremely flexible for easy installation with a low bend radius of up to two times its diameter.

Features:

• Impermeability - Special butyl white rubber compound tube odor-free
• Flexibility - Allows tight bending radius making any installation easy
• Reinforcement - Double steel wire Helix with high-strength synthetic textile yarn
• Cover - White – abrasion, ozone, seawater resistant rubber
• Surface - Smooth fabric finished – antibacterial vanilla scented
• Interior - Smooth walled – no ridges – easily fits over fittings
• Warranty - 10-year guarantee against odor permeation

Specifications:

• ID: 1-1/2"
• OD: 1-7/8"
• Weight: 0.6lbs/ft.
• MAX Pressure: 105 PSI
• Burst Pressure: 315 PSI
• MAX Vacuum: 13.5 PSI
• Bend Radius: 3.15"

Quick Guide (pdf)
Brochure (pdf)

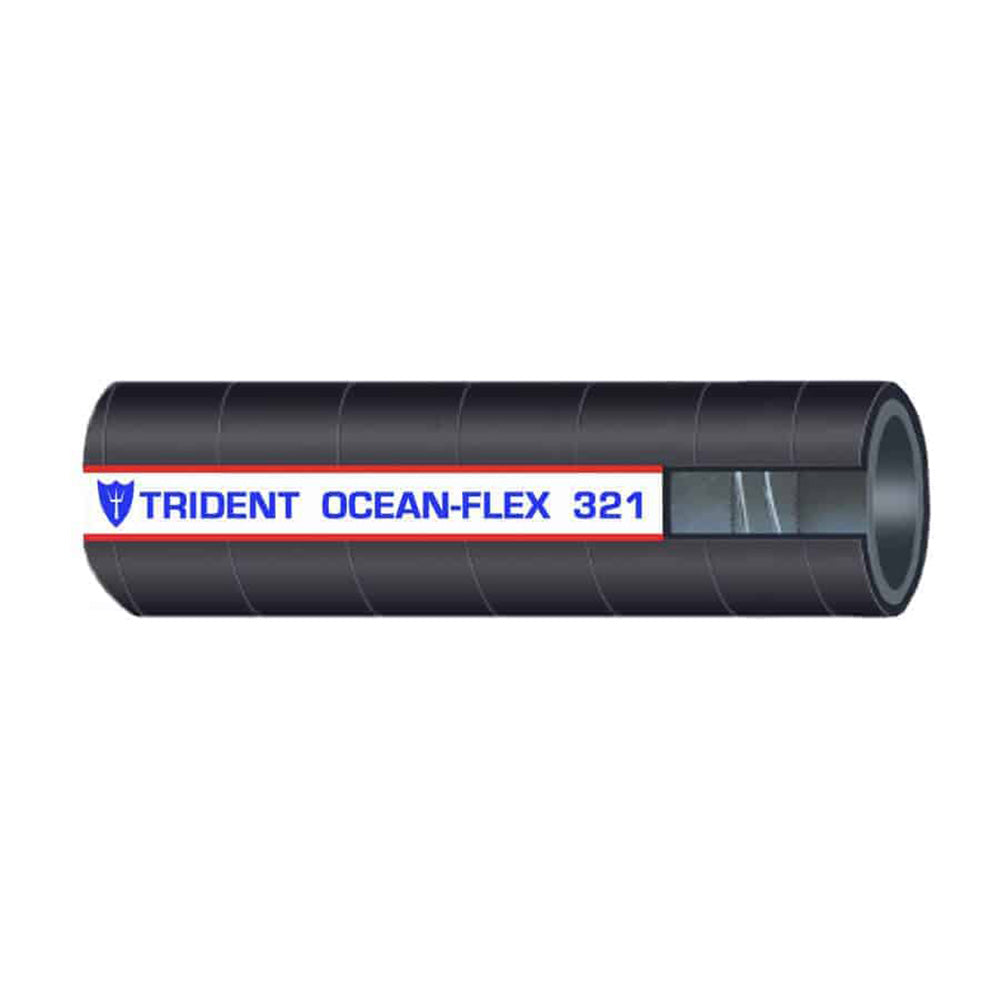

2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 31"W x 31"L WT: 38.5 lbs

Trident Marine 1-1/2" x 50' Ocean-Flex Multipurpose Hose [321-1126]

1-1/2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 30"W x 30"L WT: 37.5 lbs

Quick Guide (pdf)

Trident Marine 2-1/2" x 25' Ocean-Flex Multipurpose Hose [321-2125]

2-1/2" x 25' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2-1/2"
• Length (Feet): 25'
• Box Dimensions: 3"H x 38"W x 38"L WT: 38 lbs
• UPC: 704917018799

Quick Guide (pdf)

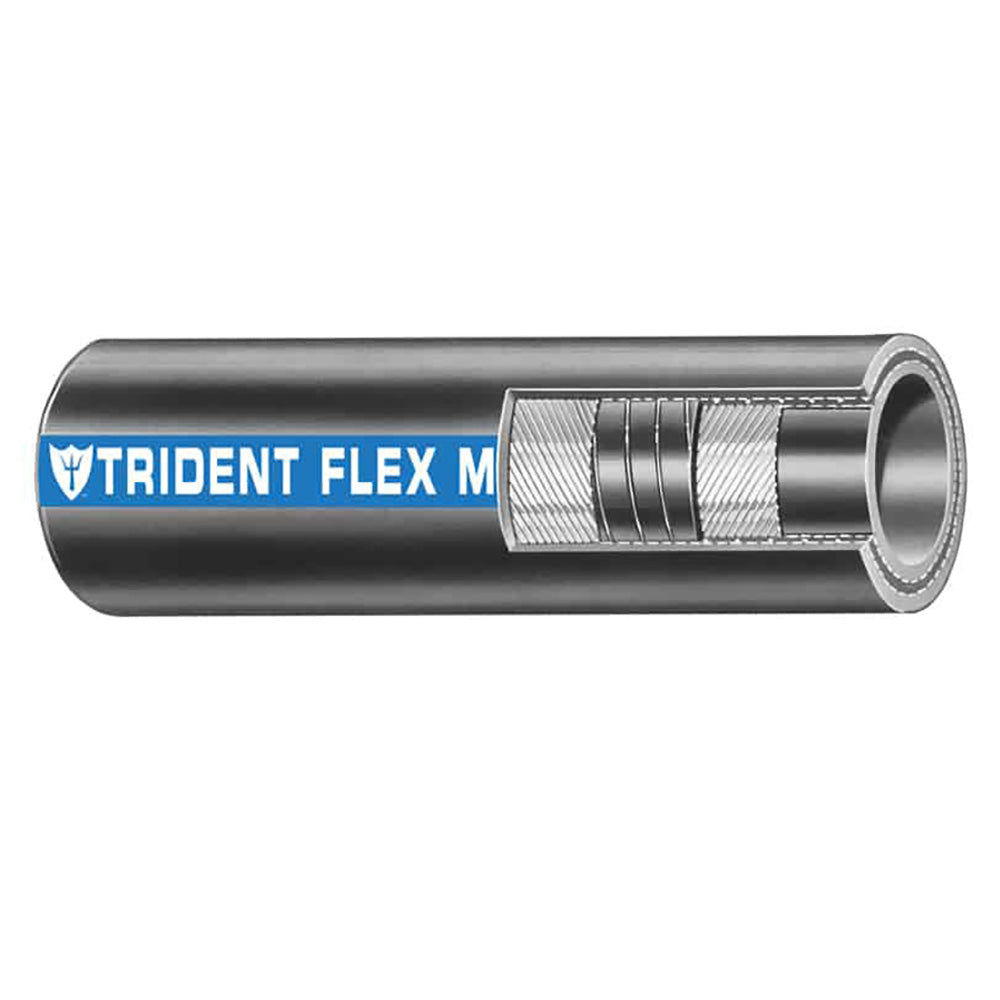

Trident Marine 1-1/2" x 50 Coil Flex Marine Wet Exhaust  Water Hose - Black [250-1126]

1-1/2" x 50' Coil - Flex Marine Wet Exhaust & Water Hose - Black

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.

Features:

• Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius
• Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses

Construction:

• Tube & Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250°F (121°C)
• Length: 50’ (15.24m)

Specifications:

• Inner Diameter: (inch) 1-1/2" / (mm) 38
• Outer Diameter: (inch) 1.97 / (mm) .05
• Working Pressure: (Psi) 60 / (bar) 4.1
• Bend Radius: (inch) 4.0" / (mm) 102
• Weight: (Lb./50ft.) 45 / (Kg/m) .518

*Burst Pressure is 4 x Working Pressure

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 5"H x 27"W x 27"L WT: 45.2 lbs
• UPC: 704917007700

Quick Guide (pdf)
