Marine Plumbing & Ventilation - Fittings

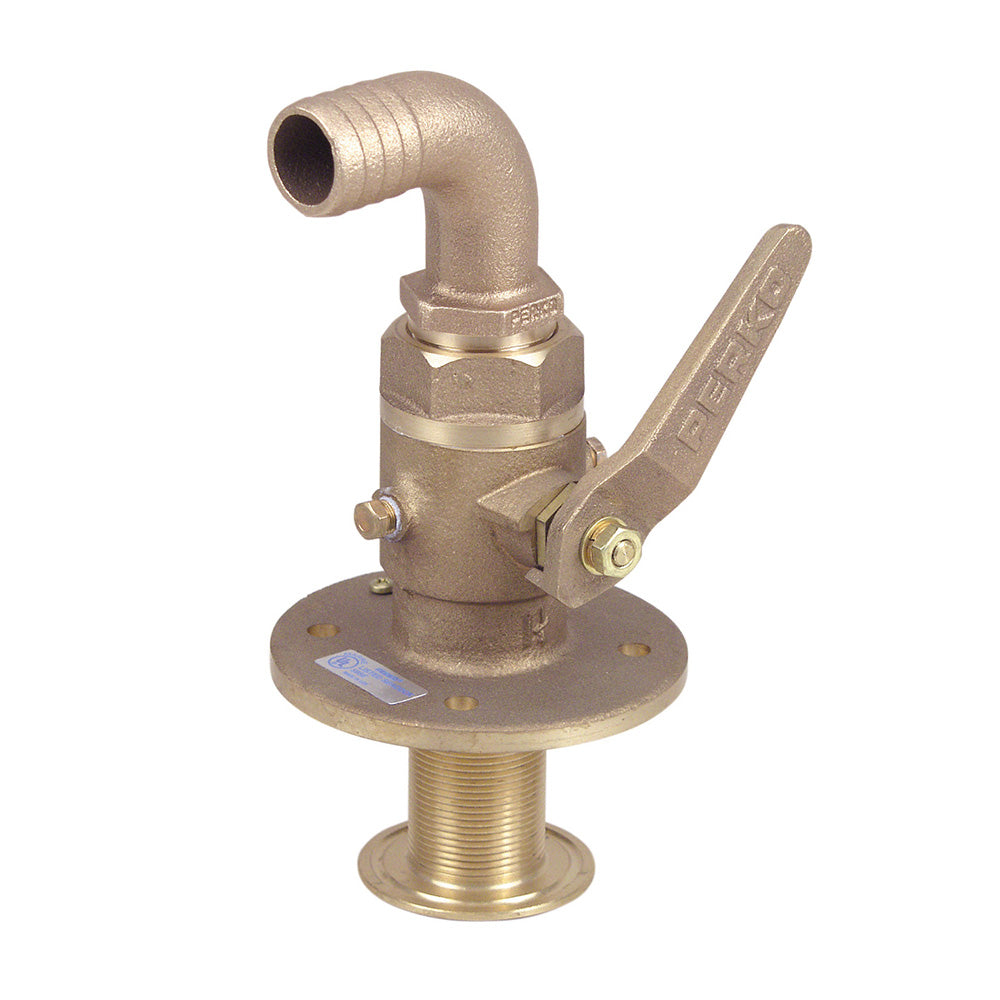

Perko 1-1/2" Seacock w/Curved Tail Piece [0834008PLB]

1-1/2" Seacock with Curved Tail Piece

This Perko seacock incorporates a polymer ball and seat, ensuring a tight seal, ease of operation, and drain plugs for winterizing.

Features:

• Handles are easily removed
• Cast bronze
• 90-degree curved hose adapter
• Includes thru-hull, hose adapter, drain plug, four pre-drilled mounting holes, and bonding screw

Specifications:

• Hose Size: 1-1/2 in.
• Pipe Size: 1-1/2 in.
• Flange Diameter: 5-1/2 in.
• Overall Height: 8-3/8 in.
• Bolt Size: 3/8

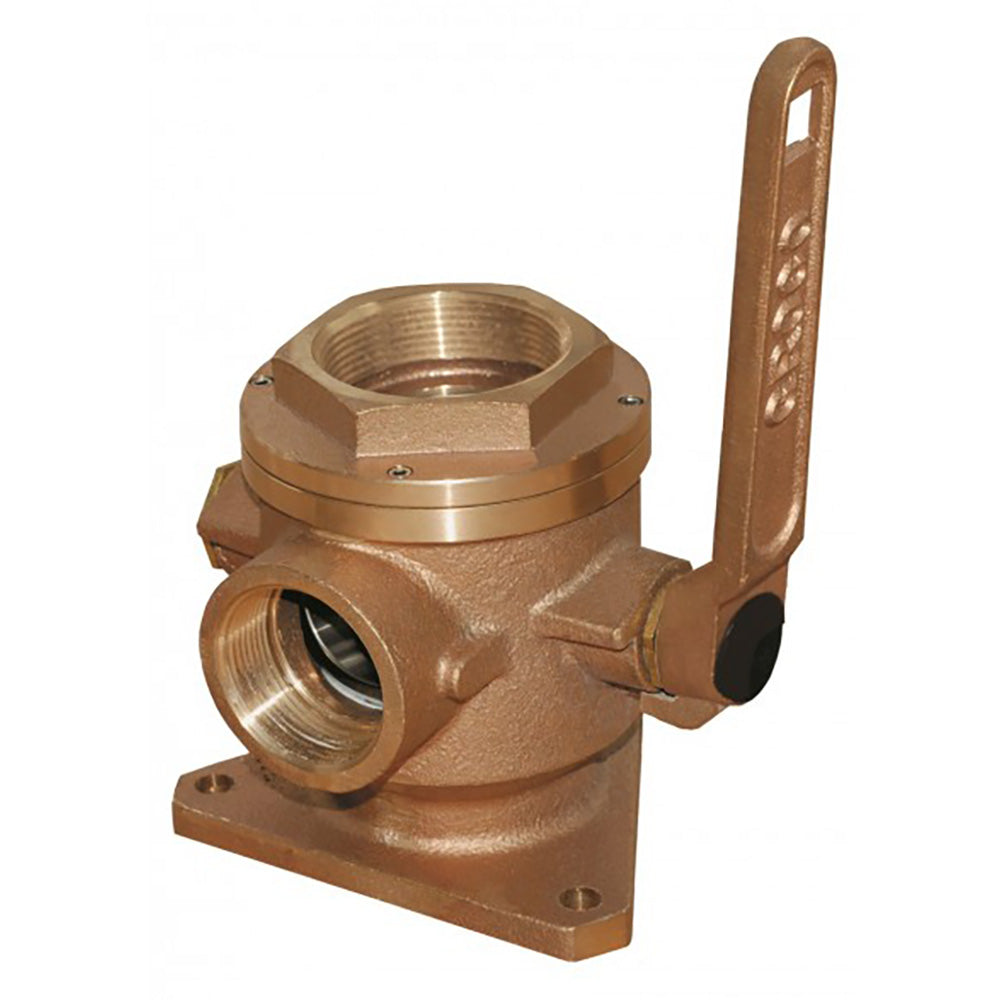

GROCO 4" Bronze Flanged Seacock  Adaptor w/3" NPT Side Port [SBV-4000-P]

Ships Direct From Manufacturer

4" Bronze Flanged Seacock & Adaptor with 3" NPT Side Port

Features:

• Two driver ports permit handle relocation
• NPT threaded side port accepts SSCV or any NPT threaded accessory
• The handle has a square hole that accepts standard ratchet; helps access hard-to-reach valves, or eases the actuation of hard-to-operate valves
• Full flow
• Serviceable while installed
• C84400 bronze construction
• Stainless steel ball and stem
• The base has a bonding attachment
• PTFE seats and seals

Dimensions:

• Thread Bottom NPS: (inch) 4"
• Thread Top NPT : (inch) 4"
• Side Port: (inch) 3" NPT

*Add a Groco Bilge Strainer to pump out remote bilge locations

Specifications:

• Construction: Bronze
• Box Dimensions: 11"H x 13"W x 23"L WT: 56.55 lbs
• UPC: 742985131170

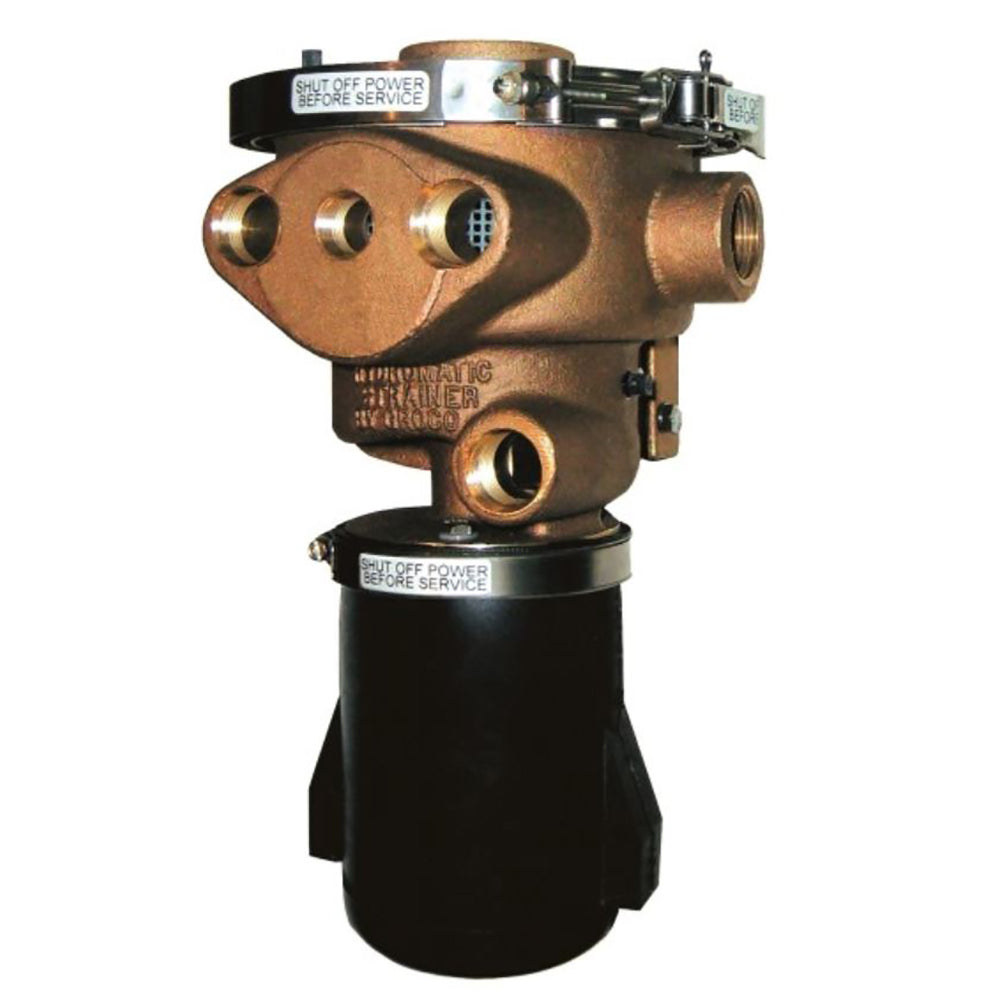

GROCO 1-1/2" Inlet Hydromatic Self-Cleaning Strainer - 12V [970-1500-12]

1-1/2" Inlet Hydromatic Self-Cleaning Strainer - 12V

Features:

• 30-second cleaning cycle is automatically performed at user-selected intervals
• Optional interface with SSA system ( initiates cleaning cycle when flow is reduced, independent of the pre-set cleaning interval
• The "Purge" option over-rides the selected cleaning interval and performs a one-time 30-second cleaning cycle
• Powerful macerator grinds debris and discharges overboard below the waterline
• "Ignition Protected" motors for DC models
• Installation can be horizontal or vertical (flooded inlet required)
• C84400 bronze construction

Specifications:

• Construction: Bronze
• Box Dimensions: 11"H x 16"W x 16"L WT: 32.35 lbs
• UPC: 742985116375

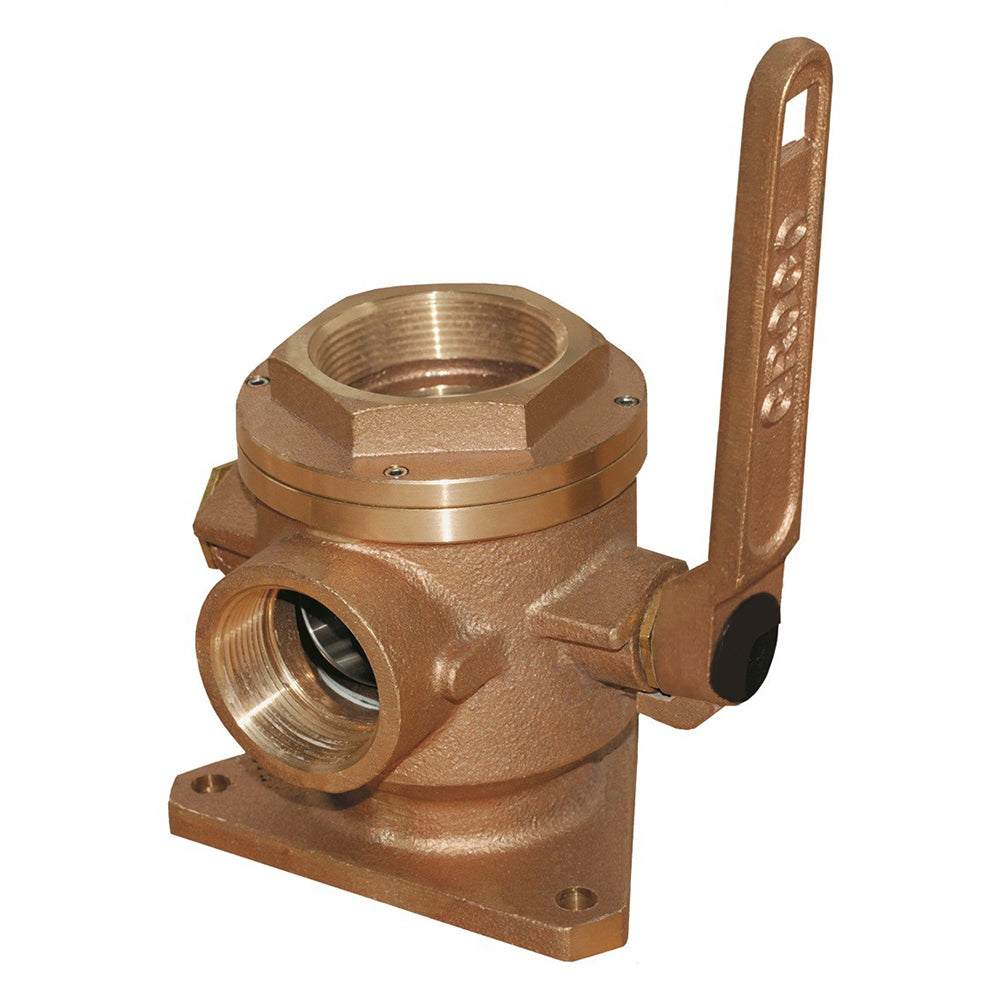

GROCO 1-1/2" Safety Seacock w/1-1/4" Side Port [SBV-1500-P]

1-1/2" Safety Seacock w/1-1/4" Side Port

Features:

• Two driver ports permit handle relocation.
• NPT threaded side port accepts SSCV or any NPT threaded accessory.
• Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
• Full flow.
• Serviceable while installed.
• C84400 bronze construction.
• Stainless steel ball and stem.
• Base has bonding attachment.
• PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

GROCO 3" Safety Seacock w/2-1/2" Side Port [SBV-3000-P]

Ships Direct From Manufacturer

3" Safety Seacock w/2-1/2" Side Port

Features:

• Two driver ports permit handle relocation.
• NPT threaded side port accepts SSCV or any NPT threaded accessory.
• Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
• Full flow.
• Serviceable while installed.
• C84400 bronze construction.
• Stainless steel ball and stem.
• Base has bonding attachment.
• PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

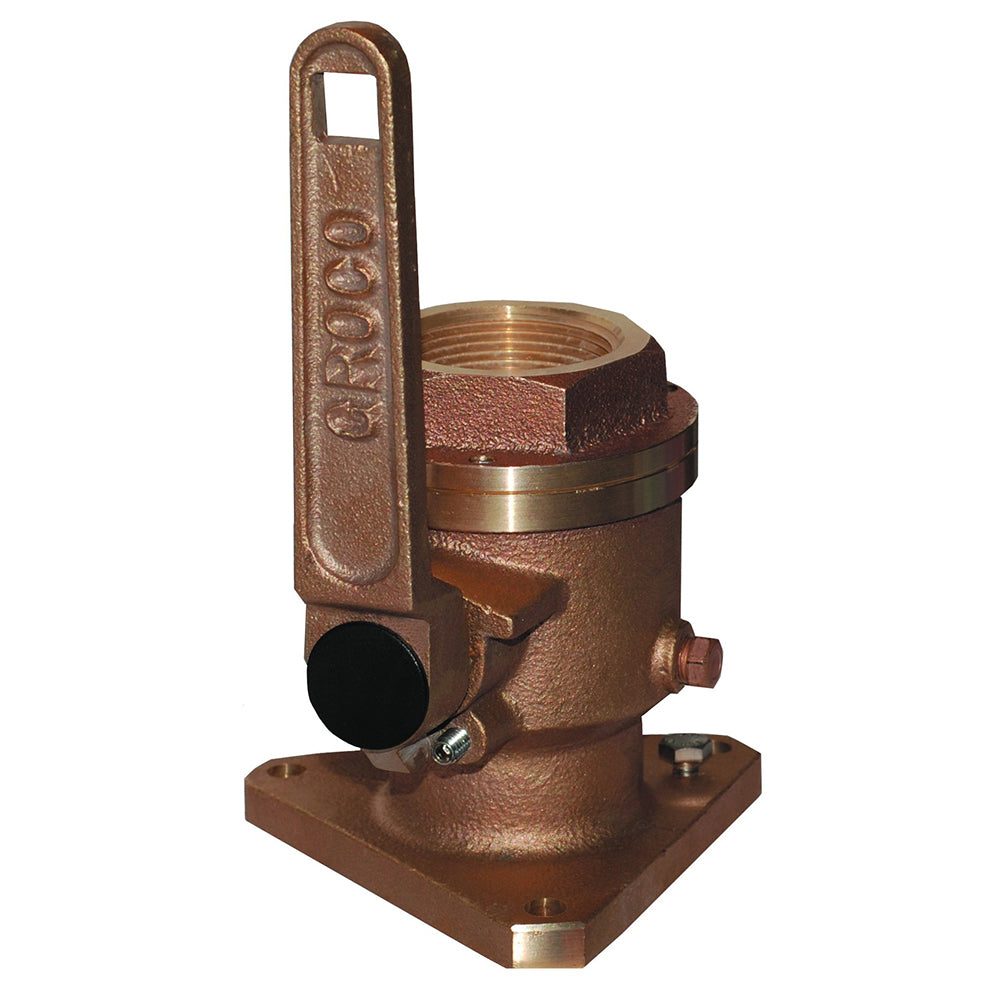

GROCO 2" Bronze Flanged Full Flow Seacock [BV-2000]

2" Bronze Flanged Full Flow Seacock

Features:

• 1-1/4" sizes and larger include one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
• Tri-flange base and mount hole pattern provide easy retrofit when replacing most popular brands
• Selectable handle rotation
• Handle has square hole to accept standard ratchet to help reach valves in hard-to-reach locations and ease actuation of difficult to operate valves
• Full flow
• C84400 bronze construction
• Stainless steel ball and stem
• PTFE seats and seals
• Serviceable while installed
• Base has bonding attachment
• UL Listed 647B

Specifications:

• Construction: Bronze
• Box Dimensions: 7"H x 7"W x 13"L WT: 10.65 lbs
• UPC: 742985002371

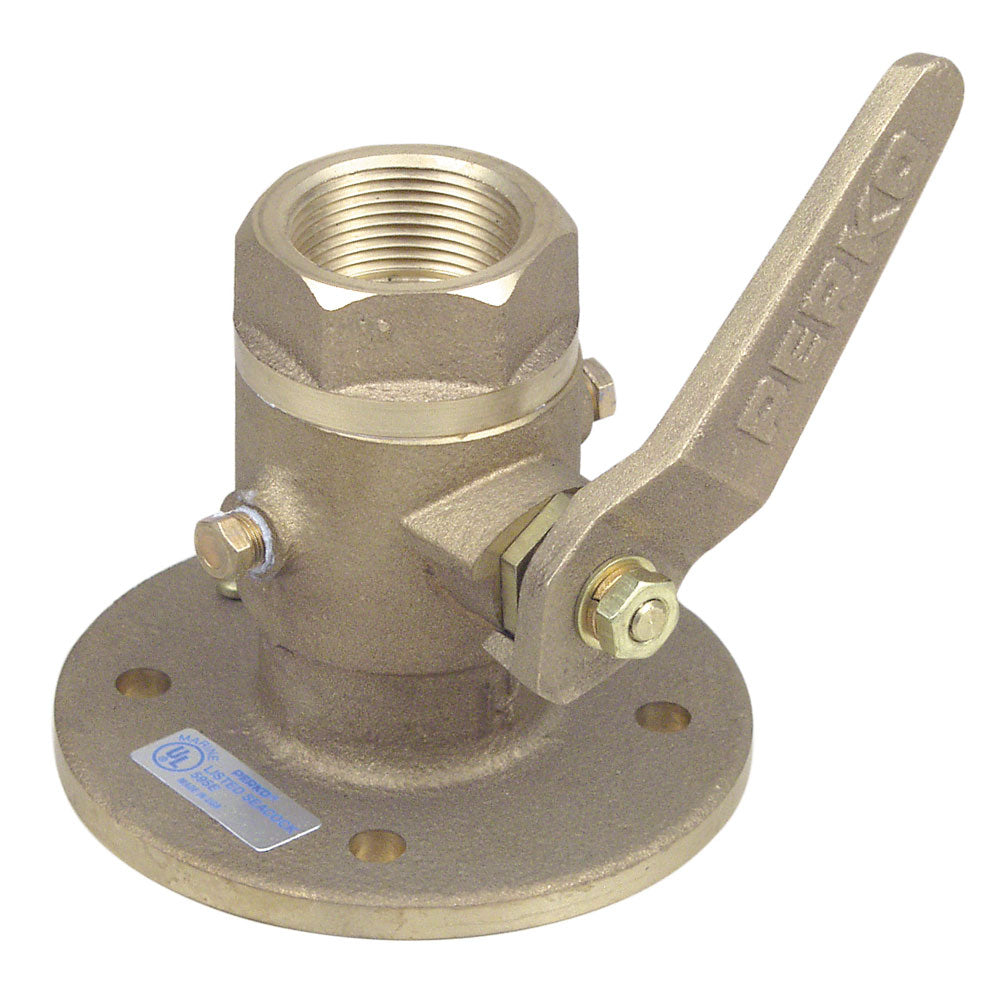

Perko 2-1/2" Seacock Ball Valve Bronze [0805010PLB]

Perko 2-1/2" Seacock Ball Valve Bronze
These valve bodies are offered to meet the needs of applications that require extra long, scoop or flush type thru-hulls.
Cast Bronze.

Technical Information:

• Flange Diameter Inches: 7-1/4"

• Overall Height Inches: 7-1/2"

• Pipe Size Inches: 2-1/2"

• Model Number: 0805010PLB

• Ship Weight: 19.6 lbs.

*Overall height is measured from the top of the hose adapter to the bottom
of the flange.

Specifications:

• Construction: Bronze
• Box Dimensions: 9"H x 10"W x 12"L WT: 20.25 lbs
• UPC: 085226679674

Quick Guide (pdf)

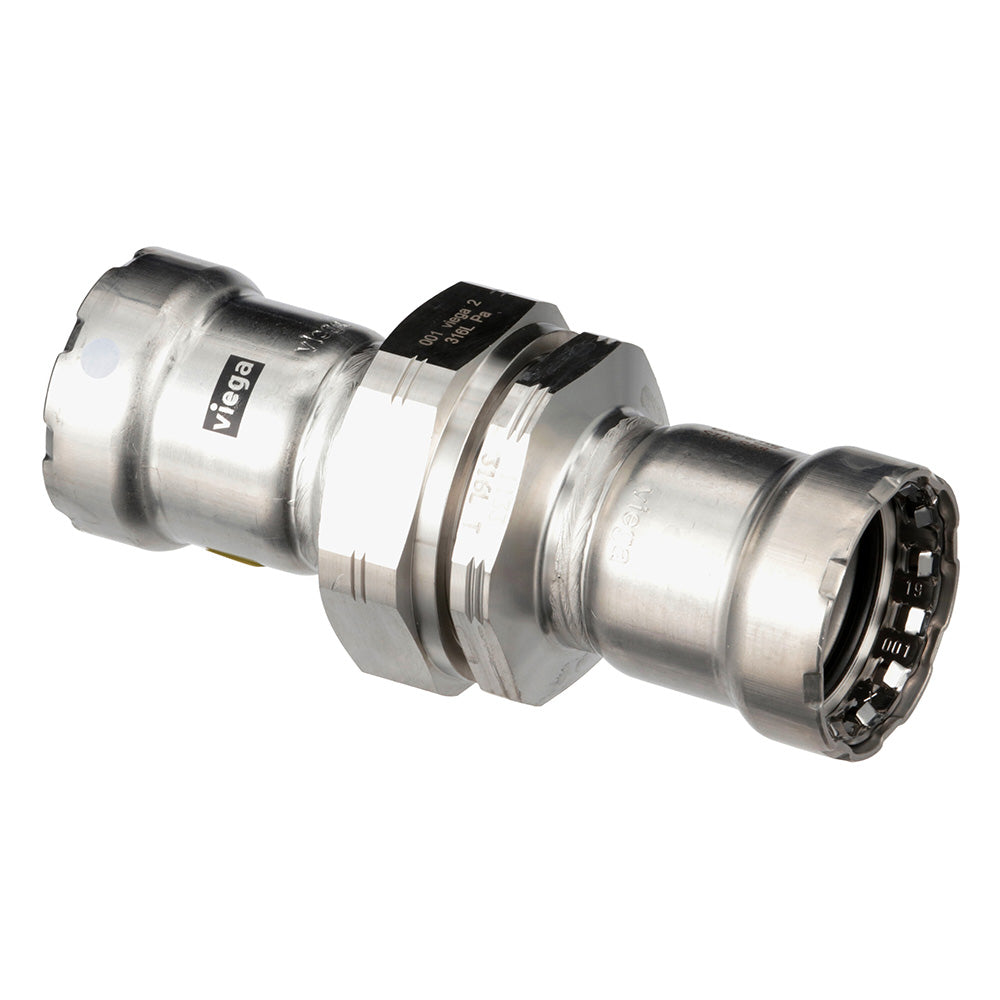

Viega MegaPress 316 FKM 2" Union [91950]

MegaPress 316 FKM 2" Union

Features:

• For use with Sch. 5 to Sch. 40 stainless steel pipe
• 316 stainless steel
• Press connection

Components:

• AFM flat gasket, FKM sealing elements, grip rings, separator rings

Specifications:

• Construction: Stainless Steel
• Box Dimensions: 5"H x 8"W x 8"L WT: 4.5 lbs
