Marine Plumbing & Ventilation - Bilge Pumps

BILGE-B-DRY Triple Pump - 12VDC [BBD-2025-123]

Triple Pump - 12VDC

BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water accumulating in your bilge. With BILGE-B-DRY, you can finally eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY? Take advantage of:

• The world’s ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the “step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
• Heavy-duty pump enclosure with improved durability, enhanced pump efficiency, and streamlined internal plumbing.
• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
• The pump diaphragm design can run dry for extended periods without damage.
• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
• Customized pump scheduling with the free Mobile App for Apple and Android devices.
• Quick disconnect wiring harness with optional connection to a helm or float switch.
• An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE & GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the “TIMER” option up to 20 minutes after boating in heavy seas or upon washdown.
• Choose the “SCHEDULE” option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

Example:

With your Smart Device, schedule your BILGE-B-DRY to run at 9:00 AM for three minutes and again at 3:00 PM for two minutes. The schedules will run daily until canceled. If at 8:00 PM you still see water in your bilge, run the on-demand Timer for up to 20 minutes to remove the remaining water.

BBD Triple Pump 12VDC:

Three motors/diaphragm pumps

20 feet of input tubing provided (for pickup)

6 feet of output tubing provided (for discharge)

Input tubing diameter (PVC or PU) - 1/4” OD

Output tubing diameter (PVC or PU) - 3/8” OD

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold separately) with a replaceable filter helps reduce the harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator, or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickup’s integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which, unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when the flow rate has decreased. You can choose to replace the filter material or replace the entire pickup. BILGE-B-DRY orders DO NOT INCLUDE the stainless hold-down bracket or inline fuse!

Specifications:

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 VDC (8 – 14 VDC)
• Max current: 1.0 amps (12 VDC)
• Idle Current: 0.05 amps (12 VDC)

Pump:

• Maximum flow: 0.75 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 85 °C
• Wi-Fi & RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 4.1 H x 6.8 W x 7 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 76 H x 172 W x 177 L
• Rectangular Pickup: 25 H x 60 W x 100 L

Weight

• 2.2 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing: 1/4" Outer Diameter
• Output tubing: 3/8" Outer Diameter
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing
• Hardness Shore A 80 or higher

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Amazon Warrior Manual Bilge Pump

Features:

• Connections: - for 38mm (1½”) bore hose
• Dimensions: - 365mm long, 200mm wide, 260mm high, with 450mm handle
• Output: - up to 135 litres/minute (30 gallons/minute)
• Double diaphragm design for maximum efficiency and added safety: each side of the pump can work independently
• Stainless steel handle with bulkhead clips
• Self-priming up to 6m. Delivery head up to 6m.
• Mounts on deck, or through deck (optional kit & bracket)
• Packaged Dimensions: L:39.00 x H:31.00 x W:22.00cm
• Actual Weight: 4.82 Kg  (Approx. 5.32 Kg packed)

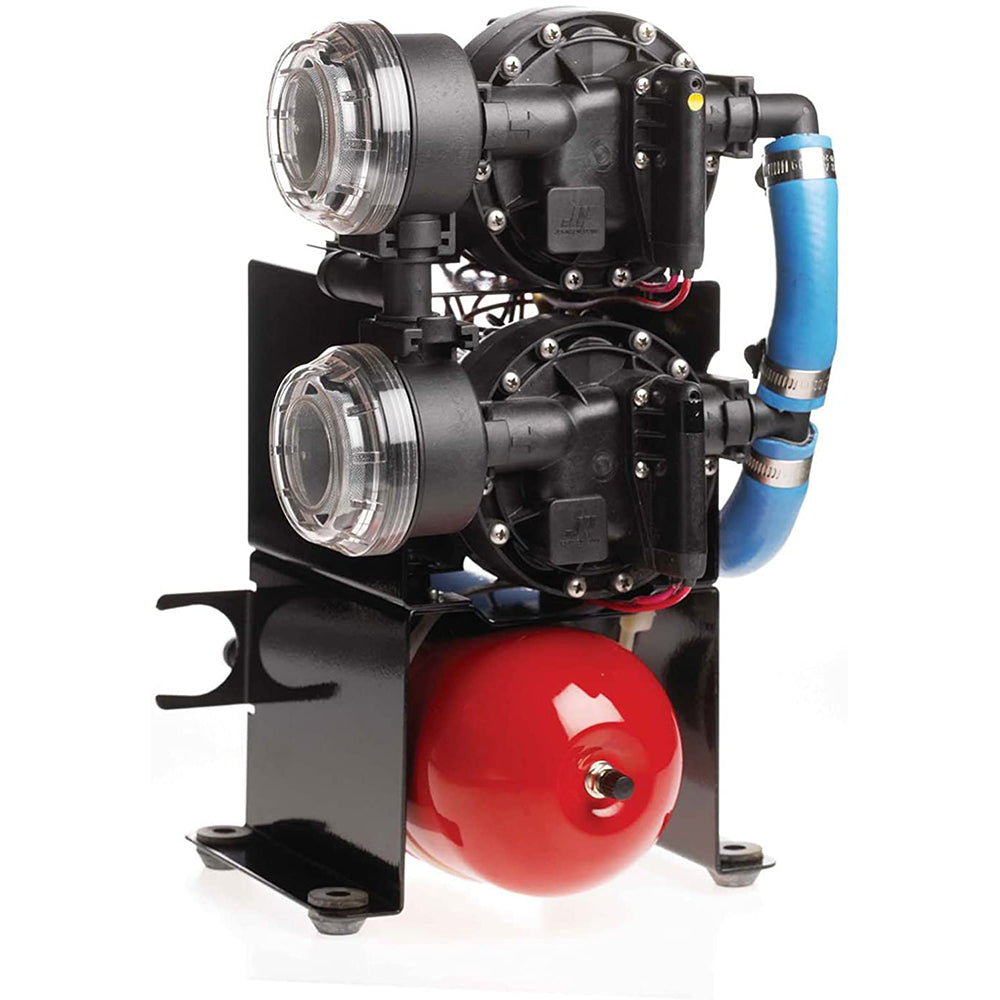

Aqua Jet Duo WPS 10.4 Gallon - 12V

High capacity unit with two parallel connected Aqua Jet WPS capacity 40 l/min fixed on a base with PUM Protector inlet strainers and a 2 liters pre-pressurized accumulator tank. Quiet and pulsation free even at low speeds, the Aqua Jet five chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sounds levels in relation to water flow are placed at a premium - such as in shower and galley applications. Operates in fresh or sea water. Self priming. Aqua Jet units have PP/PPA body, EPDM valves and santoprene diaphragm. Capacity: 10.4 GPM/Pressure Cut-Off: 41 psi/Fuse Size: 25 Amp/Connection: 3/4" hose.

Features:

• Two parallel-connected Aqua Jet WPS fixed on a base with PUM Protector inlet strainers and 2 liters pre-pressurized accumulator tank
• 5-chamber Aqua Jet WPS pumps provide a reliable "heart" for small boat and RV water pressure systems
• Lower noise and water pulsation
• 10.4 GPM Capacity

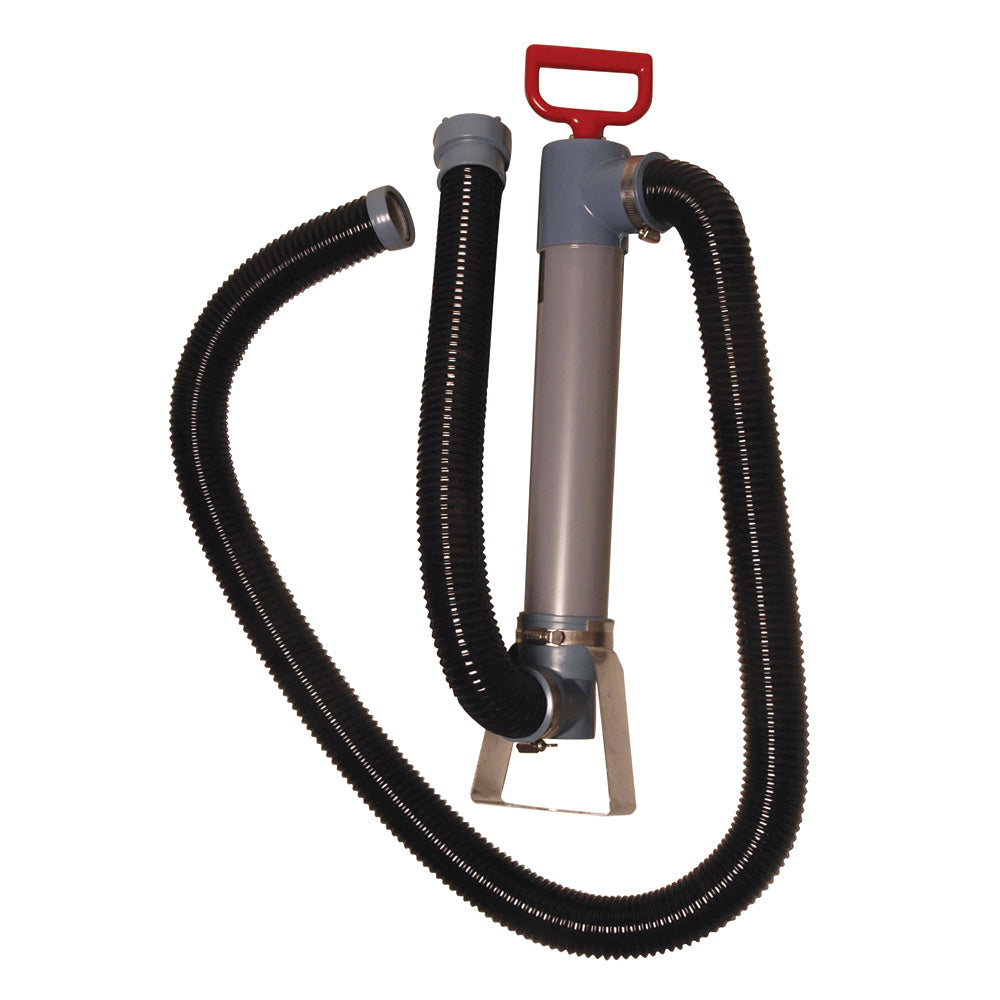

Beckson Thirsty-Mate Lifeboat & Commercial Vessel Pump - USCG Approved - 3' Inlet, 10' Outlet [519CG#3]

Thirsty-Mate High Capacity Super Pump
Coast Guard Approved for commercial use

Manufactured to exceed the original requirements of Coast Guard regulation No. 519C. The specifications of this regulation were later reduced when no hand pump other than Beckson's could pass the test requirements. Still "over built" to Beckson's higher standard.

• Length: 24"

• Diameter: 3"

• GPM: 22

• Inlet Hose: 36"

• Outlet Hose: 120"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Hour: 1320 GPH
• Gallons Per Minute: 22 GPM
• Type: Manual
• Box Dimensions: 9"H x 10"W x 30"L WT: 9.2 lbs
• UPC: 021083000244

4-Zone Dry Bilge System Add-On

The 4-Zone Splitter is the perfect companion to the Dry Bilge System, enabling powerful suction from up to four separate zones to keep your bilge dry and clean. Designed for ease of use and durability, this splitter is ideal for marine and yacht applications, ensuring efficient water removal to prevent mold, mildew, odors, and hull damage. Its quick-connect fittings allow for simple and seamless installation, while the ignition-protected design ensures safe use in marine environments.

With its high-impact, durable plastic housing and precise engineering, the 4-Zone Splitter is a long-lasting addition to your dry bilge system. Note that this splitter must be paired with the Dry Bilge System (CM-33-DBS) to operate effectively.

CAUTION: This product is designed as a supplemental low-flow system and is not a replacement for conventional bilge pumps. It should never be relied upon to maintain vessel flotation.

Features:

• 4-Zone Suction Capability: The splitter connects your COMMODORE Dry Bilge System to up to four separate zones, ensuring comprehensive water removal and a cleaner, drier bilge.
• Quick-Connect Fittings for Easy Installation: Designed with quick-connect fittings, the splitter makes plumbing connections seamless and efficient, saving you time during setup.
• High-Impact Durable Plastic Housing: Built to withstand harsh marine environments, the housing ensures durability and long-lasting performance.
• Prevents Mold, Mildew, and Odors: Keeps your bilge dry to prevent the growth of mold and mildew while eliminating musty odors and protecting hull integrity.
• Compact Design for Tight Spaces: Its lightweight and compact form allows for flexible installation in limited spaces on marine vessels and yachts.
• Safe for Marine Environments: The splitter is ignition-protected to meet ISO 8846 Marine standards, ensuring safe use in engine compartments and other critical areas.
• Works Exclusively with Commodore Dry Bilge Systems: Specifically engineered to integrate seamlessly with the CM-33-DBS for optimal performance and reliability.

Specifications:

• Weight: 1.00 lbs

Specifications:

• Gallons Per Minute: 3 GPM
• Volts: 12v
• Box Dimensions: 8"H x 9"W x 12"L WT: 8.3 lbs
• UPC: 817683023215

BILGE-B-DRY Quad Pump - 12VDC [BBD-2025-124]

Quad Pump - 12VDC

BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water accumulating in your bilge. With BILGE-B-DRY, you can finally eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY? Take advantage of:

• The world’s ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the “step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
• Heavy-duty pump enclosure with improved durability, enhanced pump efficiency, and streamlined internal plumbing.
• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
• The pump diaphragm design can run dry for extended periods without damage.
• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
• Customized pump scheduling with the free Mobile App for Apple and Android devices.

• Quick disconnect wiring harness with optional connection to a helm or float switch.
• An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE & GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the “TIMER” option up to 20 minutes after boating in heavy seas or upon washdown.
• Choose the “SCHEDULE” option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

Example:

With your Smart Device, schedule your BILGE-B-DRY to run at 9:00 AM for three minutes and again at 3:00 PM for two minutes. The schedules will run daily until canceled. If at 8:00 PM you still see water in your bilge, run the on-demand Timer for up to 20 minutes to remove the remaining water.

BBD Quad Pump 12VDC:

Four motors/diaphragm pumps

20 feet of input tubing provided (for pickup)

6 feet of output tubing provided (for discharge)

Input tubing diameter (PVC or PU) - 1/4” OD

Output tubing diameter (PVC or PU) - 3/8” OD

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold separately) with a replaceable filter helps reduce the harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator, or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickup’s integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which, unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when the flow rate has decreased. You can choose to replace the filter material or replace the entire pickup. BILGE-B-DRY orders DO NOT INCLUDE the stainless hold-down bracket or inline fuse!

Specifications:

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 VDC (8 – 14 VDC)
• Max current: 1.4 amps (12 VDC)
• Idle Current: 0.05 amps (12 VDC)

Pump:

• Maximum flow: 1.0 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 85 °C
• Wi-Fi & RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 4.1 H x 6.8 W x 7 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 76 H x 172 W x 177 L
• Rectangular Pickup: 25 H x 60 W x 100 L

Weight

• 2.4 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing: 1/4" Outer Diameter
• Output tubing: 3/8" Outer Diameter
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing

• Hardness Shore A 80 or higher

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Dry Bilge System 3.0 GPM

Keeps your bilge bone-dry!

Features:

• Equipped with built-in programmable timer for automatic usage
• Removes all still water from the bilge
• Simple installation
• Keeps your bilge clean and dry
• Preserves hull integrity
• Helps prevent mold, mildew, mustiness, odors, and rot
• 25' self-priming suction allows the system to be remotely mounted
• User programmable timer allows the user to activate the system as much, or as little, as needed
• A thin 8mm suction hose allows for easy bends and fits into tight spaces
• An Automatic-Off-Manual toggle switch allows the user to activate the system manually in addition to automatically
• Quick-connect fittings allow for simple plumbing installation
• High absorption suction base ensures a dry bilge
• Ignition Protected - ISO 8846 Marine/SAE J1171 Marine
• Can suction up to 4-zones with a multi-zone splitter (sold separately)

Specifications:

• Gallons Per Minute: 3 GPM
• Operation: Automatic
• Type: Electric
• Volts: 12v
• Box Dimensions: 7"H x 8"W x 13"L WT: 8 lbs
• UPC: 817683023208

Jabsco Maxi Puppy 3000 12V Flexible Impeller Pump [23610-3003]

Maxi Puppy 3000 12V Flexible Impeller Pump

Maxi Puppy self-priming pump 12VDC. Ports ½” BSP threaded (use ¾” hose adapters), plus connections for 25mm (1”) bore hose.

Features:

• Connections: - for 25mm (1”) bore hose or 1/2" BSP
• Dimensions: - 220mm long, 120mm wide, 85mm high
• Fuse Size: - 25(amp)
• Output: - up to 45 litres/minute (10 gallons/minute).
• High capacity, continuously rated bilge pump
• Self priming up to 2.4m vertical lift
• Simple, fully serviceable design with few wearing parts
• Can generate pressures up to 1 bar (15 psi)
• Bronze body, stainless steel shaft
• Packaged Dimensions: L:28.00 x H:13.00 x W:15.00cm
• Actual Weight: 3.85 Kg  (Approx. 4.35 Kg packed)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
