i09 9,000 BTU 12V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle Heat

The Velair compact DC air conditioning units are powered directly by 12 volts from the boat’s battery bank, without the need for a generator or inverter.

VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.

The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotated for easier on-board installation.

Specifications:

• Cooling Capacity Range: 2500-9000 BTU/h
• Power Supply Voltage: 12 Volts Direct Current (12VDC)
• Power Consumption Cooling (Max): 45 Amps
• Power Consumption Eco Mode: 18 Amps
• Max Air Flow: 200 CFM
• Air Exit Duct Diameter: 4"
• Return Grill Minimum Size: 62 in²
• Supply Grill Minimum Size: 39 in²
• Minimum Seawater Flow: 3.2 GPM
• Refrigerant: R32 (330g)
• Weight: 55.1 LBS
• Cooling unit dimensions (with electric box): 22.5" x 12.6" x 12.6"
• Control Panel Cable Length: 26'/8m

Velair air conditioners are designed and manufactured in Italy and comply with electromagnetic compatibility (EMC) regulations.

Compact Velair DC air conditioning units include a Smart M7 Touch wall-mount control panel with an elegant, ultra-thin design and integrated room temperature sensor, electronic LED control with touch interface, and a magnetic installation frame on a standard 503-sized box that does not require screws for connection to the panel.

Specifications:

• Capacity (BTU): 9,000 BTU
• Maximum Air Flow: 200 CFM
• Refrigerant Type: R32
• Sea Water Flow Rate: 3.2 GPM
• Voltage - Input Range (Volts): 12
• Box Dimensions: 16"H x 19"W x 28"L WT: 59.65 lbs

Velair Compact i16VSD SMART Marine Air Conditioner Unit - 115V - 16,000 BTU (Generation 2) [24832JU]

Ships Direct From Manufacturer

Compact i16VSD  SMART Marine Air Conditioner Unit - 115V - 16,000 BTU (Generation 2)

Velair's i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes.  VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a  brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on the ambient and set temperature.  The compressor also operates at maximum power to cool rapidly.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• The cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

• Removable electric box for compact applications

Technical Specifications:

• Input voltage: 115 V
• Refrigerant type: R32
• Heat Pump: Yes
• Cooling Capacity - 16,000 BTU
• Maximum Air Flow: 550 m3/h
• Air Duct Diameter: 5" (125mm)
• Sea Water Flow Rate: 4.5 gpm/17 L/min
• Dimensions L x H x P (with electrical box): 25.6" x 13" x 14" (650 x 330 x 355 cm)
• Weight: 61.7 lbs (28 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25' (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Capacity (BTU): 16,000 BTU
• Maximum Air Flow: 323 CFM
• Refrigerant Type: R32
• Sea Water Flow Rate: 4.5 GPM
• Voltage - Input Range (Volts): 115v
• Box Dimensions: 17"H x 19"W x 28"L WT: 69.05 lbs
• UPC: 702755055815

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

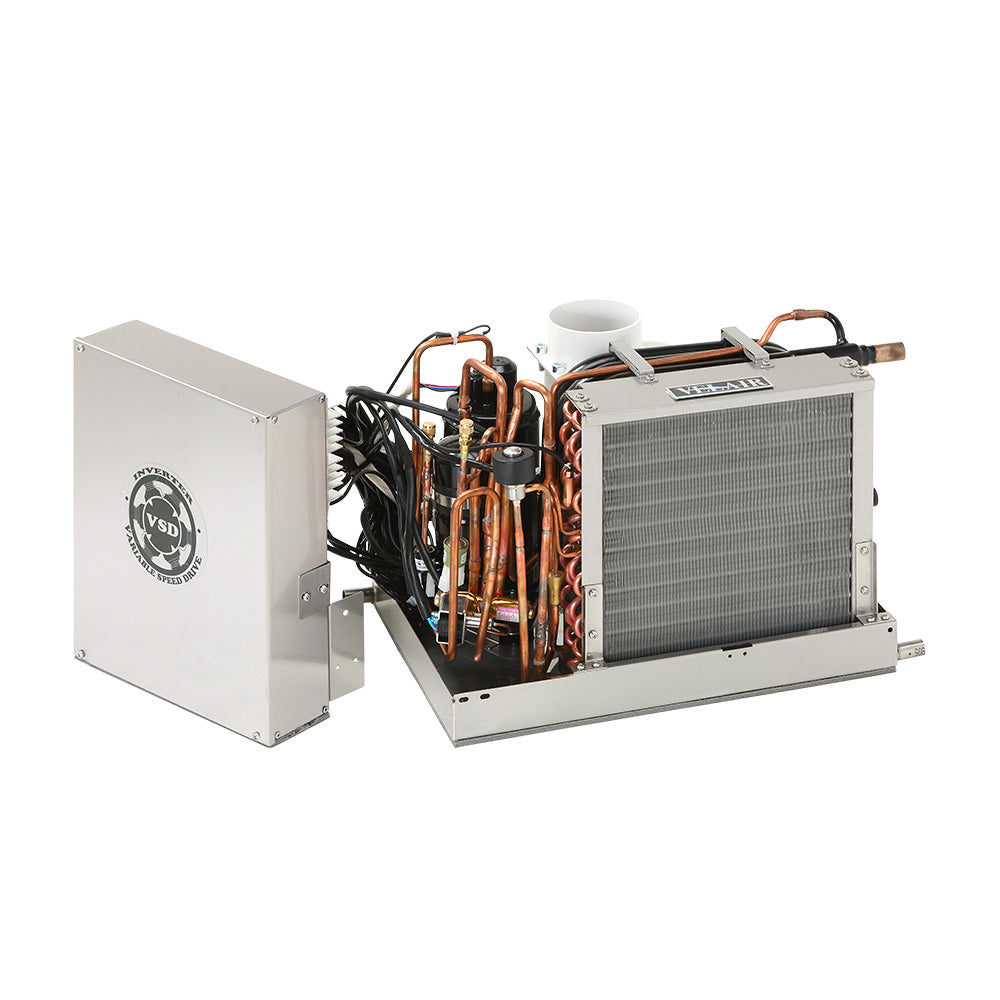

Velair Compact i10VSD SMART Marine Air Conditioner Unit - 230VAC- 10,000 BTU (Generation 2) [24831GW]

Ships Direct From Manufacturer

Compact i10VSD SMART Marine Air Conditioner Unit - 230VAC- 10,000 BTU (Generation 2)

Velair's i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes.  VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on ambient and set temperature.  The compressor also operates at maximum power to cool rapidly.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• The cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

• Removable electric box for compact applications

Technical Specifications:

• Input voltage - 1 PH 230VAC 50/60Hz
• Refrigerant type - R410A
• Heat Pump - Yes
• Cooling Capacity - 10,000 BTU
• Maximum Air Flow - 400 m3/h
• Air Duct Diameter - 4"
• Sea Water Flow Rate - 3.7 gpm/12 l/min
• Dimensions (H x W x D) - 22.5" x 12.6" x 12.7" (57.1 x 32 x 32.3 cm)
• Weight - 55.1 lbs (25 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25' (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Capacity (BTU): 10,000 BTU
• Maximum Air Flow: 235 CFM
• Refrigerant Type: R410A
• Sea Water Flow Rate: 3.7 GPM
• Voltage - Input Range (Volts): 230v
• Box Dimensions: 17"H x 19"W x 27"L WT: 69 lbs
• UPC: 702755055808

Velair Compact i16VSD Smart - VSD Inverter Air Conditioning Unit - 230V - 16,000 BTU [24832JW]

Velair i16 VSD Smart Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivers cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve; R32 refrigerant.

The compressor continuously changes its running speed depending on ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature reduces the power and electric consumption. In this way, it maintains the optimal comfort level with the minimum consumption. The inverter works between 20 and 100 Hz.

Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.

Features:

• Heat pump reverse cycle operation
• 0,5°C temperature fluctuation
• Compressor noise and vibrations are almost zero
• No current peaks during start-up
• Overall reduction in electricity consumption
• Constant Flow technology fan
• Twin Rotary compressors
• The constant temperature of the airflow
• Increase in component lifetime
• Wall touch display
• WIFI: remote control via smartphone
• Designed and manufactured in Italy

In the Box:

• Self-contained AC unit
• Digital control and 26.25' (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Capacity (BTU): 16,000 BTU
• Maximum Air Flow: 323 CFM
• Refrigerant Type: R410A
• Sea Water Flow Rate: 4.5 GPM
• Voltage - Input Range (Volts): 230v
• Box Dimensions: 16"H x 18"W x 27"L WT: 67.05 lbs
• UPC: 702755055822

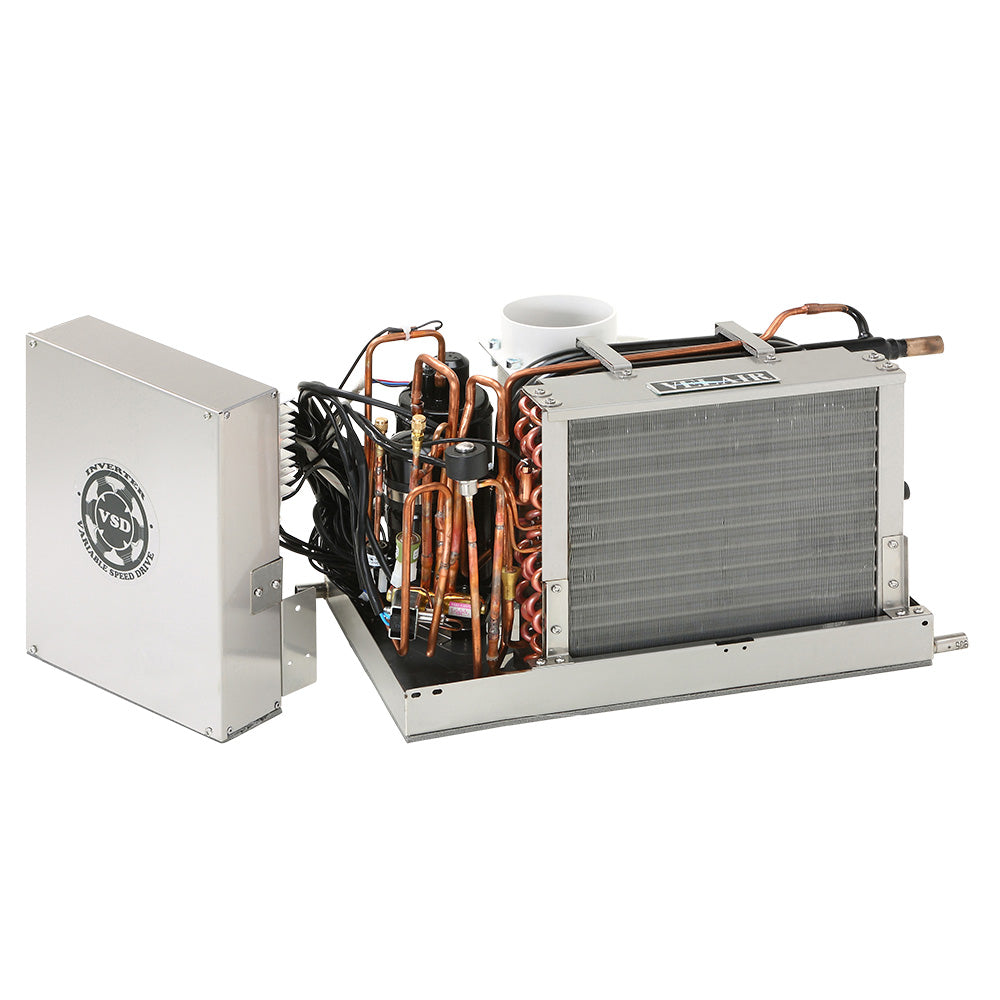

Velair Compact i21VSD Marine Air Conditioner Unit - 230V - 21,000 BTU [COMPACT I21-230]

Velair's i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption and no more more start-up power spikes.  VSD units offer top comfort with no temperature or humidity fluctuation and works properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - compressor featuring a  brushless DC motor and an inverter that constantly controls speed and cooling power delivered.

The compressor continuously changes its running speed depending on ambient and set temperature.  The compressor also operates at maximum power to cool rapidly.

Velair Part Number 22571WW

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• Cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Technical Specifications:

• Input voltage - 1 PH 230VAC 50/60Hz
• Refrigerant type - R410A
• Heat Pump - Yes
• Cooling Capacity - 21,000 BTU
• Maximum Air Flow - 800 m^3/h
• Air Duct Diameter - 6"
• Sea Water Flow Rate - 5.3 gpm/20 l/min
• Dimensions (H x W x D) - 28.7" x 17.5" x 12.7" (73 x 44.5 x 32.3 cm)
• Weight - 88.2 lbs (40 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25' (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Capacity (BTU): 21,000 BTU
• Maximum Air Flow: 470 CFM
• Refrigerant Type: R410A
• Sea Water Flow Rate: 5.3 GPM
• Voltage - Input Range (Volts): 230v
• Box Dimensions: 31"H x 32"W x 40"L WT: 166 lbs
• UPC: 702755052289

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Compact i10VSD SMART Marine Air Conditioner Unit - 115V - 10,000 BTU (Generation 2)

Velair's i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes.  VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on the ambient and set temperature.  The compressor also operates at maximum power to cool rapidly.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• The cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

• Removable electric box for compact applications

Technical Specifications:

• Input voltage: 115 V
• Refrigerant type: R32
• Heat Pump: Yes
• Cooling Capacity - 10,000 BTU
• Maximum Air Flow: 400 m3/h
• Air Duct Diameter: 4"
• Sea Water Flow Rate: 3.2 gpm/ 12 L/min
• Dimensions L x H x P (with electrical box): 22.5" x 12.6" x 12.7" (571 x 320 x 323 cm)
• Weight: 55.1 lbs (25 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25' (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Capacity (BTU): 10,000 BTU
• Maximum Air Flow: 235 CFM
• Refrigerant Type: R32
• Sea Water Flow Rate: 3.2 GPM
• Voltage - Input Range (Volts): 115v
• Box Dimensions: 16"H x 19"W x 27"L WT: 60.8 lbs
• UPC: 702755055792
