Marine Plumbing & Ventilation - Accessories

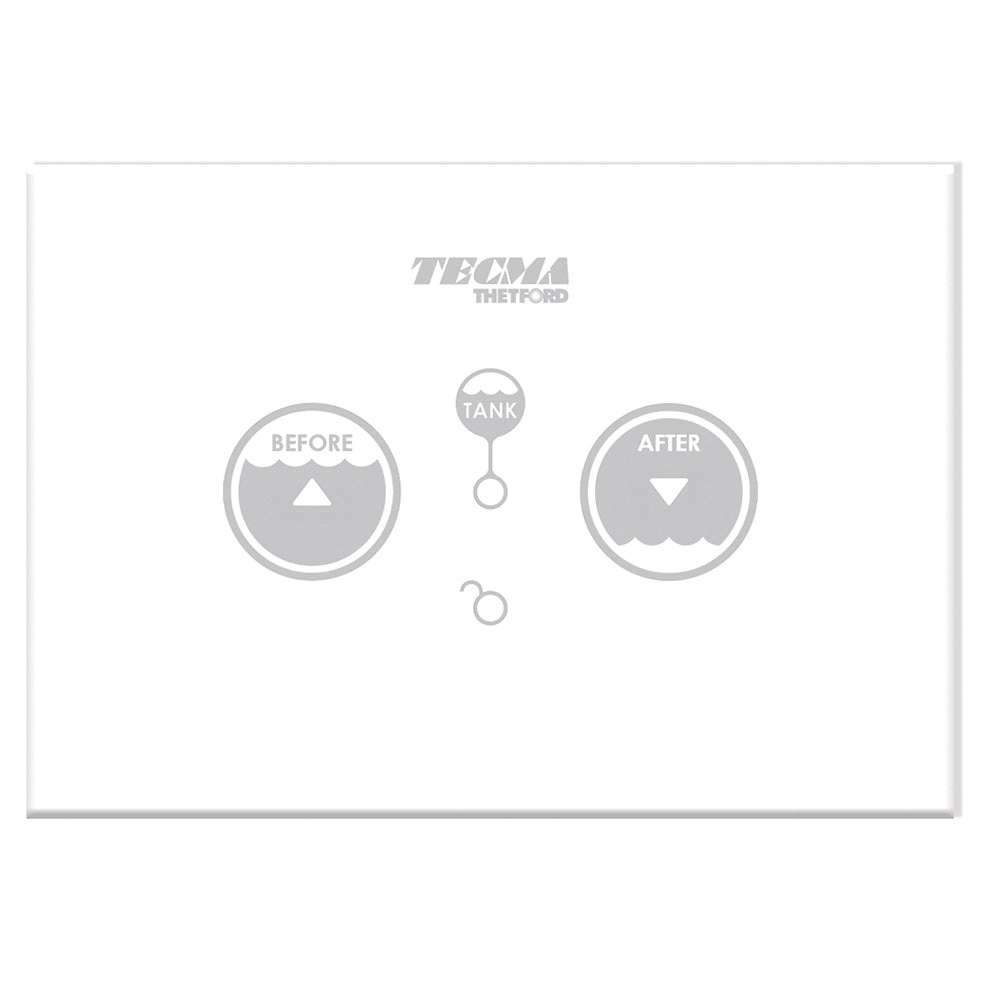

Touch SFT 2-Button Control Panel

Touch control panel made of hi-tech glass and LED backlighting with a proximity sensor. Design and high technology combined with respect for the budget.

Ultimate touch control panel made of hi-tech tempered glass and LED back lighting with Smart Flush Technology: mooring and sailing mode, water amount trim, overfill protection, and tank monitoring.

Specifications:

• Type: Misc
• Box Dimensions: 5"H x 6"W x 6"L WT: 2.15 lbs
• UPC: 850080338728

ElectroScan Control Assembly - 12V

The ElectroScan control assembly for 12-volt systems operates the ElectroScan that can be used with both manual and electric toilets to treat waste. The ElectroScan system creates a natural disinfectant from salt water and automatically treats the waste at levels that are environmentally safe for discharge. The ElectroScan control assembly for 12-volt systems can be added or replaced as needed.

The newest control mounts away from the tank to allow installation in a dry area. The main computer board allows the system to sense the functioning of the treatment cycle by reading key data and returning information to the user on a display, by utilizing this technology.

The Electroscan can use less power than previous versions of the system. The original system was called the Lectra/San.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

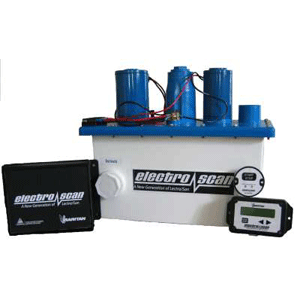

electro scan® Treatment System - 12v

The simple and basic operation of this system is as follows: the system needs salt water in order to operate properly and salt can be added when not in full seawater conditions. When the system is activated the electrical charge applied to the patented plates generates the disinfectant to kill viruses and bacteria. As that disinfectant is generated the high speed macerator breaks apart the waste allowing greater contact between waste and disinfectant.  If your toilet uses freshwater we recommend considering the Purasan.

The Electroscan is a flow through device so once the toilet is flushed it pushes out previously treated waste and begins treating the flush that has just entered the first macerating chamber.

Features:

• Most popular USGC certified Type 1 MSD (Marine Sanitation Device)
• Power requirements have been reduced by 36% - each cycle uses only 1.2 amp hours of power
• Generates its own natural disinfectant from salt water
• Coated electrodes use salt water to kill bacteria and viruses without using harmful chemicals
• Records each treatment cycle and stores key information in non-volative memory that can be summarized on the LCD display or downloaded to a PC
• Single button operation is possible
• Requires sea water salinity or salt feed tank

Benefits:

• Can be used with both manual and electric toilets
• Treats each flush as waste is generated
• Discharges with treatment levels that are safe for environmentally sensitive areas
• Easy installation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Holding Tank Treatment
• Box Dimensions: 11"H x 17"W x 18"L WT: 23 lbs
• UPC: 085462018688

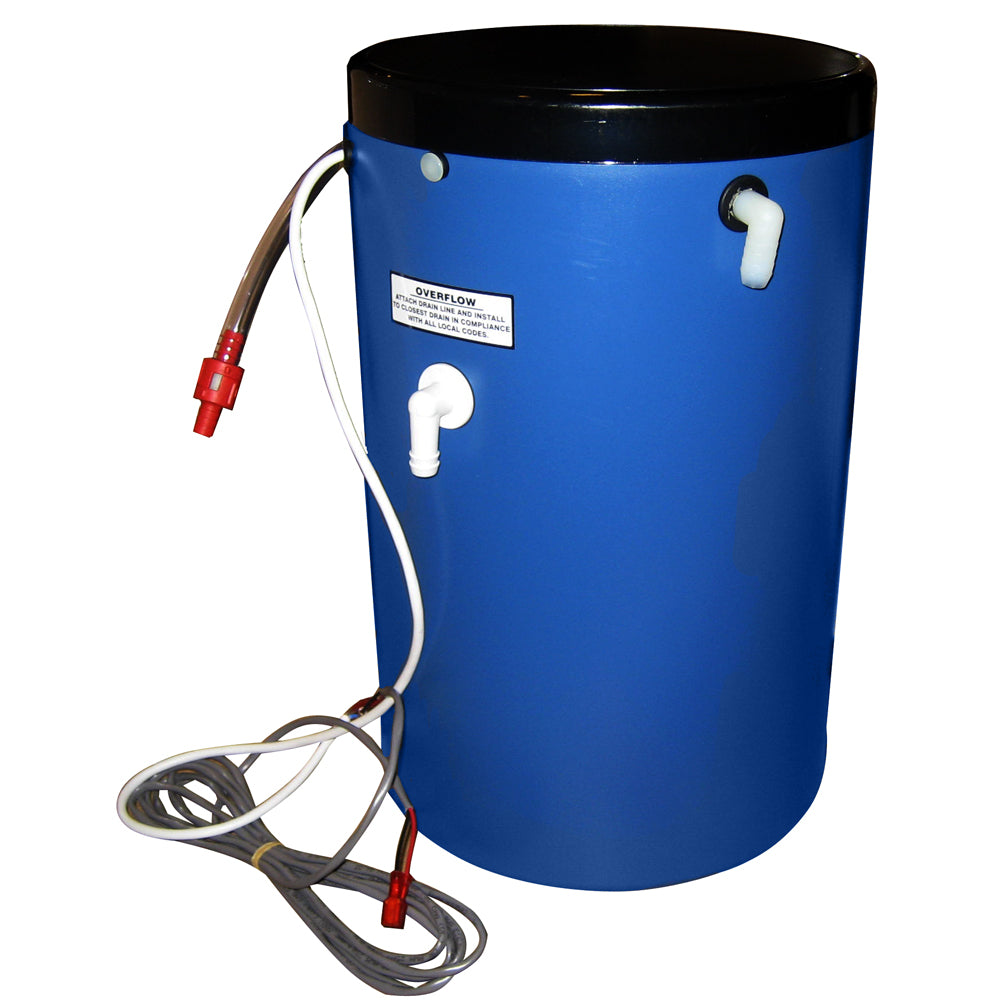

Raritan 4 Gallon Salt Feed Tank w/12V Pump [32-3006]

4 Gallon Salt Feed Tank with 12V Pump

The Four Gallon Salt Feed System with Pump is designed for boats that operate in fresh or brackish water and can only be used with the Lectra/San® MC™ or electro-scan™ Type I MSDs. The unit’s Control Panel monitors salinity and salt solution will automatically be added to the MSD when needed. Pressurized freshwater is required—a minimum of 15 psi (103 kPa) working pressure.

The simple and basic operation of the system is as follows: the system needs salt water to operate properly and salt can be added when not in full seawater conditions. When the system is activated the electrical charge applied to the patented plates generates the disinfectant to kill viruses and bacteria. As that disinfectant is generated the high-speed macerator breaks apart the waste allowing greater contact between waste and disinfectant.  If your toilet uses freshwater we recommend considering the Purasan.

Specifications:

• Type: Holding Tanks
• Box Dimensions: 11"H x 11"W x 18"L WT: 6.3 lbs
• UPC: 085462044687

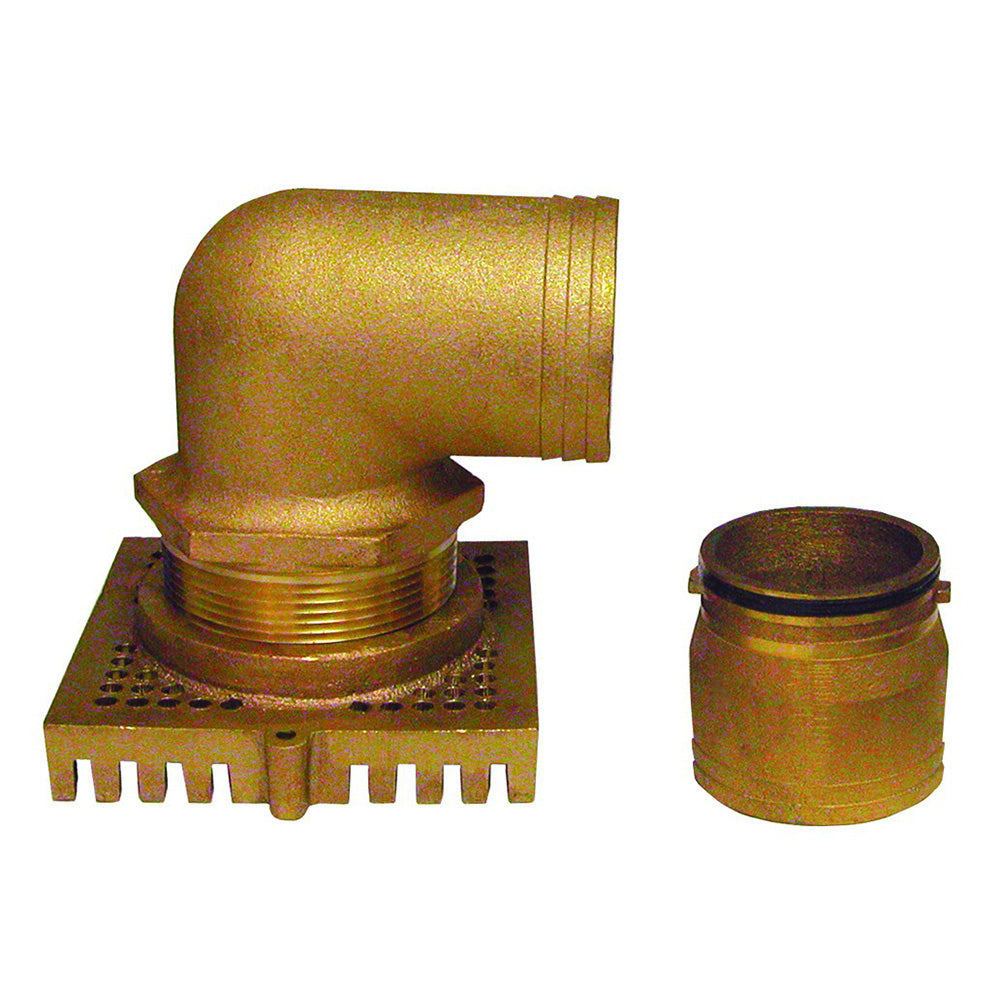

Bilge Strainer Adaptor Kit for SBV-2500 & SSC-2500

This GROCO bronze bilge strainer adaptor kit allows for easy bilge strainer connection to GROCO SBV-2500 and SSC-2500

Features:

• Fits SBV-2500 or SSC-2500
• C84400 bronze
• Fitting and adaptor connections for SSC and SBV included
• Drilled top holes, cast side slots
• NPT thread
• Mounting ears

Bilge Strainer Adaptor Kit for SBV-2000 & SSC-2000

This GROCO bronze bilge strainer adaptor kit allows for easy bilge strainer connection to GROCO SBV-2000 and SSC-2000

Features:

• Fits SBV-2000 or SSC-2000
• C84400 bronze
• Fitting and adaptor connections for SSC and SBV included
• Drilled top holes, cast side slots
• NPT thread
• Mounting ears

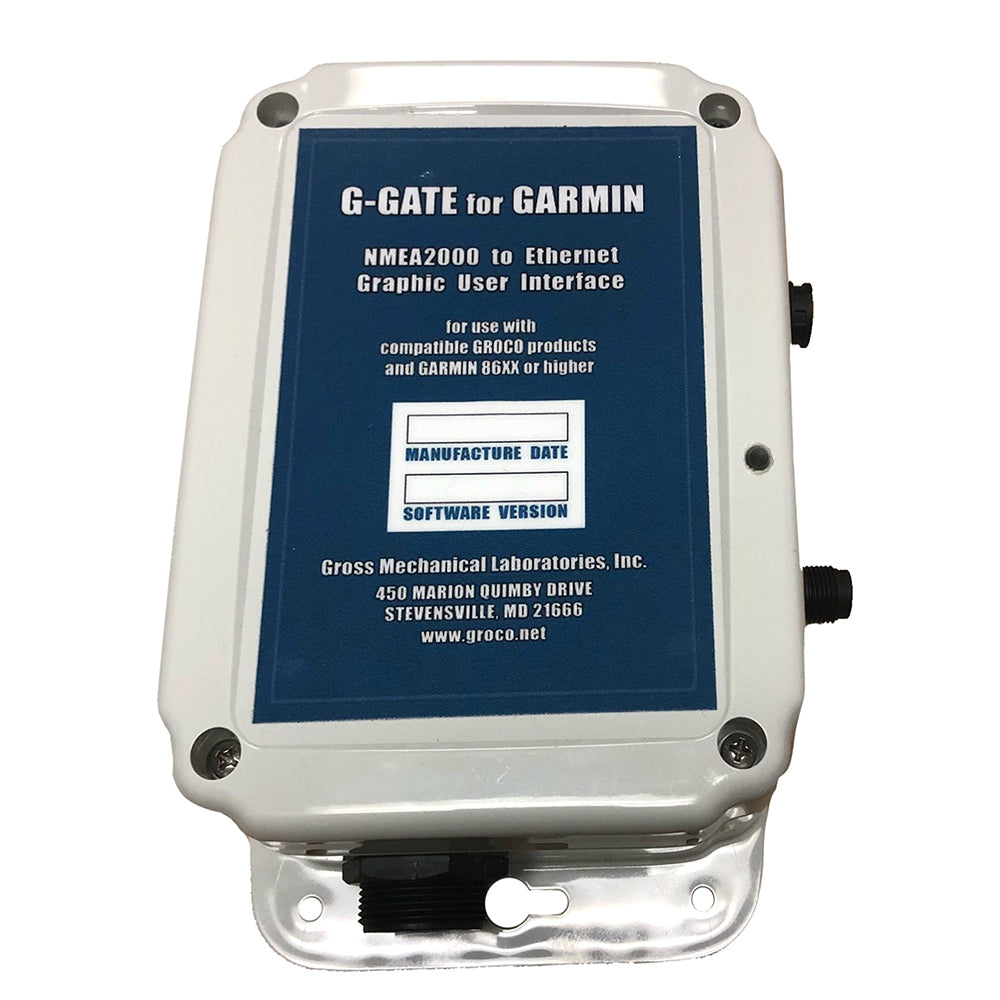

G-Gate Hub GROCO to Garmin

G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.

Power Requirements & Limits:

• For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
• For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
• Electronics voltage protection limit = 30VDC
• Typical current draw = 1 amp, 3 amps peak and inrush

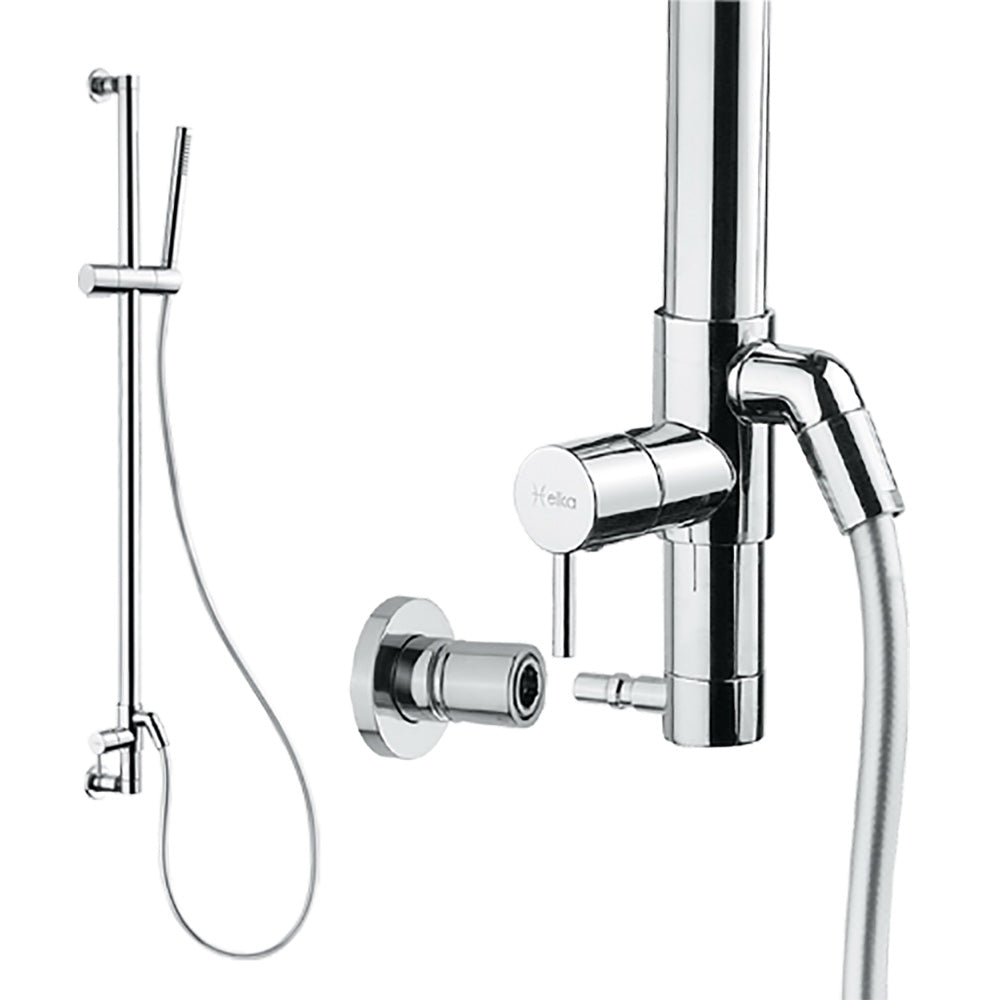

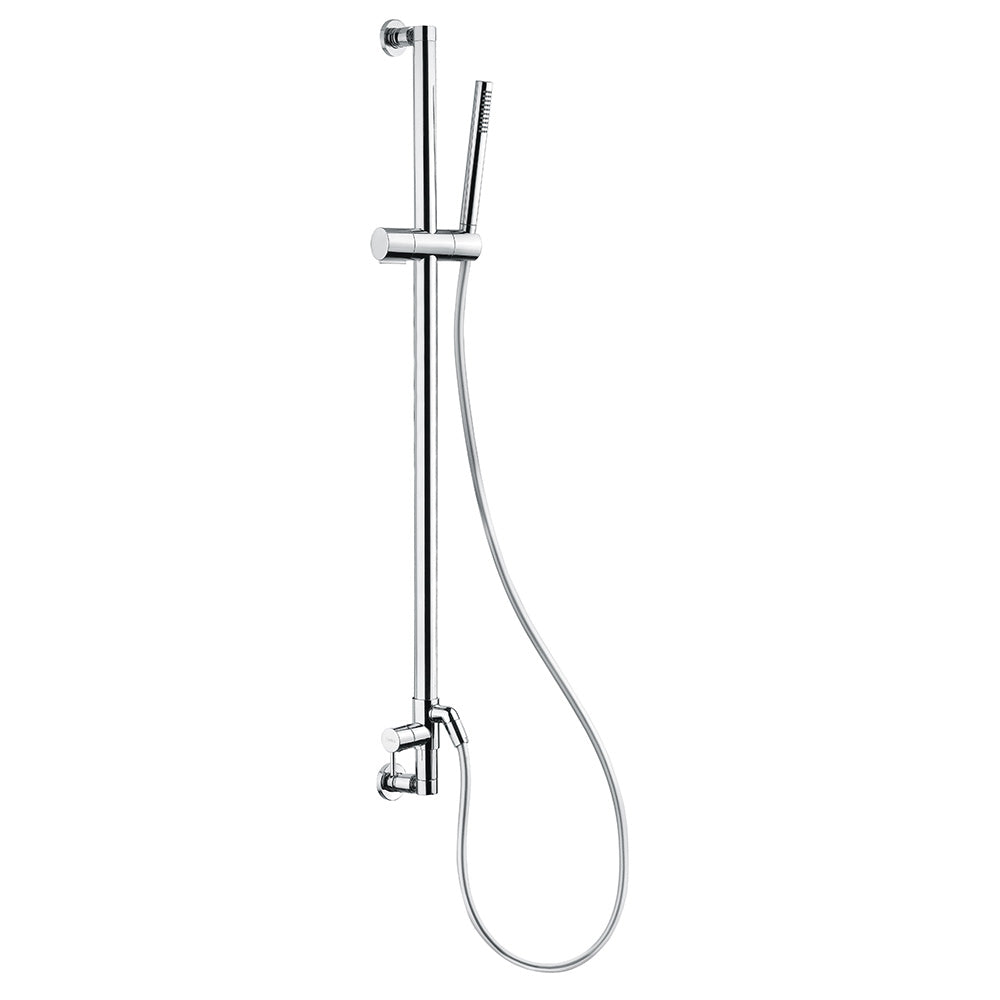

Scandvik All-In-One Shower System - 28" Shower Rail [16114]

All in One Shower System - 28" Shower Rail

This unique sliding rail shower system combines a 28-inch-long shower rail with an integrated mixer, hose, and shower handle all in one. Installation requires the hot and cold water supplies to be connected to the top and bottom mounting system of the rail.

Features:

• The rail is then snapped onto the quick-connect fittings at the top and bottom
• The complete system can be disconnected in seconds and put away if necessary

Specifications:

• Water Connection: (2) 1/2 in. NPS threaded pipe
• Material: Chrome-plated brass rail and shower handle
• Mounting Holes: (2) 7/8 in.
• Shipping Weight: 10 lbs.
