B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru Hull

Requires Mix and Match Cable for the appropriate Fishfinder it will be connected to.

Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').

B75HW transmits across the following bandwidth: High frequency 150 to 250 kHz

The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.

Features:

•  Depth and fast-response water-temperature sensor
• 600 W with a maximum depth performance of 106 m (350')
• High frequency: 150 to 250 kHz
• 30° beamwidth
• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
• Low-profile, thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing, or displacement hull
• Exclusive Xducer ID® technology
• 12° tilted version for 8° to 15° hull deadrises
• Hole Size: 70 mm (2-13/16")
• CHIRP-Ready Single-Band

Specifications:

• Cable Length (Feet): 30'
• Chirp: High Wide
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 12
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs
• UPC: 801769018134

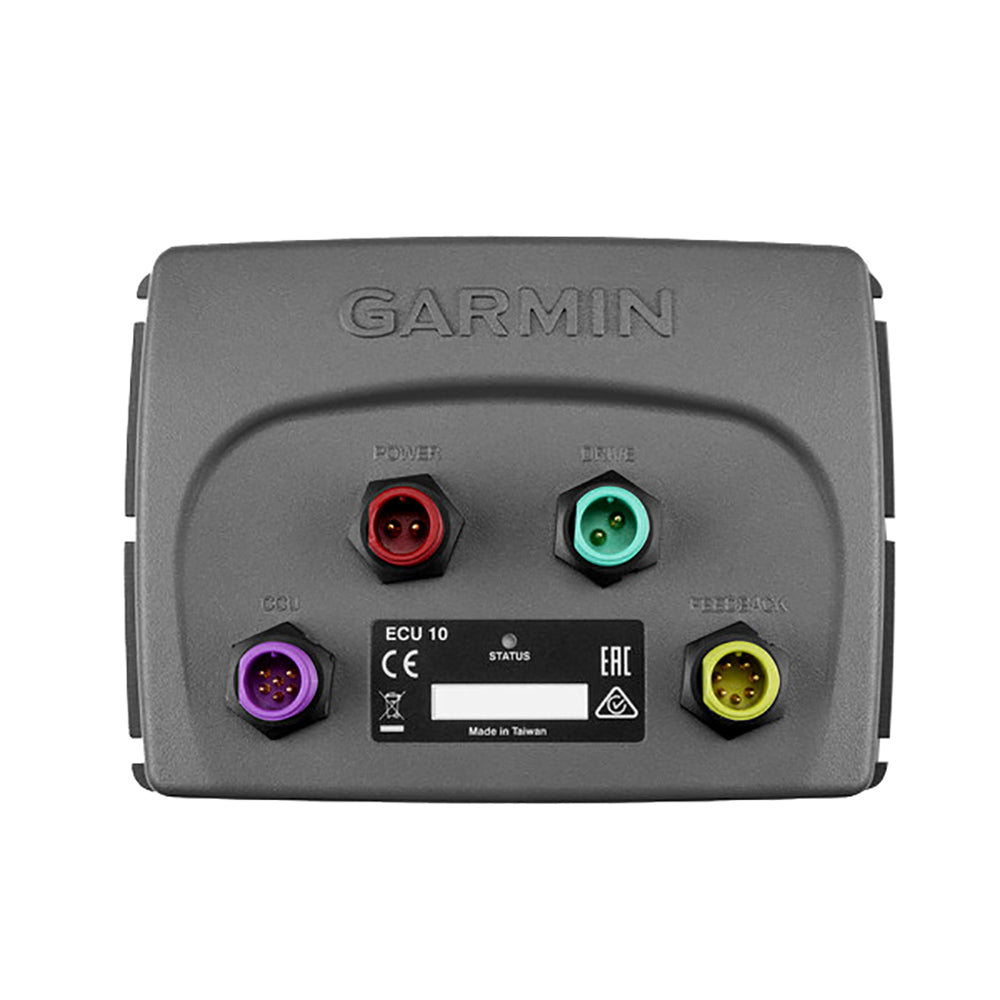

Garmin ECU 10 - Reactor 40 [010-11053-02]

ECU 10 - Reactor™ 40

One of the main components for your Reactor 40 Hydraulic autopilot system, the ECU connects and powers the course computer unit (CCU) and the hydraulic pump, controlling the pump based on information received from the CCU.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Raymarine RVM-100 Transom Mount Transducer [A80703]

RVM-100 Transom Mount Transducer

RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available.

*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module

Features:

• 600-Watt traditional CHIRP
• Designed for transom mounting on outboard boats
• Stainless Steel mounting bracket with an integrated kick-up feature
• 8M Cable

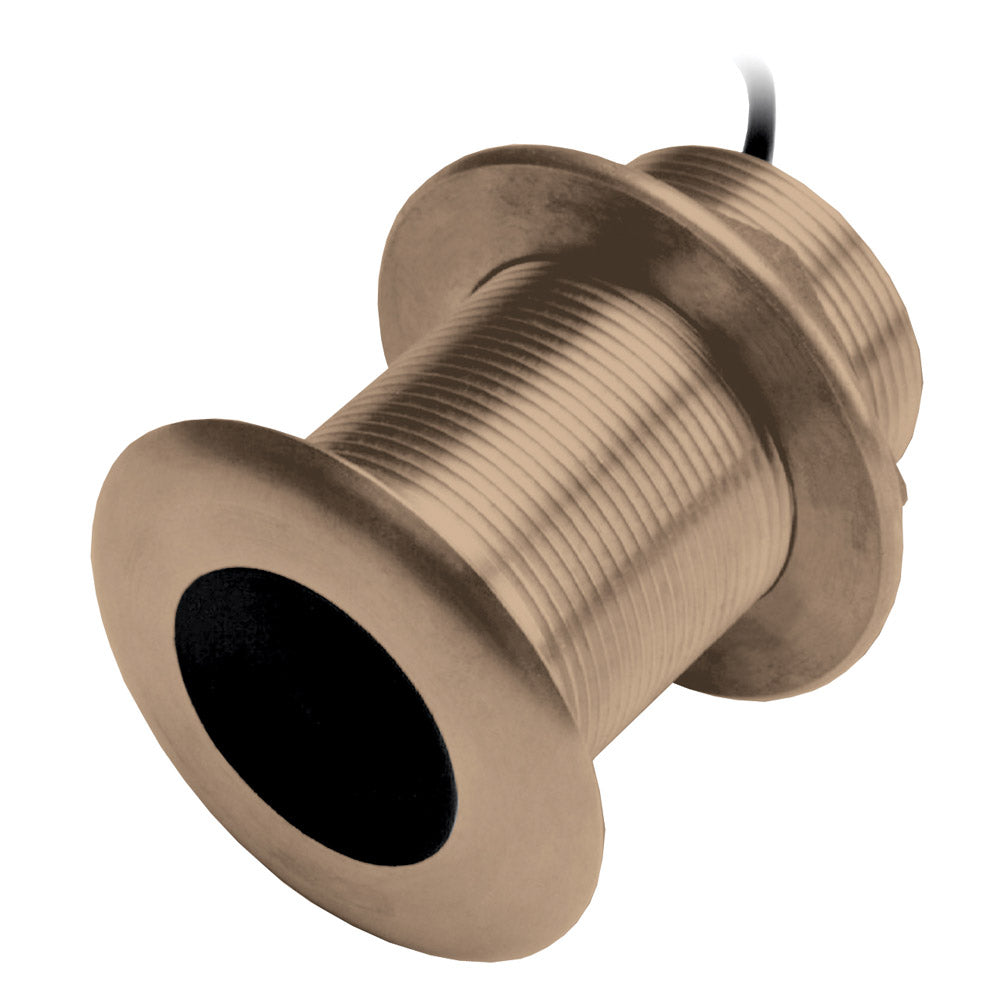

Garmin B150M Bronze 12 Degree Thru-Hull Transducer - 300W, 8-Pin [010-11927-21]

Airmar B150M
w/12° Tilt
300W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Entry Level Chirp Solution. Provides good depth capability and good target separation.

Max Depth - 1,500'
Suppoarted Deadrise/Transom Angles - 8-15° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Medium
• Cable Length (Feet): 39'
• Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs
• UPC: 801769000832

Owner's Manual (pdf)
Brochure (pdf)

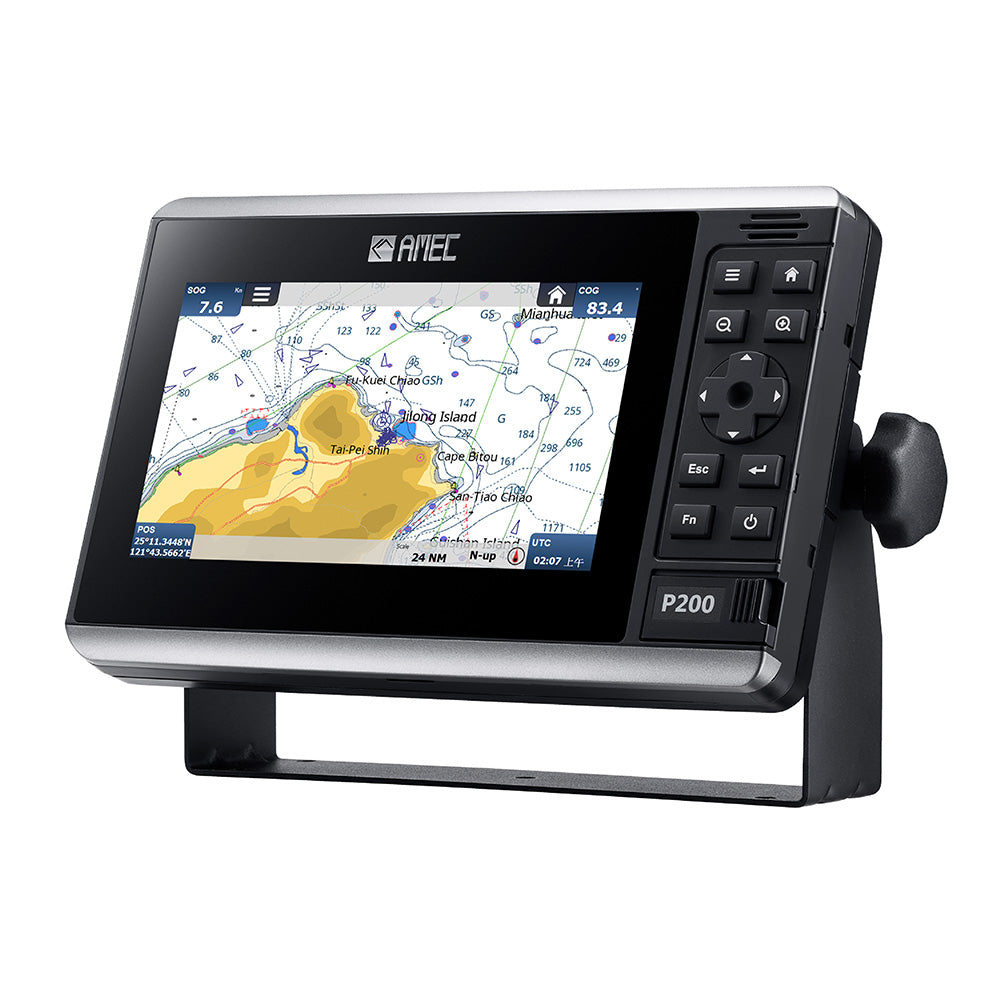

P200-SO AIS Class B with Display

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

Smart Charting with integrated 5W AIS class B.

The P200-SO is a globally certified chart plotter with integrated 5W AIS class B. The application running on the P200 series is the latest milestone of AMEC´s software technology. It features a powerful charting engine with an intuitive user interface and advanced navigation functions for enhanced safety and eased voyage. P200’s hardware with IP67 waterproof and ergonomic interface ensures a reliable operation in a rough marine environment.

Features:

• Globally certified 5W SOTDMA AIS Class B with display
• Powerful 72-channel GNSS receiver supporting GPS and GLONASS
• Ruggedized for marine environment - IP67 and damp, shock, vibration, and temperature proved
• Integrated high definition colour display with pinch-to-zoom multi-touch operation
• Ergonomic backlit button and arrow keys
• Supporting C-MAP 4D chart (micro-SD) with AIS target overlay
• Rich alarm functionality – CPA/TCPA, MOB & SAR
• Chart view and plot view for enhanced situational awareness at sea
• NMEA 0183, NMEA 2000 & optional Ethernet connectivity

Specifications:

• AIS Class: B
• Antenna Included: No
• Display Included: Yes
• Function: Receive/Transmit
• GPS Included: No
• Box Dimensions: 8"H x 8"W x 11"L WT: 4.6 lbs
• UPC: 4713095730085

PLOMO-500 AIS Sart (Search & Rescue Transponder)

The Latest SART Technology

AMEC AIS SART (Search And Rescue Transmitter) PLOMO-500 complies with IEC 61097-14 specification. It is designed to be an alternative to Radar SART. PLOMO-500 can transmit GPS positions, Unique ID, COG, and SOG every minute once activated. It allows the rescue team to locate the survivors rapidly through the broadcasted AIS information and, ultimately, gives the survivors a better chance to survive.

User-Friendly Operation

AMEC PLOMO-500 is not only the AIS SART itself but also a complete survival/distress solution of all other essential accessories of AIS SART. The solution comes in a survival bag, and during emergency times, it is all what user needs to carry on his/her back. The setting operation is easy; it only requires 4 simple steps.

Backlit Panel and LED Indicator Integration

AMEC PLOMO-500 has a backlit operational panel, which allows users to see the buttons in a dusky environment. Moreover, the main unit has an overusage design to indicate if the battery life has been compromised due to excessive testing or it had been activated previously. Also, to increase the chance of survival, the unit’s LED indicator signals an “SOS” distress message during activation for the survivors to be easily spotted by the rescue team.

Features:

• Innovative AIS Technology
• Rugged and compact design
• Buoyant/floatable and waterproof to 10m
• Fluorescent backlight panel
• SOS LED light
• Easy to assemble and carry
• Minimum operating life - 96 hours

Specifications:

• Battery Replacement (Years): 6
• Floats: Yes
• Operational Life (Hours): 96
• Box Dimensions: 4"H x 7"W x 16"L WT: 2.6 lbs

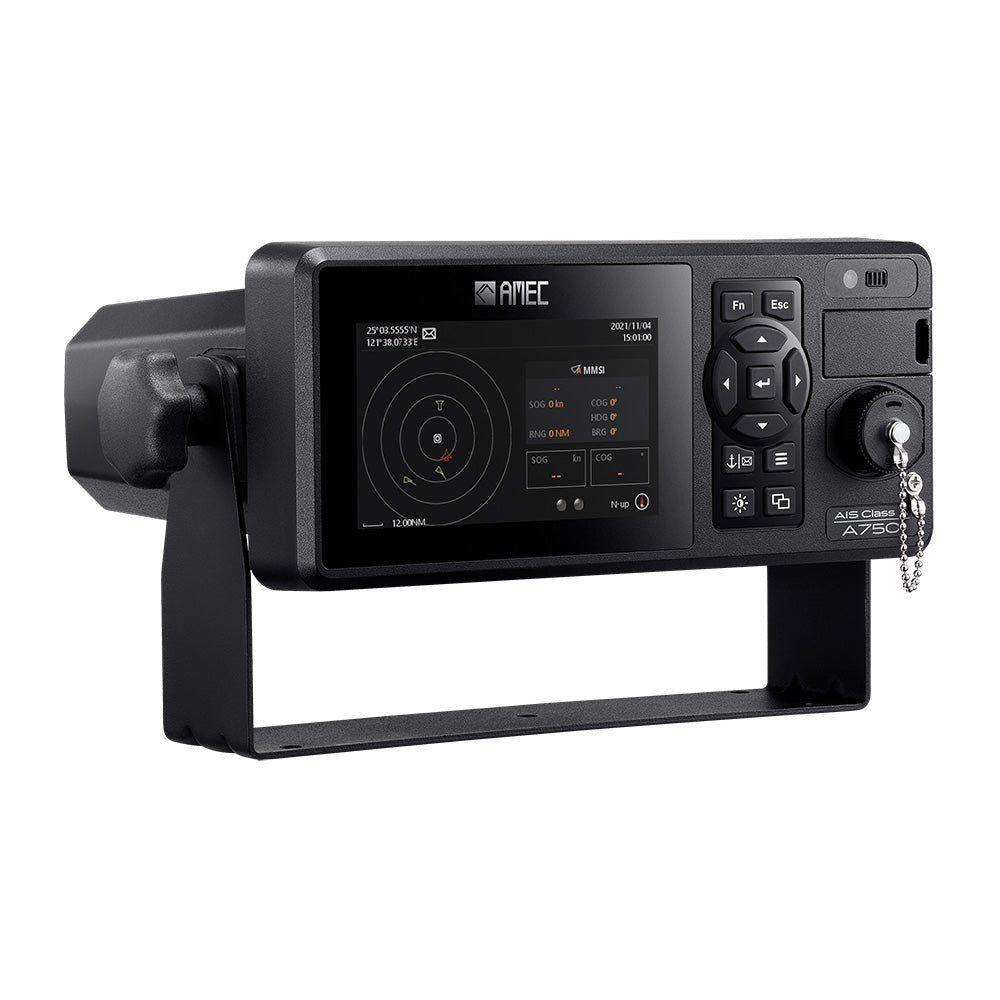

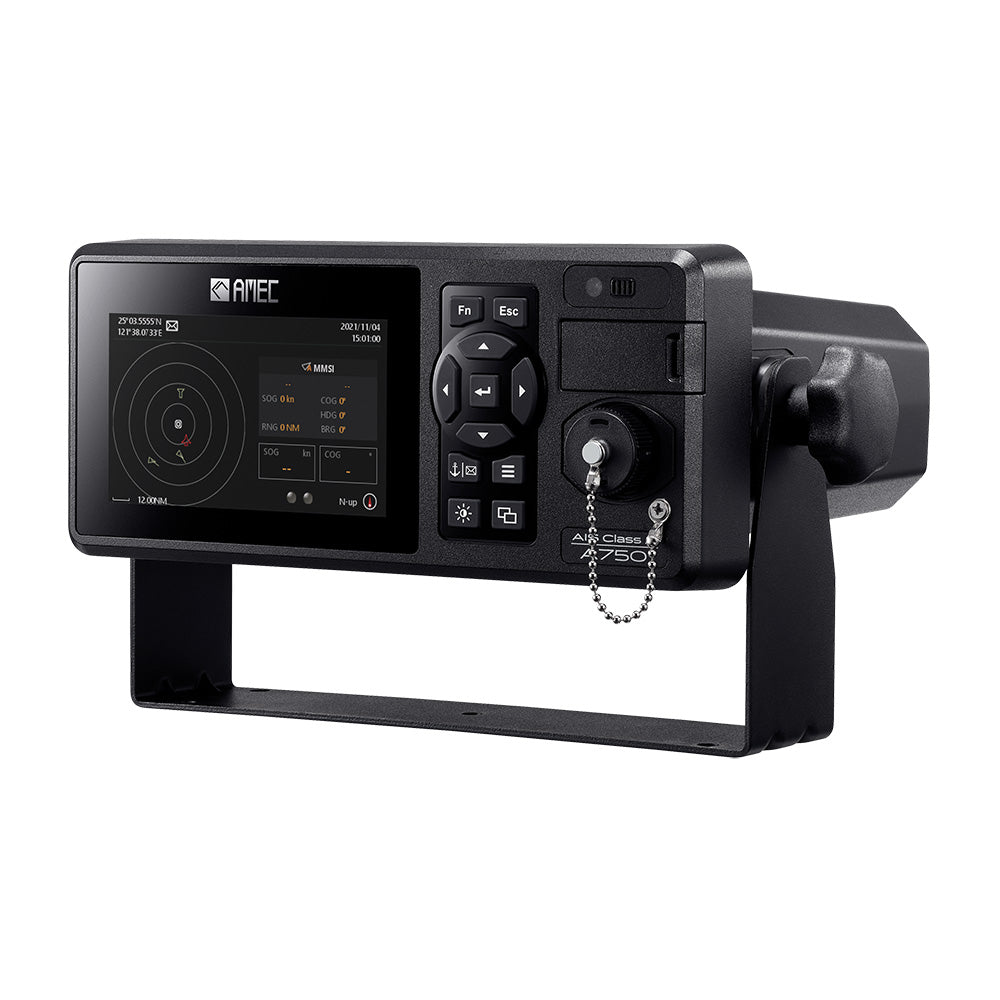

A750 Class A AIS Transceiver with 4.3" Display

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The A750 is the next-generation Class A / Inland AIS Transponder that represents AMEC’s innovation milestone in AIS technology. With a redesigned architecture from the ground up and inside out, A750 sets a new standard for reliability, performance, and value. The transponder incorporates a modern graphical user interface (GUI) with a sunlight-readable 4.3-inch color display for intuitive operation. Its weather-resistant design with IPx6 waterproof makes it the ideal choice for SOLAS vessels, inland ships, work boats, and superyachts. The A750 AIS Class A transponders are fully certified to the latest IEC 61993-2 Ed. 3.0, IEC 61162-1 Ed. 5.0, IEC 62923-1/-2 Ed.1.0, CCNR Inland AIS Ed.3.0, and other related international standards.

Features:

• Color Display - The 4.3” 1,000 nits color LCD is now larger and brighter for easy viewing. It provides the space to accommodate an onscreen software keyboard for intuitive data input.
• Modern GUI Designs -  The new modern minimalistic User Interface offers a cleaner design for faster information acquisition.
• Integrated Pilot Plug Interface -  A pilot plug connector located in the waterproof hatch on the front panel ensures easy access. An optional pilot plug is also available through a junction box connection.
• Certified for SOLAS and Inland - Ready for operation both at high sea and in rivers.
• Complete Connection Interface - NMEA 0183, NMEA 2000, Ethernet, and USB enable easy integration with other bridge devices.

Features:

• Fully compliant with the latest IMO, IEC, and ITU standards
• Certified for both SOLAS and Inland mode
• Color 4.3” sunlight-readable LCD
• Intuitive user interface and operation
• Integrated Pilot Plug
• Weatherproof robust design
• Ethernet and NMEA2000 connectivity ready
• Multiple sensor input ports and bi-directional data ports

Specifications:

• AIS Class: A
• Antenna Included: Yes
• Display Included: Yes
• Function: Receive/Transmit
• GPS Included: No
• Box Dimensions: 8"H x 10"W x 16"L WT: 9.4 lbs
• UPC: 4713095730023

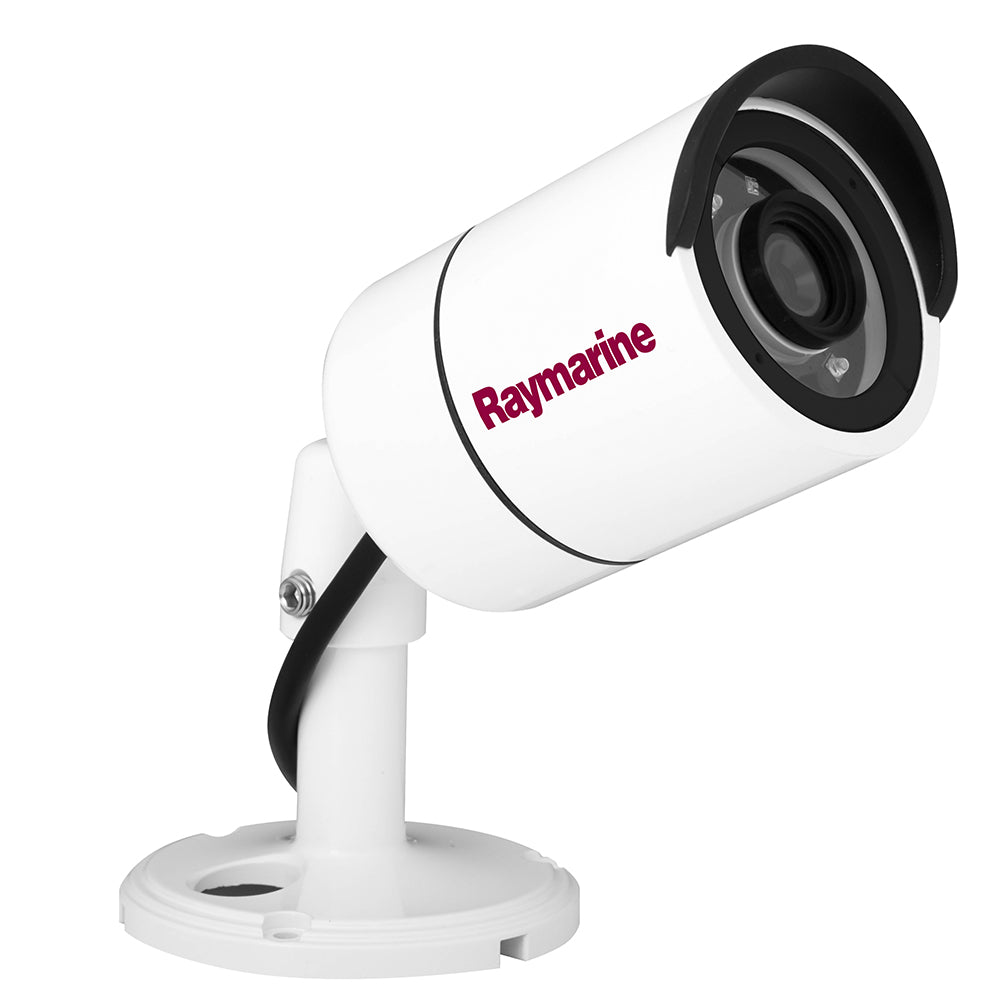

Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]

CAM210 Day & Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

• Plug and play integration with Raymarine MFD's running Lighthouse II
• Power over Ethernet (PoE) or direct 12V DC power supply

• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)

• Intelligent IR technology for clear video images at night in all conditions

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB

• Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel

• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB

• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20M

• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens

• Field of View:
  Diagonal = 63.6° +/- 3°
  Horizontal = 53.3° +/- 3°
  Vertical = 33.1° +/- 3°
• Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps

• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution

• Video Streaming:
  Support multi stream with H.264, MJPEG
  Adjustable frame rate
  CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
• Image Setting:
  Day & Night
  Auto White Balance
  Auto Exposure
  Privacy Mask
  Effects - Color, Sharpness, Mirror / V-Flip
• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR

• Net Weight: 900g
• LED's: Power, Network Connection

• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0°40° Celsius(32F104F)

• Storage Temperature: -10°50° Celsius(14F122F)
