B954 Class B AIS Transceiver - 5W SOTDMA with WiFi, Bluetooth, & VHF Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B954 is the most feature-rich high transmit power (5W SOTDMA) AIS transceiver in the B900 range. The B954 combines Wi-Fi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak's unique FLEXI-FIT® bracket system to make installation as easy as possible.

Lightweight and completely weatherproof, the B954 delivers the very best AIS receive and transmit performance with increased range and transmission priority. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

• Certified AIS Class B – 5W SOTDMA
• Integrated WiFi and Bluetooth
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 425kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 280mA
• Average current (at 12V) (wireless off): 245mA
• Peak current: 2.5A
• Average power consumption (at 12V): 3.4W
• Average power consumption (at 12V) (wireless off): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x VHF radio accessory cable
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 7"L WT: 1.8 lbs
• UPC: 672975210571

B952 Class B AIS Transceiver - 5W SOTDMA - WiFi & Bluetooth

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B952 is a high-power (5W SOTDMA) Class B AIS transceiver, offering unmatched performance and ultra-low power consumption. Small and lightweight, it combines integrated Wi-Fi & Bluetooth capabilities for seamless wireless connectivity and AIS data streaming. It is compatible with any mobile device, PC, or wearable – ensuring everyone on board gets the most from your transceiver and related onboard equipment every day.

The B952 transceiver works seamlessly with em-trak's CONNECT-AIS app to make programming, configuration, and device monitoring easier than ever before. The class-leading device is engineered to deliver real-time data processing, with increased range and transmission priority and its flexible connectivity means it can be used by up to nine different devices simultaneously.

em-trak's next-gen technology means the B952 is delivered within a compact, easy-to-install, rugged package designed and manufactured to operate reliably without maintenance in the harshest marine environments.

Features:

• Certified AIS Class B – 5W SOTDMA
• Integrated WiFi & Bluetooth
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smart phone, tablet or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against
• electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 385kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

Supply voltage: 12V or 24V DC

Supply voltage range: 9.6V - 31.2V DC

Average current (at 12V): 170mA

Average current (at 12V) (wireless off): 135mA

Peak current: 2.5A

Average power consumption (at 12V): 2.0W

Average power consumption (at 12V) (wireless off): 1.6W

Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

NMEA 0183: 2 x bi-directional ports

NMEA 2000: NMEA 2000 Ed 3.101, LEN=1

USB: PC virtual com port for NMEA 0183 data

WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)

Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5

Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008

Environmental standards: IEC 60945 Ed. 4

Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0

NMEA 2000: NMEA 2000 Ed 3.101

GNSS performance standards: IEC 61108-1 Ed 2.0,  IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 7"L WT: 2 lbs
• UPC: 672975210557

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M Cable

The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise.

The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.

*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module

Features:

• 600-Watt traditional CHIRP
• High-performance Down and SideVision ceramics
• High-speed housing with isolation plate
• 10M Cable
• RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°

GPSMAP® 8610 Chartplotter GN+

You’re a mariner who wants to handpick your sonar but still wants a fast, high-performance network chartplotter with built-in maps and charts, a large 10" IPS display, and more

The GPSMAP® 8610 chartplotter features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. GPSMAP 8610 includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® smartphone app to your compatible smartphone or tablet to manage your marine experience — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.

Features:

• Features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses
• Adds a stunning appearance with the ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia
• ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more
• For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
• Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
• See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
• Compatible with your Panoptix™ PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground
• SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more
• Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge
• Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more
• Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and cartography cards

What's In The Box?

• Chartplotter
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Bail mount with knobs 8610 and 8612 series only
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation
• GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Cartography Brand: Garmin Navionics+
• Internal/External Antenna: Internal
• Screen Size: 10"
• Touchscreen: Yes
• Box Dimensions: 9"H x 12"W x 17"L WT: 11.8 lbs
• UPC: 753759285357

Nitron XD Night Vision Camera - White Housing - Tall Mount

The Nitron XD Marine Night Vision Camera displays the highest resolution possible, giving users crystal clear imagery in pitch black darkness. Without relying on thermal temperatures, users will have the perfect HD image in any nighttime condition.  Boasting an IP69K rating, the Nitron XD can withstand the harshest environments.

With the ability to connect right into a Garmin, Simrad, Raymarine, or many other monitors, installing Black Oak's marine video camera is practically plug-n-play. With the included cable, plug right into a video input port.

*This version is the tall mount version

Hyper-Low Lux Sensor

Nitron XD was specifically designed to function in complete darkness, providing crystal-clear HD video in any nighttime environment, no matter the ambient temp.

2X The Resolution

See more than just silhouettes; Nitron XD shows details in full HD.

Marine Rated

This Black Oak' camera can withstand heavy spray and handle immersion up to 3 feet for over 60 hours.

Easy Installation

Black Oak includes everything needed to easily install, along with a plug-and-play harness to fully integrate with a MFD.

Plug-N-Play with MFD

Easily connect to a Garmin, Simrad, or other popular MFD with the supplied brand specific video input cable. See why Black Oak is the #1 night vision camera for boating.

Do it at Night

Turn night into day and achieve peace of mind with the ability to see channel markers, boats, buoys, and other hazardous objects.

Built to Last

With Black Oak's military-grade housing, there is no need to worry about this camera withstanding the harsh marine environments. Black Oak's camera is designed to handle any salt, corrosion, humidity, or moisture users throw at it.

Quick Connect

Take advantage of Black Oak's easy-access quick connect harness. With the ability to easily remove or attach, users never have to worry about leaving this camera.

Features:

• .0000025 Lux starlight night vision
• Two field of view options: 20 or 30 degrees
• Streams 752 x 582 HD video
• 60 frames per second
• Marine grade waterproof housing
• Connect directly to a MFD
• Flexible installation (top or bottom mount)
• 12Vdc power (fused)
• NTSC/PAL analog video connection (BNC)
• Manual vertical tilt adjustment
• Marine grade IP69K waterproof housing

Technical Specifications:

• Hyper Low Lux: .0000025
• HD Resolution: 752(H) x 582(V)
• Power Consumption: 1.38 Watts
• Frame Refresh Rate: 60 frames per second
• Noise Reduction: 3DNR
• Length (front to end): 8-3/16”
• Height (top to bottom): 9”

In the Box:

• Nitron XD Marine Camera System
• 25' quick connect wiring harness
• 5A inline fuse
• Anodized aluminum mounts

*Sold as an Individual

Specifications:

• Reverse Image: Yes
• Box Dimensions: 7"H x 10"W x 12"L WT: 4 lbs

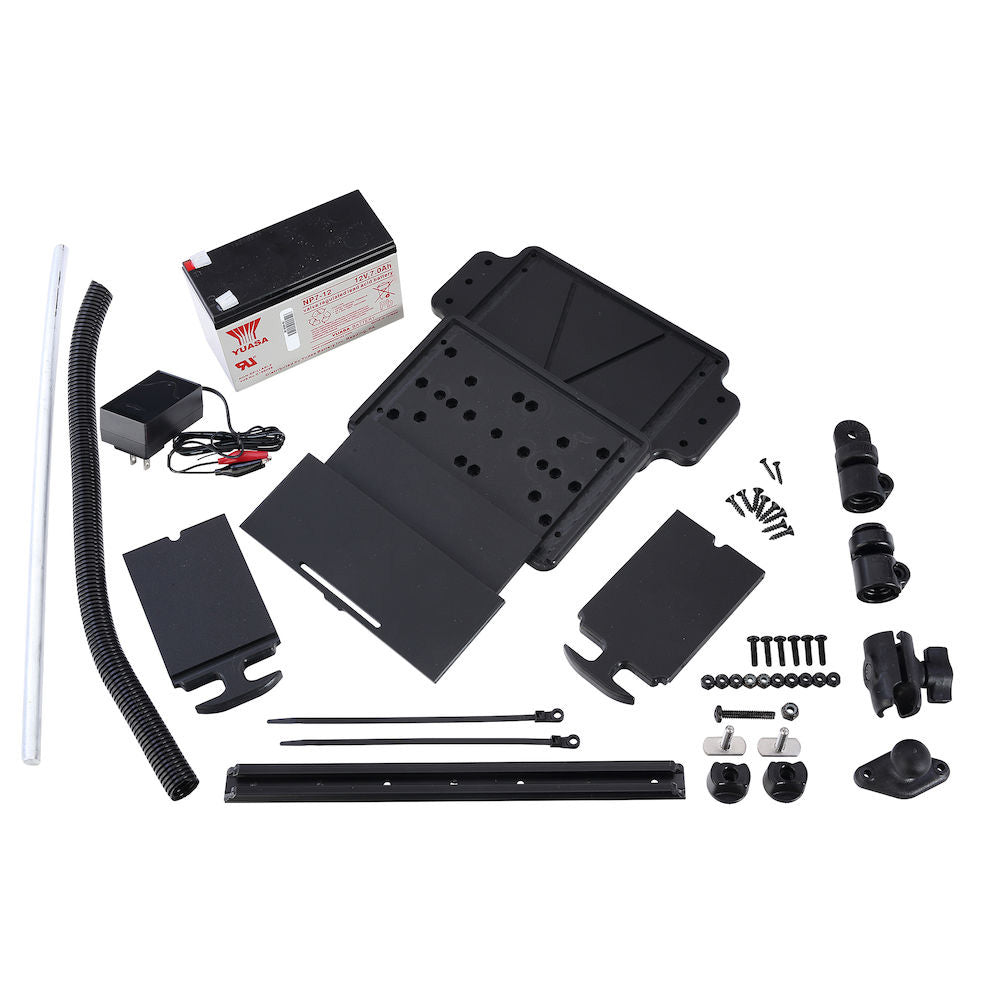

Portable Kayak Kit

The Lowrance® Portable Kayak Kit gives anglers a quick and easy way to mount a fishfinder/chartplotter, battery, and transducer on a kayak.

The Portable Kayak Kit secures the battery, transducer, and displays to a single box, making it easy to mount and remove Lowrance products from the kayak, and features built-in transducer cable management that keeps excess transducer cable away from the anglers fishing from a kayak. Compatible with all units that use a Lowrance Quick Release Bracket – including the HOOK-3/4/5 and Elite-Ti 5/7 — the Portable Kayak Kit includes a battery, charger, RAM® mount swing arm, and YakAttack CellBlok battery holder with built-in transducer cable management. Transducer sold separately.

Features:

• CellBlok supports a 6AH 12V battery
• CellBlok is compatible with any unit that uses the Lowrance Quick Release Bracket, including HOOK-3/4/5, Elite-Ti 5/7 displays, and legacy Mark/Elite units
• Built-in transducer cable management keeps excess transducer cable out of the way
• RAM® Mount swing arm allows quick and easy mounting of all Lowrance® Skimmer™ transducers

Specifications:

• Yak Attack Cell Blok: 10.25” L x 6.25” W x 3.75” H
• Ram Mount transducer swing arm: 1” Ram ball; 18” Long Swing arm

Specifications:

• Type: Misc
• Box Dimensions: 5"H x 8"W x 19"L WT: 9.5 lbs
• UPC: 9420024138779

MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver with Built-In Antenna Splitter (without Wi-Fi)

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter (Without WiFi)

Features:

• The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Mobile on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don't have network priority.
• Integrated zero loss VHF antenna splitter - no second antenna needed
• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
• Built-In GPS & GLONASS satellite navigation receiver
• Water Proof certified to IPX7
• Dual Receivers decodes all DSC & AIS messages, including MOB & SART
• Ultra-power efficient
• IEC-62287-2, FCC, and USCG certified
• 2 Year Warranty

Package Includes:

• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power & Data Interface cable
• VHF Radio Connection cable
• Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
• User Manual & Quick Start Guide

Specifications:

• Transmitter Output Power: 5 Watts
• VHF Antenna Connector SO-239 UHF
• GPS Antenna Connector TNC
• Frequency Range: 156.025-162.025 Mhz
• Input Voltage: 9.6-31.2 VDC
• Current Draw: 220mA average power consumption
• Operating Temperature Range: -25C to +55xC
• Ingress Protection: IP67
• Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
• Weight 0.8 lbs.

Specifications:

• AIS Class: B
• Antenna Included: No
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 5"H x 9"W x 14"L WT: 3.25 lbs
• UPC: 010407510712

FLX-28 Pro Pack II ProView Ice-Ducer

The features found in the FLX-28 read like the wish list of avid ice anglers starting with digital depth, Auto Range, Two zoom zones, battery status, FIVE color palettes to select from for maximum visibility, five-foot depth range adjustments starting at 10 feet, Maximum range of 300, Day and Night display brightness settings, Low power options for fishing in super shallow water, a unique Weed Mode for better performance while fishing in weeds. And to top it all off, the unit even has its own Demo mode so you can show non-Vexilar fans how the system works with a lifelike fish catching simulation to watch. Performance, quality, innovation, and reliability, welcome to the amazing FLX-28. Vexilar's most popular winter fishing system is the Pro Pack II. This system offers great performance features in a super durable case with a built-in gimbal bracket to support your flasher. Complete with a 12 Volt Lithium, 9 amp-hour battery with charger. All FLX-28 Pro Packs come standard with the powerful Pro-View Ice-Ducer transducer. The FLX-28 is specifically designed to perform with this specific Vexilar Ice-Ducer.

The Pro Pack comes with one Rod holder but has positions to mount another with pre-tapped holes for mounting other accessories like the Flex-light, Glo-Ring, and beverage holder. The Pro Pack comes with a screw-eye over hole transducer holder or you can you the classic float to suspend your Ice-Ducer. The Pro Pack also has a Vexilar Tackle Box and easy to use cable management system.
