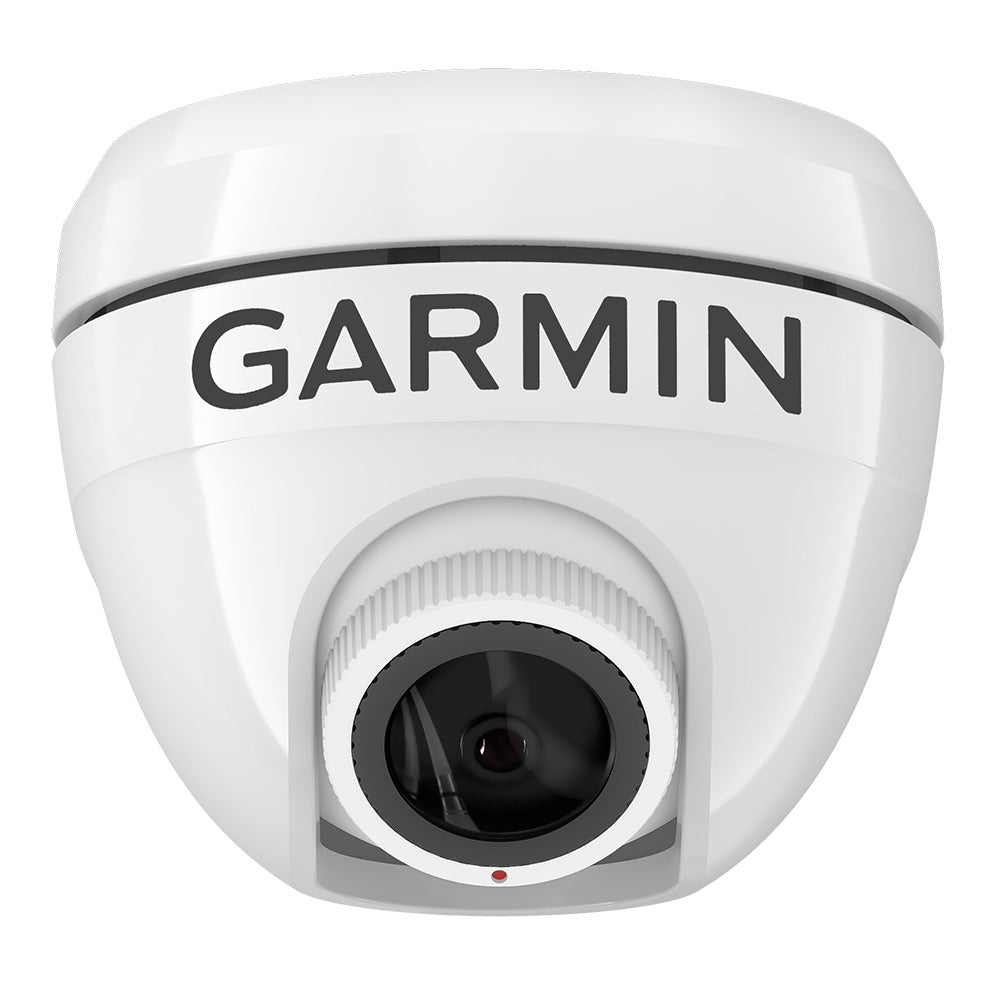

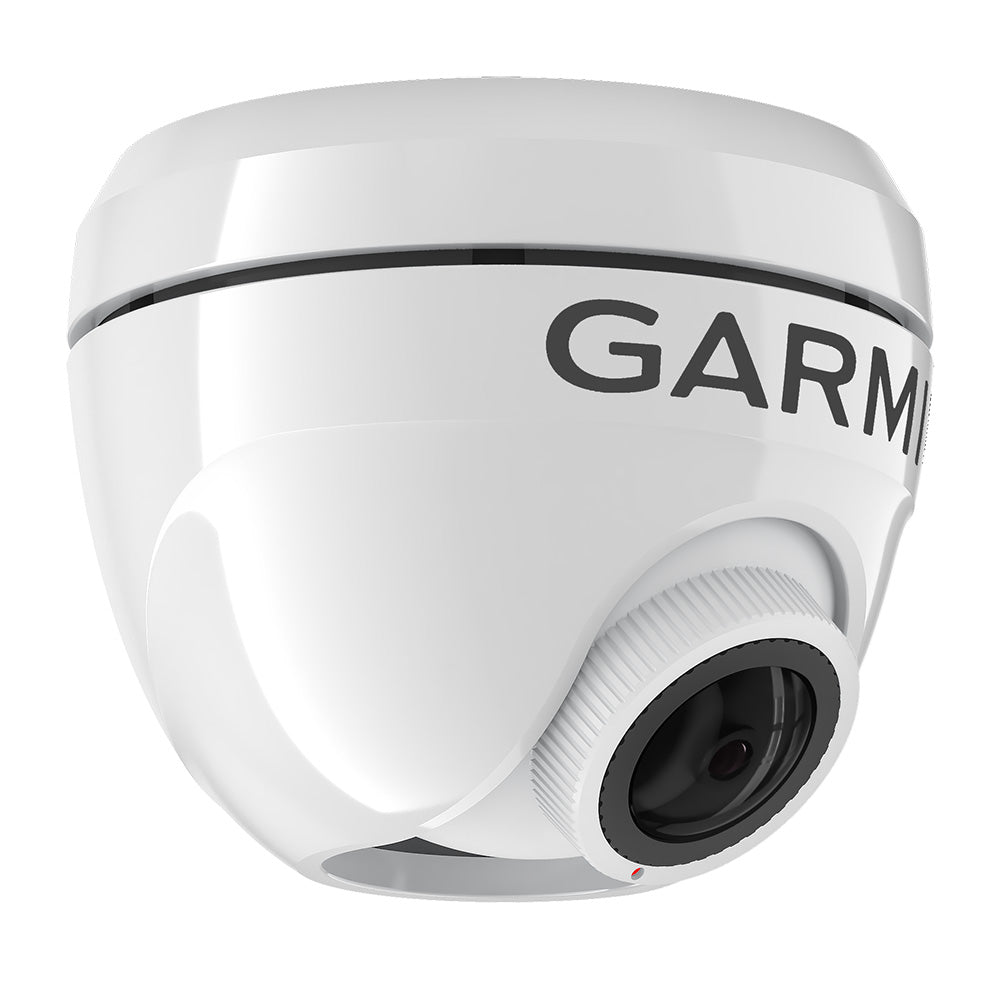

Garmin GC 245 Surface Mount Camera - White [010-02892-10]

GC™ 245 Surface Mount Camera - White

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet™ network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

XPLORE 9 Control Head Only

THE XPLORE 9 CHO features a 9” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This model includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products. This CHO (Control Head Only) model is a great option for anglers looking to select their transducer with MEGA Live Imaging or Built-in MEGA Imaging trolling motor from Minn Kota®.

Features:

Control Head Only Model:

• This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network control. Easily access the preloaded views from the user-friendly menu system, operated by a touch screen or directional keypad, to operate your fish finder in any conditions reliably.

Full-HD Display with Cross Touch® interface:

• XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.

Dual Spectrum CHIRP Sonar: (with optional transducer)

• Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+: (with optional transducer)

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+: (with optional transducer)

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket

Specifications:

• Cartography Brand: Humminbird
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 11"H x 11"W x 16"L WT: 9.95 lbs
• UPC: 082324058660

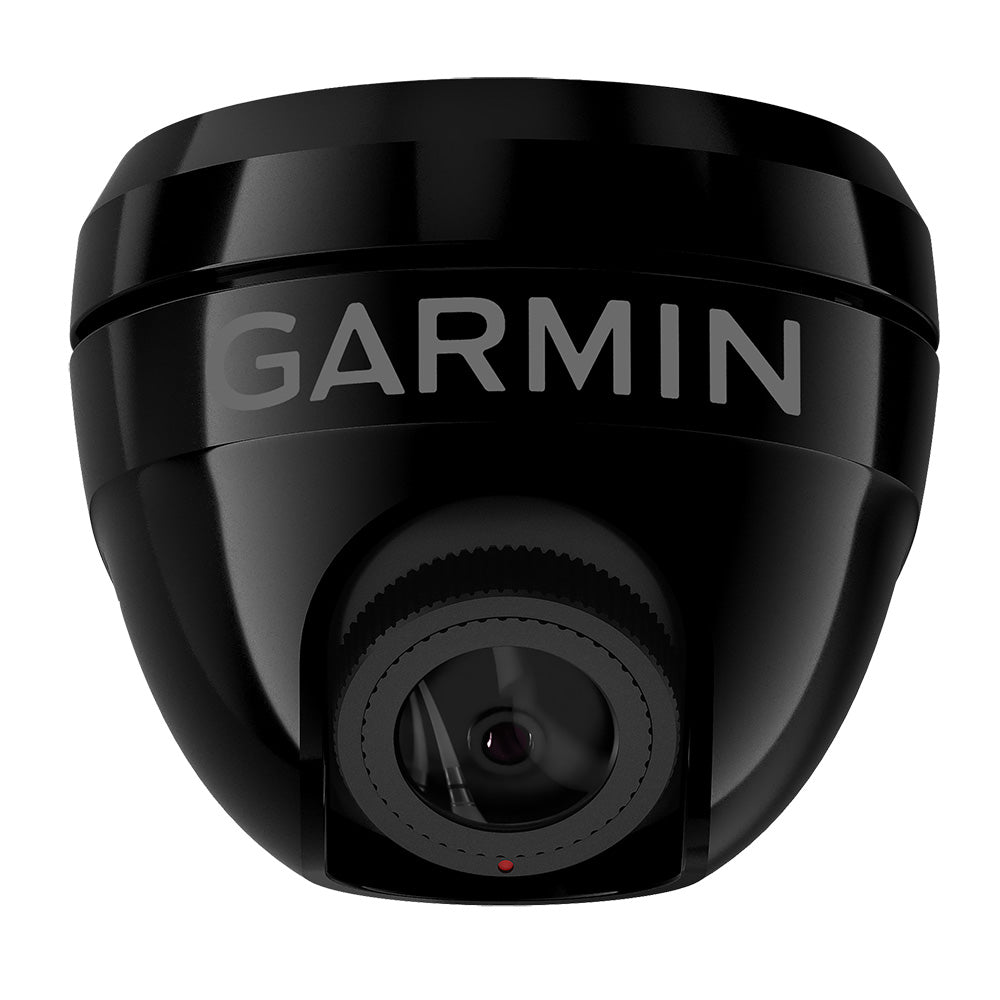

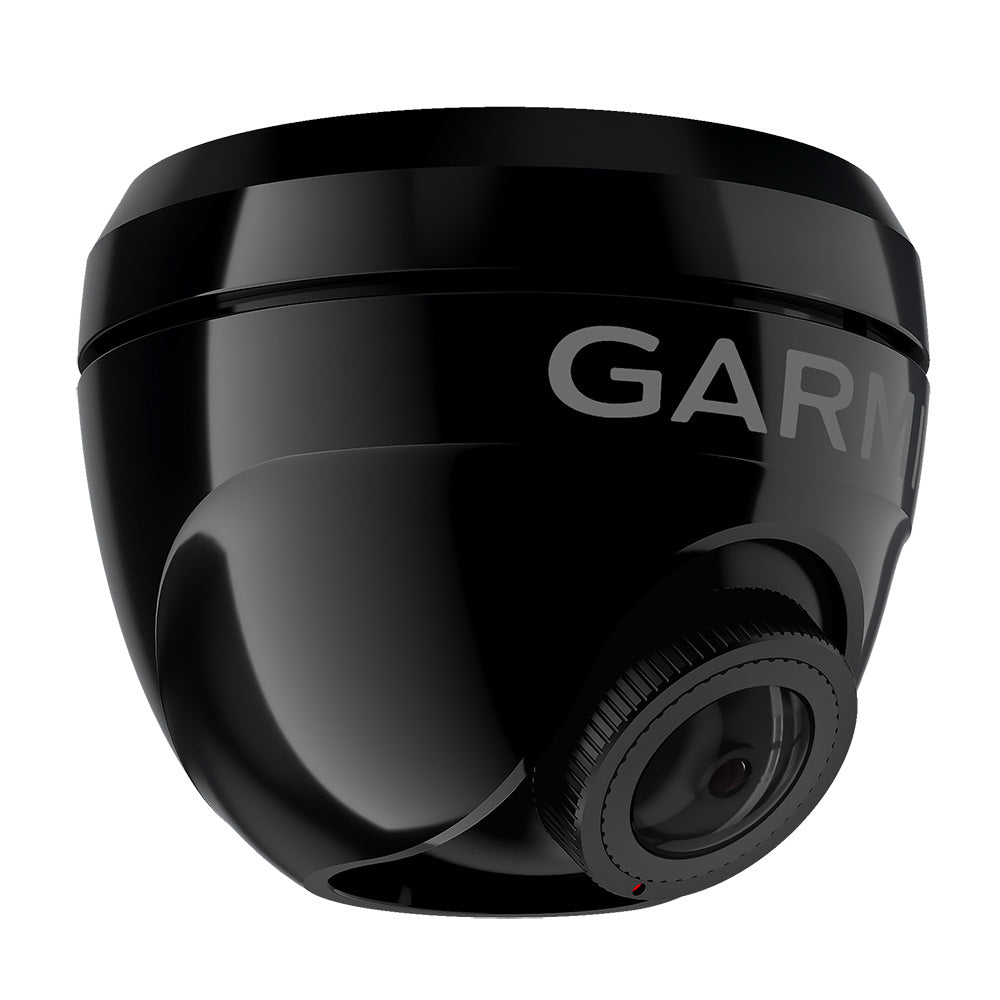

Garmin GC 245 Surface Mount Camera - Black [010-02892-11]

GC™ 245 Surface Mount Camera - Black

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet™ network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

XPLORE 12 CMSI+

THE XPLORE 12 CMSI+ features a 12” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the  XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch® interface:

• XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.

Dual Spectrum CHIRP Sonar:

• Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snap Shot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

Specifications:

• Cartography Brand: Humminbird
• Included Transducer: XM-14-HW-CMSI-T
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 12"H x 13"W x 19"L WT: 15.65 lbs
• UPC: 082324058691

GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

• See maximum depth performance to 2,400’ in freshwater
• Access CHIRP sonar frequency range from 80–165 kHz
• Search with beamwidths of 9–18 degrees
• Count on fast-response water temperature sensing
• The thru-hull design offers flush installation with a 12-degree tilt
• Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (80-165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9°-18°
• Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
• RapidReturn™ Sonar Compatible: Yes
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of PINs: 8-pin
• Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15°
• Housing Material: Stainless steel

Specifications:

• Cable Length (Feet): 50'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 7"H x 8"W x 13"L WT: 10.95 lbs
• UPC: 753759338466

i50/i60 Wind, Speed, Depth System Pack with Transducers

Includes:

• E70058 - i50 Speed Instrument
• E70673 - ST900/P120 S/T Thru Hull - 13.7m Cable
• E70059 - i50 Depth Instrument
• M78713-PZ - P319 LP Thru Hull Depth Transducer
• E70061 - i60 Analogue Wind Instrument
• E22078 - Short Arm Wind Transducer

i60 SeaTalk^ng Instruments

The  i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.

For the ultimate in flexibility, the i60 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of the i60 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i60 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.

i60 Wind Instrument with Windvane Transducer

Full-featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting, and high-contrast text and graphics.

• Short arm vane supplied with 30m (97.5') cable
• Compatible with Raymarine's masthead transducer (recommended for sailboats)
• Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack
• Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed
• Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument

i60 Features:

• Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems
• Large, crisp LCDs with high contrast for excellent visibility
• Red backlighting for outstanding night-time visibility
• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility
• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

i50 SeaTalk^ng Instruments

The  i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.

For the ultimate in flexibility, the i50 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.

i50 Speed Instrument

The i50 Speed Instrument offers easy-to-read displays of boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average speed, and max speed, distance log, trip log, and water temperature. i50 Speed also includes a count-up timer and 2 race-start timers.

• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility
• Connect additional i50 speed displays
• Built-in speed transducer connection

i50 Depth Instrument

The i50 Depth Instrument offers accurate and reliable displays of depth, max depth, and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarm.

• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility
• Connect additional i50 depth displays
• Built-in depth transducer connection

i50 Features:

• Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems.
• Large, crisp LCDs with high contrast for excellent visibility.
• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.
• Fully compatible with i70, p70, and p70R Color Instruments and Autopilots.
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

MSC™ 10 Marine Satellite Compass - Black

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when you’ve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, we’ve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information — even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000® NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.

What's In The Box?

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000® backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

1 Supported when available

2 < 1 meter CEP, < 3 meters 95%

3 Magnetometer calibration required for backup magnetic heading support

Raymarinei50 SeaTalkng Instruments - Tridata w/Thru-Hull Transducer [T70582]

i50 SeaTalk^ng Instruments - Tridata with Thru-Hull Transducer

The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.

For the ultimate in flexibility, the i50 Instruments support SeaTalk^ng CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument has a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.

i50 Tridata Instrument

The i50 Tridata is a convenient 3-line instrument that combines the Speed and Depth Instruments functions into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium or as a depth and speed repeater solution for other locations on the boat.

• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility
• Use a primary display or as a repeater of i50 depth and speed instruments
• Built-in depth and speed transducer connections
• M78713-PZ Nylon Depth Transducer with 45ft cable
• E70673 ST900/P120 S/T Thru Hull - 13.7m Cable

The i50 Tridata's 3-line LCD can show current depth, current speed, distance log, trip log, and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. Tridats have a count-up timer and 2 race start timers for racers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm.

Features:

• Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems.
• Large, crisp LCDs with high contrast for excellent visibility.
• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.
• Fully compatible with i70, p70, and p70R Color Instruments and Autopilots.
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
