Marine Navigation & Instruments

Ritchie YB-500 Globemaster Compass - Yoke Mounted - Black - 5 Degree card - 12V [YB-500-2P12]

Ships Direct From Manufacturer

Features:

• 5″ (127 mm) Open Face Dial
• Choice of 2 Degree, 2 Degree with Points or 5 Degree Dial
• Easily Installed
• Hardened Steel Pivot and Sapphire Jewel Movement
• 90 Degree Lubber Lines for Easy Reading
• Built-in Semi-Circular Compensators
• 3 1/2″ inch quadrantal correctors are standard. Larger correctors are available.
• Choice of Green or Red lighting in 12, 24, or 32v
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 18 lbs. (8.16 kg)

Notes:

When ordering specify Card Style and Night Light Color/Voltage (12, 24, or 32 volt).

Specifications:

• Read: Rear
• Lubber Lines: Yes
• Backlight: Yes
• Mounting Style: Yoke
• Box Dimensions: 10"H x 10"W x 17"L WT: 17.35 lbs

Quick Guide (pdf)
Owner's Manual (pdf)

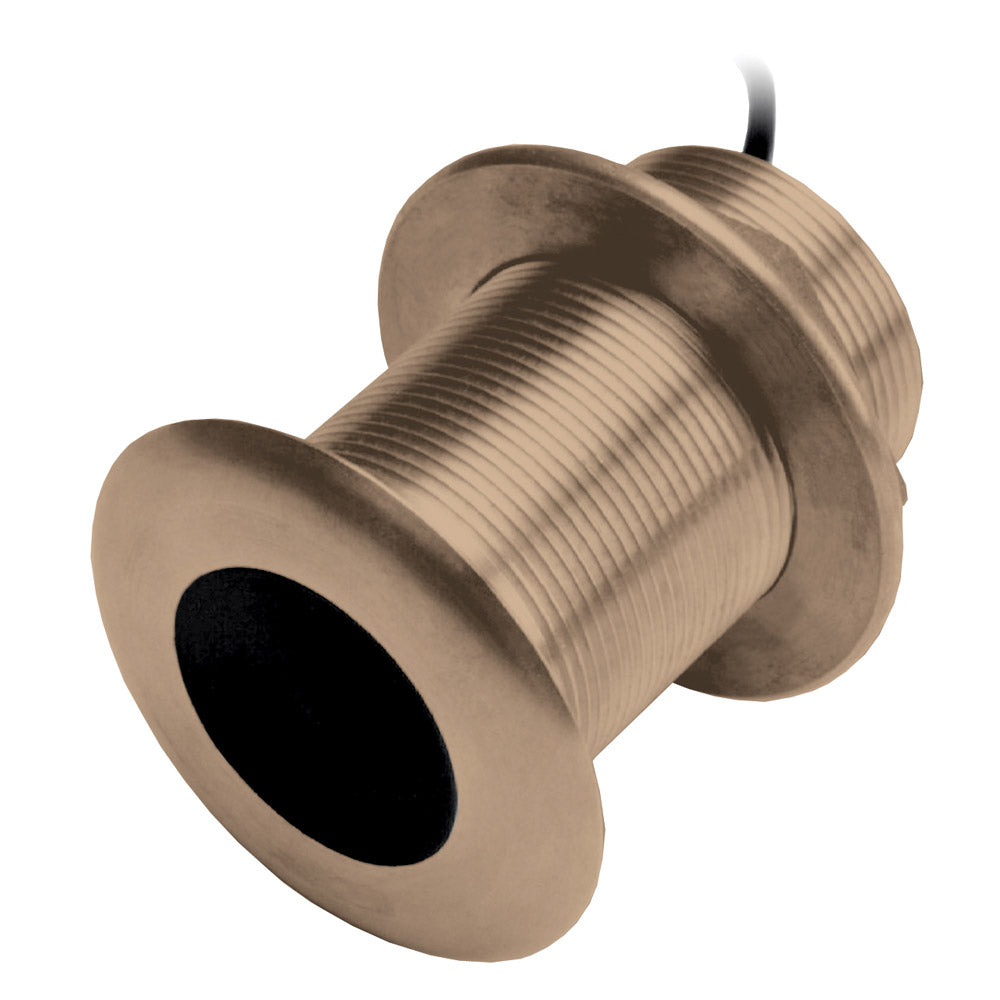

Garmin B75H Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11634-22]

Airmar B75H
w/20° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Chirp: High
• Cable Length (Feet): 39'
• Imaging: Standard
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs
• UPC: 753759971984

Owner's Manual (pdf)
Brochure (pdf)

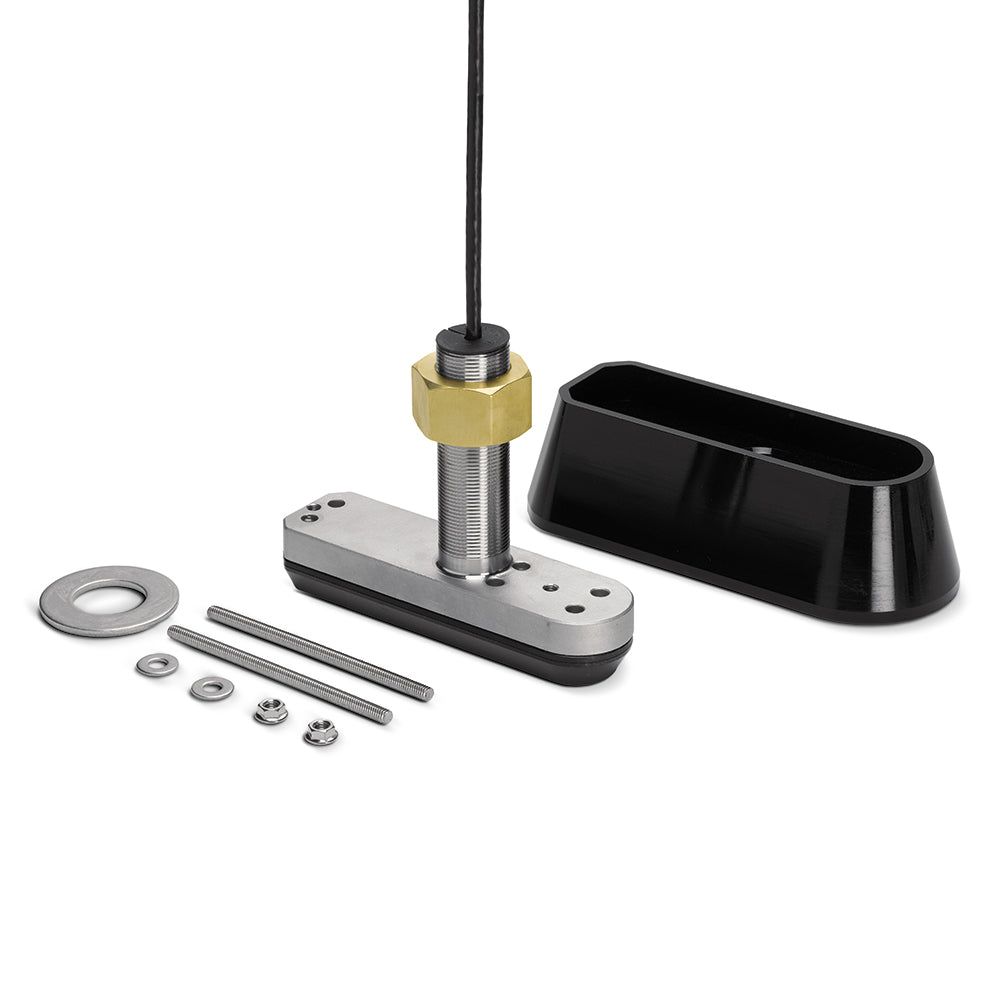

Humminbird SSTH 14 HW MSI+ Stainless Steel MEGA Thru-Hull 14-Pin [710302-1]

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-Pin

Measures: Depth/Temperature. Frequency: 83/200/455/800kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP stainless steel thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

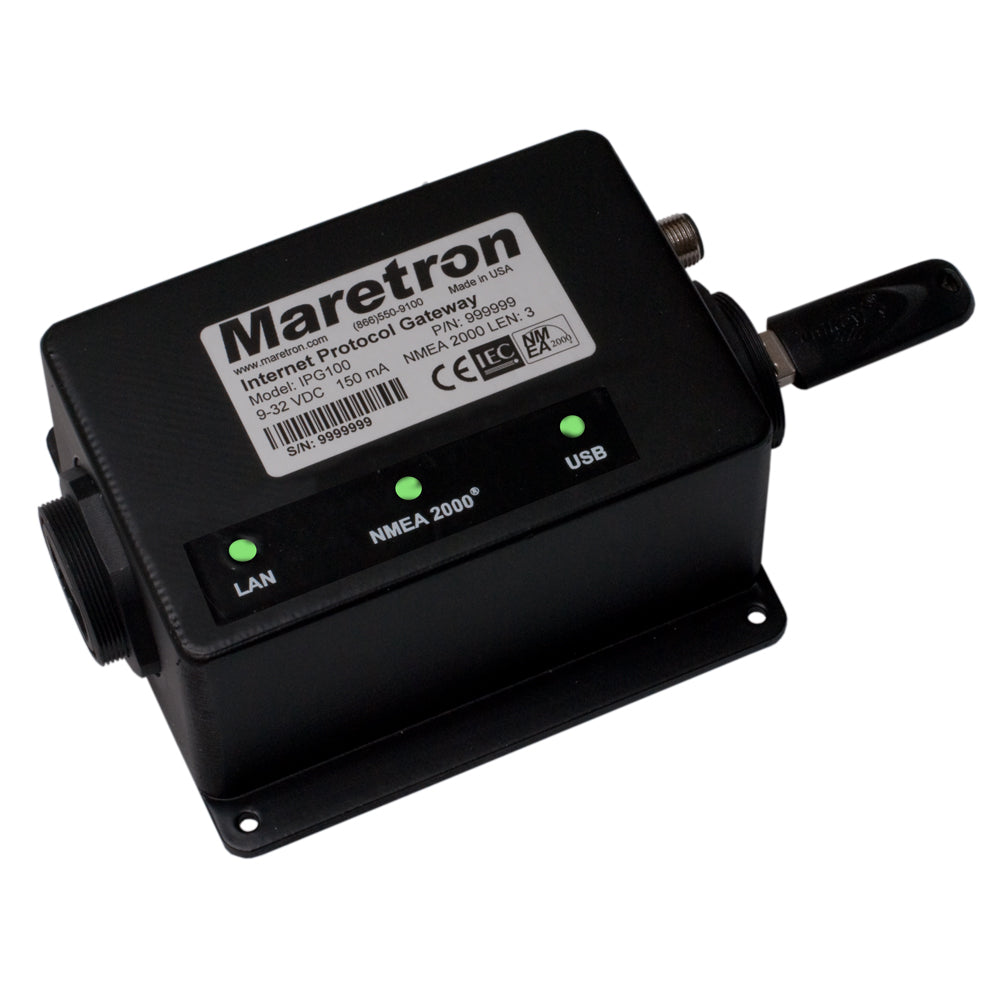

Maretron IPG100 Internet Protocol Gateway [IPG100-01]

IPG100 (Internet Protocol Gateway) lets you connect Maretron black boxes (MBB100's), Maretron touch screens (DSM800's), PC's, Mac's, tablets, or smartphones to an NMEA 2000 network so you can monitor and control your vessel using Maretron's N2KViewr software. The conventional way of viewing NMEA 2000 information is with a display on the vessel that is directly connected to an NMEA 2000 network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KViewr software to monitor and control your vessel from onboard or ashore.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)

B285M Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

Features:

• Frequency: Chirp 85 - 135 kHz
• Power Rating: 1 KW
• Connector: 10 Pin
• Fairing Block: High Speed Fairing Block Included

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable

12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.

Features:

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on the boat’s running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID® technology

Specifications:

• Acoustic Window: Urethane
• Cable-Length: 2 M (6.5')
• Common Use: Leisure/Yachting, Fishing
• Connector: Airmar 9-Pin (MM1)
• Conventional Beam: 22°x20°/6°
• Country of Origin: USA
• Deadrise Range: 8° to 15°
• Frequency Band: 50/200 kHz
• Material: Bronze
• Max Deadrise: Up to 15°
• Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
• Mix and Match Series: 9-Pin 1000 Watt
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Sensor Connector: MM1
• Single or Dual Frequency: Conventional Dual Frequency
• Tilt Angle: 12°
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs)
• Power Rating: 1 kW
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Display Connector: Cable Required

Specifications:

• Cable Length (Feet): 6.5'
• Chirp: No
• Imaging: Standard
• Mounting Style: Thru-Hull
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs

SI-TEX MDA-6 High Power 5W SOTDMA Class B/SO AIS Transceiver w/Bluetooth, Wi-Fi, NMEA0183, NK2 Isolated USB Interface [MDA-6]

MDA-6 High Power 5W SOTDMA Class B/SO AIS Transceiver with Bluetooth, Wi-Fi, NMEA0183, NK2 Isolated USB Interface

The SI-TEX MDA-6 delivers Class-A–level transmit priority, rapid update rates, and 5-watt SOTDMA transmission—more than twice the power of standard Class B AIS units. Your vessel is detected earlier and at greater distances, even in demanding or congested waterways.

The MDA-6 broadcasts continuous dynamic data, including SOG, COG, heading, and hazard reports, giving surrounding vessels a clearer, more accurate picture of your movements.

Features:

• 5W SOTDMA Class B/SO for long-range, high-priority AIS transmissions
• High-fidelity AIS performance for precise, reliable tracking
• Integrated high-power Wi-Fi for tablets and laptops
• Bluetooth programming app for fast setup and troubleshooting
• AIS Control App with WAZE-style hazard reporting
• Built-in VDR capability
• NMEA 0183, NMEA 2000 & USB connectivity
• Low power consumption
• External GPS antenna included
• IP67 waterproof, dustproof, vibration-proof
• Compact, lightweight design
• IEC-62287-2, FCC & USCG certified

Built for Harsh Marine Environments

The MDA-6 is engineered for reliability in real-world conditions. Its IP67-rated housing protects against water, dust, and vibration, while its compact footprint allows flexible installation on any vessel.

Ideal For:

• High-speed vessels
• Commercial operators
• Recreational boaters in busy waterways
• Installations requiring long-range AIS visibility

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• Box Dimensions: 5"H x 9"W x 14"L WT: 3.6 lbs
• UPC: 010407510729

Quick Guide (pdf)
Brochure (pdf)

Nitron XD Pro Full Color Marine Night Vision Camera - Standard Mount - HDMI - Black

Experience unmatched clarity on the water with the Nitron XD Pro — the ultimate marine night vision camera. Engineered for maximum performance, it delivers true HD resolution and crystal-clear imagery even in complete darkness. Unlike thermal systems, it captures a realistic, full-color image — so you’ll always have a clear view of the horizon, channel markers, and other vessels, no matter the lighting conditions.

Installation is effortless. The Nitron XD Pro seamlessly integrates with Garmin, Simrad, Raymarine, and many other major MFDs. Using the included cable, simply plug into your display’s video input port for a quick, plug-and-play connection - no complex setup required.

Plug and Play

Choose from analog, HDMI, or Power Over Ethernet (POE) output to easily connect directly to your Garmin, Simrad, or other major MFDs. Includes brand-specific video input cables for seamless integration.

See What's Out There

See markers, buoys, docks, and more with confidence. The camera captures clear visuals in zero-light conditions—no thermal imaging required.

Built to Last

IP69 rated and built with military-grade materials. It resists salt spray, corrosion, UV, and moisture—perfect for long-term marine use.

Full Color HD

The Nitron XD Pro delivers up to 4K HD full-color video—so you can now see everything at night in vivid detail. Experience enhanced clarity, color accuracy, and next-level night navigation.

Superior Non-Thermal Night Vision

The Nitron XD Pro is a non-thermal night vision camera, meaning it doesn't rely on detecting heat signatures like thermal imaging systems. Instead, it utilizes advanced low-light imaging technology to amplify available ambient light, delivering high-resolution, full-color visuals even in near-total darkness. This approach offers several benefits:

• Enhanced Detail Recognition: Unlike thermal cameras that produce monochromatic images based on heat differences, non-thermal systems like the Nitron XD Pro provide detailed, true-to-life visuals. This clarity is crucial for identifying specific objects, reading signage, or recognizing subtle obstacles during nighttime navigation.
• Color Imaging: The Nitron XD Pro delivers full-color images, offering a more natural and intuitive viewing experience compared to the grayscale or false-color outputs typical of thermal cameras.
• Unaffected by Heat Sources: Thermal cameras can struggle in environments with uniform temperatures or when distinguishing between objects of similar heat levels. The Nitron XD Pro's performance remains consistent regardless of ambient temperature variations.

Features:

• Ultra-Sensitive Sensor – Detects light levels as low as 0.0000025 lux for true night vision clarity.
• 4K Resolution – Captures every detail in stunning ultra-high definition.
• 60 Frames Per Second – Delivers smooth, real-time video with zero lag.
• Direct MFD Connection – Compatible with Garmin, Simrad, Raymarine, and more via Analog, HDMI, or POE.
• Marine-Grade IP69K Housing – Fully sealed and built to withstand salt, spray, and the harshest marine environments.
• Flexible Mounting Options – Install on top or bottom surfaces for optimal visibility.
• 12V DC Power – Simple, reliable power input for any vessel setup.
• Manual Vertical Tilt – Easily adjust the viewing angle to suit your boat or mounting position.
• 50° Field of View – Balanced perspective for wide-area visibility and depth perception.
• Auto Day/Night Filter – Seamlessly transitions for clear imaging in all lighting conditions.

What's In The Box?

• Nitron XD Pro Marine Camera – Precision-engineered for HD night vision performance
• 25' Quick-Connect Wiring Harness – Simple, plug-and-play installation
• 5 Amp Inline Fuse – Protects your system from power surges
• Anodized Aluminum Mount – Durable, corrosion-resistant construction
• Stainless Steel Screws – Marine-grade hardware for long-lasting reliability
• Dielectric Grease Packet – Single-use protection for electrical connections
