Marine Navigation & Instruments

Navico B260 Bronze Thru Hull [B260-BL]

Ships Direct From Manufacturer

B260 Bronze Thru Hull

The B260 will enhance fish detection on virtually all of today's
fish finders. High-performance has been redefined with its
Broadband Ceramic Technology. The narrow, 6 degree beam 200 kHz
ceramic will give you excellent resolution and crisp image detail
needed for bottom fishing. The B260's low ringing is perfect for
finding fish holding tight to the bottom and other structure.
The seven-element 50 kHz array has a wider 19 degree beam for
deeper blue-water fishing. The outcome at both frequencies
is excellent resolution and crisp image detail where it's needed
most.

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display Units.

Features

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze Thru Hull

• 7 pin blue connector

• Includes High Speed Fairing Block

  Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 7
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 30'
  • Box Dimensions: 8"H x 16"W x 24"L WT: 24 lbs
  • UPC: 042194524146

  Owner's Manual (pdf)
  Brochure (pdf)

Raymarine M260 1kW In-Hull [A66089]

Ships Direct From Manufacturer

M260 In-hull

The M260 is our high performance in-hull model for 300 W-1 kW echosounders. Its construction utilizes separate 50 kHz and 200 kHz elements for excellent deep-water performance and exceptional bottom and water column detail. The M260s narrow beam provides crisp image detail especially suited for fishing shelves, intricate bottom structures and wrecks. In-hull mounting eliminates cavitation and turbulence under the transducers face resulting in precise readings even at boat speeds above 20 knots.

Features:

• Depth

• 50/200 kHz

• 1 kW RMS

• High-performance

• Urethane

Specifications:

• Mounting Style: In-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Temperature: No
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs
• UPC: 723193660898

Owner's Manual (pdf)
Brochure (pdf)

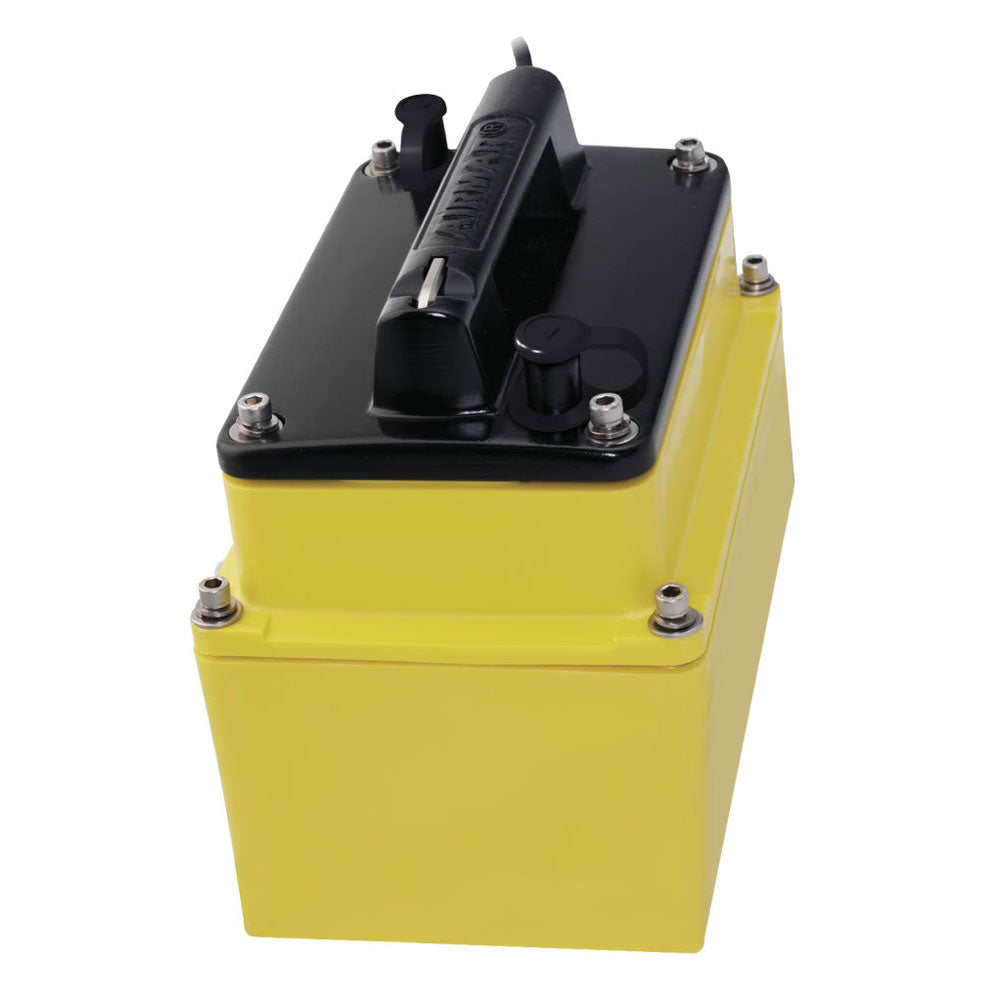

Urethane In-Hull Transducer, 1kW (10-pin), Broadband

The 527ID-IHD is an in-hull transducer utilizing Broadband Technology.

• M260 Transducer with In-Hull Kit

• 1,000 Watts Power

• 50/200 kHz w/Diplexer

• 19/6 degree Beam Angles

• Plastic Transducer with In-Hull Mounting Kit

• 10-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: In-Hull
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.1 lbs
• UPC: 6116793104222

Raymarine B260 Bronze Broadband Ultra-High Performance Thru-Hull w/Fairing [E66079]

Ships Direct From Manufacturer

Bronze Broadband Ultra-High Performance Thru-Hull w/ Fairing

1000 Watt Ultra-High Performance "Broadband" bronze through hull transducer with temperature. Includes fairing block (B260)

The B260 Broadband offers improved 200Khz performance by reducing transducer "ringing"

Compatible with the following Echo Sounders:

• DSM250 and DSM300

• SL Series: SL755RC, SL760RC , SL1250, and SL1250RC

• hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC

• hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC

• Compatible hull material: wood and fiberglass

Max Power: 1000 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 6° 50 kHz 19°
Cable: 30ft (10m) cable with connector

Fairing block included.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 9"H x 16"W x 24"L WT: 23 lbs
• UPC: 723193660799

Owner's Manual (pdf)
Brochure (pdf)

Furuno Power Supply f/1964C [PSU008]

Ships Direct From Manufacturer

Power Supply

Furuno's power supply is used specifically for Furuno's 1964C.

Features:

• 25kW

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Power - Output: 25kW
• Box Dimensions: 10"H x 14"W x 16"L WT: 16 lbs
• UPC: 611679295996

Furuno 525ST-MSD7 Bronze Thru-Hull Multisensor w/7" Stem, 600W, 10-Pin [525STID-MSD7]

Bronze Thru-Hull Multisensor w/ 7 Inch Stem, 600w (10-Pin)

• 600 Watts

• 50/200 kHz

• 40/10 degree Beam Angles

• Bronze Thru-Hull with 7' Stem, Speed and Temperature

• 30 Foot Cable with 10-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: Thru-Hull
• Speed Included: Yes
• Temperature: Yes
• Box Dimensions: 5"H x 8"W x 12"L WT: 7.2 lbs
• UPC: 611679314895

Furuno CA200B-12H Rubber Coated Transducer, 5kW (No Plug) [CA200B-12H]

Ships Direct From Manufacturer

 Rubber Coated Transducer, 5kW (No Plug)

• 5 kW

• 200 kHz

• 4 degree Beam Angle

• 11 lbs.

• Rubber Coated - Tank Mounted

• 15-Meter Cable, no connector provided

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: No
• Speed Included: No
• Box Dimensions: 10"H x 10"W x 12"L WT: 10.6 lbs

Quick Guide (pdf)

Furuno 235DT-PSE Plastic Thru-Hull, Digital Depth and Temp Sensor (7-Pin) [235DT-PSE]

Plastic Thru-Hull, Digital Depth and Temp Sensor (7-Pin)

• 200 Watts

• 235 kHz

• Plastic Thru-Hull

• Depth and Temperature (+/ - 1 degree )

• 10-Meter Cable with 7-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Box Dimensions: 4"H x 6"W x 8"L WT: 2.2 lbs
• UPC: 611679266712

Quick Guide (pdf)
Brochure (pdf)
