Garmin B75M Bronze 0 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-20]

Airmar B75M
w/0° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block.
This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 0 degree tilt and provides both depth and temperature data to your Garmin Marine Network


Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 0-7° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Medium
• Cable Length (Feet): 39'
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs
• UPC: 753759972011

Owner's Manual (pdf)
Brochure (pdf)

Maretron Mini Bulk Cable - 100 Meter - Gray

Specifications

Overall

Maretron Mid Bulk Cable - 100 Meter - Blue [DB1-100C]

Specifications

Overall

• Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1

• Insulation Material: PE (data wires), PVC (power wires)

• Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

• Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

  Power Pair

• Wire: 2x16 (1.29mm) AWG

• Resistance/Conductor: 4.1 Ohms/1000 ft max

• Max Amperage: 14 Amps
• Color Code: Red/Black

  Data Pair

• Wire: 2x20 (0.81mm) (AWG)

• Characteristic Impedance: 120 Ohms +/- 10%

• Capacitance: 10.75 pF/ft

• Color Code: White/Blue

  Approvals

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

• NMEA: NMEA 2000 Approved

• IEC: IEC-61162-3

  Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 100m
  • Box Dimensions: 11"H x 12"W x 12"L WT: 25.3 lbs
  • UPC: 873804003023

Maretron Mini Bulk Cable - 100 Meter - BlueSpecifications

Overall

Garmin B75H Bronze 12 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11634-21]

Airmar B75H
w/12° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 6-15° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High
• Cable Length (Feet): 39'
• Temperature: Yes
• Pins: 8
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs
• UPC: 753759971977

Owner's Manual (pdf)
Brochure (pdf)

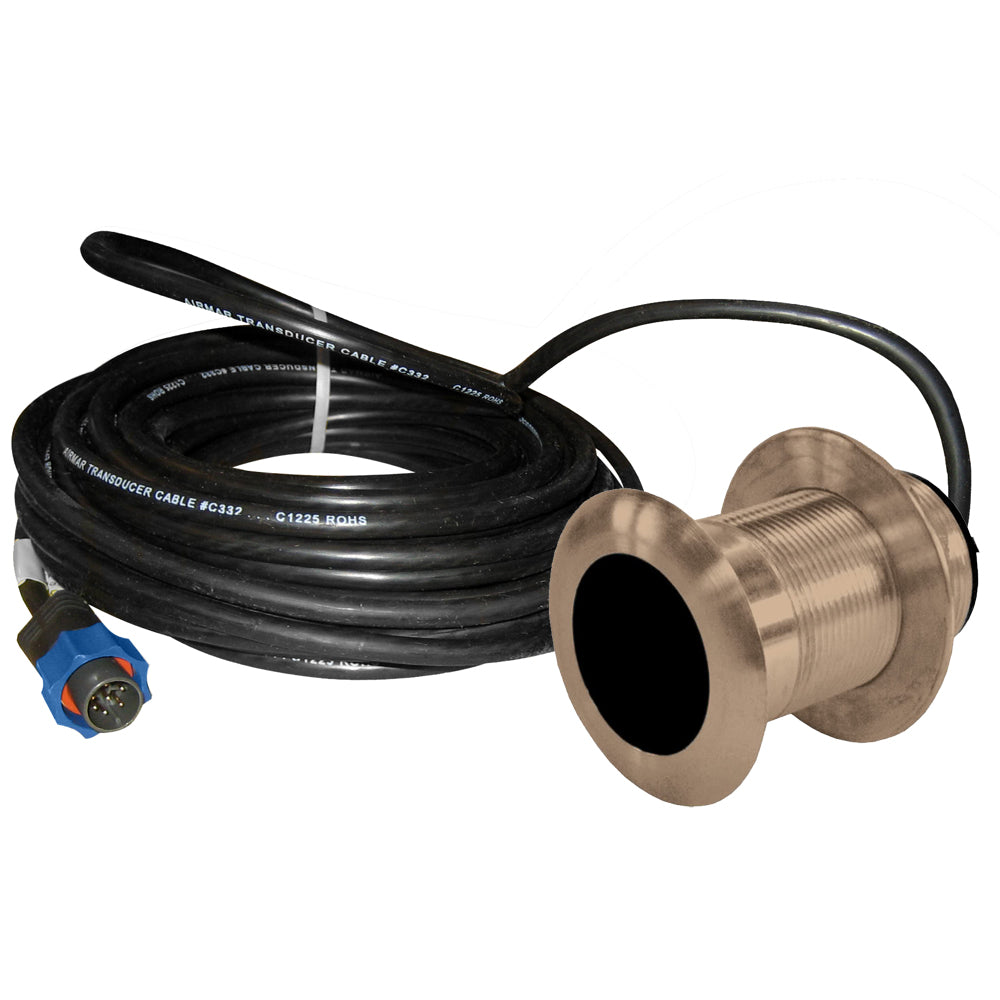

B117 Bronze Thru-Hull Low-Profile 600 W Blue Connector

Applications

• Planing hull powerboats

• Sailboats

• Industry standard for low-profile transducers

• Depth and temperature

• Good target detail in shallow-water at 200kHz and good deep-water bottom tracking at 50kHz

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Bronze housing

• Boat Size: 8M (25') and up

Specifications:

• Speed Included: No
• Pins: 7
• Mounting Style: Thru-Hull
• Imaging: Standard
• Cable Length (Feet): 33'
• Temperature: Yes
• Chirp: No
• Box Dimensions: 4"H x 8"W x 10"L WT: 3.9 lbs
• UPC: 801769000498

Furuno VHF-AIS Splitter f/FA-30 Only [000-011-704]

FA-30 VHF-AIS Splitter

The VHF splitter enables the AIS receiver and VHF transceiver to share a single VHF antenna.

Note: The FA-30 can not receive AIS signal when the VHF transceiver is transmitting.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)

Octopus 7" Stroke Remote 38mm Bore Linear Drive - 12V - Up To 45' or 24,200lbs [OCTAF1012LAR7]

Ships Direct From Manufacturer

Linear Actuators
OCTAF1012LAR7

An Octopus Hydraulic Linear Actuator is a simple, effective way to drive the rudder on a boat equipped with a mechanical steering system. The linear actuator is an assembly of an Octopus reversing pump and a marine hydraulic cylinder. This assembly is mounted on the rudder tiller-arm or quadrant. When the autopilot is not in use the cylinder runs freely along with the rudder. When the automatic pilot is in use a solenoid valve on the actuator closes and locks the cylinder. Steering signals from the pilot are now fed to the D.C. motor, which drives the pump to move the cylinder back and forth. De-energized, the solenoid valve immediately disconnects the automatic pilot from the rudder. The actuator has a small translucent oil reservoir, making it easy to check fluid levels. These actuators have only five moving parts. Mechanical simplicity gives our product reliability and ease of service when compared to complicated gear and screw actuators, making our units a favorite for offshore mariners. These actuators are shipped from our factory completely filled with oil and require no additional plumbing.

Features

• Average Current 4-6 amps

• Max Current 19amps

• 12vDC

• Cylinder Bore: 38mm

• Variable Flow Rate: 500cc - 1 litre/min

• Stroke: 178mm/7in

• Hardover Time(Suggested): 12-14 sec

• Max Rudder Torque: 750Nm/6,630lbin

• Peak Thrust: 400Kg/882lbs

• Max boat Length: 14m/45'


  Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 8"H x 8"W x 39"L WT: 21 lbs
  • UPC: 628309134686

  Quick Guide (pdf)
