Airmar B175L
w/20° Tilt
1kW

Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Low
• Cable Length (Feet): 39'
• Pins: 8
• Box Dimensions: 8"H x 10"W x 12"L WT: 12 lbs
• UPC: 753759995737

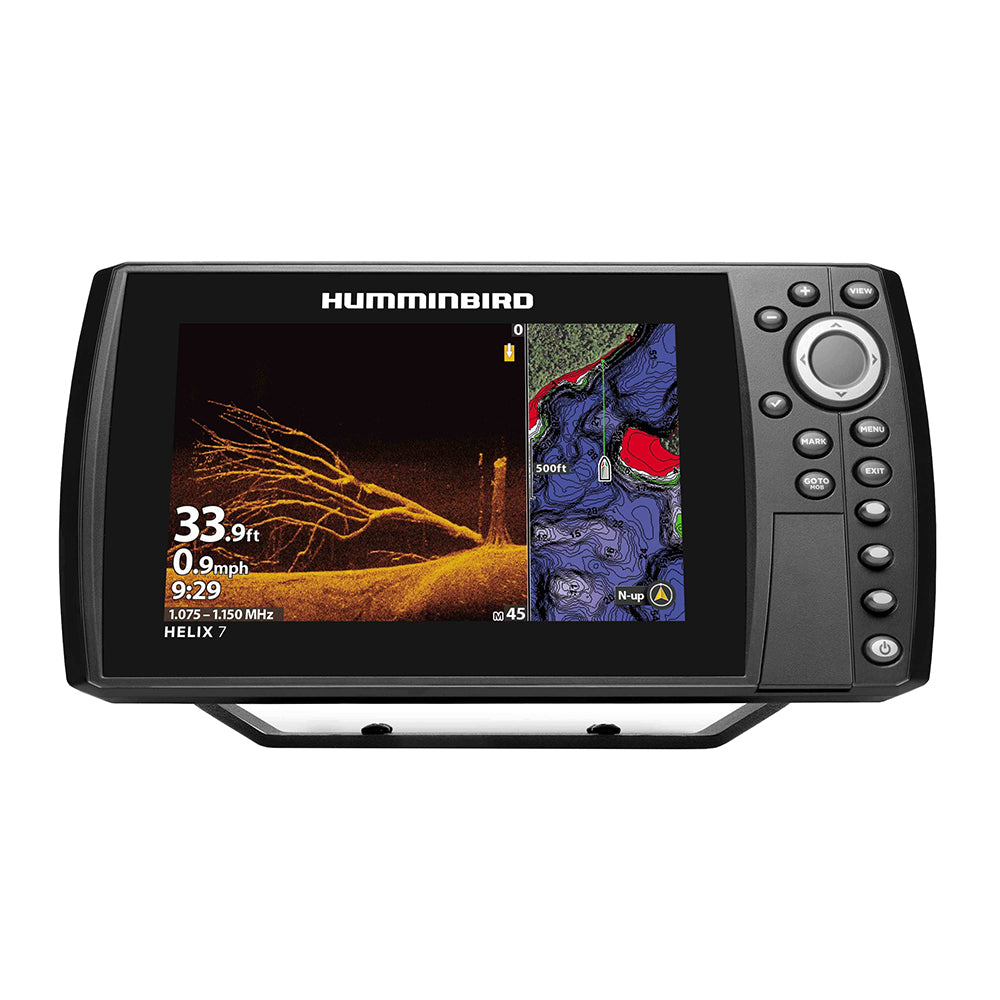

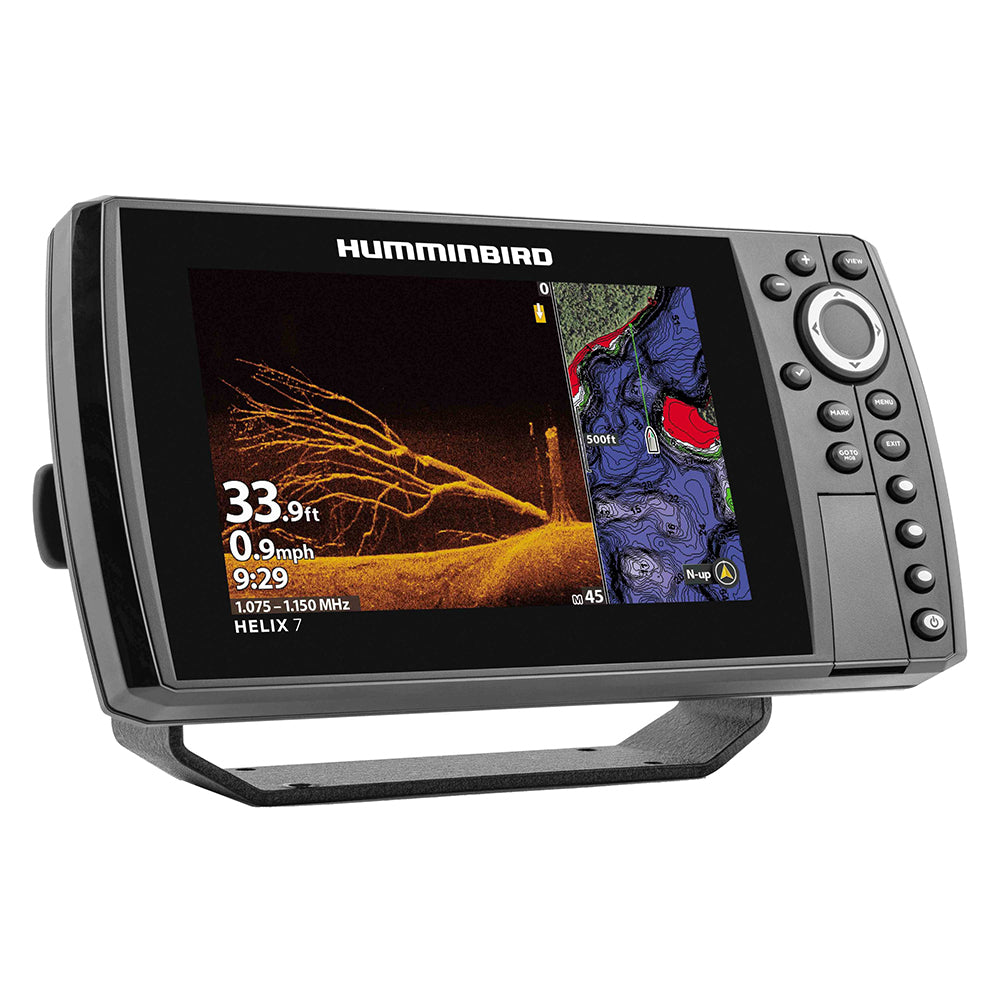

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N CHO [411640-1CHO]

HELIX 7 CHIRP MEGA DI GPS G4N CHO

The HELIX 7 CHIRP MEGA DI GPS G4N CHO fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi, and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Features:

• Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Down Imaging or Universal Sonar 2 on Minn Kota trolling motors or add to an existing Humminbird Ethernet network.
• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
• MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird.
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
• Includes control head, power cable, gimbal mounting bracket, and mounting hardware.
• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 7"
• Display Pixel Matrix: 1024H x 600V
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
• Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
• CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

Specifications:

• Cartography Brand: Humminbird/Navionics
• Screen Size: 7"
• Touchscreen: No
• Transducer Included: No
• Box Dimensions: 5"H x 14"W x 17"L WT: 4.6 lbs
• UPC: 082324056222

Quick Guide (pdf)
Owner's Manual (pdf)

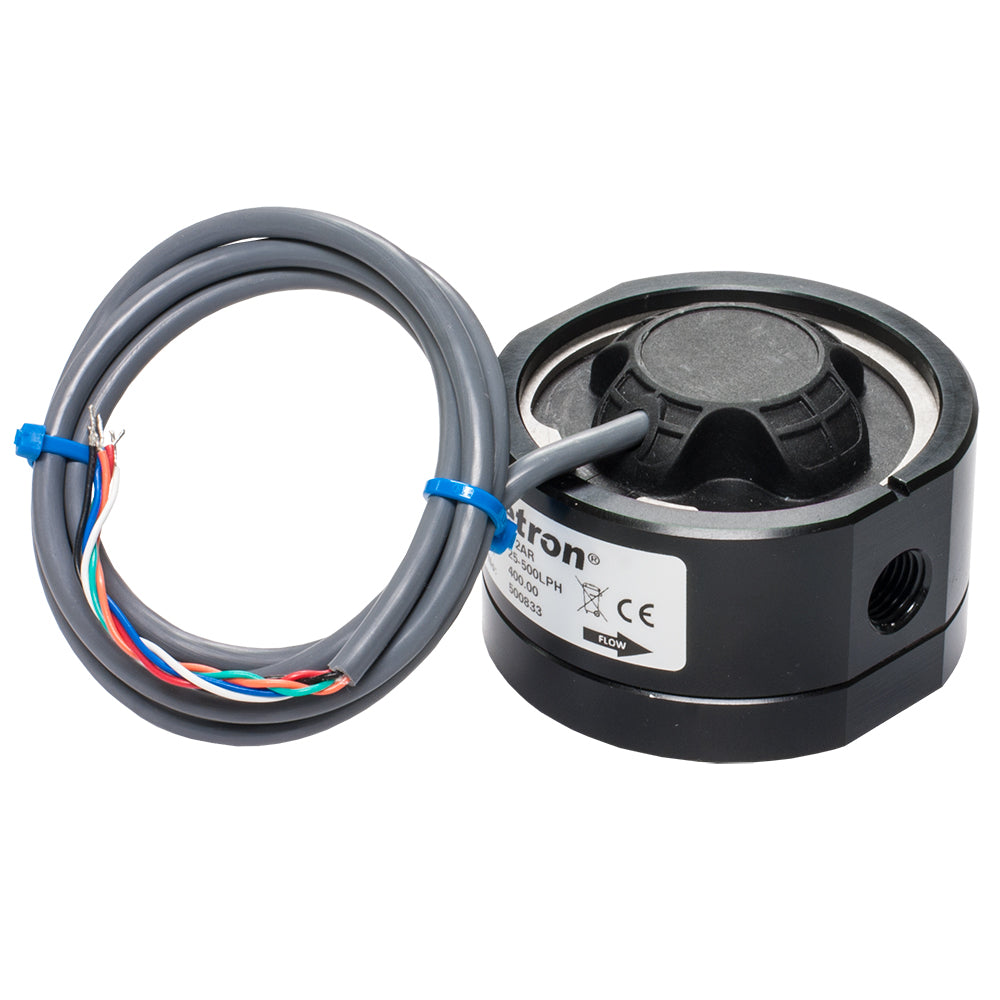

Maretron Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH [M2AR]

Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH

Features:

• Operating Temperature: -40°C to 80°C (-40°F to 176°F)

• Storage Temperature: -65°C to 170°C (-85°F to 338°F)

• Port Size: 1/4" NPT Female

• Cable Length: 1M (3.28 ft)

• Maximum Viscosity: 1000 cPs

• Pressure: 68.95 Bar (1000 PSI)

• Strainer Size: 200 Mesh (If not already installed after fuel filter)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Actisense NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine Gateway [EMU-1-BAS]

NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine Gateway

Share engine information on the NMEA 2000 bus.

The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.

The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.

The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.

An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.

The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.

Features:

• Enables analogue signals to be converted to NMEA 2000 messages
• Convert signals from up to two engines (that share a common ground) with a single EMU-1
• 6 gauge / parameter inputs
• 4 alarm inputs
• 2 additional auxiliary inputs
• 2 Tacho inputs
• Customized IP65 case
• Diagnostic LED’s
• Wide power compatibility of 9 to 35VDC
• No need to change an existing engine
• Easy installation
• Easy to configure to suit the connected engine
• Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000®
• Optional DIN rail mounting kit available
• Total engine hours are logged by the monitoring of engine Tach (RPM) input

Technical Specifications:

Power Supply

• Supply Voltage - 9 to 35VDC
• Supply Current - Typically < 25mA @ 12VDC
• Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113)
• Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch
• Supply Voltage (NMEA 2000 Port) - 9 to 29VDC
• Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus
• Load Equivalent Number (LEN) - 1
• Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V

NMEA 2000 Port – In/Out

• Compatibility - Fully NMEA 2000 certified
• Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive
• Speed / Baud Rate - 250kbps
• NMEA 2000 Connector - M12 male (A coded) connector

Gauge Inputs

• Voltage Range - 0 to 35VDC
• Input Impedance - > 50kΩ
• Sender Feed - 0, 4 or 18mA
• Accuracy - <= 2%
• Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch
• Input Protection - Overvoltage protection to ±40V

Alarm Inputs

• Voltage Range - 0 to 37VDC
• Input Impedance - > 50kΩ
• Threshold Voltage - Configurable, default is 5V
• Alarm Polarity - Configurable, default is alarm on low input
• Accuracy - <= 2%
• Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection - Overvoltage protection to ±40V

Tacho Inputs

• Voltage Range - ±3 to ±60V
• Input Impedance - > 100kΩ to ground
• Input Pulse Range - 4 to 50,000Hz
• Accuracy - <= 1%
• Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender
• Threshold - Automatically adjusts to signal level
• Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection - Can withstand an ignition pulse to ±500V

Engine Log

• Engine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memory

Mechanical

• Housing Material - Polycarbonate
• Protective Lid Material - Polycarbonate
• Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent
• Dimensions - 127mm (L) x 112mm (W) x 48mm (H)
• Weight - 250g
• Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request

Approvals and Certifications

• EMC - EN 60945 (sections 9 & 10)
• Environmental Protection - IP66 (PCB housing)
• Operating Temperature - -20°C to +55°C
• Storage Temperature - -30°C to +70°C
• Recommended Humidity - 0 – 93% RH
• Guarantee - 3 years

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 2000
• Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs
• UPC: 5060998710331

Owner's Manual (pdf)
Brochure (pdf)

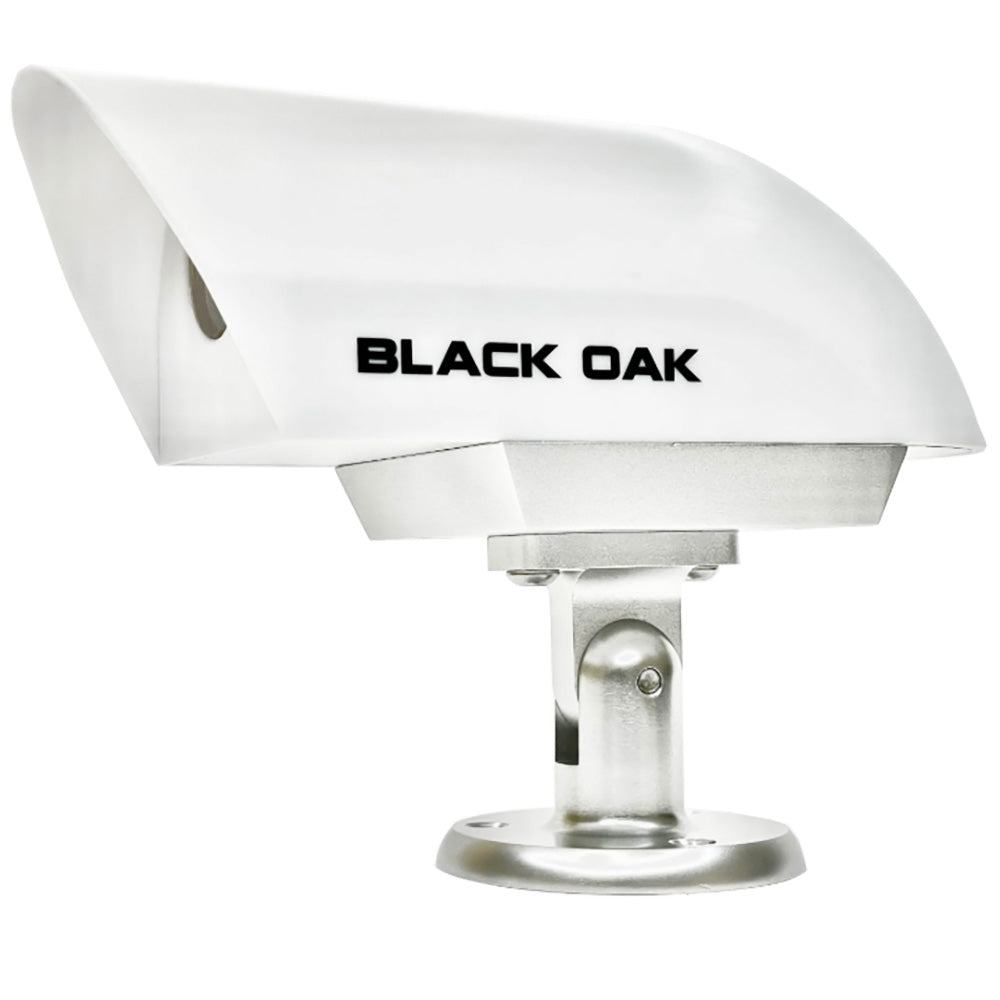

Nitron XD Pro Full Color Marine Night Vision Camera - Standard Mount - HDMI - White

Experience unmatched clarity on the water with the Nitron XD Pro — the ultimate marine night vision camera. Engineered for maximum performance, it delivers true HD resolution and crystal-clear imagery even in complete darkness. Unlike thermal systems, it captures a realistic, full-color image — so you’ll always have a clear view of the horizon, channel markers, and other vessels, no matter the lighting conditions.

Installation is effortless. The Nitron XD Pro seamlessly integrates with Garmin, Simrad, Raymarine, and many other major MFDs. Using the included cable, simply plug into your display’s video input port for a quick, plug-and-play connection - no complex setup required.

Plug and Play

Choose from analog, HDMI, or Power Over Ethernet (POE) output to easily connect directly to your Garmin, Simrad, or other major MFDs. Includes brand-specific video input cables for seamless integration.

See What's Out There

See markers, buoys, docks, and more with confidence. The camera captures clear visuals in zero-light conditions—no thermal imaging required.

Built to Last

IP69 rated and built with military-grade materials. It resists salt spray, corrosion, UV, and moisture—perfect for long-term marine use.

Full Color HD

The Nitron XD Pro delivers up to 4K HD full-color video—so you can now see everything at night in vivid detail. Experience enhanced clarity, color accuracy, and next-level night navigation.

Superior Non-Thermal Night Vision

The Nitron XD Pro is a non-thermal night vision camera, meaning it doesn't rely on detecting heat signatures like thermal imaging systems. Instead, it utilizes advanced low-light imaging technology to amplify available ambient light, delivering high-resolution, full-color visuals even in near-total darkness. This approach offers several benefits:

• Enhanced Detail Recognition: Unlike thermal cameras that produce monochromatic images based on heat differences, non-thermal systems like the Nitron XD Pro provide detailed, true-to-life visuals. This clarity is crucial for identifying specific objects, reading signage, or recognizing subtle obstacles during nighttime navigation.
• Color Imaging: The Nitron XD Pro delivers full-color images, offering a more natural and intuitive viewing experience compared to the grayscale or false-color outputs typical of thermal cameras.
• Unaffected by Heat Sources: Thermal cameras can struggle in environments with uniform temperatures or when distinguishing between objects of similar heat levels. The Nitron XD Pro's performance remains consistent regardless of ambient temperature variations.

Features:

• Ultra-Sensitive Sensor – Detects light levels as low as 0.0000025 lux for true night vision clarity.
• 4K Resolution – Captures every detail in stunning ultra-high definition.
• 60 Frames Per Second – Delivers smooth, real-time video with zero lag.
• Direct MFD Connection – Compatible with Garmin, Simrad, Raymarine, and more via Analog, HDMI, or POE.
• Marine-Grade IP69K Housing – Fully sealed and built to withstand salt, spray, and the harshest marine environments.
• Flexible Mounting Options – Install on top or bottom surfaces for optimal visibility.
• 12V DC Power – Simple, reliable power input for any vessel setup.
• Manual Vertical Tilt – Easily adjust the viewing angle to suit your boat or mounting position.
• 50° Field of View – Balanced perspective for wide-area visibility and depth perception.
• Auto Day/Night Filter – Seamlessly transitions for clear imaging in all lighting conditions.

What's In The Box?

• Nitron XD Pro Marine Camera – Precision-engineered for HD night vision performance
• 25' Quick-Connect Wiring Harness – Simple, plug-and-play installation
• 5 Amp Inline Fuse – Protects your system from power surges
• Anodized Aluminum Mount – Durable, corrosion-resistant construction
• Stainless Steel Screws – Marine-grade hardware for long-lasting reliability
• Dielectric Grease Packet – Single-use protection for electrical connections

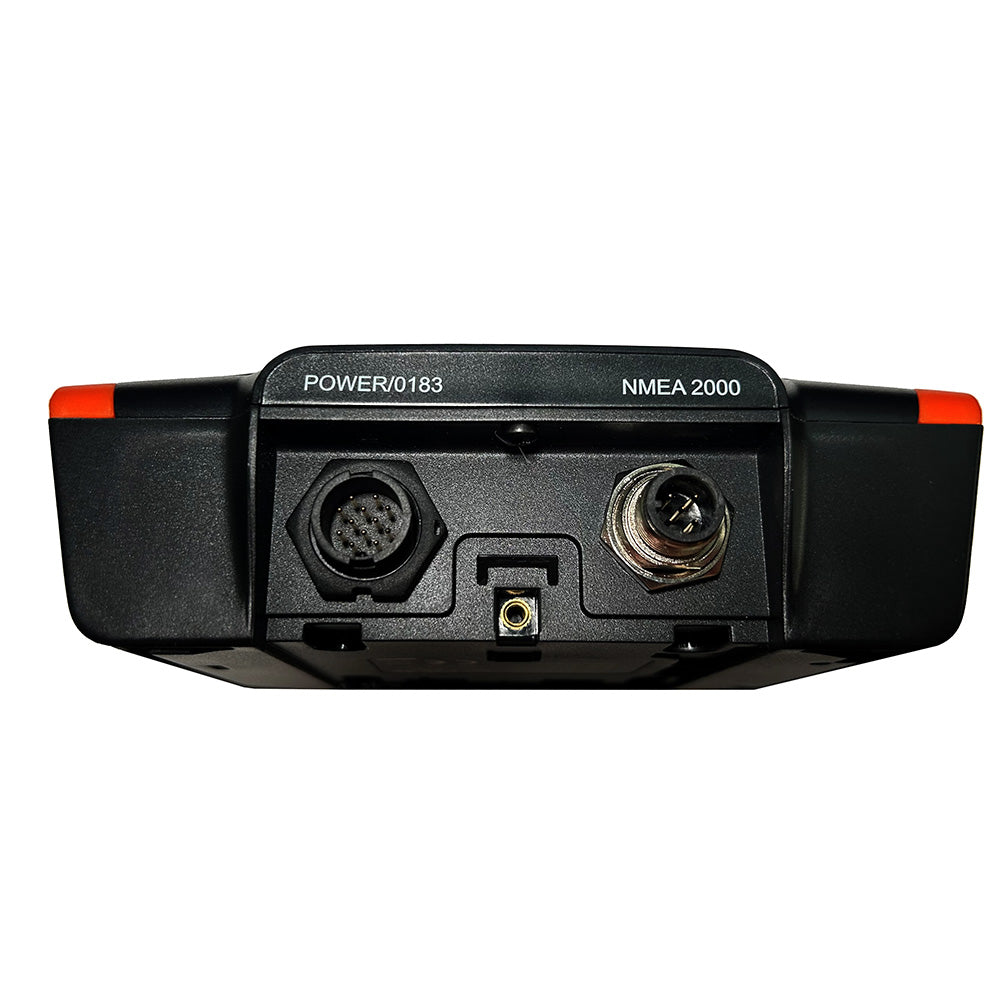

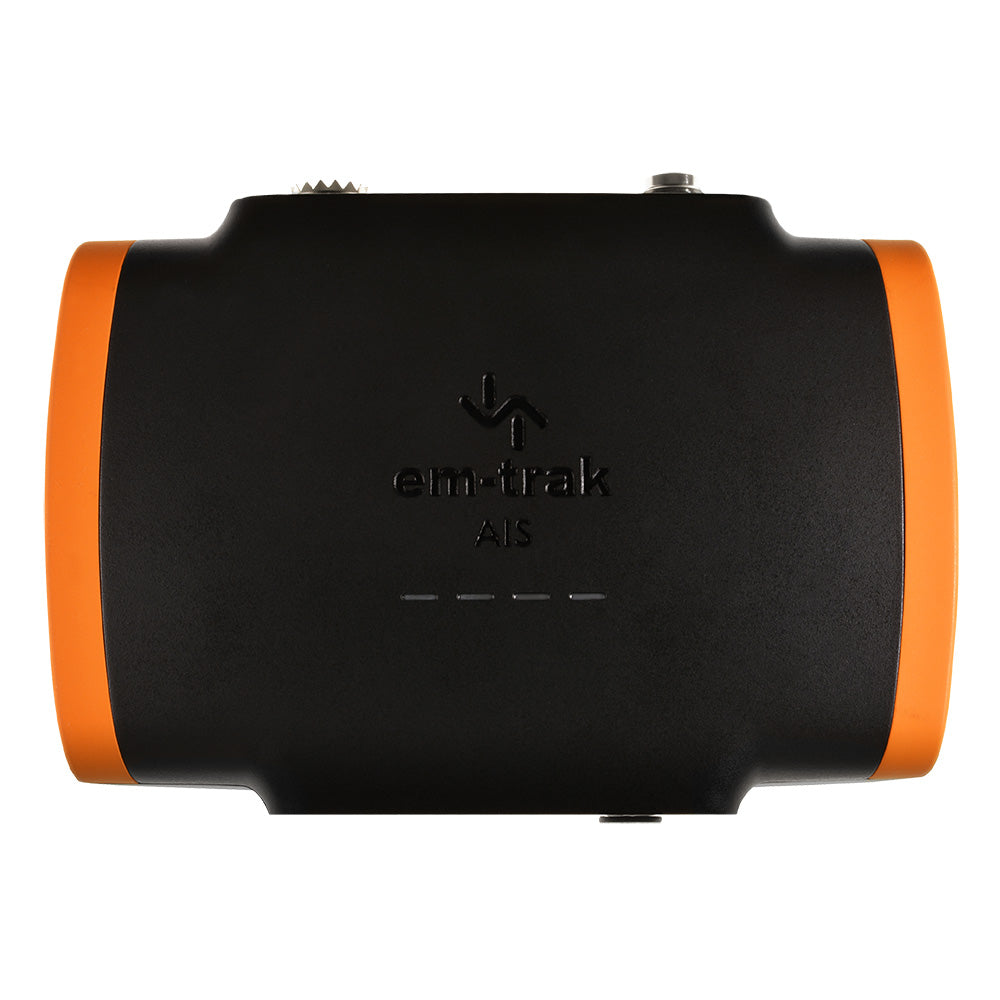

B921 Class B AIS Transceiver - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B921 is a 2W CSTDMA Class B AIS transceiver, delivering em-trak's advanced performance and reliability through next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, even at the range limit, so you always have the complete picture and the time to respond.

em-trak's intelligent connectivity means the B921 can be connected to any chart-plotter and comes equipped with integrated GPS technology and best-in-class, ultra-low power consumption. Installation is also simplified with our unique FLEXI-FIT® bracket system to have you up and running in no time at all.

Features:

• Certified AIS Class B – 2W CSTDMA
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 375kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 135mA
• Peak current: 2A
• Average power consumption (at 12V): 1.6W
• Galvanic isolation: NMEA 0183, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: CSTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 2W (+33dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 8"L WT: 1.55 lbs
• UPC: 672975210502

GPSMAP® 8616 Chartplotter GN+

You’re a mariner who wants it all — a fast, high-performance network chartplotter with sonar, a large 16" IPS display, preloaded maps and charts, and more

The GPSMAP®8616 chartplotter features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.

Features:

• Features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses
• Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full line of live sonar products (transducers sold separately)
• Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush
• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia
• ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more
• See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
• For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices
• Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content
• SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more
• Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge
• Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more.
• Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and mapping cards

What's In The Box?

• Chartplotter
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation
• GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Cartography Brand: Garmin Navionics+
• Internal/External Antenna: Internal
• Screen Size: 16"
• Touchscreen: Yes
• Box Dimensions: 9"H x 14"W x 20"L WT: 14.1 lbs
• UPC: 753759285432

NavPilot 711C - Control Unit

Kick back, relax and let NavPilot steer you to your destination!

FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.

The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.

Self-learning and adaptive software

From the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.

SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering Control

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.

The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.

If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.

FishHunter mode

FishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Parts
• Box Dimensions: 7"H x 8"W x 12"L WT: 4.1 lbs
• UPC: 611679355140
