Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D [165T/275LHW]

Ships Direct From Manufacturer

165T/275LHW Pocket Mount Combo Wide Beam Transducer for DFF3D

This is the housing (12L x 5W x 3.5H) that contains DFF3D elements along with CHIRP elements.

Features:

• DFF3D operating frequency 165 kHz
• Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
• High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
• 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and a pigtail cable for the DFF3D
• Recommended for a DFF1-UHD and DFF3D installation
• Built-in motion sensor
• Built in temp sensor

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Airmar R509C-LHW CHIRP Transducer - No Connector [R509C-LHW]

Ships Direct From Manufacturer

R509C-LHW CHIRP Transducer

Features:

• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• 25-Internal, Broadband Ceramic Elements
• Broadband / CHIRP / Spread Spectrum
• Operating frequencies:
  • Low—Chirps from 28 kHz to 60 kHz
  • High—Chirps from 130 kHz to 210 kHz
• Beamwidth (Adjustable):
  • Low—23° to 9°
  • High—8° to 4°
• 10 m (33’) cable, no connector
• Fast-response water-temperature sensor
• Boat size: 12 m (40’) and above
• Hull Type: Fiberglass, wood, or metal
• Exclusive Transducer ID®

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Low/High Wide
• Box Dimensions: 14"H x 17"W x 28"L WT: 58 lbs
• UPC: 801769001945

Raymarine RV-312 RealVision 3D Transducers - Pair - Nylon Thru-Hull 12 Deadrise [T70320]

Ships Direct From Manufacturer

RV-312 RealVision™ 3D Transducers - Pair - Nylon Thru-Hull 12° Deadrise

The RV312 Thru-Hull Transducer from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 5°-15°.

Specifications:

• Imaging: Standard/Down/Side
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Cable Length (Feet): 33'
• Box Dimensions: 6"H x 14"W x 20"L WT: 17.35 lbs
• UPC: 723193855362

Furuno Pocket or Keel Mount Transducer w/Motion Sensor f/DFF3D [165T-CM54]

Ships Direct From Manufacturer

Pocket or Keel Mount Transducer with Motion Sensor for DFF3D

Furuno's Pocket or Keel Mount Transducer with Motion Sensor for Furuno's DFF3D.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Raymarine RV-320 Plastic Thru-Hull Transducer Pack w/20 Deadrise Compensation [T70321]

Ships Direct From Manufacturer

RV-320 Plastic Thru-Hull Transducer Pack with 20° Deadrise Compensation

Designed for inboard or outboard boats, the RV-320 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-320 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-320 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-320 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 14° to 26°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works even works great on trailered boats.

The RV-320 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)

In the Box:

• RV-320P Plastic Port Transducer with 2-meter cable
• RV-320S Plastic Starboard Transducer with 2-meter cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8-meter (26-feet) Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions

Specifications:

• Temperature: Yes
• Speed Included: No
• Imaging: Standard/Down/Side
• Cable Length (Feet): 33'
• Mounting Style: Thru-Hull
• Box Dimensions: 15"H x 17"W x 20"L WT: 16 lbs
• UPC: 723193817063

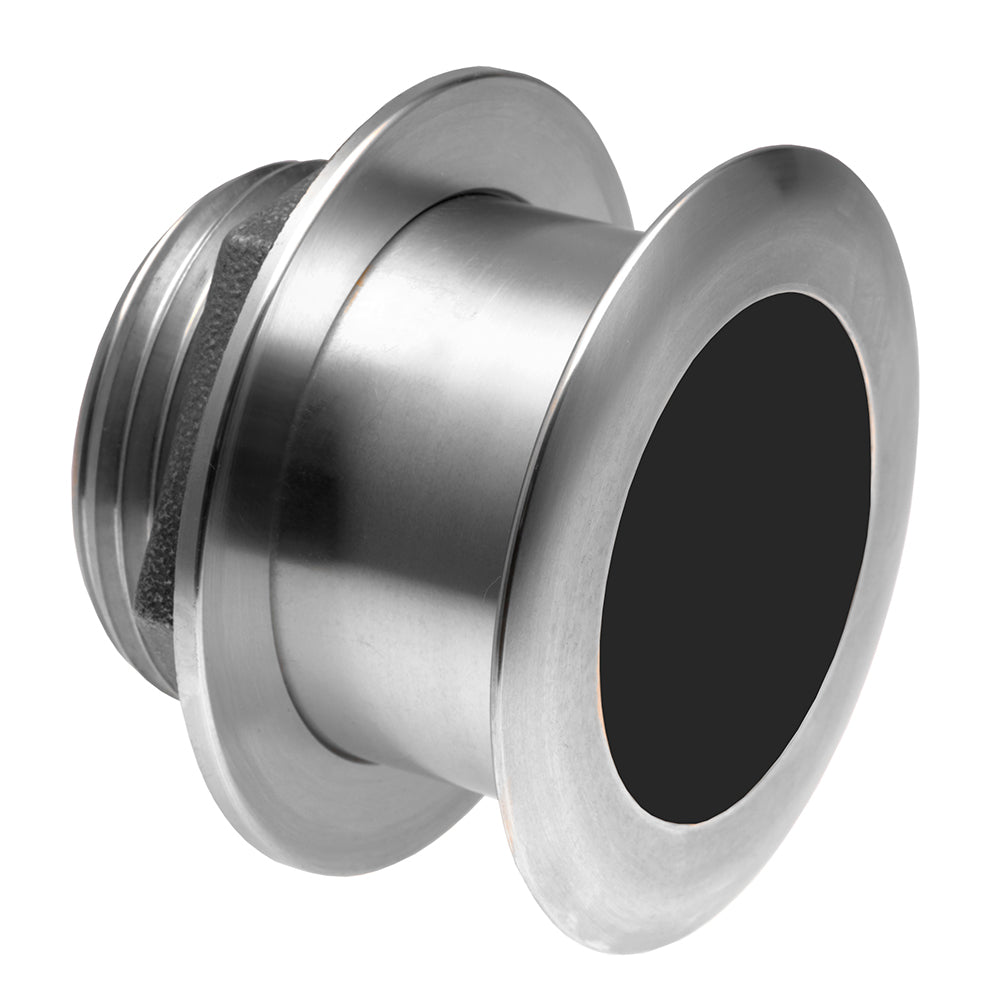

556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted

Furuno's Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element.

Airmar SS164 Housing Style Transducer.

If a thru-hull flush-style, stainless steel transducer is called for, the 12-Degree Tilted Element 556TID-LTD/12 will accommodate a deadrise angle between 8° and 15°. This transducer compensates for deadrise by angling the element inside the housing.

The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.

Features:

• 1kW 50/200 kHz
• 20/6 degree Beam Angles
• Stainless Steel Thru Hull with Temperature
• 30 Foot Cable with 10-Pin Connector

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix  Match Cable Needed [B265C-LM-MM]

Ships Direct From Manufacturer

B265LM Bronze Chirp Thru-Hull Transducer 1kW with Fairing Block - Mix & Match Cable Needed

The B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.

LM Model - Low Frequency 42-65 kHz/Medium Frequency 85-135 kHz

Features:

• Depth & fast-response water-temperature sensor
• 1kW power for excellent deep to mid-depth performance
• Low frequency: 42 kHz to 65 kHz

• 25° to 16° beamwidth (port-starboard)
• Maximum depth 3000' (914 m)

• Medium frequency: 85 kHz to 135 kHz

• 16° to 11° beamwidth
• Maximum depth 1500' (457M)

• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze transducer housing with High-Performance Fairing for improved high speed performance
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Models also available in Transom Mount (TM265LM), Pocket Mount (PM265LM), Cavity Mount (CM265LM), In-Hull (M265LM)
• Exclusive Xducer ID® technology

Specifications:

• Hull Deadrise: Up to 20° with fairing
• Acoustic Window: Urethane
• Weight: 7.3 kg (16 lb)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Low/Medium
• Box Dimensions: 5"H x 12"W x 16"L WT: 23 lbs
• UPC: 801769001600

Owner's Manual (pdf)
Brochure (pdf)

Raymarine Hydraulic Reversing Pump Type 0.5 [E12139]

Hydraulic Reversing Pump Type 0.5

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.
