Marine Navigation & Instruments

Nitron XR1 Color Night Vision Camera - Analog - White

Navigate the Night with Brilliant HD Color

Enhance your nighttime adventures with the new Nitron XR1 Color Camera, the ultimate low-light navigation tool for boaters, anglers, and maritime professionals. Designed for seamless integration on any vessel, this cutting-edge camera delivers crystal-clear imagery in near-total darkness, ensuring you stay safe and in control—no matter the conditions.

Maximize Your Night Vision Advantage!

Unlock the full potential of the Nitron XR1 Camera by pairing it with one of our high-performance IR light bars. This powerful combination takes nighttime navigation to the next level, providing unmatched visibility in total darkness.

With advanced IR technology, you can preserve your natural night vision while significantly enhancing the camera’s clarity, range, and performance. Navigate with greater confidence, detect obstacles with precision, and experience crystal-clear imaging even in the darkest environments. Upgrade your setup and own the night!

Compact, Flush, and Built to Last

The sleek, low-profile design allows for multiple mounting options, ensuring a perfect fit on any boat.

Full Color HD Video

Our advanced low-light sensor technology captures every detail in ultra-clear 1920 X 1080 color video, allowing you to navigate confidently without blinding spotlights or guesswork.

Optimized Field of View

With a 42-degree field of view, the Nitron XR1 offers precise and focused visibility, allowing you to detect objects ahead with exceptional color and clarity.

Built for the Harsh Marine Environment with a Sleek, Integrated Design

Engineered with an IP67 waterproof rating, the Nitron XR1 Camera withstands heavy rain, saltwater exposure, and extreme temperatures. Its rugged, corrosion-resistant housing ensures long-term durability in offshore and coastal environments.

Features:

• Ultra Low-Light Sensor: Crystal clear color night vision
• 42 Degree Field of View: Focused and precise visibility
• Easy Plug-and-Play: Connects directly into your MFD
• Marine-Grade Durability: Built with IP67 waterproof housing to withstand harsh marine environments
• Compact and Lightweight: Easy install

Specifications:

• Operating Voltage: 12V DC
• Frame Rate: 60 FPS
• Resolution: Up to 4K
• Filter: Auto Day to Night
• Field of View: 50° FOV Horizontal
• Image: Full Color
• Waterproof Rating: IP67
• Warranty: 2 Years
• Guarantee: 30 Day Money Back
• Wire Harness Included? Yes
• Wire Harness Length: 25'
• Fuse Size: 5 Amp
• Connector Type: 4 Pin Quick Connect
• Mounting Screw Size: #8 1-1/4" Stainless
• Weight: 1.8 lbs

What's In The Box?

• Nitron XR1 Camera
• 25' Wire Harness
• Installation Hardware

Raymarine AR200 IP Camera Stabilization Module [E70537]

AR200 IP Camera Stabilization Module

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.”

Features:

• 9-axis AHRS (attitude and heading reference system) sensor
• 28-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

In the Box:

• Mounting trim (top)
• Small sealing ring
• AR200
• x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
• Mounting tray (bottom)
• x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
• Bulkhead (wall) bracket
• Large sealing ring
• Documentation
• 6m (19.7ft) SeaTalkNG white cable

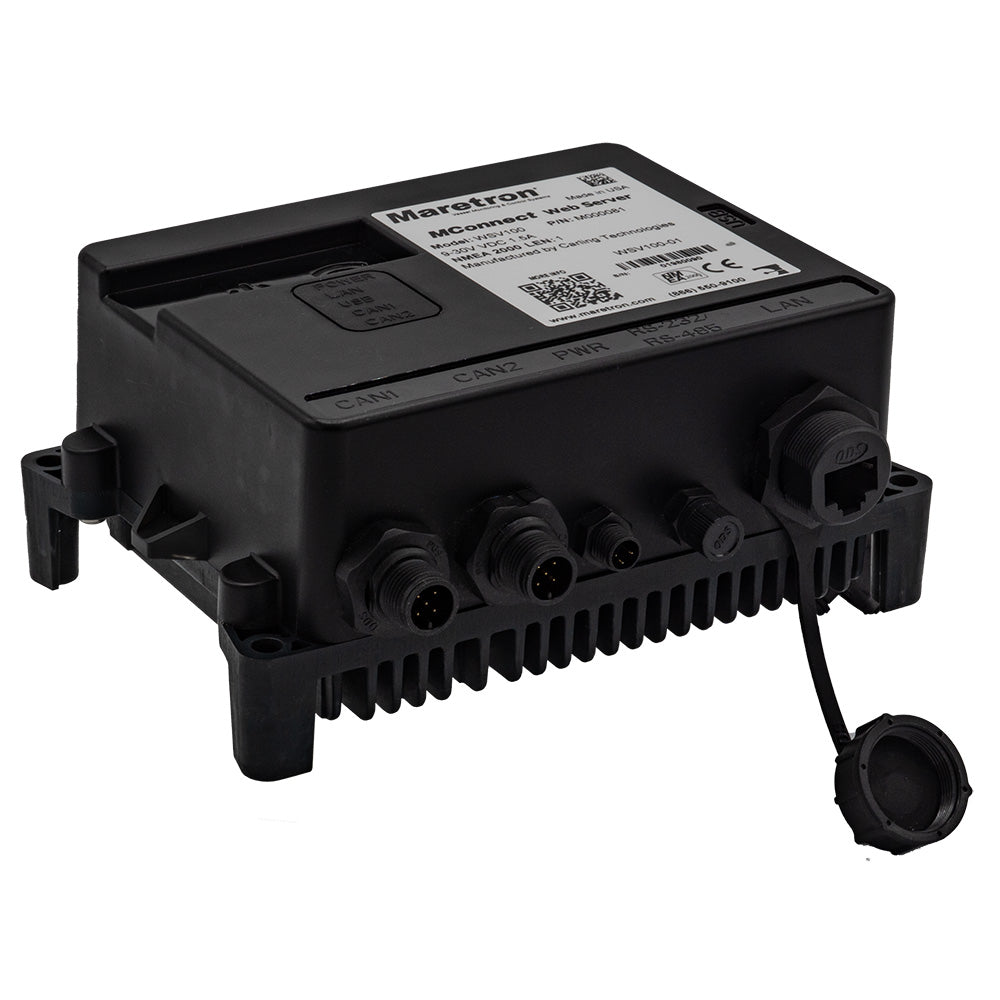

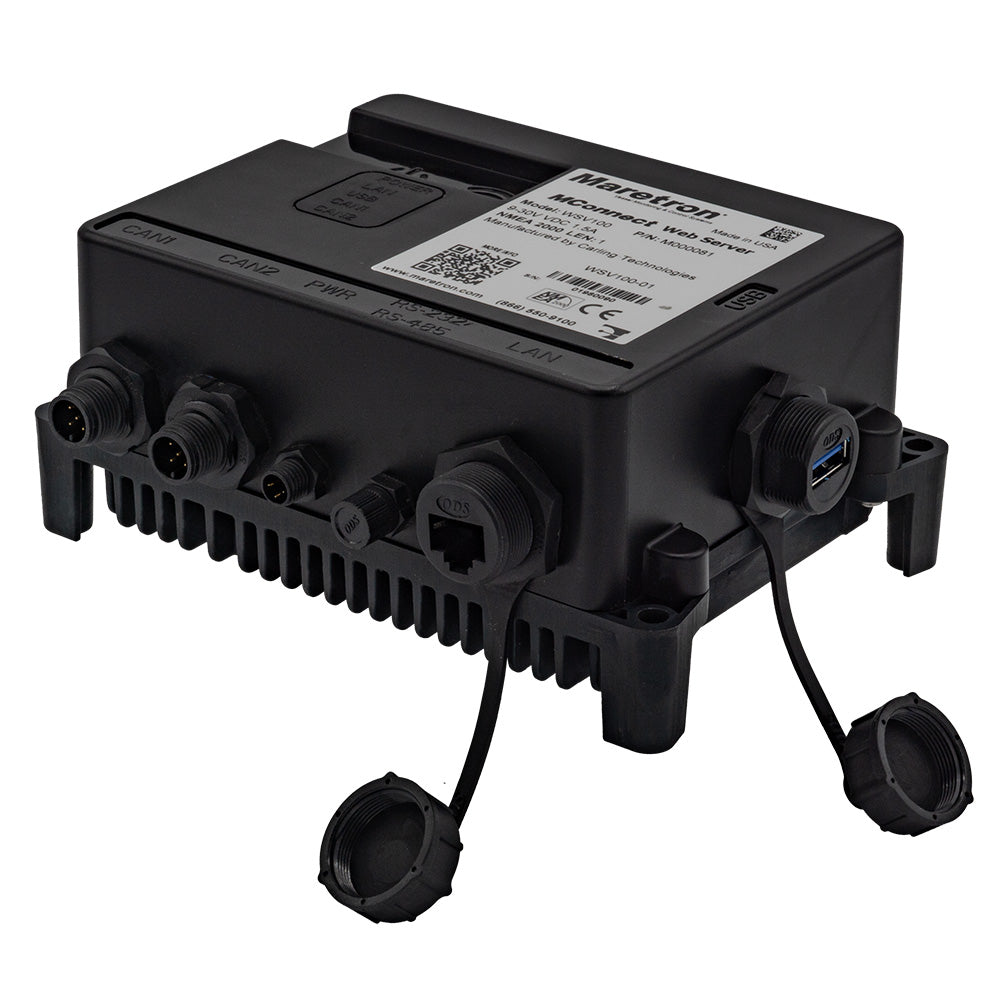

Maretron MConnect Vessel Monitoring  Control Web Server [WSV100-01]

MConnect® Vessel Monitoring & Control Web Server

MConnect is a cutting-edge, NMEA 2000® certified web server and screen editor designed to enhance the boating experience by centralizing control, monitoring, and automation functions. It connects to over 400 NMEA 2000® data points on a vessel, providing real-time visual feedback through customizable, modern graphics on multi-function displays or any browser-enabled device.

Engineered to cater to vessels of all sizes, this powerhouse delivers real-time data displayed on sleek web pages accessible from your favorite devices—phones, tablets, PCs, or MACs, take your pick! MConnect, inspired by the design brilliance of Maretron’s award-winning N2KView® Vessel Monitoring and Control Software, boasts intuitive graphic controls that transform complex data into a visually stunning experience.

MConnect integrates with marine Multifunction Displays (MFDs) like Garmin OneHelm™, Raymarine LH, and many more. It also fully integrates with digital switching systems such as Octoplex® and MPower® for a truly interconnected marine ecosystem.

MConnect doesn’t stop at one NMEA 2000 bus—it connects directly to two, independently receiving data from both. Monitor Primary and Secondary buses, or keep an eye on Navigation and Monitoring buses separately—no bridge is required.

Spot potential issues at a glance

Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boat's health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.

Revolutionizing vessel monitoring for OEMs

MConnect isn't just a powerful tool for vessel monitoring; it's a game-changer for Original Equipment Manufacturers (OEMs). We understand the importance of brand identity, and with MConnect, OEMs can take control like never before. Seamlessly integrate your brand aesthetics into the MConnect interface by creating custom graphics that align with your unique identity. This unprecedented feature empowers OEMs to showcase their brand seamlessly within the monitoring experience. The result? A truly cohesive and branded vessel monitoring solution that not only delivers unparalleled functionality but also elevates your brand presence on board. MConnect opens up a realm of possibilities for OEMs, ensuring their vessels stand out with a distinctive visual identity, making waves in both performance and style.

Your boat's well-being has never been so accessible

MConnect opens the doors wider with its simultaneous multi-user capability and an attractive price point.

Features:

Advanced Customization

The built-in MConnect Editor provides an unparalleled level of customization, allowing users to design screen layouts from scratch or choose from 87 pre-built options. OEMs can tailor the interface to match their brand identity, creating a cohesive branded user experience. This flexibility enables a truly personalized user interface, catering to both novice and expert users.

Dual NMEA 2000® Bus Connectivity

MConnect can independently connect to and receive data from two optically isolated NMEA 2000® networks, offering enhanced reliability and redundancy that ensures continuous system monitoring.

Full Integration with Digital Switching Systems

MConnect uses standard NMEA 2000® switching PGNs, allowing seamless integration with third-party systems as well as our own Octoplex® and MPower® systems. This consolidation of control and monitoring simplifies complex integrations into one platform.

Web-Based Accessibility

Unlike traditional systems, MConnect’s web server allows remote access from any device with a browser and uses VPN support for enhanced data security. This ensures both versatility and security for onboard and offboard management.

Affordable Pricing

MConnect provides high-end features at a competitive price, delivering exceptional value without compromising on quality or performance.

Specifications:

• Engaging HTML5 user interface experience
• Design your look with custom graphics
• Can support simultaneous access by up to four users
• Dual Can Bus for dual or redundant NMEA 2000 Connections
• 9-32 Volt Power Input (with reverse polarity protection)
• Only 5-watt power usage
• RJ45 Ethernet Port
• USB 3.0 Port
• WIFI

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)

Course Computer Unit - Reactor™ 40

Garmin's CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and an optional NMEA 2000-compatible devices.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

NMEA2000 GNSS SAT Compass with Pole Mount (No Cable Included)

Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass.

The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.

Features:

• Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS
• 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll and pitch

Specifications:

• Output Type: NMEA 2000
• Mounting Style: Surface
• Lubber Lines: No
• Backlight: No
• Box Dimensions: 9"H x 9"W x 15"L WT: 5.1 lbs
• UPC: 010407520575

SAS-900 6" Color Class A AIS Transceiver

Internationally Certified SOLAS Class A AIS Transceiver

SAS-900 is the world's most sophisticated and robust SOLAS and Inland-Waterway certified AIS Class A Transceiver.

Fourth generation AIS technology delivers unmatched real world AIS receive, transmit and message processing performance and reliability. Quality engineered and manufactured without compromise, with features such as IPX7 weather proofing and integrated shock and vibration protection for continuous long term operation in even the harshest commercial or military environment.

A large integrated high definition color screen maximizes the benefit of the SAS-900's powerful Electronic Chart display engine with full detailed chart AIS overlay, and multiple target management functionality, including innovative MOB features and many more.Charts are C-Map Max software in MicroSD card.

Specifications:

• GPS Included: Yes
• Function: Receive/Transmit
• Display Included: Yes
• Antenna Included: No
• AIS Class: A
• Box Dimensions: 5"H x 10"W x 15"L WT: 6.3 lbs
• UPC: 010407421063

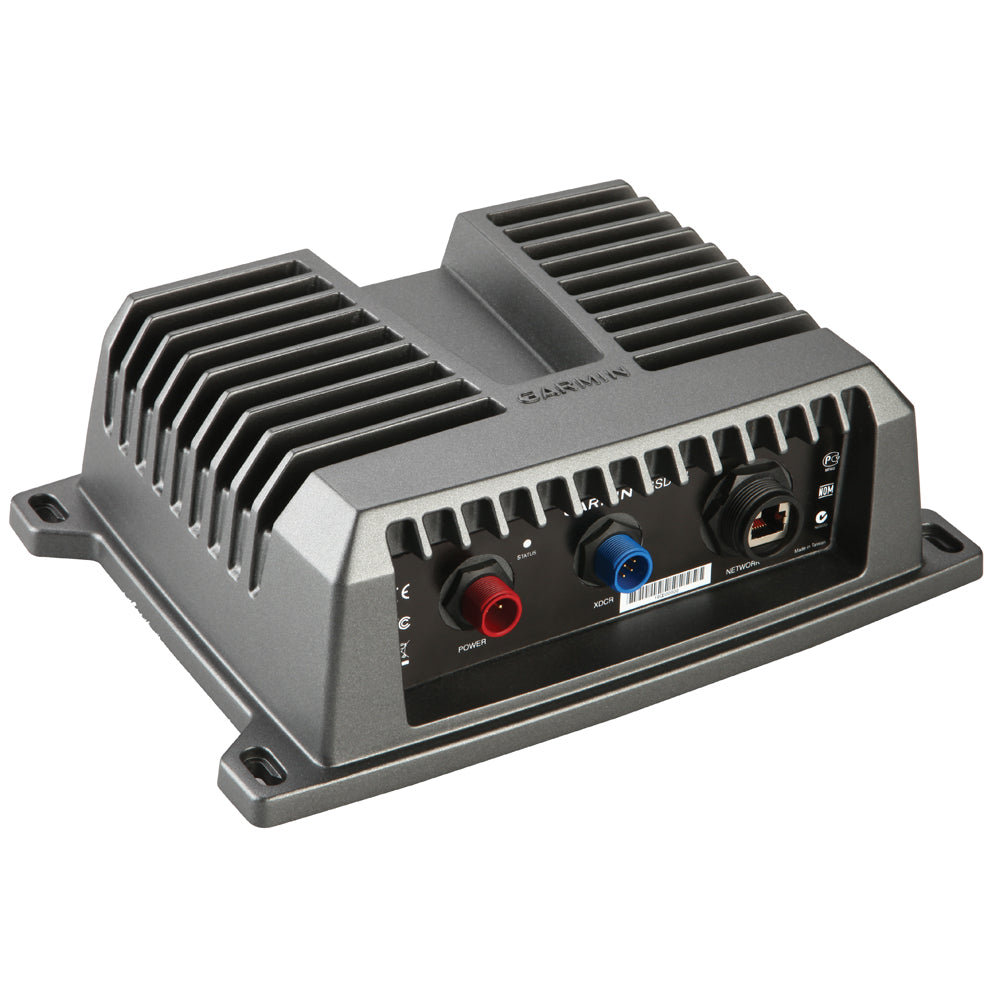

GSD™ 24 Digital Black Box Network Sounder

The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.

Get the Whole Picture
With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether you're out sportfishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you'll see a clearer picture with enhanced separation of images and deeper bottom detection.
Plug and Play
Thanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.

Product Features and Specifications

• Improved digital sonar design provides extraordinary target definition and deep water performance

• Selectable transmit power from 600W, 1kW and 2kW

• Discrete 50kHz and 200kHz frequencies

• Current GSD 22 users can upgrade to a GSD 24 with the included adapter -V users will notice improved performance after upgrading¹

• Dimensions: 10.85" L x 8.03" W x 3.22" H (27.56 x 20.40 x 8.18 cm)

• Weight: 4.22 lbs (1.9 kg)

• Waterproof IPX 7 standards

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

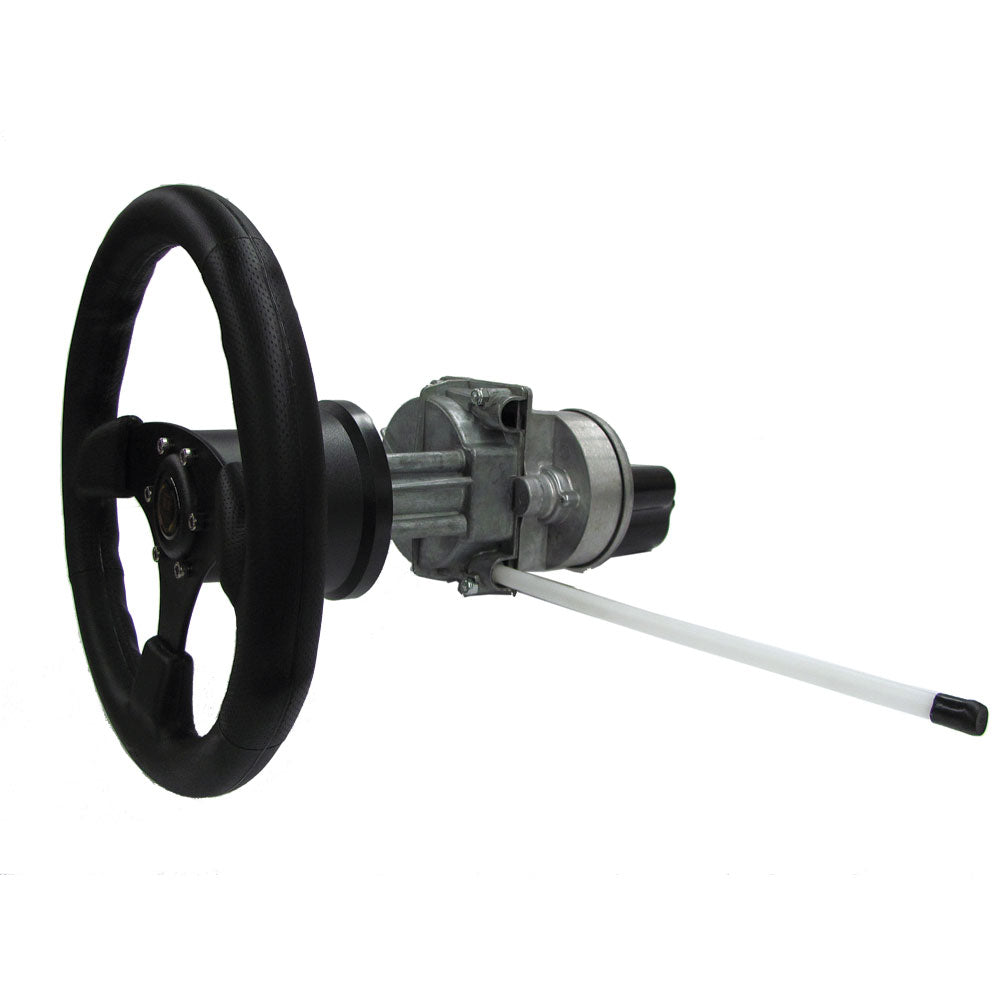

Octopus Type S Straight Shaft f/Mounting Behind the Dash f/Mechanical Drive Systems - Includes 90 Degree Bezel Kit [OCTAFMDMSW]

Type S - Standard Straight Shaft f/Mounting Behind the Dash

The Straight shaft drive unit replaces the manual drive used on cable steered boats and is mounted directly behind the dash. The drive is directly compatible with the Morse 290 steering helm but comes with its own bezel kit and can be retrofitted in most installations using the cable and steering wheel from the manual steering helm on the boat.

This drive can be mounted in 2 ways, either at 90° to the dashboard or at 20° to the dashboard. Spacer Kits are also available to reduce the space required behind the dashboard.

• Retro Fits to Most Cable Steered Vessel

• Easily Adaptable to S1 Autopilots

• The Only Viable Option When Adding an Autopilot to a Cable Steered Vessel

• Affordable, Reliable, Seamless-behind the Dash Installation

• 2 Year Limited Warranty

Specifications:

• Type: Parts
• Box Dimensions: 6"H x 8"W x 15"L WT: 12.3 lbs
• UPC: 628309135850

Owner's Manual (pdf)
