Digital Yacht Nomad 2 Portable AIS w/GV30 [ZDIGNMD2]

Nomad 2 Portable AIS with GV30

Nomad 2 is a portable AIS transponder from Digital Yacht. Designed for recreational boaters and professional mariners, it offers a full-function Class B AIS transponder with a wireless and USB interface built in for tablets and PCs—all in a portable, compact package.

It incorporates an innovative USB power solution, therefore allowing the Nomad to be powered from any standard USB source. This can include low-cost 3rd-party battery packs, a USB PC connection, or 12V USB adaptors/cigarette lighter adaptors. It ships with a compact combination of AIS and GPS antenna, which allows the main unit to be used below decks on all types of vessels – leisure and commercial.

It addresses the needs of so many boaters who want a portable yet sophisticated navigation solution with AIS and GPS and the ability to interface with tablets, PCs, and smartphones. It appeals to charter skippers, professional mariners like delivery skippers and pilots, as well as boat owners who don’t want the hassle or cost of installing a dedicated transponder and like the concept of easy iPad and tablet navigation using their favorite charting apps with a detailed AIS overlay and real-time GPS positioning. As a full-function Class B transponder, it also sends the boat's position to other AIS users.

Nomad 2 has a built-in wireless interface for outputting GPS position data and AIS. It’s designed for use with an iPad, tablet, phone, or PC in conjunction with any compatible charting app or program—Navionics, NavLINK, Weather 4D, AquaMap, Imray, SailGrib, and 100’s more.

The unit can also act as an AIS/GPS receiver only if MMSI and specific boat data are not available.

Configuration

Nomad 2 has a built-in web interface. The configuration of the transponder can be done through a computer, a tablet, or even a smartphone, and most importantly, no software is required.

You can configure Nomad 2 through its simple web interface. Just open the web browser, enter the Nomad 2’s IP address, and users can configure the vessel details (MMSI number, boat name, etc.), network name, and password, and even merge the AIS’s WiFi to an existing WiFi network on board. So, no complicated programming software or app is required.

You can even view the received NMEA data in the web browser for easy fault-finding. Finally, Nomad 2 supports TCP and UDP network protocols for maximum compatibility with apps.

Features:

• The perfect AIS solution for charter users, rental boats, delivery skippers, pilots, commercial users, etc.
• Full-function Class B transponder (send and receive AIS)
• Supplied with a combination GPS-VHF antenna that has an industry standard 1” threaded mount – suitable for many 3rd party deck, rail, and pole mounts
• Integrated wireless and USB interfaces – compatible with 100s of AIS-ready charting apps
• USB powered
• Easy programming and control through a wireless web interface – no apps required
• Silence transmissions via the web interface
• Supports up to 7 connected devices
• Creates its access point and can also join an existing wireless network if required

Specifications:

• Weight: 1200 g
• Dimensions: 245 × 165 × 100 mm

What’s in the box?

• Nomad Class B+ SOTDMA Transponder
• 3db Wifi Antenna
• Integrated Cigarette Lighter Plug
• GV30 Combination AIS/GPS Antenna With 10m Cable And Connectors
• Instructions

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Box Dimensions: 4"H x 9"W x 13"L WT: 3.5 lbs
• UPC: 703791696635

Owner's Manual (pdf)

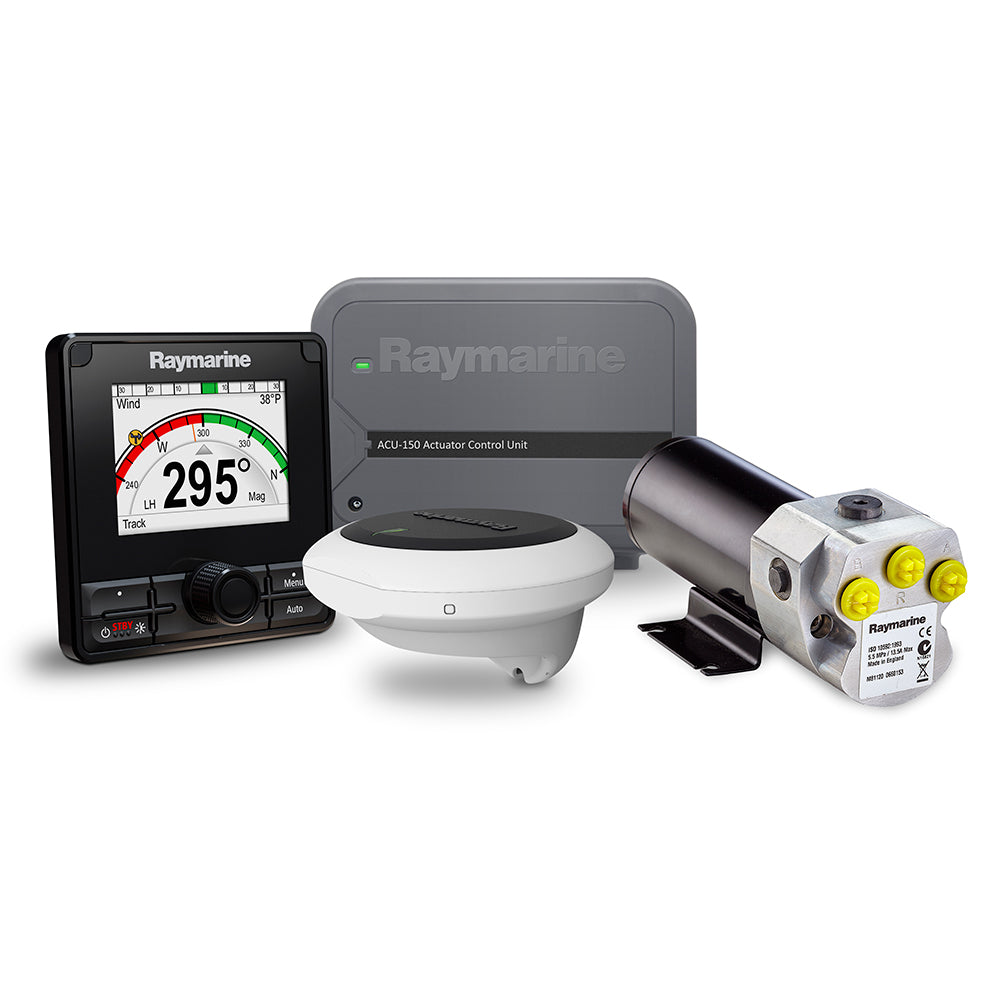

Evolution EV-150 Hydraulic Autopilot System Pack

The Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.

Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running.

Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread.

The system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes.

The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.

Includes

• E70329 p70Rs Control Head

• E70096 EV-1 Sensor Core

• R70160 Evolution Cable Kit

• E70430 ACU-150 Actuator Control Unit

• M81120 Type 1 12v Hydraulic Pump

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 8"H x 17"W x 20"L WT: 15.45 lbs
• UPC: 723193853719

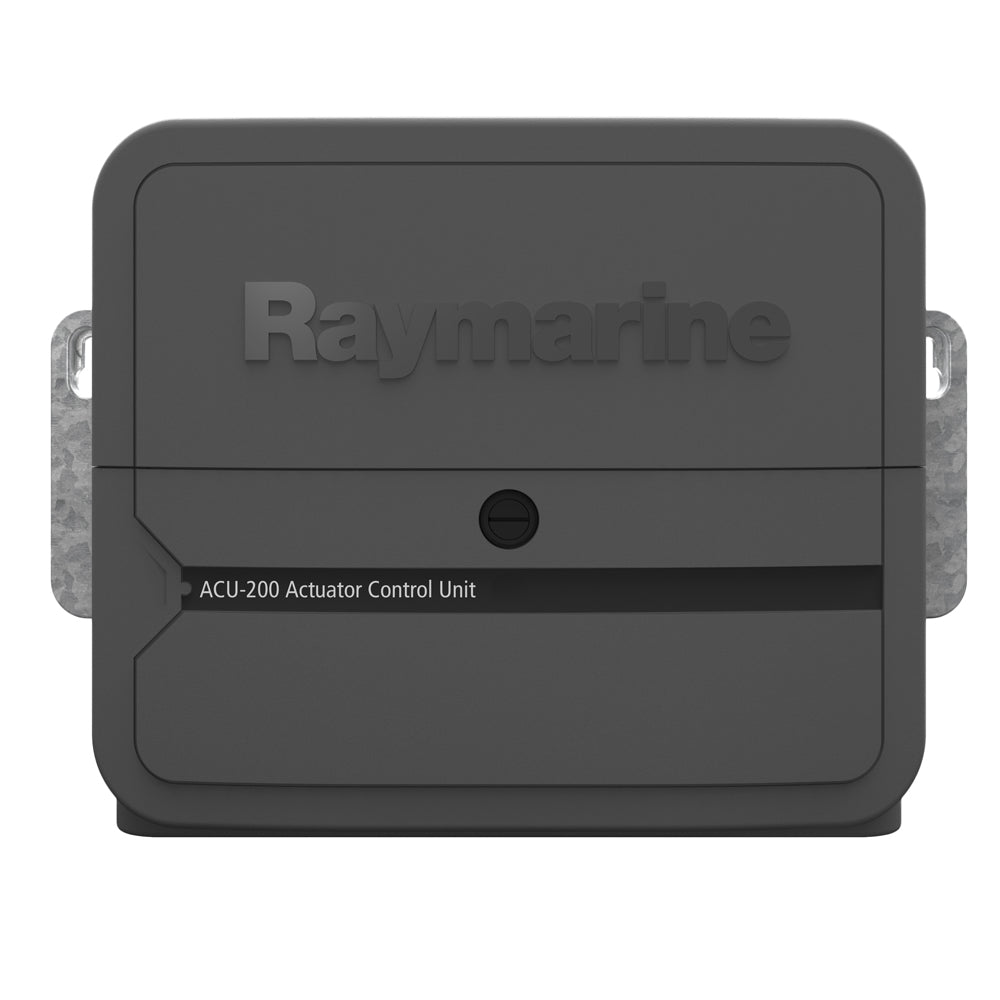

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 5 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

• Includes the M81105 Rotary Rudder Reference
• Sleep switch

• Power

• Solenoid drive out / return

• Ground

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• Storage Temperature: -30°C to +70°C (-22°F to +158°F)

• Relative Humidity: MAX 93%

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

• Type: Parts
• Box Dimensions: 8"H x 12"W x 17"L WT: 7.2 lbs
• UPC: 723193769140

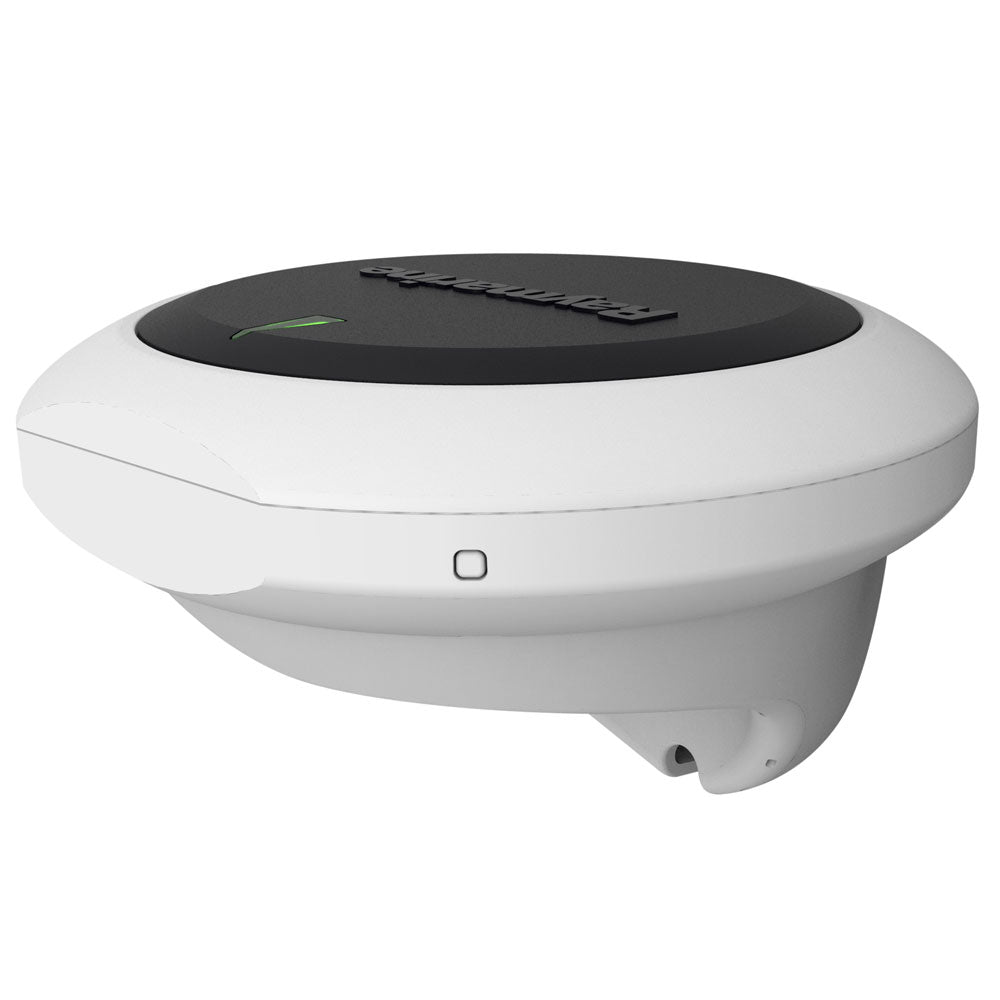

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change

• Flexible installation options. Mount above or below deck

• Simple SeaTalk^ng connectivity to the control head and ACU

• Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions

• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes

• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs
• UPC: 723193768884

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections

• Includes the M81105 Rotary Rudder Reference


• Sleep switch

• Power

• Drive motor

• Drive clutch

• Ground

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• Storage Temperature: -30°C to +70°C (-22°F to +158°F)

• Relative Humidity: MAX 93%

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

• Type: Parts
• Box Dimensions: 7"H x 11"W x 17"L WT: 6.8 lbs
• UPC: 723193768914

Raymarine ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete Pilot [E12093]

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete Pilot

The Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.

*Package contains wheel drive only - not a complete autopilot.

Specifications:

• Type: Parts
• Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs
• UPC: 723193120934

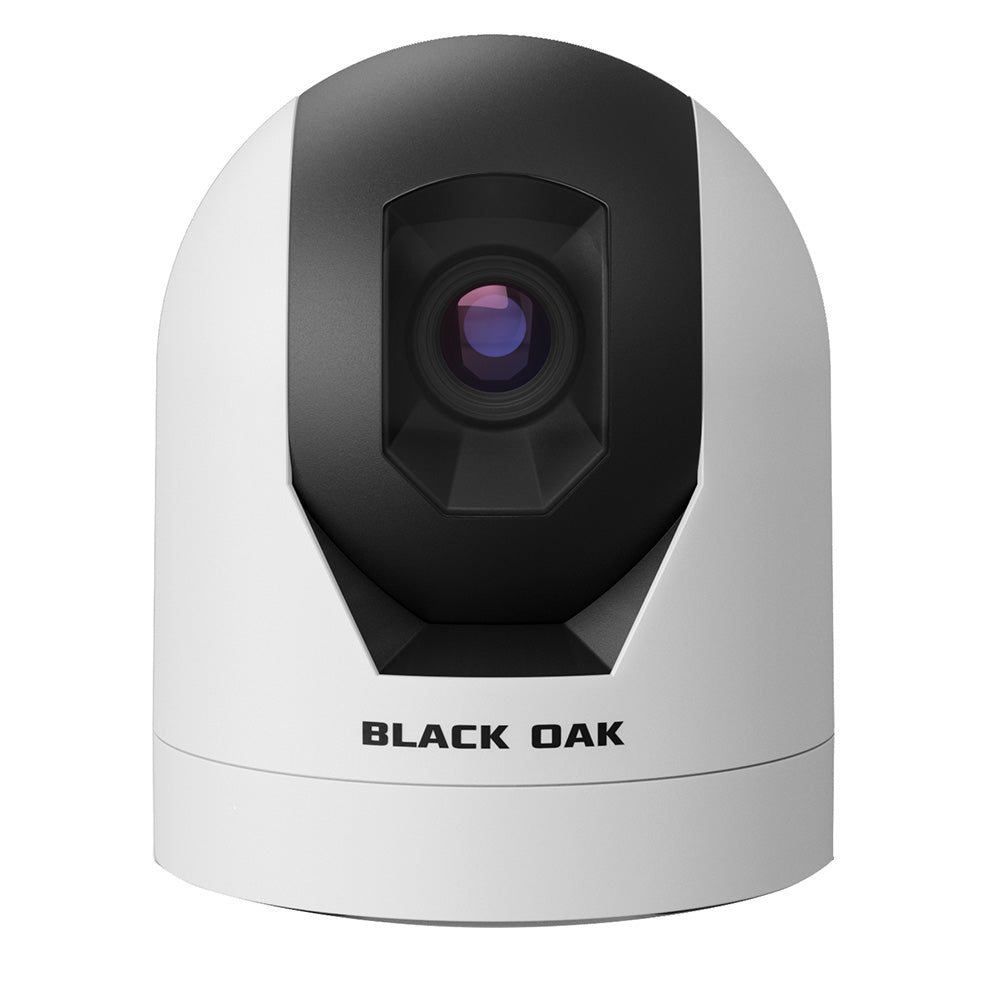

Nitron XR1 Color Night Vision Camera - HDMI - White

Navigate the Night with Brilliant HD Color

Enhance your nighttime adventures with the new Nitron XR1 Color Camera, the ultimate low-light navigation tool for boaters, anglers, and maritime professionals. Designed for seamless integration on any vessel, this cutting-edge camera delivers crystal-clear imagery in near-total darkness, ensuring you stay safe and in control—no matter the conditions.

Maximize Your Night Vision Advantage!

Unlock the full potential of the Nitron XR1 Camera by pairing it with one of our high-performance IR light bars. This powerful combination takes nighttime navigation to the next level, providing unmatched visibility in total darkness.

With advanced IR technology, you can preserve your natural night vision while significantly enhancing the camera’s clarity, range, and performance. Navigate with greater confidence, detect obstacles with precision, and experience crystal-clear imaging even in the darkest environments. Upgrade your setup and own the night!

Compact, Flush, and Built to Last

The sleek, low-profile design allows for multiple mounting options, ensuring a perfect fit on any boat.

Full Color HD Video

Our advanced low-light sensor technology captures every detail in ultra-clear 1920 X 1080 color video, allowing you to navigate confidently without blinding spotlights or guesswork.

Optimized Field of View

With a 42-degree field of view, the Nitron XR1 offers precise and focused visibility, allowing you to detect objects ahead with exceptional color and clarity.

Built for the Harsh Marine Environment with a Sleek, Integrated Design

Engineered with an IP67 waterproof rating, the Nitron XR1 Camera withstands heavy rain, saltwater exposure, and extreme temperatures. Its rugged, corrosion-resistant housing ensures long-term durability in offshore and coastal environments.

Features:

• Ultra Low-Light Sensor: Crystal clear color night vision
• 42 Degree Field of View: Focused and precise visibility
• Easy Plug-and-Play: Connects directly into your MFD
• Marine-Grade Durability: Built with IP67 waterproof housing to withstand harsh marine environments
• Compact and Lightweight: Easy install

Specifications:

• Operating Voltage: 12V DC
• Frame Rate: 60 FPS
• Resolution: Up to 4K
• Filter: Auto Day to Night
• Field of View: 50° FOV Horizontal
• Image: Full Color
• Waterproof Rating: IP67
• Warranty: 2 Years
• Guarantee: 30 Day Money Back
• Wire Harness Included? Yes
• Wire Harness Length: 25'
• Fuse Size: 5 Amp
• Connector Type: 4 Pin Quick Connect
• Mounting Screw Size: #8 1-1/4" Stainless
• Weight: 1.8 lbs

What's In The Box?

• Nitron XR1 Camera
• 25' Wire Harness
• Installation Hardware

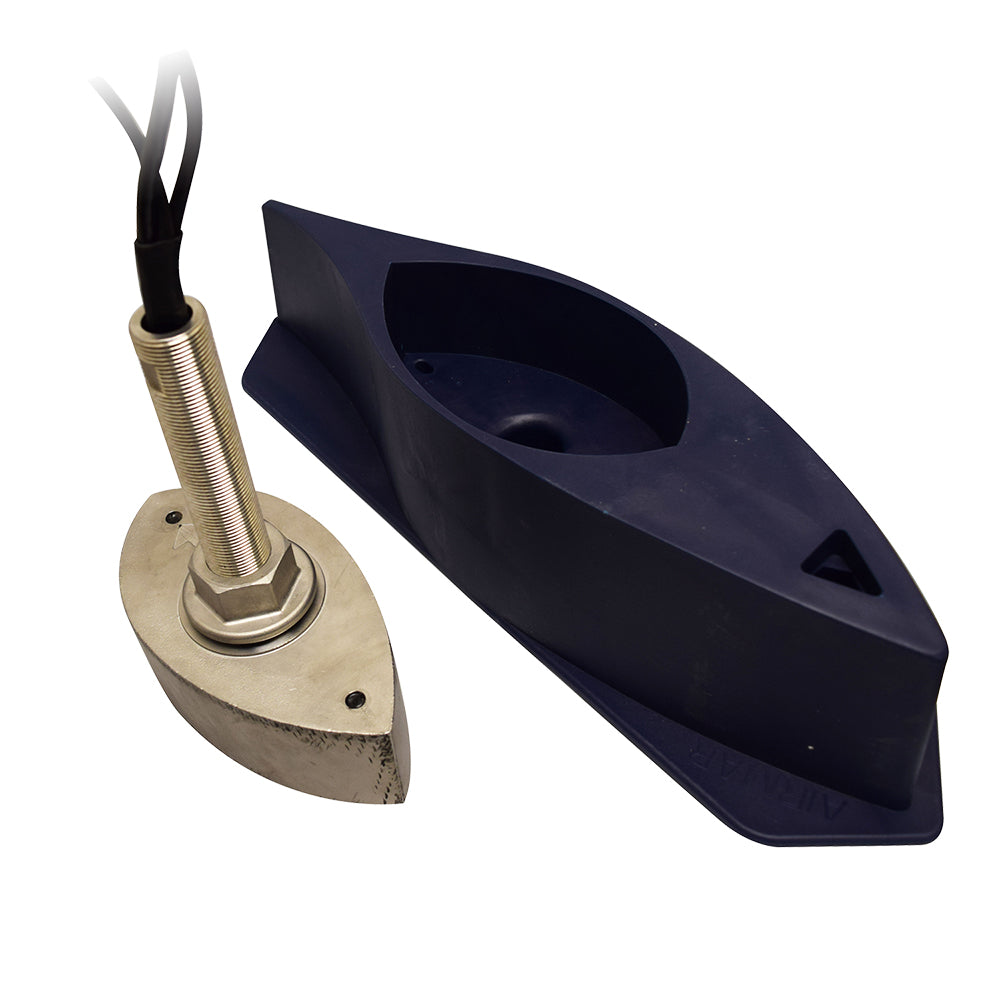

165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer

Stainless Steel Combination Thru-Hull

The 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.

Features:

• Stainless Steel Thru Hull with high speed fairing block
• Can be flush mounted in keel without using fairing block
• DFF3D operating frequency: 165 kHz
• Built-in motion sensor
• Built in temp sensor
• 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements - the same elements as an Airmar B164 transducer
• 12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
• Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Pins: 10
• Mounting Style: Thru-Hull
• Cable Length (Feet): 39'
• Box Dimensions: 7"H x 18"W x 25"L WT: 25.2 lbs
• UPC: 611679375117
