Marine Navigation & Instruments - Transducers

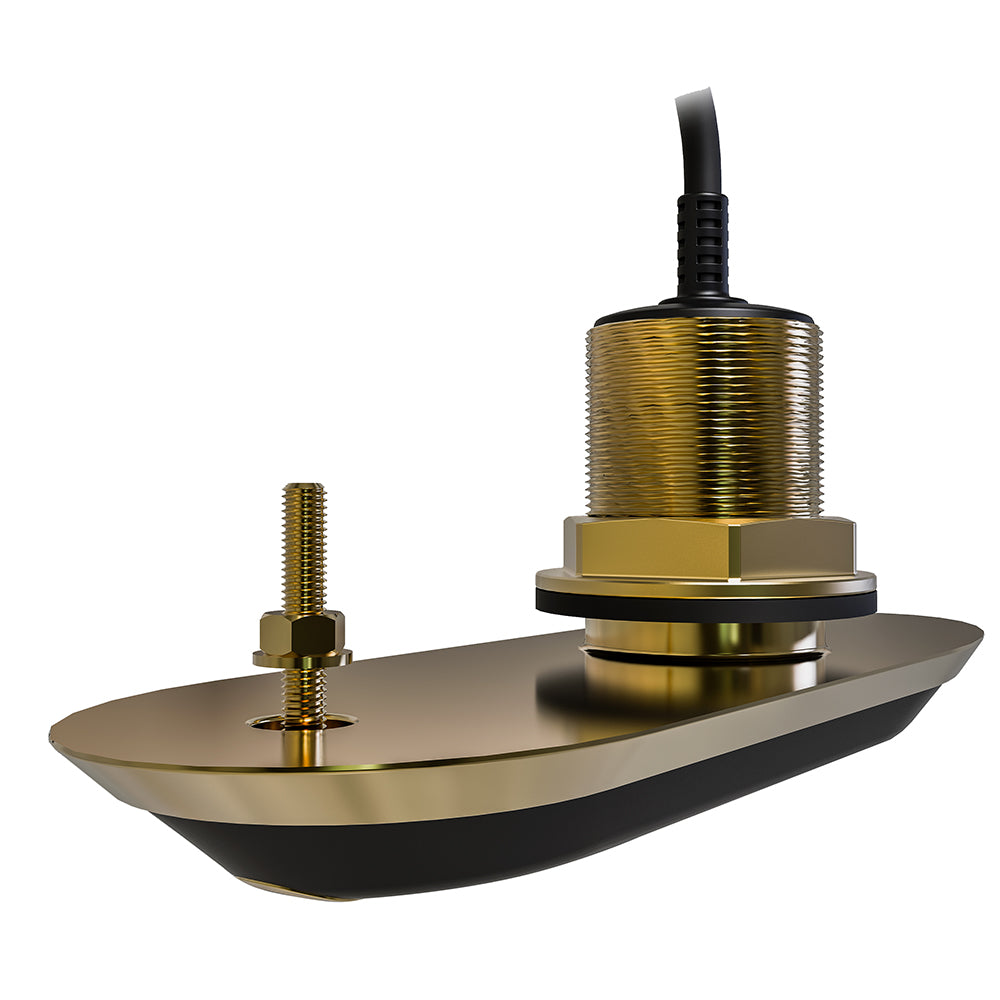

RealVision 3D™ All-In-One Bronze Thru-Hull Transducer - 0° - 8M Cable

Raymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The lowprofile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV- 200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.

What’s in the Box?

• RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable)
• Anti-rotation bolt kit
• Installation instructions

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 25
• Mounting Style: Thru-Hull
• Imaging: Standard/Down/Side
• Chirp: High
• Cable Length (Feet): 26'
• Box Dimensions: 7"H x 14"W x 17"L WT: 10.6 lbs
• UPC: 723193816530

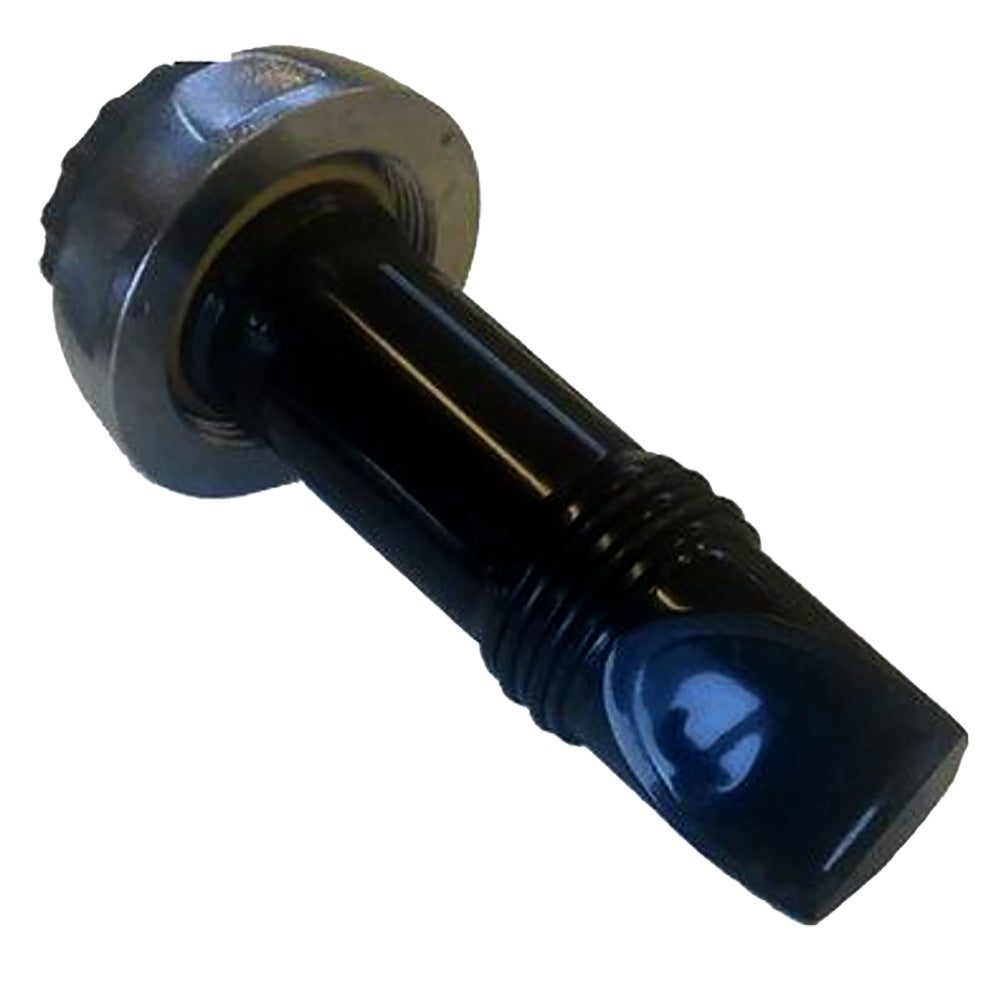

Lowrance ForwardScan Depth Transducer Only - No Sleeve or Plug [000-11675-001]

ForwardScan Depth Transducer Only - No Sleeve or Plug

Know what lies ahead with ForwardScan. This compact transducer provides a forward-looking view of up to eight times your current depth, allowing you to navigate shallow or poorly-charted waters with confidence. Includes a standard ForwardScan transducer, ideal for boats already fitted with a ForwardScan sleeve and blanking plug.

Features:

• Forward-Looking 2D Sonar Imaging
• Bottom Color Tracking for a Simplified Bottom View
• Heading Line View Combines ForwardScan Depth Data Into Heading Line on Charts
• Shallow Depth Alarm
• Maximum Forward View of 8X Current Depth, Nominally 4-5X Current Depth
• Operates at 180 kHz, Reducing Interference from Traditional 200 kHz Echosounders
• Built-In Temperature Sensor
• 2" (50.8 mm) Stainless Steel Through-Hull Fitting
• Connects directly to B & G Zeus3 and selected Vulcan models, or Zeus2 via SonarHub Sounder Module
• Includes 33' power cable

*Transducer Only, No Sleeve or Plug

Specifications:

• Cable Length (Feet): 20'
• Chirp: No
• Imaging: Forward
• Mounting Style: Thru-Hull
• Pins: 7
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 10"L WT: 2.8 lbs
• UPC: 9420024133200

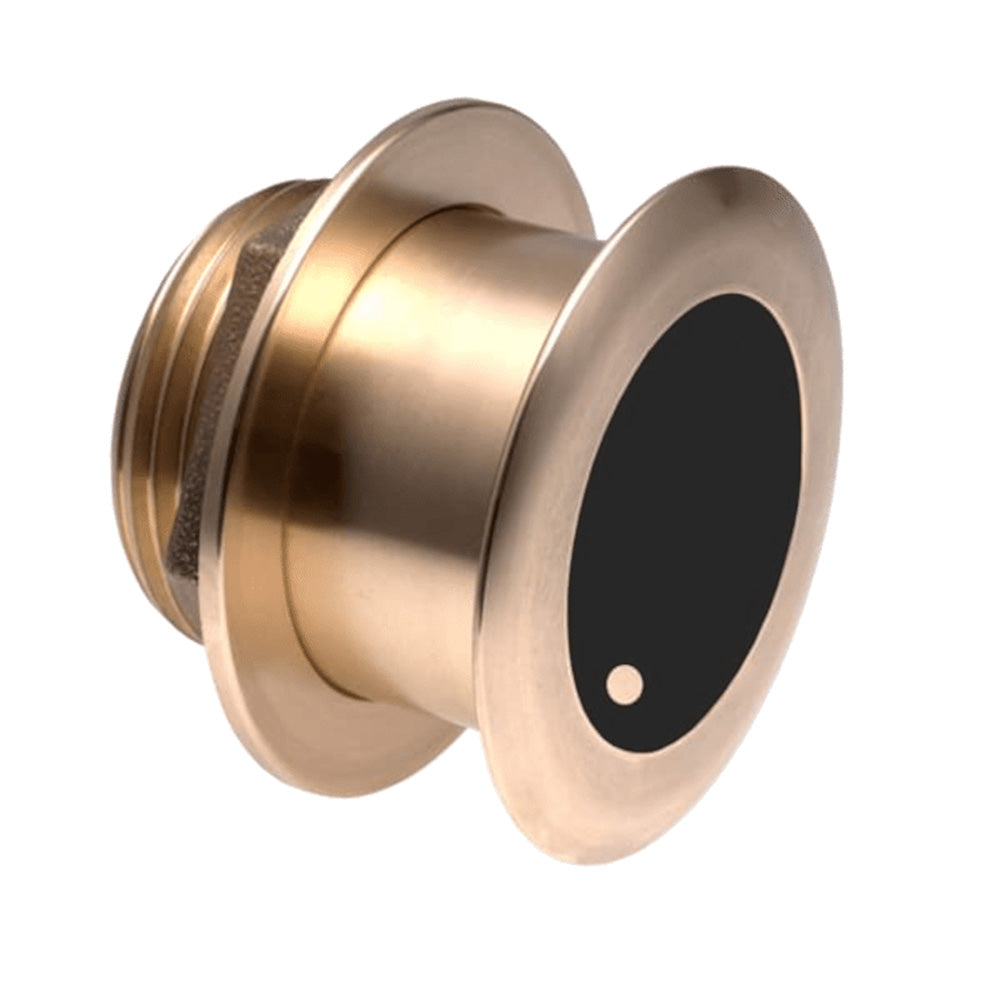

Airmar B164 1kW 20 Degree Tilted Element 8-Pin f/Garmin [B164-20-8G]

Ships Direct From Manufacturer

B164 1kW 20 Degree Tilted Element 8-Pin for Garmin

Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Features:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on the boat’s running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 22°x20°/6°
• Max Deadrise: Up to 24°
• Max Depth: 500 m (1640')
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

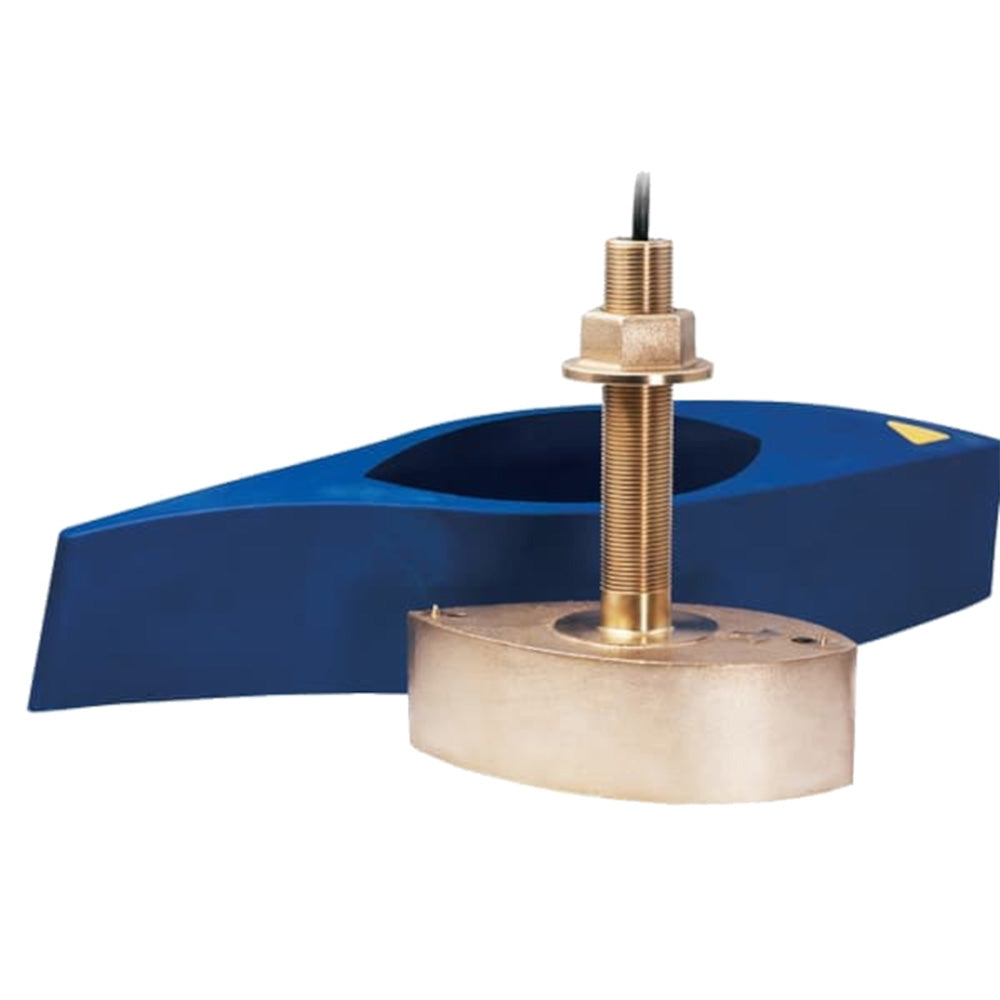

B275 Medium Ultra-Wide/High Wide Bronze 1KW Chirp Transducer with Fairing Block- Requires Mix & Match Cable

The B275MWHW combines medium and high frequencies into a single thru-hull model, advancing transducer design by delivering wider bottom coverage than any other 1 kW transducer available. It combines medium frequencies (60-100 kHz), which deliver ultra-wide beamwidths for maximum coverage under the boat down to 396 m (1300’)… the ultimate scouting tool for anglers targeting species down deep. Together with the very popular, high-frequency bandwidth (150 to 250 kHz), with wide 25° beamwidths, for excellent shallow-water performance with more coverage and excellent fish-target separation in the upper water column. Its wide beam offers twice the coverage of standard high frequencies, for detecting fish in the upper-water column, producing clear fish arches on the display. The B275MWHW is an exceptional choice for both inshore and pelagic fishing, and deepwater species where critical resolution and maximum coverage are required. The B275MWHW sets the standard for efficiently scouting massive areas for target species. Each B275MWHW includes Airmar’s high-performance fairing for exceptional performance at speed on boats over 8m (25’).

Features:

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance from the low frequency
• Medium frequency: 60 to 100 kHz, 57° to 73° ultra-wide beamwidth 16° average fore/aft, Maximum depth of 396 m (1300')
• High frequency: 150 to 250 kHz, 25° wide beamwidth, Maximum depth of 152 m (500')
• 140 kHz of total bandwidth from one transducer
• Cable Length 30FT
• Covers popular fishing frequencies of 75 and 200 kHz, plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal performance at high speeds
• For boats 8 m (25') and above
• Patented Xducer ID® technology
• Max Deadrise Angle: 20°
• Hull Material: Fiberglass or wood
• Mounting Style: Thru-Hull with Fairing
• Max Vessel LOA: 8 m (25') and above
• Hole Size: 30 mm (1-3/16")
• Usable Shaft Length: 121 mm (4.75")

Specifications:

• Cable Length (Feet): 30FT
• Imaging: Standard
• Mounting Style: Thru-Hull
• Speed Included: No
• Temperature: Yes

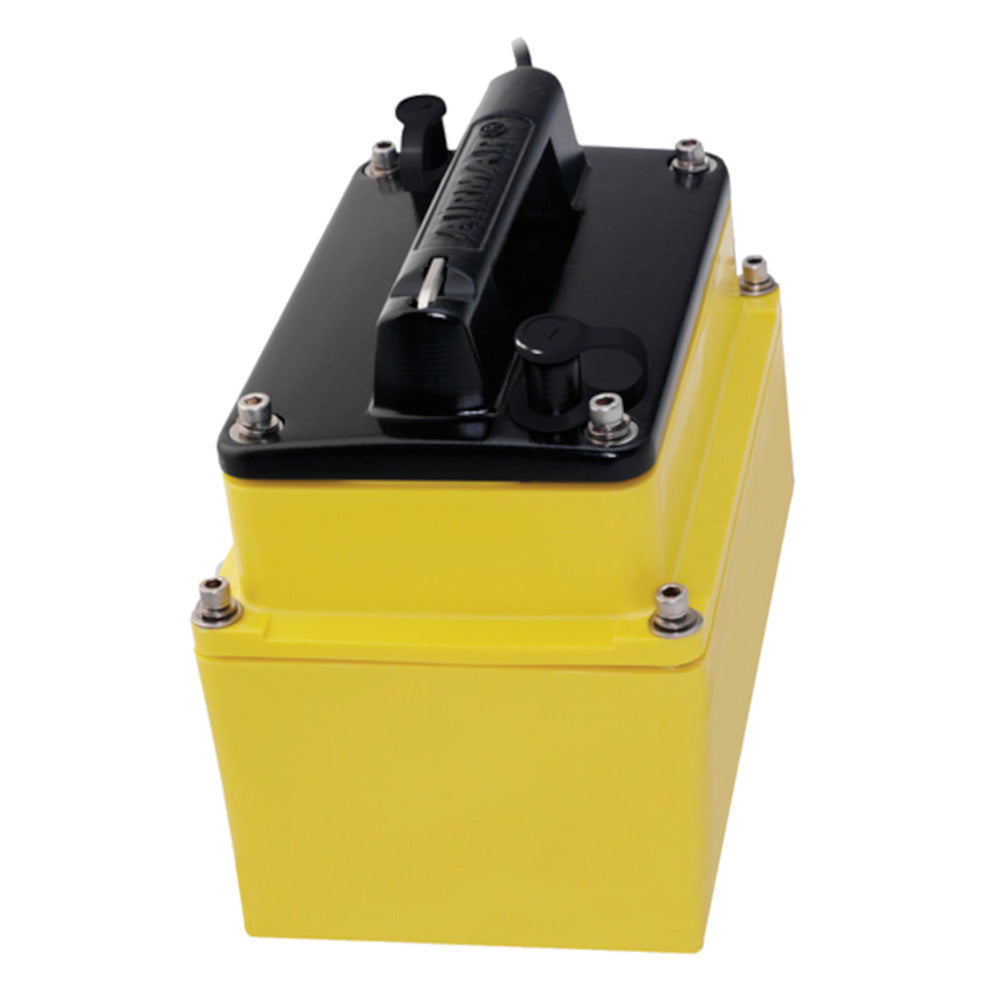

Airmar M265LH 1kW Chirp-Ready In-Hull Transducer f/Garmin w/12-Pin Connector [M265C-LH-12G]

Ships Direct From Manufacturer

M265LH 1kW Chirp-Ready In-Hull Transducer for Garmin with 12-Pin Connector

Airmar knows that specific frequencies excel at detecting certain fish species: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies and other frequencies in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The transducer is installed in the included tank, which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Features:

• Garmin 12-Pin Mix & Match Cable for Chirp Transducers

• Depth only
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000')
• High frequency: 130 to 210 kHz
• 10° to 6° beamwidth
• Maximum depth of 304 m (1000')
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth

Specifications:

• Power Rating: 1 kW
• Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
• Max Vessel LOA: Up to 11 m (36')
• Functions: Depth
• Mounting Style: In-Hull
• Hull Material: Solid fiberglass only
• High Frequency: 130-210 kHz
• Common Use: Fishing, Commercial Fishing
• Max Deadrise Angle: 30°
• Tilted Element: No
• Low Frequency Beamwidth: 25°-16°
• Low Frequency: 42-65 kHz
• Acoustic Window: Urethane
• High Frequency Beamwidth: 10°-6°
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Housing: Urethane
• Weight: 5.2 kg (11.5 lbs.)
• Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
• Retractable housing: No
• Plastic transducer housing and mounting tank
• Also available as transom (TM265LH), thru-hull (B265LH), pocket (PM265LH), and cavity/welded-tank (CM265LH) mounts
• Patented Xducer ID® technology

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

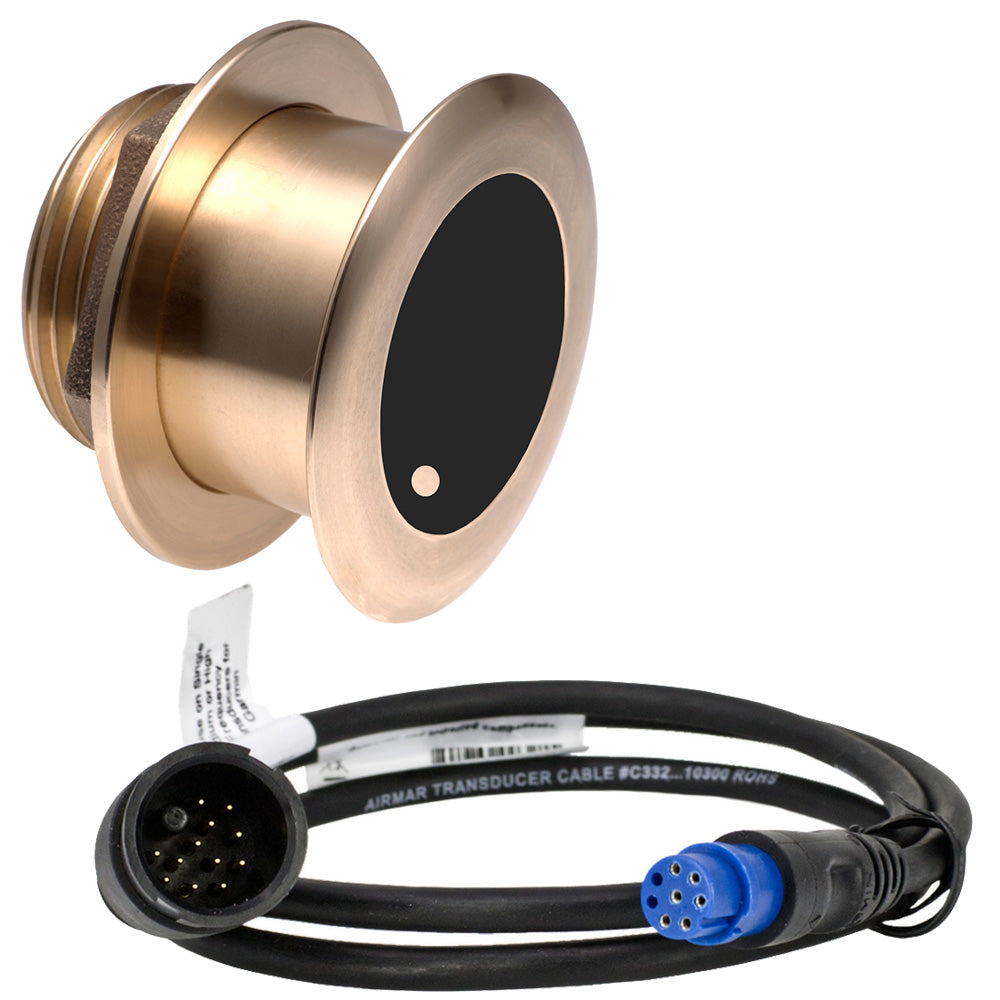

B175L Bronze 0 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector [B175C-0-L-8G]

Ships Direct From Manufacturer

B175L Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

Airmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 40 to 60 kHz
• 32° to 21° beamwidth
• Maximum depth of 762 m (2500')
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175L) for use with all hull materials
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Usable Shaft Length: 71 mm (2.80")
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• Low Frequency: 40-60 kHz
• Low Frequency Beamwidth: 32°-21°
• Max Deadrise: Up to 24°
• Max Depth: 762 m (2500')
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

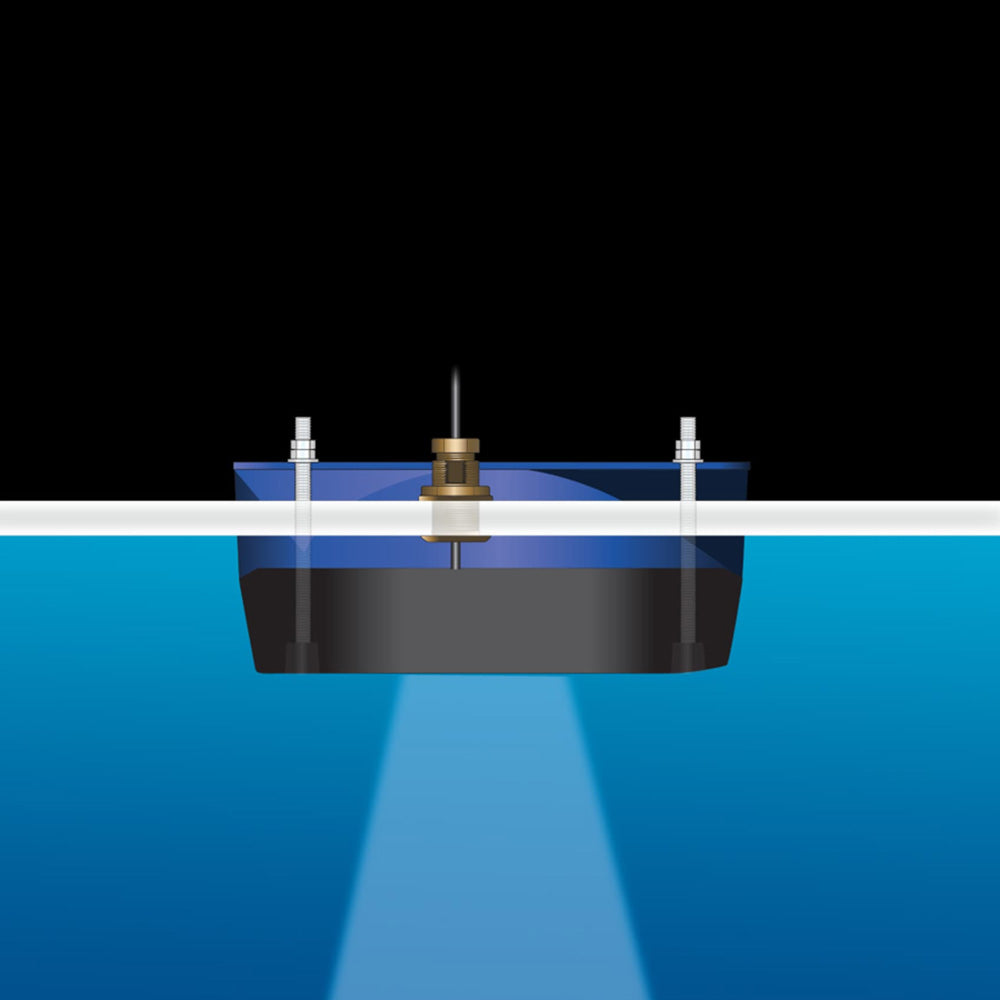

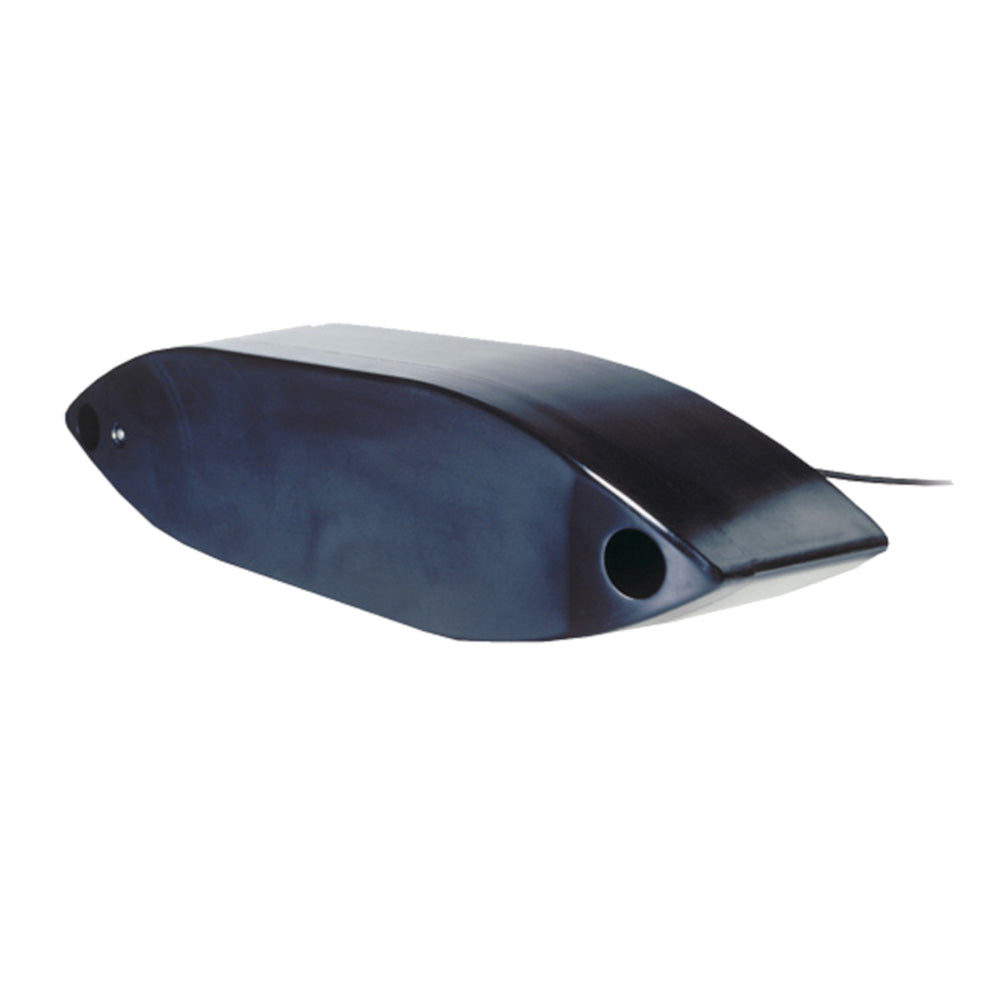

Airmar R109LHW Chirp Thru-Hull Transducer - No Connector [R109C-LHW]

Ships Direct From Manufacturer

R109LHW Low High Wide Chirp Thru-Hull Transducer with Fairing Block - No Connector

Get more coverage under the boat with Airmar’s unique wide-beam, low- and high-frequency, Chirp-ready R109LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25-degree beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high-wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500'). The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Features:

• Depth and fast-response water-temperature sensing
• 2 kW of power for excellent deep-water performance from the low-frequency
• 2 kW low frequency (38 to 75 kHz): 19 to 10-degree port-starboard beamwidth; 10 to 5-degree fore-aft beamwidth
• Maximum depth of 1829 m (6000')
• 1kW high frequency (150 to 250 kHz): 25-degree constant beamwidth; Maximum depth of 152 m (500')
• 137 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with fairing for optimal performance
• No Connector - Bare Wire
• Comes with Fairing Block
• Patented Xducer ID® technology

Specifications:

• Acoustic Window: Epoxy/urethane
• Common Use: Fishing, commercial fishing
• Functions: Depth, temperature
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25 degrees
• Housing: Urethane
• Hull Material: Compatible with all hull materials
• Low-Frequency: 38-75 kHz
• Low-Frequency Beamwidth: 19-10 degrees
• Max Deadrise: Up to 22 degrees
• Max Deadrise Angle: 22 degrees
• Max Depth: Low frequency- 1829 m (6000'), High wide frequency- 152 m (500')
• Max Vessel LOA: 9 m (30') and above
• Mounting Style: Thru-hull
• Power Rating: 2 kW
• Retractable housing: No
• Single or Dual Frequency: CHIRP-ready dual-band
• Tilted Element: No
• Weight: 15.1 kg (33.3 lb.)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Low/High
• Temperature: Yes

Quick Guide (pdf)
Brochure (pdf)

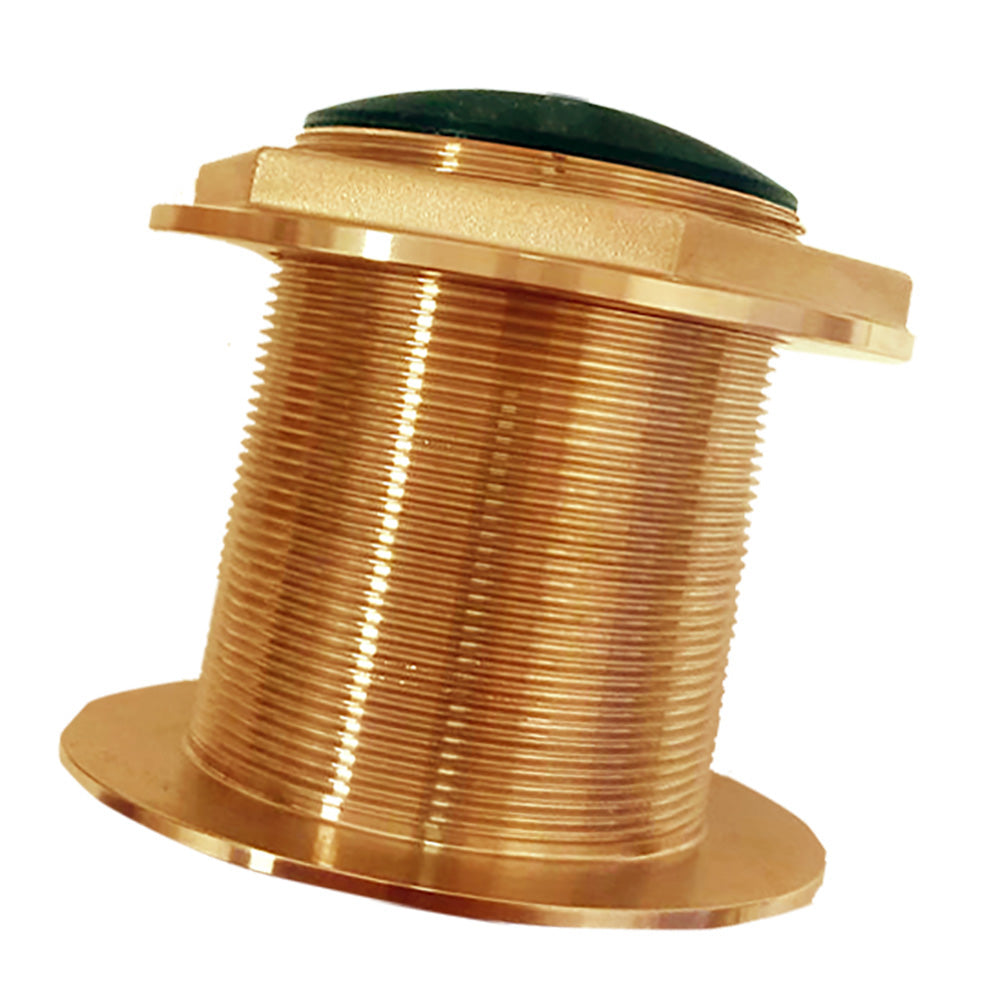

Echonautics Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 1kW, 0 Tilt, 85-135kHz [BT87M1KW-00]

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 1kW, 0° Tilt, 85-135kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 85-135kHz
• 1kW
• Mounting Style - Thru-Hull
• Material - Bronze
• 0° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
