Marine Navigation & Instruments - Transducers

TM265C-LH Transom Mount CHIRP - 1kW Transducer

Transom-mounted 1kW dual-band CHIRP fishfinder transducer.

The TM265 is available in the Low/Medium and Low/High bands. A Low/High widebeam model exists with the designation TM275.

Specifications:

• Low/High Bands
• 1000 Watts
• Transom Mount
• Housing: Urethane
• Requires Mix and Match Cable for the Sounder its going into

Specifications:

• Speed Included: No
• Temperature: Yes
• Mounting Style: Transom
• Chirp: Low/High
• Cable Length (Feet): 32'
• Box Dimensions: 8"H x 11"W x 12"L WT: 11.05 lbs
• UPC: 801769001631

Raymarine HV-300TH Plastic Transducer Thru-Hull Pair - 6M Cable [T70448]

HV-300TH Plastic Transducer Thru-Hull Pair - 6M Cable

HV-300TH Plastic Thru-Hull Single (200kHz/350kHz/1.2MHz)

Specifications:

• Imaging: Standard/Down/Side
• Cable Length (Feet): 20'
• Mounting Style: Thru-Hull
• Speed Included: No
• Box Dimensions: 12"H x 13"W x 18"L WT: 10 lbs
• UPC: 723193827833

R599 Low/Med Frequency In-Hull Chirp Transducer - Bare Wire

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 102 kHz of total bandwidth in just one installation, saving customers time and money.

As the ELITE model in the Chirp In-Hull product line, the R599LM Chirps across the following bandwidths: LM Model - Low Frequency 28-60 kHz/Medium Frequency 80-130 kHz.

Features:

• Depth Only
• Chirp Technology
• L/M Frequency
• 2-3 kW
• High-Performance
• Epoxy
• 25 internal ceramics
• Exclusive Xducer ID® technology

Specifications:

• Hull Deadrise: 0° to 22°
• Acoustic Window: Epoxy/urethane
• All mounting hardware provided, including tank
• Weight: 19.7 kg (43.4 lb)

Specifications:

• Chirp: Low/Medium
• Box Dimensions: 14"H x 17"W x 28"L WT: 58 lbs
• UPC: 801769001617

Furuno R109LH Urethane Chirp Thru-Hull w/Temp  High Speed Fairing Block - No Connector [R109LH]

Ships Direct From Manufacturer

R109LH Urethane Chirp Thru-Hull with Temp & High Speed Fairing Block - No Connector

Transducer Features:

Airmar R109 Housing Style Transducer

The Broadband R109 operates at any frequency between 38 kHz to 75kHz and 130 kHz to 210 kHz. Adjusting the frequency allows you to change the R109's beamwidth and depth capabilities. For example if you are bottom fishing in 61 m (200') of water, the narrow high-frequency beam will display extreme bottom detail and fish holding tight to structure. If you are tuna or marlin fishing in deep blue water, the wider, low-frequency beam will not only give deep-water bottom detail, but more importantly show you more of what is around your vessel, including bait which may attract game fish.

Because the R109 has a bandwidth that covers a continuous frequency spectrum, next generation Fish Finders utilizing Furuno Free Synthesizer (FFS) technology can be made “tunable”, so fishermen can “dial-in” the best frequency for the target fish species or conditions.

Standard Features:

• Thru-Hull Transducer with High Performance Fairing Block Kit
• 3kW Low Frequency, 2kW High Frequency
• Furuno Free Synthesizer (FFS) compatible - select any two frequencies from 38 kHz to 75kHz and 130 kHz to 210 kHz
• Beam angle dependent upon frequency:
• Low = 19 degrees to 10 degrees port-starboard (10 degrees to 5 degrees fore-aft)
• High = 8 degrees to 4 degrees
• No Connector
• Designed for 40ft and above boats made of fiberglass, wood or metal

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Airmar R109LM Thru-Hull Transducer - Bare Wires

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000M (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 107 kHz of total bandwidth in just one installation, saving customers time and money.

As the HARD CORE model in the Chirp Thru-Hull product line, the R109LM Chirps across the following bandwidths:

LM Model - Low Frequency 38-75 kHz/Medium Frequency 80-130 kHz

Features:

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° port-starboard beamwidth (10° to 5° fore-aft beamwidth)
• Medium—CHIRPS from 80 kHz to 130 kHz 13° to 8° beamwidth
• 87 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, 88, and107 kHz plus everything else in the bandwidth
• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Urethane transducer housing with High-Performance Fairing
• Boat Size: 12 m (40’) and above
• Hull Type: Fiberglass, wood, or metal
• Exclusive Xducer ID® technology

Specifications:

• Hull Deadrise: 0° to 25°
• Acoustic Window: Epoxy/urethane
• Weight: 15.1 kg (33.3 lb)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Low/Medium
• Cable Length (Feet): 36'
• Box Dimensions: 14"H x 17"W x 28"L WT: 47.7 lbs
• UPC: 753759213039

Furuno 165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer [165T/265LH-PM488]

Ships Direct From Manufacturer

165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer

Pocket Mount Combination Transducer

This transducer has housing (12 LX 5 W X 3.5 H) that contains the DFF3D elements along with the same CHIRP elements contained in B265LH.

Features:

• DFF3D operating frequency 165 kHz
• Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
• High—CHIRPS from 130 kHz to 210 kHz, Beamwidth 10° to 6°
• Bottom discrimination and Accu-fish compatible (without TID)
• 12M Cables. Pigtail cable for DFF1-UHD, 7-pin connector and a pigtail cable for the DFF3D
• Recommended for a DFF1-UHD and DFF3D installation
• Built-in motion sensor
• Built in temp sensor

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Pins: 7
• Mounting Style: Pocket
• Temperature: Yes
• Cable Length (Feet): 39'
• Box Dimensions: 11"H x 13"W x 17"L WT: 22.1 lbs
• UPC: 611679375131

Brochure (pdf)

TM258 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

The re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).

The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.

Features:

• Depth & fast-response water-temperature sensor

• Elliptical beam covers larger bottom area
• Fits existing TM256 and TM258 models
• Bracket kick-up assembly locks in the "up" position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane transducer housing
• Boat Size: Up to 12M (40')

Specifications:

• Weight: 3.6kg (7.9lb)

• Hull Deadrise: Up to 25°
• Acoustic Window: Urethane

Specifications:

• Temperature: Yes
• Mounting Style: Transom
• Pins: 7

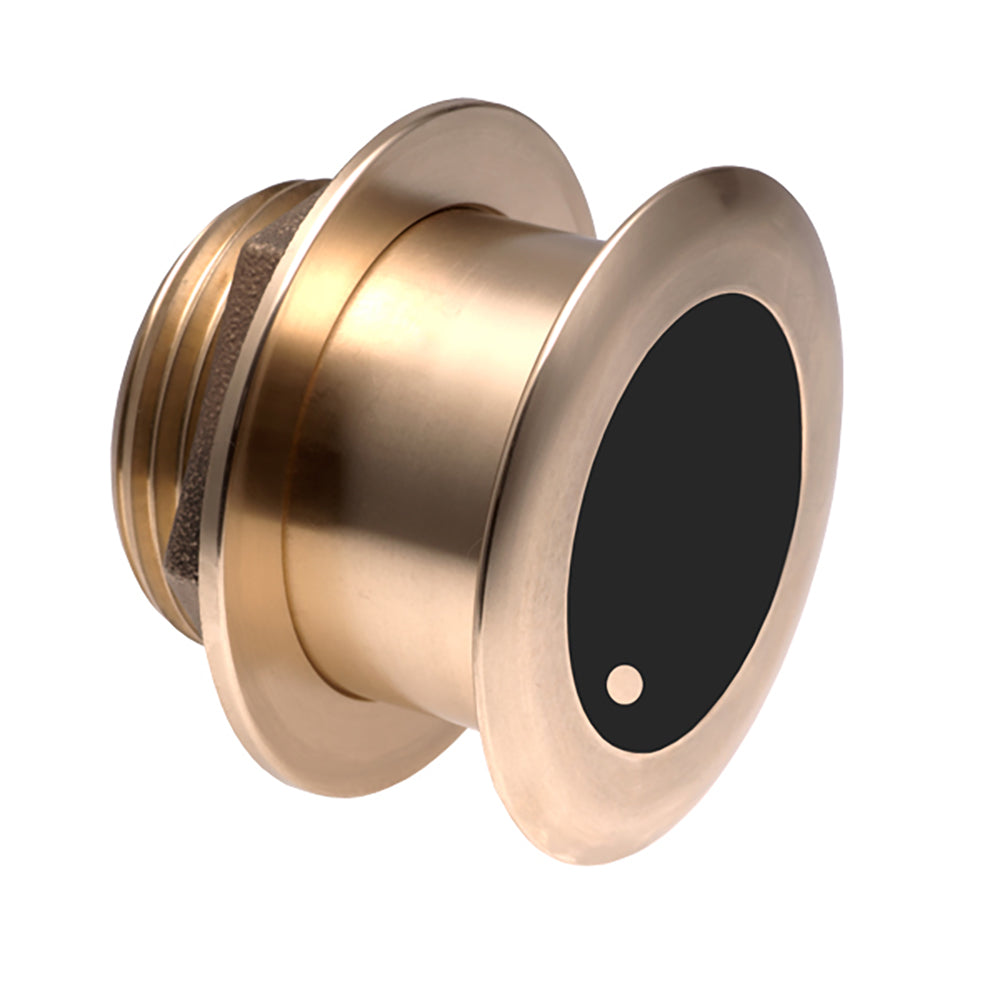

B164 1kW 0° Thru-Hull Transducer with Blue Connector

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.

The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.

Features:

• Power output 1000W

• 3.875" hole size (98mm)

• Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz

• Maximum depth 1200-1800 ft @ 50kHz

• Maximum depth 500-800 ft @ 200kHz

Specifications:

• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.6 lbs
