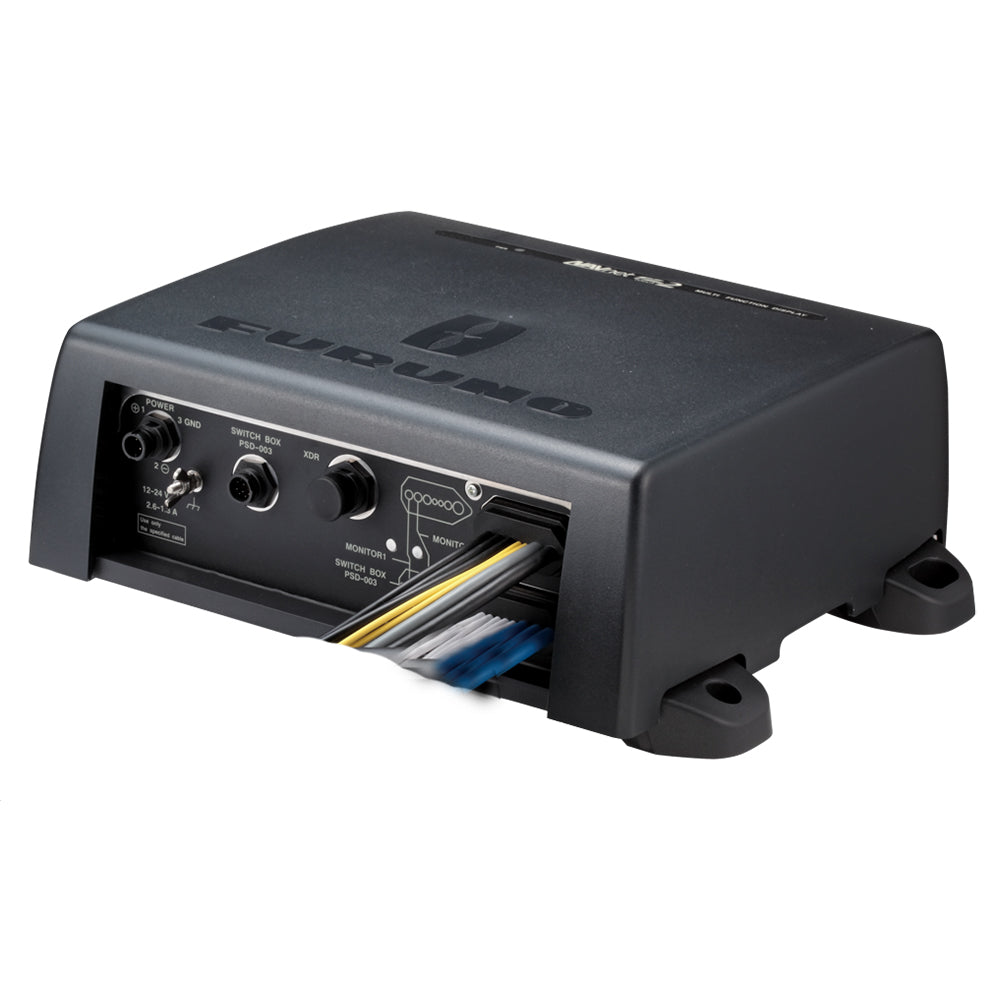

Furuno NavNet TZtouch2 Black Box Chartplotter/Fishfinder [TZT2BB]

NavNet TZtouch2 Black Box Chartplotter/Fishfinder

Total Control, Simply Refined

With the ability to drive multiple monitors with full HD HDMI video output in any combination of monitor aspect ratios (4:3 and 4:3, 16:9 and 4:3, or 16:9 and 16:9), a refined graphical user interface, and a built-in RezBoost Fish Finder, Furuno's NavNet TZtouch2 Black Box is a beauty to behold and use. Whether you are searching for hot fishing grounds, plotting your next route, or using your Radar to navigate through fog, NavNet TZtouch2 delivers smooth operation with familiar touch gestures.

Simply Refined, Simply Beautiful

Following in the footsteps of the original NavNet TZtouch, TZtouch2 features a refined user interface that is all about usability. Elegantly designed, NavNet TZtouch2 allows you to build a navigation suite that is not only functional, but offers a luxurious look and feel. Taps, swipes, pinches, and custom multi touch gestures are instantly transformed into action, giving you full control of every component connected to your network.

Incredibly easy-to-use controller and graphical user interface

The optional MCU005 NavNet TZtouch2 Black Box controller enhances the built-in Multi Touch graphical user interface, and sets a new benchmark for "easy to use" in the marine electronics industry. This interface is not only intuitive, but is as easy to use as the phone in your pocket. The combination of an ergonomically designed, logical controller, along with a touch-screen Graphical User Interface, make operation simple. With taps, slides and swipes, you will be up and using your TZtouch2 in no time at all. Menus and other features slide out from each of the sides of the screen, ensuring that the most important tasks are literally right at your fingertips.

The available MCU004 Remote Control option features a large rotary knob which can be utilized for zooming in/out, while the joy stick allows you to pan around the chart and move the cursor on the screen. The MCU004 remote has 8 dedicated buttons that operate different functions, such as Edge Swiping, Home, Stand By/Auto for Autopilot control, MOB, and Center on vessel.

Powerful Fish Finder with built-in Furuno features

The built-in Fish Finder is a dual-frequency (50/200kHz), 600W/1kW power output sounder. It includes Furuno’s unique Bottom Discrimination and AccuFish modes, and also incorporates another new Furuno proprietary Fish Finder technology, called RezBoost. RezBoost is a revolutionary new feature that utilizes Furuno’s exclusive digital signal processing protocol to produce fantastic target resolution and separation, without the need to change out your transducer, or purchase expensive broadband transducers. With RezBoost, you can now achieve target separation and resolution that was previously limited to Furuno commercial-grade Fish Finders.

Freedom to build the helm of your dreams

NavNet TZtouch2 is a component-based system that utilizes Furuno’s award winning network products. You can add a variety of UHD Radars, from a 4kW NXT Dome up to a 25kW X-Class Open Array. As with NavNet TZtouch, you can integrate, display, and control the NavPilot Autopilot, and Furuno’s FI70 Instrument. Both of these products have displays that match TZtouch2, giving your helm a beautiful all-glass finish. Additional sensors that can be added to the network include AIS, Weather Fax, Sirius/XM Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183 output port to send data to legacy systems.

Remotely view and control your bridge with apps for your smartphone and tablet

Engineered to utilize the latest technology, NavNet TZtouch opens the door to cutting edge WiFi features, such as tablet and smartphone apps, points of interest (POI), real time weather data, software updates and more. Take full control of your NavNet in a whole new way. The TZtouch Remote app allows you to operate your system remotely with your smartphone or tablet over WiFi, when connected to the network.

MapMedia Raster and Vector Chart Library

Freely choose the charts that fit your individual needs and preference. MapMedia's NOAA Raster and Vector charts for the U.S. Coasts, Gulf of Mexico, Alaska and Hawaii come pre-loaded. In addition, MapMedia brings you free satellite photos and detailed fishing bathymetric charts that can be download for the U.S. Outside of the U.S., "C-MAP" and "Datacore by Navionics" vector cartography can be purchased and downloaded to your NavNet with ease. MapMedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

Satellite PhotoFusion™ offers a birds-eye view without obstruction of critical data

You can load any two ultra-wide high-resolution satellite photo areas at your convenience. Land areas (zero depth) are completely opaque, so these areas are displayed as high-resolution satellite photos on the chart. As the depth increases, the satellite photography becomes more transparent. This allows you to see where the shallows end and the deeper water begins, while still allowing the raster or vector chart to be visible.

Free & easy-to-use marine weather forecasts

The weather tool is completely free and easy to use, giving you unlimited access to weather forecasts worldwide 24 hours a day provided by NavCenter. Select geographic coverage, data type, period of time, and then choose how to receive the file. NavNet TZtouch2 provides up to 16 days of weather forecasting.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

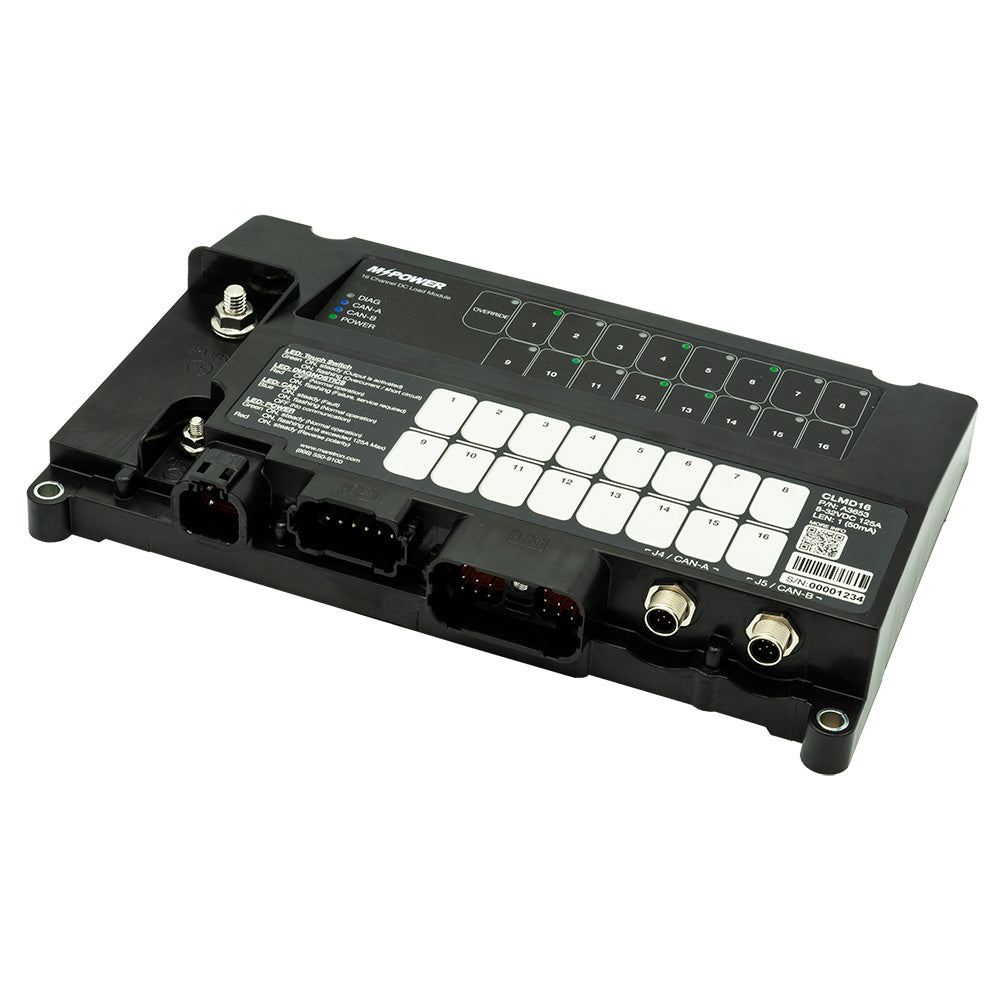

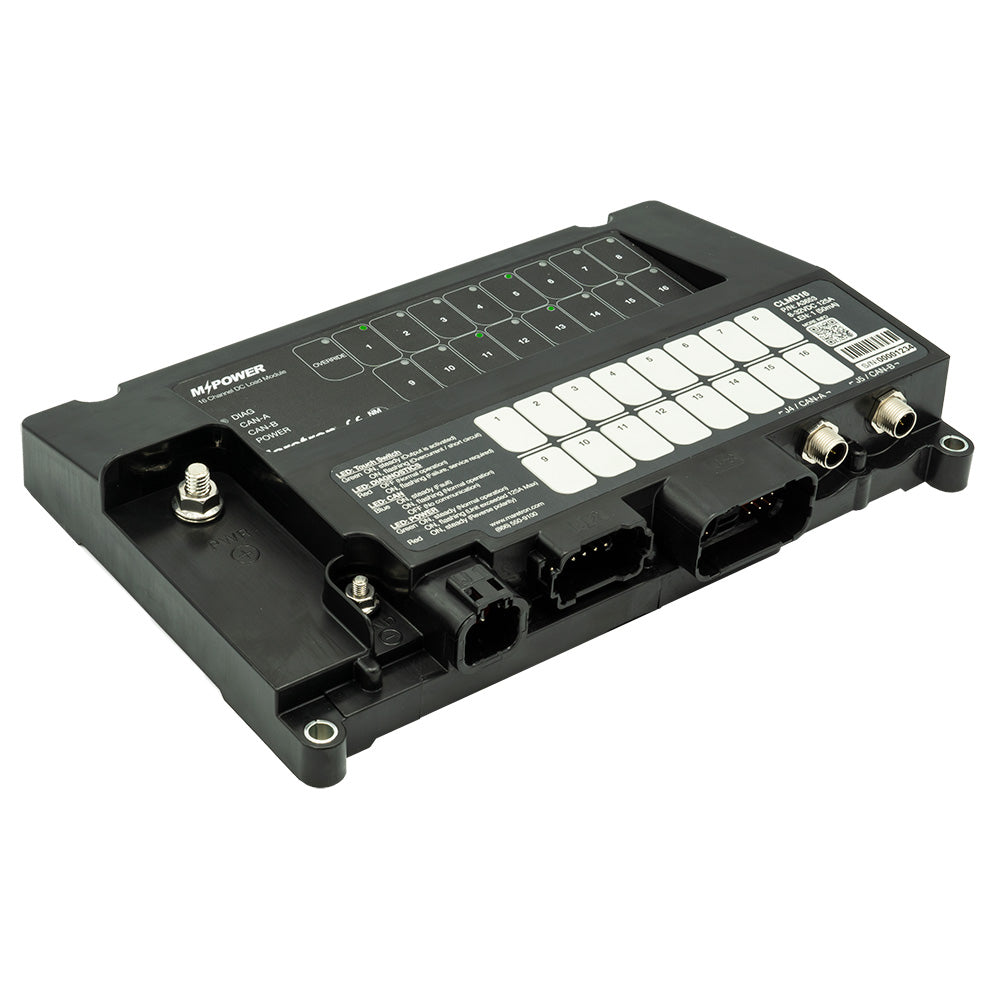

MPower® 16-Channel DC Load Controller Module with NMEA 2K without Connectors

For larger breakers and more circuits, the MPower® CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.

Features:

• NMEA 2000® Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000®, eliminating potential ground loops
• Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
• 4 breakers capable of carrying up to 25 Amps
• 12 breakers capable of carrying up to 12 Amps
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF, or previous states)
• Breakers can be locked against inadvertent actuation.
• Capacitive touch switches for local control of all loads
• All inputs and outputs are protected against short to Power and short to Ground
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)
• Eight (8) discrete digital input channels capable of sensing +ve or ground signals
• Two (2) resistive analog input channels
• One (1) 4-20mA current loop input channel

Applications:

• Remote control of navigation lights
• Remote control of boarding lights
• Burnt-out bulb alerts
• Control of area lights with dimming

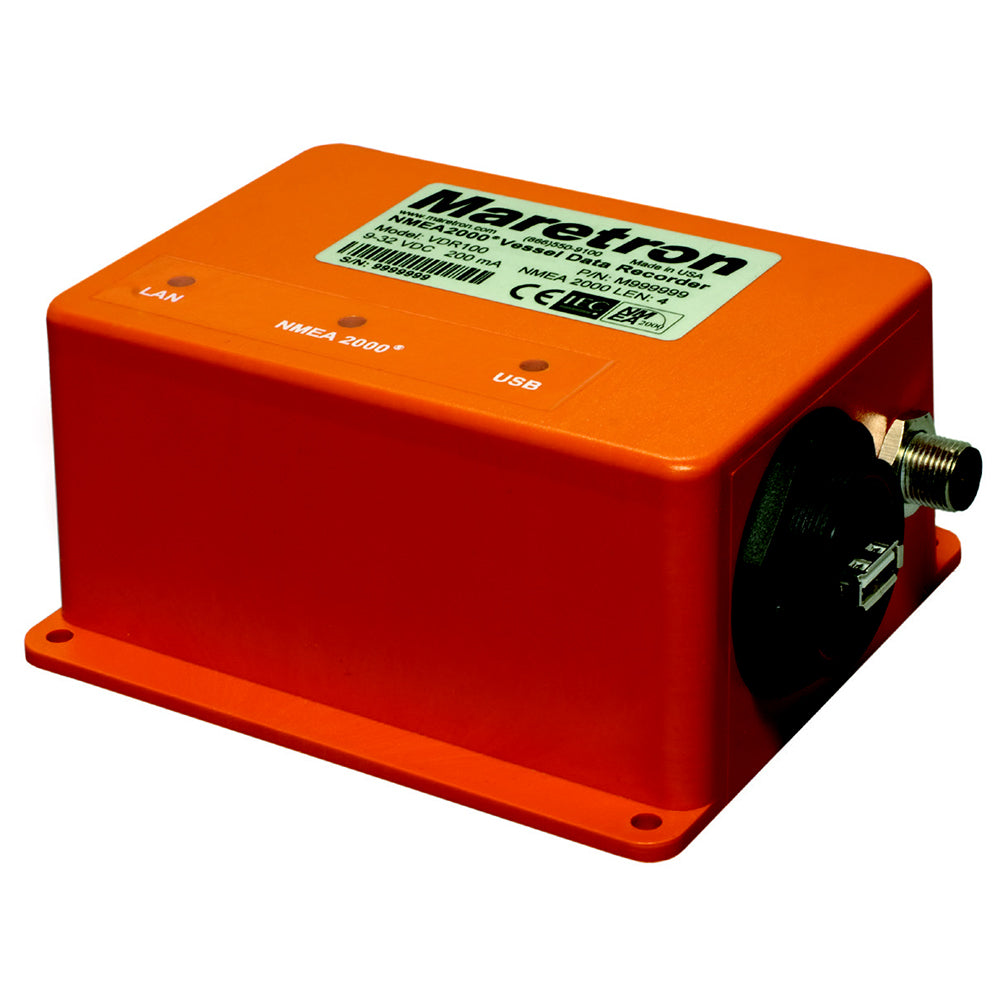

Maretron Vessel Data Recorder Includes M003029 VDR100 [VDR100-01]

Vessel Data Recorder Includes M003029 VDR100

Maretron's Vessel Data Recorder (VDR100) is used to record messages transmitted from every product interconnected on the vessel's NMEA 2000® network. Each message is stored using solid-state memory technology with simple data retrieval via a removable USB flash drive. The supplied 16 Gbyte USB Flash Drive will hold weeks or more of data, and with the optional purchase of a larger USB Flash Drive, a year or more of data can be stored. And you never have to worry about losing the most recent data because the VDR100 uses a circular buffer where the oldest data is overwritten only after the entire memory is filled.

Recorded vessel data can be used in many ways including performance analysis, vessel tracking, preventative maintenance, network diagnostics, warranty incident, and accident investigation, all in an effort to reduce operating cost and improve safety. As an example of how the recorded data might be used, consider an NMEA 2000® fuel flow monitor plugged into the network, which will provide a complete record of how much fuel was used and how fast it was used. With a GPS antenna/receiver plugged into the NMEA 2000® network, you will have a complete record of where the vessel has been including its speed and course over ground.

Analyzing and graphing recorded data is done using a spreadsheet program like Microsoft® Excel®. Simply remove the USB Flash Drive and plug it into a PC or Mac and run Maretron's free extraction software (N2KExtractor®). Choose any or all of the recorded data including the associated dates and times and the program will create a comma delimited file (.csv) that can be read into a spreadsheet for graphing or any other type of data analysis.

With the VDR100, you have a complete record of all the information produced by NMEA 2000® products connected to the vessel's network. And because the VDR100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radio Communication Equipment), your data is safely protected in a compact waterproof housing.

USB Flash Drives

Depending on how much data you wish to record without overwriting older data, the following table can be used to determine the capacity of the USB Flash Drive you need. These figures are estimated assuming a 25% loaded system (approx 463 frames/second).

Features:

• Data recorded on solid state memory via removable USB flash drive
• Circular buffer preserves latest recorded data while oldest data overwritten when memory is full
• Recorded data available for performance analysis, vessel tracking, preventive maintenance, and more
• Optional waterproof USB flash drive cover
• Free data extraction software (N2KExtractor®) builds comma delimited files for data analysis

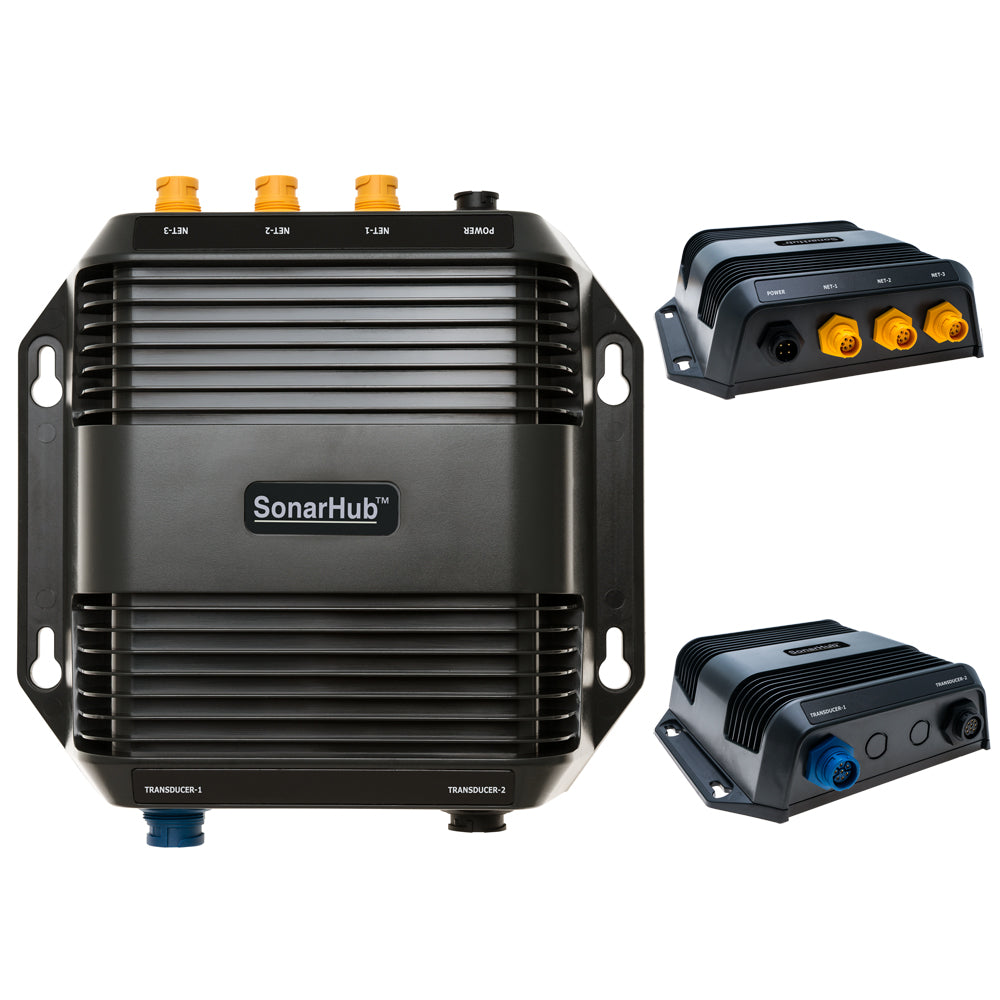

Navico SonarHub Sounder Module [000-11142-001]

Navico SonarHub™ Sounder Module

The compact SonarHub™ sounder module provides an all-in-one solution for adding best-in-class StructureScan HD and CHIRP sonar capabilities to compatible Lowrance HDS and Simrad NS series multifunction displays.

An easy-to-install, plug-and-play, all-in-one network solution - the SonarHub™ Sounder Module makes it easier than ever to identify productive fishing areas with connectivity to the latest sonar technologies for Lowrance HDS and Simrad NS displays - including CHIRP and StructureScan HD imaging - as well as the Lowrance SpotlightScan™ bow-mounted solution for HDS Gen2 models.

Features

• Compact, all-in-one sonar module delivers StructureScan HD and CHIRP sonar technologies.
• CHIRP sonar with Airmar TM150M or B150M transducers delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets.
• StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging™ to provide crystal-clear, picture-like views of what's beneath your boat.
• Optional transducers include Airmar TM150M and B150M single-channel CHIRP transducers, existing StructureScan HD transducers, and the SpotlightScan™ surround-scanning sonar transducer.*
• Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan™ and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models, and Simrad NSO, NSE and NSS series multifunction displays.
• Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.
• Supported by Lowrance Advantage Service and Simrad Advantage Service programs.

*SonarHub Sonar Module not required for SpotlightScan™ functionality with HDS Gen2 Touch displays.

Specifications:

• Cable Length (Feet): 15'
• Box Dimensions: 3"H x 10"W x 13"L WT: 3 lbs
• UPC: 9420024124734

Quick Guide (pdf)

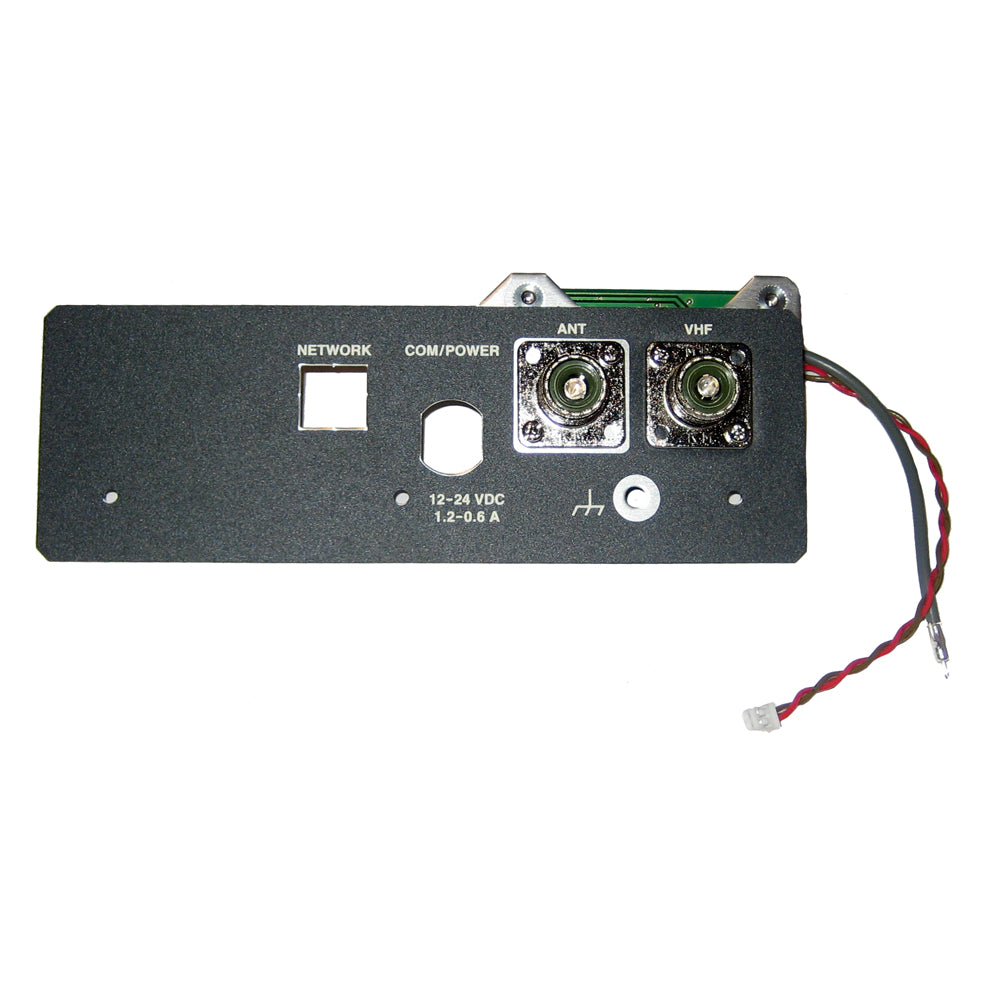

Furuno VHF-AIS Splitter f/FA-30 Only [000-011-704]

FA-30 VHF-AIS Splitter

The VHF splitter enables the AIS receiver and VHF transceiver to share a single VHF antenna.

Note: The FA-30 can not receive AIS signal when the VHF transceiver is transmitting.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)

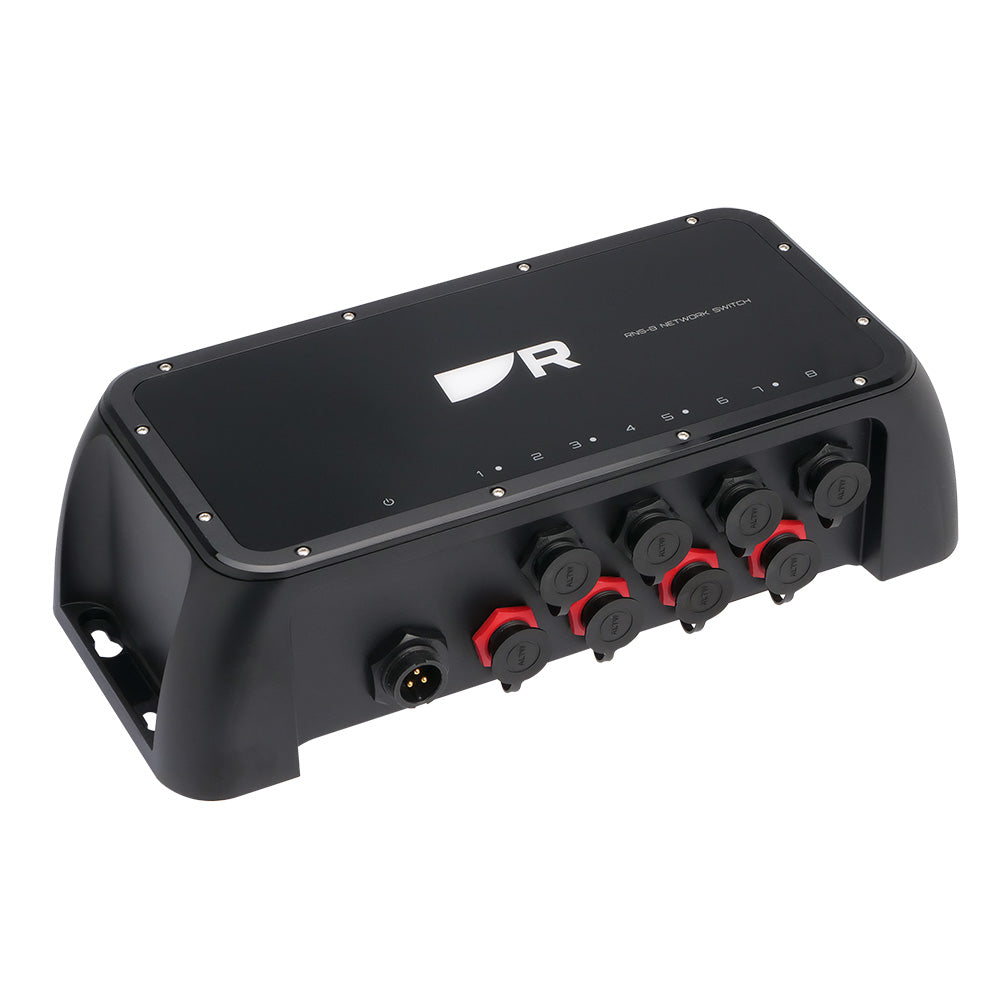

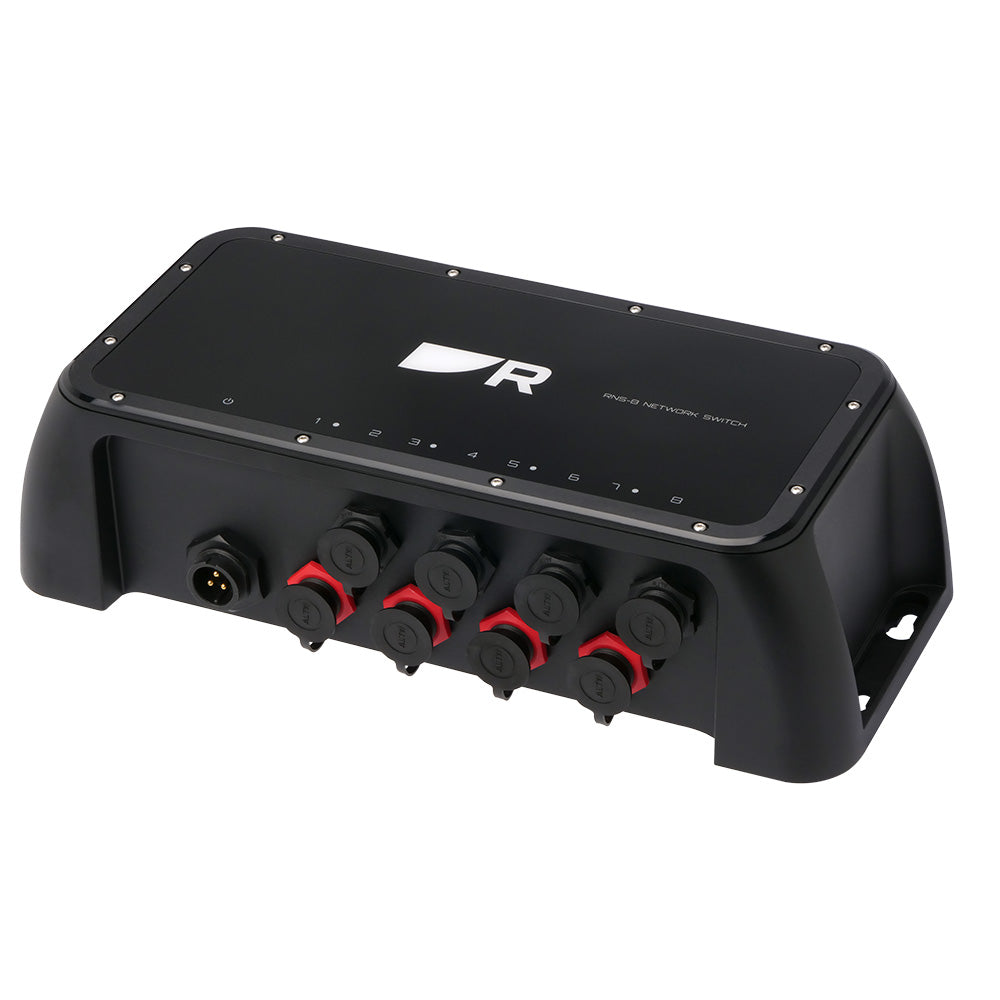

RNS-8 Network Switch - 8 Port Raynet Network Switch

The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.

Features:

• 8 RayNet Ethernet gigabit ports for fast and reliable connectivity
• 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes
• Rugged IPX6/IPX7 construction
• Reliable, waterproof RayNet connector Ethernet cable ports
• Designed for simple bulkhead mounting
• LED power and network port status indicators
• Unmanaged- simply plug and play with Raymarine devices.
• Remote diagnostics and performance monitoring via web browser
• For extended networks, up to 8 RNS-8 switches can be daisy-chained together
