Navigation Kit Plus for Sailboats

Complex boats need a smart solution. And we have it. VDO Marine OceanLink® display is the only product on the market able to interpret CAN, NMEA 2000® and analog signals without any additional external device.

Safety, performance, entertainment.  VDO Marine Navigation Kit and Navigation Kit Plus is the solution! Our Navigation Kits will become essential crew members which ensure you top performance in the open sea, even in the most extreme situations.

All in one box All you need is in one box including wiring harness and terminators. All products are REACH and RoHS compliant and NMEA 2000® certified.

NAVSENSOR (INCLUDED ONLY IN THE KIT NAVIGATION PLUS)

The multifunctional AcquaLink™ NavSensor offers an inertial sensor with a GNSS receiver module to provide the accurate readings of speed of travel as well as pitch & roll. Compass readings can be displayed electronically thanks to the embedded Fluxgate compass, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.

Navigation Kit Plus includes:

• 1x OceanLink 4.3 TFT Display/Gateway - Black
• 1x NMEA 2000 Wind Sensor
• 1x Nav Sensor
• 1x  Triducer Airmar Sensor (Speed/Depth/Water Temp)
• 1x 30m NMEA 2000 backbone (mast) cable
• 3x 6m NMEA 2000 drop cable
• 1x NMEA 2000 terminator (female)
• 1x NMEA 2000 terminator (inline)
• 3x NMEA 2000 T-splitter

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Transducer Type: Thru-Hull
• Shape: Rectangular
• Screen Size: 4.3"
• Instrument Function: Multifunction
• Box Dimensions: 7"H x 16"W x 31"L WT: 14.4 lbs
• UPC: 7640178728806

Veratron NMEA 2000 Wind Sensor - 9 to 16V [A2C59501984]

NMEA 2000® Wind Sensor - 9 to 16V

The wind vane turns in the direction of the wind and steers the wind direction gauge. The wind cups record the relative wind speed which in turn is displayed on the wind speed gauge.

Features:

• AcquaLink type wind sensor
• Output: NMEA-2000
• Measuring: Wind speed & direction
• Measuring system: Mechanical
• System: Hall-sensor & cross coils

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Instrument Function: Wind
• Box Dimensions: 6"H x 16"W x 31"L WT: 3.2 lbs
• UPC: 7640178725270

Brochure (pdf)

i70s System Pack with Color Instrument & Wind, DST Transducers, iTC-5, 3M Backbone, T-Piece, Power & 2 Backbone Terminators

Instrument Data is Now Beautiful

Maximum Visibility and Maximum Versatility

The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1” display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Features:

• 4.1” super bright oversized LCD for maximum visibility
• All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Simple user interface with sculpted rubber keypad for precise operation in all conditions
• Customizable data displays of depth, speed, wind and more
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
• NMEA2000 connectivity* for engine, environment fuel and navigation data
• Convenient AIS repeater mode allows you to visually track nearby AIS targets
• Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
• Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalkng adaptor is required for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface

The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking

Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
• Current generation SeaTalkng networks
• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity

Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analog depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Customization

The Raymarine i70s instrument is easily customized to suit your personal boating requirements.

From traditional analog dials to engine information and tank levels, i70s has the capabilities to show it all.

Package Contains:

1ea E70327 i70s Instrument

1ea E70010 ITC-5

1ea A22154 DST800 Transducer

1ea E22078 Standard Wind Transducer

2ea A06031 Backbone Terminator

1ea A06064 5-Way Connector

1ea A06035 Backbone Cable 3M

1ea A06049 Power Cable

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 7"H x 14"W x 26"L WT: 13.15 lbs
• UPC: 723193854082

4.1" High Bright Color Display - Black

Maretron’s DSM410 is a 4.1” high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.

Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM410 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.

The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring. Available alert types include:

• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM150, DSM250 and N2KView® installations on the network. An alert defined on any device can be acknowledged on any other device on the network.

Maretron's DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

Examples of data that the DSM410 can display are:

• AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
• Anchor Watch
• Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
• Depth (Water Depth, Depth below Transducer)
• Electrical (Resistance)
• Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
• Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Econmony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
• Environment (Barometer, Heat Index, Humidity, Temperatures, Wind Chill)
• Fluid Flow (Flow Rate, Trip Volume)
• Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Remaining)
• GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
• Heading (Heading, Rate of Turn, Variation)
• Humidity (Inside, Outside, User Defined
• Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
• Mechanical (dB, Force, Strain)
• Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
• Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
• Pressure / Vacuum
• Rudder
• SMS (Status, Signal Strength)
• Speed (Through Water, Over Ground, Total Log, Trip Log)
• Tanks (Capacity, Level, Remaining)
• Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
• Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
• Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
• Watermaker (Sea Recovery Status display)
• Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 4"H x 5"W x 7"L WT: 1.28 lbs
• UPC: 873804003757

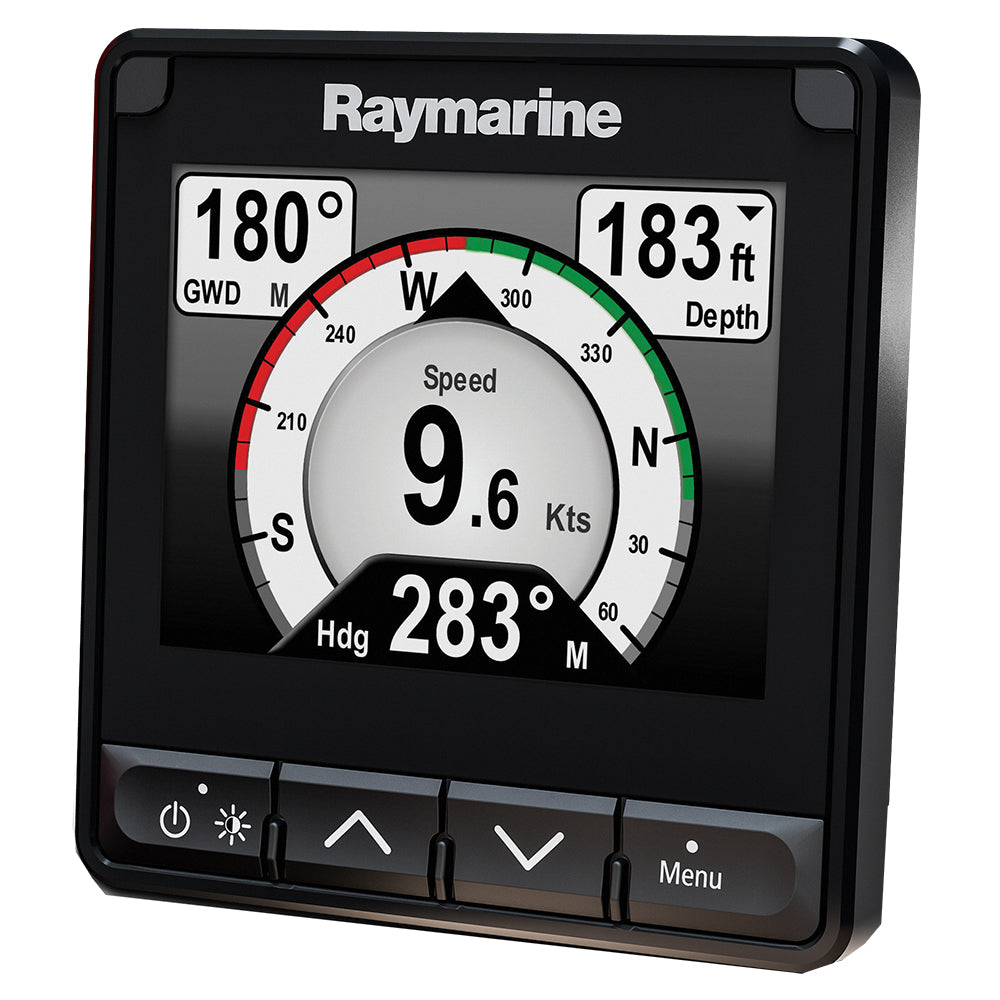

Raymarine i70s Multifunction Instrument Display [E70327]

i70s Multifunction Instrument Display

Maximum Visibility and Maximum Versatility
The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1_ display, the i70s is easy-to-customize with digital, analogue and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Features:

• 4.1" super bright oversized LCD for maximum visibility

• All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle

• Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays

• Simple user interface with sculpted rubber keypad for precise operation in all conditions

• Customizable data displays of depth, speed, wind and more

• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks

• NMEA2000 connectivity* for engine, environment fuel and navigation data

• Convenient AIS repeater mode allows you to visually track nearby AIS targets

• Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors

• Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer

• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface
The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking
Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable

• Current generation SeaTalkng networks

• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor

• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

AIS Repeater
Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity
Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Customization
The Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all.

Specifications:

• Screen Size: 4.1"
• Shape: Square
• Instrument Function: Multifunction
• Box Dimensions: 3"H x 6"W x 9"L WT: 1.6 lbs
• UPC: 723193812297

Owner's Manual (pdf)

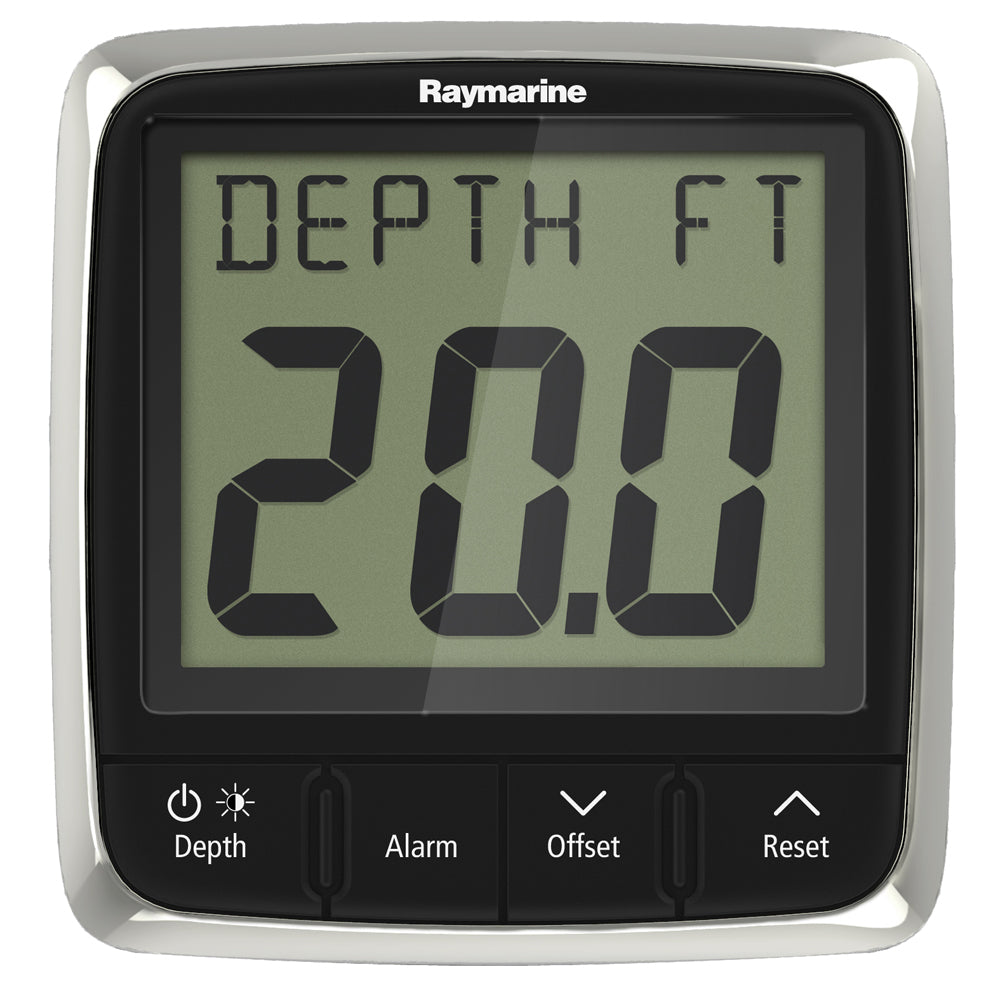

Raymarine i50 Depth Display System w/Thru-Hull Transducer [E70148]

i50 SeaTalk^ng Instruments - Depth w/Nylon Thru-Hull Transducer

The all-new i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i50 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i50 Depth Instrument
The i50 Depth Instrument offers accurate and reliable displays of depth, max depth and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarms.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility

• Connect additional i50 depth displays

• Built-in depth transducer connection

i50 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications:

• Transducer Type: Thru-Hull
• Shape: Square
• Instrument Function: Depth
• Box Dimensions: 4"H x 10"W x 14"L WT: 4.75 lbs
• UPC: 723193854259

Owner's Manual (pdf)

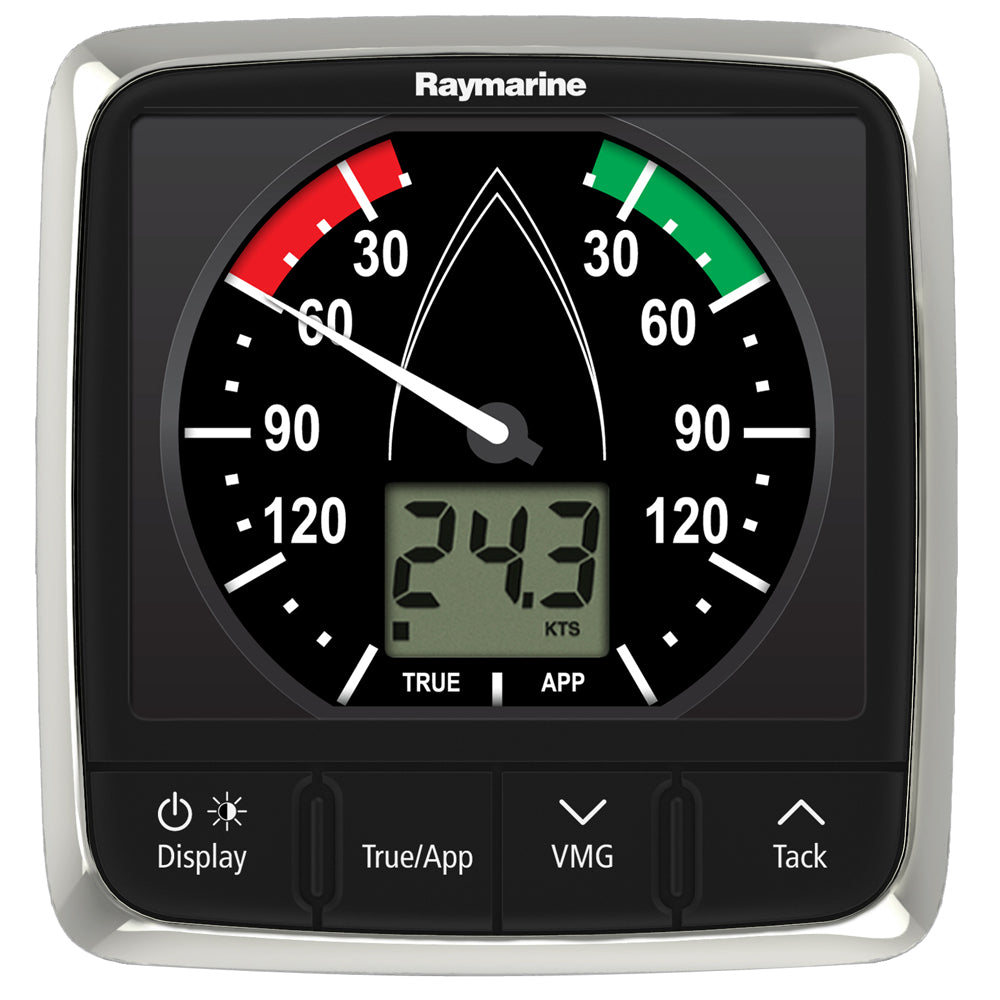

Raymarine i60 Wind Display System [E70061]

i60 SeaTalk^ng Instruments - Wind

The all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i60 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i60 Wind Instrument
Full featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics.

• Compatible with Raymarine's masthead transducer (recommend for sailboats) or the Rotavecta transducer (recommended for powerboats)

• Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack

• Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed.

• Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument

i60 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications:

• Shape: Square
• Instrument Function: Wind
• Box Dimensions: 4"H x 7"W x 10"L WT: 1.8 lbs
• UPC: 723193762851

Owner's Manual (pdf)
