Marine Navigation & Instruments - GPS - Track Plotter

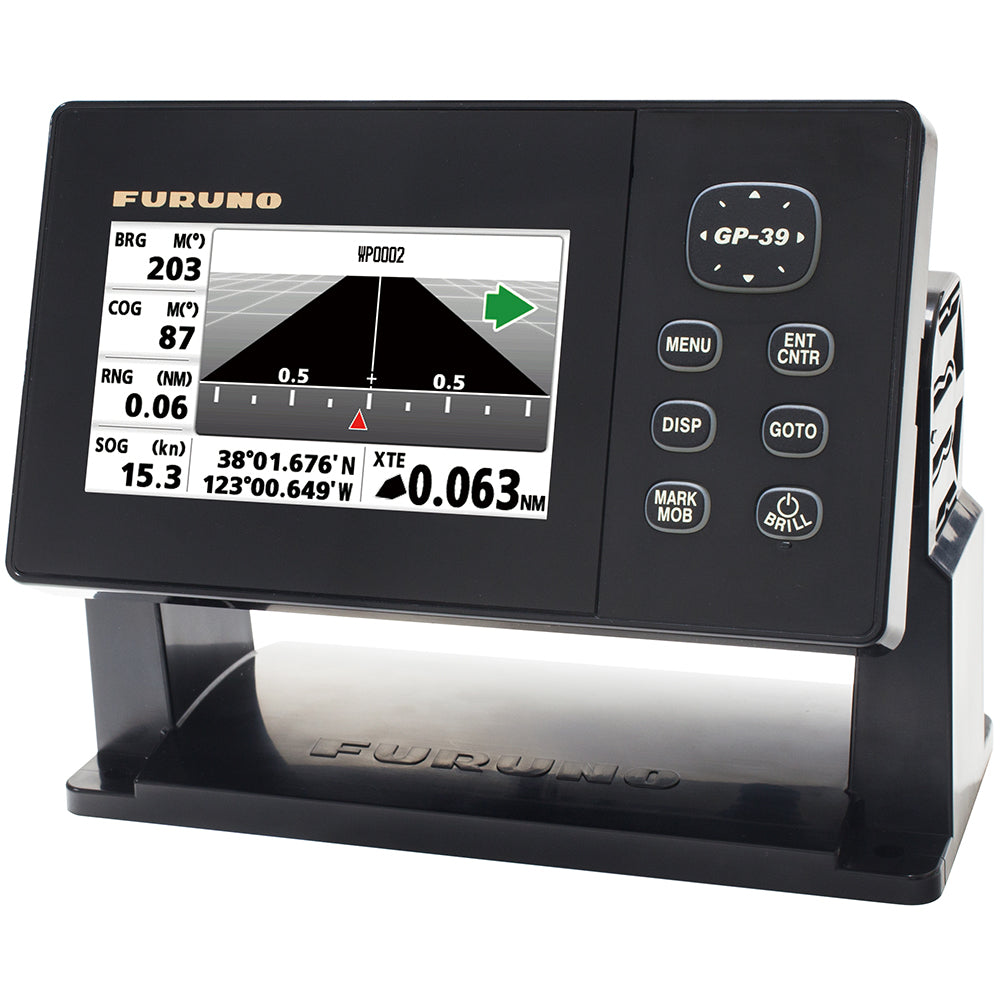

Furuno GP39 GPS/WAAS Navigator w/4.2" Color LCD [GP39]

GP39 GPS/WAAS Navigator with 4.2" Color LCD

Furuno's GP39 GPS Navigator provides accurate and reliable position fixing, thanks to a 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology. The GP39 has various display modes, including Plotter, Highway, Steering, NAV data and Satellite monitor, as well as 2 user-customizable display modes, allowing you to select which data you want displayed on its 4.2" color LCD. Up to 3,000 points of ship track, 10,000 waypoints and 100 routes (each with up to 30 waypoints) can be stored. The waypoint and route data can be exported/imported via a USB flash drive or signal converter.

The GP39 can be networked with a fish finder, sonar, radar or other navigation equipment for feeding highly accurate navigation data. The GP39 receives the TLL (Target Latitude/Longitude) sentence from networked fish finders or sonars and can display the received information, allowing you to easily mark fish school locations.

Features:

• Designed GPS core delivers enhanced position fixing accuracy
• Bright 4.2" high-resolution color LCD (700cd)
• Storage for 3,000 track points, 10,000 waypoints and 100 routes
• SBAS capable for better positioning calculations
• Share and display position information on networked equipment such as a Fish Finder, Sonar, Radar, etc.
• NMEA0180 input port receives data from Fish Finder, Radar, etc.
• 7 display modes available, including 2 user-customizable modes
• Displays position data in Loran TD's
• USB port for importing/exporting waypoints and routes; Upload/download data in GPX format for easy transfer to TZtouch/TZtouch2
• "Click-In" hanger for easy mounting/dismounting and uses no knobs - also perfect for overhead mounts
• Multi-language ready : English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian and Thai

The GP39 includes antenna (GPAC01), power cable, hard cover, mounting bracket and standard installation materials. The GP39 serves as the direct replacement for the GP32, which is no longer available for sale from Furuno USA.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Routes: 100
• Waypoints: 10,000
• WAAS: Yes
• Screen Size: 4.2"
• Box Dimensions: 7"H x 9"W x 14"L WT: 4.5 lbs
• UPC: 611679364487

Owner's Manual (pdf)
Brochure (pdf)

Furuno GP170D IMO DGPS Navigator [GP170D]

GP170D IMO DGPS Navigator

Furuno's GP170D is a highly stable and reliable GPS/Differential position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. The designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized.

A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

Features:

• Differential GPS utlizes terrestrial station signals to enhance
• Satellite-based positioning

• Augmentation to enhance precision by utilizing SBAS and DGPS

• Full compliance with IMO MSC. 114 (73) and IEC 61108-4

• 10 Hz (0.1 second) position update rate making steady own ship tracking possible

• Front panel USB port for export/import of routing data, menu settings and user settings

• BAM (Bridge Alert Management) ready

• LAN interface for efficient network integration into bridge system (IEC 61162-450)

• Simplified menu operation

• Enhanced route planning/management function

Specifications:

• Display Size: 5.7"

• Display Type: Color LCD

• Power Use: 12-24 VDC

• Receiver Type: GPS or DGPS

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Screen Size: 5.7"
• Box Dimensions: 9"H x 11"W x 20"L WT: 12 lbs
• UPC: 611679356796

Quick Guide (pdf)
Owner's Manual (pdf)

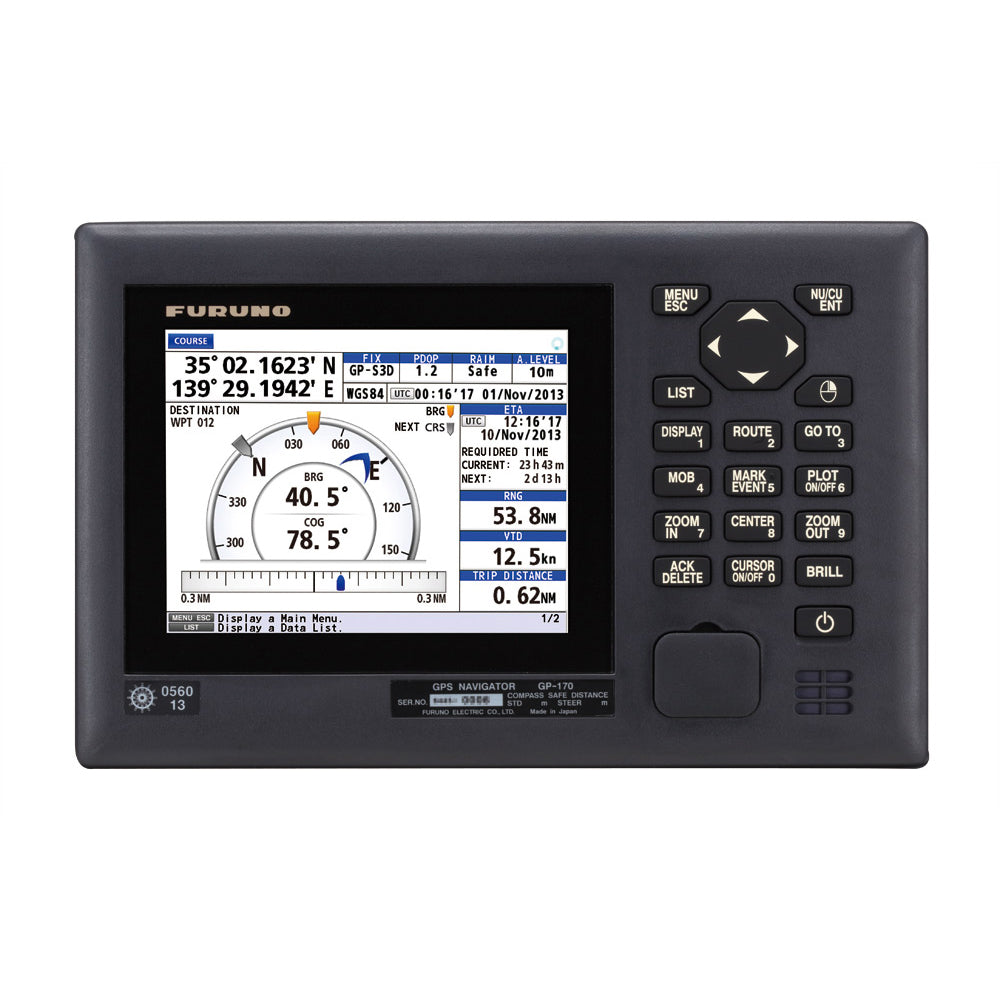

Furuno GP170 IMO GPS Navigator [GP170]

GP170 IMO GPS Navigator

Furuno's GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. The designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized.

A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

Features:

• Augmentation to enhance precision by utilizing SBAS

• Full compliance with IMO MSC. 114 (73) and IEC 61108-4

• 10 Hz (0.1 second) position update rate making steady own ship tracking possible

• Front panel USB port for export/import of routing data, menu settings and user settings

• BAM (Bridge Alert Management) ready

• LAN interface for efficient network integration into bridge system (IEC 61162-450)

• Simplified menu operation

• Enhanced route planning/management function

Specifications:

• Display Size: 5.7"

• Display Type: Color LCD

• Power Use: 12-24 VDC

• Receiver Type: GPS

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Screen Size: 5.7"
• Box Dimensions: 9"H x 11"W x 20"L WT: 11.2 lbs
• UPC: 611679356789

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
