Chesapeake White SS 5" Speedometer - 60 MPH (GPS)(Studded)

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

The GPS Speedometer is a drop in replacement for your current speedometer to match your existing instrument dash.

GPS information is gathered from an internal GPS antenna. No external antenna required. The Faria GPS Speedometer uses a highly accurate 48 channel GPS receiver. You can be sure that the Faria GPS Speedometer is giving you the most accurate GPS information available on the market today.

Course Over Ground (COG) and actual heading (compass heading over ground) are displayed on the optional digital LCD.

Speed data is shown by an analog pointer. This pointer is driven by a digital stepper motor for increased accuracy and minimized pointer bounce during vessel operation.

Benefits:

• No external GPS antenna required
• Premium LED back-lit dials
• Ultra fast Satellite acquisition time (TTFF) 1 second from Hot start
• Speed Accuracy of +/- 1 MPH
• Heading Accuracy of +/- 1 Degree
• Digital stepper motor driven pointers
• Ideal replacement for speed sensing devices (pitot tube and paddle wheel) that fail over time
• Perfect for slow moving vessels where pitot tubes just don't work
• Deutsch connectors

5"- Hole Size: 4.375" (112mm)

Specifications:

• Anti-scratch glass lens
• Perimeter lighted back light
• 12 VDC negative ground
• Can be adapted for 24 VDC systems
• Dual Scale - Imperial and Metric

Factory P/N SGP502

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 5"
• Box Set: No
• Gauge Type: Speedometer
• Series: Chesapeake White
• Box Dimensions: 8"H x 8"W x 8"L WT: 1.25 lbs
• UPC: 759266338616

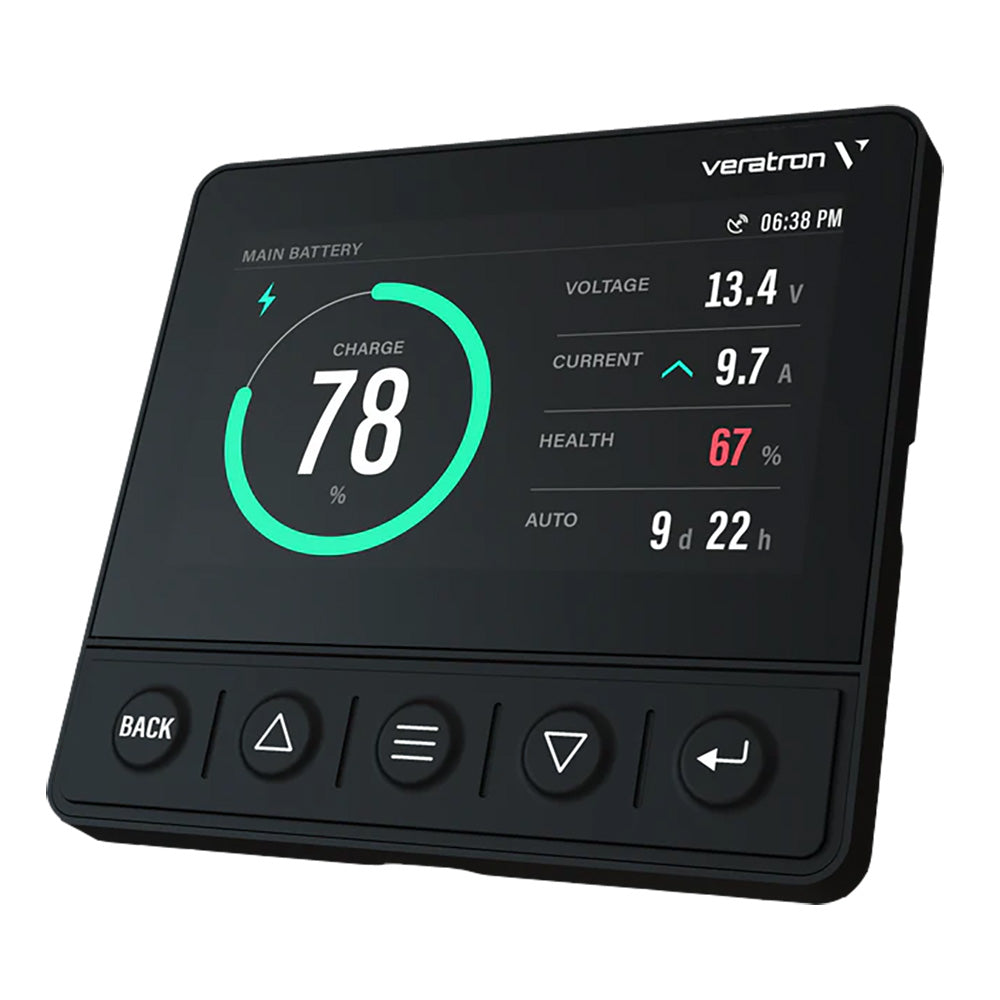

OL 43 Smart Marine Monitoring TFT Display

Experience seamless integration and real-time monitoring with the OL 43. Whether you're tracking engines, batteries, tanks, or navigation data, this 4.3” optically bonded IPS TFT display ensures perfect readability—even under direct sunlight. With support for NMEA 2000® and J1939 CAN, plus analog in­puts and HTML5-ready Ethernet, the OL 43 is your all-in-one solution for modern marine instrumentation.

The OL 43 Multifunction Display redefines clarity and control in marine environments. Featuring a 4.3” optically bonded IPS TFT screen with anti-glare mineral glass, it delivers brilliant visibility even in harsh conditions.

Designed for seamless integration, it supports NMEA 2000® and SAE J1939 CAN protocols, analog sensors, and Ethernet connectivity.

With lightning-fast startup, customizable multilingual GUI, and robust IPX7-rated housing, the OL 43 is built to perform. Whether monitoring engines, tanks, batteries, or navigation data, this display offers intuitive interfaces, graphical insights, and real-time alarms. Its compact 85mm round form factor and flame-retardant housing make installation simple and safe.

Features:

• IPS TFT display technology for great readability even in direct sunlight
• Optical bonded mineral glass lens with anti-glare coating
• Protection rating IPX7
• NMEA 2000® certified connectivity
• SAE J1939 CAN interface
• 4x Analog input for sensor connection
• Integrated NMEA 2000® converter
• Full engine diagnostic with programmable alarm output
• Reliable in high-temperature environments
• Installation in 85 mm panel cuts via spinlock

Specifications:

• Box Set: No
• Gauge Size: 4.3"
• Gauge Type: Multifunction
• Series: OL
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 4"H x 6"W x 6"L WT: 1.05 lbs
• UPC: 7640190290091

Veratron EngineBox - Double Engine [A2C1767000001]

EngineBox - Double Engine

The EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors.

The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.

The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box.

Features:

• Analog to NMEA 2000® gateway
• J1939 to NMEA 2000® gateway
• 2 Models for single engine and dual engine configurations
• Compact design
• Status LED
• Operating temperature range -40°C/+85°C

Technical Specifications:

• 1x J1939 (2x J1939 Dual Engine)
• 1x M12 5 pins NMEA 2000®
• 1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)
• 4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)
• 2x Inputs 4–20 mA
• 1x Input 0–5 V (2 inputs with Dual Engine Model)

In the Box:

• Engine Cable
• Cable Harness
• Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Gauge Size: N/A
• Box Set: No
• Voltage - Input Range (Volts): 8-16v
• Gauge Type: Multifunction
• Box Dimensions: 4"H x 6"W x 6"L WT: 1.45 lbs
• UPC: 7640178724433

Brochure (pdf)

Veratron 85mm (3-3/8") VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input  Battery Sensor [B00143502]

85mm (3-3/8") VMH-35S Multifunction Gauge with Voltage Dependent (0-5V) Sensor Input & Battery Sensor

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles, and bulkheads on smaller vessels with limited space.

The Veratron VMH 35-S has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines. An integrated GPS makes the VMH 35-S the perfect standalone navigation solution. It integrates speed, compass, and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

The Veratron VMH 35-S has a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors. Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back. It fits a standard 85mm (3-3/8’’) panel cutout size.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what a comparably-sized TFT screen uses.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8'000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

• Integrated high-performance GNSS receiver
  • Intelligent Battery Sensor (IBS) port
• Analog inputs: 1x 0-5V / 1x resistive / 1x frequency
• Stylish black-glass design with brushed stainless-steel ring
• Front ring: Brushed stainless steel
• Front lens: Mineral glass
• Display: Color IBN + 1.44" TFT optically bonded
• Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway

Technical Specifications:

• Nominal voltage: 12V
• Operating voltage: 9-16V
• Current consumption: ≤ 150 mA (normal mode)
• Protection class: IP X7
• Dimensions: 100 mm (outer) and 85 mm (mounting hole)
  • Cable lengths: 6m

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 3-3/8"
• Gauge Type: Multifunction
• Series: VMH
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 5"H x 10"W x 14"L WT: 2.8 lbs
• UPC: 7640190290435

Quick Guide (pdf)
Owner's Manual (pdf)

Veratron 85mm (3-3/8") VMH-35 Multifunction Gauge w/Battery Sensor [B00085502]

85mm (3-3/8") VMH-35 Multifunction Gauge with Battery Sensor

The Veratron VMH 35 is engineered for single inboard or outboard engine applications.

The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters.  This saves the need for an additional external converter.  Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.

An integrated GPS makes the VMH 35 the perfect standalone navigation solution.  It integrates speed, compass, and position into the engine data information.  A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

The Veratron VMH 35 has a mineral glass front that's optically bonded to the sun-readable hybrid display.  A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.  Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back.

It fits a standard 3-3/8" panel cutout size.

Features:

• Integrated high-performance GNSS receiver
• Integrated Analog to NMEA 2000 Gateway
• Waterproof to IPX7
• Stylish black-glass design with brushed stainless-steel ring
• New generation sun-readable color hybrid display
• Intelligent Battery Sensor (IBS) port
• NMEA 2000® certified

In the Box:

• VMH35 Gauge
• Wire harness
• Mounting Spinlock
• Outboard Engine Kit w/IBS (B00062402)
• Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 3-3/8"
• Gauge Type: Multifunction
• Series: VMH-35
• Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs
• UPC: 7640178729940

Owner's Manual (pdf)
Brochure (pdf)

Veratron NMEA 2000 Sailing Kit w/OceanLink GPS Speedometer, Wind Sensor, Wind Angle  Wind Speed Gauge [A2C3935310001]

Ships Direct From Manufacturer

NMEA 2000 Sailing Kit with OceanLink® GPS Speedometer, Wind Sensor, Wind Angle & Wind Speed Gauge

Includes:

• OceanLink® GPS Speedometer
• Wind Sensor
• Wind Angle
• Wind Speed Gauge

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Faria Platinum Series Box Set - Outboard Motors [KTF0185]

Platinum Series Box Set - Outboard Motors

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Packaged and ready for the display counter. This 4 Gauge Boxed Sets offer a complete set of gauges ready to install.

Inboard Motors Boxed Set Includes:

• Speedometer (0 to 70 MPH) (Mechanical)
• Tachometer (0 to 7000 RPM)
• Fuel Level (E-1/2-F)
• Voltmeter (10-16 VDC)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N KTF0185

*Sold as a Box Set

**Gauge Covers not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: Yes
• Series: Platinum
• Gauge Type: Box Set
• Gauge Size: Various
• Voltage - Input Range (Volts): 12/24 V
• Box Dimensions: 7"H x 10"W x 21"L WT: 4.25 lbs
• UPC: 759266001855

Brochure (pdf)

Faria Platinum Series Box Set - Inboard Motors [KTF0186]

Platinum Series Box Set - Inboard Motors

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Packaged and ready for the display counter. This 6 Gauge Boxed Sets offer a complete set of gauges ready to install.

Inboard Motors Boxed Set Includes:

• Speedometer (0 to 70 MPH) (Mechanical)
• Tachometer (0 to 7000 RPM)
• Fuel Level (E-1/2-F)
• Voltmeter (10-16 VDC)
• Oil Pressure (0 to 80 PSI)
• Temperature (100 to 250° F Deg)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N KTF0186

*Sold as a Box Set

**Gauge Covers not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Series: Platinum
• Gauge Type: Box Set
• Gauge Size: Various
• Box Set: Yes
• Box Dimensions: 6"H x 10"W x 21"L WT: 1.5 lbs
• UPC: 759266001862

Brochure (pdf)
