Marine Navigation & Instruments - Fishfinder Only

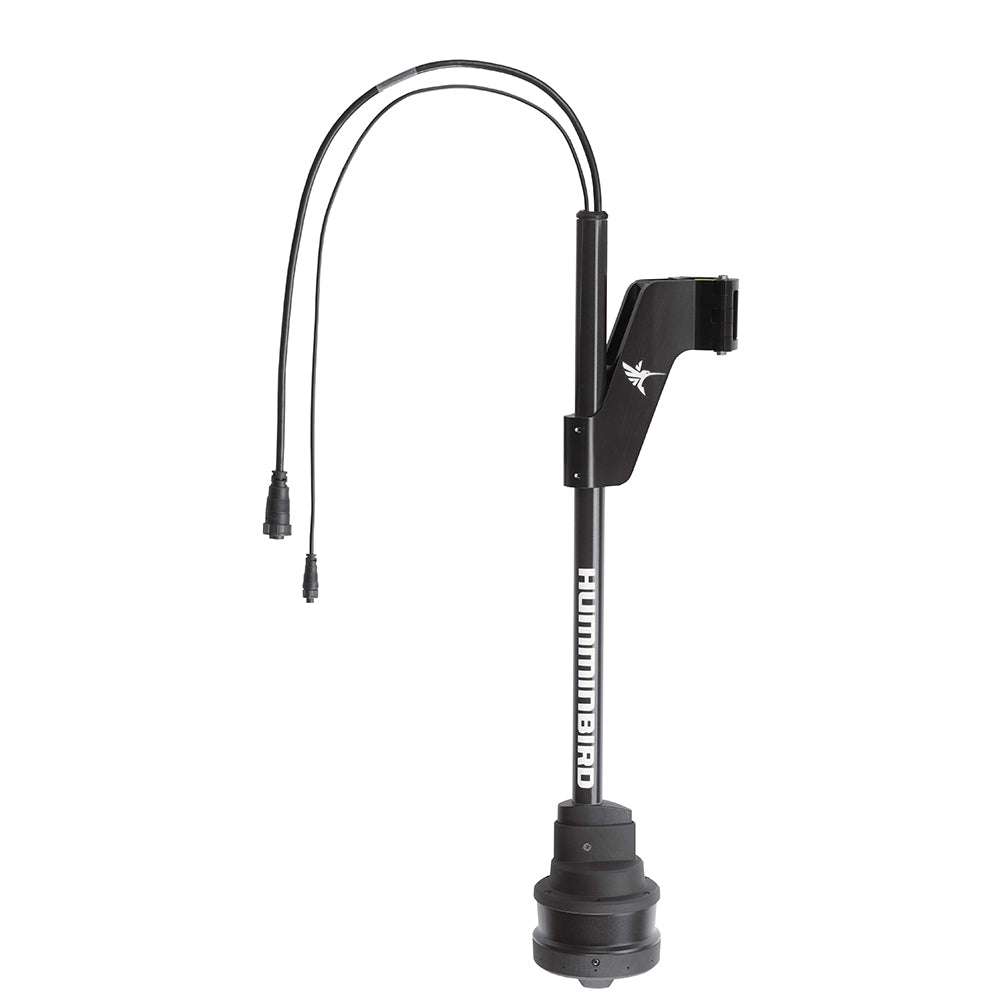

MEGA 360 Imaging Foretrex™

Surround yourself with more detail than ever before. MEGA 360 Imaging™ sweeps up to 125’ in every direction around your boat to deliver the clearest images you’ve ever seen of structure, the bottom and fish, even while you’re sitting still. That means more accurate casts, more unforgettable moments and more incredible MEGA Imaging®—all around.

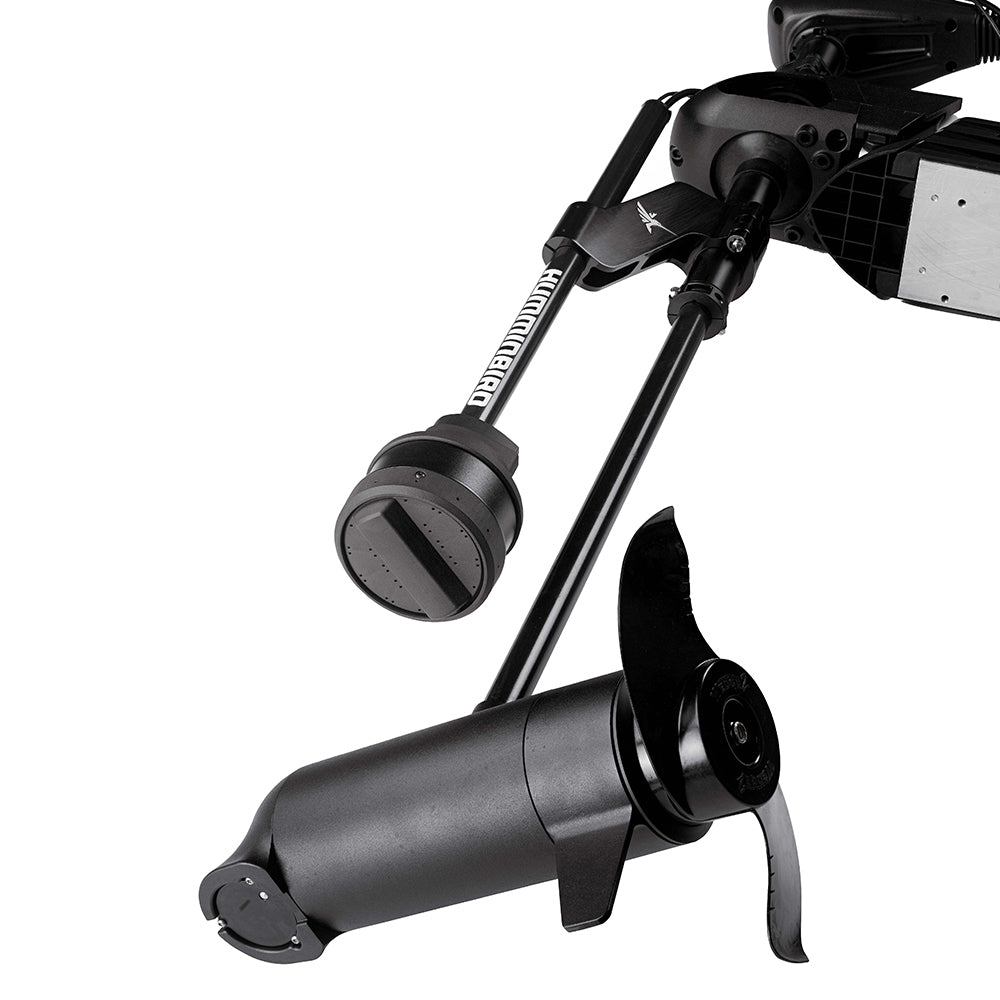

Once you’ve found your honey hole, get there and stay there. The MEGA 360 Imaging transducer is designed to mount to the Minn Kota® Foretrex™ for uninterrupted use, even while in Spot-Lock™.

Every Detail in Every Direction

With MEGA 360 Imaging, we didn’t reinvent the wheel. We redefined it, bringing the unmatched coverage of our 360 Imaging technology into the megahertz range for next-level detail. Like underwater radar, the MEGA 360 Imaging beam rotates giving you a 360-degree view of the water that’s constantly updating—with your boat at the center. Fish won’t ever see you coming–allowing you to cast and hook fish before they even know you’re there.

Let Us Show You Around

Whether you’re new to these parts, or know your surroundings like the back of your hand, Humminbird® can help you see fish you won’t find alone. MEGA 360 Imaging is compatible with SOLIX® Series and HELIX® Series fish finders equipped with MEGA Imaging+. In addition to unmatched detail and coverage, Humminbird provides built-in mapping, impressive screen resolution, intuitive control and many other features that lead anglers to choose Humminbird.

Customize Your View

MEGA 360 Imaging will change your perspective on fishing. How you see it is up to you. Custom viewing options let you choose how your returns appear, so you can dial them in based on your fishing style, conditions and what you’re after. Because more control means more confidence on the water.

Find Fish Like Clockwork

See a fish at 1 o’clock? You’ll be right on time with MEGA 360 Imaging. Just mark a waypoint directly on your Humminbird screen, and let range rings show you the distance from your boat to the target. Then, line up and cast to where the fish are.

Dial In Your Sweep Area

Nothing beats the coverage and detail of MEGA 360 Imaging. You can customize your sweep area from 360 degrees down to 10 degrees. Use preset view options, like 45° in front of your boat, to find and cast to productive spots without spooking fish.

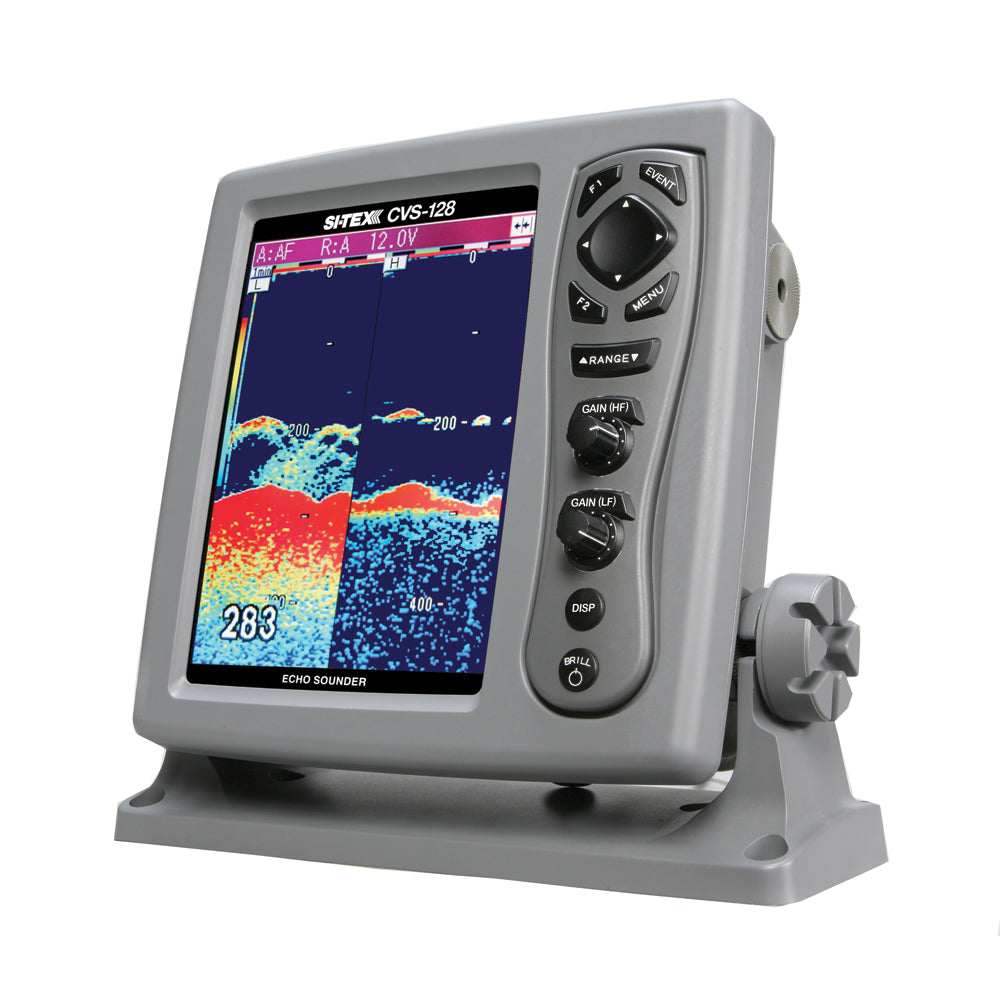

CVS-128 Digital Echo Sounder

Features a digital signal processor for a clearer high-definition image that enhances fish targets in shallow and deep depths. Brilliant 8.4" color LCD daylight viewable display with 8, 16 or 64 color levels, Dual-frequency 50/200 kHz operation, 1000 Watts with 8 ranges from 0-3600' and exclusive Sona-Tone identifies what's under boat with different sounds for fish or schools of fish.

Features:

• Stores up to 10 screen images in built-in memory for recall later.

• High-speed pulse rate transmission of 5000 times per minute for enhanced shallow water detection.

• Easy operation

• RGB output

• Auto fishing/cruising modes

• Audio/visual alarms

• Fishing hot spot function leads you back to your favorite fishing hot spots with input from GPS

• Bottom discrimination mode

• Real-time multi-color A-scope

• Built-in simulator

• Lat/Lon position with input from optional sensor

• Displays boat speed / surface water temp with Optional transducer

• IPX5 waterproof rating

• Over-head mounting and built-in flush mounting

• Display Unit with hard cover

• Mounting Bracket

• DC Power Cable

• Fuses

• Operation Manual

Specifications:

• Screen Size: 8.4"
• Transducer Type: Not Included
• Transducer Included: No
• Box Dimensions: 8"H x 11"W x 14"L WT: 10.85 lbs
• UPC: 010407320748

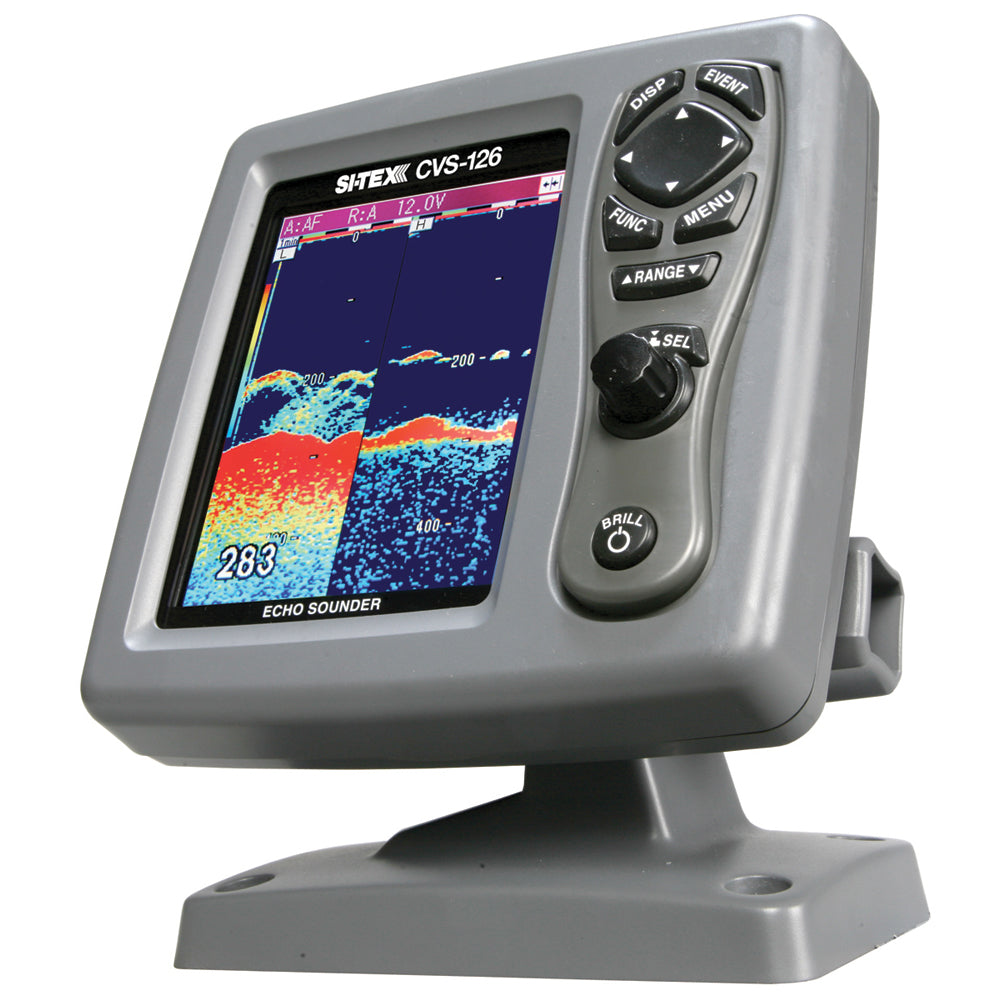

SI-TEX CVS-126 Dual Frequency Color Echo Sounder [CVS-126]

CVS-126

Dual Frequency Color LCD Echo Sounder

The SI-TEX CVS-126 Dual-Frequency (50/200kHz) Echo Sounder features a digital signal processor (DSP) for a clearer image that enhances fish targets in shallow and deep depths, plus auto function for the most reliable setting and best performance.

Features:

• Digital 5.7" Dual-Frequency Color LCD Fishfinder

• a multi-conductor cable is supplied, used for power, and data output and input

• DSP technology for a clearer detailed image that enhances fish targets

• Digital signal processing

• State-of the-art digital signal processor offers advanced filtering capabilities

• Digital Filtering feature eliminates clutter by filtering out the noise to provide a clear detailed image that enhances fish targets in shallow and deep depths

• Making it easy to differentiate between baitfish, larger fish, schools of fish and the sea floor

• Sona-Tone

• Exclusive Sona-Tone identifies what's under your boat with different sounds for fish and schools of fish. So you will not miss any good opportunites even if you are away from the CVS-126

• Automatic Functions

• For best performance the Auto Function mode chooses the most reliable setting for such functions as Gain, Range and Shift

• Optimum settings are continuously selected automatically (GAIN, RANGE, SHIFT)

• Fishing Hot Spots

• Leads you back to your favorite fishing hot spots or other previously saved positioning in memory with input from optional GPS sensor

• Store the Image

• YouStores up to 10 screen images in built-in memory for recalling later by "one-touch"

• Great for recalling a potential hot spot for review later

• Easy Operation

• Easy access to all system functions with simply arranged keypad, dedicated-functions keys, rotary-knob control of Gain/Selection and comprehensive on-screen menus

• Sunlight Viewable

• Brilliant 5.7" color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight

Specifications:

• Screen Size: 5.7"
• Transducer Type: Not Included
• Transducer Included: No
• Box Dimensions: 9"H x 11"W x 14"L WT: 5.55 lbs
• UPC: 010407320656

Quick Guide (pdf)
Owner's Manual (pdf)
