Marine Navigation & Instruments - Cameras - Network Video

Garmin GC 245 Surface Mount Camera - White [010-02892-10]

GC™ 245 Surface Mount Camera - White

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet™ network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

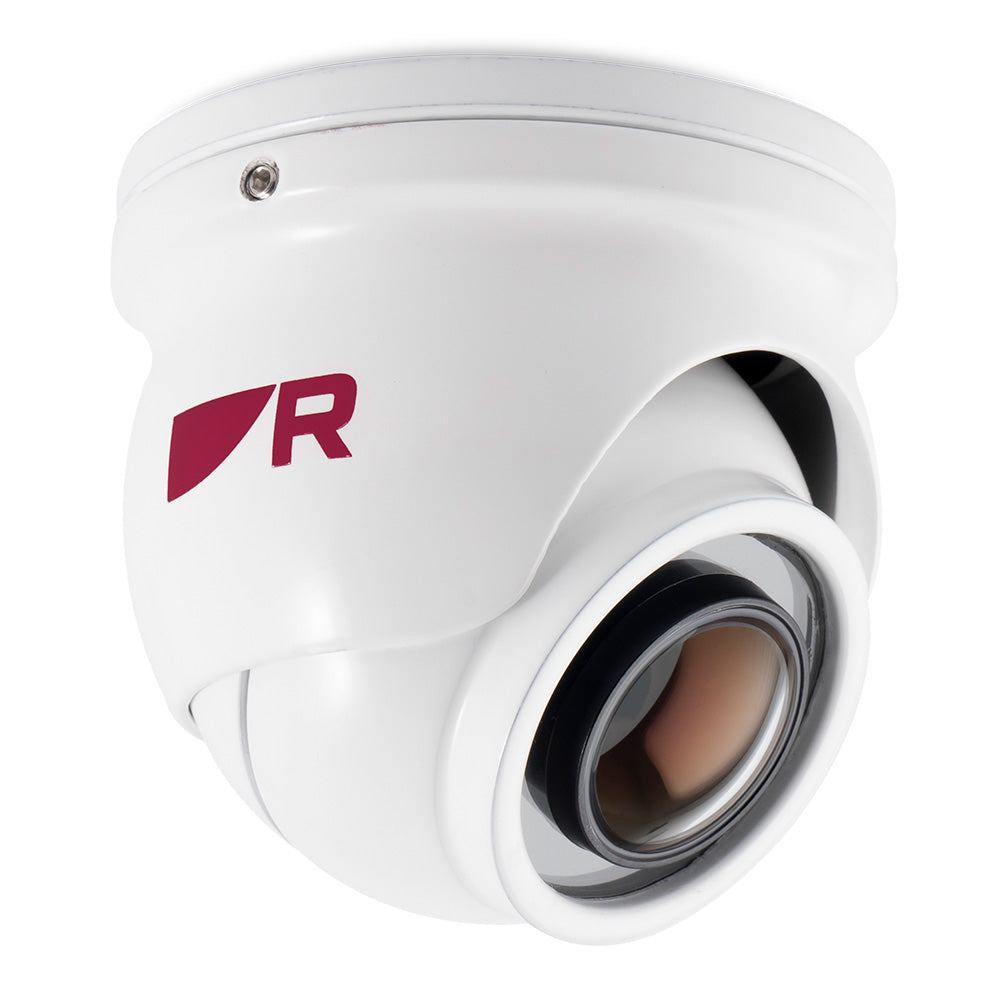

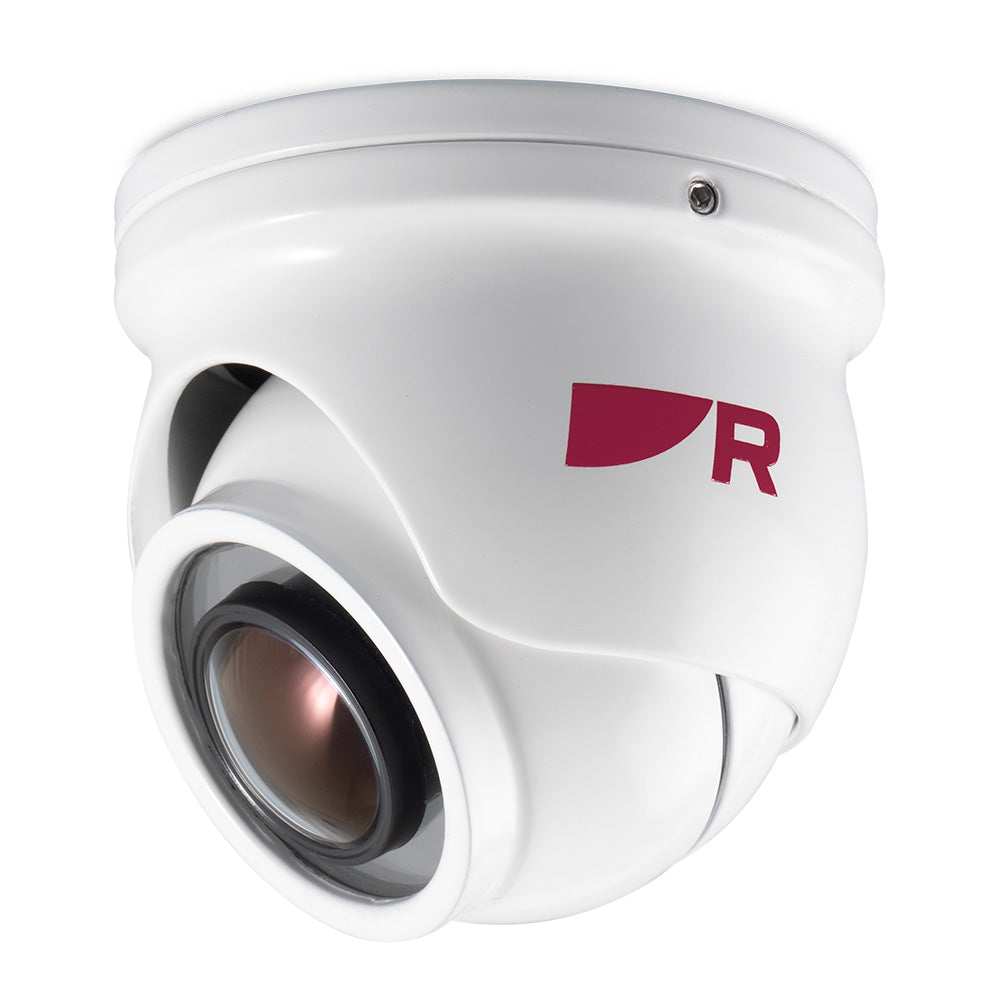

Raymarine CAM300 Mini Day  Night Eyeball IP Camera [E70660]

CAM300 Mini Day & Night Eyeball IP Camera

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints, and chart objects on the Axiom video display.

Features:

• Crystal clear HD video imagery using a 3MP CMOS sensor
• View up to 4 CAM300 video streams simultaneously on single

  Axiom display

• Built-in infrared emitters for excellent near-field low-light visibility up to 33 ft (10 meters)
• Image flip and invert functions for ball-up/ball-down installation and reverse video.
• Flexible mounting solutions as the entire camera ball rotates in the housing
• Easy to install with either a direct 12-volt connection or single cable Power over Ethernet (POE)
• Rugged IP66 enclosure for below and above-deck marine installations
• Navigate smarter with ClearCruise™ augmented reality and the optional AR200 sensor

Owner's Manual (pdf)

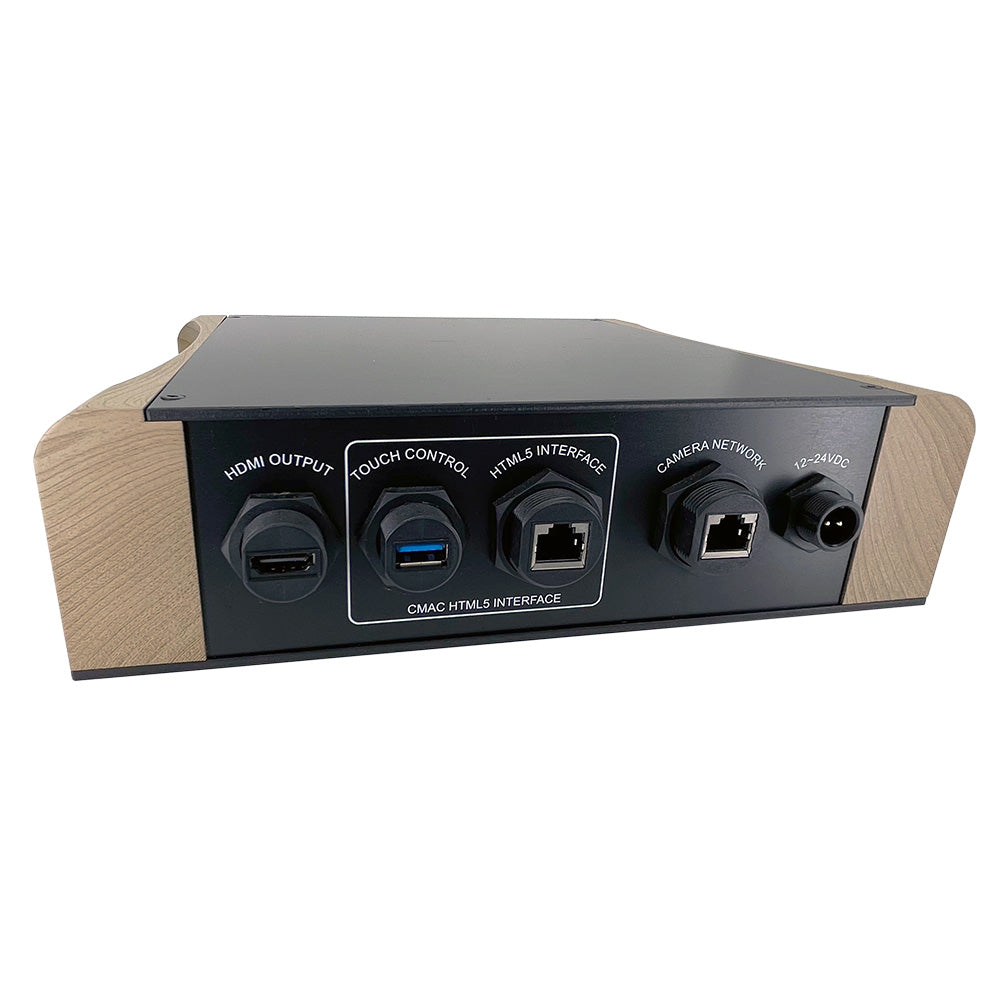

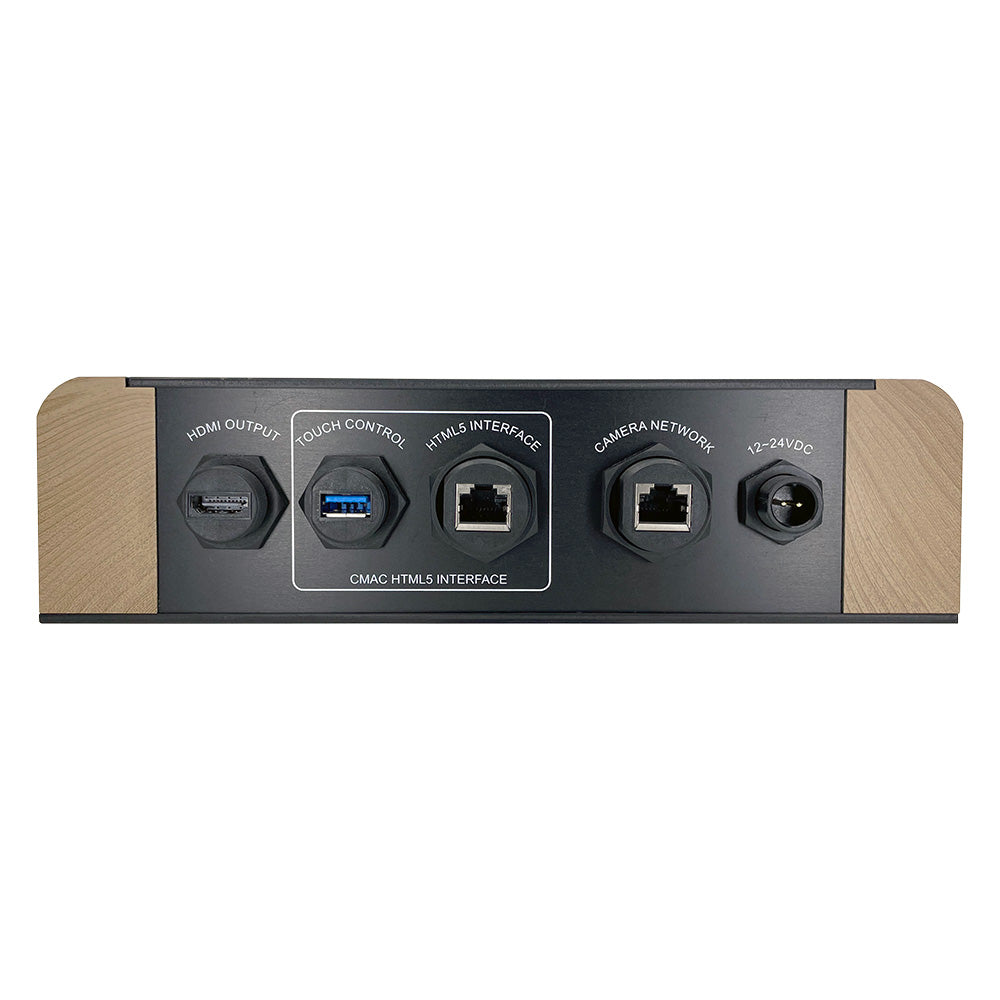

IP Camera Recorder with IrisControl for Garmin OneHelm Host - 1TB HDD - 32 IP Camera Inputs

You’re in Control…

CMAC™ is a feature-rich command, management, and control system for your onboard cameras and alarms. Upload your deck plans, set up your onboard cameras and alarms, and control everything from your chartplotter with the Iris Control App.

High-Definition Digital Output

CMAC systems feature a high-definition HDMI digital video output to provide the very best live, high-quality footage on compatible chartplotters, TVs, and dedicated monitors. CMAC can also be used with standard definition devices with any HDMI to composite video converter.

IRIS Control HTML5 App

Manage and control your onboard cameras and alarms via the Iris Control HTML5 app. Upload your deck plans and photos, drag and drop the dedicated camera and alarm icons, and you now have the most feature-rich and intuitive marine security and surveillance system in the world. Navigate through your deck plans and select camera icons to switch video inputs, control PTZ cameras via the ultra-responsive virtual joystick, configure and select camera tours and scans, activate thermal color palettes, gyro control, and much, much, more! Iris Control frees up helm space by removing the need for additional control hardware and joysticks.

USB Touch Control

In addition, to control your compatible MFD network, CMAC features a USB touch control interface. This means chart plotters with USB touch outputs, such as Garmin’s 8000 series, can be used to drive your PTZ cameras with pinpoint accuracy.

WiFi / Remote P2P Connectivity

Connect CMAC to your onboard WiFi router and view your cameras from around your boat on your smartphone, tablet, or computer. Perfect for keeping an eye on what’s happening above from the below deck! CMAC can also be accessed remotely via P2P connectivity if you have internet access.

Integrated Network Video Recorder

CMAC built-in recorder is fully configurable to maximize storage time, adjust resolutions and frame rates, set video motion detection, and much more.

Features:

• 1 terabyte hard disc drive
• This is an IP camera only version that can connect up to 32 cameras
• Wired for a Garmin unit
• Fully integrated camera and alarm control & management system for boats
• Upload your own deck plans & photos and drag & drop camera & alarm icons to select & control
• Garmin onehelm™ integration with the IrisControlTM app
• Control and switch your cameras from your Garmin MFD.
• Configure your boat alarm system, control individual and group alarms
• Razor-sharp, scaled control via IrisControl’s virtual joystick
• Full-screen touch control with Garmin’s USB touch (on available models)
• Firmware is upgradable to unlock features as & when they become available

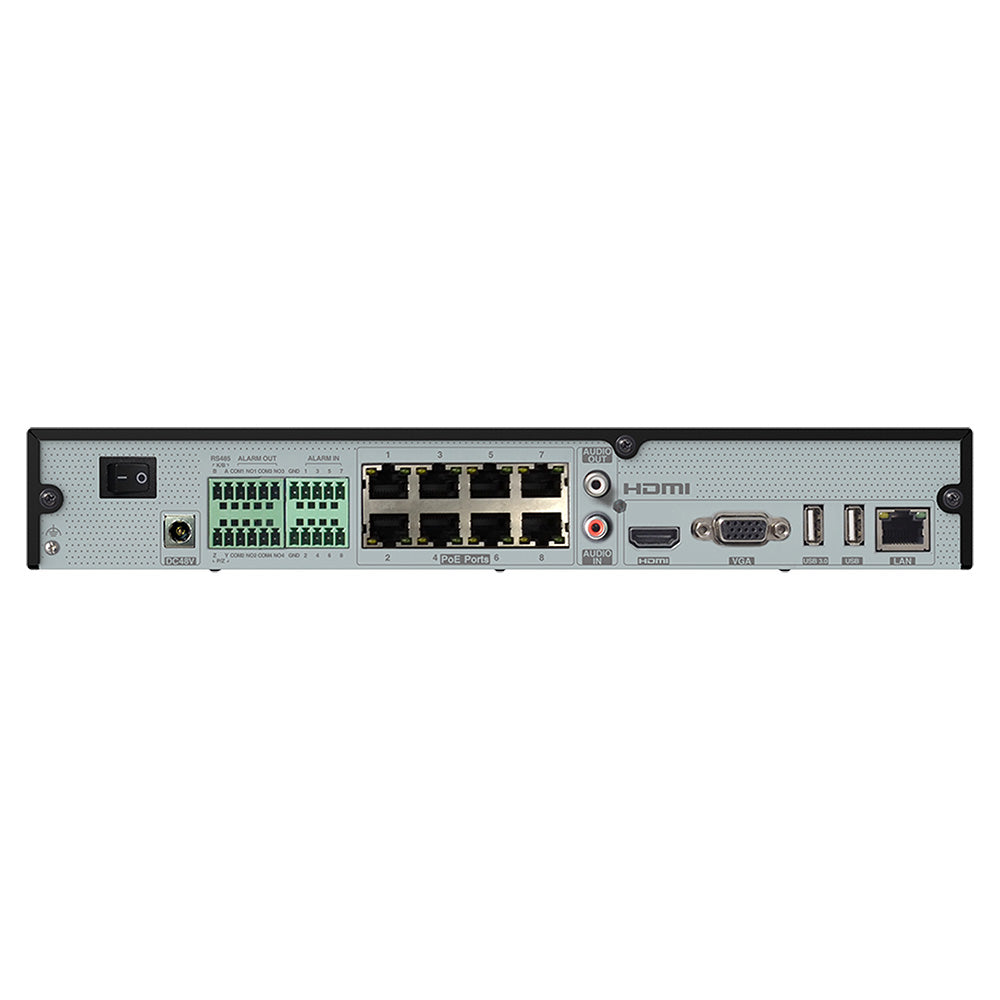

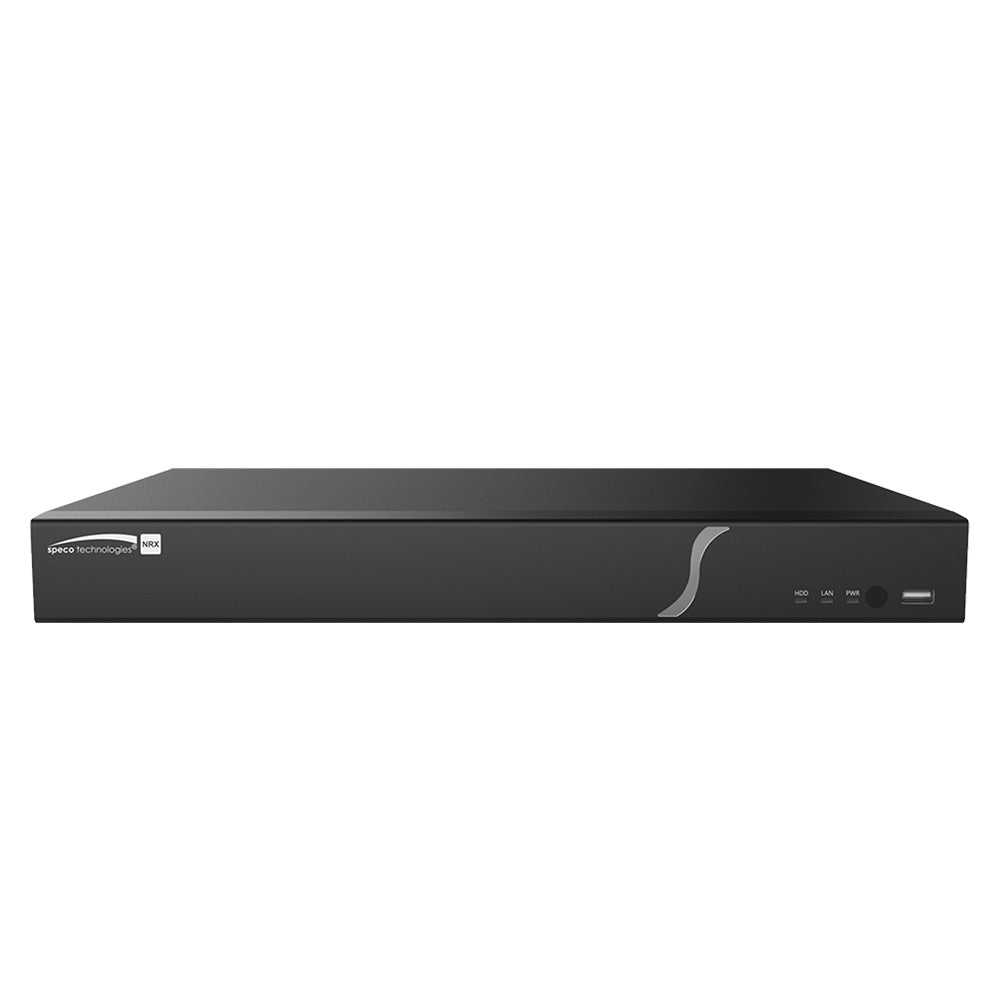

Speco 8-Channel Facial Recognition Recorder w/Smart Analytics - 2TB [N8NRX2TB]

8-Channel Facial Recognition Recorder with Smart Analytics - 2TB

8K H.265 NVR with Facial Recognition and Smart Analytics 8-Channel Facial Recognition NVR with 8 Built-In PoE Ports. With Speco’s NDAA-compliant NRX recorder, you will take your footage quality to the next level, now supporting up to 16MP cameras at 30 fps.

Features:

• Real time recording up to 16MP resolution (8K) at 30fps
• H.265 compression – Store up to 2x more than H.264!
• 4K HDMI out and one VGA monitor output,
• N8NRX: 1 SATA port for up to 20TB of storage max
• N16NRX: 2 SATA ports for up to 40TB of storage max
• Facial Recognition and Comparison**
• Object and line crossing detection and alerts*
• Smart Search – Specify a region on the camera view and search for changes in that area*
• Free US-based DDNS and P2P services
• Remote viewing via a web browser or your mobile device
• Easy video exporting via USB
• Remote control included
• Rack ears (N16NRX only)
• 5-year limited warranty

*With Speco Smart Analytic Cameras

**With Speco Facial Detection Cameras

*Products are in compliance with NDAA Section 889 Part B Guidelines

Quick Guide (pdf)

Garmin GC 245 Surface Mount Camera - Black [010-02892-11]

GC™ 245 Surface Mount Camera - Black

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet™ network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Iris Control f/Garmin OneHelm Host Interface (No Recording) / Hybrid [CMAC-INT002]

Control for Garmin OneHelm Host Interface (No Recording) / Hybrid

Manage and control your onboard cameras and alarms via the new Iris Control HTML5 app. Upload your deck plans and photos, drag and drop the dedicated camera and alarm icons, and you now have the most feature-rich and intuitive marine security and surveillance system in the world. Navigate through your deck plans and select camera icons to switch video inputs, control PTZ cameras via the ultra-responsive virtual joystick, configure and select camera tours and scans, activate thermal color palettes, gyro control, and much, much more! Iris Control frees up helm space by removing the need for additional control hardware and joysticks.

IrisControl is the only app of its type in the world, developed especially for boat owners, operators, and crew, and has been designed to run on chartplotter HTML5 platforms such as Garmin’s award-winning OneHelm program.

IrisControl is hosted on the CMAC range of onboard management and recording units and interface modules.

Features:

• Hybrid
• Fully Integrated Camera and Alarm Control & Management Interface
• Upload your own deck plans & photos and drag & drop camera & alarm icons to select & control
• Garmin OneHelm™ Integration
• Control and switch your cameras
• Configure your boat alarm system, control individual and group alarms
• Razor-sharp, scaled control via IrisControl’s virtual joystick
• Firmware is upgradeable to unlock new features as & when they become available

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Iris 4-In-1 Flush Vertical Surface Mount - 316L - Recess Mount Dome [IRIS-S076]

4-In-1 Flush Vertical Surface Mount  - 316L Marine Grade Stainless Steel - Recess Mount Dome

Iris’ Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons.

During installation, the camera’s inner ball can be adjusted and locked into position by tightening the outer bezel to achieve the desired view.

For analog or analog hi-def (such as TVI / CVI / AHD) systems, the S076 version features 1080P resolution. The camera also outputs a CVBS signal for legacy composite video systems.

As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications requiring a robust and reliable high-definition camera.

The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B & G. For Garmin systems, use them in conjunction with Iris CMAC systems.

Features:

• 1.8mm standard lens (160-degree horizontal field of view)
• Corrosion-Proof 316L Marine Grade Stainless Steel
• Available in 4-in-1 (CVBS, TVI, CVI, AHD) & IP formats
• Analogue Hi-Def resolutions up to 1920x1080P resolution
• IP Version - Max 3MP Hi-Def Resolution
• Super wide angle 160-degree lens
• IP version supports PoE and 12VDC - ultra-low power
• Built-in infrared LED illumination (10m range)
• EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE
• Shock & vibration proof
• Super rugged and easy to install

Applications:

• Perfect for extreme environments
• Workboats & tug boats
• Fishing vessels
• Engine room monitoring
• Law enforcement & military
• Wind farm vessels
• SUVs, RVs, work vehicles, and trucks
• Luxury vessels
• Passenger ferries & cruise liners

Specifications:

• Lens (millimeter): 1.8mm
• Horizontal Field of View: 160-degree HFOV
• Sensor (inch): Sensor 1/4” CMOS Sensor
• Resolution: CVBS: 960H / AHD, HD-TVI. HD-CVI: 1920 x 1080
• Interface: OSD Menu via in-line Joystick in Cable Tail
• Video Processing: Analogue / Analogue HD
• Protocols/Video Format: 1VPP / 75Ω composite / AHD/TVI/CVI formats
• Onvif: NA
• Bitrate: NA
• Illumination: 6 x 850nm Infra-Red - 10-meter range
• Lens/Field of View: 1.8mm Standard (160-degree HFOV)
• Mirroring: Horizontal & vertical configuration via the OSD
• Automatic Gain Control: Supported / multiple levels
• Compatibility: CVBS: All MFDs / Screens featuring composite video input AHD/TVI/CVI via interface or IRIS CMAC System
• Operating Temperature: -30 + 60-degrees C
• Connections: Video: Video - 75Ω BNC female / 2.1mm DC socket
• Material: Marine Grade 316L Stainless Steel (highly polished as a standard)
• Power: +12VDC (+10 +15VDC range) / 1W Nominal / 1.8W max. (LEDs on)
• Power Over Ethernet (PoE): NA
• Weight & Dimensions: 88mm ø x 22.25mm above and below the mounting surface
• Environmental: EN60529 / IP66
• EMC: EN55032:2015/A11:2020 & EN55035:2017/A11:2020 EN60945:2002 Sections 9 & 10 / FCC Part 15 A & B
• RoHS: EN6300:2018

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

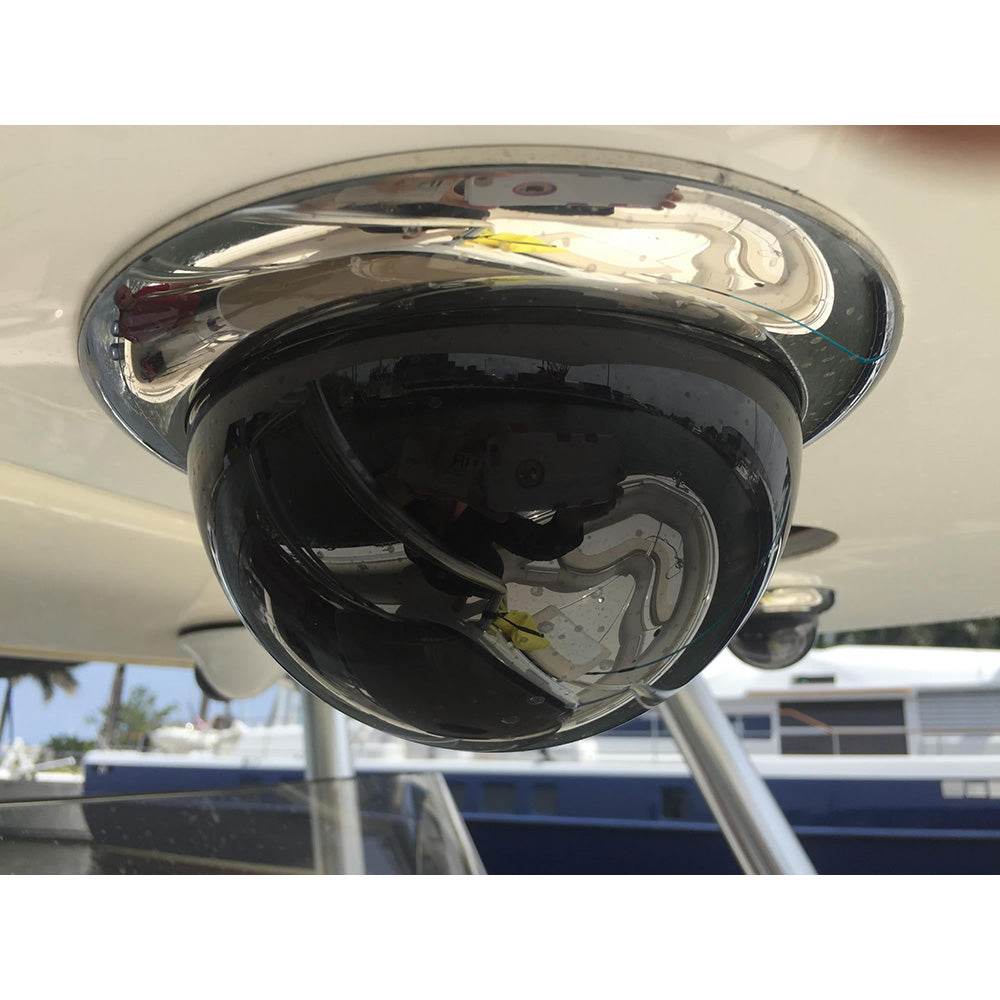

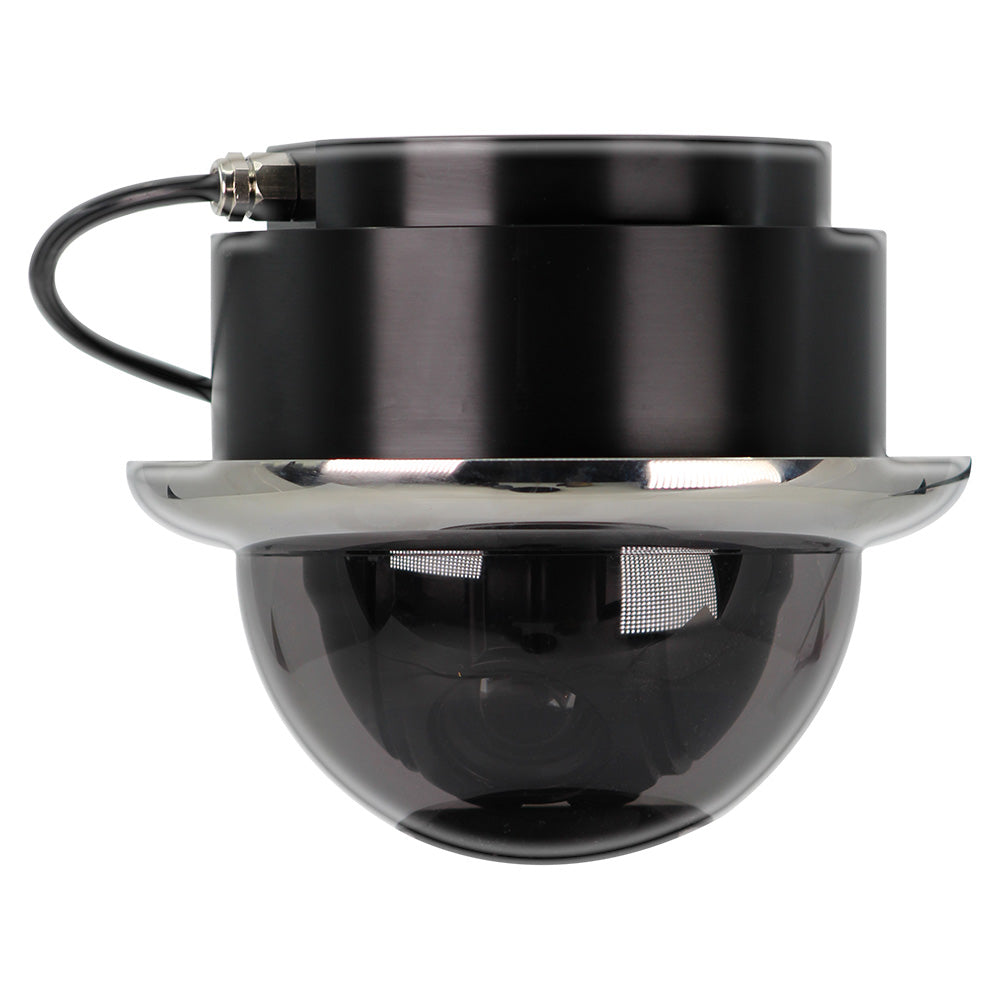

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirement. In analog mode (default) the camera will connect directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders and you will achieve 1080P High Definition video in real-time compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel available in high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106), facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, and tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

• Marine Grade 316 Stainless Case
• The smallest PTZ dome available (86 mm)
• IP
• Huge compatibility
• Easy installation & low power
• Stylish high-polished finish
• Fast, responsive pan, tilt, and zoom operation

Specifications:

• Lens (millimeter): F1.8 / F=4.9mm 49mm
• Image Sensor (inch): 1/4” Omnivision OV9712
• Image Processing: H.264 Video Codec, Dual Stream 1-30fps adjustable
• Effective Pixels: 921,600
• Resolution: 1080P/720P
• Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)
• Illumination: NA
• IR Distance: 10m
• Day / Night: Auto / Day / Night
• S/N Ratio: >50dB
• Optical Zoom: 10x
• Digital Zoom: 10x
• Wide Dynamic Range: Supported
• BLC: Supported
• 3D DNR: Supported
• Mirroring: Horizontal Flip / Vertical Flip
• AGC: 0-32
• Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec
• Tilt Details: 0 90-degree / Speed 0.5300-degree sec
• Network: Ethernet RJ45 (10/100 Base-T)
• Protocol: TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4
• Power over Ethernet: Supported
• P2P: Supported
• Smart Phone: Android / iOS
• Compatibility: PC-Based Systems. For the latest MFD compatibility please contact IRIS
• Max Users: 32 Users
• Power: +12VDC / PoE IEEE802.3aF
• Power Consumption: 1A Max
• Operating Temperature: -35-degrees C + 60-degrees C
• Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm
• Ingress Protection: IP66
• Weight: 1.1Kg
• Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing
