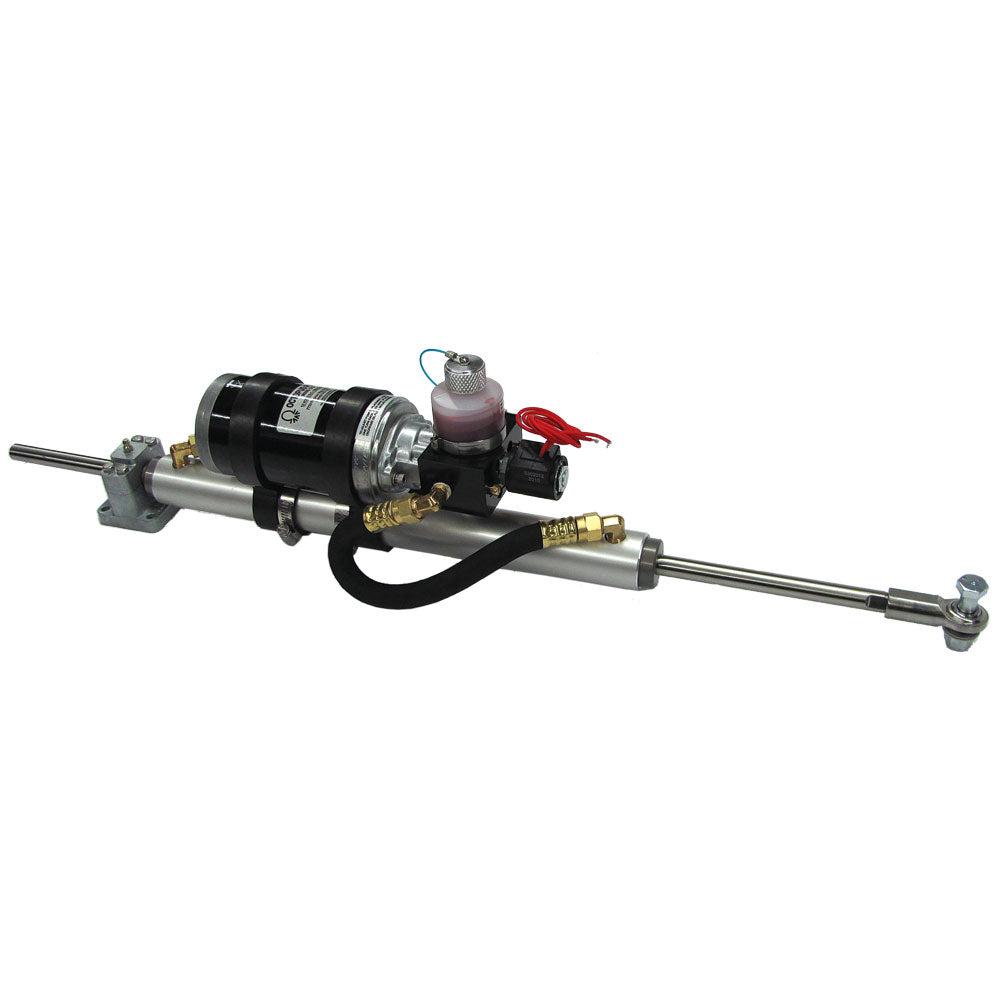

Octopus 12" Stroke Mounted 38mm Linear Drive 12V - Up To 60' or 33,000lbs [OCTAF1212LAM12]

Ships Direct From Manufacturer

Linear Actuators
OCTAF1212LAM12

An Octopus Hydraulic Linear Actuator is a simple, effective way to drive the rudder on a boat equipped with a mechanical steering system. The linear actuator is an assembly of an Octopus reversing pump and a marine hydraulic cylinder. This assembly is mounted on the rudder tiller-arm or quadrant. When the autopilot is not in use the cylinder runs freely along with the rudder. When the automatic pilot is in use a solenoid valve on the actuator closes and locks the cylinder. Steering signals from the pilot are now fed to the D.C. motor, which drives the pump to move the cylinder back and forth. De-energized, the solenoid valve immediately disconnects the automatic pilot from the rudder. The actuator has a small translucent oil reservoir, making it easy to check fluid levels. These actuators have only five moving parts. Mechanical simplicity gives our product reliability and ease of service when compared to complicated gear and screw actuators, making our units a favorite for offshore mariners. These actuators are shipped from our factory completely filled with oil and require no additional plumbing.

Features

• Average Current 4-6 amps

• Max Current 19amps

• 12vDC

• Cylinder Bore: 38mm

• Variable Flow Rate: 600cc-1.2 litre/min

• Stroke: 305mm/12in

• Hardover Time(Suggested): 14-16 sec

• Max Rudder Torque: 1,200Nm/10,600lbin

• Peak Thrust: 400Kg/882lbs

• Max boat Length: 18m/60'

  Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 8"H x 8"W x 39"L WT: 22.2 lbs
  • UPC: 628309134785

  Quick Guide (pdf)

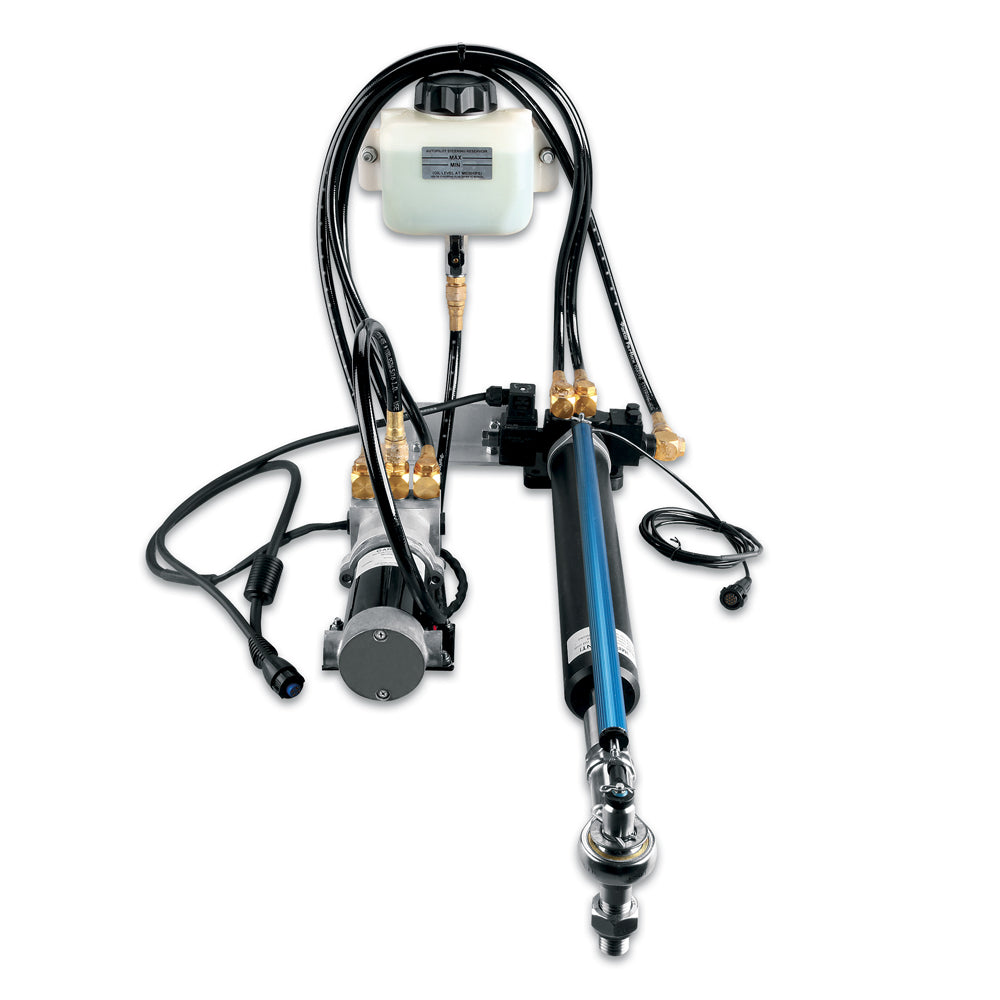

Garmin Class B Drive Unit Linear Sailboats to 79,000lbs [010-11573-00]

Ships Direct From Manufacturer

Class B Drive Unit

For sailboats with up to 79,000 lbs. of displacement.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 12"H x 15"W x 33"L WT: 31 lbs
• UPC: 753759971663

Owner's Manual (pdf)

SI-TEX SP-70-8 Mechanical Dash Drive w/Built-In Feedback [SP-70-8]

Ships Direct From Manufacturer

Type "T" Mechanical Dashboard Drive w/ Built-in Rudder Feedback
SP-70
Handheld Autopilot System
Low cost autopilot designed for easy installation

The SI-TEX SP-70 Autopilot will add relaxation to your cruising and fishing
activity. Designed for most any boat and easily installed on outboard,
inboard and sterndrive vessels with either hydraulic, or quadrant steering
systems.

• Ultra-compact, waterproof Control, Unit has simple keypad operation
  and large LCD display of heading course, rudder angle, operating mode and
  error messages.

• Control Unit can be used as dash-mounted keypad or quickly and easily
  removed from mounting bracket for use as a handheld portable.

• Additional steering stations can be easily added with optional plug-in
  connectors.

• Exceptionally easy to use. Just steer to desired course, press the PILOT
  key and the system takes over to steer you on your way. Automatically.

• Built-in NMEA-0183 Loran/GPS interface for precise course-line
  navigation along routes.

• Bold, backlit displays with ten levels of brightness for clear reading
  in any light.

• Digital displays of rudder angle and operation mode in use, constantly
  giving you up-to-the-minute operating status.

• Automatic Sea State and Trim Controls and ten selectable levels of
  rudder sensitivity with high and low speed settings for smooth, precise
  steering.

• Rudder feedback verifies autopilot's commands.

• Ghost Rudder backup allows autopilot to use memory of rudder movements
  to calculate new movements in event of rudder feedback failure.

• Heading Output feature allows you to stabilize radar display.

• Built-in diagnostic and self tests, plus visual and audible alarms.

• Power Steering mode offers convenient push-button steering. Stand By
  mode for manual steering situations.

• Optional analog Rudder Angle Indicator for easy, at-a-glance reading of
  exact rudder position.

• Works with solenoid valves also.

• Old Part # SP-70MT

Specifications:

• Steering Type: Cable/Solenoid
• Box Dimensions: 13"H x 20"W x 24"L WT: 24.9 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

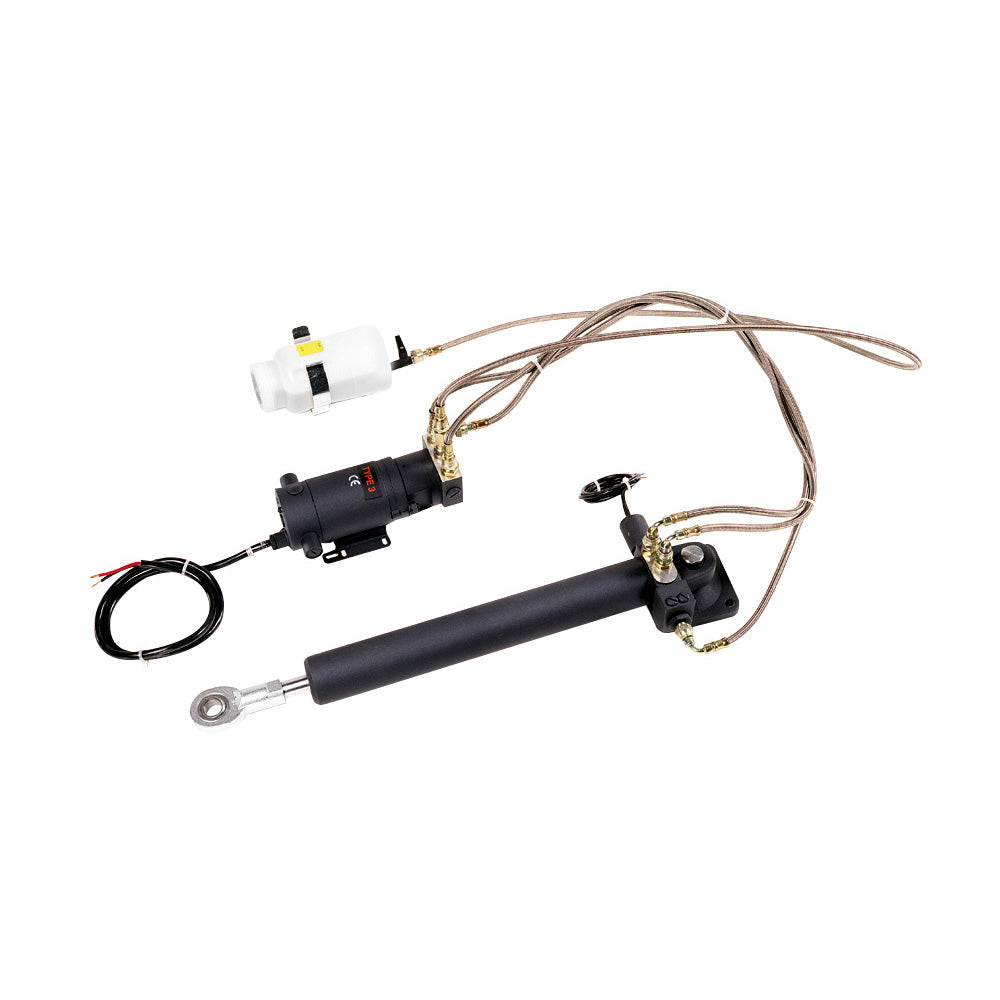

Raymarine Type 3 Hydraulic Linear - 12V [M81202]

Ships Direct From Manufacturer

Type 3 Hydraulic Linear - 12V

Type 3 Hydraulic Linear system for mechanically steered vessels up to 77,000lb (35,000kg) displacement.

The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:

Features:

• Hydraulic ram: a self-contained autopilot steering cylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use)
• Reversing hydraulic pump: powers the hydraulic ram
• Hydraulic fluid reservoir: supplies hydraulic fluid to the system

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 12"H x 13"W x 32"L WT: 27.9 lbs
• UPC: 023193812021

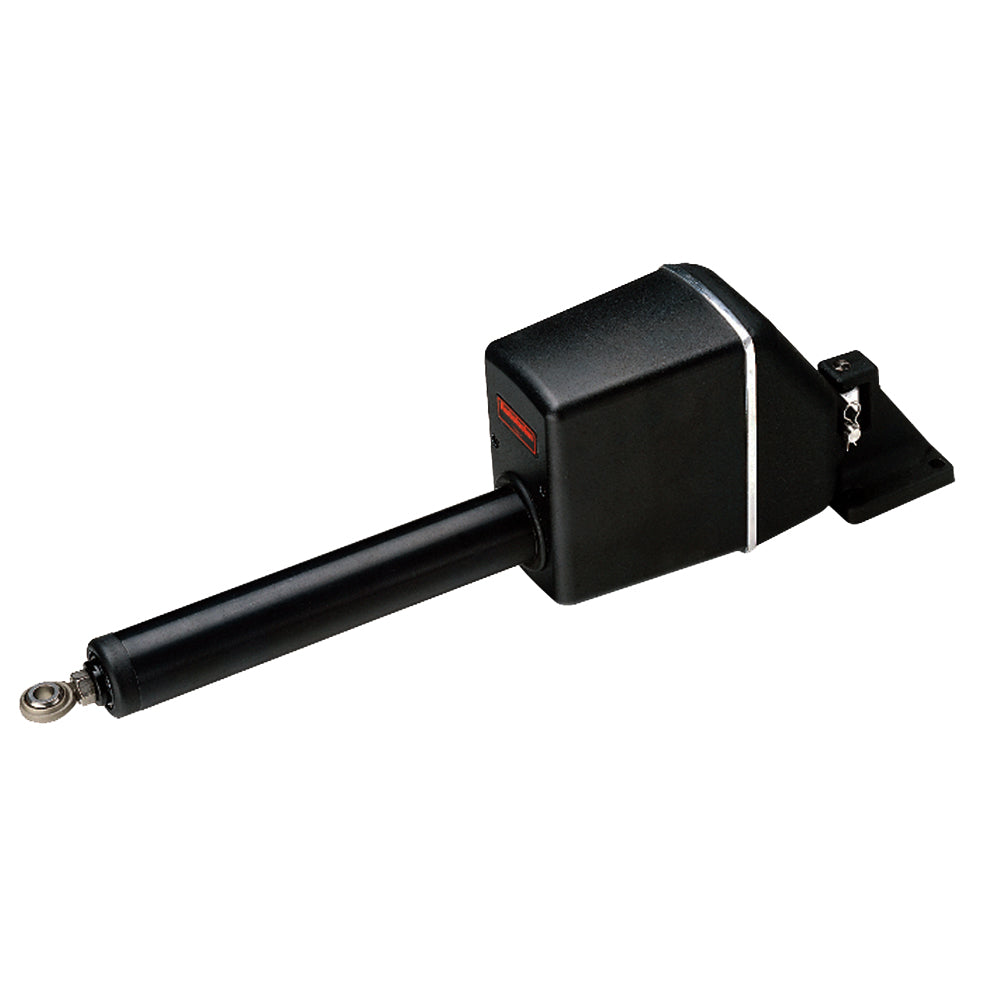

Raymarine Type 2 Linear Drive - 12V [M81131]

Ships Direct From Manufacturer

Type 2 Linear Drive - 12V

Type 2 (short) Linear drive for mechancically steered vessels up to 33,000 lb(15,000kg).

Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation.

Features:

• Low backdrive force, to minimize the drives effect on the boats steering when the autopilot is in standby


• A powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox


• High performance for minimum current consumption

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 12"W x 31"L WT: 18.6 lbs
• UPC: 023193811314

Raymarine Type 2 Long Linear Drive - 12V [M81132]

Ships Direct From Manufacturer

Type 2 Long Linear Drive - 12V

Type 2 (long) Linear drive for mechanically steered vessels up to 44,000lb (20,000kg).

Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation.

Features:

• Low backdrive force, to minimize the drives effect on the boats steering when the autopilot is in standby

• A powerful electric motor controlled by an electromagnetic fail-safe clutch,

• Using a high tensile belt drive and epicyclic gearbox

• High performance for minimum current consumption

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 12"W x 31"L WT: 18.9 lbs
• UPC: 023193811321

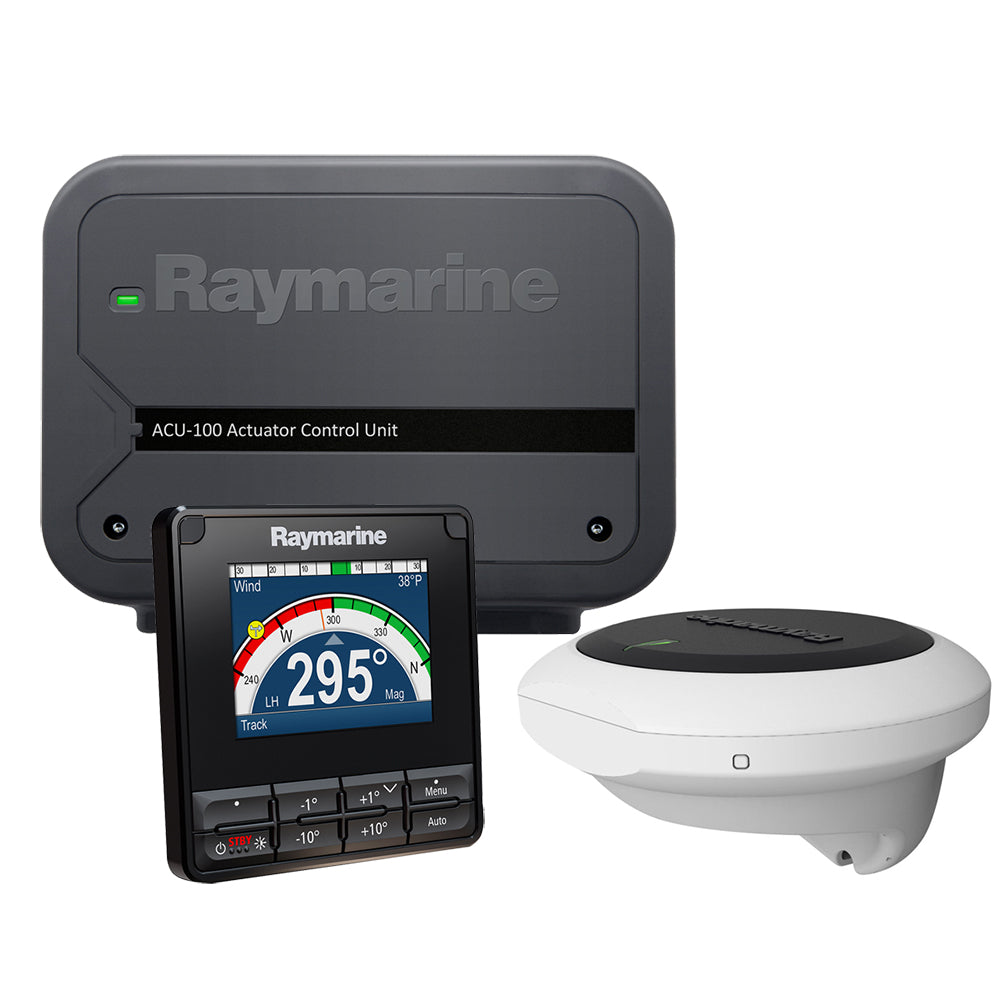

EV-100 Wheel Pilot with p70s Controller Corepack Only - No Drive Unit

Race, cruise or fish - Evolution will take command

No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R & D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-100

With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts.

Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.

p70s

Features:

• 3.5” super bright oversized LCD for maximum visibility
• All weather, low power, optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• Button or rotary control options for sail and power applications
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
• Simple system and group dimming / illumination
• Easy to use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
• Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

Specifications:

• Steering Type: Wheel Pilot
• Box Dimensions: 12"H x 13"W x 18"L WT: 7.85 lbs
• UPC: 723193814512

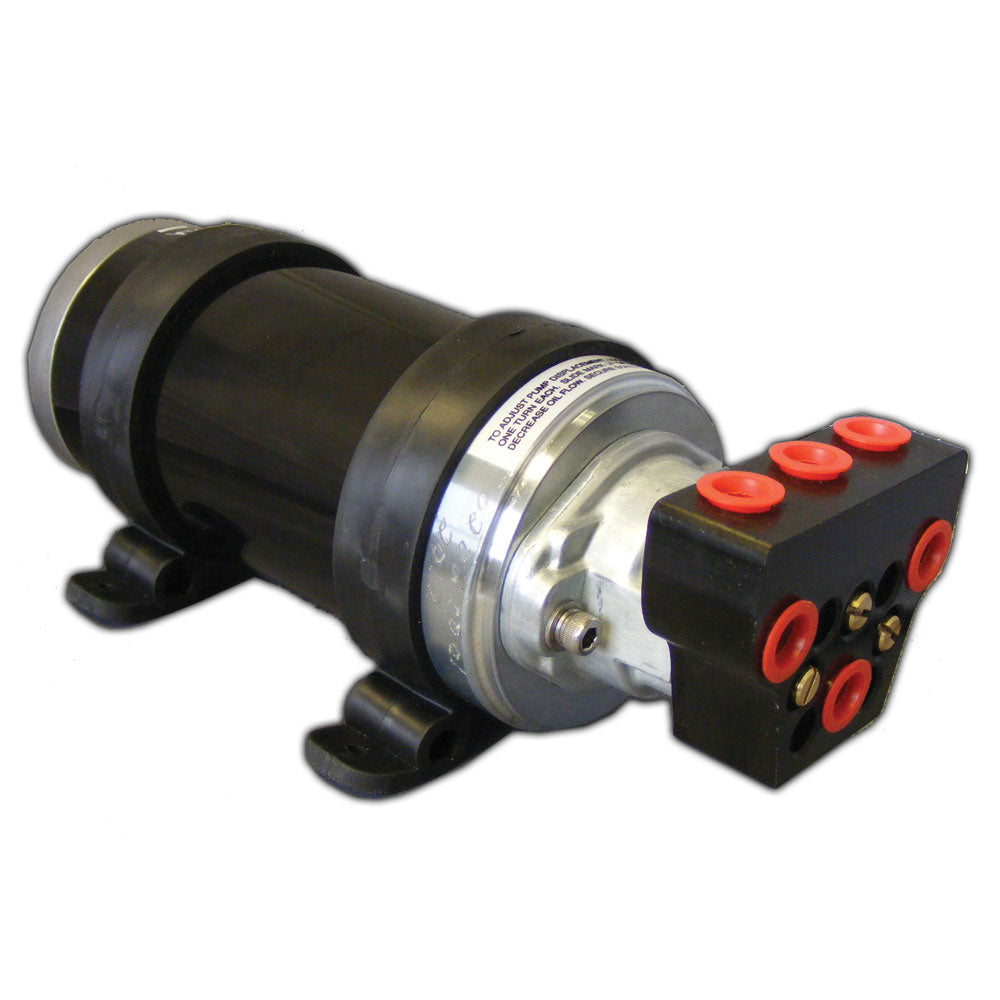

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder [OCTAF1212]

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder

Now with ORB Port Connection manifold

Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.

The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.

Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.

A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.

Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.

Features:

• Average Current 4-6 amps
• Max Current 19amps
• 12vDC
• Cylinder Size: 11-22ci
• Flow Rate(adjustable): 600cc - 1.2 litre/min

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 6"W x 12"L WT: 8.35 lbs
• UPC: 628309272777
