Marine Hardware - Hatches

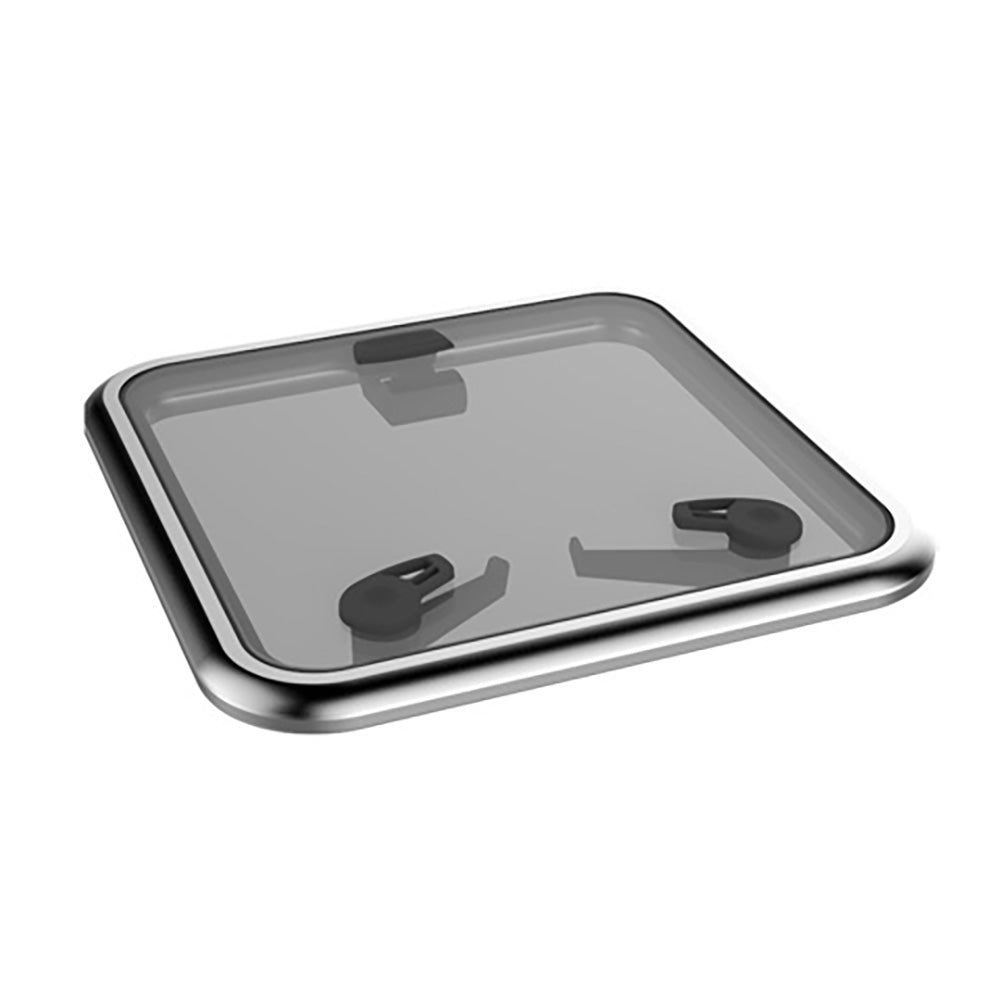

Lewmar Size 54 Medium Profile Hatch [39954020]

Size 54 Medium Profile Hatch

Ideal as a foredeck hatch on larger offshore yachts, the Medium Profile has thicker acrylic and deeper frame sections for greater strength and durability. It features Lewmar’s unique sealing system, allowing for easy acrylic replacement. All while retaining the smooth, modern lines of the low-profile hatch.

Features:

• Outside handles allow the hatch to be opened from the deck if it is not locked
• Friction levers hold the lid open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• Curved upper frame profile for strength as well as modern styling
• A full range of spare parts is available

Specifications:

• Lower Frame: 9/16 in.
• Acrylic Color: Smoke Grey
• Hatch Weight: 14.3 lb.
• Acrylic Window Thickness: 1/2 in.
• Length: 18-1/4 in.
• Width: 22-3/4 in.
• Height: 1-1/4"
• Radii R: 2-7/8 in.
• Cut-Out Length: 15-7/16 in.
• Cut-Out Width: 19-15/16 in.
• Cut-Out Radii R1: 1-11/16 in.

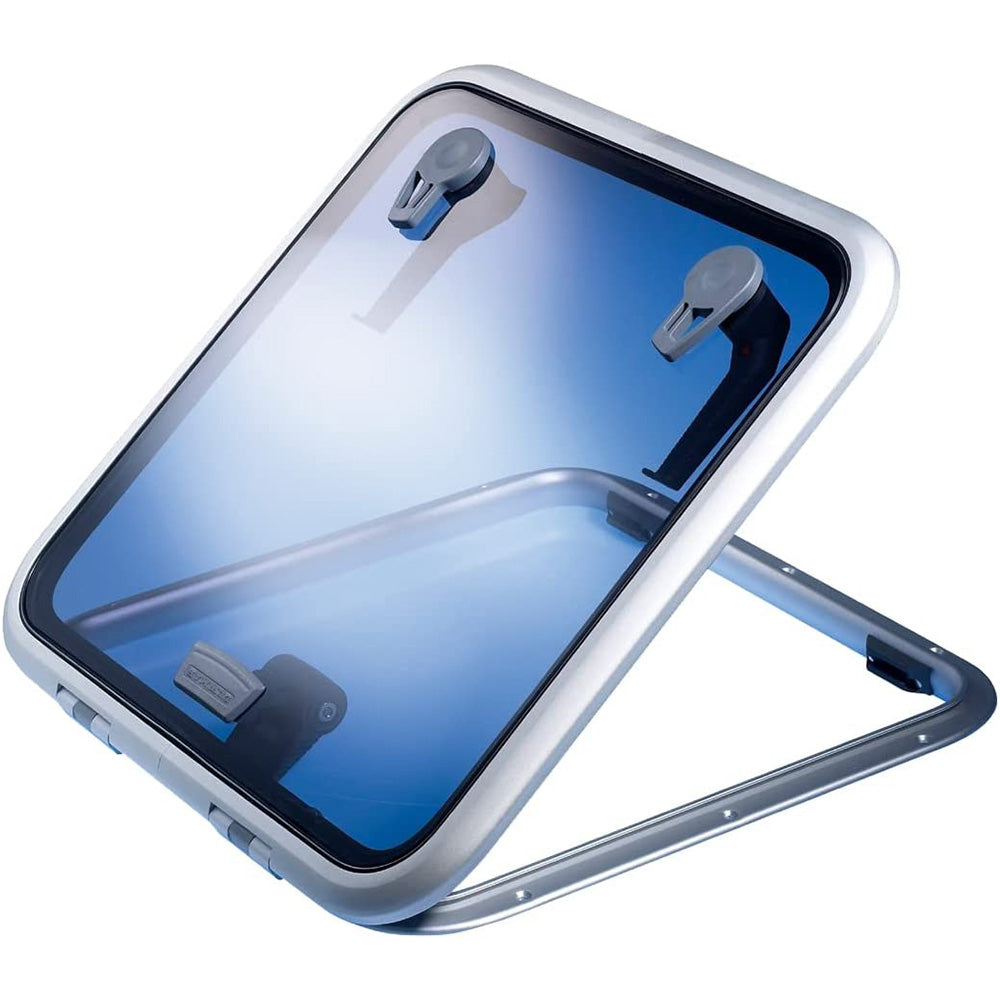

Ocean Flat Base - Size 60 Hatch

With its classic style, the Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

Features:

• Friction levers hold the lid open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit, and Transom)

Specifications:

• Lower Frame: Flat base
• Acrylic Color: Smoke grey
• Hatch Weight: 8 kg /17.6 lb.
• Acrylic Window Thickness: 12mm / (1/2 in.)
• Length: 574 mm / 22 5/8 in.
• Width: 574 mm / 22 5/8 in.
• Height: 43 mm / (1-11/16 in.)
• Radii: 76 mm / 3 in.
• Hinge Width: 367 mm / (14-7/16 in.)
• Cut-Out Length (Flat/Flange): 502 mm / (19-3/4 in.)
• Cut-Out Width (Flat/Flange): 502 mm / (19-3/4 in.)
• Cut-Out Radii (Flat/Flange): 40 mm / (1-9/16 in.)

*Sold as an Individual

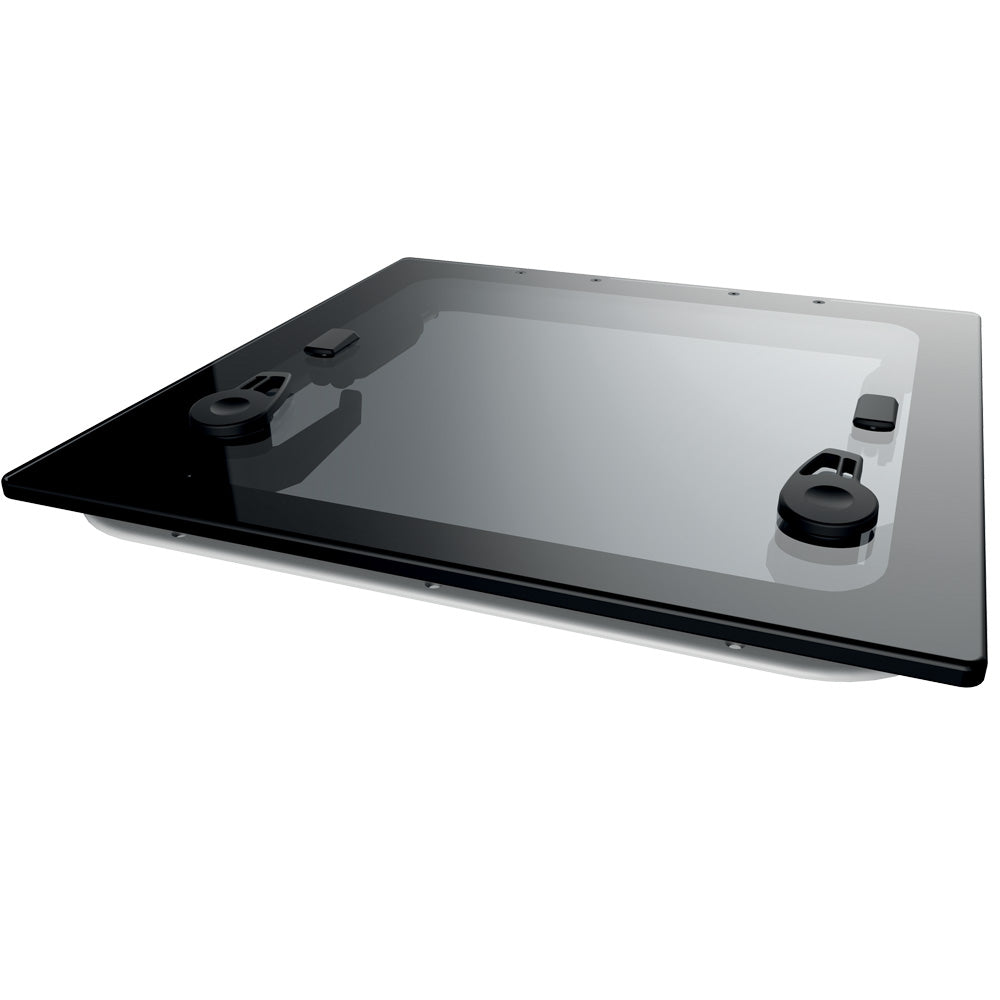

Lewmar Size 70 Flush 2G Deck Hatch [39970812]

Ships Direct From Manufacturer

Size 70 Flush 2G Deck Hatch

Lewmar pioneered the high-volume flush hatch platform back in 2006, bringing what was then Superyacht styling into mainstream boat production.  The precision of the fit makes for a sleek, modern look and means no more stubbed toes for boat owners.

Features:

• Clean aesthetics
• EPDM seal provide completely watertight structure
• Water drained effortlessly away by deck-moulded channels
• Strong, stylish handles and hinges
• Trimkit fits all standard sizes
• Dark grey acrylic option keeps cabin cooler

Technical Specifications:

• Support System - Stay x two (2)
• Color - Dark Sport Tint
• Dimensions (L x W x H) - 25.5" x 27.5" x 1.25"
• Cut-Out Dimensions (L x W) - 24.7" x 24.7"

*Sold as an Individual

Owner's Manual (pdf)

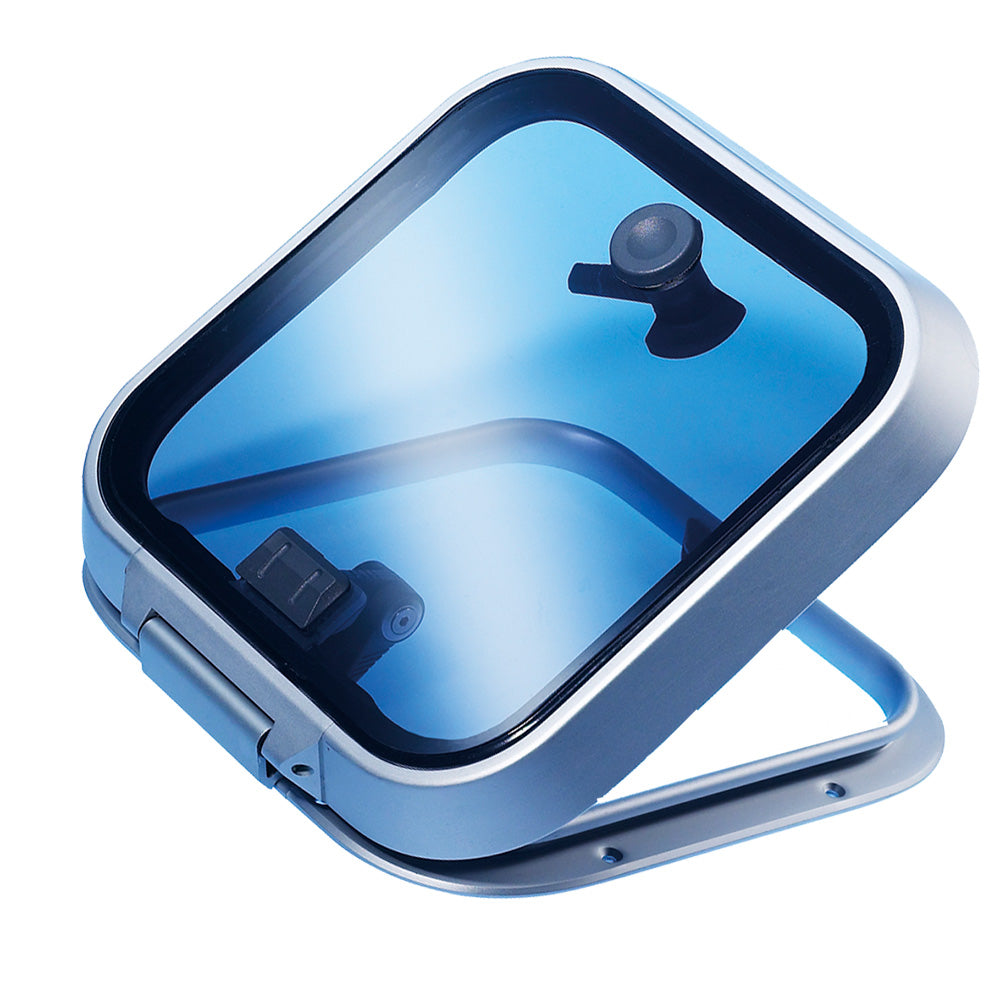

Lewmar Size 60 Ocean Hatch - Flange Base [39660070]

Size 60 Ocean Hatch - Flange Base

With its classic style, the Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

Features:

• Friction levers hold the lid open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit, and Transom)

Technical Specifications:

• Support System - Friction Lever
• Color - Smoke Grey
• Window Thickness - .5"
• Weight - 17.6lbs
• Dimensions (L x W x H) - 22-5/8" x 22-5/8" x 1-11/16"
• Cut-Out Dimensions (L x W) - 19-15/16" x 19-15/16"

*Sold as an Individual

Quick Guide (pdf)
Owner's Manual (pdf)
