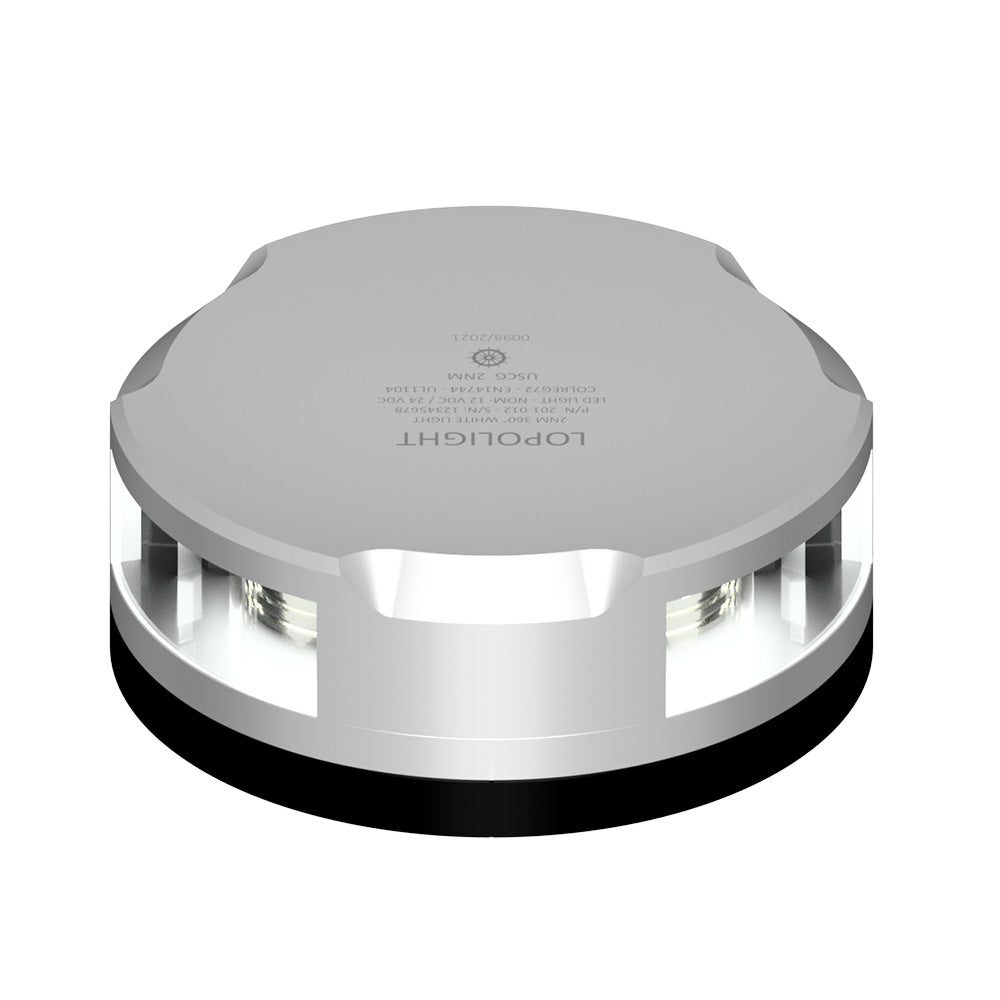

Lopolight 360-Degree Anchor Light - 2nm - Silver Housing w/FB Base - 2.5M Cable [201-012-FB 2.5M]

360-Degree Anchor Light - 2nm - Silver Housing with FB Base - 2.5M Cable

Features:

• 2nm 360° White
• Silver w/FB base
• Horizontally mounted with a 2.5m cable
• FB (flat base) POM mounting system

Specifications:

• Visibility: 2nm
• Operating temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• IP Rating: IP68
• Power draw (W): 2,6
• Connection: 2.5m cable
• Current consumption (mA @ 12VDC): 167
• Current consumption (mA @ 24VDC): 110
• Vessel size: Under 12M,12-20M,20-50M
• Min. feed wire gauge: 0.5mm2 AWG22
• Weight (Kg): 0.52 Kg
• Weight (Oz): 18.18 Oz
• Light Color: White

Included In Package:

• 1 Navigation light
• Pre-cabled with 2.5-meter shielded marine-grade cable
• Installation guide

360° Double-Stacked 3nm Masthead Light - Silver Anodized

Features:

• 360° Double white
• With an aluminium base, cable side/cable down
• Includes HDPE base plate

Specifications:

• Light Color: White
• Dimensions metric: Ø92,5mm x 96,5mm
• Certification: This Navigation Light is certified by DNV, the Declaration of conformity, and the certificates can be found on www.lopolight.com under Support
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 3.8"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Operating temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10- 32V DC
• IP Rating: IP68
• Power draw (W): 4,2
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 270
• Current consumption (mA @ 24VDC): 176
• Vessel size: Over 50M
• Min. feed wire gauge: 0.5 mm2 AWG22
• Weight (Kg): 1.31 Kg
• Weight (Oz): 46.20 oz

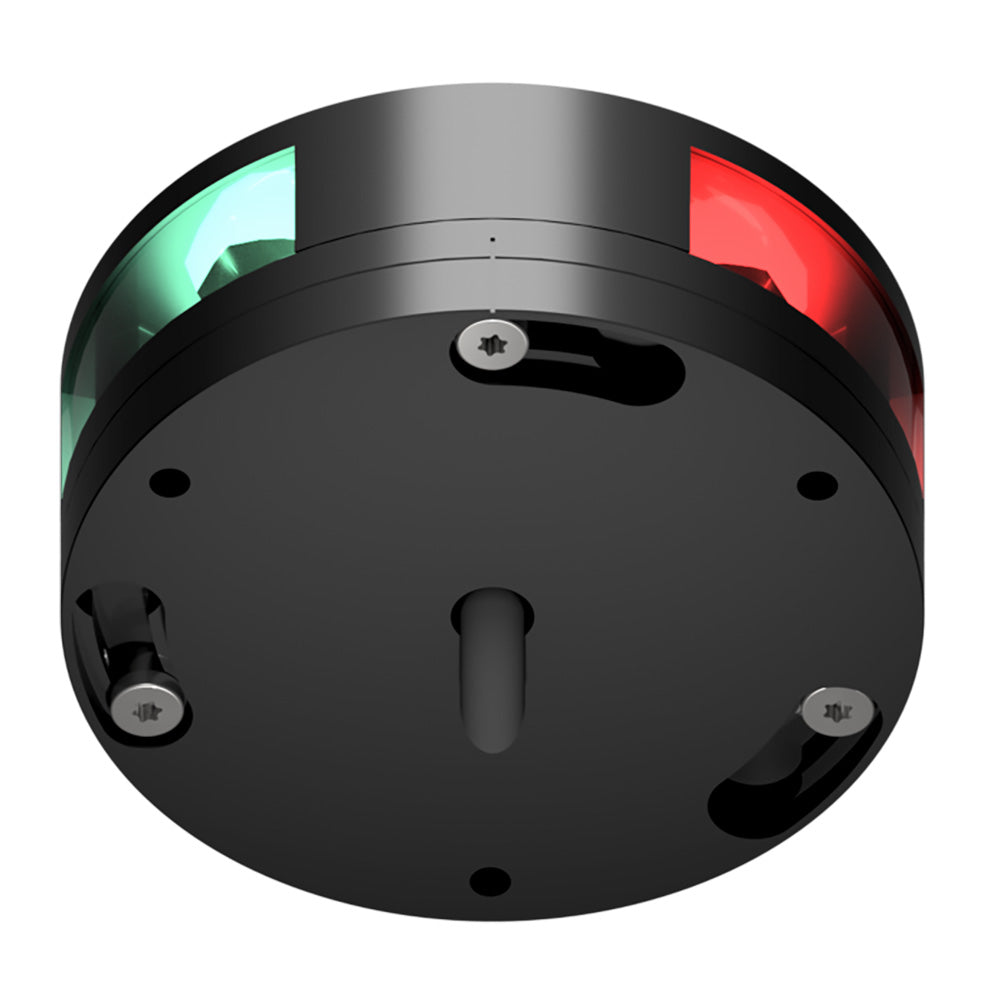

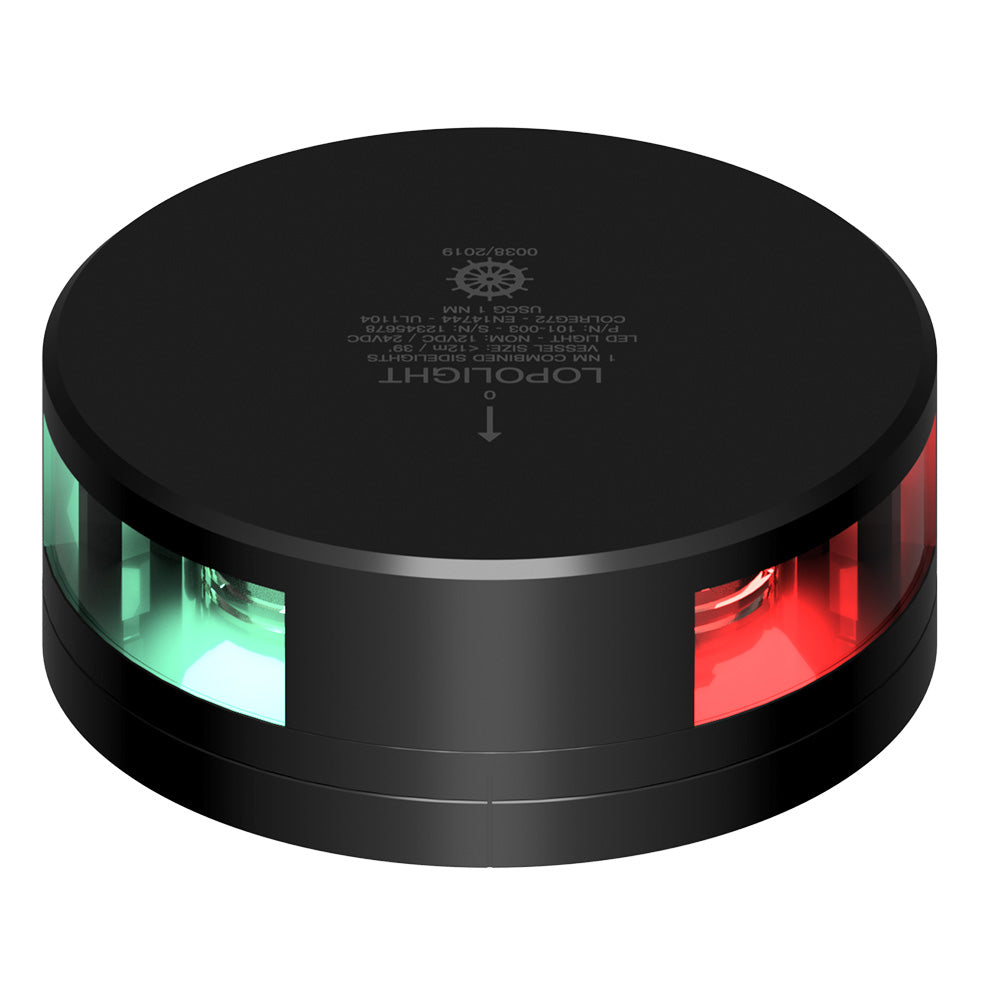

Lopolight Combined Sidelight - 1NM - Black Housing w/FB Base [101-003-FB-B]

Combined Sidelight - 1NM - Black Housing with FB Base

This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042605
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green
• Visibility: 1NM
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 48
• Current Consumption (mA @ 12VDC): 87
• Dimensions Metric: Ø92,5mm x 58mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1.4
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 4"W x 4"L WT: 1.2 lbs
• UPC: 879343042745

Quick Guide (pdf)

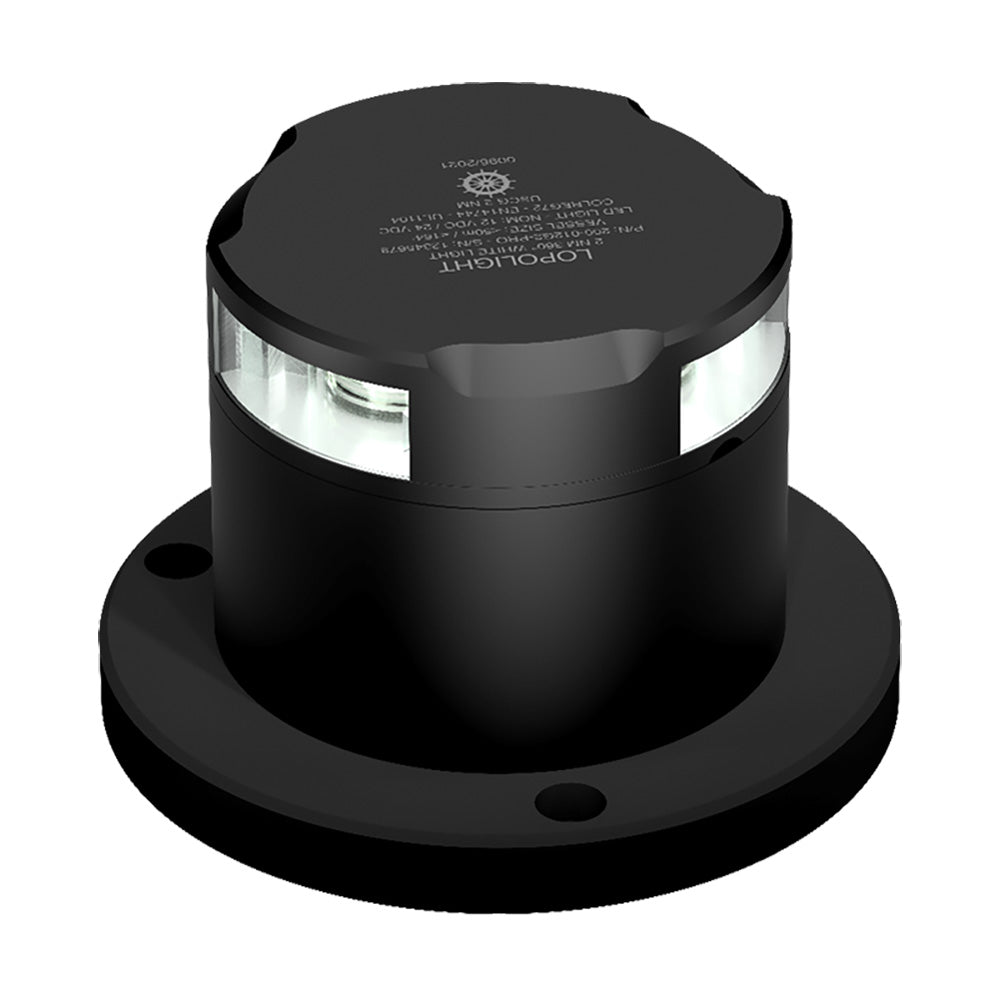

Lopolight 2nm 360 Anchor Light Pro - Black Anodized - White Light [200-012G2-PRO]

2nm 360° Anchor Light Pro - Black Anodized - White Light

Features:

• Horizontally mounted on POM base (IP68)
• Cable direction side
• Includes HDPE base plate
• Quality cable glands - 2 sizes included:
• 7-13mm (1/4"-1/2") cable diameter
• 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Mounting: Horizontal
• Visibility: 2nm
• Intensity: >5.4cd
• Power draw: 2W, 6W
• Operating Voltage: 10-32VDC
• Operating Temperature: -25 degrees C to 55 degrees C
• Vessel size: Under 12M,12-20M,20-50M
• Min. feed wire gauge: 0.5mm2 AWG22
• IP Rating: IP68
• Connection: Plug Connector
• Weight (Kg): 1 Kg
• Weight (oz): 35.27 oz
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Included in the Package: 1 Navigation light, Installation guide

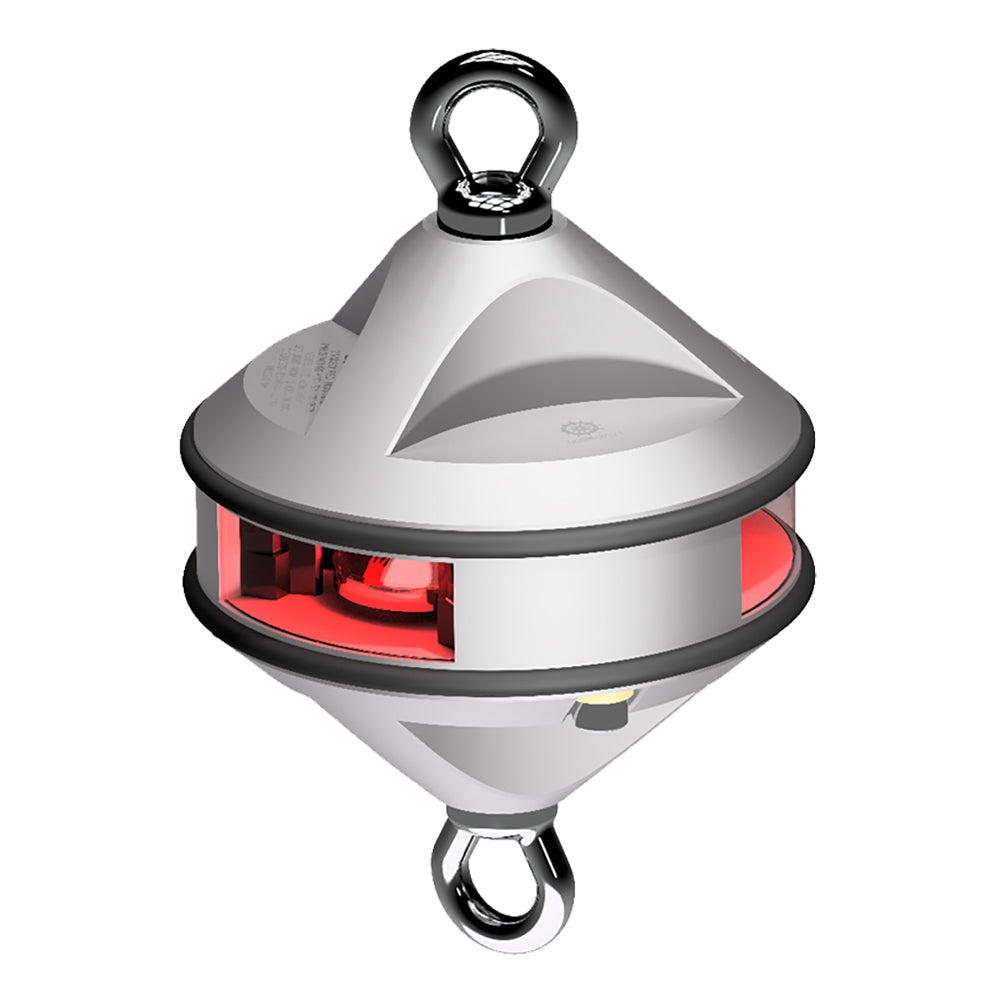

Lopolight Series 200-014 - Hoist Light - 2NM - Red - Silver Housing [200-014G2-H1C]

Series 200-014 - Hoist Light - 2NM - Red - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all-size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated to boats and yachts, resulting in an elegant, compact, and precise solution with good value for money.

Features:

• Single Light - Hoist

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (50 M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - Red
• Mounting - Hoist mounted
• Materials - Anodized aluminum
• Connection - M12 Connector
• IP rating - IP68
• Weight - 26.45 oz (.75 kg)

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Hoist light
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• LED: Yes
• Lens Color: Red
• Visible Range (Miles): 2
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)
Brochure (pdf)

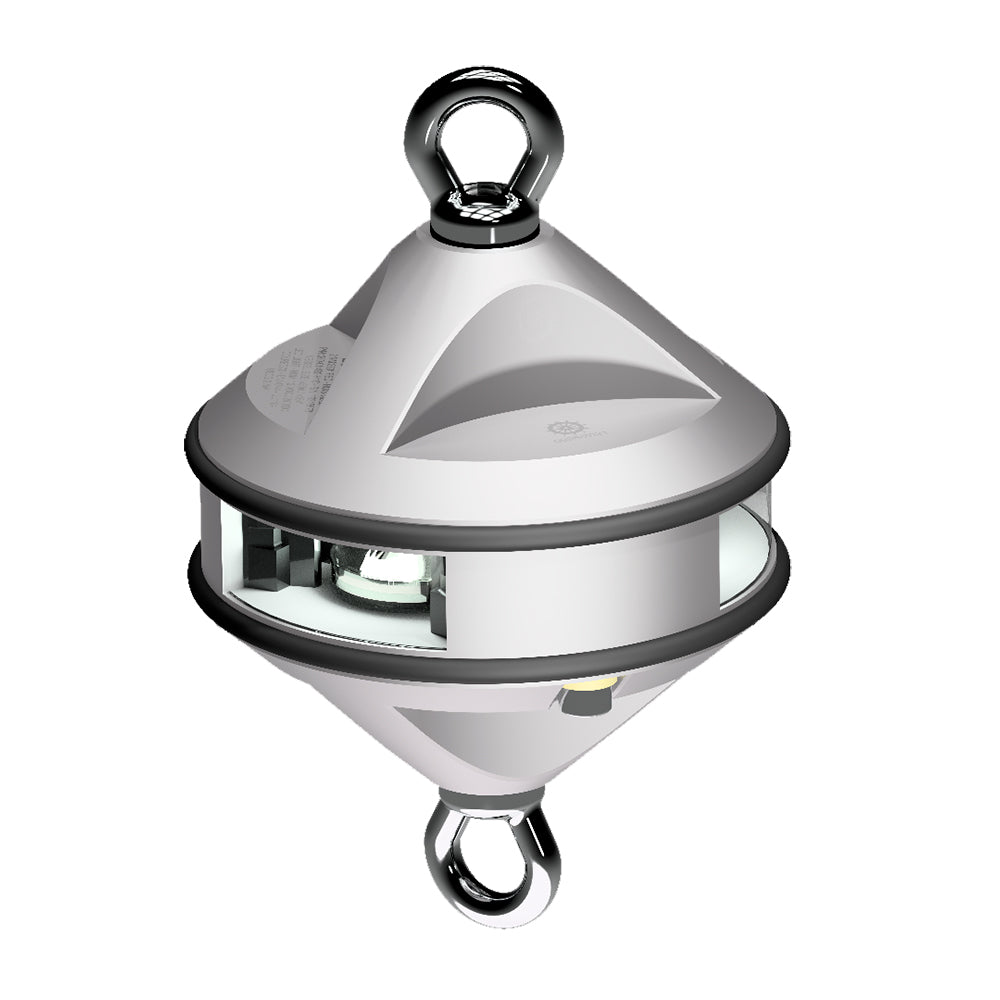

Lopolight Series 200-012 - Hoist Light - 2NM - White - Silver Housing [200-012G2-H1C]

Series 200-012 - Hoist Light - 2NM - White - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all-size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated to boats and yachts, resulting in an elegant, compact, and precise solution with good value for money.

Features:

• Single Light - Hoist

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (50 M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - White
• Mounting - Hoist mounted
• Materials - Anodized aluminum
• Connection - M12 Connector
• IP rating - IP68
• Weight - 26.45 oz (.75 kg)

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Hoist light
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• LED: Yes
• Lens Color: White
• Visible Range (Miles): 2
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 4"H x 6"W x 8"L WT: 1.9 lbs
• UPC: 879343020453

Quick Guide (pdf)
Brochure (pdf)

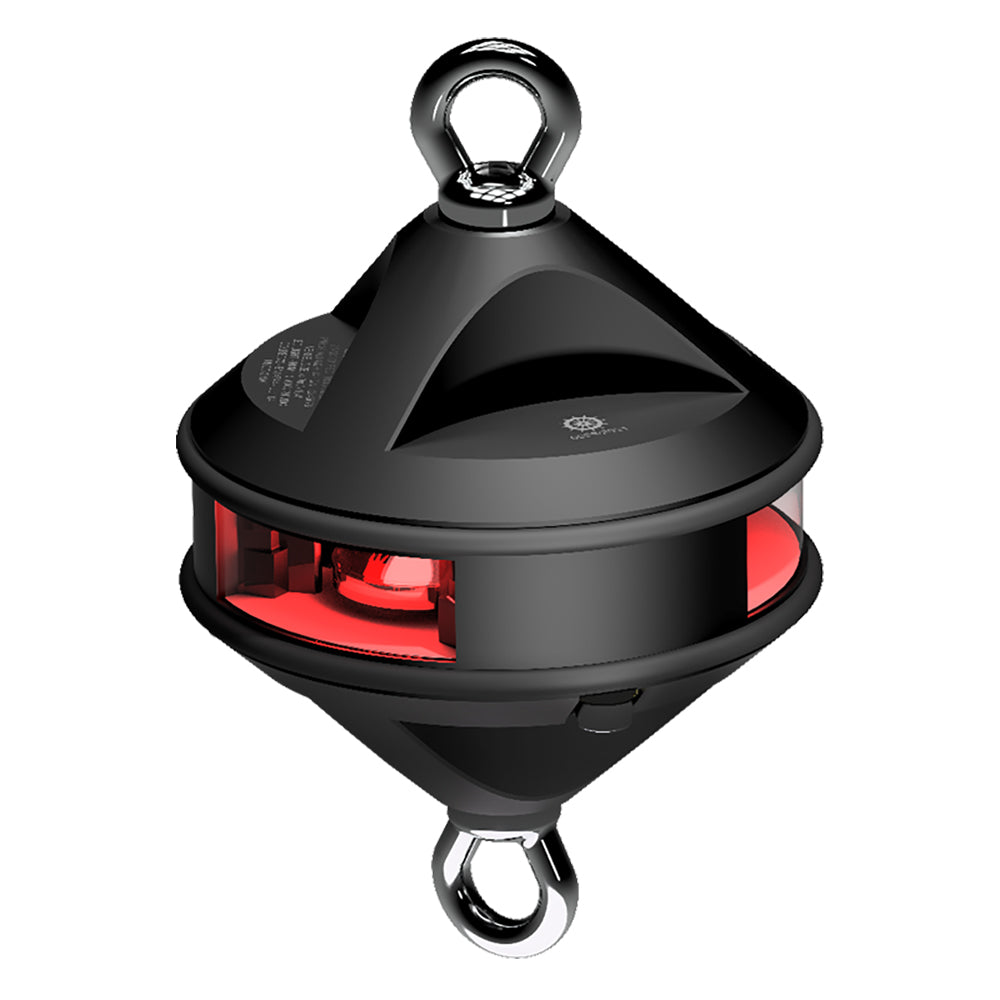

Lopolight Series 200-014 - Hoist Light - 2NM - Red - Black Housing  [200-014G2-H1C-B]

Series 200-014 - Hoist Light - 2NM - Red - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all-size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated to boats and yachts, resulting in an elegant, compact, and precise solution with good value for money.

Features:

• Single Light - Hoist

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (50 M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - Red
• Mounting - Hoist mounted
• Materials - Anodized aluminum
• Connection - M12 Connector
• IP rating - IP68
• Weight - 26.45 oz (.75 kg)

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Hoist light
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• LED: Yes
• Lens Color: Red
• Visible Range (Miles): 2
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)
Brochure (pdf)

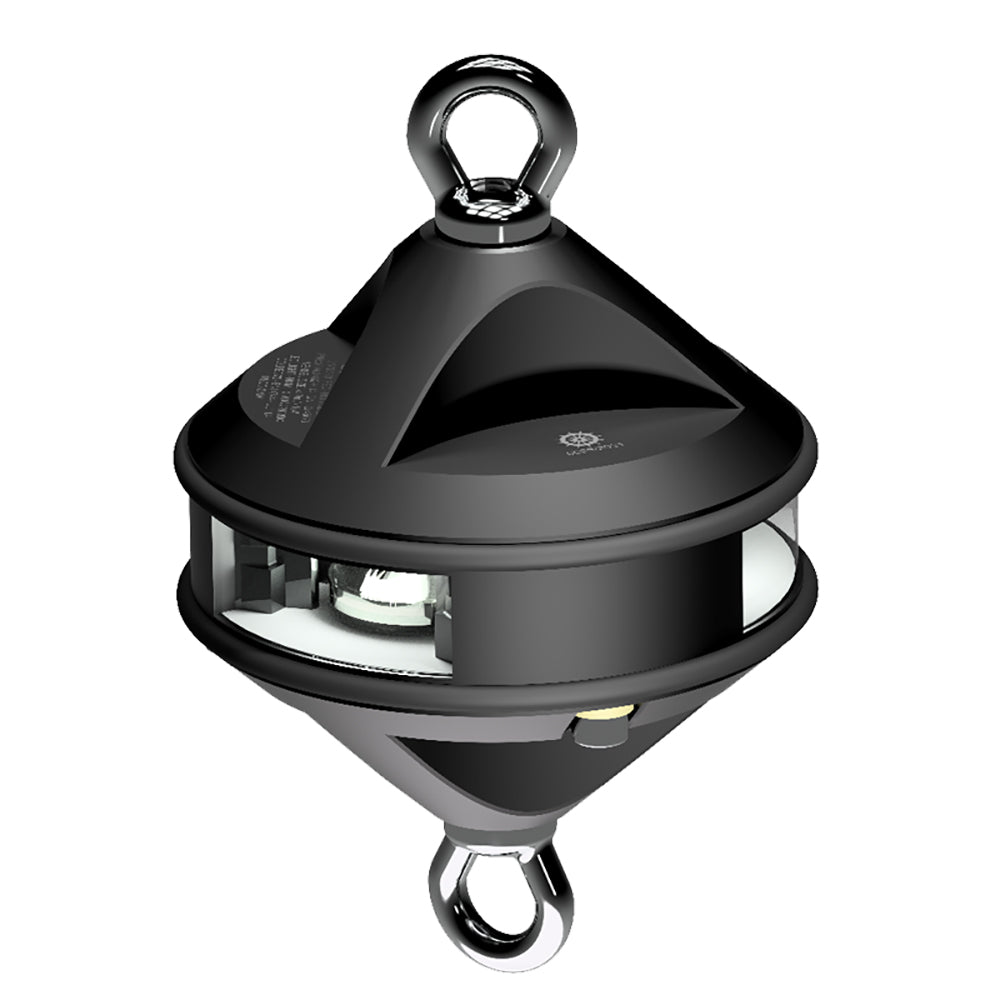

Lopolight Series 200-012 - Hoist Light - 2NM - White - Black Housing  [200-012G2-H1C-B]

Series 200-012 - Hoist Light - 2NM - White - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all-size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated to boats and yachts, resulting in an elegant, compact, and precise solution with good value for money.

Features:

• Single Light - Hoist

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (50 M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - White
• Mounting - Hoist mounted
• Materials - Anodized aluminum
• Connection - M12 Connector
• IP rating - IP68
• Weight - 26.45 oz (.75 kg)

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Hoist light
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• LED: Yes
• Lens Color: White
• Visible Range (Miles): 2
• Voltage - Input Range (Volts): 10- 32
• Box Dimensions: 4"H x 6"W x 8"L WT: 1.9 lbs

Quick Guide (pdf)
Brochure (pdf)
