Lighting

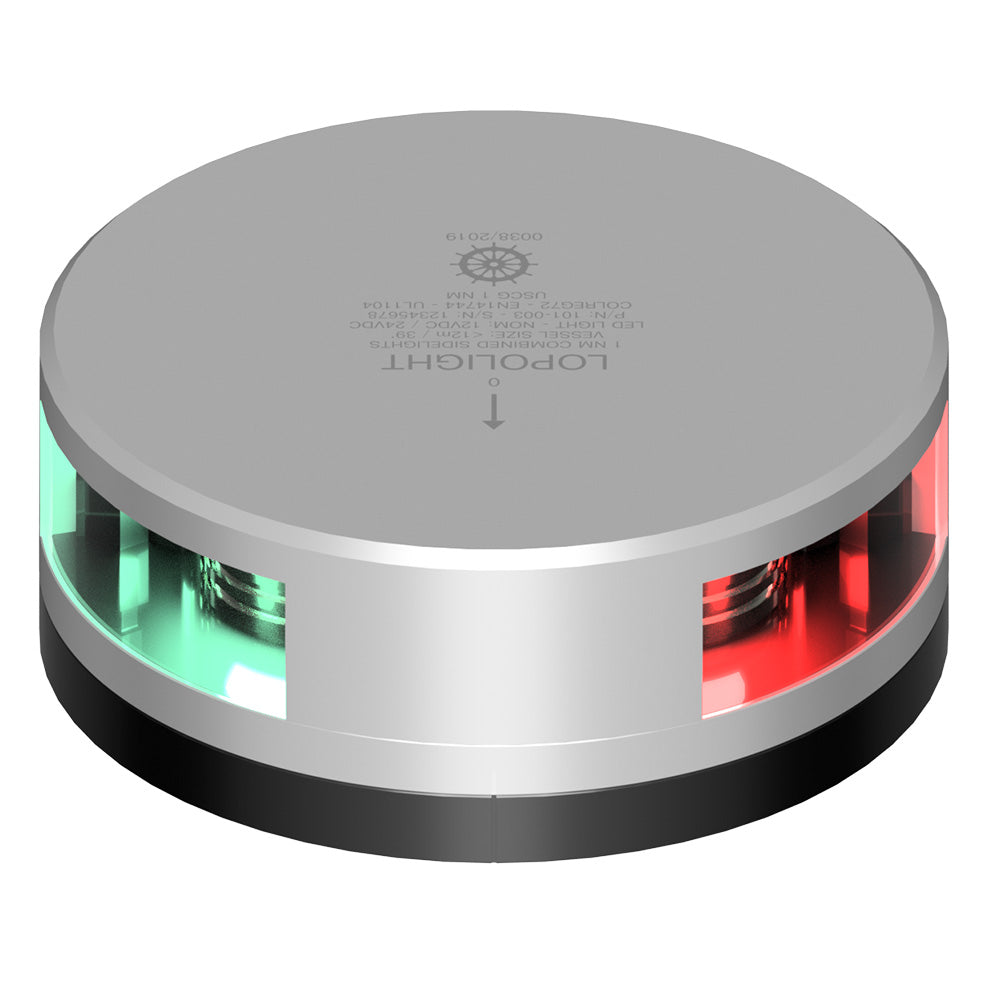

Lopolight Combined Sidelight - 1NM - Silver Housing w/FB Base [101-003-FB]

Combined Sidelight - 1NM - Silver Housing with FB Base

This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042605
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green
• Visibility: 1NM
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 48
• Current Consumption (mA @ 12VDC): 87
• Dimensions Metric: Ø92,5mm x 58mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1,4
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Lens Color: Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 4"H x 4"W x 4"L WT: 1.25 lbs
• UPC: 879343042738

Quick Guide (pdf)

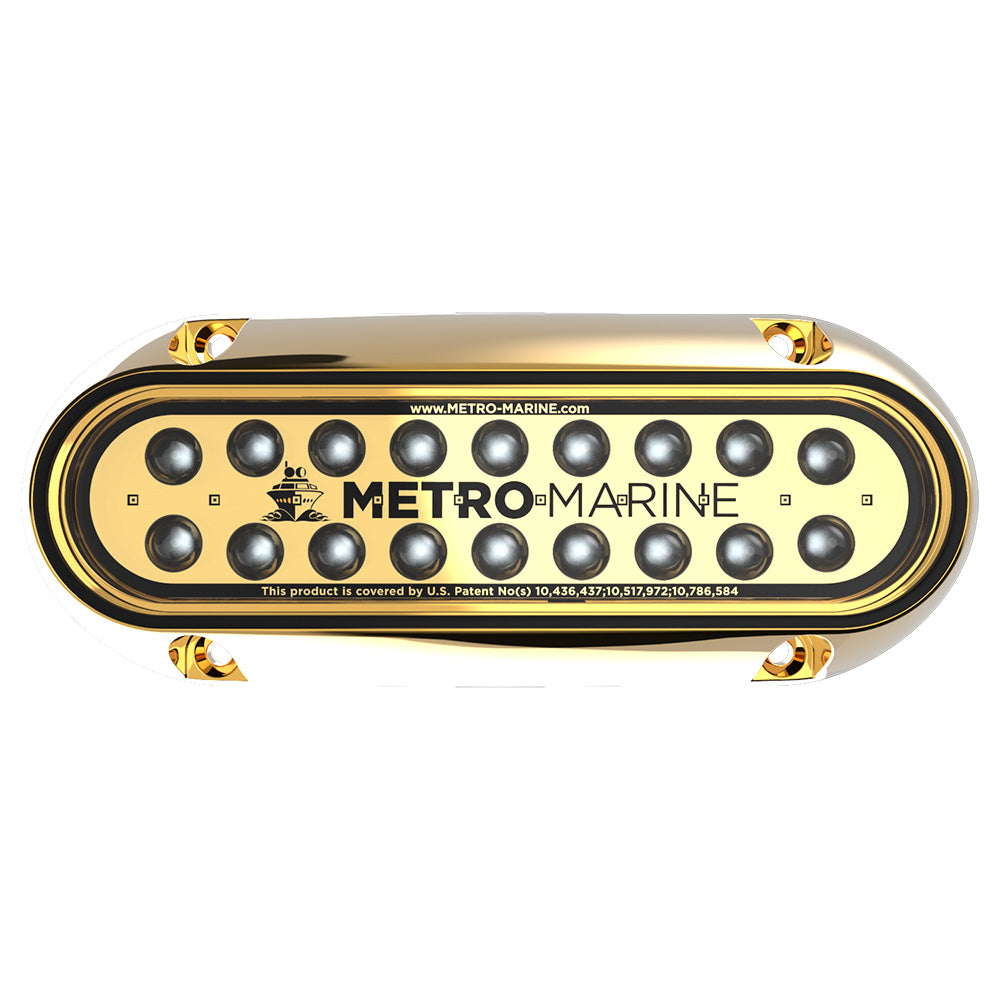

Metro Marine High-Output Elongated Underwater Light w/Intelligent Monochromatic LEDs - Aqua, 45 Beam [F-BME1-H-A3-45]

High-Output Elongated Underwater Light with Intelligent Monochromatic LED's - Aqua, 45° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant Aqua light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 18 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important.

The F-BME1-H-A3-45 is a superior underwater Aqua LED luminaire with 45° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 45°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 45.5W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 2.42 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: Aqua
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 45.5w
• Box Dimensions: 5"H x 9"W x 10"L WT: 4.85 lbs
• UPC: 850050884279

RIGID Industries E-Series Pro 10" Spot - Black [110213]

E-Series Pro 10" Spot - Black

The E-Series is one of RIGID's most versatile, all-around lighting solutions and recent enhancements in LED technology deliver up to 111 percent more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, prominent RIGID branding and blacked-out circuit boards give the E-Series PRO a refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, Driving/Spot combo, Spot/Flood combo, Spot/Hyperspot combo, and Midnight Edition. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born off-road, but its versatility makes it well suited for use with power sports, marine, general automotive, and even first responder applications. Own The Night with RIGID's E-Series double-row LED light bar.

Features:

• 50,000 Plus Hour Lifespan
• 9-36 V DC
• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Integrated Thermal Management System
• Impact Resistant Polycorbonate Lens
• Over/Under Voltage Protection
• RFI/EMI Protection
• Reverse Polarity Protection
• RoHS Compliant
• IP68 Compliant - Dust/Water Ingress
• Patented Optics
• SAE J575 Compliant - Shock/Vibration
• Available In White And Black Housing
• Pressure Equalizing Vent
• Waterproof Connector (Exclusions Apply)
• Limited Lifetime Warranty
• Off-Road Use Only

Specifications:

• Size: 10"
• Weight (lbs): 5.00
• Optics: Spot
• Watts: 168
• Amp Draw: 12
• Voltage Max: 36
• Raw Lumens: 1584
• Lux @ 10m: 3368
• Beam Distance @1Lux: 580
• Beam Distance @.25Lux: 1160
• Horizontal Beam Angle: 17.3

What's Included?

• 2 Black Powder Coated, L-shape brackets
• Deutsch Connector (4”-10”)
• Open Leads, No Connector (20”-50”)
• Harness with Switch

Specifications:

• Beam Pattern: Spot
• Housing: Black
• Length (Inches): 10"
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 7"H x 7"W x 13"L WT: 6.55 lbs
• UPC: 849774028939

Metro Marine High-Output Elongated Underwater Light w/Intelligent Monochromatic LEDs - White, 90 Beam [F-BME1-H-W3-90]

High-Output Elongated Underwater Light with Intelligent Monochromatic LED's - White, 90° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant White light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 18 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important.

The F-BME1-H-W3-90 is a superior underwater White LED luminaire with 90° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 90°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 45.5W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 2.42 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: White
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 45.5w
• Box Dimensions: 5"H x 9"W x 10"L WT: 4.8 lbs
• UPC: 850050884309

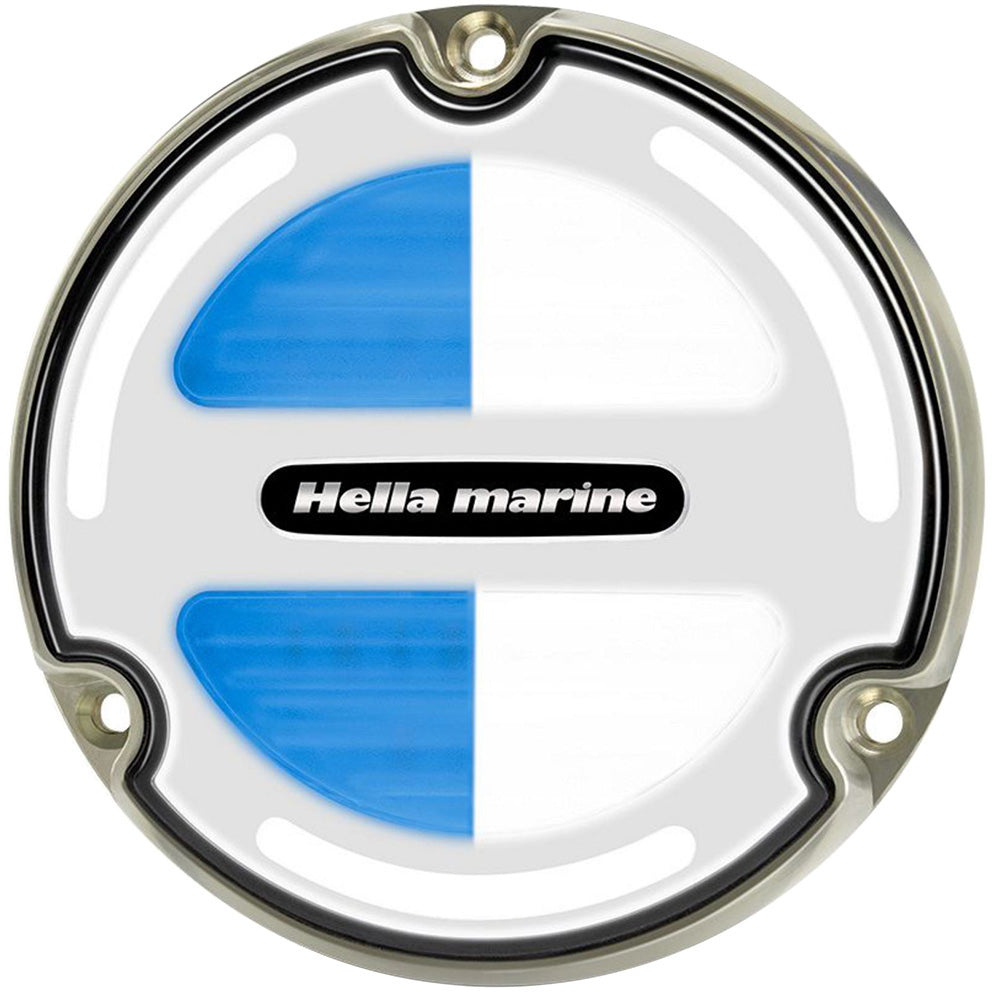

Apelo A3 White/Blue Underwater Light - Bronze - White Lens

Supercharged with 6000-lumen light output, the Apelo A3 is the ultimate in the Hella Marine Apelo Underwater Light range.

The A3 model has an improved formula with double the light output, maximizing the vibrant blue and intense white. This version sports the edge lighting Apelo is known for.

Optical intelligence is at the heart of Hella Marine lighting, and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths, projecting wide across the transom. With the addition of nickel-silver to the extremely corrosion-resistant housing, the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.

Features:

• Suitable for fiberglass, timber, steel, and composite hulls
• Only mount on aluminum-hulled vessels with a suitable isolation spacer
• Made in New Zealand and backed by Hella Marine’s 5-year warranty (Apelo Underwater Lights are built to last)

Specifications:

• Mounting: Transom/surface
• Voltage: Multivolt™ 12 / 24V DC Nominal
• Max. Power Consumption: Blue/white 70W / 5.9A @ 12V, 2.9A @ 24V & Edge Light <5W / 0.37A @12V, 0.2A @ 24V
• Max. Light Output: 6000 lumens (white)
• Color Temperature: 5000K (white)
• Beam: 90° x 24°
• Protection: Spike protected to +500 volts; reverse polarity protected to -700 volts; IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning; High-temperature thermal cutout for out-of-water
• Cable Length: 2.5m / 8.2ft, tinned marine cable
• Ideal Depth: 100–500mm
• Ideal Width: 600–1200mm
• Lens Material: Grilamid® (premium grade, UV stable, impact resistant nylon)
• Base Material: Marine grade bronze
• Compliance: CE, UKCA, EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005, RCM

Specifications:

• Color: White/Blue
• Material: Bronze
• Box Dimensions: 5"H x 5"W x 5"L WT: 2.8 lbs
• UPC: 9416325252535

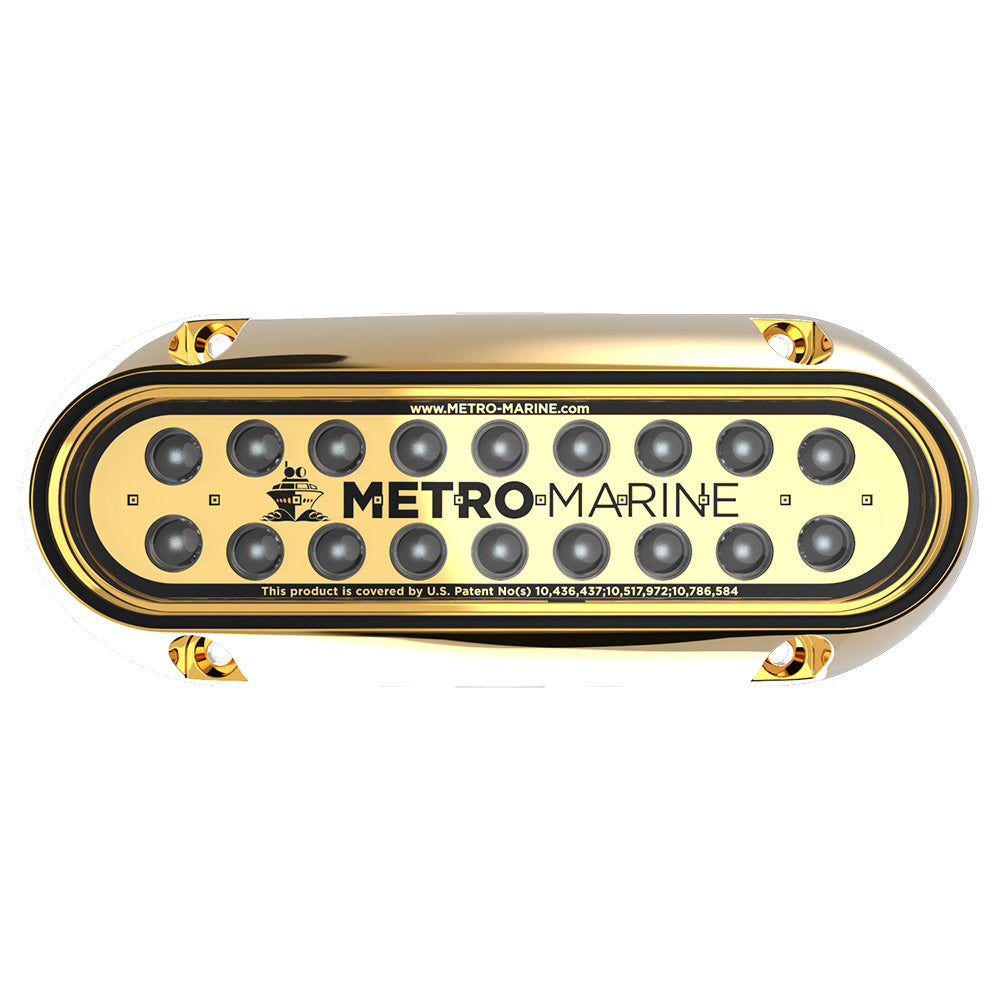

Metro Marine High-Output Elongated Underwater Light w/Intelligent Monochromatic LEDs - Aqua, 90 Beam [F-BME1-H-A3-90]

High-Output Elongated Underwater Light with Intelligent Monochromatic LED's - Aqua, 90° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant Aqua light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 18 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important.

The F-BME1-H-A3-90 is a superior underwater Aqua LED luminaire with 90° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 90°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 45.5W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 2.42 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: Aqua
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 45.5w
• Box Dimensions: 5"H x 9"W x 10"L WT: 4.85 lbs
• UPC: 850050884286

Radiance + 50" Light Bar - RGBW

The stylish versatility of the RIGID Radiance light bars just got better. Now introducing Radiance+ RBGW light bars. The latest addition to the Radiance light family provides you with the ability to toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. The RIGID Radiance+ RGBW bars are built with the same high-grade aluminum alloy housing as RIGID's legendary E-Series but include a stylish color-changing backlight.

Inside, the Radiance+ RGBW bars are feature-packed, with a black exposed circuit board and optimized forward-projecting Spot Drive optics that combine the attributes of a spot and a drive beam pattern. The Radiance+ RGBW light bars take customization to the next level. Own the night in style with Radiance+ RBGW lighting.

Features:

• 8 backlighting options (red, green, blue, light blue, purple, amber, white, or demo mode)
• Backlighting is independently controlled using switch logic.
• Fits all E-Series light covers and mounts
• Black exposed printed circuit board
• 10-year warranty
• 9-15 V DC
• Black powder coat finish
• Pressure equalizing vent
• IP68 compliant - dust and water ingress
• High-grade aluminum alloy housing and heat sink
• Over/under voltage protection
• high-impact polycarbonate lens
• Mounting brackets are included
• RFI/EMI protection
• Rohs compliant
• Off-road use only

Product Comes with:

• 50-inch Radiance+ RGBW light bar
• Harness
• Mounting brackets
• Media pack

Specifications:

• Size (inch): 50"
• Weight (Lbs): 14.00
• Optics: Spot drive
• Watts: 230
• Amp Draw: 16.4
• Raw Lumens: 21384
• Lux at 10m: 3015.09
• Beam Distance at 1Lux: 549.1
• Beam Distance at .25 Lux: 1098.2
• Peak Beam Intensity (cd): 301509
• Horizontal Beam Angle: 19.7

Specifications:

• Beam Pattern: Spot-Driving Combo
• Housing: Black
• Length (Inches): 50"
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 6"H x 7"W x 54"L WT: 17.1 lbs
• UPC: 849774034183

RIGID Industries Radiance + Curved 20" Light Bar - RGBW [320053]

Radiance + Curved 20" Light Bar - RGBW

The stylish versatility of the RIGID Radiance light bars just got better. Now introducing Radiance+ Curved RBGW light bars. The latest addition to the Radiance light family provides the ability to toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. The RIGID Radiance+ Curved RGBW bars are built with the same high-grade aluminum alloy housing as RIGID's legendary RDS-Series but include a stylish color-changing backlight.

Inside, the Radiance+ Curved RGBW bars are feature-packed, with a black exposed circuit board and optimized forward-projecting Spot Drive optics that combine the attributes of a spot and a drive beam pattern. The Radiance+ Curved RGBW light bars take the customization of your vehicle to the next level. Own the night in style with Radiance+ RBGW lighting.

Features:

• 8 backlighting options (red, green, blue, light blue, purple, amber, white, or demo mode)
• Backlighting is independently controlled using switch logic.
• Fits All RDS-Series Light Covers And Mounts
• Black exposed printed circuit board
• 10-year warranty
• 9-15 V DC
• Black powder coat finish
• Pressure equalizing vent
• IP68 compliant - dust and water ingress
• High-grade aluminum alloy housing and heat sink
• Over/under voltage protection
• high-impact polycarbonate lens
• Mounting brackets are included
• RFI/EMI protection
• Rohs compliant
• Off-road use only

Product Comes with:

• 20-inch Radiance+ RGBW light bar
• Harness
• Mounting brackets
• Media pack

Specifications:

• Size (inch): 20"
• Weight (Lbs): 6.30
• Optics: Spot drive
• Watts: 46
• Amp Draw: 5.4
• Raw Lumens: 7128

Specifications:

• Beam Pattern: Spot-Driving Combo
• Housing: Black
• Length (Inches): 20"
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 5"H x 9"W x 24"L WT: 8.85 lbs
• UPC: 849774034190
