225° Double Masthead Light - 6NM - Silver Housing

The double LED light consists of two (2) individual lights which can be activated separately. One is dedicated as the primary, the other the secondary. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within. The interior is completely filled with a special potting resin making it water and vibration-proof.

Specifications:

• Light Color: White
• Dimensions Metric (mm): 92 diameter, 5mm x 128mm
• Dimensions Imperial (inch): 3.6" diameter x 5"
• Certification: This Navigation Light is certified by DNV
• Intensity: >94cd
• Approved to: COLREG72, EN14744, IEC, 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR
• Visibility: 6 Nautical miles
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum 25u PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438007086
• IP Rating: IP68
• Power Draw (W): 13
• Connection: Plug connector
• Current Consumption (mA @ 12VDC): 0

Specifications:

• Housing: Silver
• Lens Color: White
• Visible Range (Miles): 6
• Voltage - Input Range (Volts): 20-32
• Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs

Series 301-101 - Starboard Sideight - 3NM - Vertical Mount - Green - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Single Light - Starboard

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - Green
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 13.40oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• Lens Color: Green
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.85 lbs

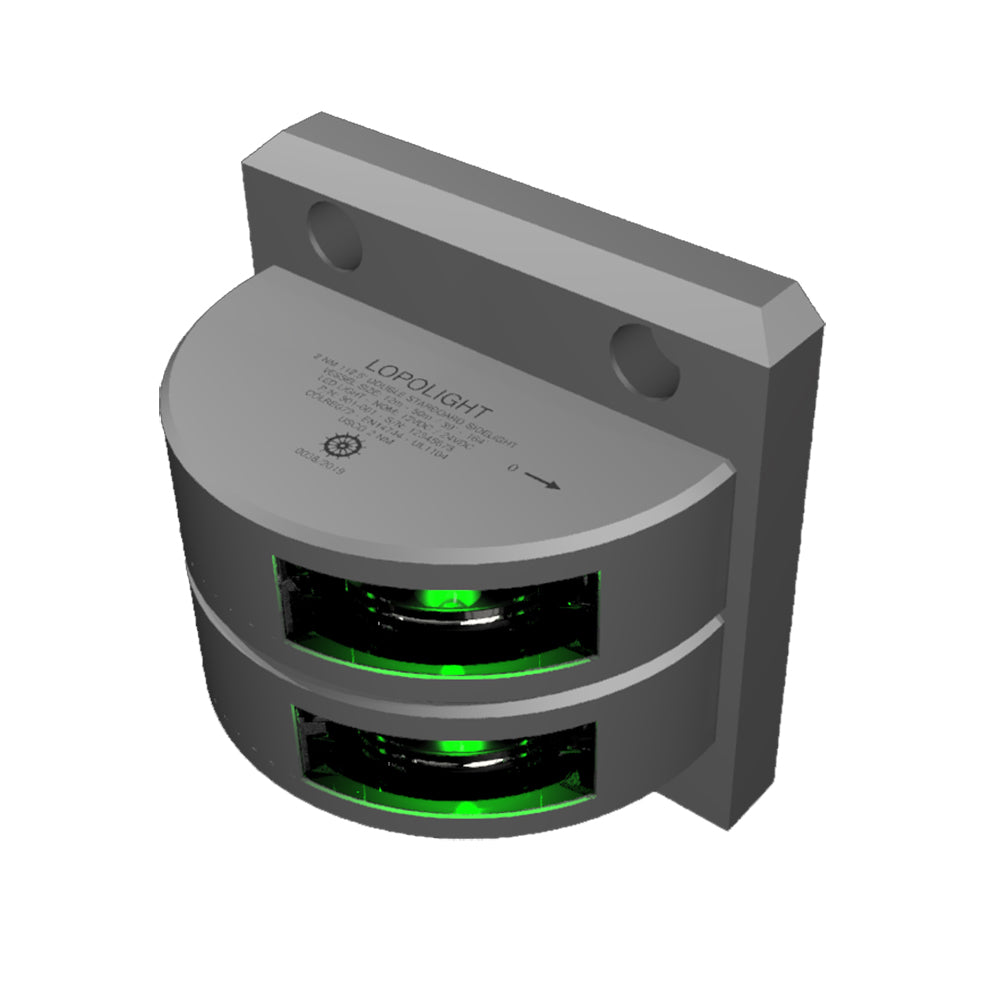

Lopolight Series 301-001 - Double Stacked Starboard Sidelight - 2NM - Vertical Mount - Green - Silver Housing  [301-001ST]

Series 301-001 - Double Stacked Starboard Sidelight - 2NM - Vertical Mount - Green - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Starboard

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (Up to 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Green
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 34.92oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: Green
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 6"W x 8"L WT: 2.25 lbs
• UPC: 879343010355

Quick Guide (pdf)
Brochure (pdf)

Series 301-109 - Double Stacked Navigation Light - 3NM - Horizontal Mount - Red - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Stacked Light - Navigation

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Red
• Mounting - Horizontal
• Materials -  Anodized aluminum
• Connection - Plug connector
• IP rating - IP68
• Weight - 46.91oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/Plug connector
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: Red
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 6"W x 8"L WT: 3.1 lbs

Series 301-106 - Stern Light - 3NM - Vertical Mount - White - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Single Light - Stern

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - White
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 15.17oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: White
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.85 lbs

Series 301-106 - Double Stacked Stern Light - 3NM - Vertical Mount -White - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Stern

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - White
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 34.92oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Voltage - Input Range (Volts): 10 - 32
• Housing: Black
• Lens Color: White
• Visible Range (Miles): 3NM
• LED: Yes

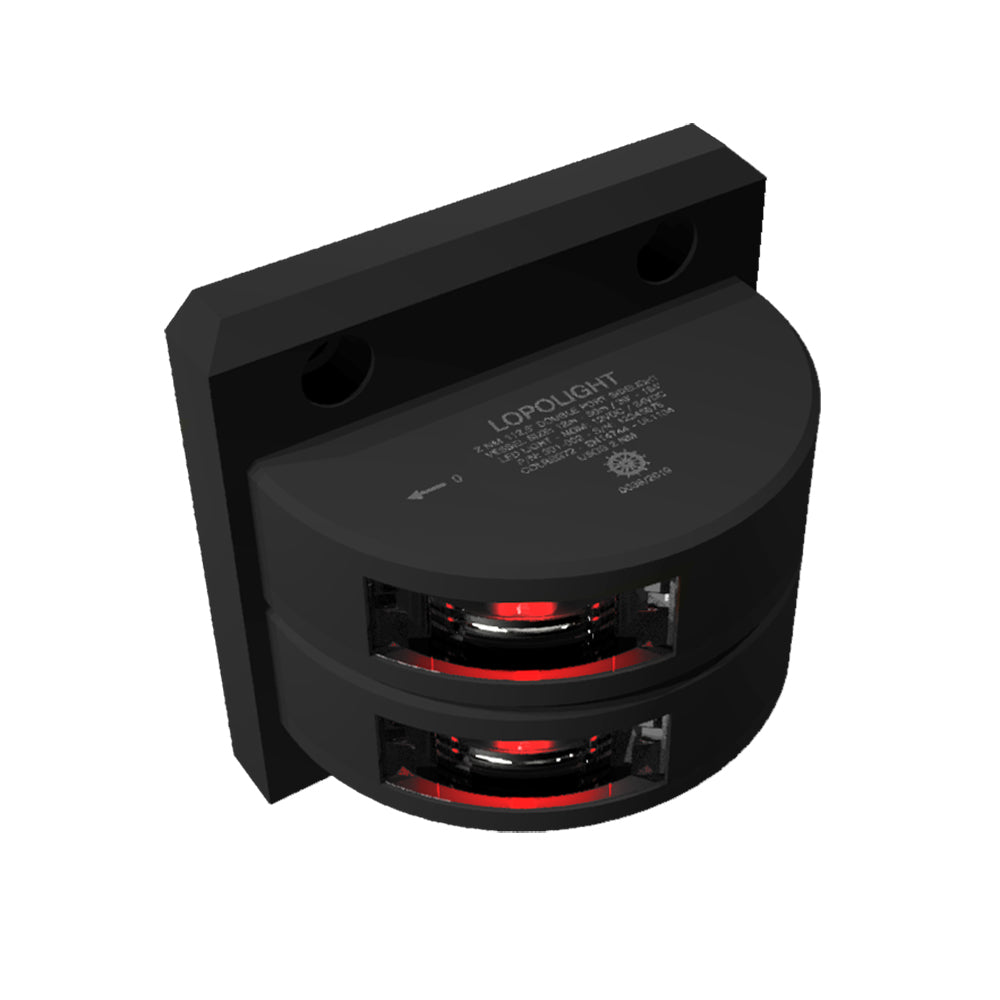

Lopolight Series 301-002 - Double Stacked Port Sidelight - 2NM - Vertical Mount - Red - Black Housing [301-002ST-B]

Series 301-002 - Double Stacked Port Sidelight - 2NM - Vertical Mount - Red - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Port

Technical Specifications:

• Visibility - 2NM
• Vessel size - Up to 164' (Up to 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Red
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 35.62oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• Lens Color: Red
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 6"W x 8"L WT: 2.35 lbs
• UPC: 879343012816

Quick Guide (pdf)
Brochure (pdf)

Series 301-101 - Starboard Sideight - 3NM - Vertical Mount - Green - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Single Light - Starboard

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - Green
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 13.40oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: Green
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.85 lbs
• UPC: 879343013141
