Lighting - Navigation Lights

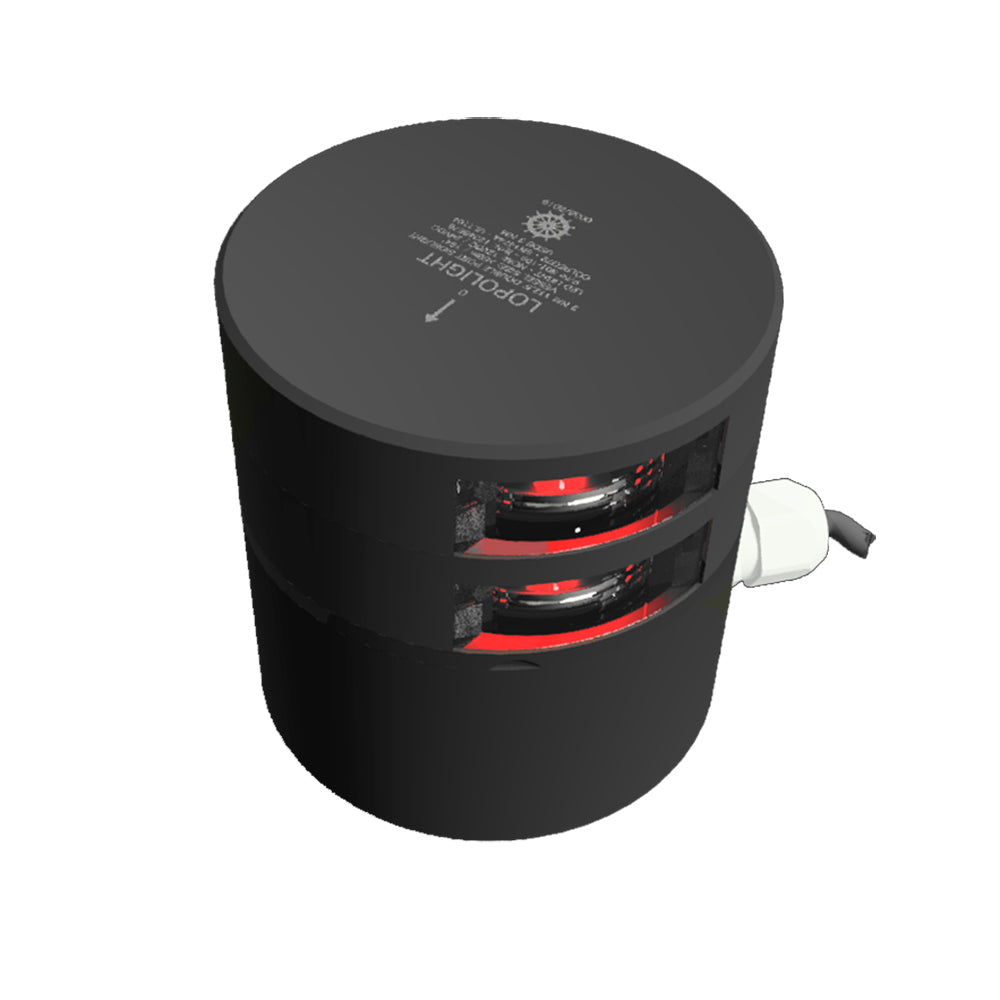

Series 301-109 - Double Stacked Navigation Light - 3NM - Horizontal Mount - Red - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Stacked Light - Navigation

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Red
• Mounting - Horizontal
• Materials -  Anodized aluminum
• Connection - Plug connector
• IP rating - IP68
• Weight - 46.91oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/Plug connector
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• Lens Color: Red
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes

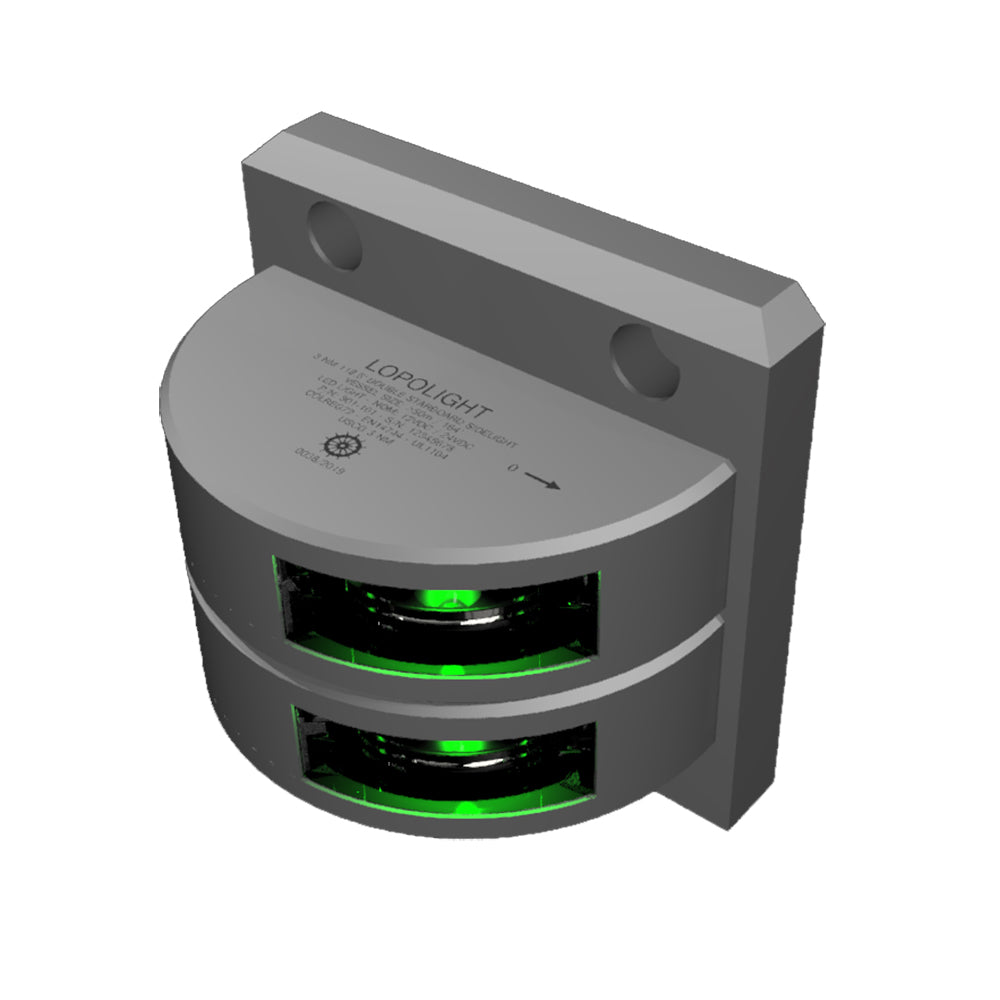

Series301-101 - Double Stacked Starboard Sidelight - 3NM - Vertical Mount - Green - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Starboard

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Green
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 34.92oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: Green
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes

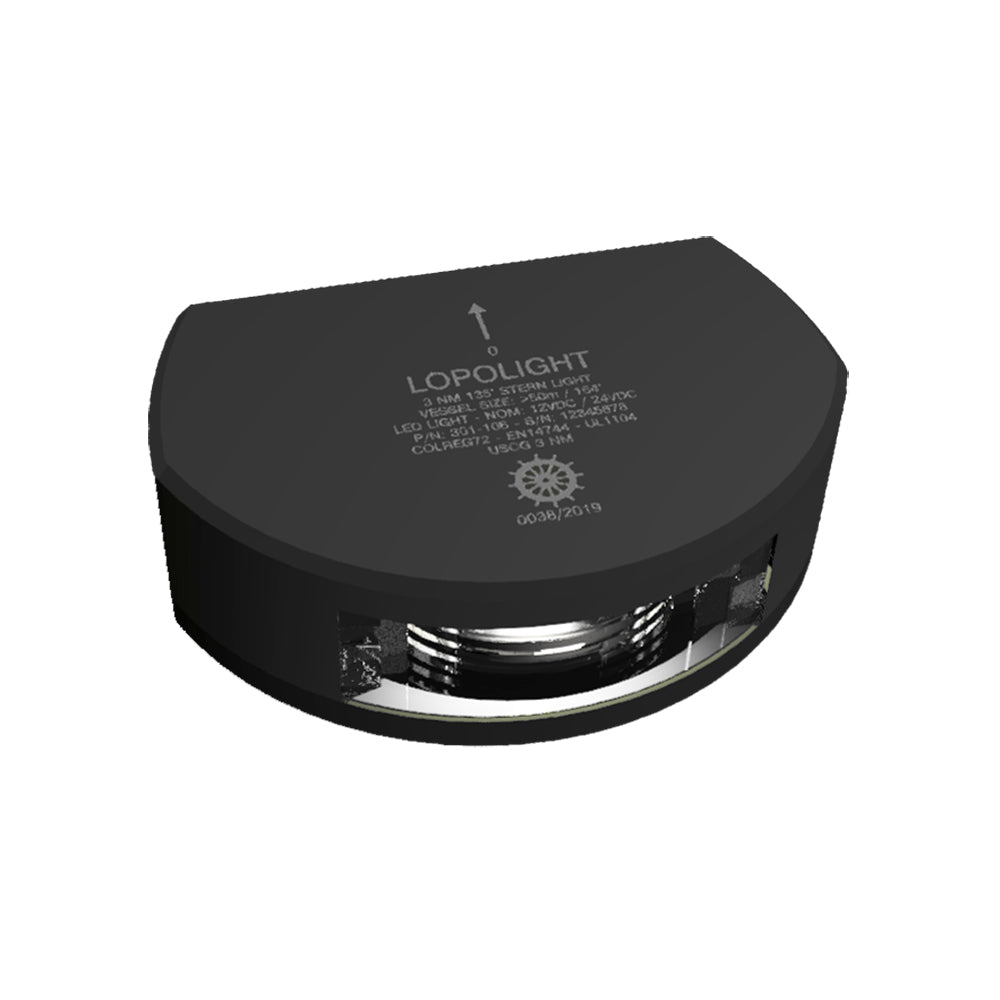

Series 301-106 - Stern Light - 3NM - Vertical Mount - White - Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Single Light - Stern

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - White
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 15.17oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Black
• Lens Color: White
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.95 lbs
• UPC: 879343010645

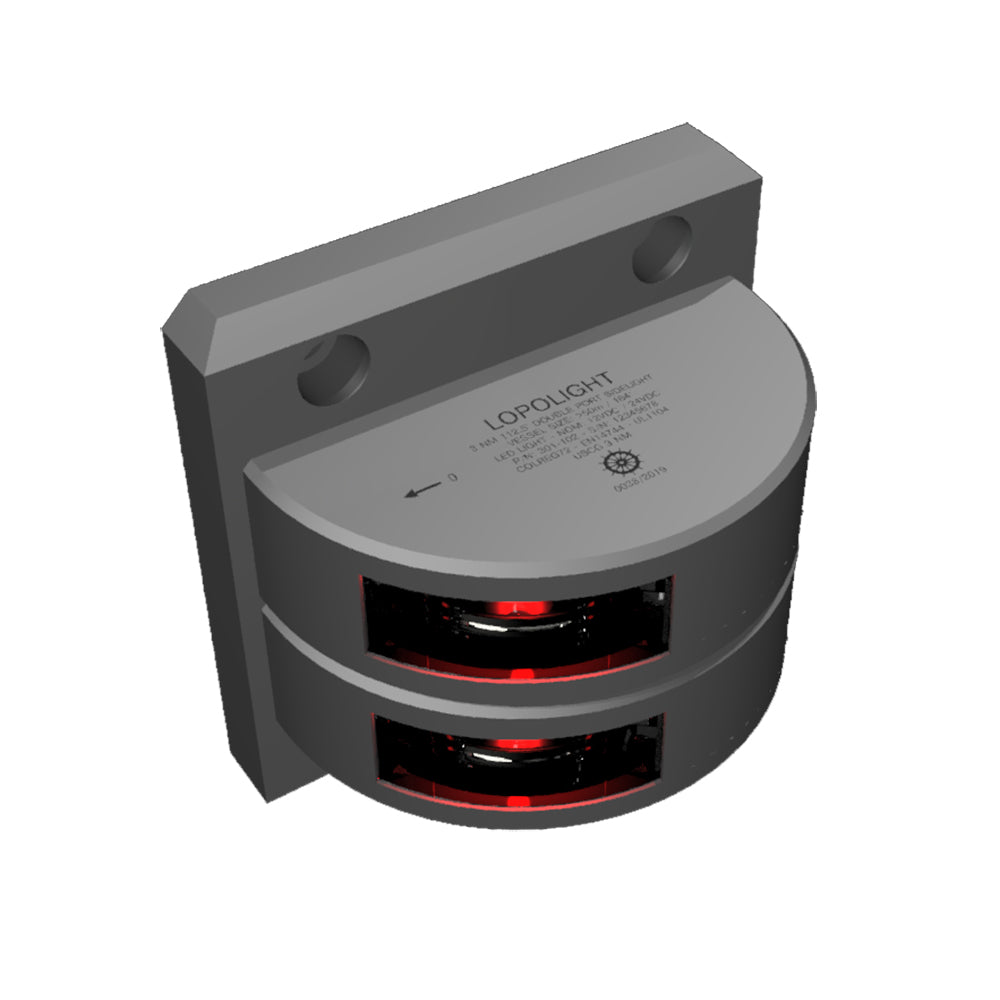

Series 301-102 - Double Stacked Port Sidelight - 3NM - Vertical Mount - Red - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Port

Technical Specifications:

• Visibility - 3NM
• Vessel size - Over 164' (Over 50M)
• Operating Voltage - 10 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - Red
• Mounting - Vertical
• Materials - Anodized aluminum
• Connection - 8.2' (2.5M) cable
• IP rating - IP68
• Weight - 34.92oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/8.2' (2.5M) cable
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Housing: Silver
• Lens Color: Red
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• LED: Yes

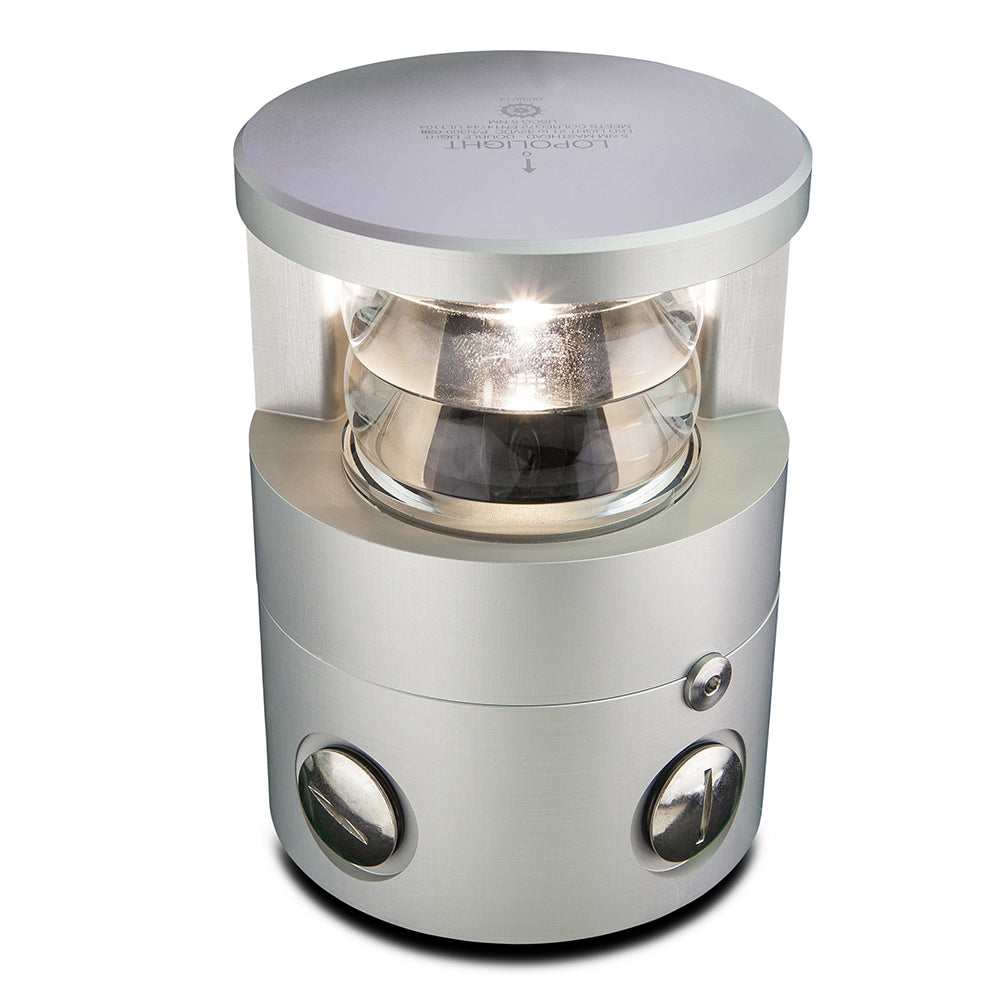

Series 300-038 - Double Stacked Masthead Light - 5NM - Horizontal Mount - White - Silver Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Double Light - Masthead

Technical Specifications:

• Visibility - 5NM
• Vessel size - 65.62' to 164' (20 to 50M)
• Operating Voltage - 20 - 32 VDC
• Number of LED Bulbs - 2
• Light Color - White
• Mounting - Horizontal
• Materials - Anodized aluminum
• Connection - Plug connector
• IP rating - IP68
• Weight - 52.20oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/Plug connector
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Visible Range (Miles): 5NM
• Lens Color: White
• Housing: Silver
• Voltage - Input Range (Volts): 20 - 32
• LED: Yes
• Box Dimensions: 5"H x 7"W x 9"L WT: 3.4 lbs

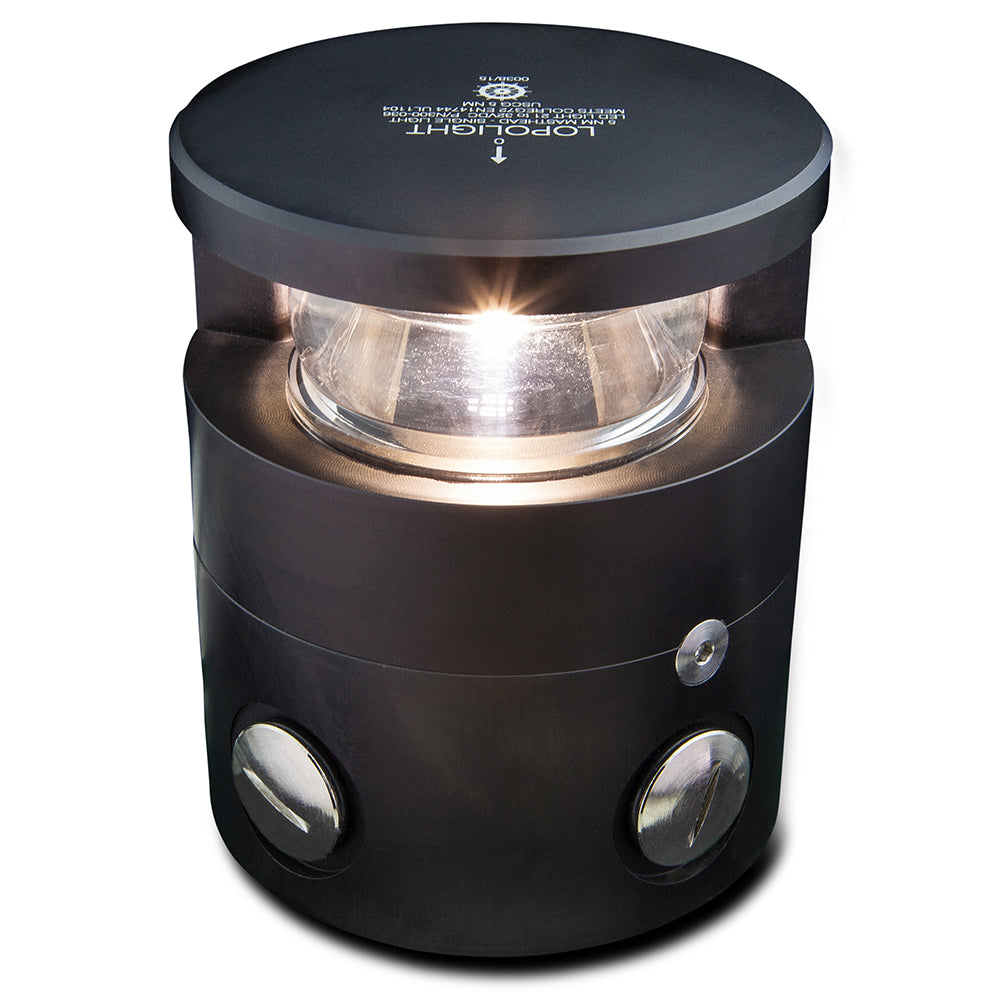

Series 300-036 - Masthead Light - 5NM - Horizontal Mount - White -Black Housing

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.

Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant,  compact and precise solution with good value for money.

Features:

• Single Light - Masthead

Technical Specifications:

• Visibility - 5NM
• Vessel size - 65.62' to 164' (20 to - 50M)
• Operating Voltage - 20 - 32 VDC
• Number of LED Bulbs - 1
• Light Color - White
• Mounting - Horizontal
• Materials - Anodized aluminum
• Connection - Plug Connector
• IP rating - IP68
• Weight - 46.56oz

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/Plug Connector
• Mounting hardware
• Installation guide

*Sold as an Individual

Specifications:

• Lens Color: White
• Visible Range (Miles): 5NM
• Housing: Black
• Voltage - Input Range (Volts): 20 - 32
• LED: Yes
• Box Dimensions: 6"H x 8"W x 9"L WT: 3.2 lbs

Lopolight 3nm Double Stacked Ice-Class 360 Degree - Red Light [300-114G2ST-PRO-I]

Ships Direct From Manufacturer

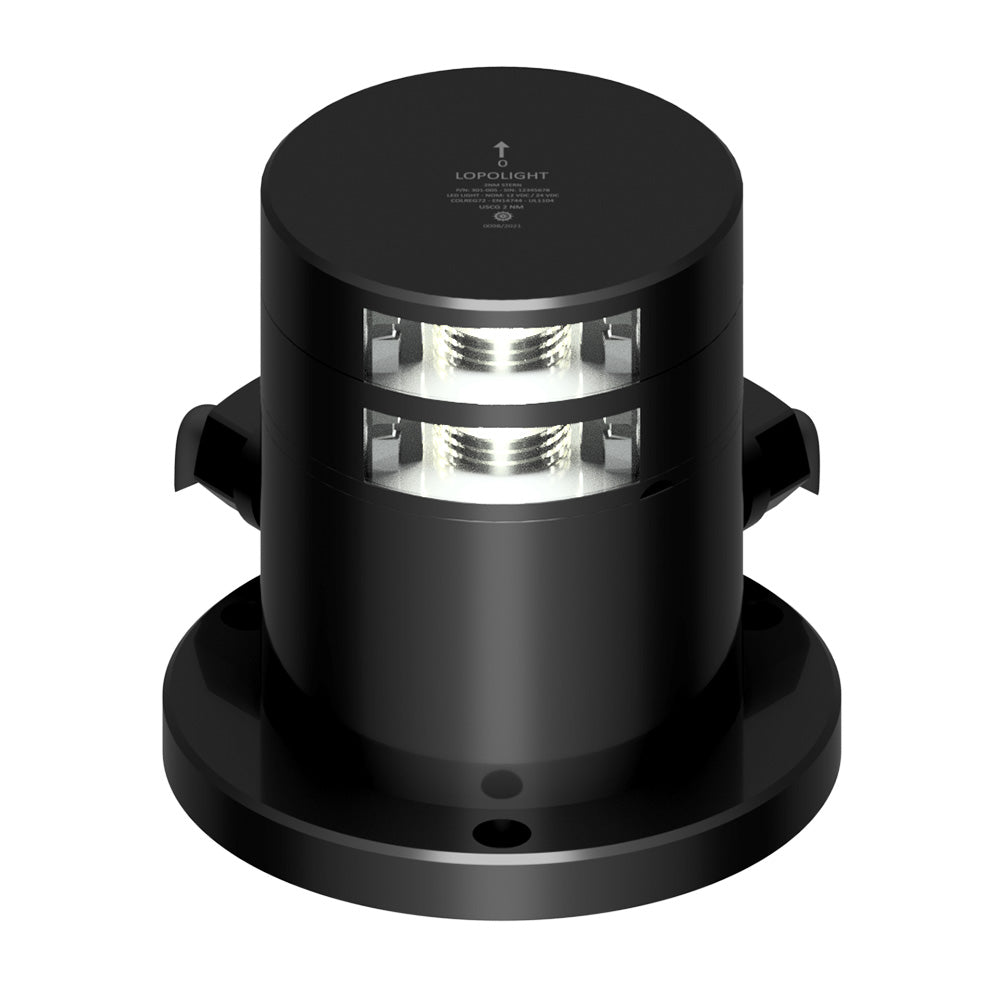

3nm Double Stacked Ice-Class Stern Light - Black

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Includes HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable diameter

Specifications:

• Light Color: White
• Dimensions metric: Ø92,5mm x 125,5mm
• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support<
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 4.9"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Included In Package: 1 Navigation light,2 Mounting screws (M6 * 8 mm), Installation guide
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• IP rating: IP68
• Power draw (W): 2W (normal), 19W (in de-icing mode, light on)
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 130
• Current consumption (mA @ 24VDC): 72
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.4 Kg
• Weight (Oz): 49.38 Oz

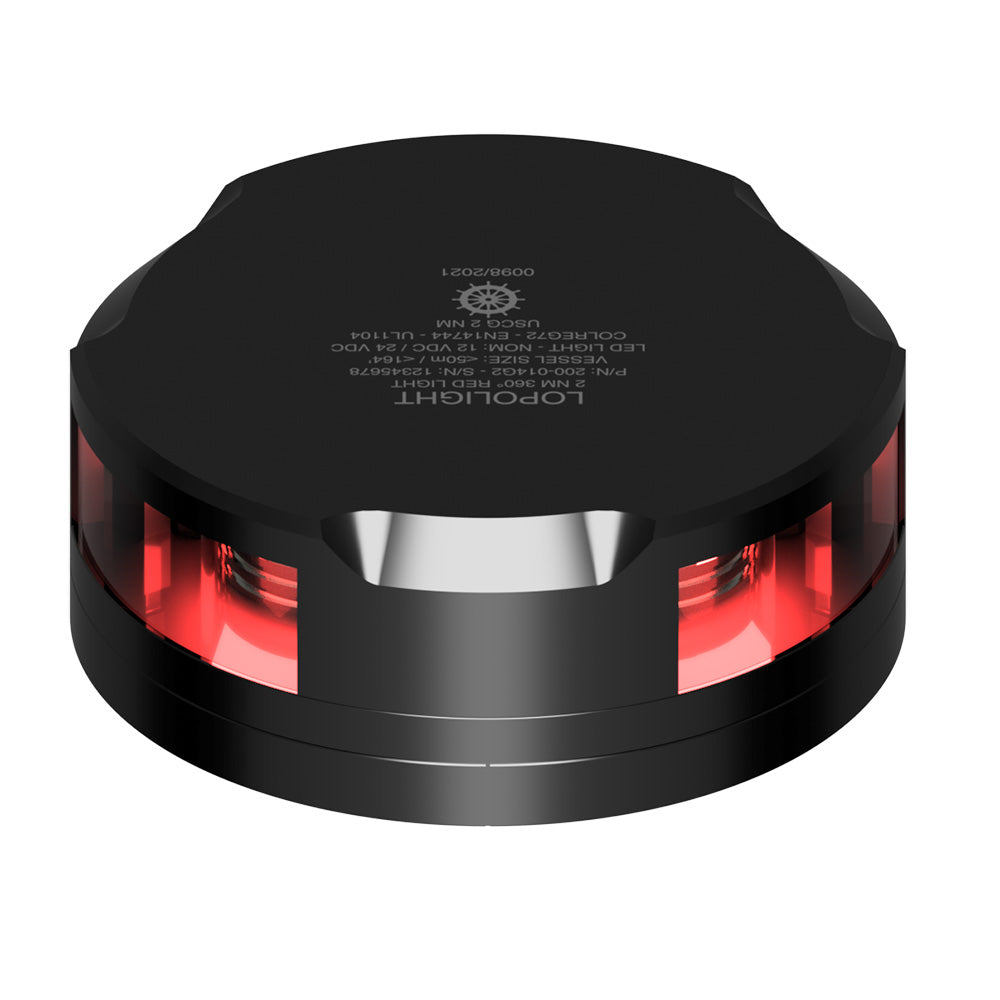

Lopolight 360-Degree Red Nav Light - 2NM - Black Housing w/FB Base [201-014-FB-B]

360-Degree Red Nav Light - 2NM - Black Housing with FB Base

This red 360-degree navigation light has a black housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043015
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 85
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.1
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

• Housing: Black
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)
